TOW mode should be used when pulling a
heavy trailer or hauling a heavy load. Driv-
ing the vehicle in the TOW mode with no
trailer/load or light trailer/light load will not
cause

any

damage.

However,

fuel

economy

may

reduced,

and

the

transmission/engine driving characteris-
tics may feel unusual.

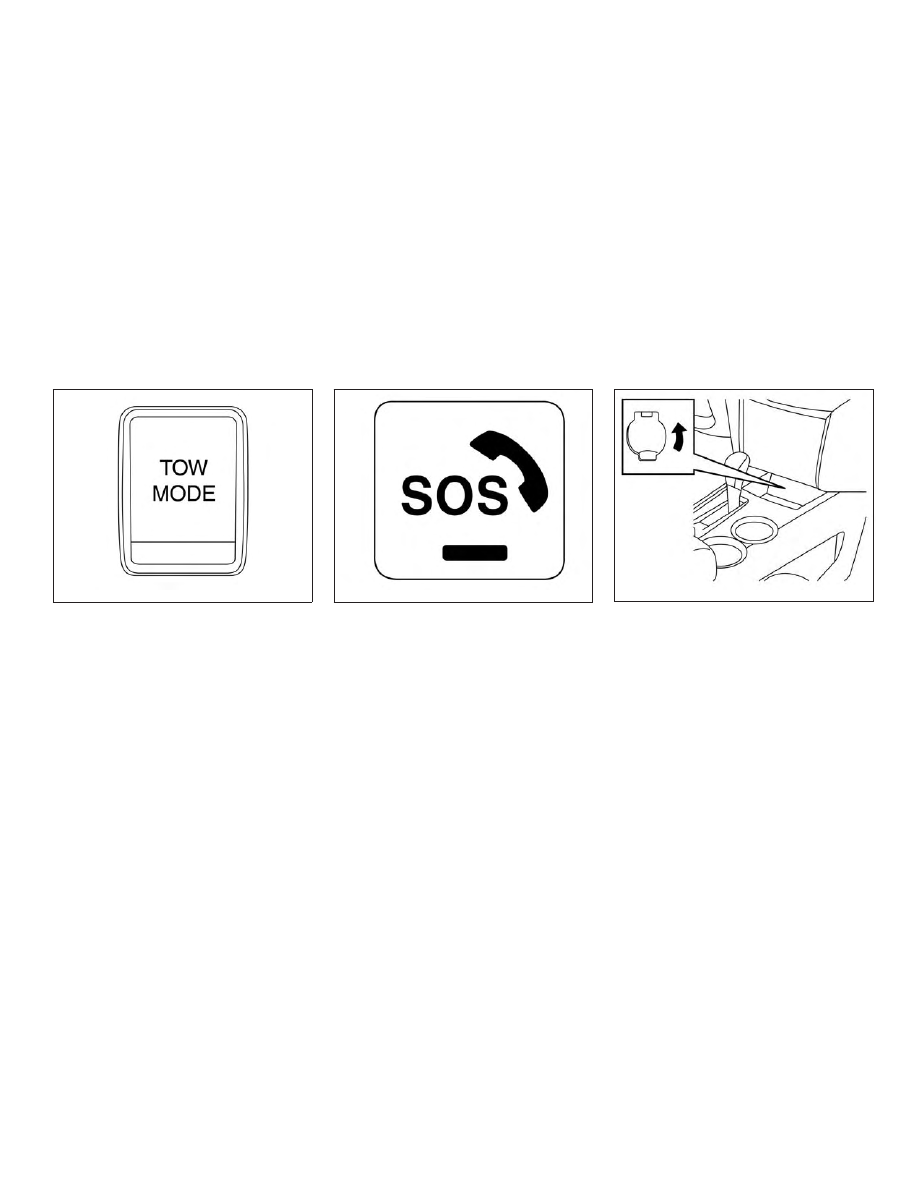

Push the TOW mode switch to activate
TOW mode. The indicator light on the in-
strument panel illuminates when TOW
mode is selected. Push the TOW mode
switch again to turn TOW mode OFF.

TOW mode is automatically canceled when the
ignition switch is placed in the OFF position.

The E-call (SOS) switch is used in combina-
tion with a NissanConnect

Services sub-

scription to call for assistance in case of an
emergency.

Pushing the switch will (with a paid sub-
scription) reach a response specialist that
will provide assistance based on the situa-
tion described by the vehicle’s occupant.
For additional information, or to enroll your
vehicle,

refer

www.NissanUSA.com/

connect or call 855–426–6628.

12V OUTLETS

The power outlets are for powering electri-
cal accessories such as cellular tele-
phones. They are rated at 12 volt, 120W (10A)
maximum.

The instrument panel and center console
power outlets are powered only when the
ignition switch is in the ACC or ON position.

LIC3343

LIC3357

Instrument Panel

LIC3345

TOW MODE SWITCH

E-CALL (SOS) SWITCH (if so
equipped)

POWER OUTLETS

Instruments and controls

2-53

CAUTION

∙ The outlet and plug may be hot during

or immediately after use.

∙ Only certain power outlets are de-

signed for use with a cigarette lighter
unit. Do not use any other power out-
let for an accessory lighter. It is rec-
ommended that you visit a NISSAN
dealer for additional information.

∙ Do not use with accessories that ex-

ceed a 12 volt, 120W (10A) power draw.

∙ Do not use double adapters or more

than one electrical accessory.

∙ Use power outlets with the engine

running to avoid discharging the ve-
hicle battery.

∙ Avoid using power outlets when the

air conditioner, headlights, or rear
window defroster is on.

∙ Before inserting or disconnecting a

plug, be sure the electrical accessory
being used is turned off.

∙ Push the plug in as far as it will go. If

good contact is not made, the plug
may overheat or the internal tem-
perature fuse may open.

∙ When not in use, be sure to close the

cap. Do not allow water or any other
liquid to contact the outlet.

Center Console (if so equipped)

LIC3737

Cargo Area (if so equipped)

LIC2236

2-54

Instruments and controls

120V OUTLET (if so equipped)

CAUTION

∙ The outlet and plug may be hot during

or immediately after use.

∙ Use power outlets with the engine

running to avoid discharging the ve-
hicle battery.

∙ Do not use double adaptors or more

than one electrical accessory.

∙ Avoid using power outlets when the

air conditioner, headlights or rear win-
dow defroster is on.

∙ Before inserting or disconnecting a

plug, be sure the electrical accessory
being used is turned off.

∙ Push the plug in as far as it will go. If

good contact is not made, the plug
may overheat or the internal tem-
perature fuse may open.

∙ When not in use, be sure to close the

cap. Do not allow water or any other
liquid to contact the outlet.

The extended storage switch is used when
the vehicle is in transit from the factory. It is
located in the fuse panel to the left of the
steering wheel on the instrument panel. If
any electrical equipment does not operate,
ensure the extended storage switch is
pushed fully in place, as shown.

2nd Row

LIC2407

LDI2758

EXTENDED STORAGE SWITCH

Instruments and controls

2-55

FRONT-DOOR POCKETS

Pulled position

LIC3266

Pushed position

LIC3268

LIC3546

STORAGE

2-56

Instruments and controls

CONSOLE SIDE POCKETS

SEATBACK POCKETS

There is one seatback pocket located on
the back of the driver and passenger seats.
The pockets can be used to store maps.

WARNING

To ensure proper operation of the pas-
senger’s NISSAN Advanced Air Bag Sys-
tem,

please

observe

the

following

items:

∙ Do not allow a passenger in the rear

seat to push or pull on the seatback
pocket or head restraint/headrest.

∙ Do not place heavy loads heavier than

2.2 lbs. (1 kg) on the seatback, head
restraint/headrest or in the seatback
pocket.

LIC2392

LIC2618

Instruments and controls

2-57

STORAGE TRAYS

WARNING

Do not place sharp objects in the trays
to help prevent injury in an accident or
sudden stop.

GLOVE BOX

Open the glove box by pulling the handle.
Use the master key when locking or un-
locking the glove box.

WARNING

Keep glove box lid closed while driving
to help prevent injury in an accident or a
sudden stop.

Front console

LIC3282

Rear armrest

LIC2214

LIC3003

2-58

Instruments and controls

CONSOLE BOX

To open the console box, press in on the
lever

䊊

and raise the lid

䊊

To close, push the lid down until the lock
latches.

Upper half

Pull up on the driver’s side latch to open the
upper half of the console box.

The upper half of the console box may be
used for storage of cellular phones. An ac-
cess hole is provided at the front of the
upper half of the console box for a phone or
iPod® cord routing to the power outlet.

Lower half

Pull up on the passenger’s side latch to
open the lower half of the console box. A
power outlet is located inside the console
box and there is storage for compact discs.

OVERHEAD SUNGLASSES
STORAGE

To open the sunglasses holder, push and
release.

Only store one pair of sunglasses in the
holder.

WARNING

Keep the sunglasses holder closed
while driving to avoid obstructing the
driver’s view and to help prevent an
accident.

LIC1026

LIC0702

LIC2312

Instruments and controls

2-59

CAUTION

∙ Do not use for anything other than

sunglasses.

∙ Do not leave sunglasses in the sun-

glasses holder while parking in direct
sunlight. The heat may damage the
sunglasses.

CUP HOLDERS

Front console

LIC3486

Rear door

LIC2395

2-60

Instruments and controls

WARNING

Do not recline the rear seatback when
you use the cup holders on the rear
armrest. Doing so may cause the bever-
ages to spill over, and if they are hot,
they may scald the passengers.

WARNING

Avoid abrupt starting and braking
when the cup holder is being used to
prevent spilling the drink. If the liquid is
hot, it can scald you or your passenger.

CAUTION

Use only soft cups in the cup holder.
Hard objects can injure you in an
accident.

CAUTION

∙ Do not use bottle holder for any other

objects that could be thrown about in
the vehicle and possibly injure people
during sudden braking or an accident.

∙ Do not use bottle holder for open liq-

uid containers.

2nd row

LIC2212

3rd row

LIC2242

Bottle holder — front

LIC2393

Instruments and controls

2-61

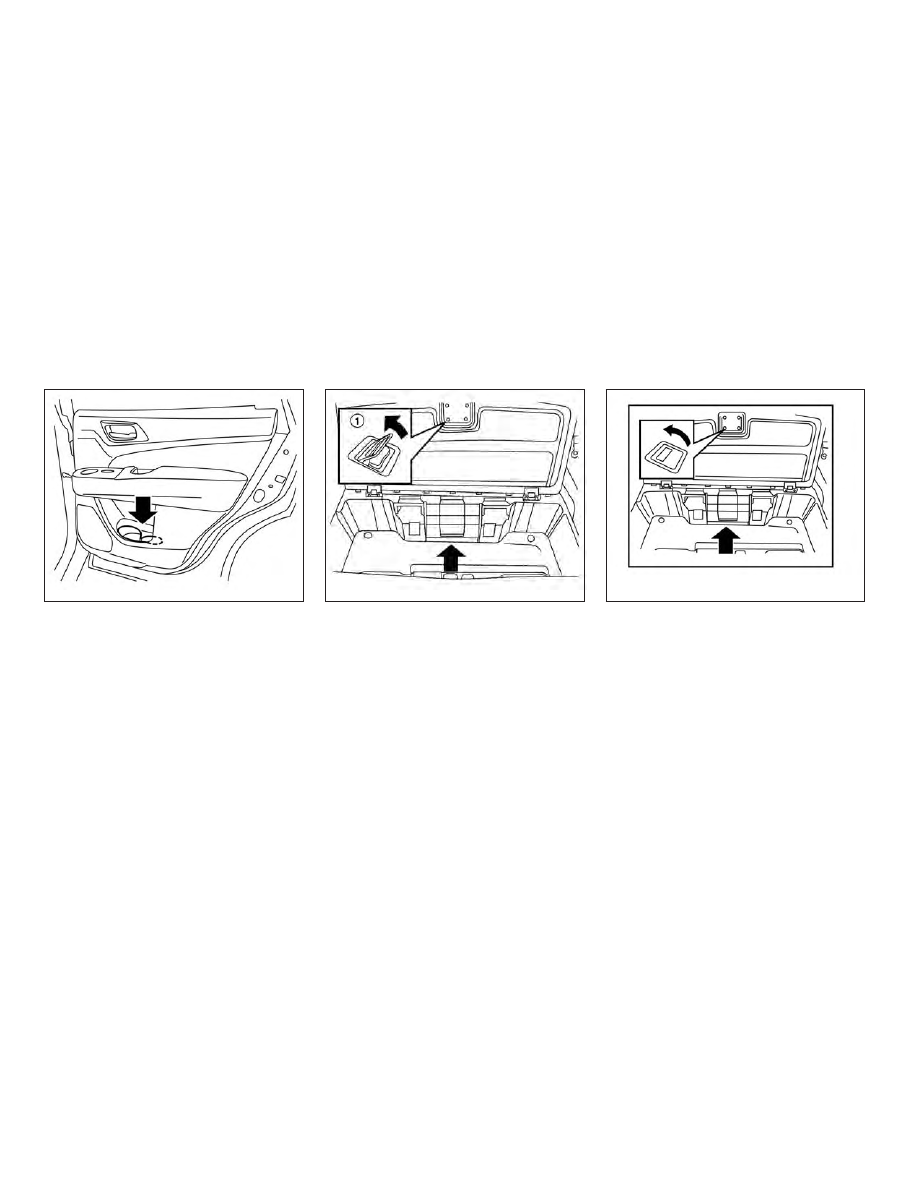

CARGO AREA STORAGE BIN

To access the floor storage area (Type A),
push down

䊊

to raise the handle, then pull

up on the handle to lift the luggage board.

To access the floor storage area (Type B),
raise the handle.

Bottle holder — rear

LIC2394

Type A (if so equipped)

LIC2244

Type B (if so equipped)

LIC3513

2-62

Instruments and controls

LUGGAGE HOOKS

When securing items using luggage hooks
located on the side finisher do not apply a
load over more than 6.5 lbs. (29 N) to a
single hook.

The luggage hooks that are located on the
floor should have loads less than 110 lbs.
(490 N) to a single hook.

The luggage hooks can be used to secure
cargo with ropes or other types of straps.

WARNING

∙ Properly secure all cargo with ropes or

straps to help prevent it from sliding
or shifting. Do not place cargo higher
than the seatbacks. In a sudden stop
or collision, unsecured cargo could
cause personal injury.

∙ Use suitable ropes and hooks to se-

cure cargo.

∙ Never allow anyone to ride in the lug-

gage area. It is extremely dangerous
to ride in a cargo area inside of a ve-
hicle. In a collision, people riding in
these areas are more likely to be seri-
ously injured or killed.

∙ Do not allow people to ride in any area

of your vehicle that is not equipped
with seats and seat belts.

∙ The child restraint top tether strap

may be damaged by contact with
items in the cargo area. Secure any
items in the cargo area. Your child
could be seriously injured or killed in a
collision if the top tether strap is
damaged.

∙ Be sure everyone in your vehicle is in a

seat and using a seat belt properly.

ROOF RACK (if so equipped)

Do not apply any load directly to the roof
side rails. Cross bars must be installed be-
fore applying load/cargo/luggage to the
roof of the vehicle. Genuine NISSAN acces-
sory cross bars are available through a
NISSAN dealer. It is recommended that you
visit a NISSAN dealer for additional informa-
tion.

The service load capacity for the roof side
rails is 165 lbs. (74 kg), however do not ex-
ceed the accessory cross bars load capac-
ity.

LIC3684

LIC2386

Instruments and controls

2-63

Be careful that your vehicle does not ex-
ceed the Gross Vehicle Weight Rating
(GVWR) or its Gross Axle Weight Rating
(GAWR front and rear). The GVWR and GAWR
are located on the F.M.V.S.S. or C.V.M.S.S. cer-
tification label (located on the driver’s door
pillar). For additional information regarding
GVWR and GAWR, refer to “Vehicle loading
information” in the “Technical and con-
sumer information” section of this manual.

WARNING

∙ Always install the cross bars onto the

roof side rails before loading cargo of
any kind. Loading cargo directly onto
the roof side rails or the vehicle’s roof
may cause vehicle damage.

∙ Drive extra carefully when the vehicle

is loaded at or near the cargo carrying
capacity, especially if the significant
portion of that load is carried on the
cross bars.

∙ Heavy loading of the cross bars has

the potential to affect the vehicle sta-
bility and handling during sudden or
unusual handling maneuvers.

∙ Roof rack cross bars should be evenly

distributed.

∙ Do not exceed maximum roof rack

cross bars load capacity.

∙ Properly secure all cargo with ropes or

straps to help prevent it from sliding
or shifting. In a sudden stop or colli-
sion, unsecured cargo could cause
personal injury.

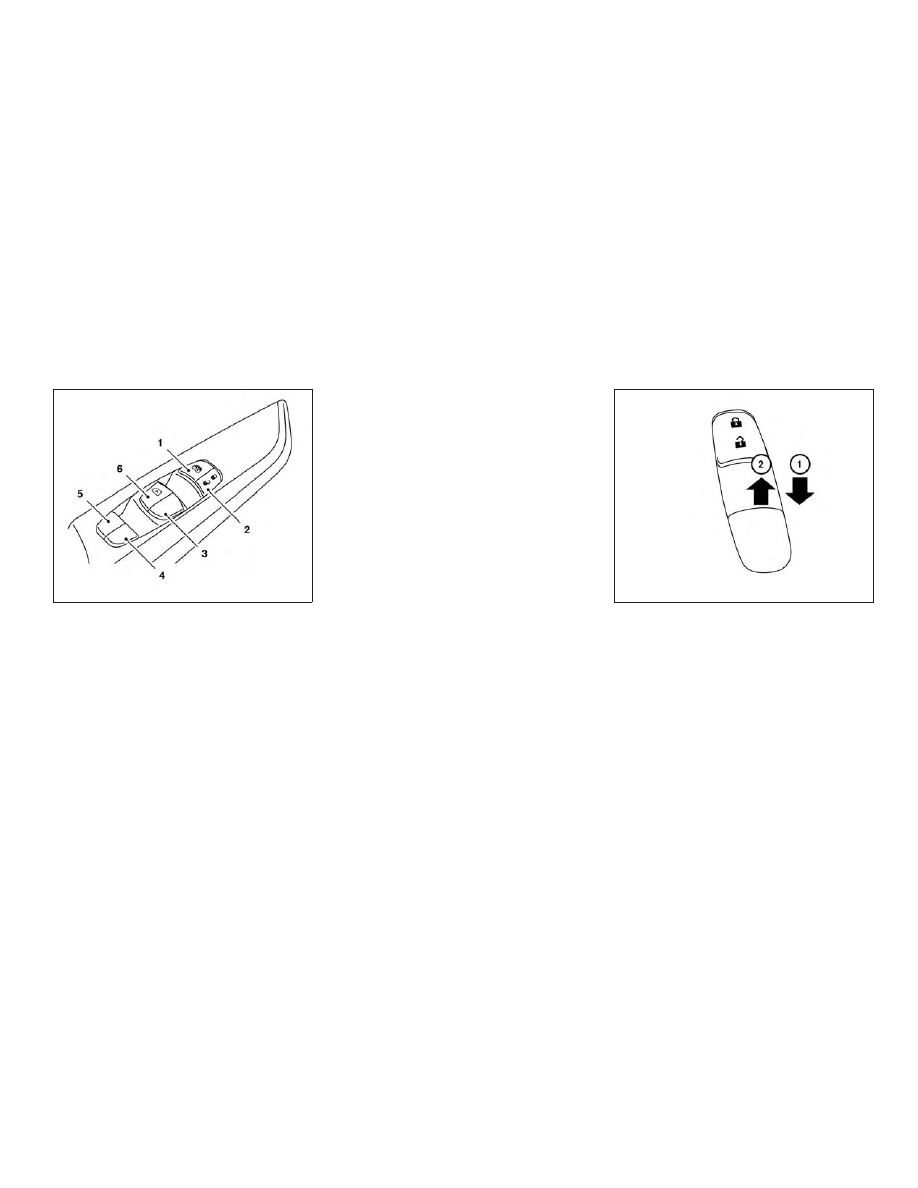

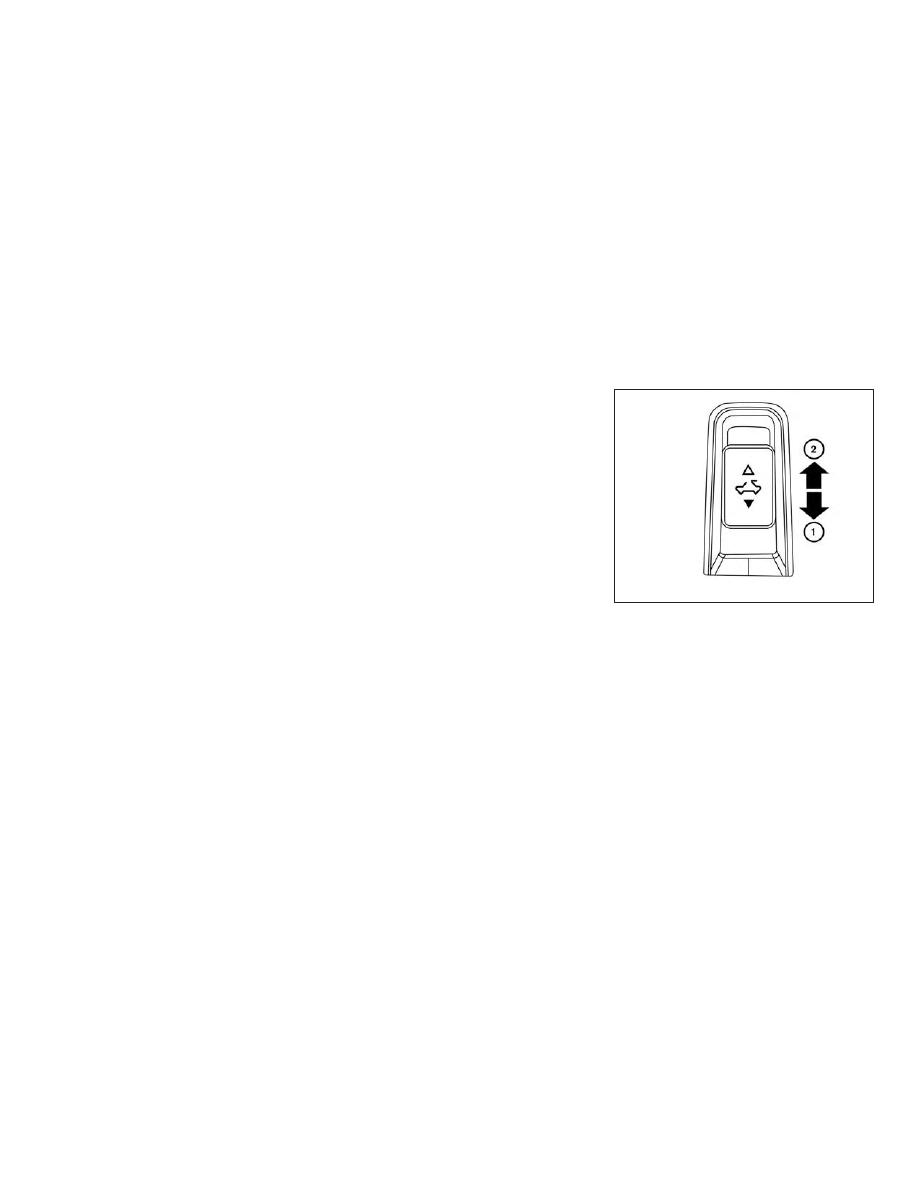

POWER WINDOWS

WARNING

∙ Make sure that all passengers have

their hands, etc. inside the vehicle
while it is in motion and before closing
the windows. Use the window lock
switch to prevent unexpected use of
the power windows.

∙ To help avoid risk of injury or death

through unintended operation of the
vehicle and/or its systems, including
entrapment in windows or inadver-
tent door lock activation, do not leave
children, people who require the as-
sistance of others or pets unattended
in your vehicle. Additionally, the tem-
perature inside a closed vehicle on a
warm day can quickly become high
enough to cause a significant risk of
injury or death to people and pets.

The power windows operate when the ig-
nition switch is placed in the ON position, or
for a period of time after the ignition switch
is placed in the OFF position. If the driver’s
or passenger’s door is opened during this
period of time, the power to the windows is
canceled.

WINDOWS

2-64

Instruments and controls

Window lock button

Power door lock switch

Front passenger side switch

Right rear passenger side switch

Left rear passenger side switch

Driver’s side automatic switch

Driver’s side power window
switch

The driver’s side control panel is equipped
with switches to open or close all of the
windows.

To open a window, push the switch to the
detent and continue to hold down until the
desired window position is reached. To
close a window, pull the switch to the de-
tent and continue to hold up until the de-
sired window position is reached.

Locking passengers’ windows

When the window lock switch is depressed,
only the driver’s side window can be
opened or closed. Push it again to cancel
the window lock function.

Front passenger’s power window
switch

The passenger’s window switch operates
only the corresponding passenger’s win-
dow. To open the window partially, push the
switch down

䊊

lightly until the desired

window position is reached. To close the
window partially, pull the switch up

䊊

until

the desired window position is reached.

LIC3208

LIC2309

Instruments and controls

2-65

Rear power window switch

The rear power window switches open or
close only the corresponding windows. To
open the window, push the switch and hold
it down

䊊

. To close the window, pull the

switch up

䊊

Automatic operation (if so
equipped)

To fully open a window equipped with au-
tomatic

operation,

press

the

window

switch down to the second detent and re-
lease it; it need not be held. The window
automatically opens all the way. To stop
the window, lift the switch up while the win-
dow is opening.

Auto-reverse function (if so
equipped)

The auto-reverse function can be acti-
vated when a window is closed by auto-
matic operation.

Depending on the environment or driv-
ing conditions, the auto-reverse func-
tion may be activated if an impact or
load similar to something being caught
in the window occurs.

WARNING

There are some small distances imme-
diately before the closed position which
cannot be detected. Make sure that all
passengers have their hands, etc., in-
side the vehicle before closing the
window.

If the vehicle’s battery is disconnected, re-
placed, or jump started, the power window
auto-reverse function may not operate
properly. If this occurs, please contact the
dealer to re-initialize the power window
auto-reverse system.

If the control unit detects something
caught in a window equipped with auto-
matic operation, as it is closing, the window
will be immediately lowered.

LIC2663

LIC0410

2-66

Instruments and controls

When power window switch does
not operate

If the power window automatic function
(closing only) does not operate properly,
perform the following procedure to initial-
ize the power window system:

1. Place the ignition switch in the ON po-

sition.

2. Open the window more than halfway

by operating the power window switch.

3. Pull the power window switch and hold

it to close the window, and then hold
the switch more than 3 seconds after
the window is closed.

4. Release the power window switch. Op-

erate the window by the automatic
function to confirm the initialization is
complete. The power window auto-
matically opens or closes depending
on if the automatic down or up func-
tion is selected.

5. Perform steps 2 through 4 above for

other windows.

If the power window function does not op-
erate properly after performing the above
procedure have the system checked and
repaired. It is recommended that you visit a
NISSAN dealer for this service.

POWER MOONROOF

The moonroof will only operate when the
ignition switch is in the ON position. The
power moonroof is operational for a period
of time, even if the ignition switch is placed
in the ACC or OFF position. If the driver’s
door or the front passenger’s door is
opened during this period of time, the
power to the moonroof is canceled.

Sliding the moonroof

To fully open or close the moonroof, push
the switch to the open

䊊

or close

䊊

posi-

tion and release it; it need not be held. The
roof will automatically open or close all the

LIC2313

DUAL PANEL MOONROOF (if so
equipped)

Instruments and controls

2-67

way. To stop the roof, push the switch once
more while it is opening or closing.

Tilting the moonroof

To tilt up, first close the moonroof, then
push the switch to the tilt up position

䊊

and release it; it need not be held. To tilt
down the moonroof, push the switch to the
tilt down position

䊊

Resetting the moonroof switch

If the moonroof does not operate properly,
perform the following procedure to initial-
ize the moonroof operation system.

1. Place the ignition switch in the ON po-

sition.

2. Press and hold the moonroof tilt switch

forward until the moonroof stops.

3. Release the moonroof switch.

4. Press and hold the tilt up switch within

6 seconds.

5. The roof glass will tilt-down, slide-close,

slide-open,

slide-close,

tilt-up,

tilt-

down.

6. Release the switch; initialization is

complete if the moonroof operates
normally.

If the moonroof does not operate properly
after performing the procedure above,
have your vehicle checked. It is recom-
mended that you visit a NISSAN dealer for
this service.

Auto-reverse function (when
closing or tilting down the
moonroof)

The auto-reverse function can be acti-
vated when the moonroof is closed or
tilted down by automatic operation when
the ignition switch is placed in the ON po-
sition or for a period of time after the igni-
tion switch is placed in the OFF position.
Depending on the environment or driv-
ing conditions, the auto-reverse func-
tion may be activated if an impact or
load similar to something being caught
in the moonroof occurs.

WARNING

There are some small distances imme-
diately before the closed position which
cannot be detected. Make sure that all
passengers have their hands, etc., in-
side the vehicle before closing the
moonroof.

When closing

If the control unit detects something
caught in the moonroof as it moves to the
front, the moonroof will immediately open
backward.

When tilting down

If the control unit detects something
caught in the moonroof as it tilts down, the
moonroof will immediately tilt up.

If the auto-reverse function malfunctions
and repeats opening or tilting up the
moonroof, keep pushing the tilt down
switch within 5 seconds after it happens;
the moonroof will fully close gradually.
Make sure nothing is caught in the moon-
roof.

WARNING

∙ In an accident you could be thrown

from the vehicle through an open
moonroof. Always use seat belts and
child restraints.

∙ Do not allow anyone to stand up or

extend any portion of their body out
of the moonroof opening while the
vehicle is in motion or while the
moonroof is closing.

2-68

Instruments and controls

Content .. 8 9 10 11 ..
