Nissan NV Passenger Van (2018 year). Instruction - part 22

REPLACING SPARK PLUGS

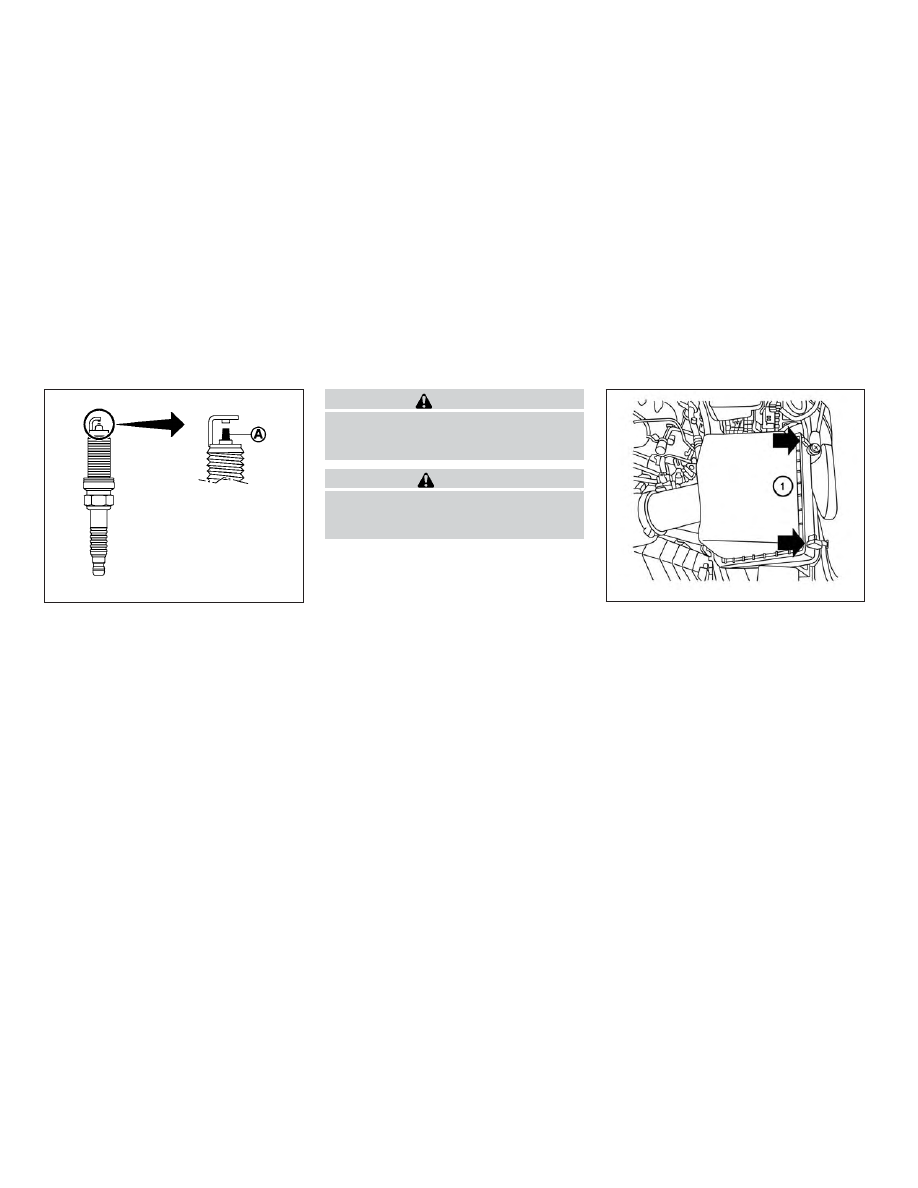

Iridium-tipped spark plugs

It is not necessary to replace iridium-
tipped

䊊

spark plugs as frequently as con-

ventional type spark plugs because they
last much longer. Follow the maintenance
log shown in the “Maintenance and sched-
ules” section of this manual. Do not service
iridium-tipped spark plugs by cleaning or
regapping.

∙ Always replace spark plugs with

recommended or equivalent ones.

WARNING

Be sure the engine and ignition switch
are off and that the parking brake is
engaged securely.

CAUTION

Be sure to use the correct socket to re-
move the spark plugs. An incorrect
socket can damage the spark plugs.

If replacement is required, it is recom-
mended that you visit a NISSAN dealer for
this service.

SDI1895

VQ40DE

LDI3066

SPARK PLUGS

AIR CLEANER

8-18

Do-it-yourself

The air cleaner filter should not be cleaned
and reused. Replace it according to the
maintenance log shown in the “Mainte-
nance and schedules" section of this
manual.

To remove the air cleaner filter:

䊊

Unlatch the clips and move the air
cleaner cover upward.

2. Remove the air cleaner filter.

3. Wipe the inside of the air cleaner filter

housing and the cover with a damp
cloth.

NOTE:

After installing a new air cleaner filter,
make sure the air cleaner cover is seated
in the housing and latch the clips.

WARNING

∙ Operating the engine with the air

cleaner removed can cause you or
others to be burned. The air cleaner
not only cleans the air, it stops the
flame if the engine backfires. If it isn’t
there, and the engine backfires, you
could be burned. Do not drive with the
air cleaner removed, and be careful
when working on the engine with the
air cleaner removed.

∙ Never pour fuel into the throttle body

or attempt to start the engine with
the air cleaner removed. Doing so
could result in serious injury.

IN-CABIN MICROFILTER
(if so equipped)

The in-cabin microfilter restricts the entry
of airborne dust and pollen particles and
reduces

some

objectionable

outside

odors. The filter is located behind the glove
box. For additional information, refer to the
"Maintenance and schedules" section for
change intervals.

To replace the filter, perform the following
procedure:

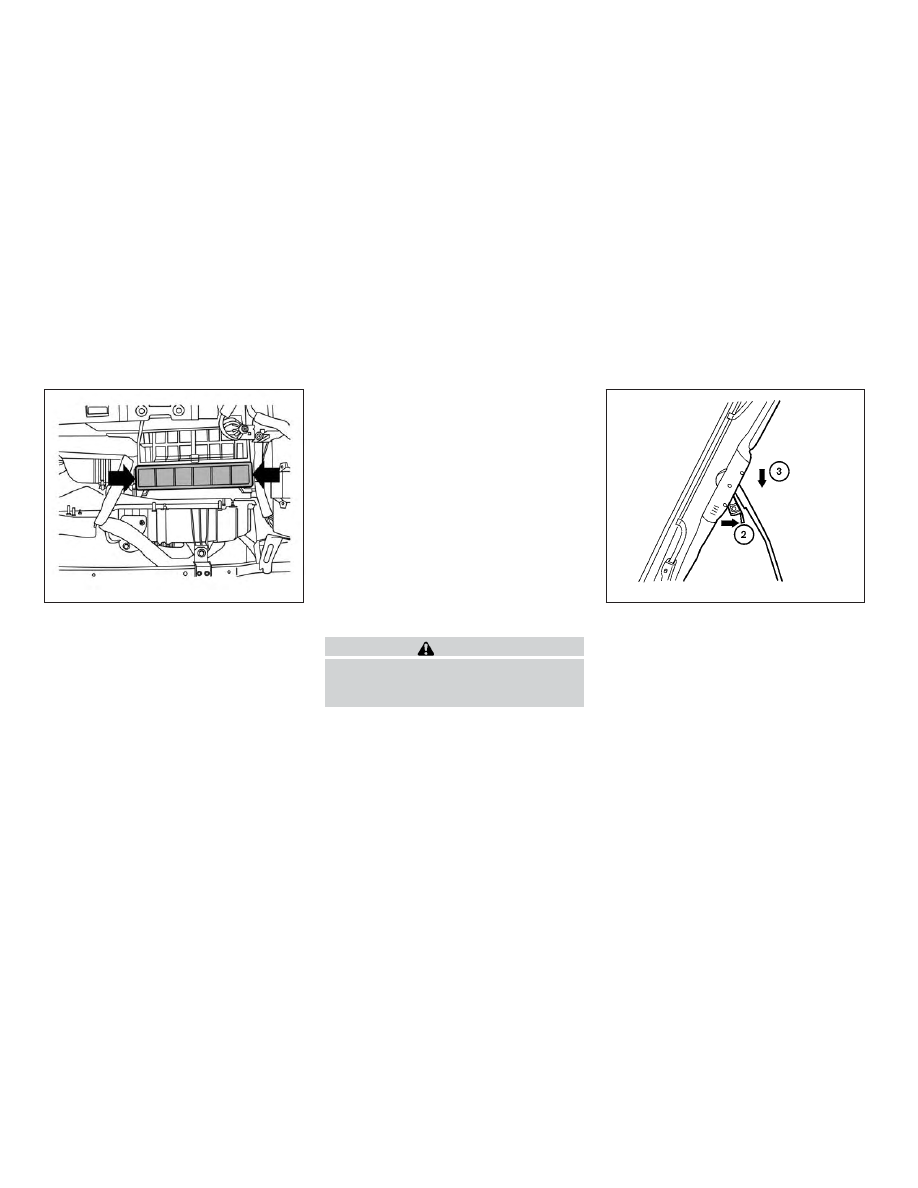

1. Open the glove box.

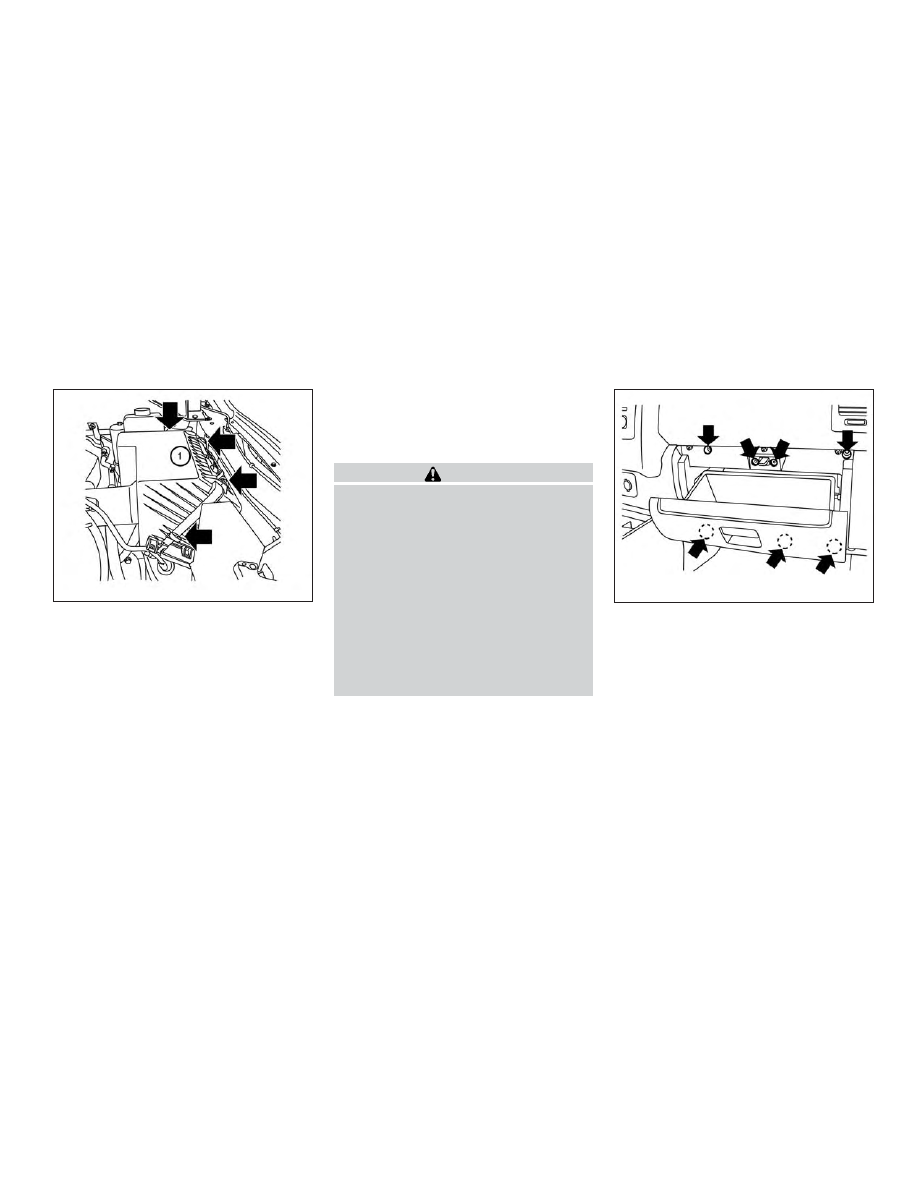

2. Remove the seven screws indicated

above.

VK56VD

LDI3067

LDI2080

Do-it-yourself

8-19

3. Gently release the two tabs to remove

the filter cover.

4. Remove the old filter.

5. Insert the new filter into the housing.

6. Replace the filter cover.

7. Reinstall the screws and close the glove

box door.

CLEANING

If your windshield is not clear after using
the windshield-washer or if a wiper blade
chatters when running, wax or other mate-
rial may be on the blade or windshield.

Clean the outside of the windshield with a
washer solution or a mild detergent. Your
windshield is clean if beads do not form
when rinsing with clear water.

Clean each blade by wiping it with a cloth
soaked in a washer solution or a mild de-
tergent. Then rinse the blades with clear
water. If your windshield is still not clear
after cleaning the blades and using the
wiper, replace the blades.

CAUTION

Worn windshield wiper blades can
damage the windshield and impair
driver vision.

REPLACING

Replace the wiper blades if they are worn.

1. Lift the wiper arm away from the wind-

shield.

䊊

Push the release tab, then move the
wiper blade down the wiper arm to re-
move.

䊊

Remove the wiper blade.

4. Insert the new wiper blade onto the

wiper arm until it clicks into place.

5. Rotate wiper blade so the dimple is in

the groove.

LDI2618

WDI0408

WINDSHIELD WIPER BLADES

8-20

Do-it-yourself

6. Return the wiper to its original position

and release it until it has made contact
with the windshield.

CAUTION

∙ After wiper blade replacement, return

the wiper arm to its original position;
otherwise it may be damaged when
the hood is opened.

∙ Make sure the wiper blades contact

the glass; otherwise the arms may be
damaged from wind pressure.

Be careful not to let anything get into the
washer nozzle

䊊

. This may cause clogging

or improper windshield washer operation.
If something gets into the nozzle, remove it
with a needle or small pin

䊊

If the brakes do not operate properly, have
the brakes checked. It is recommended
that you visit a NISSAN dealer for this ser-
vice.

Self-adjusting brakes

Your vehicle is equipped with self-adjusting
brakes.

The front and rear disc-type brakes self-
adjust every time the brake pedal is ap-
plied.

WARNING

Have your brake system checked if the
brake pedal height does not return to
normal. It is recommended that you
visit a NISSAN dealer for this service.

Brake pad wear indicators

The disc brake pads on your vehicle have
audible wear indicators. When a brake pad
requires

replacement,

high

pitched

scraping or screeching sound will be heard
when the vehicle is in motion. The noise will
be heard whether or not the brake pedal is
depressed. Have the brakes checked as
soon as possible if the wear indicator
sound is heard.

LDI2187

BRAKES

Do-it-yourself

8-21

Under some driving or climate conditions,
occasional brake squeak, squeal or other
noise may be heard. Occasional brake
noise during light to moderate stops is nor-
mal and does not affect the function or
performance of the brake system.

Proper brake inspection intervals should
be followed. For additional information re-
garding brake inspections, refer to the ap-
propriate maintenance schedule informa-
tion in the "Maintenance and schedules"
section of this manual.

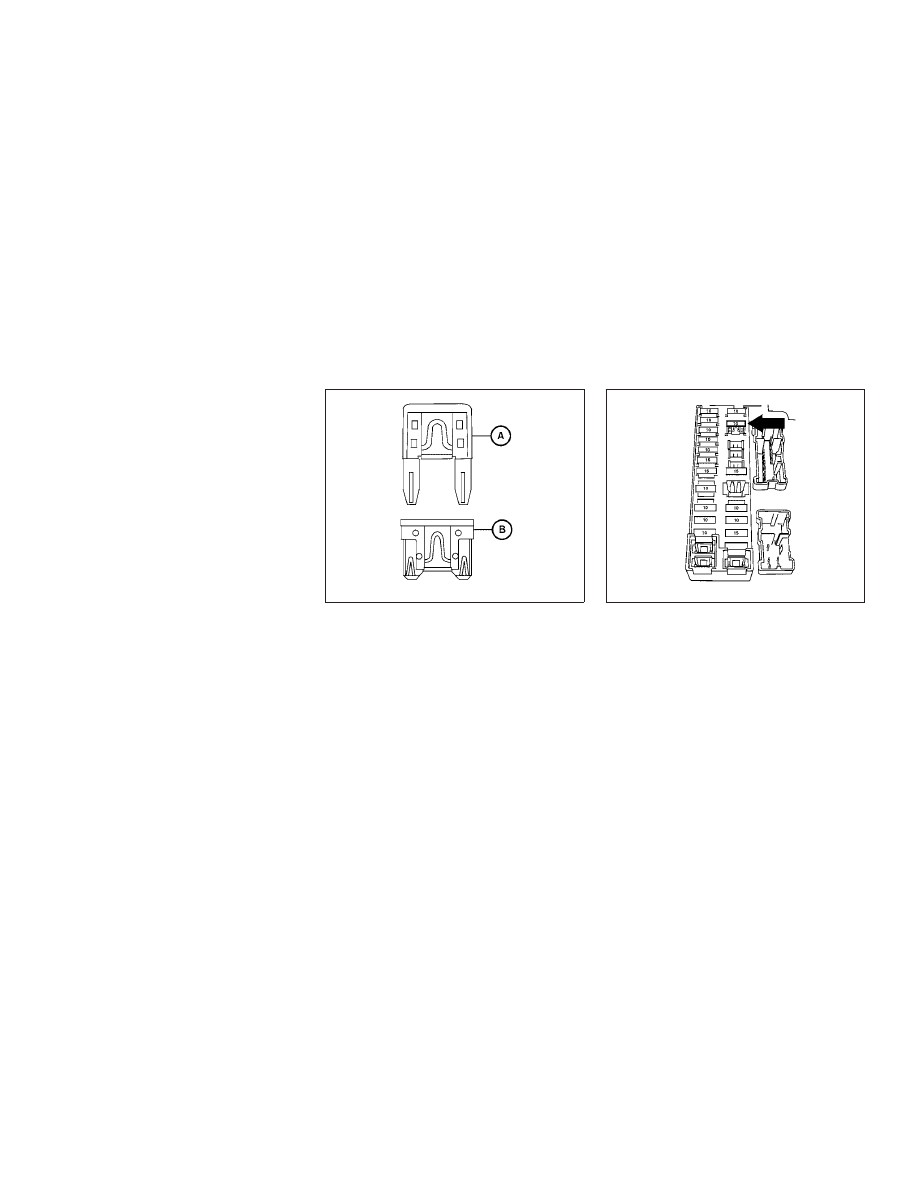

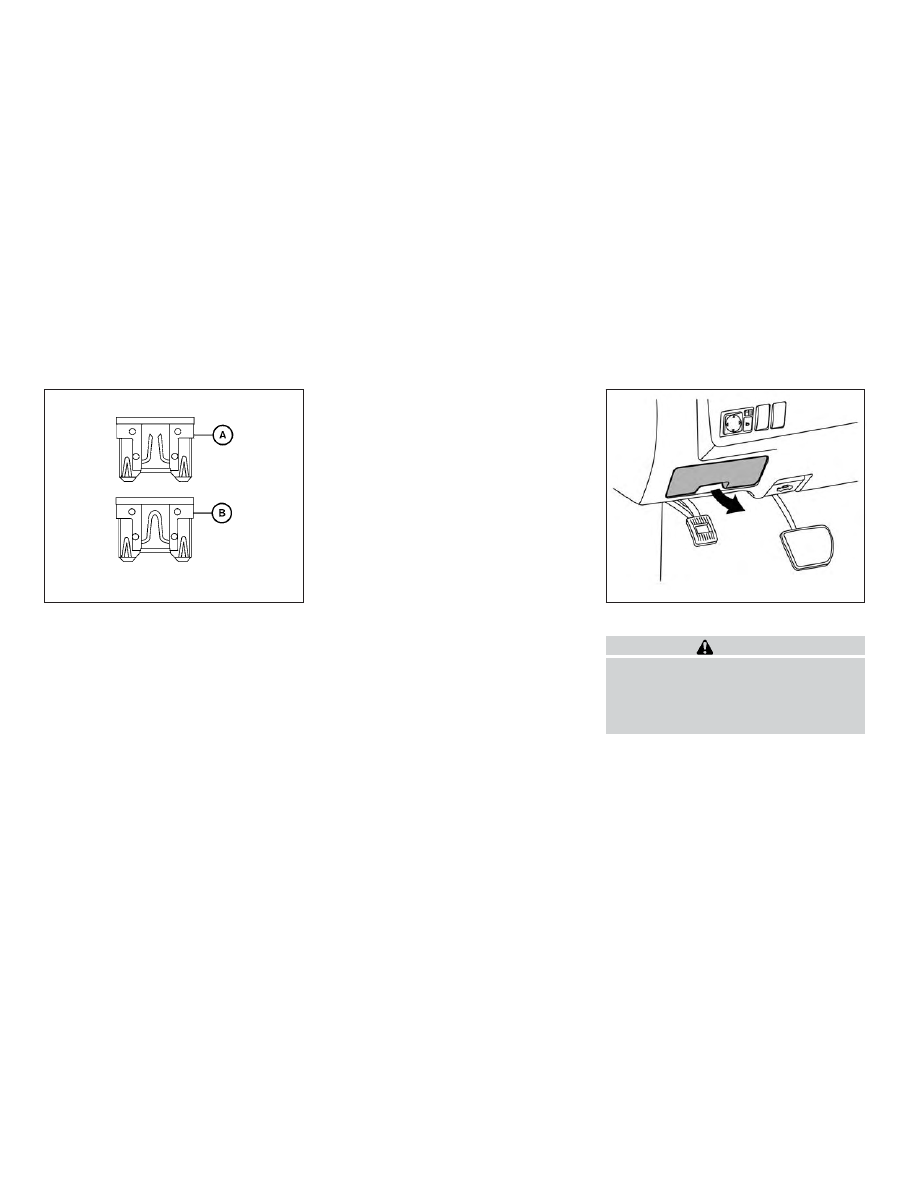

Two types of fuses are used. Type

䊊

and

Type

䊊

(if so equipped) are used in the fuse

boxes in the engine compartment. Type

䊊

cannot be used to replace Type

䊊

in the

underhood fuse boxes.

Type

䊊

is used in the passenger compart-

ment fuse box.

Type

䊊

fuses are provided as spare fuses.

They are stored in the passenger compart-
ment fuse box.

Type

䊊

fuses can be installed in the engine

compartment and passenger compart-
ment fuse boxes.

If a type

䊊

fuse is used to replace a type

䊊

fuse, the type

䊊

fuse will not be level with

the fuse pocket as shown in the illustration.
This will not affect the performance of the
fuse. Make sure the fuse is installed in the
fuse box securely.

LDI0455

LDI0457

FUSES

8-22

Do-it-yourself

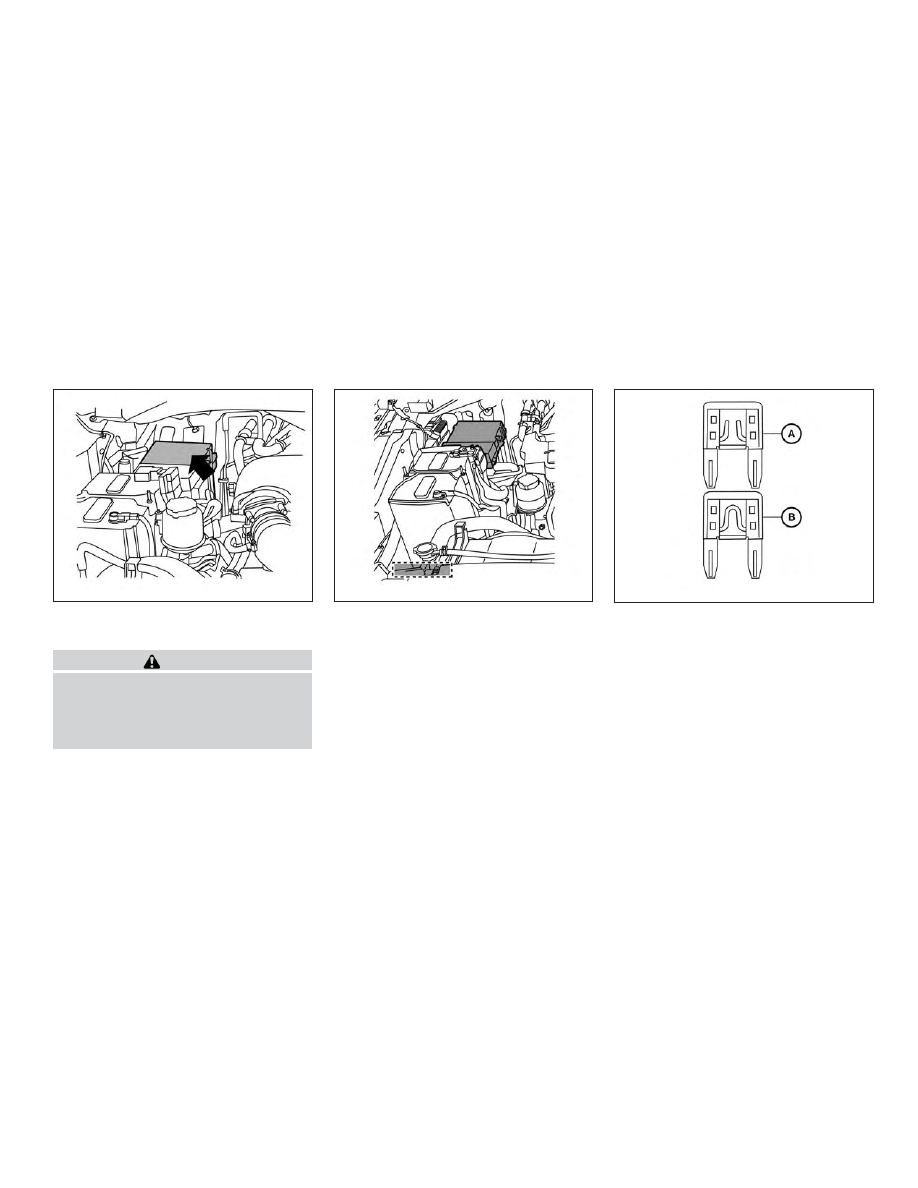

ENGINE COMPARTMENT

WARNING

Never use a fuse of higher or lower am-
perage rating than that specified on the
fuse box cover. This could damage the
electrical system or electronic control
units or cause a fire.

If any electrical equipment does not come
on, check for an open fuse.

1. Be sure the ignition switch and the

headlight switch are OFF.

2. Open the engine hood.

3. Remove the fuse box cover by pushing

the tab and lifting the cover up.

4. Remove the fuse with the fuse puller.

The fuse puller is located in the center
of the fuse block in the passenger
compartment.

5. If the fuse is open

䊊

, replace it with a

new fuse

䊊

6. If a new fuse also opens, have the elec-

trical system checked and repaired. It is
recommended that you visit a NISSAN
dealer for this service.

VQ40DE engine

LDI2825

VK56VD engine

LDI3058

LDI2826

Do-it-yourself

8-23

Fusible links

If the electrical equipment does not oper-
ate and fuses are in good condition, check
the fusible links. If any of these fusible links
are melted, replace with only Genuine
NISSAN parts.

PASSENGER COMPARTMENT

WARNING

Never use a fuse of higher or lower am-
perage rating than that specified on the
fuse box cover. This could damage the
electrical system or electronic control
units or cause a fire.

If any electrical equipment does not oper-
ate, check for an open fuse.

1. Be sure the ignition switch and the head-

light switch are in the OFF position.

2. Pull the fuse box cover to remove.

LDI0456

LDI2828

8-24

Do-it-yourself

3. Remove the fuse with the fuse puller

䊊

4. If the fuse is open

䊊

, replace it with an

equivalent good fuse

䊊

5. Push the fuse box cover to install.

6. If a new fuse also opens, have the elec-

trical system checked and repaired. It is
recommended that you visit a NISSAN
dealer for this service.

Extended storage switch

If any electrical equipment does not oper-
ate, remove the extended storage switch
and check for an open fuse.

NOTE:

The extended storage switch is used for
long term vehicle storage. Even if the ex-
tended storage switch is broken it is not
necessary to replace it. Replace only the
open fuse in the switch with a new fuse.

LDI2827

LDI2760

LDI2761

Do-it-yourself

8-25

How to replace the extended storage
switch:

1. To

remove

the

extended

storage

switch, be sure the ignition switch is in
the OFF or LOCK position.

2. Be sure the headlight switch is in the

OFF position.

3. Remove the fuse box cover.

4. Pinch the locking tabs

䊊

found on

each side of the storage switch.

5. Pull the storage switch straight out

from the fuse box

䊊

CAUTION

Be careful not to allow children to swal-
low the battery or removed parts.

BATTERY REPLACEMENT

8-26

Do-it-yourself

KEY FOB (if so equipped)

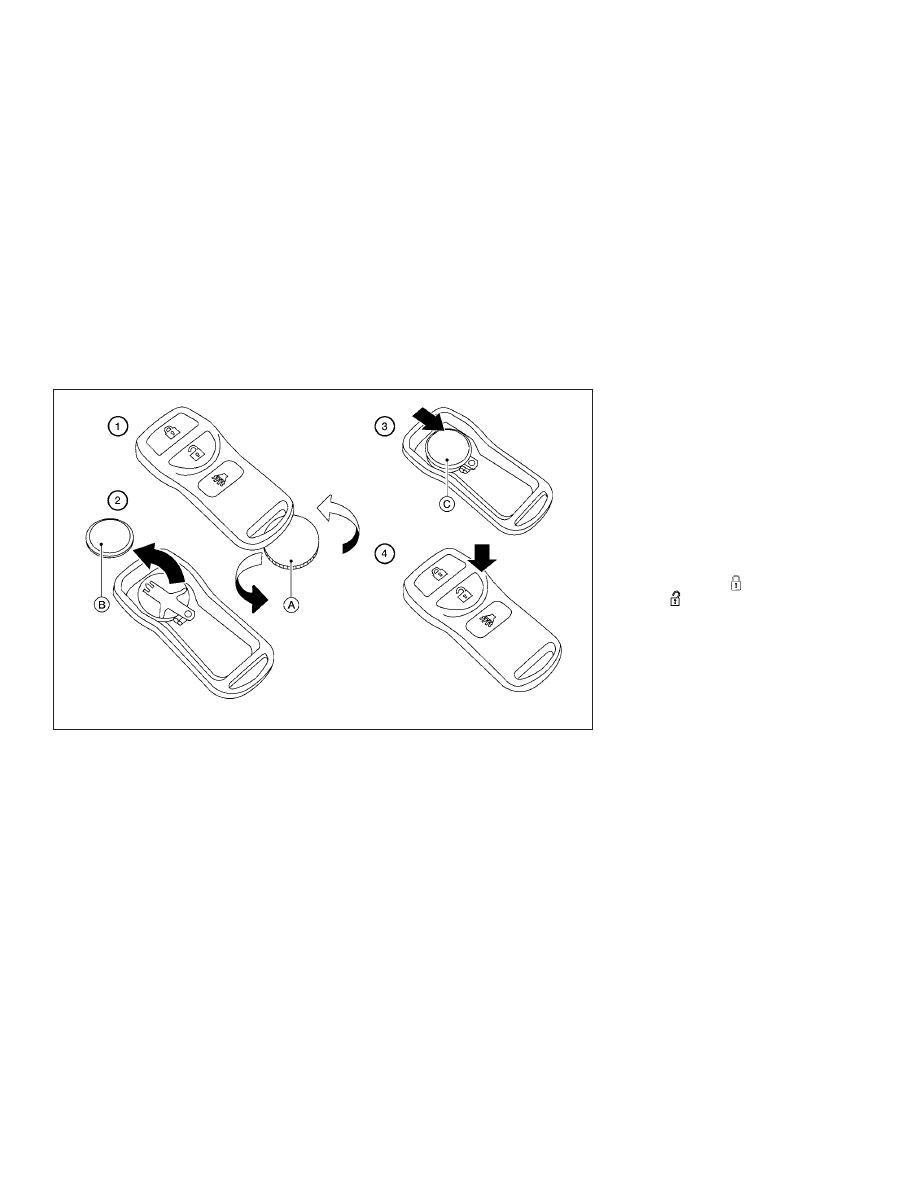

Replace the battery in the key fob as follows:

䊊

Open the lid using a coin

䊊

Remove the battery

䊊

Install a new battery

䊊

with the “+”

facing down.

∙ Hold the battery by the edges. Holding

the battery across the contact points will
seriously deplete the storage capacity.

∙ Do not touch the internal circuit and

electric terminals as it could cause a
malfunction.

∙ When changing the battery, do not let

dust or oil get on the key fob.

∙ There is danger of explosion if a lithium

battery is incorrectly replaced. Replace
only with the same or equivalent type.

Recommended battery: CR2025 or equivalent.

䊊

Close the lid securely.

5. Press

the

button,

then

the

button two or three times to

check the key fob operation.

If the battery is removed for any reason
other than replacement, perform step 5.

∙ An improperly disposed battery can

hurt the environment. Always con-
firm local regulations for battery dis-
posal.

∙ The key fob is water-resistant; how-

ever, if it does get wet, immediately
wipe completely dry.

∙ The operational range of the key fob

extends to approximately 33 ft (10 m)
from the vehicle. This range may vary
with conditions.

LDI2026

Do-it-yourself

8-27

FCC Notice:

For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference
that may cause undesired operation.

Note:

Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s author-
ity to operate the equipment.

For Canada:
This

devise

complies

with

Industry

Canada licence-exempt RSS standard(s).
Operation is subject to the following two
conditions: (1) this device may not cause
interference, and (2) this device must ac-
cept any interference, including interfer-
ence that may cause undesired opera-
tion of the device.

HEADLIGHTS

For additional information on headlight
bulb replacement, refer to the instructions
outlined in this section.

Replacing the halogen headlight
bulb

The headlight is a semi-sealed beam type
which uses a replaceable headlight (halo-
gen) bulb. It is recommended that you visit
a NISSAN dealer for this service.

If the vehicle is equipped with aftermarket
accessories, it may be necessary to re-aim
the head lamps. For additional information,
refer to NISSAN NV2500/3500 Body Build-
ers Guide for aiming instructions. An elec-
tronic copy of the NISSAN NV2500/3500
Body Builders Guide is available at ww-
w.nissancommercialvehicles.com or it is
recommended that you visit a NISSAN
dealer for this service.

CAUTION

∙ High pressure halogen gas is sealed

inside the halogen bulb. The bulb may
break

the

glass

envelope

scratched or the bulb is dropped.

∙ When handling the bulb, do not touch

the glass envelope.

∙ DO NOT TOUCH THE BULB WITH BARE

HANDS.

∙ Do not leave the bulb out of the head-

light reflector for a long period of time
as dust, moisture and smoke may en-
ter the headlight body and affect the
performance of the headlight.

∙ Aiming is not necessary after replac-

ing the bulb. When aiming is neces-
sary, it is recommended that you visit
a NISSAN dealer for this service.

NOTE:

Use the same number and wattage as
shown in the chart.

Fog may temporarily form inside the lens
of the exterior lights in the rain or in a car
wash. A temperature difference between
the inside and the outside of the lens
causes the fog. This is not a malfunction. If
large drops of water collect inside the lens,
It is recommended that you visit a NISSAN
dealer for this service.

LIGHTS

8-28

Do-it-yourself

FOG LIGHTS (if so equipped)

For additional information on fog light bulb
replacement, refer to the instructions out-
lined in this section.

Replacing the fog light bulb

CAUTION

∙ High pressure halogen gas is sealed

inside the halogen bulb. The bulb may
break

the

glass

envelope

scratched or the bulb is dropped.

∙ When handling the bulb, do not touch

the glass envelope.

∙ Use the same number and wattage as

originally installed as shown in the
chart.

∙ Do not leave the bulb out of the fog

light for a long period of time as dust,
moisture and smoke may enter the
fog light body and affect the perfor-
mance of the fog light.

1. Disconnect the negative (-) battery

cable.

2. The fog light is accessible in front of the

front tire and behind the bumper.

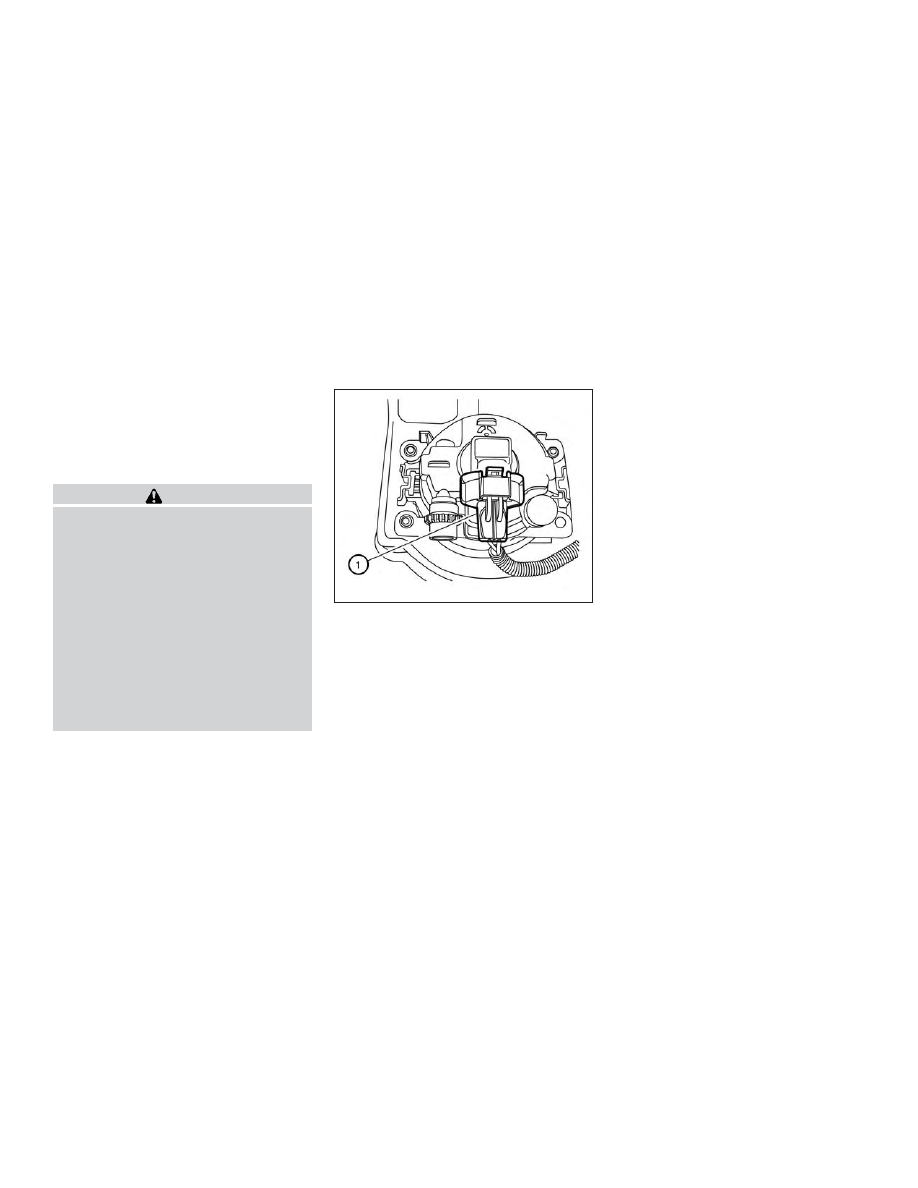

3. Disconnect the bulb connector

䊊

4. Rotate the bulb counterclockwise and

remove.

5. Remove by pulling it straight out of the

fog light assembly. Do not shake or ro-
tate the bulb when removing it. Do not
touch the glass envelope.

6. Install in the reverse order of removal.

LDI2082

Do-it-yourself

8-29

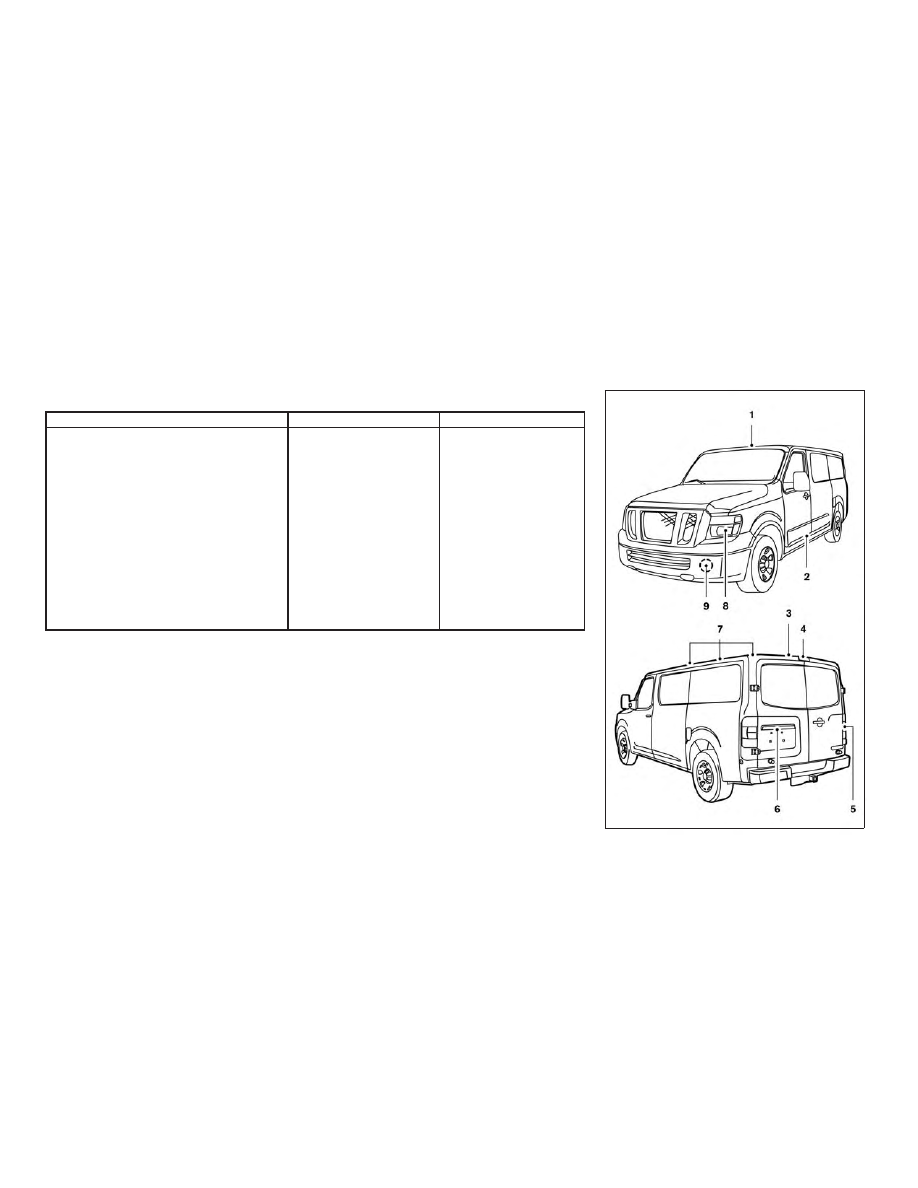

EXTERIOR AND INTERIOR LIGHTS

Item

Wattage (W)

Bulb No.

Headlight assembly*

High/Low/Daytime running light

60/55

H13

Park/Turn

27/7

3157AK

Side marker

3.8

194

Fog lights (if so equipped)

H11

Map light*

—

Interior lights (rear) (if so equipped)*

—

Cargo light*

—

Step lights (if so equipped)

3.8

194

High-mounted stop light*

921

Rear combination light

Tail/Stop

27/7

3157K

Backup (reversing)

921

Turn

3156AK

License plate light*

W5W

* It is recommended that you visit a NISSAN dealer for replacement.

Always check with the Parts Department at a NISSAN dealer for the latest parts
information.

LDI2612

8-30

Do-it-yourself

Map light

Step light (if so equipped)

Cargo light

High-mounted stop light

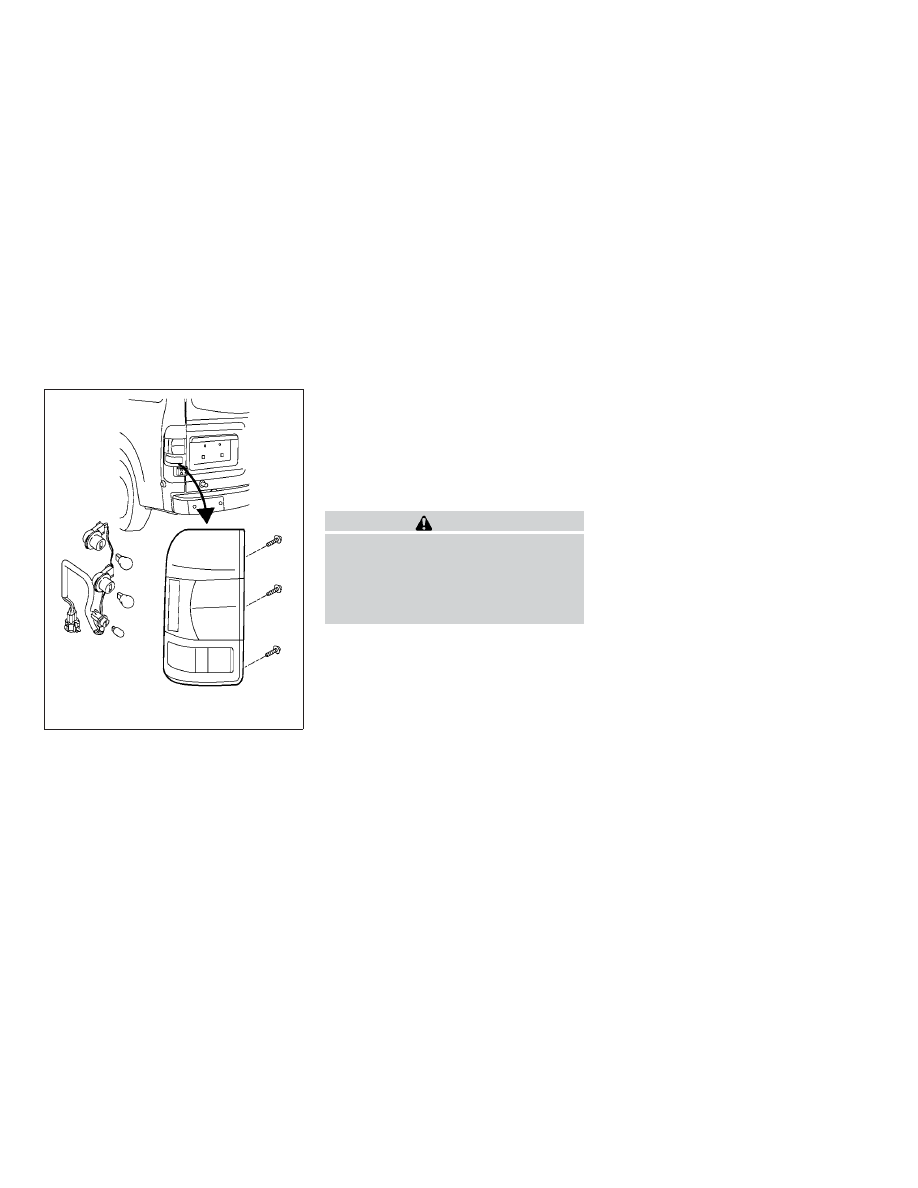

Rear combination light

License plate light

Interior lights (rear) (if so equipped)

Headlight assembly

Fog lights (if so equipped)

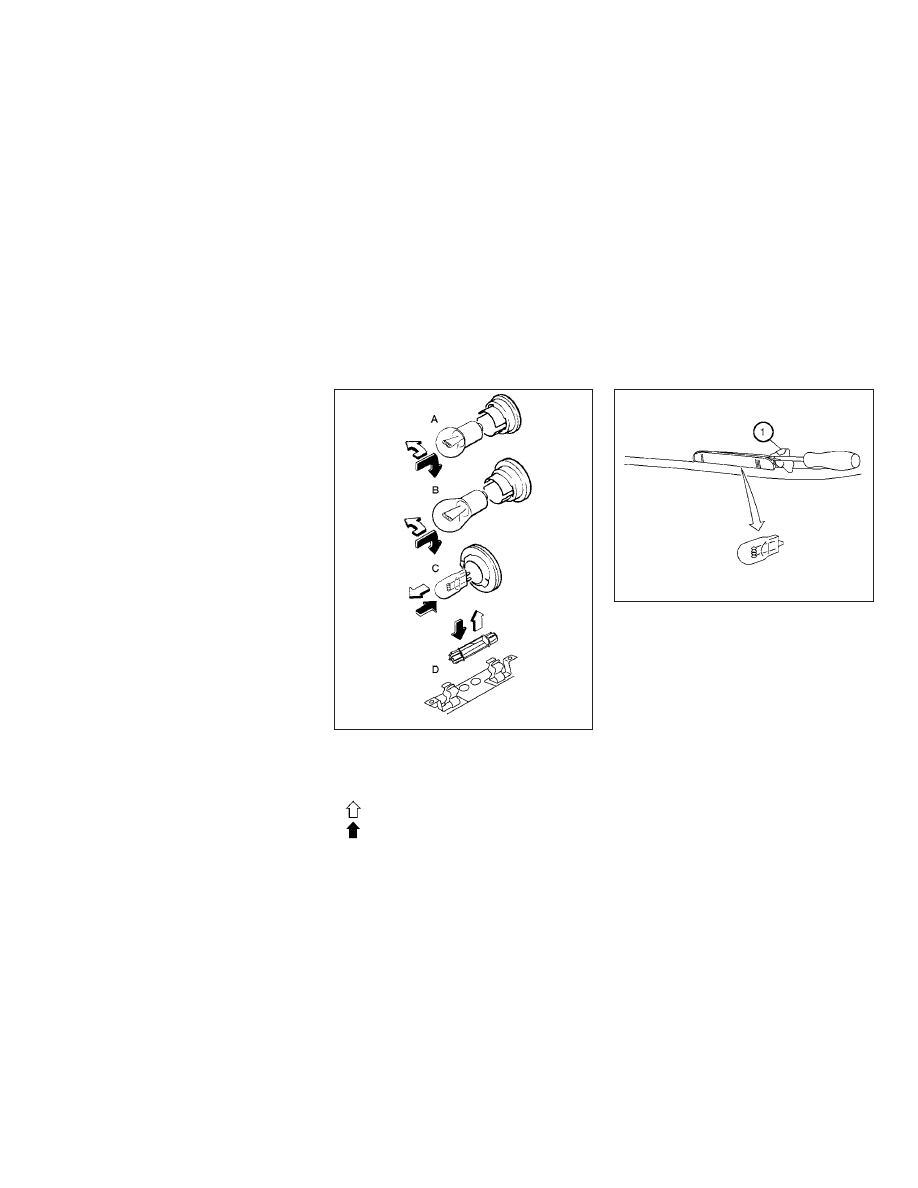

Replacement procedures

All other lights are either type A, B, C or D.
When replacing a bulb, first remove the
lens, lamp and/or cover.

Indicates bulb removal

Indicates bulb installation

Use a cloth

䊊

to protect the housing.

WDI0263

Step lights (if so equipped)

LDI0341

Do-it-yourself

8-31

If you have a flat tire, refer to “Flat tire” in
the “In case of emergency” section of
this manual.

TIRE PRESSURE

Tire Pressure Monitoring System
(TPMS)

WARNING

Radio waves could adversely affect
electric medical equipment. Those who
use a pacemaker should contact the
electric medical equipment manufac-
turer for the possible influences before
use.

This vehicle is equipped with the Tire Pres-
sure Monitoring System (TPMS). It monitors
tire pressure of all four tires except the
spare. When the low tire pressure warning
light is lit, and the TIRE PRES warning ap-
pears in the trip computer, one or more of
your tires is significantly under-inflated.

The TPMS will activate only when the ve-
hicle is driven at speeds above 16 mph
(25 km/h). Also, this system may not detect
a sudden drop in tire pressure (for example
a flat tire while driving).

For additional information, refer to “Low tire
pressure warning light” in the “Instruments
and controls” section, “Tire Pressure Moni-
toring System (TPMS)” in the “Starting and
driving” section and “Flat tire” in the “In case
of emergency” section of this manual.

Tire inflation pressure

Check the tire pressures (including
the spare) often and always prior to
long distance trips. The recom-
mended tire pressure specifications
are shown on the F.M.V.S.S./C.M.V.S.S.
certification label or the Tire and
Loading Information label under the
“Cold Tire Pressure” heading. The Tire
and Loading Information label is af-
fixed to the driver side center pillar.
Tire pressures should be checked
regularly because:

∙ Most tires naturally lose air over

time.

∙ Tires can lose air suddenly when

driven over potholes or other ob-
jects or if the vehicle strikes a
curb while parking.

Rear combination light

LDI2029

WHEELS AND TIRES

8-32

Do-it-yourself

The

tire

pressures

should

checked when the tires are cold. The
tires are considered COLD after the
vehicle has been parked for 3 or
more hours, or driven less than 1 mile
(1.6 km) at moderate speeds.

Incorrect tire pressure, including
under inflation, may adversely af-
fect tire life and vehicle handling.

WARNING

∙ Improperly inflated tires can fail

suddenly

and

cause

accident.

∙ The Gross Vehicle Weight Rating

(GVWR)

located

the

F.M.V.S.S./C.M.V.S.S.

certifica-

tion label. The vehicle weight
capacity is indicated on the Tire
and Loading Information label.
Do not load your vehicle beyond
this capacity. Overloading your
vehicle may result in reduced
tire life, unsafe operating condi-
tions due to premature tire fail-
ure, or unfavorable handling
characteristics and could also
lead to a serious accident. Load-
ing beyond the specified capac-
ity may also result in failure of
other vehicle components.

∙ Before taking a long trip, or

whenever you heavily load your
vehicle, use

tire

pressure

gauge to ensure that the tire
pressures are at the specified
level.

∙ For additional information re-

garding tires, refer to “Impor-
tant Tire Safety Information”
(US) or “Tire Safety Information”
(Canada) in the Warranty Infor-
mation Booklet.

Do-it-yourself

8-33

Content .. 20 21 22 23 ..
