4. Turn

the

TUNE/FOLDER

TUNE/SCROLL knob to adjust the set-
ting up or down.

5. Press

the

ENTER/SETTING

button

again to display the Contrast settings.

6. Turn

the

TUNE/FOLDER

TUNE/SCROLL knob to adjust the set-
ting up or down.

7. Press the ENTER/SETTING button to

complete the adjustment.

∙ Do not adjust the display settings of the

RearView Monitor while the vehicle is
moving.

For vehicles with navigation system

1. Firmly apply the brake and place the

shift lever in R (Reverse)

2. Press the

button on the control

panel.

3. The screen will display the Night set-

tings.

4. Turn the TUNE knob to adjust the set-

ting up or down.

5. Press the

button again to access

the Auto settings.

6. Turn the TUNE knob to adjust the set-

ting up or down.

∙ Do not adjust the display settings of the

RearView Monitor while the vehicle is
moving.

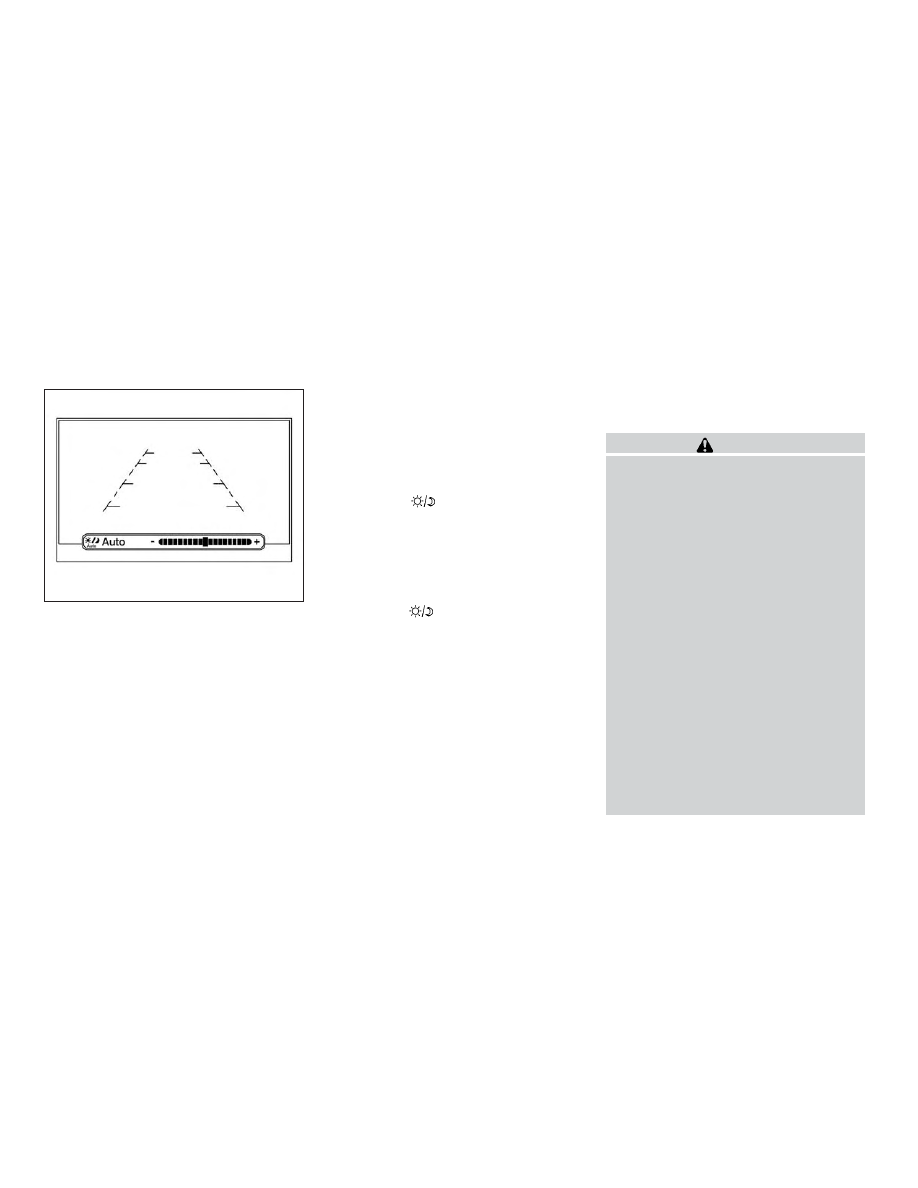

REARVIEW MONITOR SYSTEM
LIMITATIONS

WARNING

Listed below are the system limitations
for RearView Monitor. Failure to operate
the vehicle in accordance with these
system limitations could result in seri-
ous injury or death.

∙ The system cannot completely elimi-

nate blind spots and may not show
every object.

∙ Underneath the bumper and the cor-

ner areas of the bumper cannot be
viewed on the RearView Monitor be-
cause of its monitoring range limita-
tion. The system will not show small
objects below the bumper, and may
not show objects close to the bumper
or on the ground.

∙ Objects viewed in the RearView Moni-

tor differ from actual distance be-
cause a wide-angle lens is used.

∙ Objects in the RearView Monitor will

appear visually opposite compared to
when viewed in the rearview and out-
side mirrors.

Models with navigation system

LHA3679

4-16

Monitor, climate, audio, phone and voice recognition systems

∙ Use the displayed lines as a reference.

The lines are highly affected by the
number of occupants, fuel level, ve-
hicle position, road conditions and
road grade.

∙ Make sure that the rear doors are se-

curely closed when backing up.

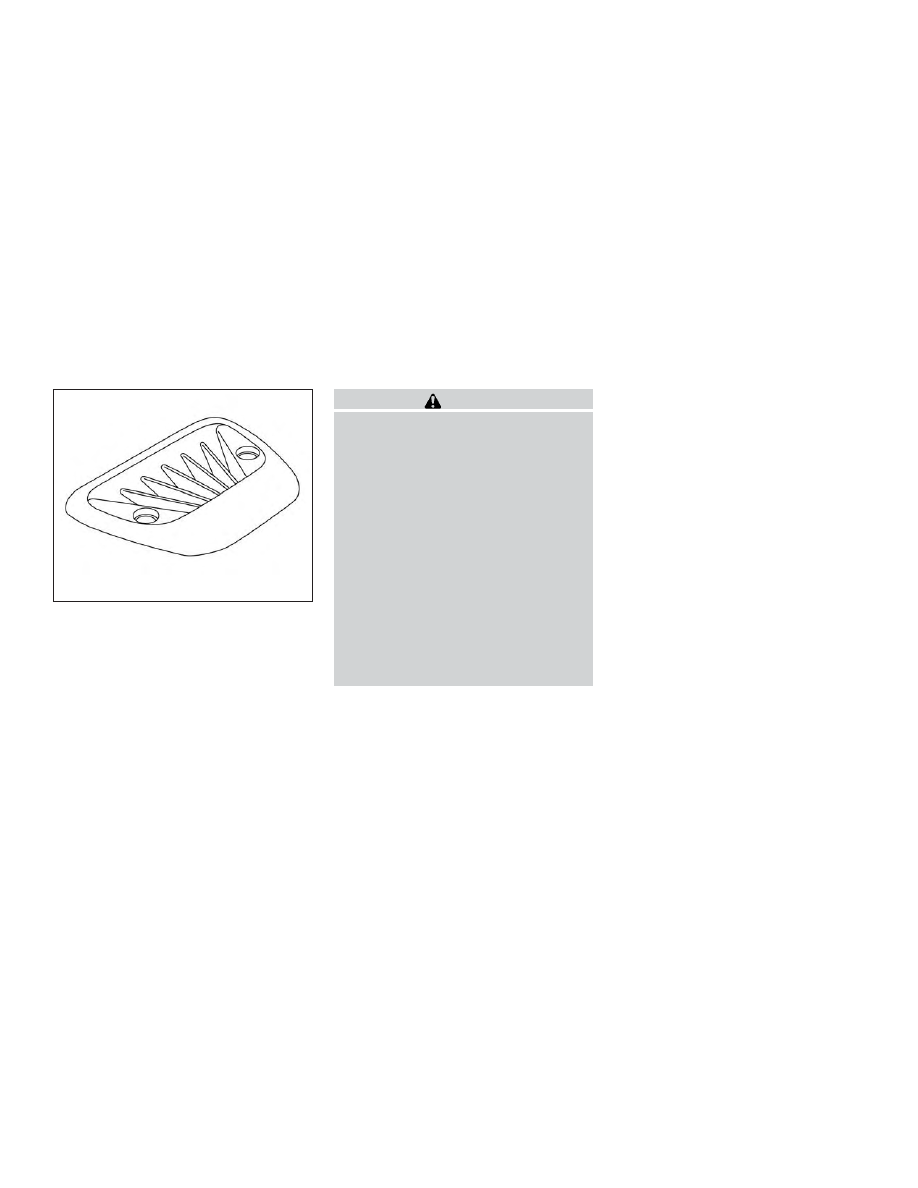

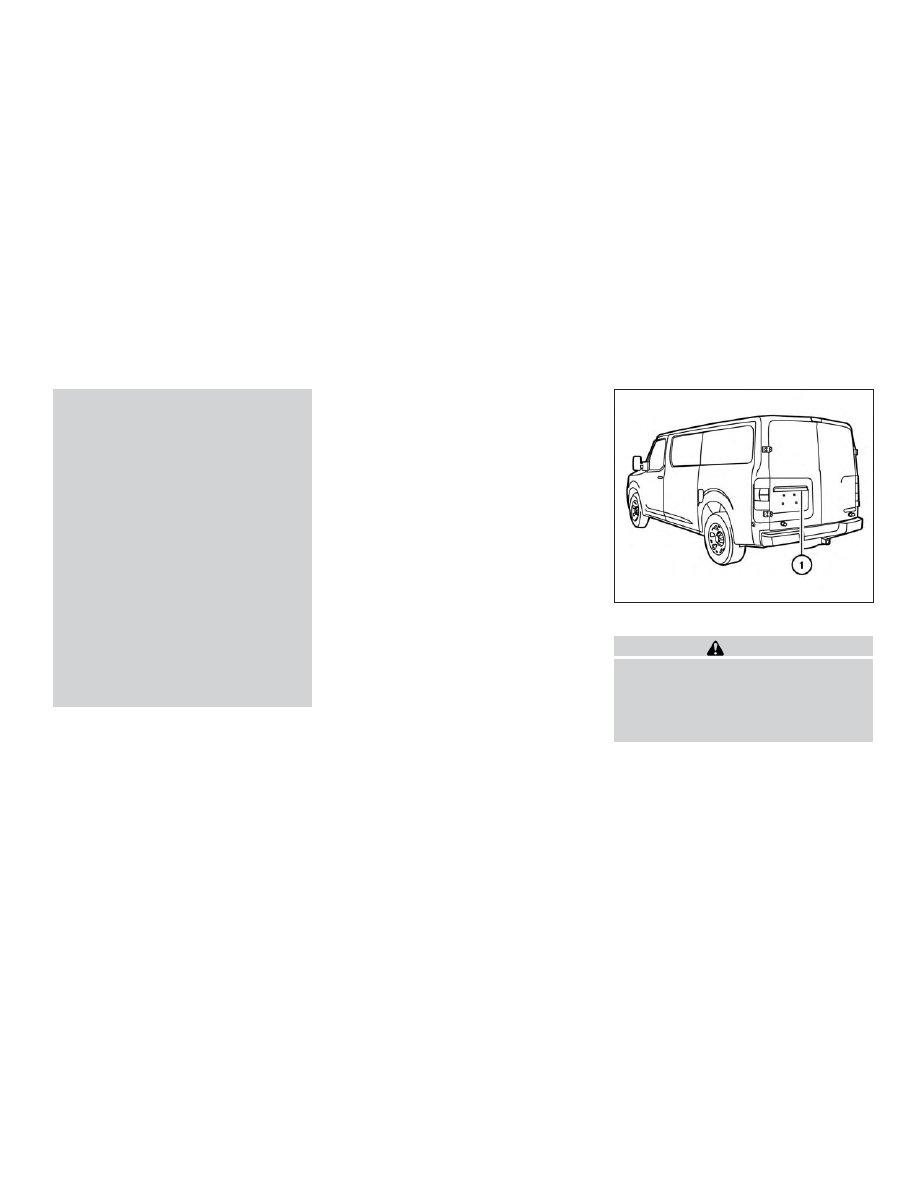

∙ Do not put anything on the rearview

camera. The rearview camera is in-
stalled above the license plate.

∙ When washing the vehicle with high

pressure water, be sure not to spray it
around the camera. Otherwise, water
may enter the camera unit causing
water condensation on the lens, a
malfunction, fire or an electric shock.

∙ Do not strike the camera. It is a preci-

sion instrument. Otherwise, it may
malfunction or cause damage result-
ing in a fire or an electric shock.

The following are operating limitations and
do not represent a system malfunction:

∙ When the temperature is extremely

high or low, the screen may not clearly
display objects.

∙ When strong light directly shines on the

camera, objects may not be displayed
clearly.

∙ Vertical lines may be seen in objects on

the screen. This is due to strong re-
flected light from the bumper.

∙ The screen may flicker under fluores-

cent light.

∙ The colors of objects on the RearView

Monitor may differ somewhat from the
actual color of objects.

∙ Objects on the monitor may not be

clear in a dark environment.

∙ There may be a delay when switching

between views.

∙ If dirt, rain or snow accumulate on the

camera, the RearView Monitor may not
display objects clearly. Clean the cam-
era.

∙ Do not use wax on the camera lens.

Wipe off any wax with a clean cloth
dampened with a diluted mild cleaning
agent, then wipe with a dry cloth.

SYSTEM MAINTENANCE

CAUTION

∙ Do not use alcohol, benzine or thinner

to clean the camera. This will cause
discoloration.

∙ Do not damage the camera as the moni-

tor screen may be adversely affected.

If dirt, rain or snow accumulates on the
camera

䊊

, the RearView Monitor may not

display objects clearly. Clean the camera
by wiping it with a cloth dampened with a
diluted mild cleaning agent and then wip-
ing it with a dry cloth.

LHA3686

Monitor, climate, audio, phone and voice recognition systems

4-17

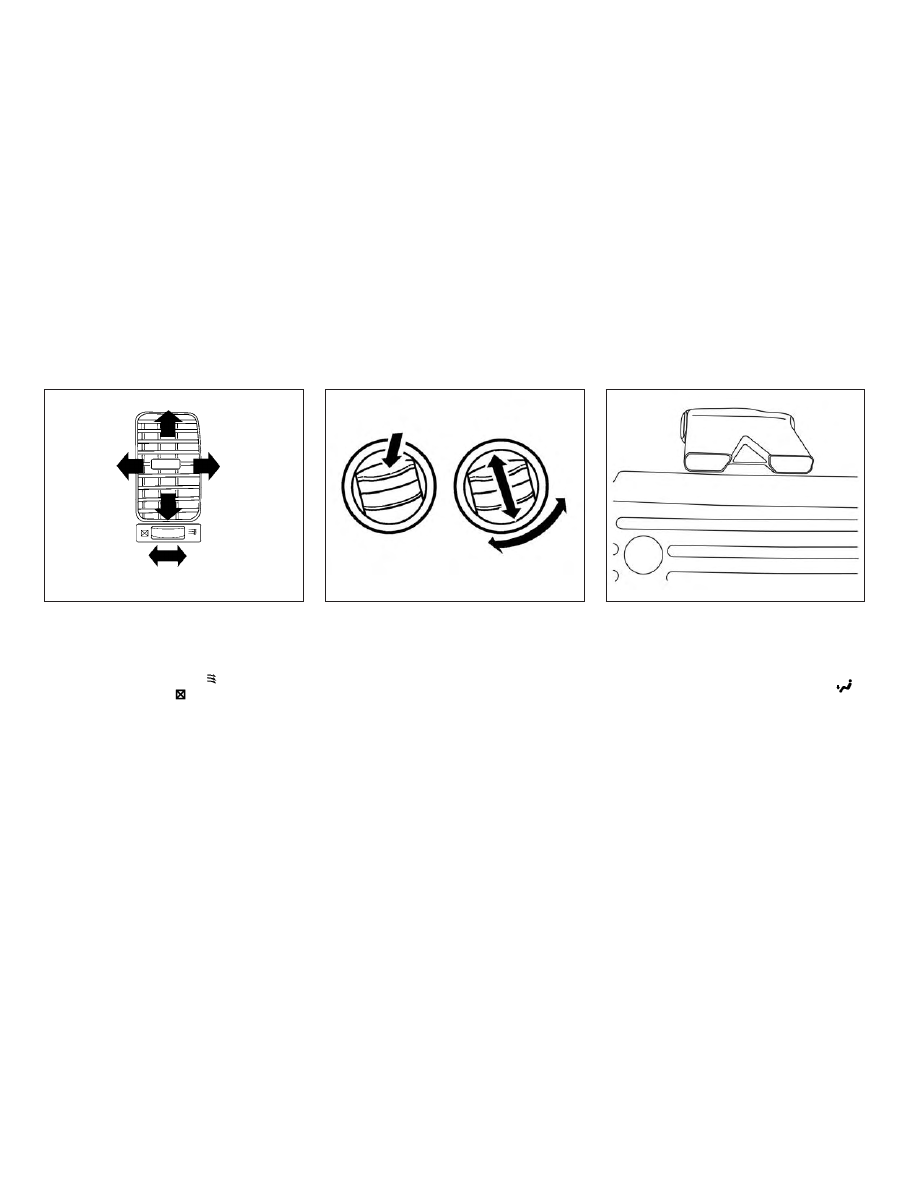

Adjust air flow direction by moving the vent
slides.

Open or close the vents by using the dial.
Move the dial toward the

to open the

vents or toward the

to close them.

Adjust the air flow direction of the vents by
opening, closing or rotating.

These vents are only operational when the
rear fan speed control dial is at a setting
other than 0 and the rear temperature
control dial is at a setting other than hot.

For additional information, refer to “Rear
seat air conditioner” in this section.

The air flow from the floor vents located
beneath the driver’s and front passenger’s
seats cannot be adjusted or closed. These
vents are only operational when the
air flow control button is selected.
For additional information, refer to “Air flow
control buttons” in this section.

Front (side and center)

LHA2065

Rear (ceiling)

LHA2130

Floor (beneath driver’s and

front passenger’s seats)

LHA2128

VENTS

4-18

Monitor, climate, audio, phone and voice recognition systems

The air flow from the floor vents located
beneath the second and third row passen-
ger’s seats cannot be adjusted or closed.
These vents are only operational when the
rear fan speed control dial is at a setting
other than 0 and the rear temperature
control dial is at a setting other than cold.

For additional information, refer to “Rear
seat air conditioner” in this section.

WARNING

∙ The air conditioner cooling function

operates only when the engine is
running.

∙ Do not leave children or adults who

would normally require the assis-
tance of others alone in your vehicle.
Pets should also not be left alone.
They could accidentally injure them-
selves or others through inadvertent
operation of the vehicle. Also, on hot,
sunny days, temperatures in a closed
vehicle could quickly become high
enough to cause severe or possibly
fatal injuries to people or animals.

∙ Do not use the recirculation mode for

long periods as it may cause the inte-
rior air to become stale and the win-
dows to fog up.

NOTE:

∙ Odors from inside and outside the ve-

hicle can build up in the air conditioner
unit. Odor can enter the passenger
compartment through the vents.

∙ When parking, set the heater and air

conditioner controls to turn off air recir-
culation to allow fresh air into the pas-
senger compartment. This should help
reduce odors inside the vehicle.

Floor (beneath 2nd and 3rd rows)

LHA2129

HEATER AND AIR CONDITIONER
(manual) (if so equipped)

Monitor, climate, audio, phone and voice recognition systems

4-19

Type A (if so equipped)

LHA2037

4-20

Monitor, climate, audio, phone and voice recognition systems

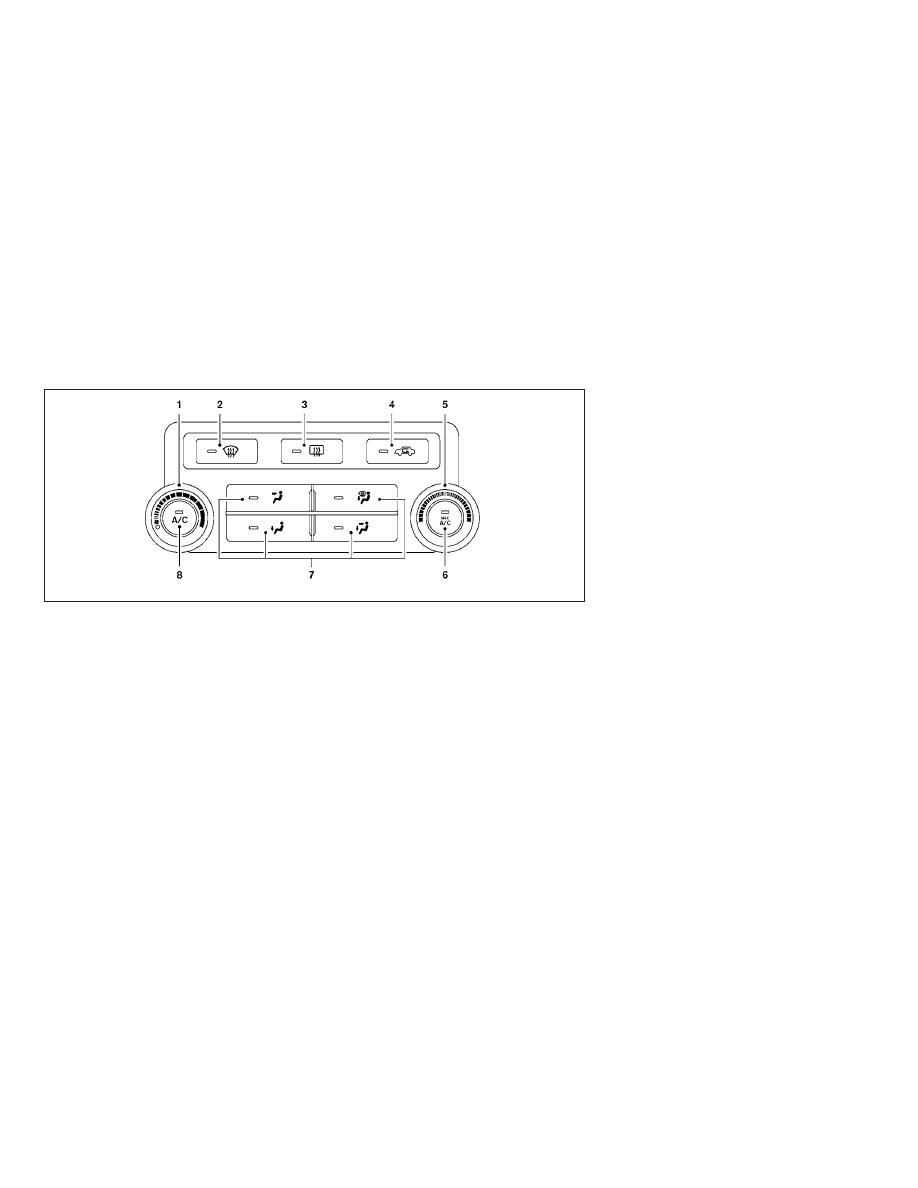

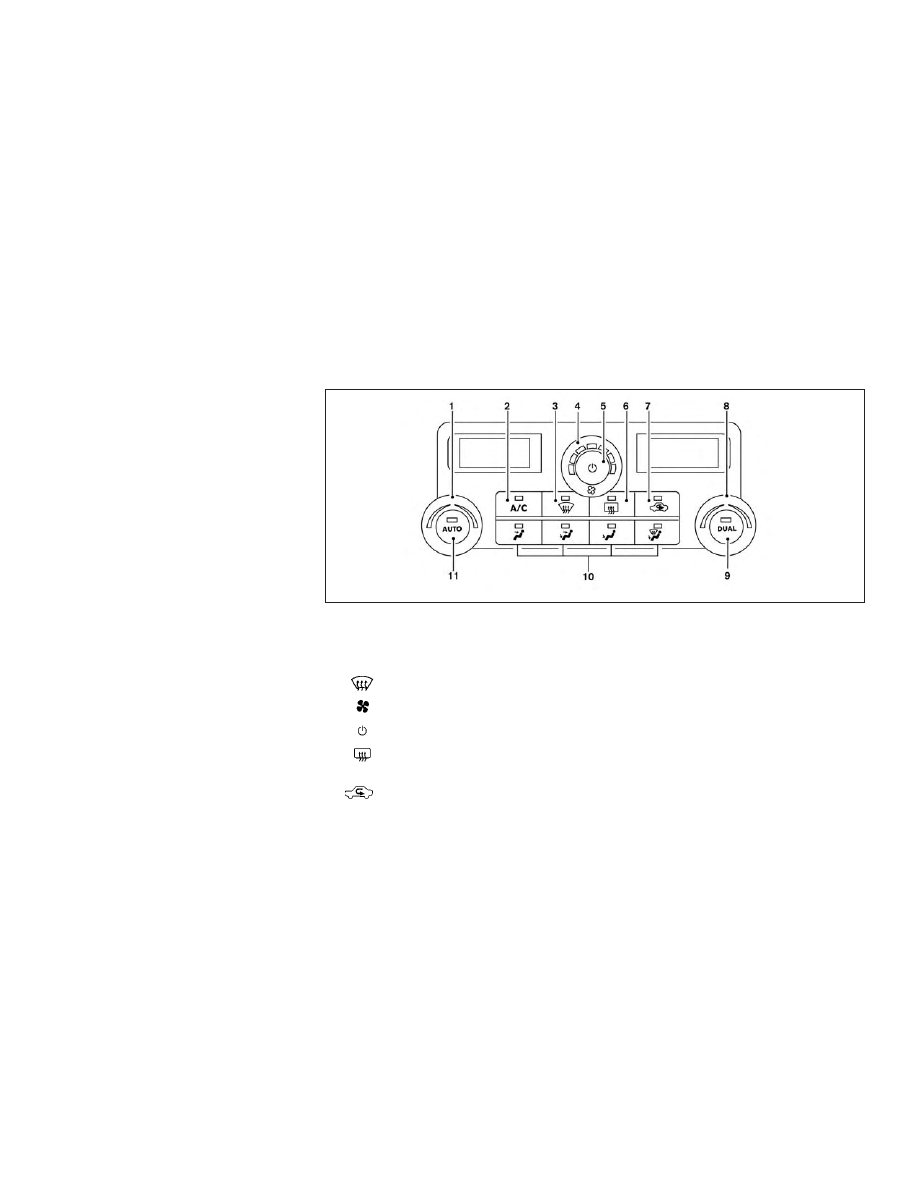

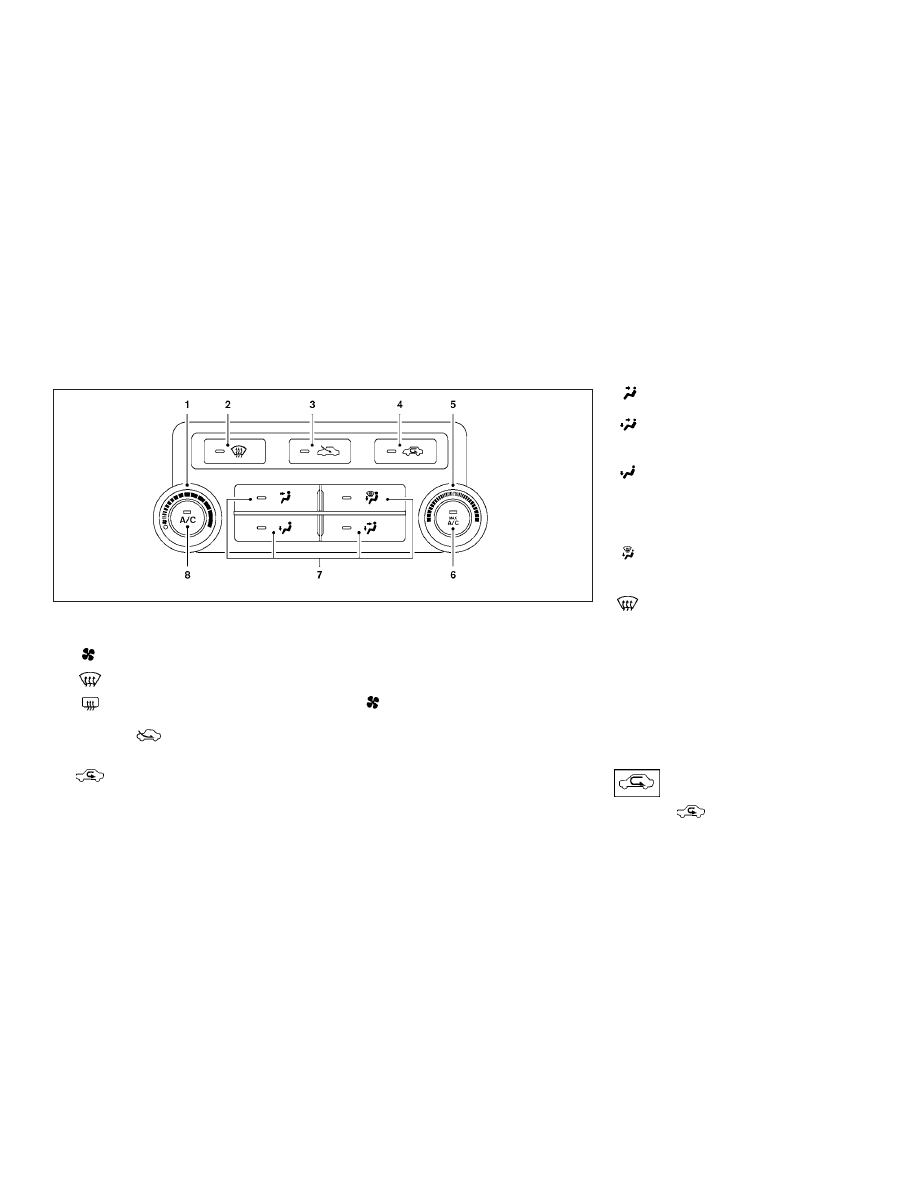

CONTROLS

Fan speed control dial

Front window defroster button

Rear window and/or outside mir-

ror defroster switch (if so equipped)
(Type A)/

Fresh air intake button

(Type B)

Air recirculation button

5. Temperature control dial

6. MAX A/C button

7. Air flow control buttons

8. A/C (air conditioner) button

Fan control dial

The

fan control dial turns the fan on

and off, and controls fan speed.

Air flow control buttons

The air flow control buttons allow you to
select the air flow outlets.

MAX A/C — Air flows from center and

side vents with maximum
cooling (air conditioning).

— Air flows from center and

side vents.

— Air flows from center and

side vents and the front
floor outlets.

— Air flows mainly from the

front floor outlets and the
vents located beneath the
driver’s and front passen-
ger’s seat.

— Air flows from defroster

outlets and the front floor
outlets.

— Air flows mainly from

defroster outlets.

For additional information, refer to “Rear
seat air conditioner” in this section.

Temperature control dial

The temperature control dial allows you to
adjust the temperature of the outlet air. To
lower the temperature, turn the dial to the
left. To increase the temperature, turn the
dial to the right.

Air recirculation button

Press the

button to recirculate air

inside the vehicle.

Type B (if so equipped)

LHA2038

Monitor, climate, audio, phone and voice recognition systems

4-21

Press the

button to the on position

when:

∙ driving on a dusty road.

∙ to prevent traffic fumes from entering

passenger compartment.

∙ for maximum cooling when using the

air conditioner.

The air recirculation mode is only func-
tional when the air flow control mode is in

the

following

positions:

For models equipped with the Type A sys-
tem, press the

button to turn air re-

circulation off. Outside air is drawn into the
passenger compartment and distributed
through the selected outlet.
For models equipped with the Type B sys-
tem, press the

button to switch to the

fresh air intake mode. Outside air is drawn
into the passenger compartment and dis-
tributed through the selected outlet.

The

mode is not necessary for nor-

mal heater or air conditioner operation.

Fresh air intake (Type B only)

Press the fresh air intake button

. The

air flow is drawn from outside the vehicle.

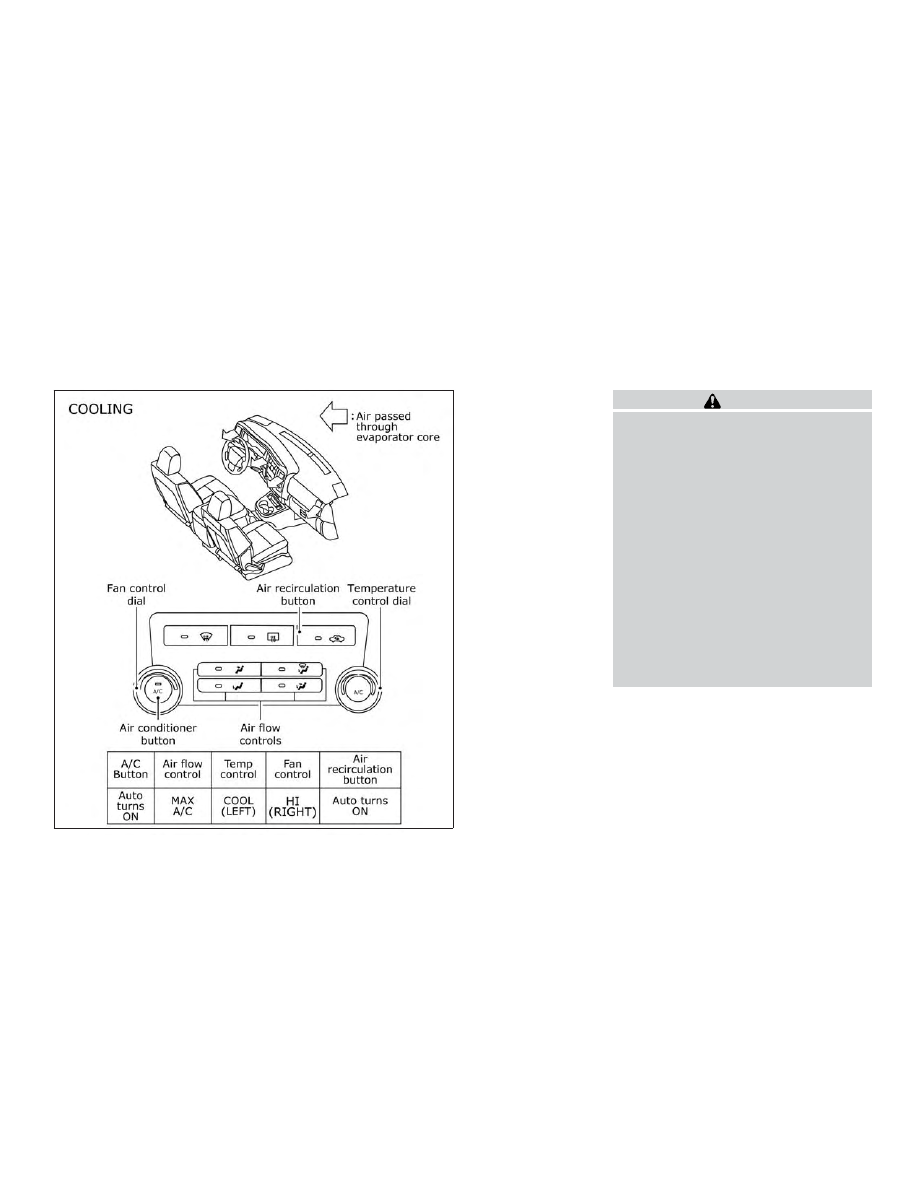

Air conditioner button

Start the engine, turn the

fan control

dial to the desired position. The

but-

ton will illuminate. To turn off the air condi-
tioner, press the

button or turn

the

fan control dial all the way to the

left.
The air conditioner cooling function op-
erates only when the engine is running.

Rear window and outside mirror
(if so equipped) defroster switch

For additional information, refer to “Rear
window and outside mirror (if so equipped)
defroster switch” in the “Instruments and
controls” section of this manual.

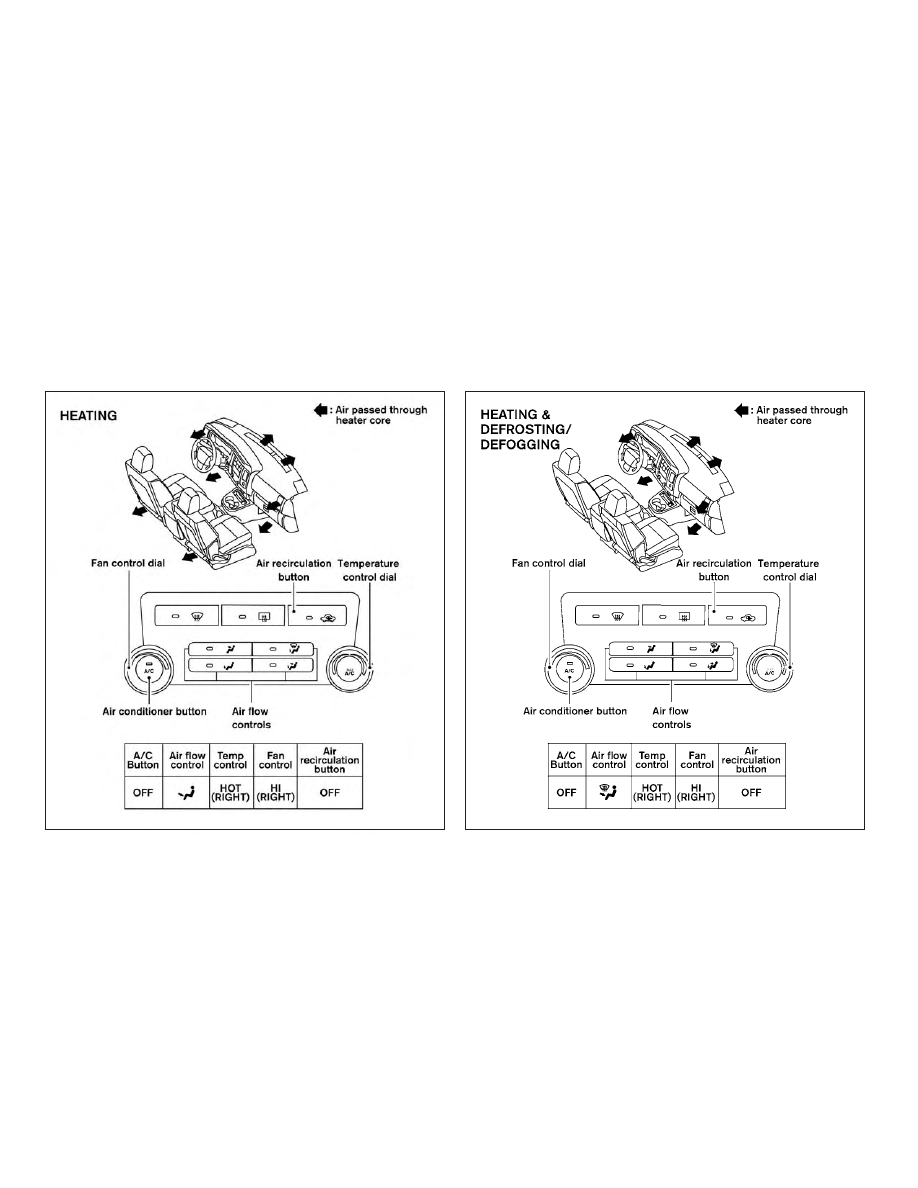

HEATER OPERATION

Heating

This mode is used to direct heated air to
the foot outlets. Some air also flows from
the defrost outlets.

1. Press the

button to the OFF posi-

tion (Type A) or press the

button

(Type B) for normal heating.

2. Press the

air flow control button.

3. Turn the

fan control dial to the

desired position.

4. Turn the temperature control dial to

the desired position between the
middle and the hot position.

Ventilation

This mode directs outside air to the side
and center vents.

1. Press the

button to the OFF posi-

tion (Type A) or press the

button

(Type B).

2. Press the

air flow control button.

3. Turn the

fan control dial to the

desired position.

4. Turn the temperature control dial to

the desired position.

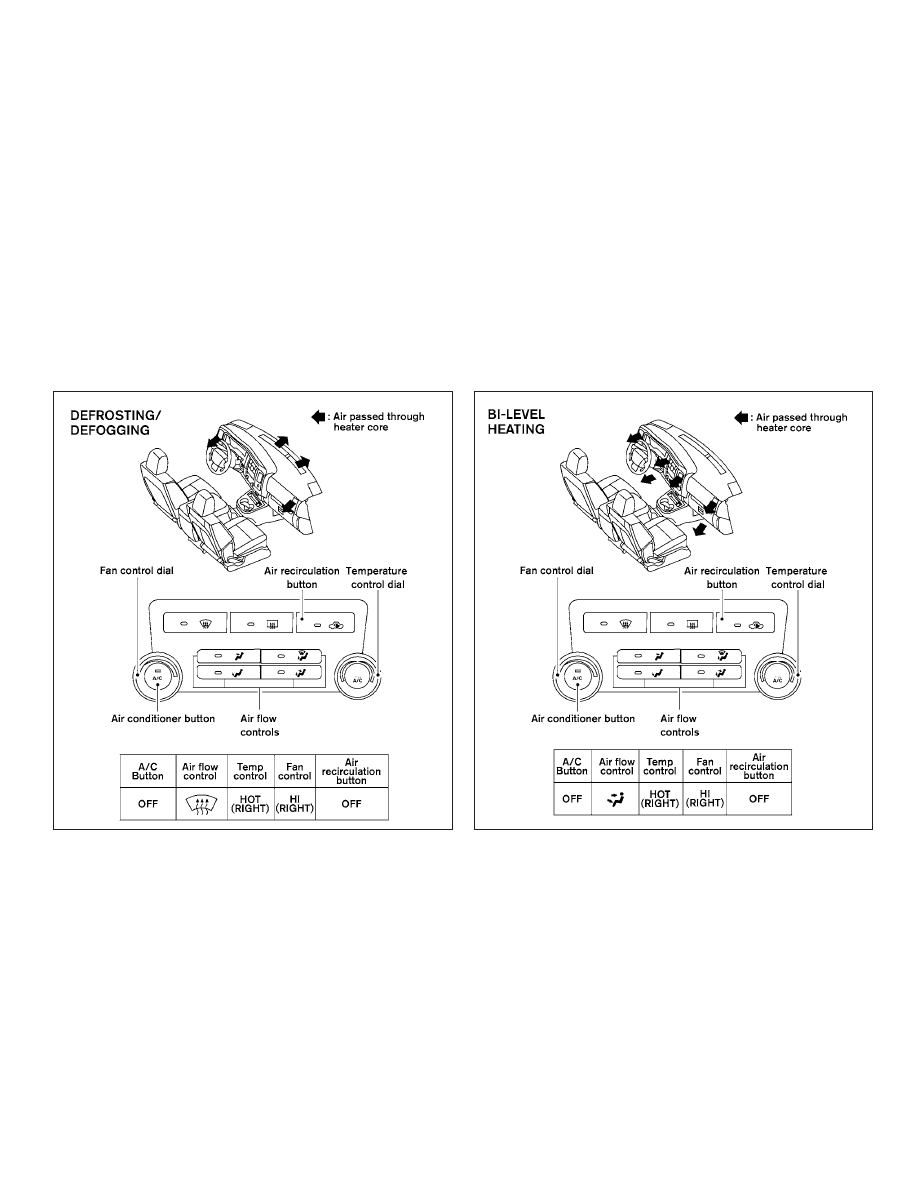

Defrosting or defogging

This mode directs the air to the defrost
outlets to defrost/defog the windows.

1. Press the

front defroster button.

2. Turn the

fan control dial to the

desired position.

4-22

Monitor, climate, audio, phone and voice recognition systems

3. Turn the temperature control dial to

the

desired

position

between

the

middle and the hot position.

∙ To quickly remove ice or fog from the

windows, turn the

fan control dial

to the highest setting and the tempera-
ture control to the full HOT position.

∙ When the

position is selected, the

air conditioner automatically turns on if
the outside temperature is more than
36°F (2°C). This dehumidifies the air
which helps defog the windshield.
The

mode automatically turns off,

allowing outside air to be drawn into the
passenger compartment to further im-
prove the defogging performance. The
recirculation mode cannot be activated
in the

position.

Bi-level heating

The bi-level mode directs warmed air to
the side and center vents and to the front
and rear floor outlets.

1. Press the

button to the OFF posi-

tion (Type A) or press the

button

(Type B).

2. Press the

air flow control button.

3. Turn the

fan control dial to the

desired position.

4. Turn the temperature control dial to

the desired position.

Heating and defogging

This mode heats the interior and defogs
the windshield.

1. Press the

air flow control button.

2. Turn the

fan control dial to the de-

sired position.

3. Turn the temperature control dial to

the

desired

position

between

the

middle and the hot position.

∙ When the

position is selected, the

air conditioner automatically turns on if
the outside temperature is more than
36°F (2°C). This dehumidifies the air
which helps defog the windshield.
The

mode automatically turns off,

allowing outside air to be drawn into the
passenger compartment to further im-
prove the defogging performance.

Operating tips

Clear snow and ice from the wiper blades
and air inlet in front of the windshield.
This improves heater operation.

AIR CONDITIONER OPERATION

Start the engine, turn the

fan control

dial to the desired position. The

but-

ton will illuminate. When the air conditioner
is on, cooling and dehumidifying functions
are added to the heater operation.
The air conditioner cooling function op-
erates only when the engine is running.

Cooling

This mode is used to cool and dehumidify
the air.

1. Press the

button (Type A) to the

OFF position or press the

button

(Type B).

2. Press the

air flow control button.

3. Turn the

fan control dial to the

desired position. The

button will

illuminate.

4. Turn the temperature control dial to

the desired position.

Monitor, climate, audio, phone and voice recognition systems

4-23

∙ For quick cooling when the outside

temperature is high, press the
button to the ON position. Be sure to
return the

button to the OFF posi-

tion (Type A) or press the

button

(Type B) for normal cooling. The indica-
tor light on the

button will go off.

You may also select MAX A/C for quick
cooling.

Dehumidified heating

This mode is used to heat and dehumidify
the air.

1. Press the

button to the OFF posi-

tion (Type A) or press the

button

(Type B).

2. Press the

air flow control button.

3. Turn the

fan control dial to the

desired position. The

button will

illuminate.

4. Turn the temperature control dial to

the desired position.

Dehumidified defogging

This mode is used to defog the windows
and dehumidify the air.

1. Press the

air flow control button.

2. Turn the

fan control dial to the

desired position.

∙ When the

are selected,

the air conditioner automatically turns
on if the outside temperature is more
than 36°F (2°C). This dehumidifies the air
which helps defog the windshield.
The

mode automatically turns off,

allowing outside air to be drawn into the
passenger compartment to further im-
prove the defogging performance.

∙ The air conditioner is always on in

mode, regardless of whether the indica-
tor light is on or off.

3. Turn the temperature control dial to

the desired position.

Operating tips

∙ Keep the windows closed while the air

conditioner is in operation.

∙ After parking in the sun, drive for 2 or

3 minutes with the windows open to
vent hot air from the passenger com-
partment. Then, close the windows.
This allows the air conditioner to cool
the interior more quickly.

∙ The air conditioning system should

operated

for

approximately

10 minutes at least once a month.
This helps prevent damage to the
system due to lack of lubrication.

∙ A visible mist may be seen coming from

the ventilators in hot, humid conditions
as the air is cooled rapidly. This does not
indicate a malfunction.

∙ If the engine coolant temperature

gauge indicates engine coolant tem-
perature over the normal range, turn
the air conditioner off. For additional
information, refer to “If your vehicle
overheats” in the “In case of emer-
gency” section of this manual.

AIR FLOW CHARTS

The following charts show the button and
dial positions for MAXIMUM AND QUICK
heating, cooling or defrosting. For addi-
tional information on heating and cooling,
refer to “Heater and air conditioner” in this
section. The air recirculation (

) mode

should always be OFF for heating and
defrosting.

4-24

Monitor, climate, audio, phone and voice recognition systems

LHA2039

LHA2040

Monitor, climate, audio, phone and voice recognition systems

4-25

LHA2131

LHA2042

4-26

Monitor, climate, audio, phone and voice recognition systems

WARNING

∙ The air conditioner cooling function

operates only when the engine is
running.

∙ Do not leave children or adults who

∙ Do not use the recirculation mode for

long periods as it may cause the inte-
rior air to become stale and the win-
dows to fog up.

Start the engine and operate the controls
to activate the air conditioner.

NOTE:

∙ Odors from inside and outside the ve-

hicle can build up in the air conditioner
unit. Odor can enter the passenger
compartment through the vents.

LHA4494

HEATER AND AIR CONDITIONER
(automatic) (if so equipped)

Monitor, climate, audio, phone and voice recognition systems

4-27

∙ When parking, set the heater and air

conditioner controls to turn off air recir-
culation to allow fresh air into the pas-
senger compartment. This should help
reduce odors inside the vehicle.

CONTROLS

1. Driver temperature control dial

2. A/C (ON/OFF) button

Front window defroster button

Fan speed control dial

(System OFF) button

Rear window and/or outside mir-

ror defroster switch (if so equipped)

Air recirculation button

8. Passenger temperature control dial

9. DUAL button

10. Air flow control buttons

11. AUTO button

AUTOMATIC OPERATION

Cooling or heating (auto)

This mode may be used all year round as
the system automatically works to keep a
constant temperature. Air flow distribution
and fan speed are also controlled auto-
matically.

LHA2468

4-28

Monitor, climate, audio, phone and voice recognition systems

1. Press the AUTO button on.

2. Turn the temperature dial to the left or

right to set the desired temperature.
Driver and passenger temperatures
can be set independently. Press DUAL
to activate dual climate control func-
tions. Turn the passenger’s side tem-
perature control dial to the left or right
to set the desired passenger’s tem-
perature.

∙ Adjust the temperature dial to about

75°F (24°C) for normal operation.

∙ The temperature of the front passen-

ger compartment will be maintained
automatically. Air flow distribution, fan
speed and A/C on/off are also con-
trolled automatically.

∙ A visible mist may be seen coming from

the vents in hot, humid conditions as
the air is cooled rapidly. This does not
indicate a malfunction.

Heating (A/C OFF)

The air conditioner does not activate. When
you need to heat only, use this mode.

1. Press the AUTO button.

2. Turn the temperature control dial to set

the desired temperature.

∙ The temperature of the passenger

compartment will be maintained auto-
matically. Air flow distribution and fan
speed are also controlled automatically.

∙ Do not set the temperature lower than

the outside air temperature. Otherwise,
the system may not work properly.

∙ Not recommended if windows fog up.

Dehumidified defrosting or
defogging

1. Press the

front window defroster

button to turn the system on. The indi-
cator light in the button will illuminate.

2. Turn the temperature dial to the left or

right to set the desired temperature.

∙ To quickly remove ice from the outside

of the windows, turn the manual fan
control to the maximum position.

∙ As soon as possible after the wind-

shield is clean, press the AUTO button to
return to the auto mode.

∙ When the

control is activated, the

air conditioner will automatically be
turned on at outside temperatures
above 36°F (2°C). If in defrost mode for
more than 1 minute, the air conditioning
system will continue to operate until the
fan control is turned OFF, the vehicle is
shut off or the A/C button is used to
turn off the compressor even if an air
flow button other than

is se-

lected. This dehumidifies the air which
helps defog the windshield. The air re-
circulation mode automatically turns
off, allowing outside air to be drawn into
the passenger compartment to further
improve the defogging performance.

MANUAL OPERATION

Fan speed control dial

Turn the

fan speed control dial left or

right to manually control the fan speed or
turn the system on or off.
Press the AUTO button to return to auto-
matic control of the fan speed.

Monitor, climate, audio, phone and voice recognition systems

4-29

Temperature control dial

The temperature control dial allows you to
adjust the temperature of the outlet air. To
lower the temperature, turn the dial to the
left. To increase the temperature, turn the
dial to the right. Temperature can be ad-
justed on the driver’s and passenger’s side.

Air recirculation

Press the

air recirculation button to

recirculate interior air inside the vehicle.
Press the AUTO button to return to auto-
matic mode.
The air recirculation button will not be acti-
vated when the air conditioner is in DEF,
floor, or floor/defrost mode.

Air conditioner button

Start the engine and press the

but-

ton to turn on the air conditioner. To turn off
the air conditioner, press the

button

again.
The air conditioner cooling function op-
erates only when the engine is running.

Air flow control

Press the air flow control buttons to manu-
ally control air flow and select the air outlet:

— Air flows from center and side

vents.

— Air flows from center and side

vents and front floor outlets.

— Air flows mainly from the

front floor outlets and the
vents located beneath the
driver’s and front passenger’s
seat.

— Air flows from defroster and

floor outlets.

— Air flows from defroster

outlets.

For additional information, refer to “Rear
seat air conditioner” in this section.

To turn system off

Press the

(System OFF) button.

Rear window and outside mirror
(if so equipped) defroster switch

For additional information, refer to “Rear
window and outside mirror (if so equipped)
defroster switch” in the “Instruments and
controls” section of this manual.

4-30

Monitor, climate, audio, phone and voice recognition systems

OPERATING TIPS

∙ When the engine coolant temperature

and outside air temperature are low, the
air flow from the foot outlets may not
operate for a maximum of 150 seconds.
However, this is not a malfunction. After
the coolant temperature warms up, air
flow from the foot outlets will operate
normally.

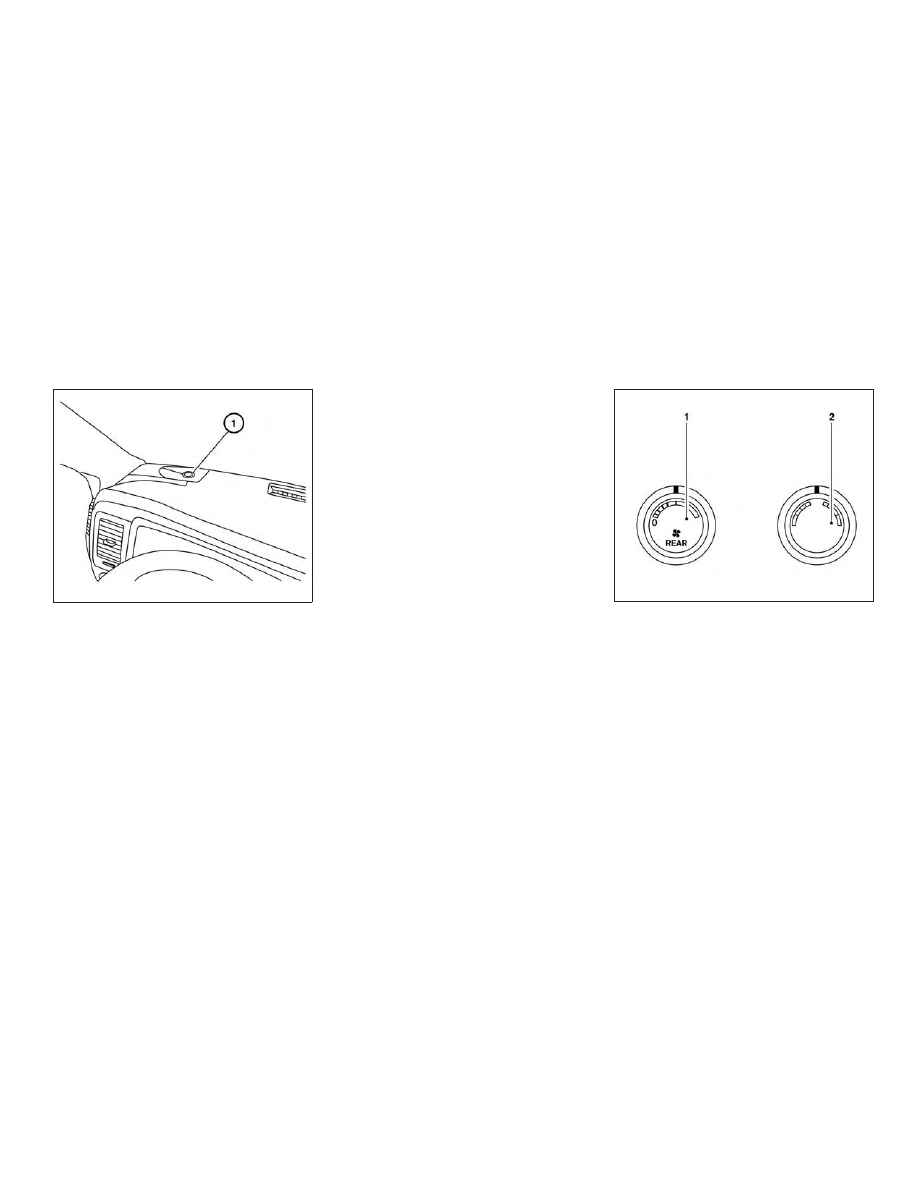

The sunload sensor, located on the top of
the instrument panel on the driver’s side

䊊

, helps the system maintain a constant

temperature. Do not put anything on or
around this sensor.

REAR SEAT AIR CONDITIONER

To operate the rear air conditioner, the en-
gine must be running.

If the rear seat fan control dial is set to (0),
the air conditioner is turned off. If it is set to
any of the fan speed positions, air is dis-
charged from the rear vents at the corre-
sponding speed.

Rear fan speed control dial

Rear temperature control dial

CONTROLS

Fan control dial

The fan control dial turns the rear vent fan
on and off and controls fan speed.

Temperature control dial

The temperature control dial adjusts the
temperature and airflow of the outlet air.

Turn the dial to the left for cooler air or to
the right for warmer air.

LHA2132

Rear seat rear climate controls

LHA2106

Monitor, climate, audio, phone and voice recognition systems

4-31

Content .. 10 11 12 13 ..
