When a front air bag inflates, a fairly loud
noise may be heard, followed by the re-
lease of smoke. This smoke is not harmful
and does not indicate a fire. Care should be
taken not to inhale it, as it may cause irrita-
tion and choking. Those with a history of a
breathing condition should get fresh air
promptly.

Front air bags, along with the use of seat
belts, help to cushion the impact force on
the face and chest of the front occupants.
They can help save lives and reduce seri-
ous injuries. However, an inflating front air
bag may cause facial abrasions or other
injuries. Front air bags do not provide re-
straint to the lower body.

Seat belts should be correctly worn and the
driver and passenger seated upright as far
as practical away from the steering wheel
or instrument panel. The front air bags in-
flate quickly in order to help protect the
front occupants. Because of this, the force
of the front air bag inflating can increase
the risk of injury if the occupant is too close
to, or is against, the front air bag module
during inflation.

The front air bags deflate quickly after a
collision.

The front air bags operate only when the
ignition switch is placed in the ON or
START position.

After placing the ignition switch in the
ON position, the supplemental air bag
warning light illuminates. The supple-
mental air bag warning light will turn off
after about 7 seconds if the system is
operational.

Other supplemental air bag precautions

WARNING

∙ Do not place any objects on the steer-

ing wheel pad or on the instrument
panel. Also, do not place any objects
between any occupant and the steer-
ing wheel or instrument panel. Such
objects may become dangerous pro-
jectiles and cause injury if the front air
bags inflate.

∙ Immediately after inflation, several

front air bag system components will
be hot. Do not touch them; you may
severely burn yourself.

∙ Do not make unauthorized changes

to your vehicle’s electrical system or
suspension system this could affect
proper

operation

the

air

bag

system.

∙ Tampering with the front air bag sys-

tem may result in serious personal in-
jury. Tampering includes changes to
the steering wheel and the instru-
ment panel assembly by placing ma-
terial over the steering wheel pad and
above the instrument panel or by in-
stalling

additional

trim

material

around the air bag system.

∙ It is recommended that you visit a

NISSAN dealer for work on and around
the front air bag system. It is also rec-
ommended that you visit a NISSAN
dealer for installation of electrical
equipment. The Supplemental Re-
straint

System

(SRS)

wiring

har-

nesses* should not be modified or dis-
connected. Unauthorized electrical
test equipment and probing devices
should not be used on the air bag
system.

1-62

Safety—Seats, seat belts and supplemental restraint system

∙ A cracked windshield should be re-

placed immediately by a qualified re-
pair facility. A cracked windshield
could affect the function of the
supplemental air bag system.

* The SRS wiring harness connectors are
yellow and orange for easy identifica-
tion.

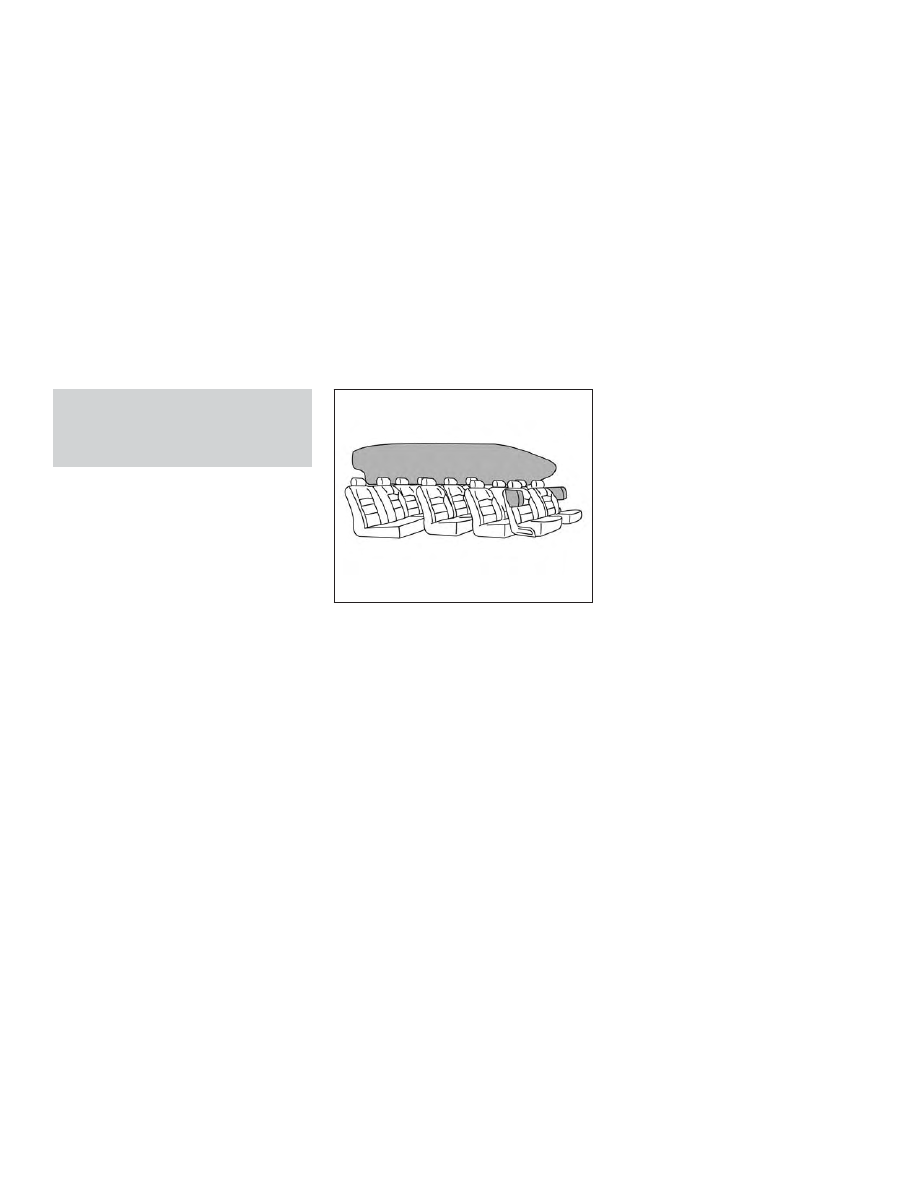

Front seat-mounted side-impact
supplemental air bag and
roof-mounted curtain side-
impact and rollover supplemental
air bag systems

The side air bags are located in the outside
of the seatback of the front seats. The cur-
tain air bags are located in the side roof
rails in all four rows. All of the information,
cautions and warnings in this manual
must be followed. The side air bags and
curtain air bags are designed to inflate in
higher severity side collisions, although
they may inflate if the forces in another

type of collision are similar to those of a
higher severity impact. They are designed
to inflate on the side where the vehicle is
impacted. They may not inflate in certain
side collisions.

Curtain air bags are also designed to inflate in
certain types of rollover collisions or near roll-
overs. As a result, certain vehicle movements
(for example, during severe off-roading) may
cause the curtain air bags to inflate.

Vehicle damage (or lack of it) is not always
an indication of proper side air bag and
curtain air bag operation.

When the side air bags and curtain air bags
inflate, a fairly loud noise may be heard,
followed by release of smoke. This smoke is
not harmful and does not indicate a fire.
Care should be taken not to inhale it, as it
may cause irritation and choking. Those
with a history of a breathing condition
should get fresh air promptly.

Side air bags, along with the use of seat belts,
help to cushion the impact force on the chest
of the front occupants. Curtain air bags help
to cushion the impact force to the head of
occupants in the front and rear outboard
seating positions in all rows. They can help
save lives and reduce serious injuries. How-
ever, an inflating side air bag or curtain air bag

LRS2732

Safety—Seats, seat belts and supplemental restraint system

1-63

may cause abrasions or other injuries. Side air
bags and curtain air bags do not provide re-
straint to the lower body.

The seat belts should be correctly worn
and the driver and passenger seated up-
right as far as practical away from the side
air bag. Rear seat passengers should be
seated as far away as practical from the
door finishers and side roof rails. The side
air bags and curtain air bags inflate quickly
in order to help protect the occupants. Be-
cause of this, the force of the side air bags
and curtain air bags inflating can increase
the risk of injury if the occupant is too close
to, or is against, these air bag modules dur-
ing inflation. The side air bag will deflate
quickly after the collision is over.

The curtain air bag will remain inflated for a
short time.

The side air bags and curtain air bags
operate only when the ignition switch is
placed in the ON or START position.

WARNING

∙ Do not place any objects near the

seatback of the front seats. Also, do
not place any objects (an umbrella,
bag, etc.) between the front door fin-
isher and the front seat. Such objects
may become dangerous projectiles
and cause injury if a side air bag
inflates.

∙ Right after inflation, several side air

bag and curtain air bag system com-
ponents will be hot. Do not touch
them; you may severely burn yourself.

∙ No unauthorized changes should be

made to any components or wiring of
the side air bag and curtain air bag
systems. This is to prevent damage to
or accidental inflation of the side air
bag and curtain air bag systems.

∙ Do not make unauthorized changes

to your vehicle’s electrical system,
suspension system or side panel. This
could affect proper operation of the
curtain air bag systems.

∙ Tampering with the side air bag sys-

tem may result in serious personal in-
jury. For example, do not change the
front seats by placing material near
the seatbacks or by installing addi-
tional trim material, such as seat cov-
ers, around the side air bag.

∙ It is recommended that you visit a

NISSAN dealer for work around and on
the side air bag and curtain air bag
systems. It is also recommended that
you visit a NISSAN dealer for installa-
tion of electrical equipment. The SRS
wiring

harnesses*

should

not

modified or disconnected. Unauthor-
ized electrical test equipment and
probing devices should not be used
on the side air bag or curtain air bag
systems.

* The SRS wiring harness or connectors
are yellow or orange for easy identifica-
tion.

When selling your vehicle, we request that
you inform the buyer about the side air
bags and curtain air bag system and guide
the buyer to the appropriate sections in
this Owner’s Manual.

1-64

Safety—Seats, seat belts and supplemental restraint system

Seat belt with pretensioner(s)
(front seats)

WARNING

∙ The pretensioner(s) cannot be reused

after activation. They must be re-
placed together with the retractor
and buckle as a unit.

∙ If the vehicle becomes involved in a

collision but pretensioner(s) are not
activated, be sure to have the preten-
sioner system checked and, if neces-
sary, replaced. It is recommended that
you visit a NISSAN dealer for this
service.

∙ No unauthorized changes should be

made to any components or wiring of
the pretensioner system. This is to
prevent damage to or accidental acti-
vation of the pretensioner(s). Tamper-
ing with the pretensioner system may
result in serious personal injury.

∙ It is recommended that you visit a

NISSAN dealer for work on and around
the pretensioner system. It is also rec-
ommended that you visit a NISSAN
dealer for installation of electrical
equipment. Unauthorized electrical
test equipment and probing devices
should not be used on the preten-
sioner system.

∙ If you need to dispose of the preten-

sioner(s) or scrap the vehicle, it is rec-
ommended that you visit a NISSAN
dealer for this service. Incorrect dis-
posal procedures could cause per-
sonal injury.

The pretensioner system may activate
with the supplemental air bag system in
certain types of collisions. Working with the
seat belt retractor, the pretensioner(s) help
tighten the seat belt when the vehicle be-
comes involved in certain types of colli-
sions, helping to restrain front seat occu-
pants.

The pretensioner(s) are encased within the
seat belt retractor and to the seat belt an-
chor affixed to the floor of the vehicle.
These seat belts are used the same way as
conventional seat belts.

When pretensioner(s) activate, smoke is re-
leased and a loud noise may be heard. This
smoke is not harmful and does not indi-
cate a fire. Care should be taken not to
inhale it, as it may cause irritation and
choking. Those with a history of a breath-
ing condition should get fresh air promptly.
After the pretensioner(s’) activation, load
limiters allow the seat belt to release web-
bing (if necessary) to reduce forces against
the chest.

The

supplemental

air

bag

warning

light

is used to indicate malfunctions

in the pretensioner system. For additional
information, refer to "Supplemental air bag
warning light" in this section. If the opera-
tion of the supplemental air bag warning
light indicates there is a malfunction, have
the system checked. It is recommended
that you visit a NISSAN dealer for this ser-
vice.
When selling your vehicle, we request that
you inform the buyer about the preten-
sioner system and guide the buyer to the
appropriate

sections

this

Owner’s

Manual.

Safety—Seats, seat belts and supplemental restraint system

1-65

1. SRS Air bag warning labels

The warning labels are located on the
surface of the sun visor.

SUPPLEMENTAL AIR BAG
WARNING LABELS

Warning labels about the supplemental
front-impact air bag system are placed in
the vehicle as shown in the illustration.

WARNING

Do not use a rear-facing child restraint
on a seat protected by an air bag in
front of it. If the air bag deploys, it may
cause serious injury or death.

SUPPLEMENTAL AIR BAG
WARNING LIGHT

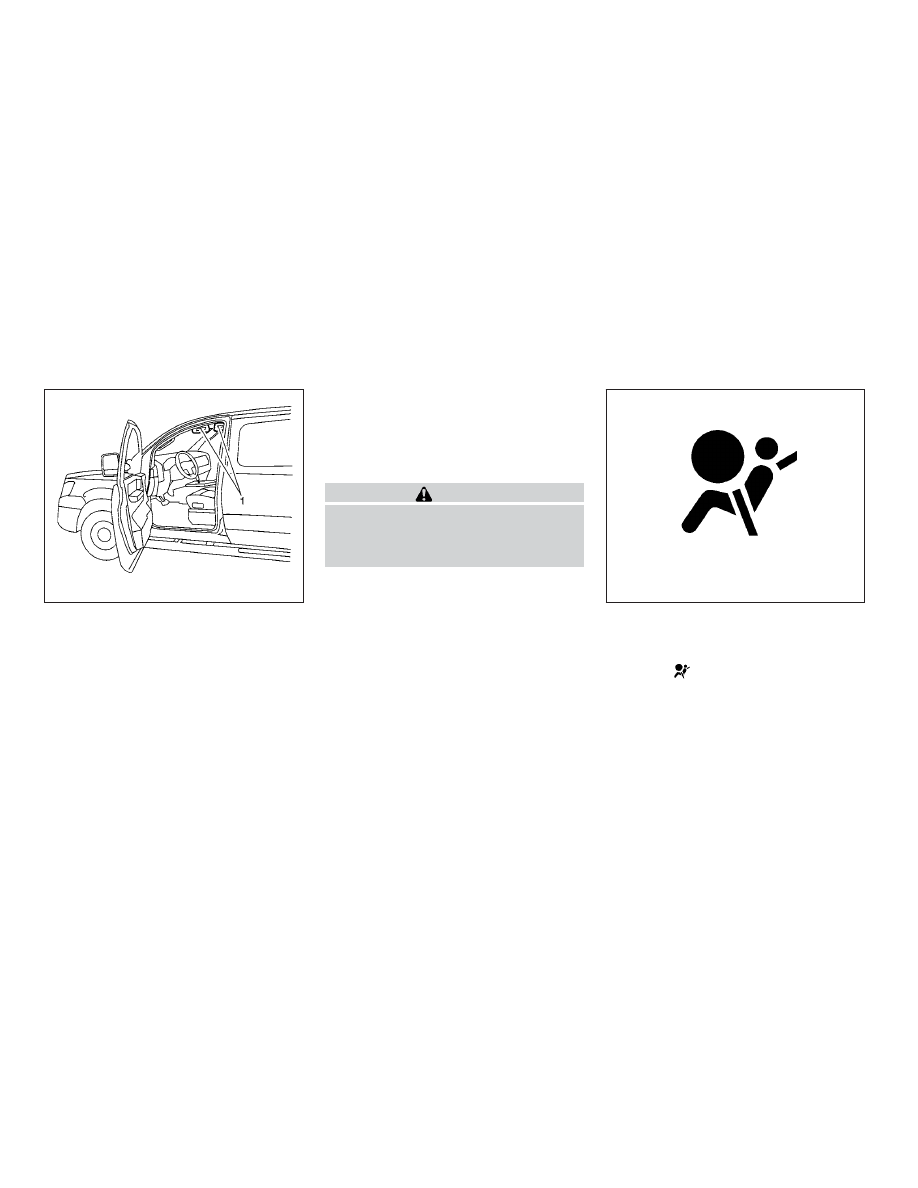

The supplemental air bag warning light,
displaying

in the instrument panel,

monitors the circuits for the air bag sys-
tems, pretensioner(s) and all related wiring.
When the ignition switch is placed in the ON
or START position, the supplemental air
bag warning light illuminates for about
7 seconds and then turns off. This means
the system is operational.

LRS2035

LRS0100

1-66

Safety—Seats, seat belts and supplemental restraint system

If any of the following conditions occur, the
front air bag, side air bag, curtain air bag
and pretensioner systems need servicing:

∙ The supplemental air bag warning light

remains on after approximately 7 sec-
onds.

∙ The supplemental air bag warning light

flashes intermittently.

∙ The supplemental air bag warning light

does not come on at all.

Under these conditions, the front air bag,
side air bag, curtain air bag or pretensioner
systems may not operate properly. They
must be checked and repaired. It is recom-
mended that you visit a NISSAN dealer for
this service.

WARNING

If the supplemental air bag warning
light is on, it could mean that the front
air bag, side air bag, curtain air bag
and/or pretensioner systems will not
operate in an accident. To help avoid
injury to yourself or others, have your
vehicle checked as soon as possible. It is
recommended that you visit a NISSAN
dealer for this service.

Repair and replacement
procedure

The front air bags, side air bags, curtain air
bags and pretensioner(s) are designed to
inflate on a one-time-only basis. As a re-
minder, unless it is damaged, the supple-
mental air bag warning light remains illu-
minated after inflation has occurred. These
systems should be repaired and/or re-
placed as soon as possible. It is recom-
mended that you visit a NISSAN dealer for
this service.

When maintenance work is required on the
vehicle, the front air bags, side air bags,
curtain air bags, pretensioner(s) and re-
lated parts should be pointed out to the
person performing the maintenance. The
ignition switch should always be placed in
the LOCK position when working under the
hood or inside the vehicle.

WARNING

∙ Once a front air bag, side air bag, or

curtain air bag has inflated, the air
bag module will not function again
and must be replaced. Additionally,
the activated pretensioner(s) must
also be replaced. The air bag module
and pretensioner(s) should be re-
placed. It is recommended that you
visit a NISSAN dealer for this service.
However, the air bag module and pre-
tensioner(s) cannot be repaired.

∙ The front air bag, side air bag, curtain

air bag systems and the pretensioner
system should be inspected if there is
any damage to the front end or side
portion of the vehicle. It is recom-
mended that you visit a NISSAN dealer
for this service.

∙ If you need to dispose of the supple-

mental air bag or pretensioner sys-
tems or scrap the vehicle, it is recom-
mended that you visit a NISSAN
dealer. Incorrect disposal procedures
could cause personal injury.

Safety—Seats, seat belts and supplemental restraint system

1-67

2 Instruments and controls

Instrument panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
Meters and gauges. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4

Compass (if so equipped) . . . . . . . . . . . . . . . . . . . . . . 2-14

Compass display . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-15

Warning lights, indicator lights and audible
reminders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-18

Checking lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-19
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-19
Indicator lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-24
Audible reminders . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-26

Security systems (if so equipped) . . . . . . . . . . . . . . . 2-26

Vehicle security system . . . . . . . . . . . . . . . . . . . . . 2-27
NISSAN Vehicle Immobilizer System . . . . . . . . . 2-28

Wiper and washer switch . . . . . . . . . . . . . . . . . . . . . . . 2-29

Switch operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-29

Rear window and outside mirror
(if so equipped) defroster switch . . . . . . . . . . . . . . . . 2-30
Headlight and turn signal switch . . . . . . . . . . . . . . . 2-31

Headlight control switch. . . . . . . . . . . . . . . . . . . . . 2-31
Daytime Running Lights (DRL) System . . . . . . . 2-32
Instrument brightness control. . . . . . . . . . . . . . . 2-33
Turn signal switch . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-33
Fog light switch (if so equipped) . . . . . . . . . . . . . 2-34

12v outlet(s). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-39
120v outlets (if so equipped) . . . . . . . . . . . . . . . . . 2-40

Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-42

Front-door pockets. . . . . . . . . . . . . . . . . . . . . . . . . . 2-42

Grocery hooks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-49

Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-50

Power windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-50
Manual vent windows . . . . . . . . . . . . . . . . . . . . . . . 2-51

Interior lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-51

Map lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-52
Cargo light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-53

Headlight switch (P. 2-31)

Vents (P. 4-18)

Front fog light switch
(if so equipped) (P. 2-31)

Wiper and washer switch (P. 2-29)
Turn signal switch (P. 2-33)

Steering wheel switch for audio
control (P. 4-72)
Bluetooth® Hands-Free Phone
System (P. 4-75, 4-86)

Driver supplemental air bag
(P. 1-55)
Horn (P. 2-34)

Meters and gauges (P. 2-4)
Warning and indicator lights
(P. 2-18)

Cruise control main/set switches
(P. 5-18)

Shift lever (P. 5-14)

10.

Storage tray (P. 2-43)

11.

Audio system controls (P. 4-4)
Navigation system* (if so
equipped) (P. 4-4)

12.

Storage tray (P. 2-43)

13.

Supplemental air bag (P. 1-55)

14.

Glove box (P. 2-43)

15.

Hazard warning flasher switch
(P. 6-2)

16.

Climate controls (P. 4-19)

LII2529

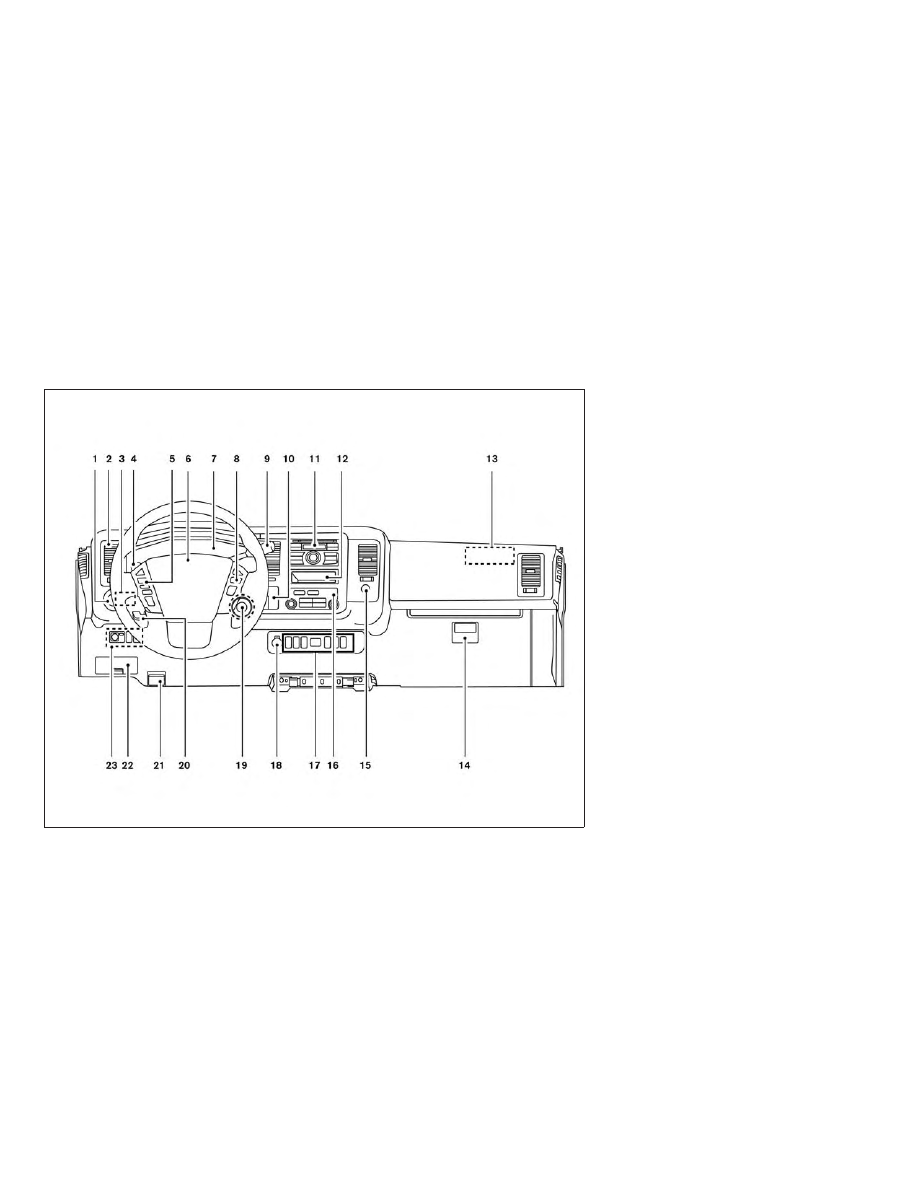

INSTRUMENT PANEL

2-2

Instruments and controls

17.

Rear Sonar System (RSS)
OFF switch (if so equipped) (P. 2-37)
Front and rear sonar system
OFF switch (if so equipped) (P. 2-37)
Power inverter switch (if so
equipped) (P. 2-36)
Heated seat switch
(if so equipped) (P. 2-34)
Tow mode switch (if so equipped)
(P. 2-38)
USB connection port (P. 4-60)
AUX IN jack (P. 4-60)

18.

12v power outlet (P. 2-39)

19.

Ignition switch (P. 5-8)

20.

Tilt steering wheel control (P. 3-16)

21.

Hood release switch (P. 3-13)

22.

Fuse box (P. 8-22)

23.

Outside power mirror switch
(P. 3-17)
Vehicle Dynamic Control (VDC)
OFF switch (P. 2-35)

*: Refer to the separate NissanConnect®
Owner’s Manual (if so equipped).

Refer to the page number indicated in
parentheses for operating details.

Instruments and controls

2-3

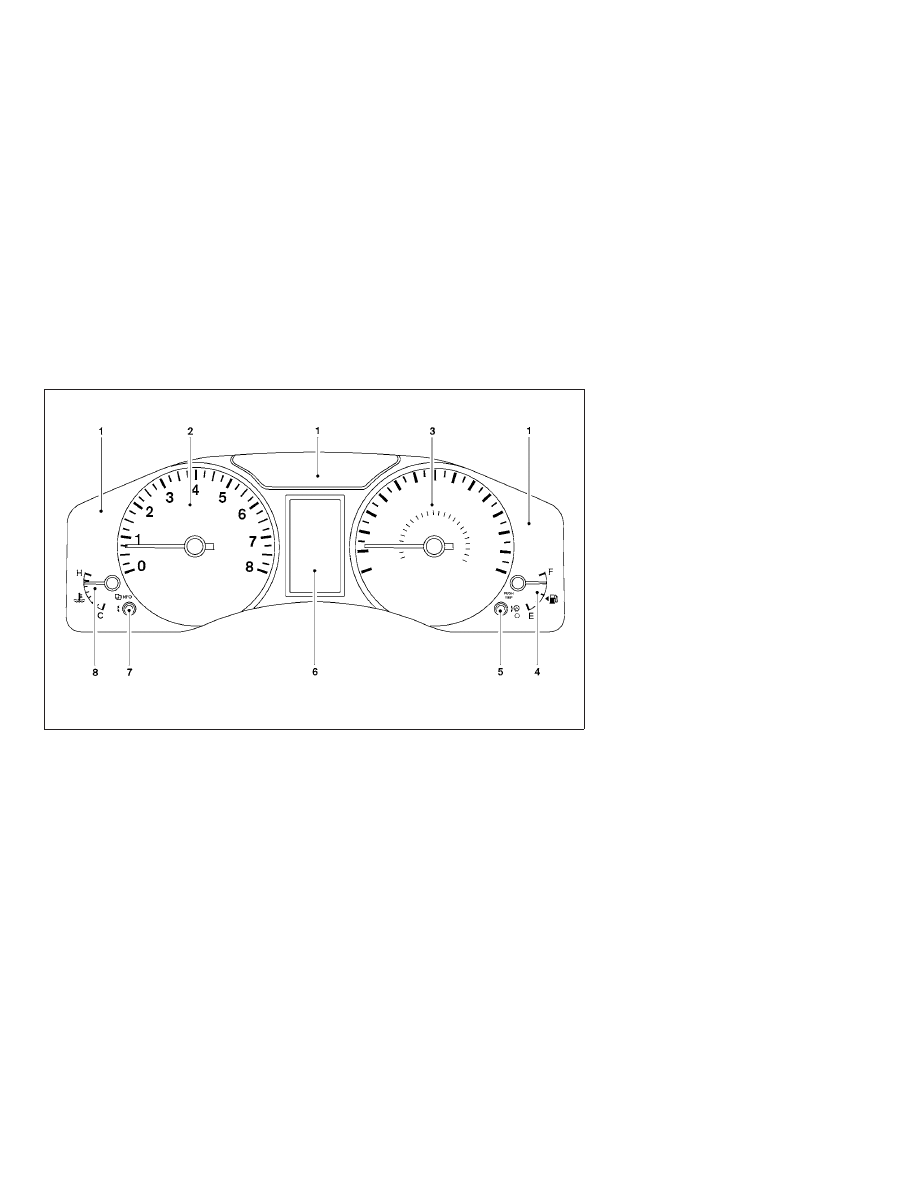

Warning lights and indicator lights

Tachometer

Speedometer

Fuel gauge

PUSH TRIP knob
Instrument brightness control knob

Odometer
Twin trip odometer
Trip computer
Automatic transmission
position indicator

INFO knob

Engine coolant temperature gauge

SPEEDOMETER AND ODOMETER

This vehicle is equipped with a speedom-
eter and odometer. The speedometer is
located on the right side of the meter clus-
ter. The odometer is located within the trip
computer.

LIC2037

METERS AND GAUGES

2-4

Instruments and controls

Speedometer

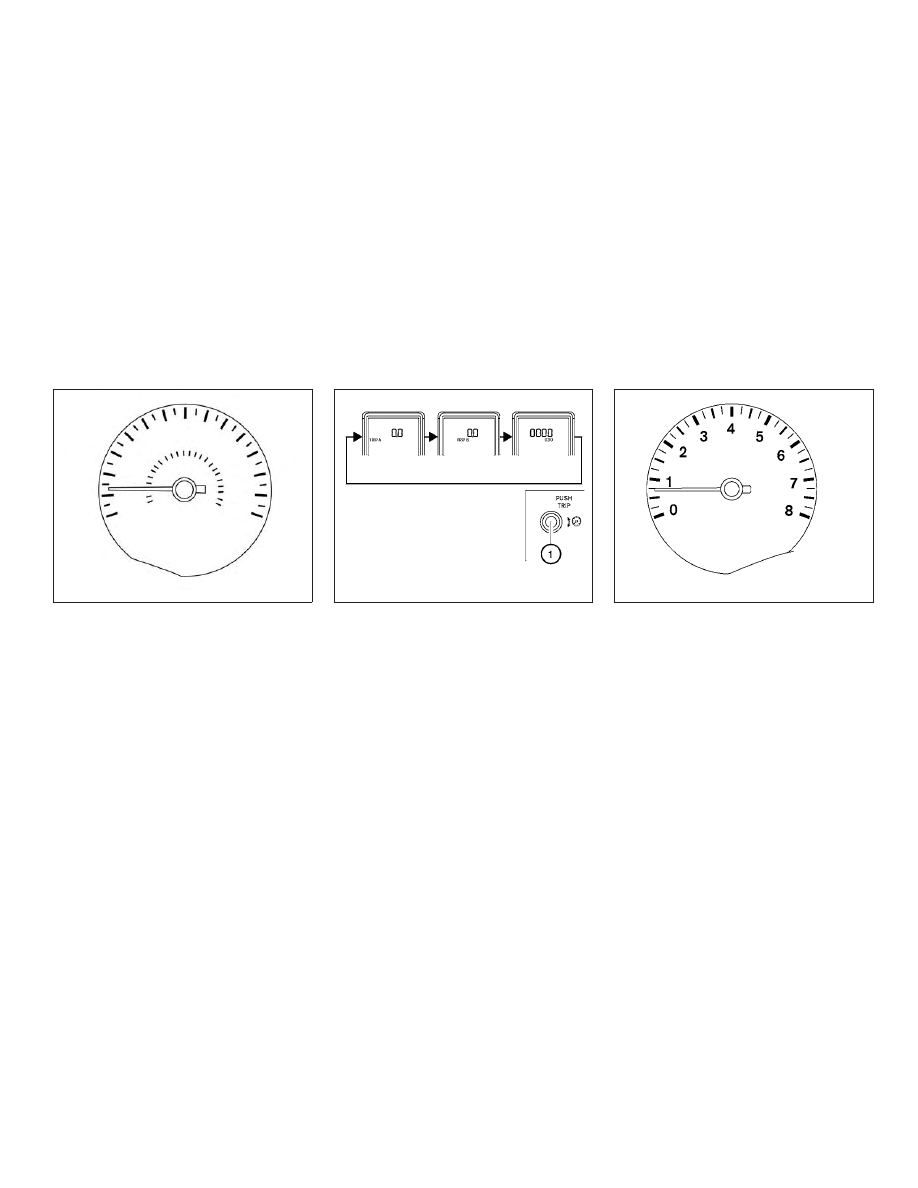

The speedometer indicates vehicle speed.

Odometer/Twin trip odometer

The odometer/twin trip odometer is dis-
played when the ignition switch is placed in
the ON position.

The odometer records the total distance
the vehicle is driven.

The twin trip odometer records the dis-
tance of individual trips.

Changing the display

Pressing the PUSH TRIP knob

䊊

changes

the display as follows:

Odometer only

→ Trip A → Trip B → Odom-

eter only

Resetting the trip odometer

Press the PUSH TRIP knob

䊊

for more than

1 second to reset the currently displayed
trip odometer to zero.

TACHOMETER

The tachometer indicates engine speed in
revolutions per minute (rpm).

LIC3663

LIC2042

LIC2041

Instruments and controls

2-5

ENGINE COOLANT TEMPERATURE
GAUGE

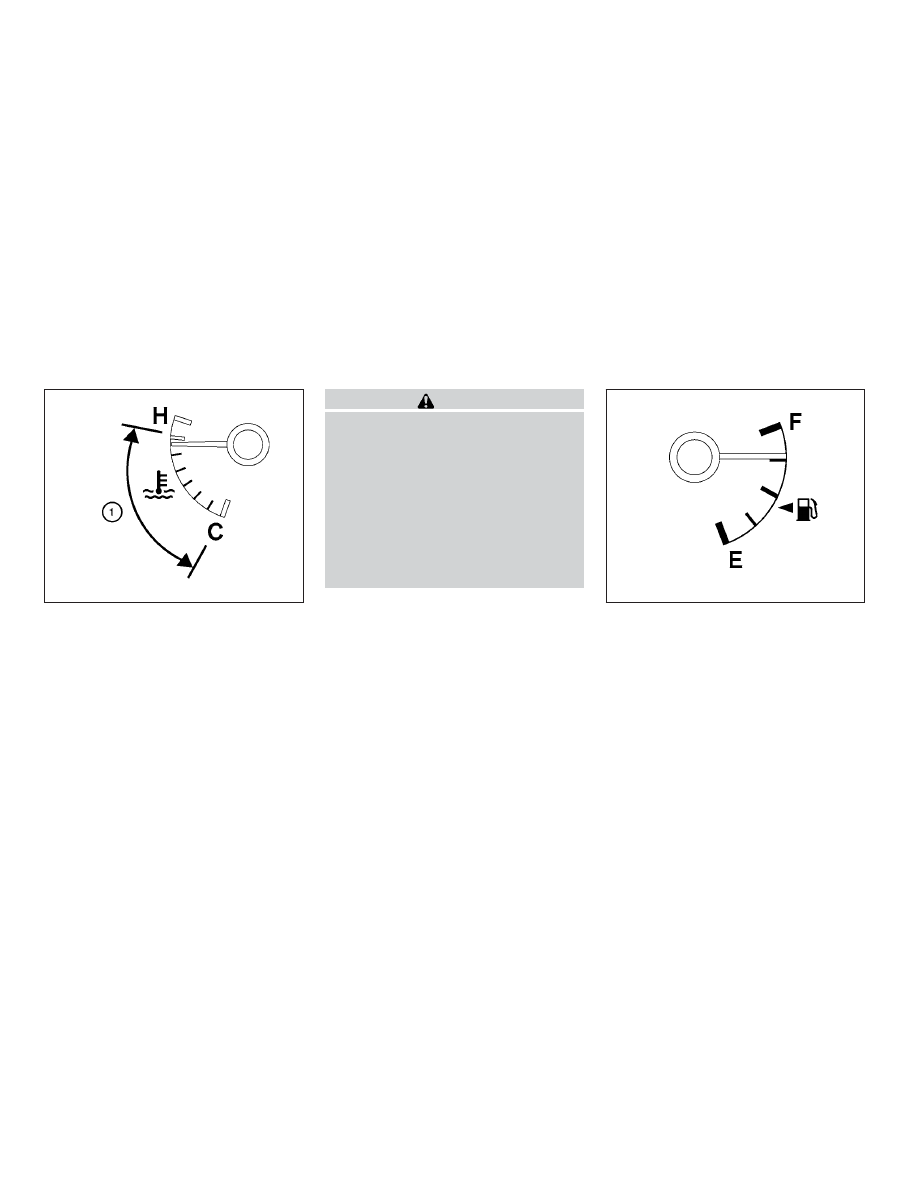

The gauge indicates the engine coolant
temperature. The engine coolant tempera-
ture is within the normal range

䊊

when

the gauge needle points within the zone
shown in the illustration.

The engine coolant temperature varies
with the outside air temperature and driv-
ing conditions.

CAUTION

If the gauge indicates coolant tempera-
ture near the hot (H) end of the normal
range, reduce vehicle speed to decrease
temperature. If the gauge is over the
normal range, stop the vehicle as soon
as safely possible. If the engine is over-
heated, continued operation of the ve-
hicle may seriously damage the engine.
For additional information, refer to “If
your vehicle overheats” in the “In case
of emergency” section of this manual
for immediate action required.

FUEL GAUGE

The gauge indicates the approximate fuel
level in the tank.

The gauge may move slightly during brak-
ing, turning, acceleration, or going up or
down hills.

The gauge needle returns to 0 (Empty)
after the ignition switch is placed in the OFF
position.

The low fuel warning light comes on when
the amount of fuel in the tank is getting low.

LIC2038

LIC2057

2-6

Instruments and controls

Refill the fuel tank before the gauge
registers 0 (Empty).

The

indicates that the fuel-filler

door is located on the driver’s side of the
vehicle.

CAUTION

∙ If the vehicle runs out of fuel, the

Malfunction Indicator Light (MIL) may
come on. Refuel as soon as possible.
After a few driving trips. the

light

should turn off. If the light remains on
after a few driving trips, have the ve-
hicle inspected. It is recommended
that you visit a NISSAN dealer for this
service.

∙ For additional information, refer to

“Malfunction Indicator Light (MIL)” in
this section.

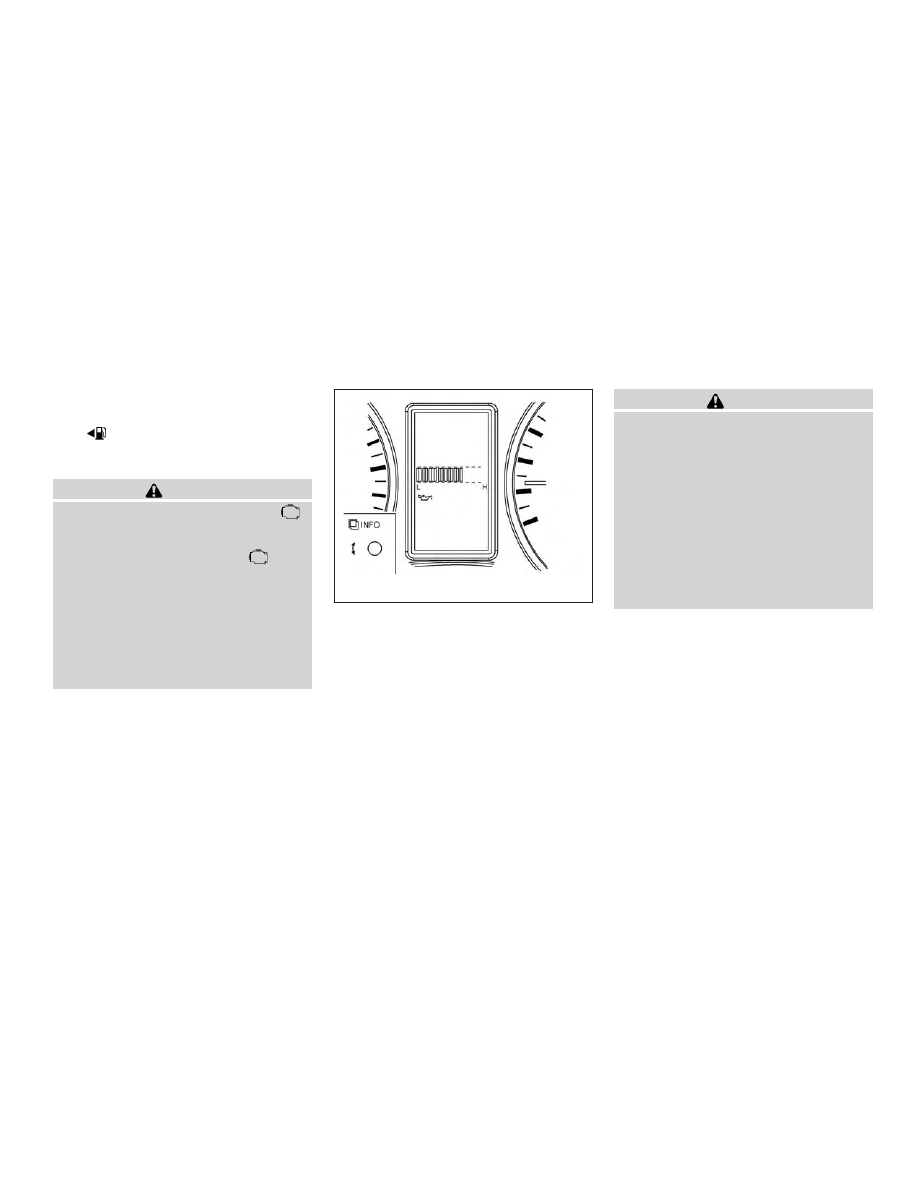

ENGINE OIL PRESSURE GAUGE

The gauge indicates the engine lubrication
system oil pressure while the engine is run-
ning. The indicator should be in the middle
of the gauge when the engine is running.
The digital gauge displays in the trip com-
puter by pressing the INFO knob one time.

CAUTION

∙ This gauge is not designed to indicate

low engine oil level. Use the dipstick to
check the oil level. For additional in-
formation, refer to “Engine oil” in the
“Do-it-yourself ”

section

this

manual.

∙ If the gauge does not move with the

proper amount of the engine oil, have
the vehicle checked. It is recom-
mended that you visit a NISSAN dealer
for this service. Continued vehicle op-
eration in such a condition could
cause serious damage to the engine.

LIC2056

Instruments and controls

2-7

VOLTMETER

When the ignition switch is placed in the ON
position, the voltmeter indicates the bat-
tery voltage. When the engine is running, it
indicates the generator voltage. To view
the digital gauge in the trip computer press
the INFO knob two times.

While cranking the engine, the volts drop
below the normal range. If the range is not
within the normal range (11 – 15 volts)

䊊

while the engine is running, it may indicate
that the charging system is not functioning
properly. Have the system checked. It is
recommended that you visit a NISSAN
dealer for this service.

AUTOMATIC TRANSMISSION FLUID
TEMPERATURE GAUGE

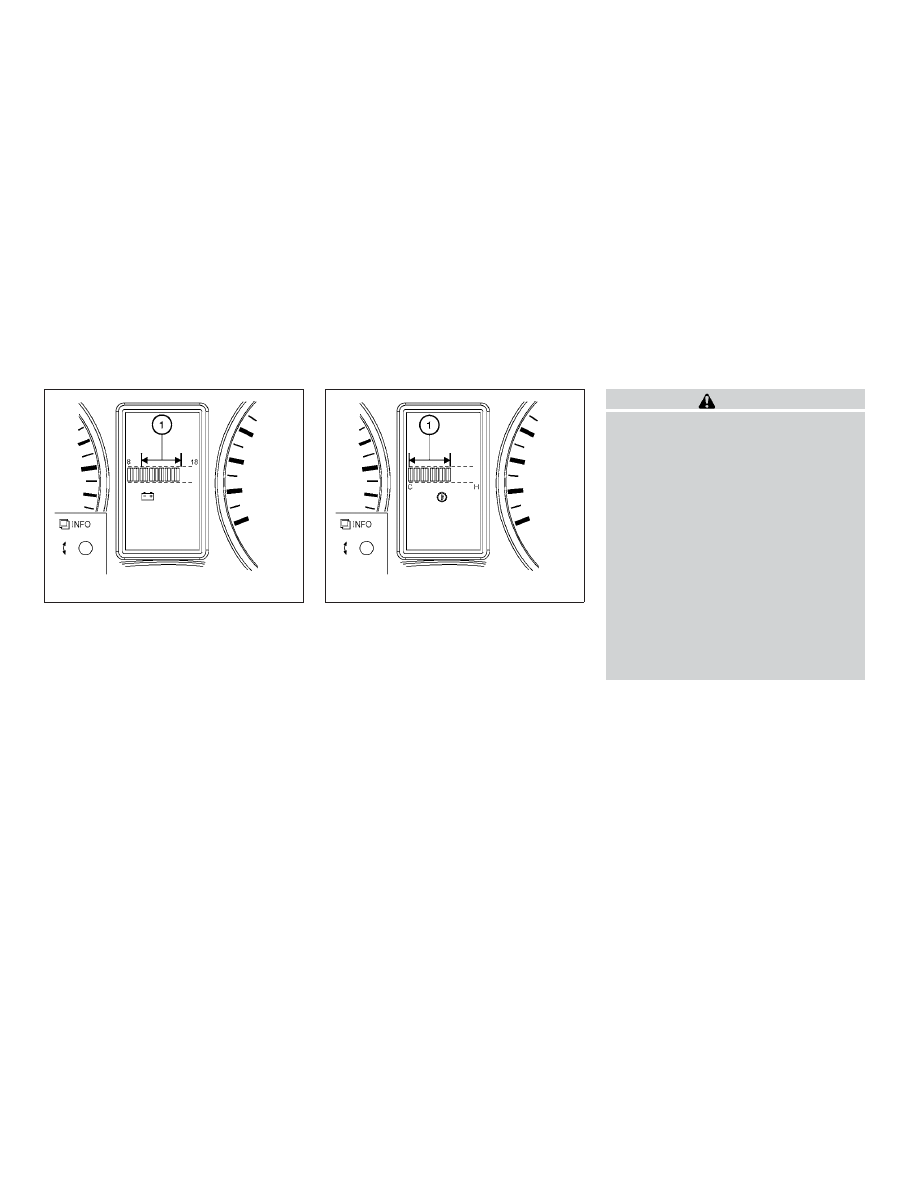

This gauge indicates the temperature of
the automatic transmission fluid. The au-
tomatic transmission fluid temperature is
in the normal range

䊊

when the gauge

indication is within the zone shown in the
illustration. To view the digital gauge in the
trip computer, press the INFO knob three
times.

CAUTION

∙ This gauge is not designed to indicate

low

automatic

transmission

fluid

level. Use the dipstick to check the
fluid level. For additional information,
refer to “5-speed Automatic Trans-
mission Fluid (ATF)” and “7–speed Au-
tomatic Transmission Fluid (ATF)” in
the “Do-it-yourself ” section of this
manual.

∙ If the gauge indicates automatic

transmission fluid temperature over
the normal range, stop the vehicle as
soon as safely possible. Have the ve-
hicle checked. It is recommended that
you visit a NISSAN dealer for this ser-
vice. Continued operation of the ve-
hicle

may

seriously

damage

the

transmission.

LIC2055

LIC2054

2-8

Instruments and controls

TRIP COMPUTER

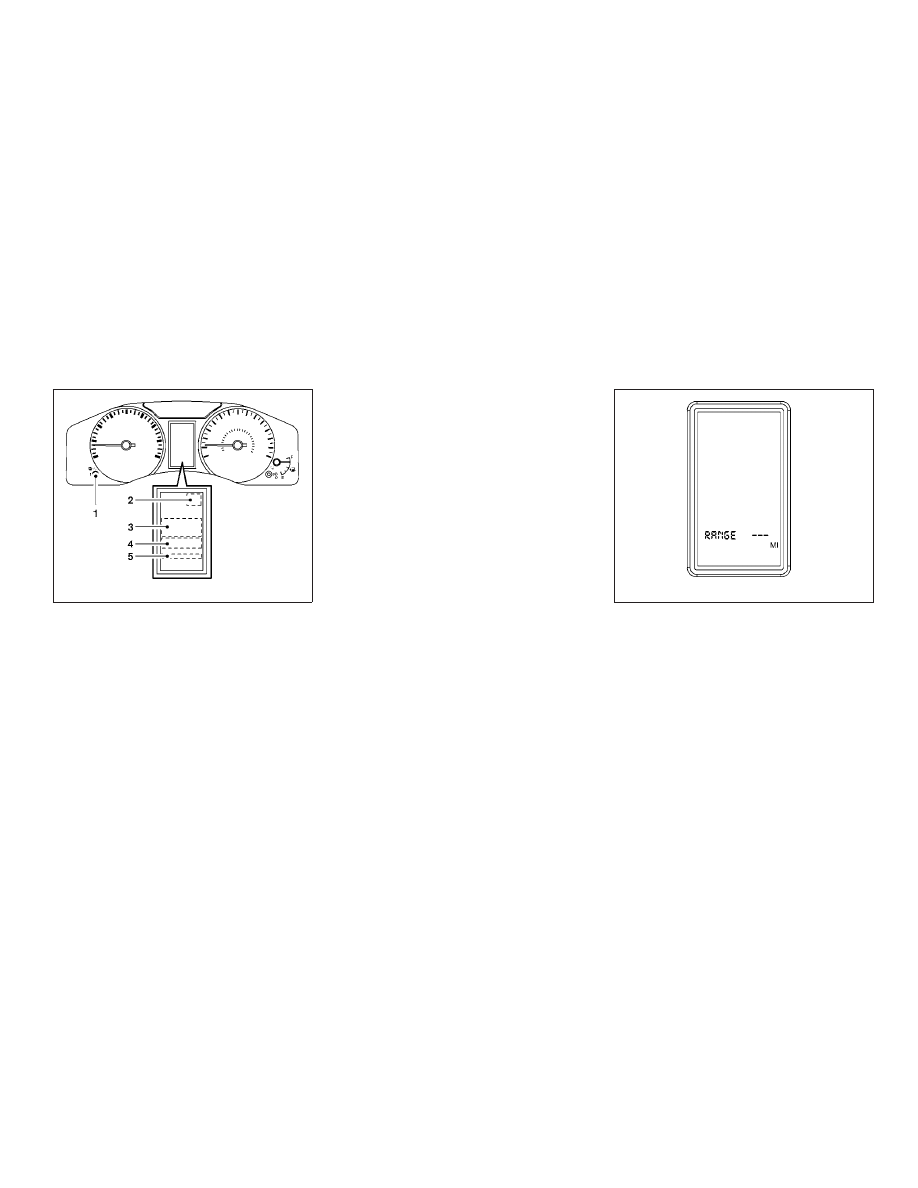

The trip computer is located between the
speedometer and the tachometer.

1. INFO knob

2. Outside temperature

3. Digital gauges

4. Message center/maintenance icons

5. Range — Avg mph — Time — Tire info—

Settings — Warnings/Message center

How to use the trip computer

Rotate the INFO knob, located on the left of
the instrument panel just behind the steer-
ing wheel, to display the following modes:

Range

→ Avg mph → Time → Tire info →

Settings

→ Warnings

Range mode

The range mode can be selected to give
you an estimation of the distance that can
be driven before refueling. The range is
constantly

calculated

based

the

amount of fuel in the fuel tank and the
actual fuel consumption.

LIC2099

LIC2097

Instruments and controls

2-9

Content .. 4 5 6 7 ..
