Nissan Murano (2018 year). Instruction

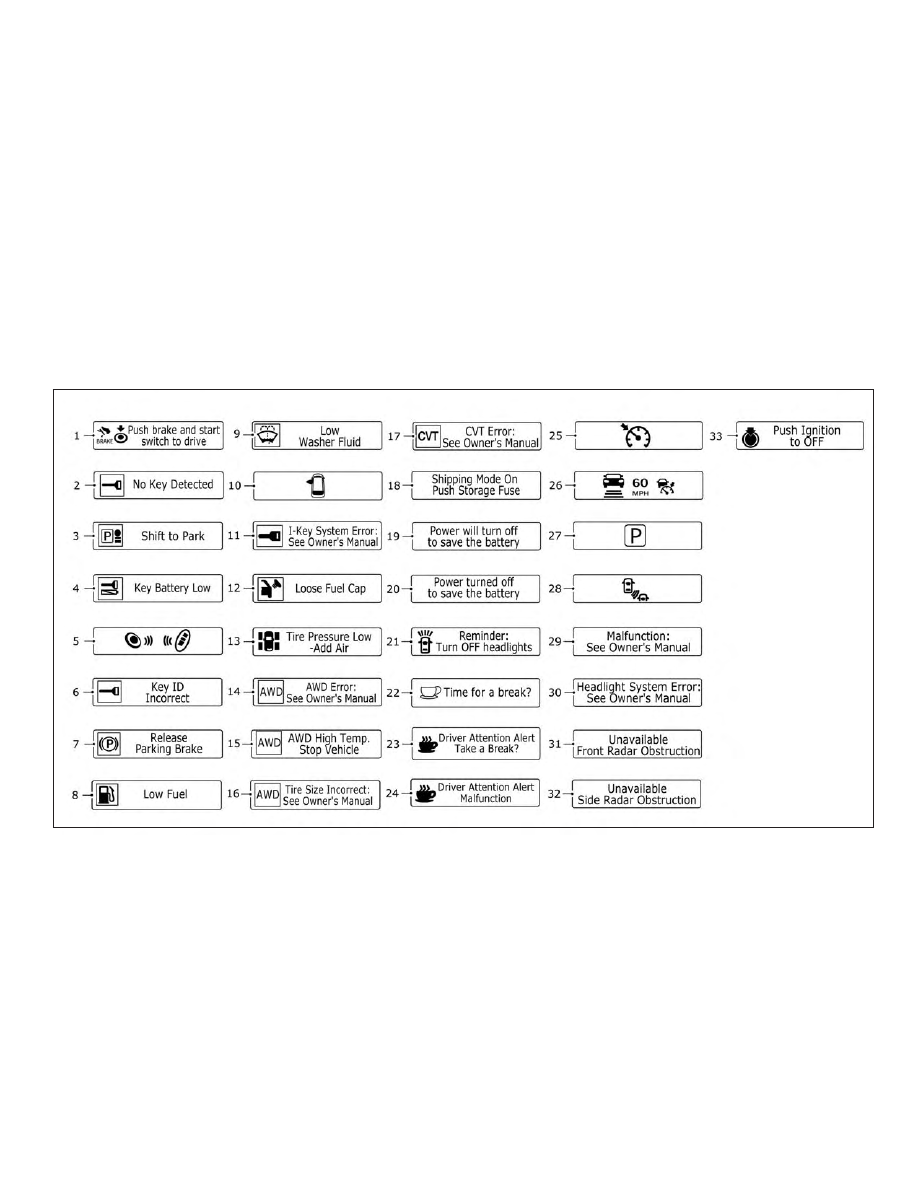

VEHICLE INFORMATION DISPLAY
WARNINGS AND INDICATORS

1. Push brake and start switch to drive

2. No Key Detected

3. Shift to Park

4. Key Battery Low

5. Engine start operation for Intelligent

Key system (if I-Key battery level is low)

6. Key ID Incorrect

7. Release Parking Brake

8. Low Fuel

9. Low Washer Fluid

10. Door/liftgate Open

11. I-Key System Error: See Owner’s Manual

12. Loose Fuel Cap

13. Tire Pressure Low – Add Air

14. AWD Error: See Owner’s Manual

(if so equipped)

15. AWD High Temp. Stop Vehicle

(if so equipped)

16. AWD Tire Size Incorrect: See Owner’s

Manual (if so equipped)

17. CVT Error: See Owner’s Manual

18. Shipping Mode On Push Storage Fuse

19. Power will turn off to save the battery

20. Power turned off to save the battery

21. Reminder: Turn OFF headlights

22. Alarm-Time for a break?

23. Driver Attention Alert Take a Break?

(if so equipped)

24. Driver Attention Alert Malfunction

(if so equipped)

25. Cruise control indicator (if so equipped)

26. Intelligent Cruise Control (ICC)

indicators (if so equipped)

27. Transmission Shift Position indicator

28. Blind Spot Warning (BSW) and Rear

Cross Traffic Alert (RCTA) indicator
(if so equipped)

29. Malfunction: See Owner’s Manual

(if so equipped)

30. Headlight System Error: See Owner’s

Manual (if so equipped)

31. Unavailable: Front Radar Obstruction

(if so equipped)

32. Unavailable: Side Radar Obstruction

(if so equipped)

33. Push Ignition to OFF

Push brake and start switch to drive

This indicator appears when the shift lever
is in the P (Park) position.

This indicator also appears when the ve-
hicle has been started using the Remote
Engine Start (if so equipped) function.

This indicator means that the engine will
start by pushing the ignition switch with
the brake pedal depressed. You can start
the engine from any position of the ignition
switch.

No Key Detected

This warning appears when the Intelligent
Key is left outside the vehicle with the igni-
tion switch in the ON position. Make sure
the Intelligent Key is inside the vehicle.

For additional information, refer to “NISSAN
Intelligent Key®” in the “Pre-driving checks
and adjustments” section of this manual.

2-26

Instruments and controls

Shift to Park

This warning illuminates when the ignition
switch is in the ACC or OFF position and the
shift lever is not in the P (Park) position. Also,
a chime sounds when the ignition switch is
in the ACC or OFF position.

If this warning illuminates, move the shift
lever to the P (Park) position or start the
engine.

Key Battery Low

This indicator illuminates when the Intelli-
gent Key battery is running out of power.

If this indicator illuminates, replace the bat-
tery with a new one. For additional infor-
mation, refer to “Battery replacement” in
the “Do-it-yourself ” section of this manual.

Engine start operation for Intelligent
Key system (if I-Key battery level is low)

This indicator appears when the battery of
the Intelligent Key is low and when the In-
telligent Key system and the vehicle are not
communicating normally.

If this appears, touch the ignition switch
with the Intelligent Key while depressing
the brake pedal. For additional information,

refer to “NISSAN Intelligent Key® battery dis-
charge” in the “Starting and driving” section
of this manual.

Key ID Incorrect

This warning appears when the ignition
switch is placed from the OFF position and
the Intelligent Key is not recognized by the
system. You cannot start the engine with
an unregistered key.

For additional information, refer to “NISSAN
Intelligent Key®” in the “Pre-driving checks
and adjustments” section of this manual.

Release Parking Brake

This warning illuminates in the message
area of the vehicle information display
when the parking brake is set and the ve-
hicle is driven.

Low Fuel

This warning illuminates when the fuel level
in the fuel tank is getting low. Refuel as
soon as it is convenient, preferably before
the fuel gauge reaches 0 (Empty). There
will be a small reserve of fuel in the tank
when the fuel gauge needle reaches 0
(Empty).

Low Washer Fluid

This

warning

illuminates

when

the

windshield-washer fluid is at a low level.
Add windshield-washer fluid as necessary.
For

additional

information,

refer

“Windshield-washer fluid” in the “Do-it-
yourself ” section of this manual.

Door/liftgate Open

This warning illuminates when a door or
the liftgate has been opened.

I-Key System Error: See Owner’s Manual

After the ignition switch is pushed to the
ON position, this light comes on for a period
of time and then turns off.

The I-Key System Error message warns of
a malfunction with the Intelligent Key sys-
tem. If the light comes on while the engine
is stopped, it may be impossible to start
the engine.

If the light comes on while the engine is
running, you can drive the vehicle. However
in these cases, have the system checked
as soon as possible. It is recommended
that you visit a NISSAN dealer for this ser-
vice.

Instruments and controls

2-27

Loose Fuel Cap

This warning appears when the fuel-filler
cap is not tightened correctly after the ve-
hicle has been refueled. For additional in-
formation, refer to “Fuel-filler cap” in the
“Pre-driving checks and adjustments” sec-
tion of this manual.

Tire Pressure Low - Add Air

This warning appears when the low tire
pressure warning light in the meter illumi-
nates and low tire pressure is detected. The
warning appears each time the ignition
switch is placed in the ON position as long
as the low tire pressure warning light re-
mains illuminated. If this warning appears,
stop the vehicle and adjust the tire pres-
sures of all four tires to the recommended
COLD tire pressure shown on the Tire and
Loading Information label. For additional
information, refer to “Low tire pressure
warning light” in this section and “Tire Pres-
sure Monitoring System (TPMS)” in the
“Starting

and

driving”

section

this

manual.

AWD Error: See Owner’s Manual
(if so equipped)

This warning appears when the all-wheel
drive system is not functioning properly
while the engine is running.

AWD High Temp. Stop Vehicle
(if so equipped)

This warning may appear while trying to
free a stuck vehicle due to increased oil
temperature.

The

driving

mode

may

change to 2-Wheel Drive (2WD). If this warn-
ing is displayed, stop the vehicle with the
engine idling, as soon as it is safe to do so.
Then if the warning turns off, you can con-
tinue driving.

Tire Size Incorrect: See Owner’s Manual
(if so equipped)

This warning may appear if there is a large
difference between the diameters of the
front and rear wheels. Pull off the road in a
safe area, with the engine idling. Check that
all the tire sizes are the same, that the tire
pressure is correct and that the tires are
not excessively worn.

CVT Error: See Owner’s Manual

This warning illuminates when the there is
a problem with the CVT system. If this

warning comes on, have the system
checked. It is recommended that you visit a
NISSAN dealer for this service.

Shipping Mode On Push Storage Fuse

This warning may appear if the extended
storage switch is not pushed in. When this
warning appears, push in the extended
storage switch to turn off the warning. For
additional information, refer to “Extended
storage switch” in this section.

Power will turn off to save the battery

This message appears in the vehicle infor-
mation display after a period of time if the
ignition switch is in the ACC or the ON po-
sition and if the vehicle is in P (Park). For
additional information, refer to “Push-
button ignition switch positions” in the
“Starting

and

driving”

section

this

manual.

Power turned off to save the battery

This message appears after the ignition
switch is automatically turned to off. For
additional information, refer to “Push-
button ignition switch positions” in the
“Starting

and

driving”

section

this

manual.

2-28

Instruments and controls

Reminder: Turn OFF headlights

This warning appears when the headlights
are left in the ON position when exiting the
vehicle. Place the headlight switch in the
OFF or AUTO position. For additional infor-
mation, refer to “Headlight and turn signal
switch” in this section.

Alarm - Time for a break?

This indicator appears when the driver en-
ables the timer alert function within the
driver assistance settings and the selected
set time is expired. The time is based on
ignition on time and can be set up to six
hours.

Driver Attention Alert - Take a Break?
(if so equipped)

This alert appears when the system has
detected that the driver may be displaying
fatigue or a lack of attention.

Driver Attention Alert Malfunction
(if so equipped)

This warning appears when the Intelligent
Driver Alertness (I-DA) system is not func-
tioning properly. For additional information,
refer to “Intelligent Driver Alertness (I-DA)” in
the “Starting and driving” section of this
manual.

Cruise control indicator (if so equipped)

These indicators show the cruise control
system status.

For additional information, refer to “Cruise
control” in the “Starting and driving” section
of this manual.

Intelligent Cruise Control (ICC)
indicators (if so equipped)

These

indicators

show

the

Intelligent

Cruise Control (ICC) system status. For ad-
ditional information, refer to “Intelligent
Cruise Control (ICC)” in the “Starting and
driving” section of this manual.

Transmission Shift Position indicator

This indicator shows the transmission shift
position.

Blind Spot Warning (BSW) and Rear
Cross Traffic Alert (RCTA) indicator
(if so equipped)

This indicator shows when the BSW and
RCTA systems are engaged.

For additional information, refer to “Blind
Spot Warning (BSW)” and “Rear Cross Traffic
Alert (RCTA)” in the “Starting and driving”
section of this manual.

Malfunction: See Owner’s Manual

This warning appears when one or more of
the following systems (if so equipped) is
not functioning properly:

∙ Automatic Emergency Braking (AEB)

∙ Blind Spot Warning (BSW)

∙ Rear Cross Traffic Alert (RCTA)

∙ Intelligent Forward Collision Warning

(I-FCW)

If one or more of these warning appears,
have the system checked. It is recom-
mended that you visit an NISSAN dealer for
this service.

Headlight System Error: See Owner’s
Manual (if so equipped)

This warning appears when the LED head-
lights are not functioning properly.

If this warning appears, have your system
checked. It is recommended that you visit a
NISSAN dealer for this service.

Unavailable: Front Radar Obstruction
(if so equipped)

This message appears when the Intelligent
Cruise Control (ICC), Automatic Emergency
Braking (AEB), or Intelligent Forward Colli-

Instruments and controls

2-29

sion Warning (I-FCW) systems become un-
available because the front radar is ob-
structed. For additional information, refer
to “Intelligent Cruise Control (ICC)”, “Auto-
matic Emergency Braking (AEB)”, or “Intelli-
gent Forward Collision Warning (I-FCW)” in
the “Starting and driving” section of this
manual.

Unavailable: Side Radar Obstruction
(if so equipped)

This message appears when the Blind
Spot Warning (BSW)/Rear Cross Traffic Alert
(RCTA) systems become unavailable be-
cause a radar blockage is detected. For
additional information, refer to “Blind Spot
Warning (BSW)” or “Rear Cross Traffic Alert
(RCTA)” in the “Starting and driving” section
of this manual.

Push Ignition to OFF

After the Push Ignition to OFF warning illu-
minates, the warning will illuminate if the
ignition switch is placed in the ACC position
when the shift lever is moved to the P (Park)
position.

To turn off the Push warning, place the ig-
nition switch in the ON position and then in
the LOCK position.

Your vehicle has two types of security sys-
tems:

∙ Vehicle security system

∙ NISSAN Vehicle Immobilizer System

VEHICLE SECURITY SYSTEM

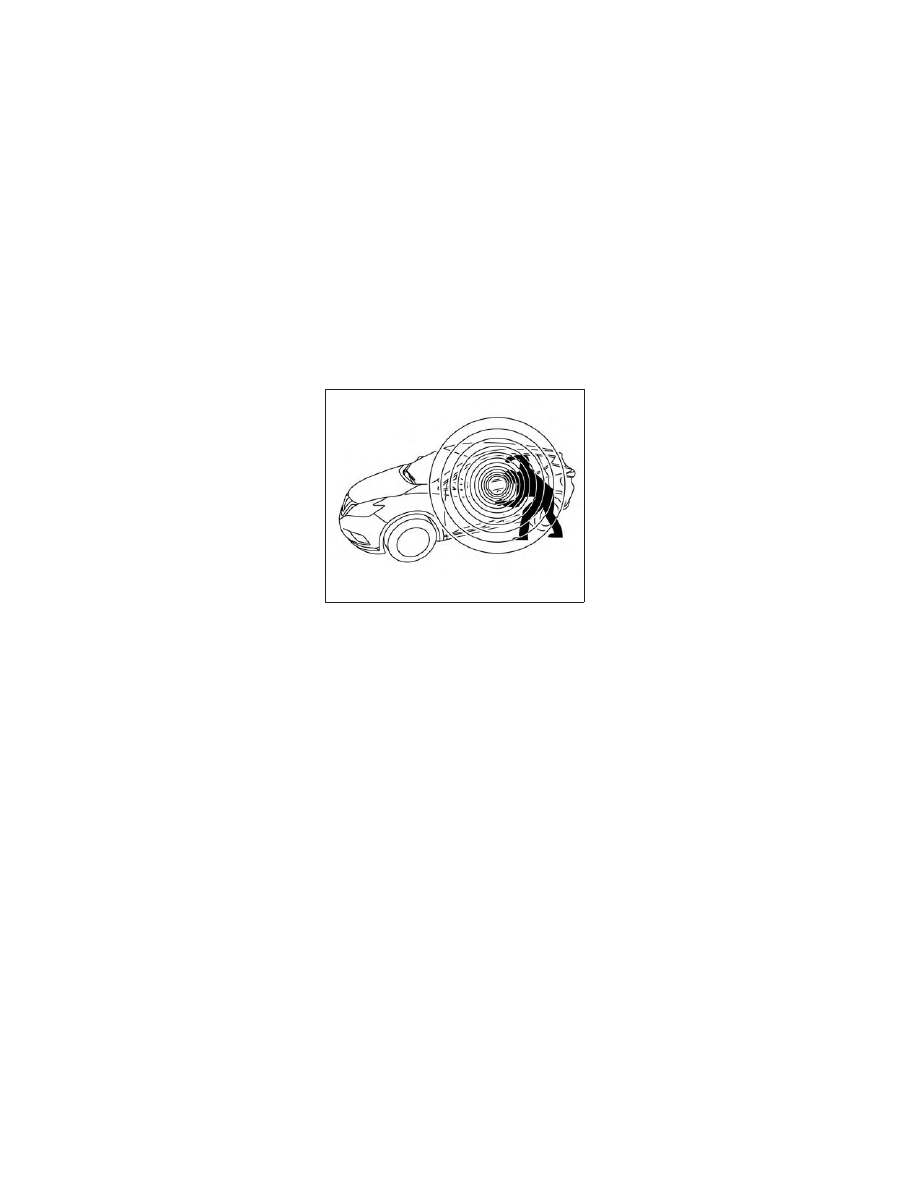

The vehicle security system provides visual
and audible alarm signals if someone
opens the doors, liftgate or the hood when
the system is armed. It is not, however, a
motion detection type system that acti-
vates when a vehicle is moved or when a
vibration occurs.

The system helps deter vehicle theft but
cannot prevent it, nor can it prevent the
theft of interior or exterior vehicle compo-
nents in all situations. Always secure your
vehicle even if parking for a brief period.
Never leave your Intelligent Key in the ve-
hicle, and always lock the vehicle when un-
attended. Be aware of your surroundings,
and park in secure, well-lit areas whenever
possible.

Many devices offering additional protec-
tion, such as component locks, identifica-
tion markers, and tracking systems, are
available at auto supply stores and spe-
cialty shops. A NISSAN dealer may also offer
such equipment. Check with your insur-
ance company to see if you may be eligible
for discounts for various theft protection
features.

How to arm the vehicle security
system

1. Close all windows. (The system can be

armed even if the windows are open.)

2. Remove the Intelligent Key from the ve-

hicle.

LIC2930

SECURITY SYSTEMS

2-30

Instruments and controls

3. Close all doors, hood and liftgate. Lock

all doors. The doors can be locked with
the Intelligent Key, door handle request
switch, or mechanical key.

4. Confirm that the

security indica-

tor light stays on for about 30 seconds.
The vehicle security system is now pre-
armed. The vehicle security system will
automatically shift into the armed
phase. The

security light begins

to flash once every three seconds. If
during the pre-armed phase one of the
following occurs, the system will not
arm:

∙ Any door is unlocked with the mechani-

cal key, the Intelligent Key or door re-
quest switch.

∙ Ignition switch is placed in ACC or ON

position.

∙ Even when the driver and/or passen-

gers are in the vehicle, the system will
activate with all the doors, hood and
liftgate

locked

with

the

ignition

switch placed in the LOCK position.
When placing the ignition switch in
the ACC or ON position, the system
will be released.

Vehicle security system activation

The vehicle security system will give the
following alarm:

∙ The headlights blink and the horn sounds

intermittently but synchronously.

∙ The alarm automatically turns off after

a period of time. However, the alarm
reactivates if the vehicle is tampered
with again.

The alarm is activated by:

∙ opening any door or hood without us-

ing the key or Intelligent Key (even if the
door is unlocked by releasing the door
inside lock knob).

How to stop an activated alarm

The alarm stops only by unlocking a door
or the liftgate with the mechanical key,
pressing the

button on the Intelligent

Key, or pressing the request switch on the
driver’s or passenger’s door with the Intel-
ligent Key in range of the door handle.

NISSAN VEHICLE IMMOBILIZER
SYSTEM

The NISSAN Vehicle Immobilizer System
will not allow the engine to start without
the use of a registered key.

Never leave these keys in the vehicle.

FCC Notice:

For USA:

This device complies with Part 15 of the
FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference
that may cause undesired operation.

NOTE:

Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s author-
ity to operate the equipment.

Instruments and controls

2-31

For Canada:

This

device

complies

with

Industry

Canada licence-exempt RSS standard(s).
Operation is subject to the following two
conditions: (1) this device may not cause
interference, and (2) this device must ac-
cept any interference received, including
interference that may cause undesired
operation of the device.

Security indicator light

The security indicator light blinks whenever
the ignition switch is placed in the OFF,
LOCK or ACC position.

This function indicates the NISSAN Vehicle
Immobilizer System is operational.

If the NISSAN Vehicle Immobilizer System is
malfunctioning, the light will remain on
while the ignition switch is placed in the ON
position.

If the light still remains on and/or the
engine will not start, seek service for the
NISSAN Vehicle Immobilizer System ser-
vice as soon as possible. Please bring all
registered keys that you have. It is rec-
ommended that you visit a NISSAN
dealer for this service.

LIC0474

2-32

Instruments and controls

SWITCH OPERATION

WARNING

In freezing temperatures the washer
solution may freeze on the windshield
and obscure your vision which may lead
to an accident. Warm the windshield
with the defroster before you wash the
windshield.

CAUTION

∙ Do not operate the washer continu-

ously for more than 30 seconds.

∙ Do not operate the washer if the

windshield-washer fluid reservoir is
empty.

∙ Do not fill the windshield-washer fluid

reservoir

with

windshield-washer

fluid concentrates at full strength.
Some

methyl

alcohol

based

windshield-washer

fluid

concen-

trates may permanently stain the
grille

spilled

while

filling

the

windshield-washer fluid reservoir.

∙ Pre-mix windshield-washer fluid con-

centrates with water to the manufac-
turer’s recommended levels before
pouring the fluid into the windshield-
washer fluid reservoir. Do not use the
windshield-washer fluid reservoir to
mix the windshield-washer fluid con-
centrate and water.

NOTE:

If the windshield wiper operation is in-
terrupted by snow or ice, the wiper may
stop moving to protect its motor. If this
occurs, turn the wiper switch to the OFF
position and remove the snow or ice that
is on and around the wiper arms. In ap-
proximately 1 minute, turn the switch on
again to operate the wiper.

The windshield wiper and washer operates
when the ignition switch is in the ON position.

Push the lever down to operate the wiper
at the following speed:

䊊

Intermittent (AUTO) — intermittent op-
eration can be adjusted by turning the
knob toward

䊊

(Slower) or

䊊

(Faster).

Also, the intermittent operation speed
varies in accordance with the vehicle
speed (if so equipped). (For example,
when the vehicle speed is high, the inter-
mittent operation speed will be faster.)

䊊

Low (LO) — continuous low speed op-
eration

䊊

High (HI) — continuous high speed op-
eration

Push the lever up

䊊

to have one sweep

operation (MIST) of the wiper.

Pull the lever toward you

䊊

to operate the

washer. The wiper will also operate several
times.

NOTE:

The Speed Dependent feature may be
disabled. For additional information, re-
fer to “Vehicle information display” in
this section.

LIC3028

WIPER AND WASHER SWITCH

Instruments and controls

2-33

REAR SWITCH OPERATION

If the rear window wiper operation is inter-
rupted by snow, etc., the wiper may stop
moving to protect its motor. If this occurs,
turn the wiper switch to OFF and remove
the snow, etc. on and around the wiper
arms. After about 1 minute, turn the switch
ON again to operate the wiper.

The rear window wiper and washer oper-
ate when the ignition switch is in the ON
position. Turn the switch clockwise from
the OFF position to operate the wiper.

䊊

Intermittent (INT) — intermittent op-
eration (not adjustable)

䊊

Low (ON) — continuous low speed op-
eration

Push the switch forward

䊊

to operate the

washer. The wiper will also operate several
times.

WARNING

In freezing temperatures the washer
solution may freeze on the window and
obscure your vision. Warm the rear win-
dow with the defroster before you wash
the rear window.

CAUTION

∙ Do not operate the washer continu-

ously for more than 30 seconds.

∙ Do not operate the washer if the

windshield-washer fluid reservoir is
empty.

∙ Do not fill the windshield-washer fluid

reservoir

with

windshield-washer

fluid concentrates at full strength.
Some

methyl

alcohol

based

windshield-washer

fluid

concen-

trates may permanently stain the
grille

spilled

while

filling

the

windshield-washer fluid reservoir.

∙ Pre-mix windshield-washer fluid con-

LIC3101

2-34

Instruments and controls

To defrost the rear window glass and out-
side mirrors (if so equipped), place the igni-
tion switch in the ON position and push the
rear window defroster switch on. The rear
window defroster indicator light on the
switch comes on. Push the switch again to
turn the defroster off.

The rear window defroster automatically
turns off after approximately 15 minutes.

CAUTION

When cleaning the inner side of the rear
window, be careful not to scratch or
damage the rear window defroster.

NOTE:

The top and bottom few rows of wires on
the rear window are not part of the rear
window defroster system. These wires
make up the antenna for the audio sys-
tem.

HEADLIGHT CONTROL SWITCH

Lighting

䊊

Rotate the switch to the

position,

and the front parking, tail, and license
plate lights will come on.

䊊

Rotate the switch to the

position,

and the headlights will come on and all
the other lights remain on.

LIC2923

Type A (if so equipped)

LIC3240

REAR WINDOW AND OUTSIDE
MIRROR (if so equipped)
DEFROSTER SWITCH

HEADLIGHT AND TURN SIGNAL
SWITCH

Instruments and controls

2-35

CAUTION

Use the headlights with the engine run-
ning to avoid discharging the vehicle
battery.

Autolight system

The autolight system allows the headlights
to turn on and off automatically. The auto-
light system can:

∙ Turn on the headlights, front parking,

tail, license plate and instrument panel
lights automatically when it is dark.

∙ Turn off all the lights (except daylight

running lights) when it is light.

∙ Keep all the lights on for a period of time

after you place the ignition switch in the
OFF position and all doors are closed.

NOTE:

Autolight activation sensitivity and the
time delay for autolight shutoff can be
adjusted. For additional information, re-
fer to “Vehicle information display” in
this section.
To turn on the autolight system:

1. Turn the headlight switch to the AUTO

position

䊊

2. Turn the ignition switch to ON.

3. The autolight system automatically

turns the headlights on and off.

Initially, if the ignition switch is turned off
and a door is opened and left open, the
headlights remain on for a period of time. If
another door is opened while the head-
lights are on, then the timer is reset.

To turn the autolight system off, turn the

switch to the OFF,

, or

position.

Type B (if so equipped)

LIC3241

LIC3474

2-36

Instruments and controls

Be sure you do not put anything on top
of the autolight sensor located in the top
side

䊊

of the instrument panel. The au-

tolight sensor controls the autolight; if it
is covered, the autolight sensor reacts as
if it is dark out and the headlights will
illuminate. If this occurs while parked
with the engine off and the ignition
switch placed in the ON position, your
vehicle’s battery could become dis-
charged.

Headlight beam select

䊊

To select the high beam function, push
the lever forward while the low beams
are on. The high beam lights come on
and the

indicator light illumi-

nates.

䊊

Pull the lever back to return to the low
beams.

䊊

Pulling and releasing the lever flashes
the headlight high beams on and off.
The low beams do not need to be on
for this to function.

Battery saver system

The battery saver system automatically
turns off the following lights after a period
of time when the ignition switch is placed in
the OFF position and the doors are closed:

∙ Headlights, when the headlight switch

is in the

position

∙ Interior lights, when left in the ON posi-

tion

After the headlights automatically turn off
with the headlight switch in the
or

position, the headlights will illumi-

nate again if the headlight switch is moved
to the OFF position and then turned to

the

position.

CAUTION

Even though the battery saver feature
automatically turns off the headlights
after a period of time, you should turn
the headlight switch to the OFF position
when the engine is not running to avoid
discharging the vehicle battery.

LIC2237

LIC3250

Instruments and controls

2-37

DAYTIME RUNNING LIGHTS (DRL)
SYSTEM (Type A) (if so equipped)

The Daytime Running Lights (DRL) auto-
matically illuminate when the engine is
started with the parking brake released.
The DRL operate with the headlight switch
in the OFF position or in the

position.

Turn the headlight switch to the

po-

sition for full illumination when driving at
night.
If the parking brake is applied before the
engine is started, the DRL do not illuminate.
The DRL illuminate when the parking brake
is released. The DRL will remain on until the
ignition switch is placed in the OFF position.

WARNING

When the DRL system is active, tail
lights on your vehicle are not on. It is
necessary at dusk to turn on your head-
lights. Failure to do so could cause an
accident injuring yourself and others.

LED DAYTIME RUNNING LIGHTS
(DRL) SYSTEM (Type B)
(if so equipped)

The LED portion of the headlights auto-
matically illuminate at 100% intensity when
the engine is started with the parking
brake released. The LED Daytime Running
Lights (DRL) operate with the headlight
switch in the OFF position or in the
position. Turn the headlight switch to
the

position for full illumination when

driving at night.
If the parking brake is applied before the
engine is started, the LED DRL do not illumi-
nate. The LED DRL illuminate when the
parking brake is released. The LED DRL will
remain on until the ignition switch is placed
in the OFF position.

WARNING

When the LED DRL system is active, tail
lights on your vehicle are not on. It is
necessary at dusk to turn on your head-
lights. Failure to do so could cause an
accident injuring yourself and others.

INSTRUMENT BRIGHTNESS
CONTROL

Press the “+” button

䊊

to increase the

brightness of instrument panel lights.

Press the “-” button

䊊

to decrease the

brightness of instrument panel lights.

LIC2305

2-38

Instruments and controls

TURN SIGNAL SWITCH

Turn signal

䊊

Move the lever up or down to signal the
turning direction. When the turn is
completed, the turn signal cancels au-
tomatically.

Lane change signal

䊊

Move the lever up or down until the
turn signal begins to flash, but the lever
does not latch, to signal a lane change.
Hold the lever until the lane change is
completed.

Move the lever up or down until the
turn signal begins to flash, but the lever
does not latch, and release the lever.
The turn signal will automatically flash
three times.

Choose the appropriate method to signal
a lane change based on road and traffic
conditions.

NOTE:

The 3 Flash Pass feature may be dis-
abled. For additional information, refer
to “How to use the vehicle information
display” in this section.

FOG LIGHT SWITCH
(if so equipped)

To turn the fog lights on, turn the headlight
switch to the

position, then turn the

fog light switch to the

position.

To turn the fog lights on with the headlight
switch in the AUTO position, the headlights
must be on, then turn the fog light switch to
the

position.

To turn the fog lights off, turn the fog light
switch to the OFF position.

LIC3252

LIC3256

Instruments and controls

2-39

The headlights must be on and the low
beams selected for the fog lights to oper-
ate. The fog lights automatically turn off
when the high beam headlights are se-
lected.

To sound the horn, push near the horn icon
on the steering wheel.

WARNING

Do not disassemble the horn. Doing so
could affect proper operation of the
supplemental front air bag system.
Tampering with the supplemental front
air bag system may result in serious
personal injury.

The climate controlled seat warms up or
cools down the front seat by blowing warm
or cool air from under the surface of the
seat. The climate control switch is located
on the center console.

The climate controlled seat can be oper-
ated as follows:

1. Place the ignition switch in the ON po-

sition.

2. Turn the control knob

䊊

to the heat

side

䊊

or the cool side

䊊

. The indica-

tor light

䊊

on the control knob will illu-

minate.

LIC2227

SIC4334

HORN

CLIMATE CONTROLLED SEAT
SWITCHES (if so equipped)

2-40

Instruments and controls

Nissan Murano (2018 year). Instruction - part 8
