feature and is not a substitute for
proper backing. Always turn and look
out the windows and check mirrors to
be sure that it is safe to move before
operating the vehicle. Always back up
slowly.

∙ The system is designed as an aid to

the driver in showing large stationary
objects directly behind the vehicle, to
help avoid damaging the vehicle.

∙ The distance guide line and the ve-

hicle width line should be used as a
reference only when the vehicle is on a
level paved surface. The distance
viewed on the monitor is for reference
only and may be different than the
actual distance between the vehicle
and displayed objects.

CAUTION

Do not scratch the camera lens when
cleaning dirt or snow from the front of
the camera.

The RearView Monitor system automati-
cally shows a rear view of the vehicle when
the shift lever is shifted into the R (Reverse)
position. The radio can still be heard while
the RearView Monitor is active.

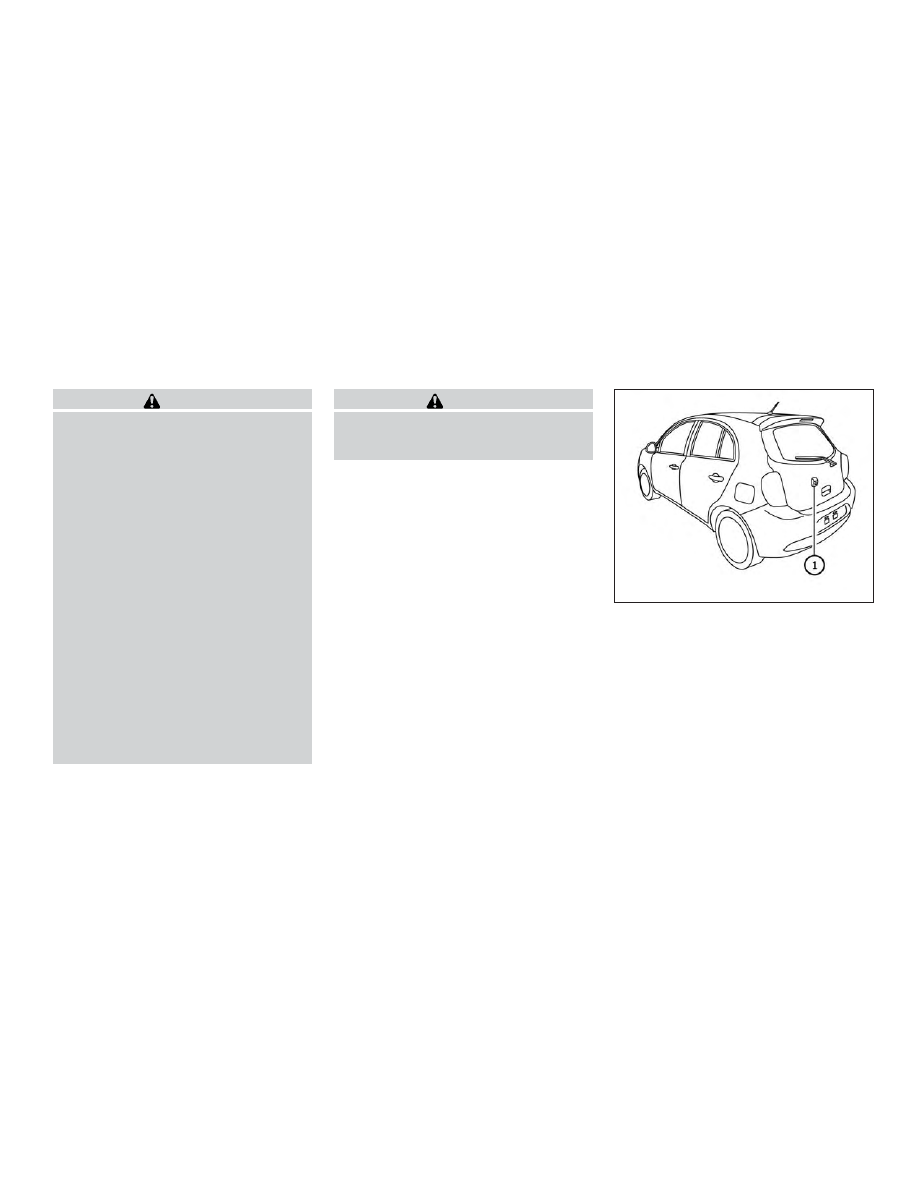

To display the rear view, the RearView Moni-
tor system uses a camera located on the
rear hatch near the handle

䊊

REARVIEW MONITOR SYSTEM
OPERATION

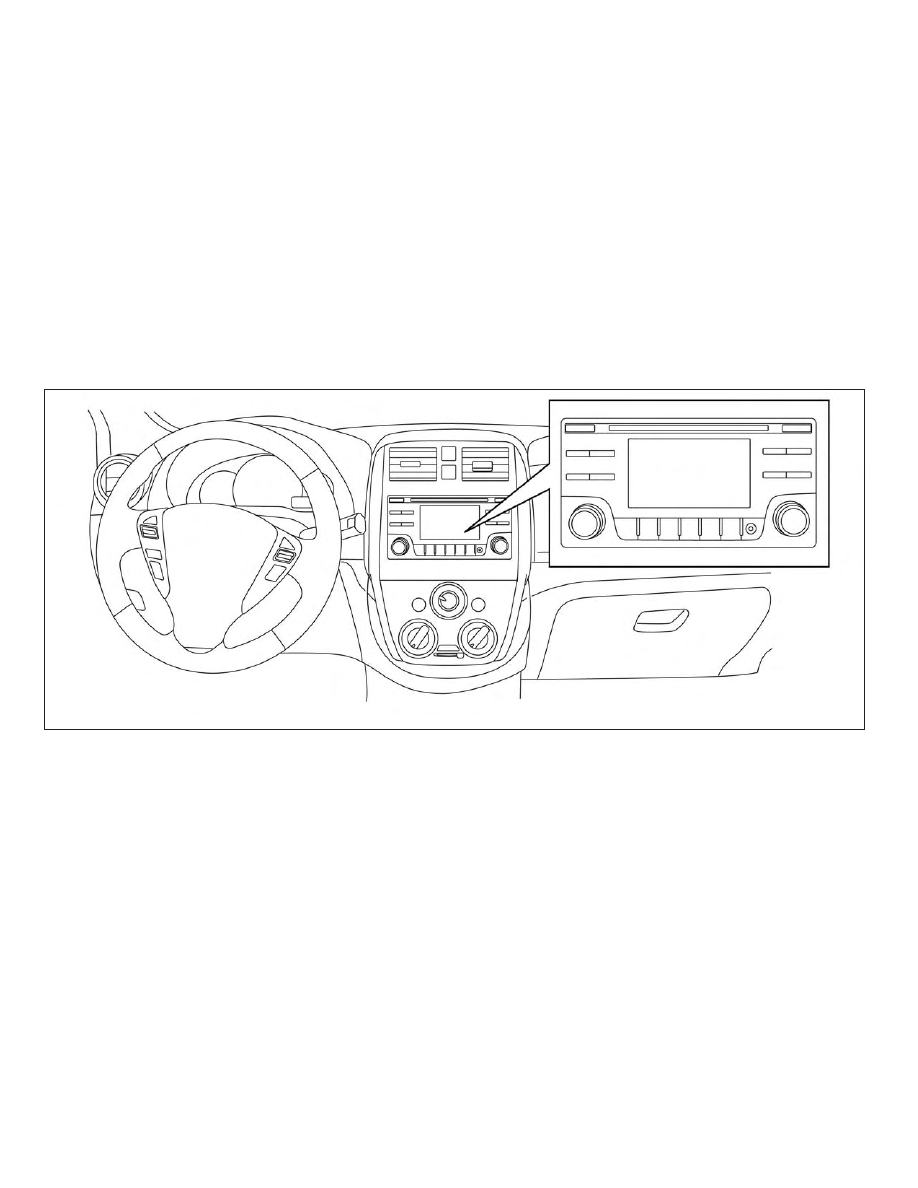

With the ignition switch in the ON position,
move the shift lever to the R (Reverse) po-
sition to operate the RearView Monitor.

LHA4623

Heater, air conditioner, audio and phone systems

4-3

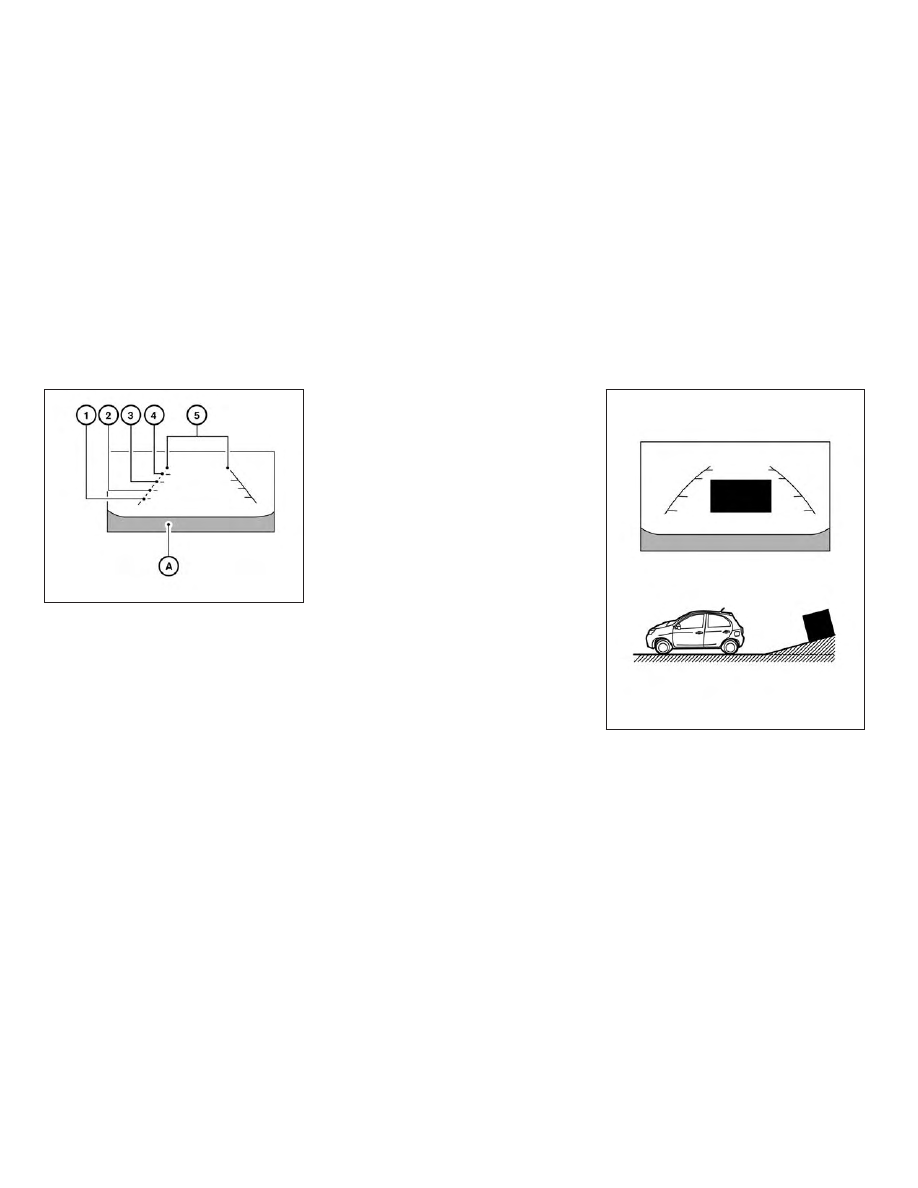

HOW TO READ THE DISPLAYED
LINES

Guiding lines which indicate the vehicle
width and distances to objects with refer-
ence to the vehicle body line

䊊

are dis-

played on the monitor.

Distance guide lines:

Indicate distances from the vehicle body.

∙ Red line

䊊

: approx. 0.5 m (1.5 ft)

∙ Yellow line

䊊

: approx. 1 m (3 ft)

∙ Green line

䊊

: approx. 2 m (7 ft)

∙ Green line

䊊

: approx. 3 m (10 ft)

Vehicle width guide lines

䊊

Indicate the vehicle width when backing
up.

DIFFERENCE BETWEEN PREDICTED
AND ACTUAL DISTANCES

The displayed guidelines and their loca-
tions on the ground are for approximate
reference only. Objects on uphill or downhill
surfaces or projecting objects will be actu-
ally located at distances different from
those displayed in the monitor relative to
the guidelines (refer to illustrations). When
in doubt, turn around and view the objects
as you are backing up, or park and exit the
vehicle to view the positioning of objects
behind the vehicle.

Backing up on a steep uphill

When backing up the vehicle up a hill, the
distance guide lines and the vehicle width
guide lines are shown closer than the actual
distance. Note that any object on the hill is
further than it appears on the monitor.

LHA2944

LHA3751

4-4

Heater, air conditioner, audio and phone systems

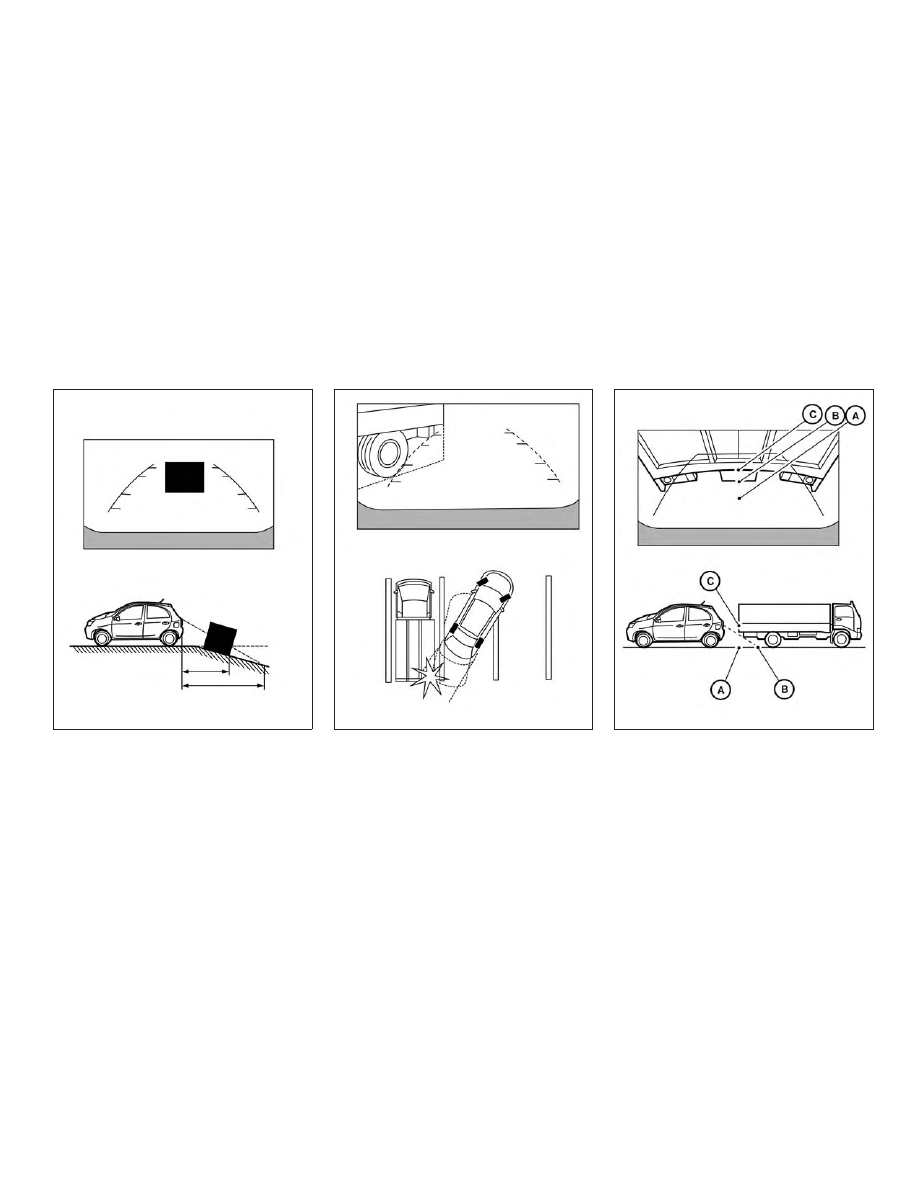

Backing up on a steep downhill

When backing up the vehicle down a hill, the
distance guide lines and the vehicle width
guide lines are shown farther than the actual
distance. Note that any object on the hill is
closer than it appears on the monitor.

Backing up near a projecting
object

The vehicle may seem to nearly clear the
object in the display. However, the vehicle
may hit the object if it projects over the
actual backing up course.

Backing up behind a projecting
object

The position

䊊

is shown farther than the

position

䊊

in the display. However, the po-

sition

䊊

is actually at the same distance as

the position

䊊

. The vehicle may hit the

LHA3752

LHA4513

LHA4303

Heater, air conditioner, audio and phone systems

4-5

object when backing up to the position

䊊

if the object projects over the actual back-
ing up course.

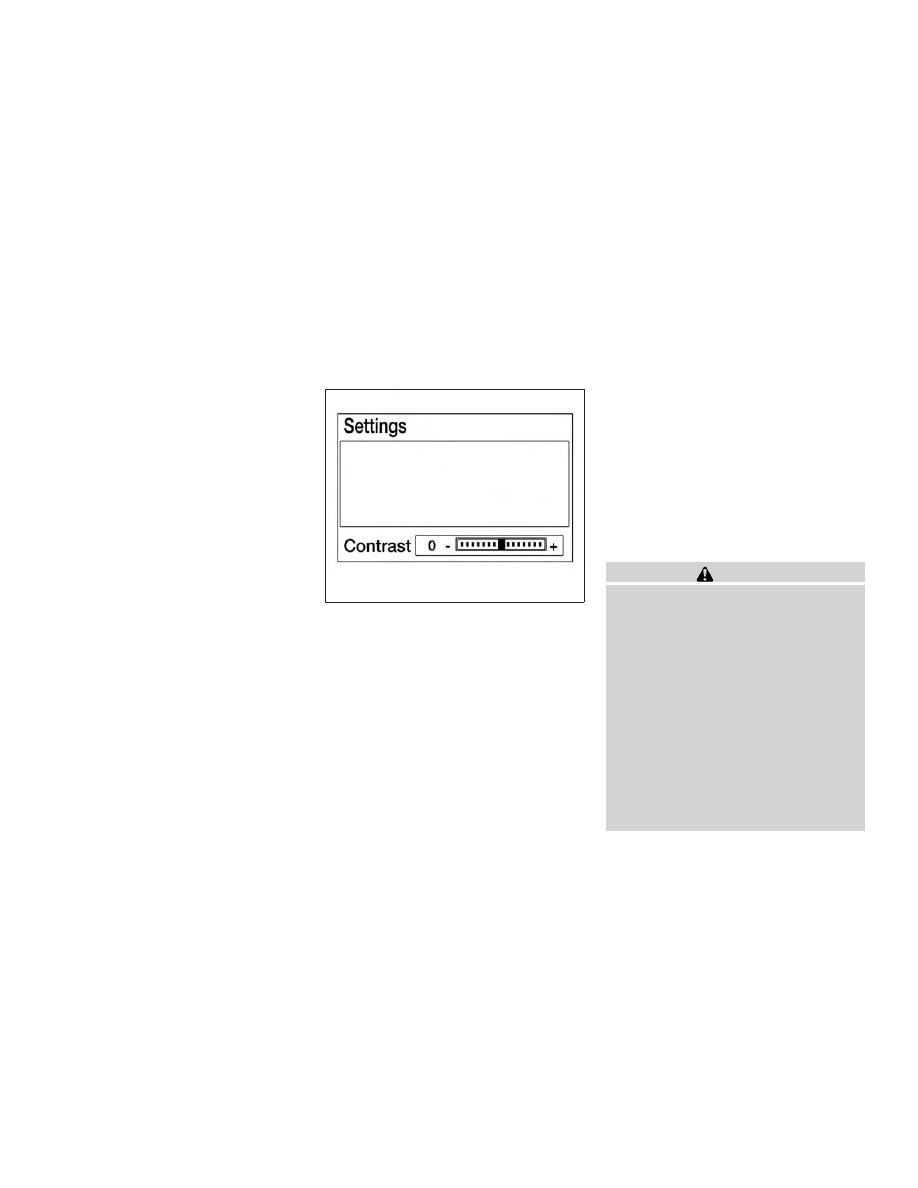

ADJUSTING THE SCREEN

1. Firmly apply the brake and place the

shift lever in R (reverse).

2. Press the ENTER/SETTING button.

3. The screen will display the Brightness

settings.

4. Turn the TUNE/FOLDER knob to adjust

the setting up or down.

5. Press

the

ENTER/SETTING

button

again to display the Contrast settings.

6. Turn the TUNE/FOLDER knob to adjust

the setting up or down.

7. Press the ENTER/SETTING button to

complete the adjustment.

NOTE:

Do not adjust any of the display settings
of the RearView Monitor while the ve-
hicle is moving. Make sure the parking
brake is firmly applied.

REARVIEW MONITOR SYSTEM
LIMITATIONS

WARNING

Listed below are the system limitations
for RearView Monitor. Failure to operate
the vehicle in accordance with these
system limitations could result in seri-
ous injury or death.

∙ The system cannot completely elimi-

nate blind spots and may not show
every object.

∙ Underneath the bumper and the cor-

ner areas of the bumper cannot be
viewed on the RearView Monitor be-
cause of its monitoring range limita-
tion. The system will not show small
objects below the bumper, and may
not show objects close to the bumper
or on the ground.

LHA3639

4-6

Heater, air conditioner, audio and phone systems

∙ Objects viewed in the RearView Moni-

tor differ from actual distance be-
cause a wide-angle lens is used.

∙ Objects in the RearView Monitor will

appear visually opposite compared to
when viewed in the rearview and out-
side mirrors.

∙ Use the displayed lines as a reference.

The lines are highly affected by the
number of occupants, fuel level, ve-
hicle position, road conditions and
road grade.

∙ Make sure that the rear hatch is se-

curely closed when backing up.

∙ Do not put anything on the rearview

camera. The rearview camera is in-
stalled above the license plate.

∙ When washing the vehicle with high

pressure water, be sure not to spray it
around the camera. Otherwise, water
may enter the camera unit causing
water condensation on the lens, a
malfunction, fire or an electric shock.

∙ Do not strike the camera. It is a preci-

sion instrument. Otherwise, it may
malfunction or cause damage result-
ing in a fire or an electric shock.

The following are operating limitations and
do not represent a system malfunction:

∙ When the temperature is extremely

high or low, the screen may not clearly
display objects.

∙ When strong light directly shines on the

camera, objects may not be displayed
clearly.

∙ Vertical lines may be seen in objects on

the screen. This is due to strong re-
flected light from the bumper.

∙ The screen may flicker under fluores-

cent light.

∙ The colors of objects on the RearView

Monitor may differ somewhat from the
actual color of objects.

∙ Objects on the monitor may not be

clear in a dark environment.

∙ There may be a delay when switching

between views.

∙ If dirt, rain or snow accumulate on the

camera, RearView Monitor may not dis-
play objects clearly. Clean the camera.

∙ Do not use wax on the camera lens.

Wipe off any wax with a clean cloth
dampened with a diluted mild cleaning
agent, then wipe with a dry cloth.

Heater, air conditioner, audio and phone systems

4-7

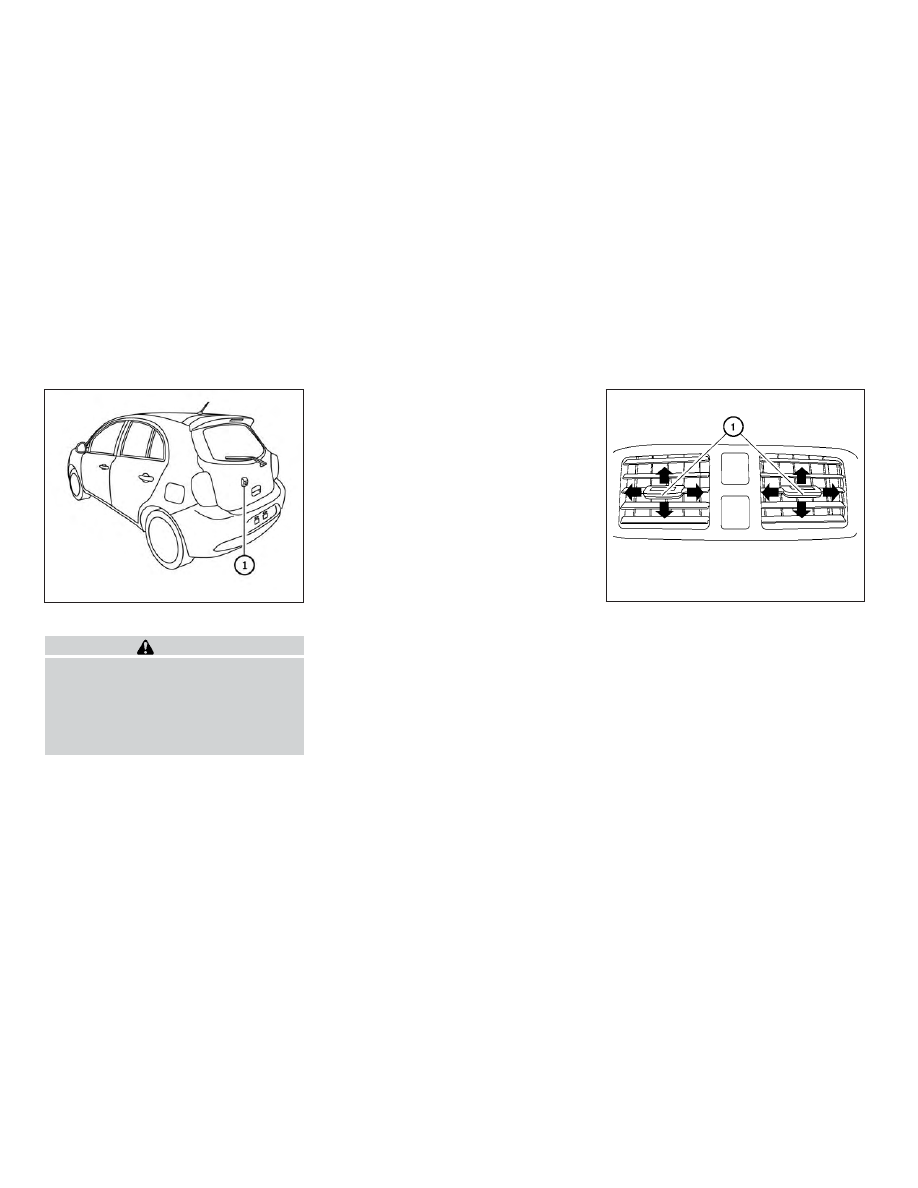

SYSTEM MAINTENANCE

CAUTION

∙ Do not use alcohol, benzine or thinner

to clean the camera. This will cause
discoloration.

∙ Do not damage the camera as the

monitor screen may be adversely
affected.

If dirt, rain or snow accumulates on the
camera

䊊

, the RearView Monitor may not

display objects clearly. Clean the camera
by wiping it with a cloth dampened with a
diluted mild cleaning agent and then wip-
ing it with a dry cloth.

Adjust the air flow direction of the vents by
moving the vent slides

䊊

LHA4623

Center vents

LHA2085

VENTS

4-8

Heater, air conditioner, audio and phone systems

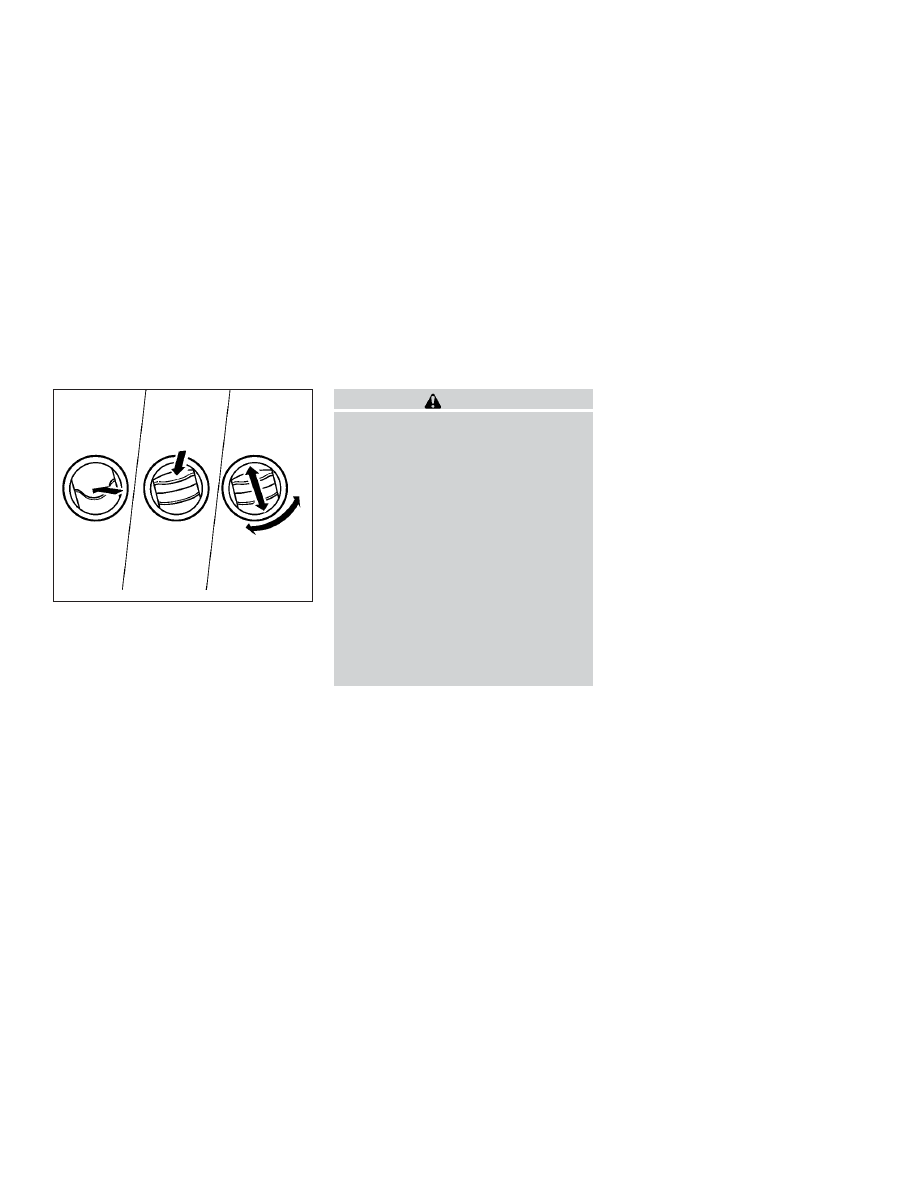

Adjust the air flow direction of the vents by
opening, closing or rotating.

WARNING

∙ The air conditioner cooling function

operates only when the engine is
running.

∙ Do not leave children or adults who

would normally require the assis-
tance of others alone in your vehicle.
Pets should also not be left alone.
They could accidentally injure them-
selves or others through inadvertent
operation of the vehicle. Also, on hot,
sunny days, temperatures in a closed
vehicle could quickly become high
enough to cause severe or possibly
fatal injuries to people or animals.

∙ Do not use the recirculation mode for

long periods as it may cause the inte-
rior air to become stale and the win-
dows to fog up.

NOTE:

∙ Odors from inside and outside the ve-

hicle can build up in the air conditioner
unit. Odor can enter the passenger
compartment through the vents.

∙ When parking, set the heater and air

conditioner (if so equipped) controls to
turn off air recirculation to allow fresh air
into the passenger compartment. This
should help reduce odors inside the ve-
hicle.

Side vents

SAA3126

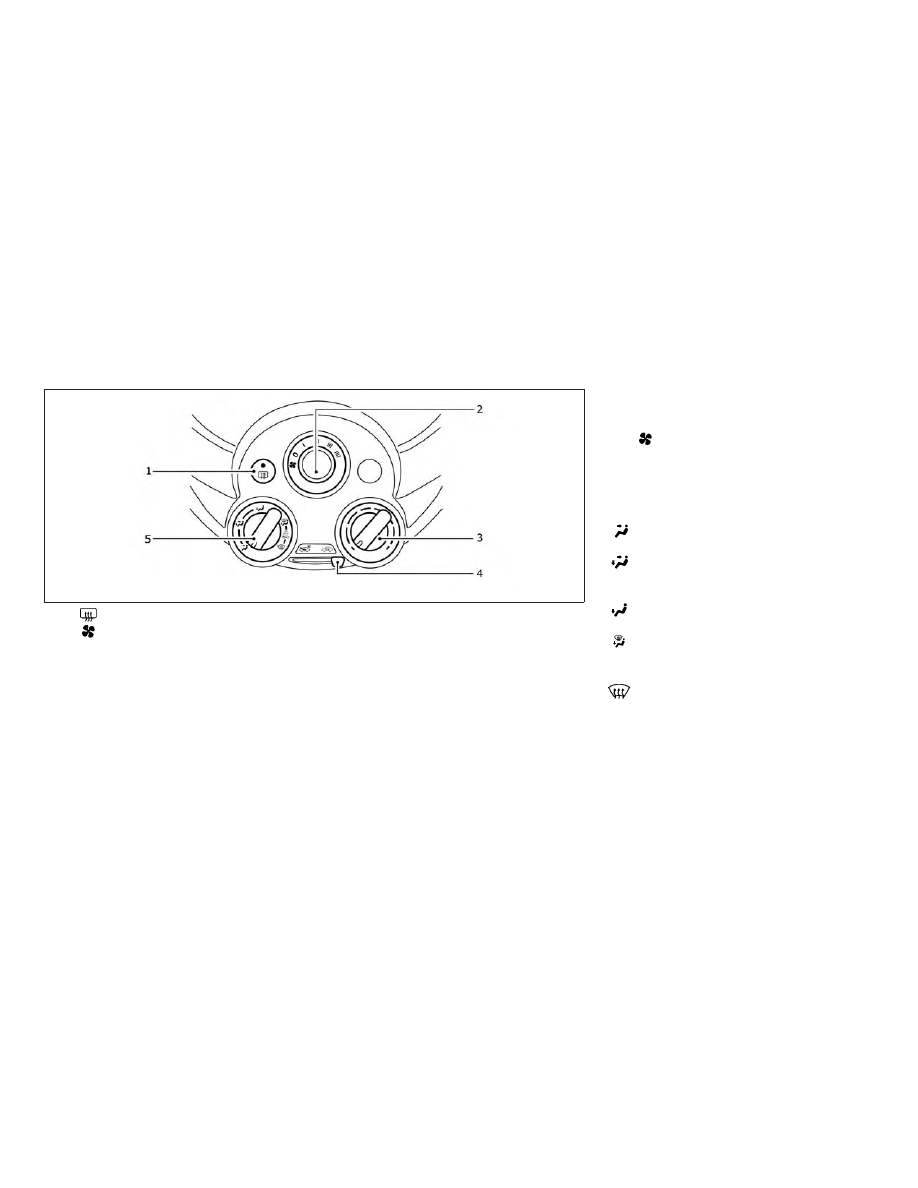

HEATER (manual) (if so equipped)

Heater, air conditioner, audio and phone systems

4-9

Rear window defroster switch

Fan control dial

Temperature control dial

Air intake lever (Air recirculation
and Fresh air)

Air flow control dial

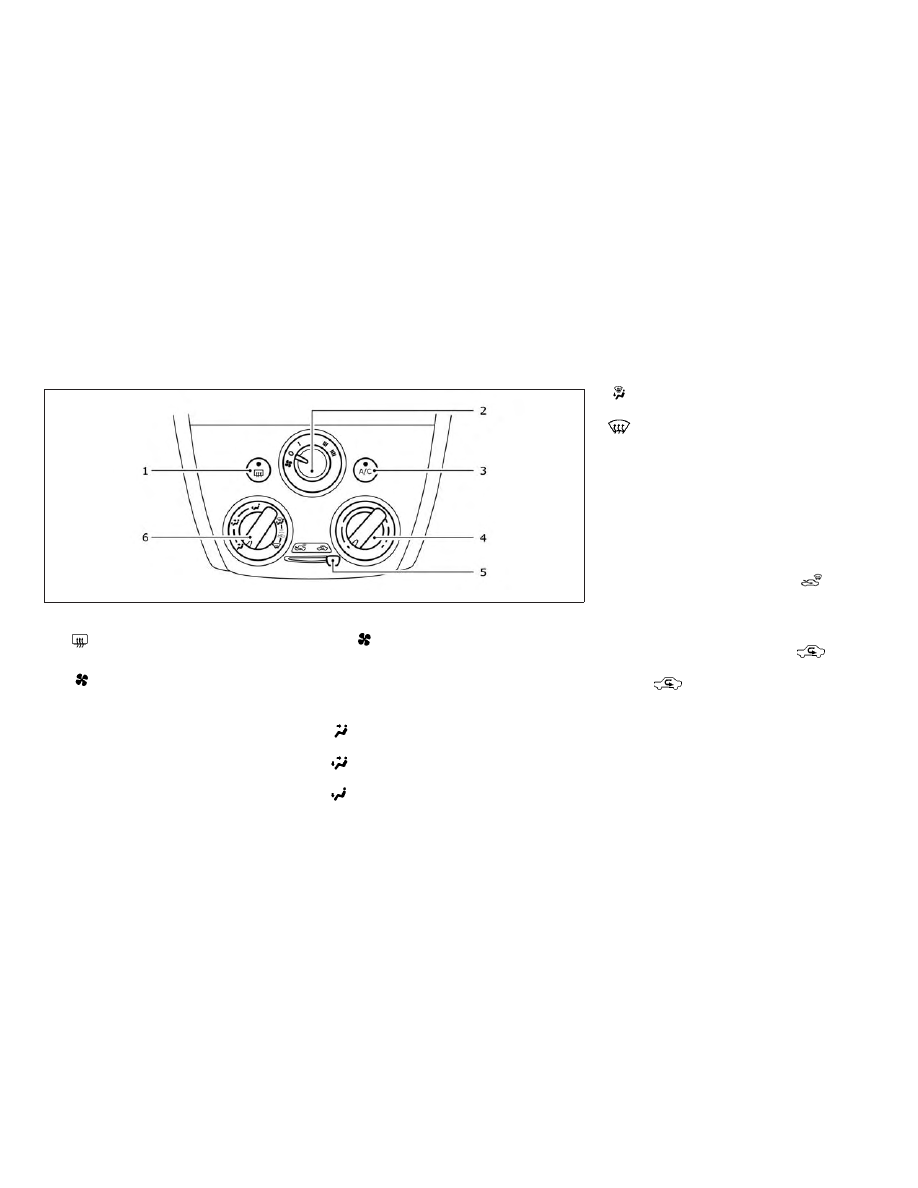

CONTROLS

Fan control dial

The

fan control dial turns the fan on

and off, and controls fan speed.

Air flow control dial

The air flow control dial allows you to select
the air flow outlets.

— Air flows from center and side

vents.

— Air flows from center and side

vents and the front and rear
floor outlets.

— Air flows mainly from the front

and rear floor outlets.

— Air flows from defroster outlets

and the front and rear floor
outlets.

— Air flows mainly from defroster

outlets.

Temperature control dial

The temperature control dial allows you to
adjust the temperature of the outlet air. To
lower the temperature, turn the dial to the
left. To increase the temperature, turn the
dial to the right.

LHA4635

4-10

Heater, air conditioner, audio and phone systems

Fresh air

Move the air intake lever to the

posi-

tion. The air flow is drawn from outside the
vehicle.

Air recirculation

Move the air intake lever to the

posi-

tion to recirculate air inside the vehicle.

Use the

selection:

∙ when driving on a dusty road.

∙ to prevent traffic fumes from entering

passenger compartment.

∙ for maximum cooling when using the

air conditioner.

Rear window defroster switch

For additional information about the rear
window defroster switch, refer to “Rear win-
dow and outside mirror (if so equipped)
defroster switch” in the “Instruments and
controls” section of this manual.

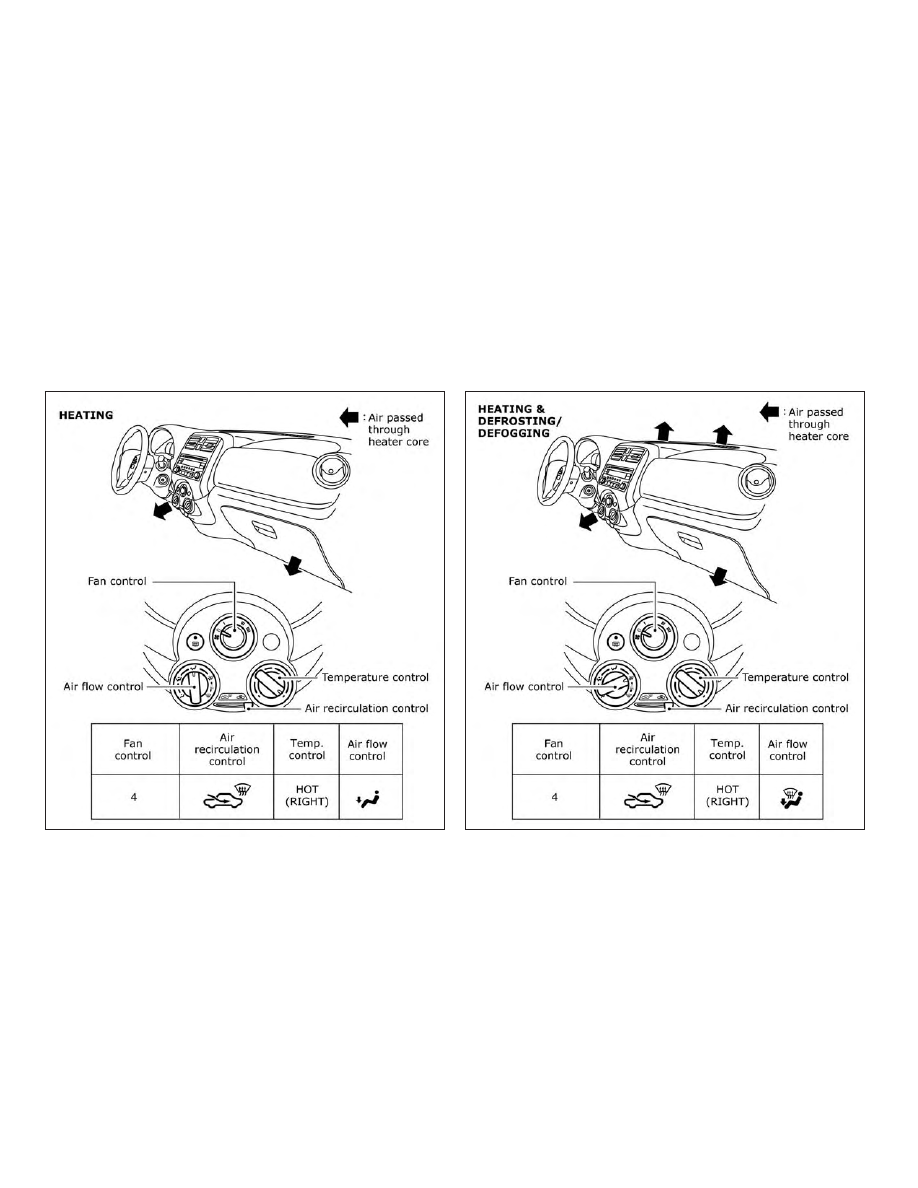

HEATER OPERATION
Heating

This mode is used to direct heated air to
the foot outlets. Some air also flows from
the defrost outlets.

1. Move the air intake lever to the

position for normal heating.

2. Turn

the

air

flow

control

dial

the

position.

3. Turn the

fan control dial to the

desired position.

4. Turn the temperature control dial to

the desired position between the
middle and the hot position.

Ventilation

This mode directs outside air to the side
and center vents.

1. Move the air intake lever to the

position.

2. Turn

the

air

flow

control

dial

the

position.

3. Turn the

fan control dial to the

desired position.

4. Turn the temperature control dial to

the desired position.

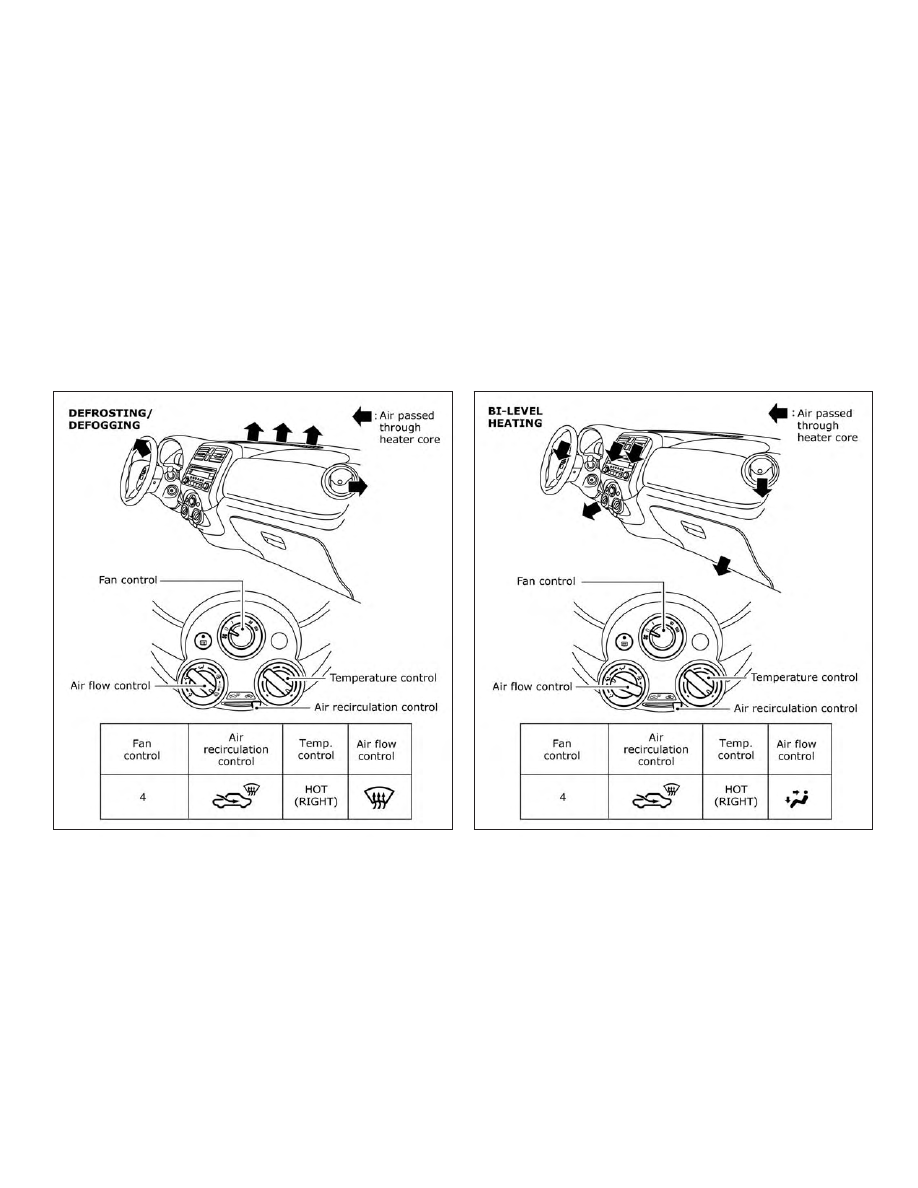

Defrosting or defogging

This mode directs the air to the defrost
outlets to defrost/defog the windows.

1. Move the air intake lever to the

position.

2. Turn

the

air

flow

control

dial

the

position.

3. Turn the

fan control dial to the

desired position.

4. Turn the temperature control dial to

the desired position between the
middle and the hot position.

5. Align left and right vents to direct air

flow toward the front side windows.

∙ To quickly remove ice or fog from the

windows, turn the fan control dial to the
maximum position and the tempera-
ture control dial to the full hot position.

Heater, air conditioner, audio and phone systems

4-11

Bi-level heating

This mode directs cooler air from the side
and center vents and warmer air from the
floor outlets. When the temperature con-
trol dial is moved to the full hot or full cool
position, the air between the vents and the
floor outlets is the same temperature.

1. Move the air intake lever to the

position.

2. Turn

the

air

flow

control

dial

the

position.

3. Turn the

fan control dial to the

desired position.

4. Turn the temperature control dial to

the desired position.

Heating and defogging

This mode heats the cabin and defogs the
windshield.

1. Move the air intake lever to the

position.

2. Turn

the

air

flow

control

dial

the

position.

3. Turn the

fan control dial to the

desired position.

4. Turn the temperature control dial to

the desired position between the
middle and the hot position.

Operating tips

Clear snow and ice from the wiper blades
and air inlet in front of the windshield.
This improves heater operation.

AIR FLOW CHARTS

The following charts show the button and
dial positions for MAXIMUM AND QUICK
heating or defrosting. The air intake lever
should always be in the

position for

heating and defrosting.

4-12

Heater, air conditioner, audio and phone systems

LHA4662

LHA4663

Heater, air conditioner, audio and phone systems

4-13

LHA4664

LHA4665

4-14

Heater, air conditioner, audio and phone systems

WARNING

∙ The air conditioner cooling function

operates only when the engine is
running.

∙ Do not leave children or adults who

∙ Do not use the recirculation mode for

long periods as it may cause the inte-
rior air to become stale and the win-
dows to fog up.

NOTE:

∙ Odors from inside and outside the ve-

hicle can build up in the air conditioner
unit. Odor can enter the passenger
compartment through the vents.

∙ When parking, set the heater and air

conditioner controls to turn off air recir-
culation to allow fresh air into the pas-
senger compartment. This should help
reduce odors inside the vehicle.

HEATER AND AIR CONDITIONER
(manual) (if so equipped)

Heater, air conditioner, audio and phone systems

4-15

CONTROLS

Rear window and outside mirror

(if so equipped) defroster switch

Fan speed control dial

3. A/C (air conditioner) button

4. Temperature control dial

5. Air intake lever

(Air recirculation and Fresh air)

6. Air flow control dial

Fan control dial

The

fan control dial turns the fan on

and off and controls fan speed.

Air flow control dial

The air flow control dial allows you to select
the air flow outlets.

— Air flows from center and side

vents.

— Air flows from center and side

vents and foot outlets.

— Air flows mainly from foot

outlets.

— Air flows from defroster

outlets and foot outlets.

— Air flows mainly from

defroster outlets.

Temperature control dial

The temperature control dial allows you to
adjust the temperature of the outlet air. To
lower the temperature, turn the dial to the
left. To increase the temperature, turn the
dial to the right.

Fresh air

Move the air intake lever to the

posi-

tion. The air flow is drawn from outside the
vehicle.

Air recirculation

Move the air intake lever to the

posi-

tion to recirculate air inside the vehicle.

Use the

selection:

∙ when driving on a dusty road.

∙ to prevent traffic fumes from entering

passenger compartment.

∙ for maximum cooling when using the

air conditioner.

LHA4636

4-16

Heater, air conditioner, audio and phone systems

Content .. 7 8 9 10 ..
