VANITY MIRRORS

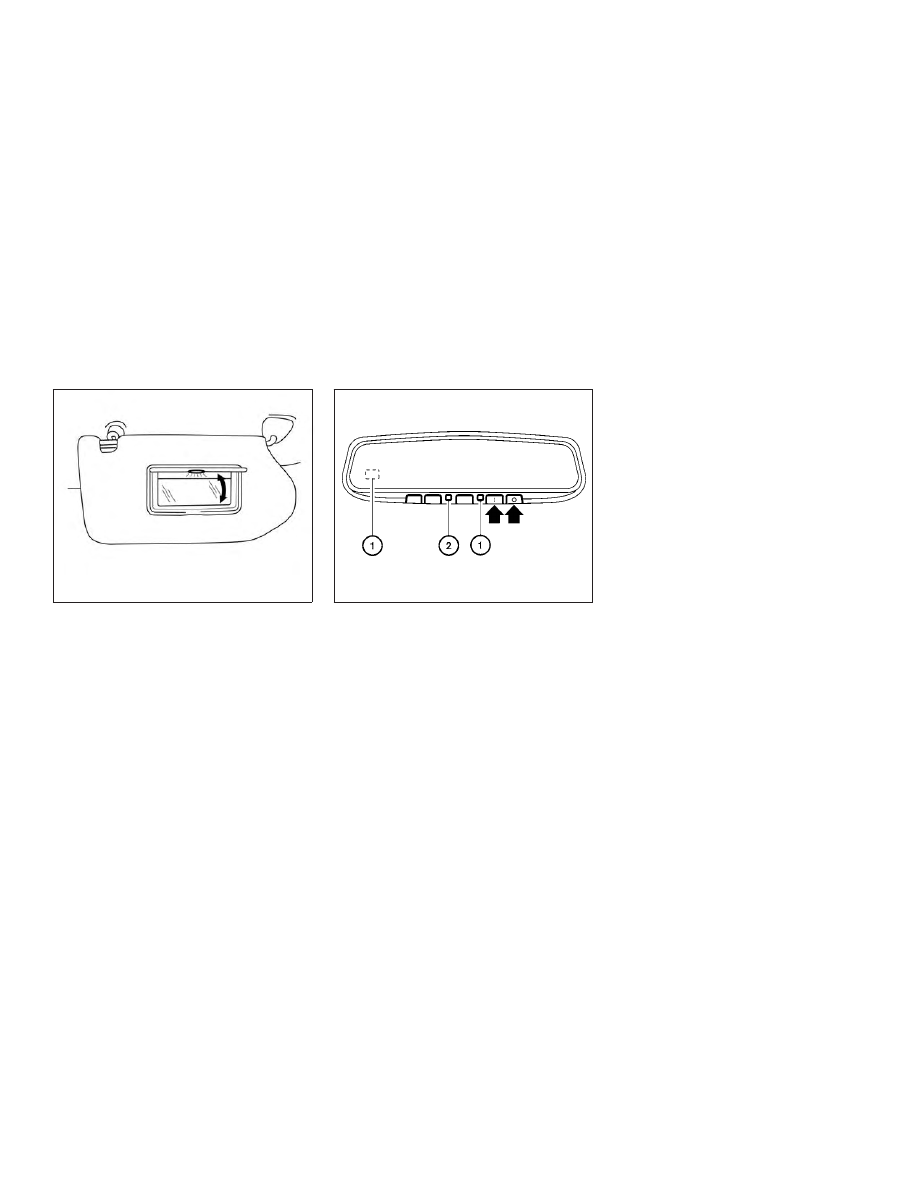

To access the vanity mirror, pull the sun
visor down and flip open the mirror cover.
The vanity mirror will illuminate when the
mirror cover is open.

AUTOMATIC ANTI-GLARE
REARVIEW MIRROR

The inside mirror is designed so that it au-
tomatically dims during nighttime condi-
tions and according to the intensity of the
headlights of the vehicle following you. The
automatic anti-glare feature is activated
when the ignition switch is in the ON posi-
tion.

The indicator light will illuminate when the
automatic anti-glare feature is operating.

NOTE:

Do not hang any objects over the sen-
sors

䊊

or apply glass cleaner to the sen-

sors. Doing so will reduce the sensitivity
of the sensors, resulting in improper op-
eration.

The indicator light

䊊

will illuminate when

the automatic anti-glare feature is operat-
ing.

To turn off the automatic anti-glare feature,
press the

button. The indicator light

will turn off.

To turn on the automatic anti-glare feature
again, press the

button again. The in-

dicator light will turn on.

For additional information, refer to the
“HomeLink® Universal Transceiver” in the
“Instruments and controls” section of this
manual.

LPD2312

LPD0469

MIRRORS

Pre-driving checks and adjustments

3-29

OUTSIDE MIRRORS

The outside mirror remote control will op-
erate only when the ignition switch is in the
ACC or ON position.

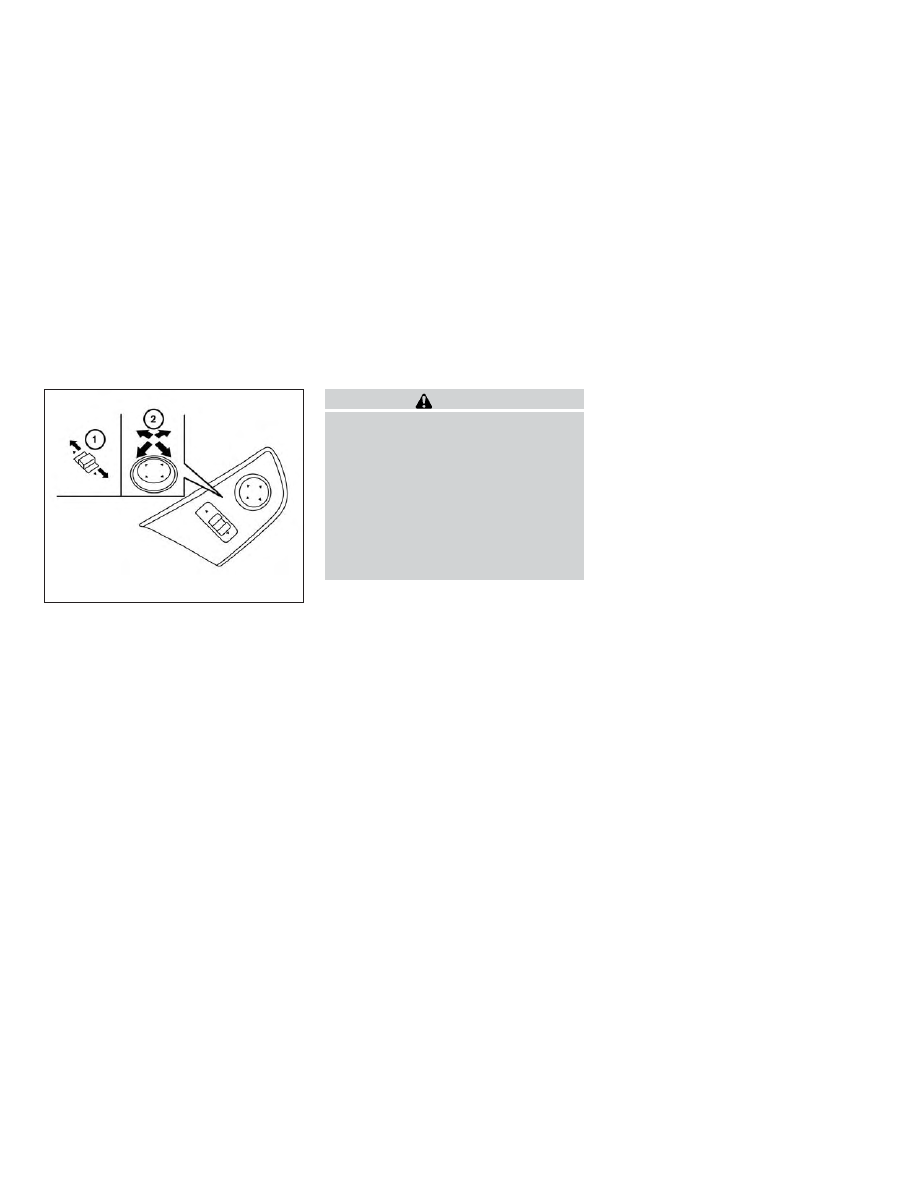

Move the small switch

䊊

to select the right

or left mirror. Adjust each mirror to the de-
sired position using the large switch

䊊

Move the small switch

䊊

to the center

(neutral) position to prevent accidentally
moving the mirror.

WARNING

∙ Objects viewed in the outside mirror

on the passenger side are closer than
they appear. Be careful when moving
to the right. Using only this mirror
could cause an accident. Use the in-
side mirror or glance over your shoul-
der to properly judge distances to
other objects.

∙ Do not adjust the mirrors while driv-

ing. You could lose control of your ve-
hicle and cause an accident.

Reverse tilt-down feature
(if so equipped)

The reverse tilt-down feature will turn both
outside mirror surfaces downward to pro-
vide better rear visibility close to the vehicle
when the mirror control switch is in either
the L or R position.

The mirrors automatically return to their
original position when you shift out of R
(Reverse).

The outside mirror surfaces will return to
their original position when one of the fol-
lowing has occurred:

∙ The shift lever is moved to any position

other than R (Reverse).

∙ The outside mirror control switch is set

to the neutral or center position.

∙ The ignition switch is placed in the OFF

position.

NOTE:

If the outside mirror control switch is in
the center (neutral) position, mirror sur-
face will NOT turn downward when the
shift lever is moved to R (Reverse).

For additional information regarding this
feature, refer to “Automatic drive posi-
tioner” in this section.

LPD2352

3-30

Pre-driving checks and adjustments

Foldable outside mirrors

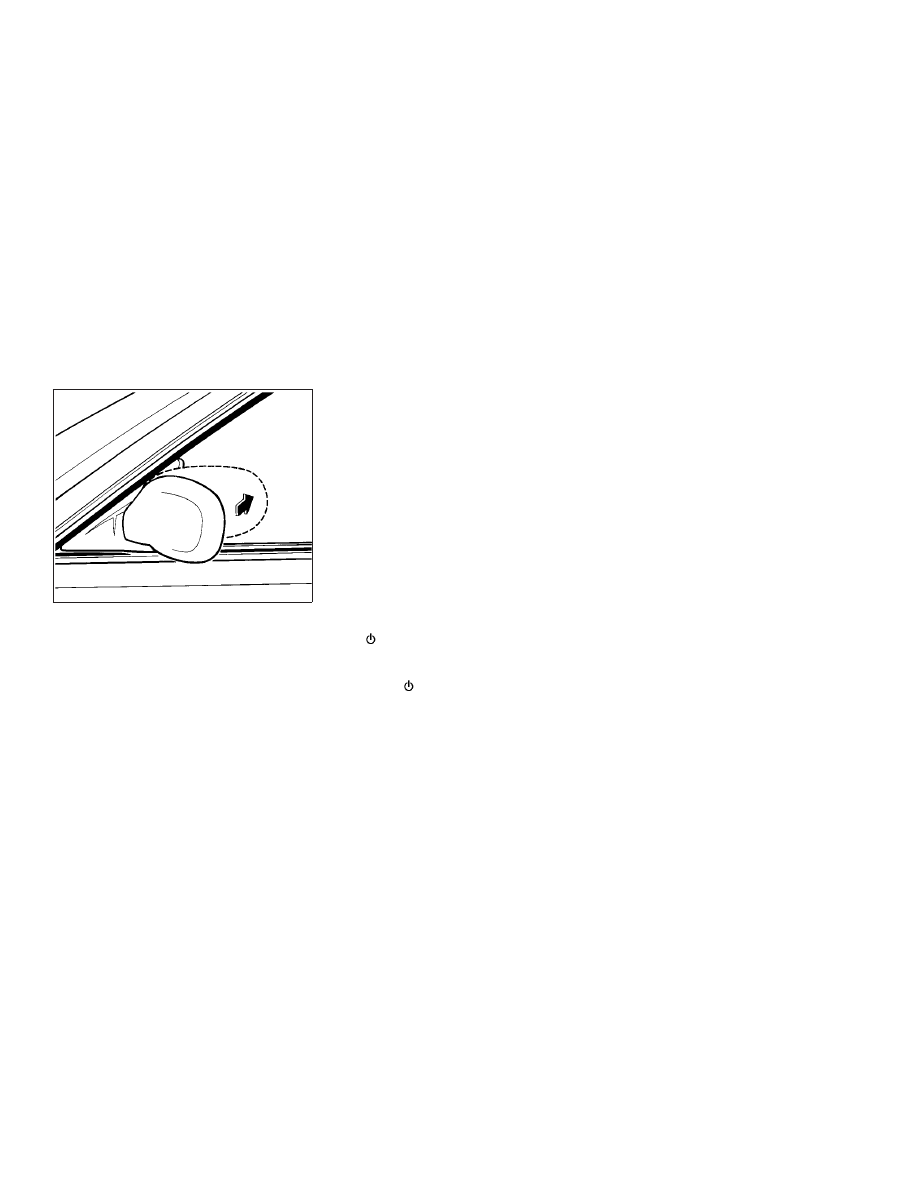

Pull the outside mirror toward the door to
fold it.

Heated mirrors (if so equipped)

The electric control type outside mirrors
can be heated to defrost, defog, or de-ice
for improved visibility. Push the rear win-
dow defroster switch to activate the heat-
ing function. Push the switch again to de-
activate, or

the

heating

function

will

automatically turn off after approximately
15 minutes.

Automatic anti-glare outside
mirror (Driver’s side only)
(if so equipped)

The outside mirror will automatically dim
during nighttime conditions to reduce the
glare from the headlights of trailing ve-
hicles. The automatic anti-glare feature
operates only when the ignition switch is
placed in the ON position.

The automatic anti-glare feature will be on
when starting the vehicle. The indicator
light on the automatic anti-glare rearview
mirror will illuminate when the automatic
anti-glare feature is operating.

To turn off the anti-glare feature, press
the

button on the inside rearview

mirror. The indicator light will turn off.
To turn on the anti-glare feature again,
press the

button on the inside rear-

view mirror. The indicator light will turn on.
For additional information, refer to “Auto-
matic anti-glare rearview mirror” in this
section.

The automatic drive positioner system has
three features:

∙ Memory storage function (key-link)

∙ Memory storage function (switch)

∙ Entry/exit function

Key-link, when enabled, automatically re-
tains the driver’s last seat, automatic steer-
ing wheel, and outside mirror positions for
that specific key when the ignition is turned
from ON to OFF.

Each memory switch button (1 or 2) on the
driver’s door can also store one additional
position which is independent of the key-
linked position.

MPA0008

AUTOMATIC DRIVE POSITIONER
(if so equipped)

Pre-driving checks and adjustments

3-31

MEMORY STORAGE FUNCTION
(Key-Link)

Use the following process to setup key-link:

1. Unlock the vehicle with the desired In-

telligent Key while the ignition is OFF.

2. Place the ignition in the ON position.

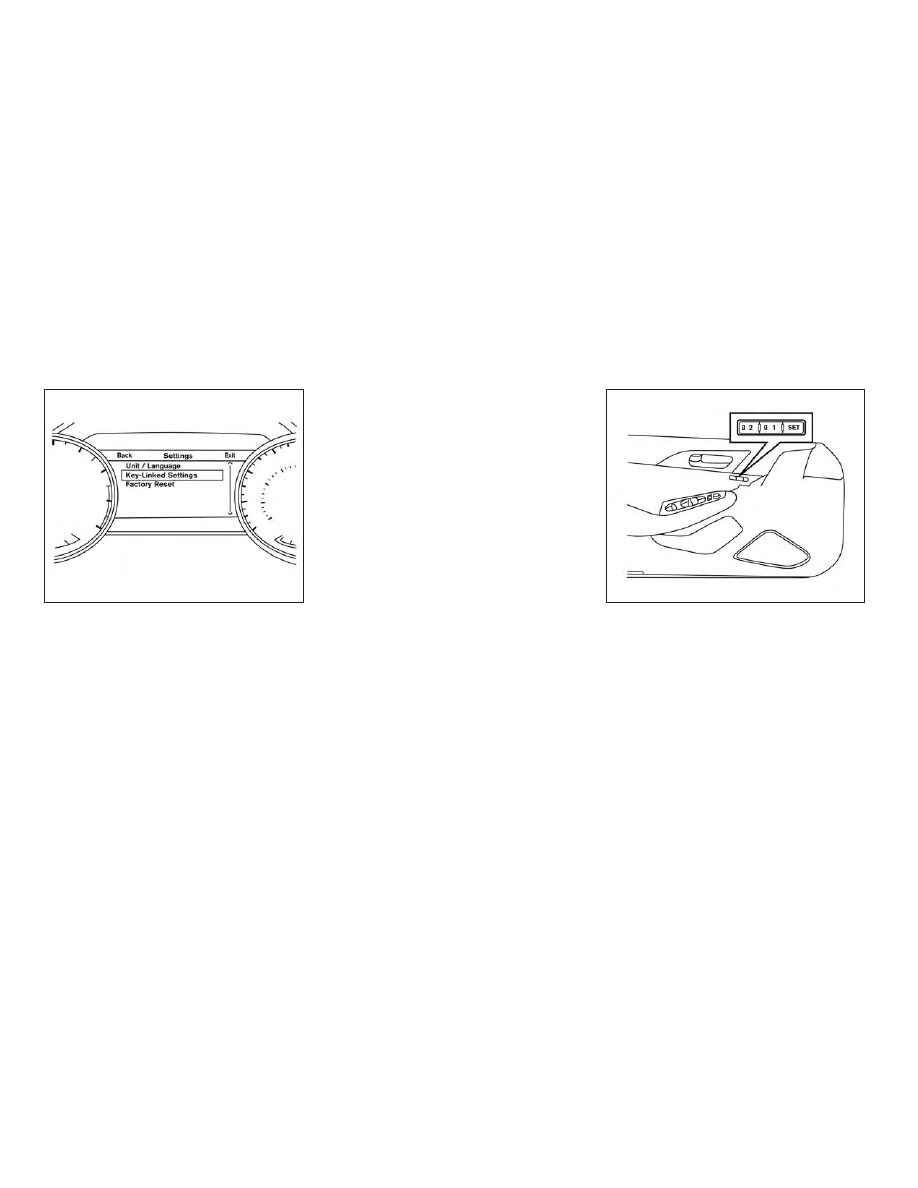

3. Within the “Settings” menu of the ve-

hicle information display, select “Key-
Linked Settings” and press the OK but-
ton on the steering switch.

4. While in the menu, press the OK button

on the steering switch to turn the sys-
tem ON/OFF.

Once step 4 is completed, every time the
ignition is switched from ON to OFF, the
memory positions of the driver’s seat, au-
tomatic steering wheel and the outside
mirrors are linked to the Intelligent Key.

Follow the same procedure if you want
to link the 2nd, 3rd or 4th Intelligent Key.

NOTE:

If new memory positions are set prior to
turning the ignition from ON to OFF, the
previously linked memory positions for
the respective key will be overwritten by
new positions.

Recalling Intelligent Key Memory
Positions

If the “Key-Linked Settings” are enabled in
the vehicle information display for that par-
ticular key, every time you enter the vehicle
the driver’s seat, automatic steering wheel,
and outside mirrors will automatically
move to the driver’s last position of the
respective Intelligent Key.

NOTE:

The key-linked memory positions can be
different from the positions stored in the
memory switch (1 or 2).

MEMORY STORAGE FUNCTION

Two positions for the driver’s seat, steering
column (if so equipped), and outside mir-
rors can be stored in the automatic drive
positioner memory. Follow these proce-
dures to use the memory system.

1. Place the ignition in the ON or ACC po-

sition (The vehicle should be stopped
while setting the memory).

2. Adjust the driver’s seat, steering col-

umn (if so equipped), and outside mir-
rors to the desired positions by manu-
ally operating each adjusting switch.
For additional information, refer to

LPD2432

LPD2348

3-32

Pre-driving checks and adjustments

“Seats” in the “Safety—Seats, seat belts
and supplemental restraint system”
section of this manual, and “Steering
wheel” and “Outside mirrors” in this sec-
tion.

3. Push the SET switch and, within 5 sec-

onds, push the memory switch (1 or 2).

4. The indicator light for the pushed

memory switch will come on and stay
on for approximately 5 seconds.

5. The chime will sound if the memory

has been stored.

NOTE:

If a new memory position is stored in the
same memory switch, the previous
memory position will be overwritten by
the new stored position.

Confirming memory storage

Push the SET switch.

∙ If a memory position has not been

stored in the switch (1 or 2) the indicator
light for the respective switch will come
on for approximately 0.5 seconds.

∙ If a memory position has been stored in

the switch (1 or 2) then the indicator light
for the respective switch will stay on for
approximately 5 seconds.

Linking an Intelligent Key to the
meter display (if so equipped)

Each Intelligent Key, up to a maximum of
four, can be linked to the meter display.

1. When the system is enabled, the recog-

nized Intelligent Key is displayed at start
up, as well as within “Key-Linked Set-
tings”.

2. When the system is active, the meter

setting items are memorized for each
Intelligent Key that has been enabled in
the system.

3. The auto drive positioner system is

memorized automatically when the ig-
nition switch is turned from ON to OFF
by the Intelligent Key with no need to
set separate buttons for recalling and
memorizing positions.

4. If two Intelligent Keys are in the vehicle,

the system will recognize the Intelli-
gent Key that was used most recently,
such as to unlock/lock the door.

5. If there is a desire to change to another

Intelligent Key while in the vehicle, the
user must place the ignition switch in
the OFF position and initiate communi-
cation from the desired Intelligent Key.

a. Ignition from ON position to the OFF

b. Unlock door with the desired Intelli-

gent Key

c. The desired Intelligent Key number

should appear on the meter display.

ENTRY/EXIT FUNCTION

This system is designed so that the driver’s
seat and automatic operation steering col-
umn will automatically move when the
shift lever is in the P (Park) position. This
allows the driver to get into and out of the
driver’s seat more easily.

The driver’s seat will slide backward and
the steering wheel will move up:

∙ When the driver’s door is opened

and the ignition switch is in the
OFF position.

∙ When the ignition switch is turned from

ACC to OFF with the driver’s door open.

Pre-driving checks and adjustments

3-33

The driver’s seat and steering wheel will
return to the previous position:

∙ When the ignition switch is turned to

ACC or ON while the shift lever is in the P
(Park) position.

The entry/exit function can be adjusted or
canceled through the “Vehicle Settings” in
the vehicle information display by perform-
ing the following:

∙ Switch the Exit Seat Slide from ON to

OFF.

∙ Switch the Exit Steering Up from ON to

OFF.

Restarting the entry/exit function

If the battery cable is disconnected or if the
fuse opens, the stored memory positions
may be lost and some of the functions will
be restricted.

1. Drive the vehicle over 25 mph (40 km/h).

2. Open and close the driver’s door more

than two times with the ignition switch
in the OFF position.

The entry/exit function should now work
properly.

SYSTEM OPERATION

The automatic drive positioner system will
not work or will stop operating under the
following conditions:

∙ When the vehicle speed is above 0 mph

(0 km/h) or 4 mph (7km/h) for some
limited functions such as linking a key
fob to the meter when the power
source is turned on from off or during
the exit function.

∙ When any of the memory switches are

pushed while the automatic drive posi-
tioner is operating.

∙ When the adjusting switch for the driv-

er’s seat and steering column is turned
on while the automatic drive positioner
is operating.

∙ When the seat has already been moved

to the memorized position.

∙ When no seat position is stored in the

memory switch.

∙ When the shift lever is moved from P

(Park) to any other position.

3-34

Pre-driving checks and adjustments

4 Monitor, climate, audio, phone and
voice recognition systems

NissanConnect® Owner’s Manual . . . . . . . . . . . . . . . . 4-2
RearView Monitor (if so equipped) . . . . . . . . . . . . . . . 4-3

Intelligent Around View Monitor
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-11

Intelligent Around View Monitor system
operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-12
Difference between predicted and
actual distances. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-16
How to park with predicted course
lines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-17

How to switch the display . . . . . . . . . . . . . . . . . . . 4-18
Adjusting the screen . . . . . . . . . . . . . . . . . . . . . . . . 4-19
Intelligent Around View Monitor system
limitations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-20
System maintenance. . . . . . . . . . . . . . . . . . . . . . . . 4-22

Moving Object Detection (MOD)
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-23

MOD system operation . . . . . . . . . . . . . . . . . . . . . . 4-24
Turning MOD on and off . . . . . . . . . . . . . . . . . . . . . 4-25
MOD system limitations . . . . . . . . . . . . . . . . . . . . . 4-26
System maintenance. . . . . . . . . . . . . . . . . . . . . . . . 4-27

Vents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-27
Heater and Air Conditioner (automatic) . . . . . . . . . 4-29

Automatic operation . . . . . . . . . . . . . . . . . . . . . . . . 4-30
Manual operation . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-31
Operating tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-32

Servicing air conditioner . . . . . . . . . . . . . . . . . . . . . . . . 4-33
USB/iPod® charging ports (if so equipped) . . . . . . 4-33
Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-33
Car phone or CB radio . . . . . . . . . . . . . . . . . . . . . . . . . . 4-34

Refer to the NissanConnect® Owner’s
Manual that includes the following infor-
mation.

∙ NissanConnect® Services

∙ Navigation system (if so equipped)

∙ Audio system

∙ Apple CarPlay

∙ Android Auto

∙ Bluetooth® Hands-Free Phone system

∙ Viewing information

∙ Other settings

∙ Voice recognition

∙ General system information

NISSANCONNECT®
OWNER’S MANUAL

4-2

Monitor, climate, audio, phone and voice recognition systems

1. CAMERA button

LHA3579

REARVIEW MONITOR
(if so equipped)

Monitor, climate, audio, phone and voice recognition systems

4-3

WARNING

∙ Failure to follow the warnings and in-

structions for proper use of the Rear-
View Monitor system could result in
serious injury or death.

∙ RearView Monitor is a convenience

feature and is not a substitute for
proper backing. Always turn and look
out the windows and check mirrors to
be sure that it is safe to move before
operating the vehicle. Always back up
slowly.

∙ The system is designed as an aid to

the driver in showing large stationary
objects directly behind the vehicle, to
help avoid damaging the vehicle.

∙ The distance guide line and the ve-

hicle width line should be used as a
reference only when the vehicle is on a
level paved surface. The distance
viewed on the monitor is for reference
only and may be different than the
actual distance between the vehicle
and displayed objects.

CAUTION

Do not scratch the camera lens when
cleaning dirt or snow from the front of
the camera.

The RearView Monitor system automati-
cally shows a rear view of the vehicle when
the shift lever is shifted into the R (Reverse)
position. While in R (Reverse), pressing the
CAMERA button will cycle through guide-
line options. The radio can still be heard
while the RearView Monitor is active.

To display the rear view, the RearView Moni-
tor system uses a camera located just
above the vehicle’s license plate

䊊

REARVIEW MONITOR SYSTEM
OPERATION

With the ignition switch in the ON position,
move the shift lever to the R (Reverse) po-
sition to operate the RearView Monitor.

LHA3581

4-4

Monitor, climate, audio, phone and voice recognition systems

HOW TO READ THE DISPLAYED
LINES

Guiding lines which indicate the vehicle
width and distances to objects with refer-
ence to the vehicle body line

䊊

are dis-

played on the monitor.

Distance guide lines

Indicate distances from the vehicle body.

∙ Red line

䊊

: approx. 1.5 ft (0.5 m)

∙ Yellow line

䊊

: approx. 3 ft (1 m)

∙ Green line

䊊

: approx. 7 ft (2 m)

∙ Green line

䊊

: approx. 10 ft (3 m)

Vehicle width guide lines

䊊

Indicate the vehicle width when backing
up.

Predicted course lines

䊊

Indicate the predicted course when back-
ing up. The predicted course lines will be
displayed on the monitor when the shift
lever is in the R (Reverse) position and the
steering wheel is turned. The predicted
course lines will move depending on how
much the steering wheel is turned and will
not be displayed while the steering wheel is
in the straight-ahead position.

The vehicle width guide lines and the width
of the predicted course lines are wider than
the actual width and course.

DIFFERENCE BETWEEN PREDICTED
AND ACTUAL DISTANCES

The displayed guidelines and their loca-
tions on the ground are for approximate
reference only. Objects on uphill or downhill
surfaces or projecting objects will be actu-
ally located at distances different from
those displayed in the monitor relative to
the guidelines (refer to illustrations). When
in doubt, turn around and view the objects
as you are backing up, or park and exit the
vehicle to view the positioning of objects
behind the vehicle.

LHA1196

Monitor, climate, audio, phone and voice recognition systems

4-5

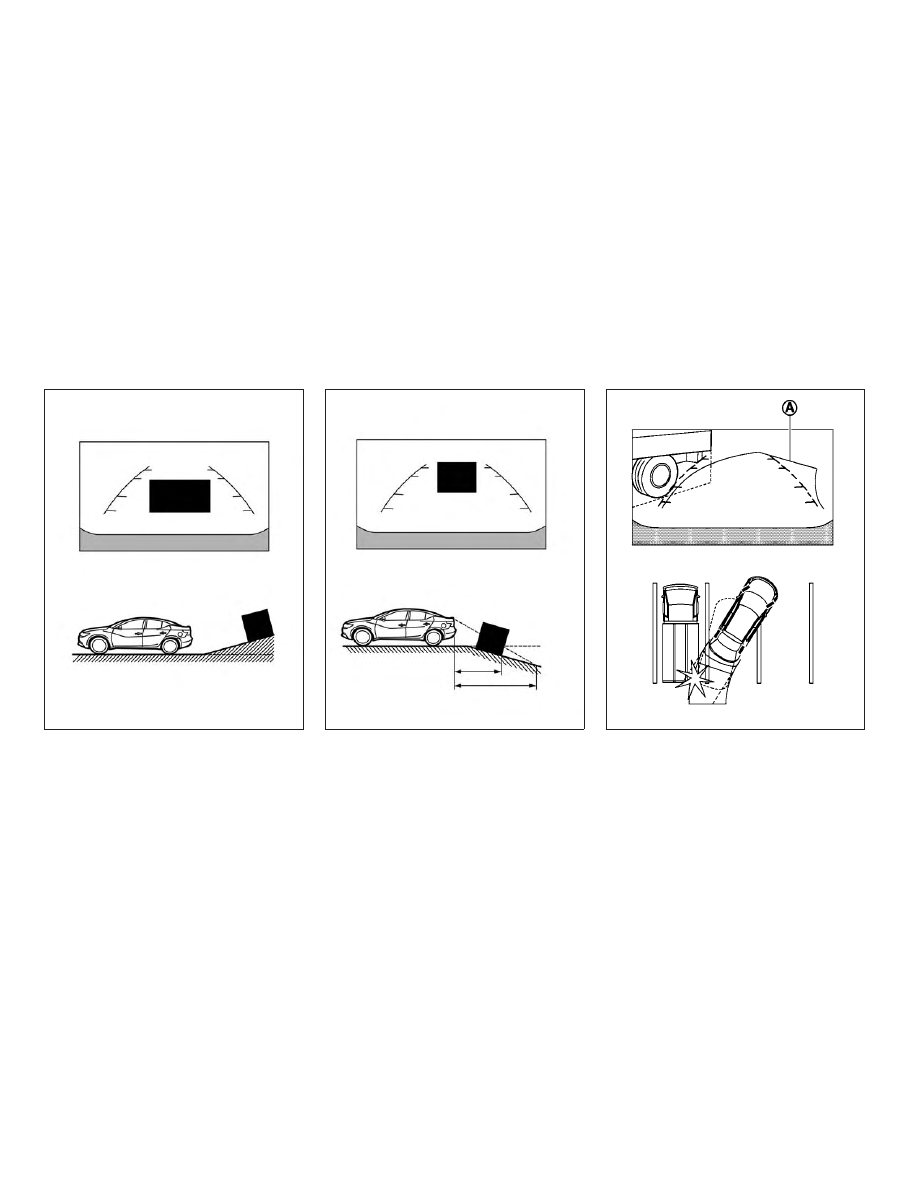

Backing up on a steep uphill

When backing up the vehicle up a hill, the dis-
tance guide lines and the vehicle width guide
lines are shown closer than the actual dis-
tance. Note that any object on the hill is further
than it appears on the monitor.

Backing up on a steep downhill

When backing up the vehicle down a hill, the
distance guide lines and the vehicle width
guide lines are shown farther than the actual
distance. Note that any object on the hill is
closer than it appears on the monitor.

Backing up near a projecting
object

The predicted course lines

䊊

do not touch

the object in the display. However, the ve-
hicle may hit the object if it projects over
the actual backing up course.

LHA3614

LHA3616

LHA1201

4-6

Monitor, climate, audio, phone and voice recognition systems

Backing up behind a projecting
object

The position

䊊

is shown farther than the

position

䊊

in the display. However, the po-

sition

䊊

is actually at the same distance as

the position

䊊

. The vehicle may hit the

object when backing up to the position

䊊

if the object projects over the actual back-
ing up course.

HOW TO PARK WITH PREDICTED
COURSE LINES

WARNING

∙ If the tires are replaced with different

sized tires, the predicted course lines
may be displayed incorrectly.

∙ On a snow-covered or slippery road,

there may be a difference between
the predicted course line and the ac-
tual course line.

∙ If the battery is disconnected or be-

comes

discharged,

the

predicted

course lines may be displayed incor-
rectly. If this occurs, please perform
the following procedures:

– Turn the steering wheel from lock

to lock while the engine is running.

– Drive the vehicle on a straight road

for more than 5 minutes.

∙ When the steering wheel is turned

with the ignition switch in the ACC po-
sition, the predicted course lines may
be displayed incorrectly.

1. Visually check that the parking space is

safe before parking your vehicle.

2. The rear view of the vehicle is displayed

on the screen

䊊

when the shift lever is

moved to the R (Reverse) position.

LHA3588

LHA1197

Monitor, climate, audio, phone and voice recognition systems

4-7

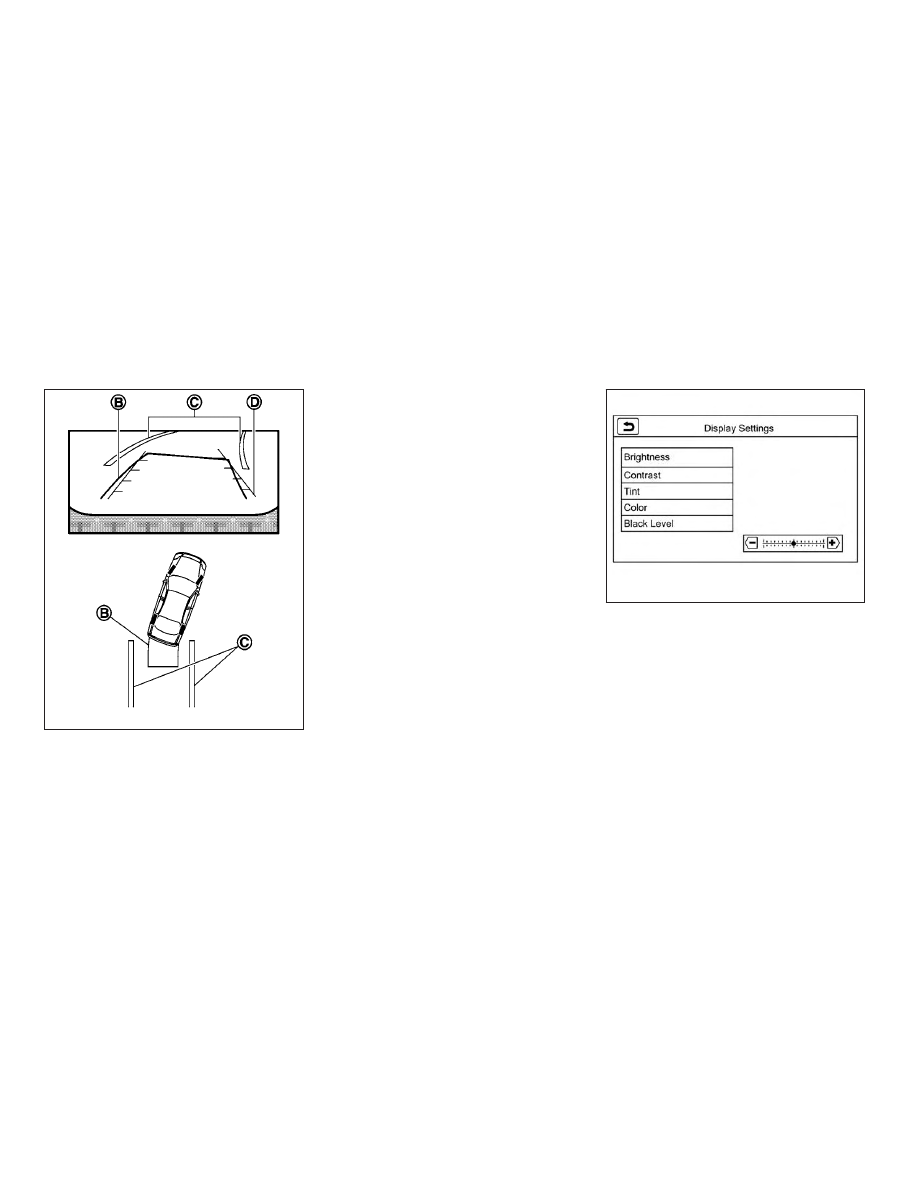

3. Slowly back up the vehicle adjusting

the steering wheel so that the pre-
dicted course lines

䊊

enter the park-

ing space

䊊

4. Maneuver the steering wheel to make

the vehicle width guide lines

䊊

parallel

to the parking space

䊊

while referring

to the predicted course lines.

5. When the vehicle is parked in the space

completely, move the shift lever to the
P (Park) position and apply the parking
brake.

ADJUSTING THE SCREEN

1. While on a RearView Monitor screen,

touch the touch-screen display. The
Camera Settings screen will come up.

2. Touch the Display Settings key.

3. Touch the “Brightness,” “Contrast,” “Tint,”

“Color,” or “Black Level” key.

4. Adjust the item by touching the + or —

key on the touch-screen display.

LHA1198

LHA3522

4-8

Monitor, climate, audio, phone and voice recognition systems

NOTE:

Do not adjust any of the display settings
of the RearView Monitor while the ve-
hicle is moving. Make sure the parking
brake is firmly applied.

HOW TO TURN ON AND OFF
PREDICTED COURSE LINES

To toggle ON and OFF the predicted course
lines while in the P (Park) position:

1. Touch the Settings key.

2. Touch the Camera key.

3. Touch the Predicted Course Lines key

to turn the feature ON or OFF.

To toggle ON and OFF the predicted course
lines while in the R (Reverse) position:

1. Touch the touch-screen display.

2. Touch the Predicted Course Lines key

to turn the feature ON or OFF.

REARVIEW MONITOR SYSTEM
LIMITATIONS

WARNING

Listed below are the system limitations
for RearView Monitor. Failure to operate
the vehicle in accordance with these
system limitations could result in seri-
ous injury or death.

∙ The system cannot completely elimi-

nate blind spots and may not show
every object.

∙ Underneath the bumper and the cor-

ner areas of the bumper cannot be
viewed on the RearView Monitor be-
cause of its monitoring range limita-
tion. The system will not show small
objects below the bumper, and may
not show objects close to the bumper
or on the ground.

∙ Objects viewed in the RearView Moni-

tor differ from actual distance be-
cause a wide-angle lens is used.

∙ Objects in the RearView Monitor will

appear visually opposite compared to
when viewed in the rearview and out-
side mirrors.

∙ Use the displayed lines as a reference.

The lines are highly affected by the
number of occupants, fuel level, ve-
hicle position, road conditions and
road grade.

∙ Make sure that the trunk is securely

closed when backing up.

∙ Do not put anything on the rearview

camera. The rearview camera is in-
stalled above the license plate.

∙ When washing the vehicle with high

pressure water, be sure not to spray it
around the camera. Otherwise, water
may enter the camera unit causing
water condensation on the lens, a
malfunction, fire or an electric shock.

∙ Do not strike the camera. It is a preci-

sion instrument. Otherwise, it may
malfunction or cause damage result-
ing in a fire or an electric shock.

The following are operating limitations and
do not represent a system malfunction:

∙ When the temperature is extremely

high or low, the screen may not clearly
display objects.

Monitor, climate, audio, phone and voice recognition systems

4-9

∙ When strong light directly shines on the

camera, objects may not be displayed
clearly.

∙ Vertical lines may be seen in objects on

the screen. This is due to strong re-
flected light from the bumper.

∙ The screen may flicker under fluores-

cent light.

∙ The colors of objects on the RearView

Monitor may differ somewhat from the
actual color of objects.

∙ Objects on the monitor may not be

clear in a dark environment.

∙ There may be a delay when switching

between views.

∙ If dirt, rain or snow accumulate on the

camera, the RearView Monitor may not
display objects clearly. Clean the cam-
era.

∙ Do not use wax on the camera lens.

Wipe off any wax with a clean cloth
dampened with a diluted mild cleaning
agent, then wipe with a dry cloth.

SYSTEM MAINTENANCE

CAUTION

∙ Do not use alcohol, benzine or thinner

to clean the camera. This will cause
discoloration.

∙ Do not damage the camera as the

monitor screen may be adversely
affected.

If dirt, rain or snow accumulates on the
camera

䊊

, the RearView Monitor may not

display objects clearly. Clean the camera
by wiping it with a cloth dampened with a
diluted mild cleaning agent and then wip-
ing it with a dry cloth.

LHA3581

4-10

Monitor, climate, audio, phone and voice recognition systems

Content .. 10 11 12 13 ..
