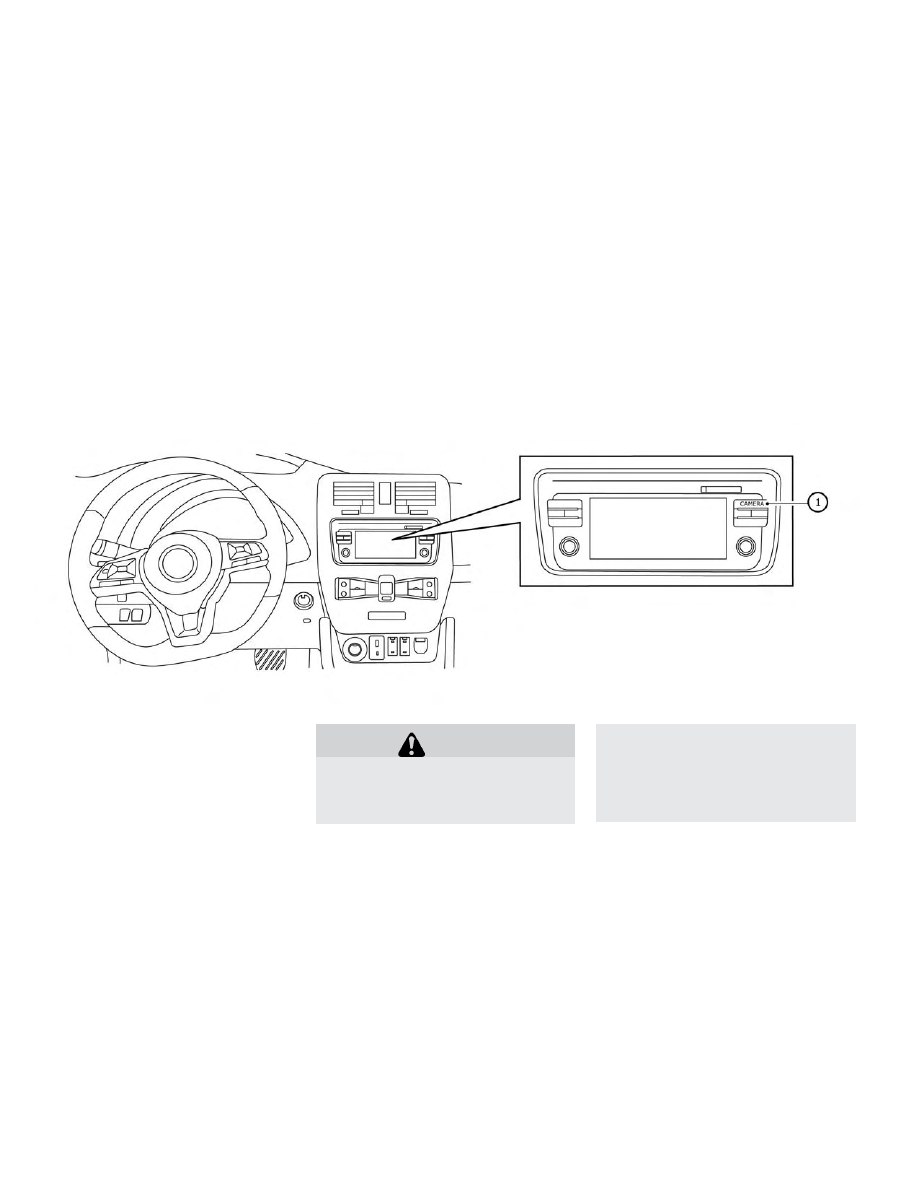

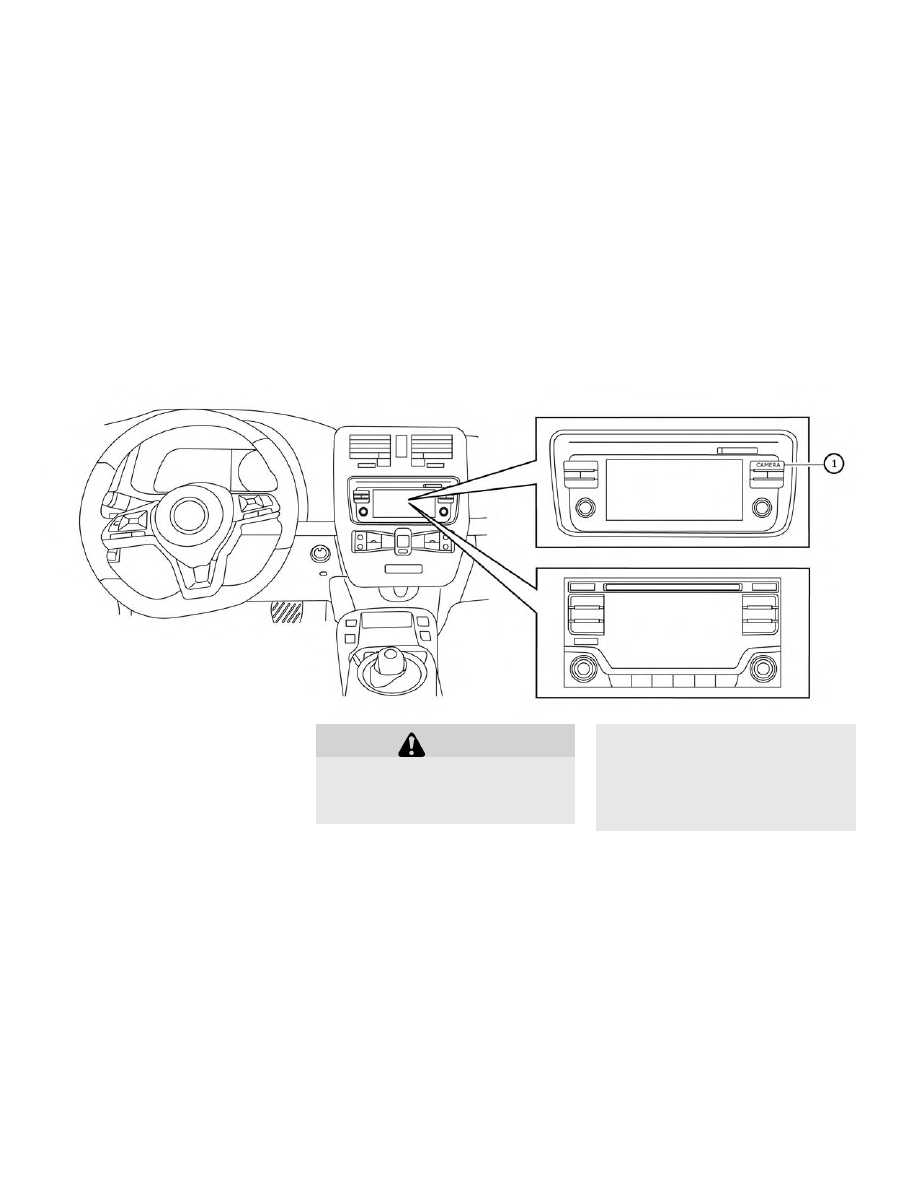

1. CAMERA button (if so equipped)

WARNING

Failure to follow the warnings and in-
structions for proper use of the Rear-
View Monitor system could result in se-
rious injury or death.

• RearView Monitor is a convenience

feature and is not a substitute for
proper backing. Always turn and
look out the windows and check
mirrors to be sure that it is safe to
move before operating the vehicle.
Always back up slowly.

REARVIEW MONITOR (IF SO
EQUIPPED)

4-4

Monitor, climate, audio, phone and voice recognition systems

• The system is designed as an aid to

the driver in showing large station-
ary objects directly behind the ve-
hicle, to help avoid damaging the ve-
hicle.

• The distance guide line and the ve-

hicle width line should be used as a
reference only when the vehicle is on
a level paved surface. The distance
viewed on the monitor is for refer-
ence only and may be different than
the actual distance between the ve-
hicle and displayed objects.

CAUTION

Do not scratch the camera lens when
cleaning dirt or snow from the front of
the camera.

The RearView Monitor system automati-
cally shows a rear view of the vehicle when
the shift lever is shifted into the R (Reverse)
position. The radio can still be heard while
the RearView Monitor is active.

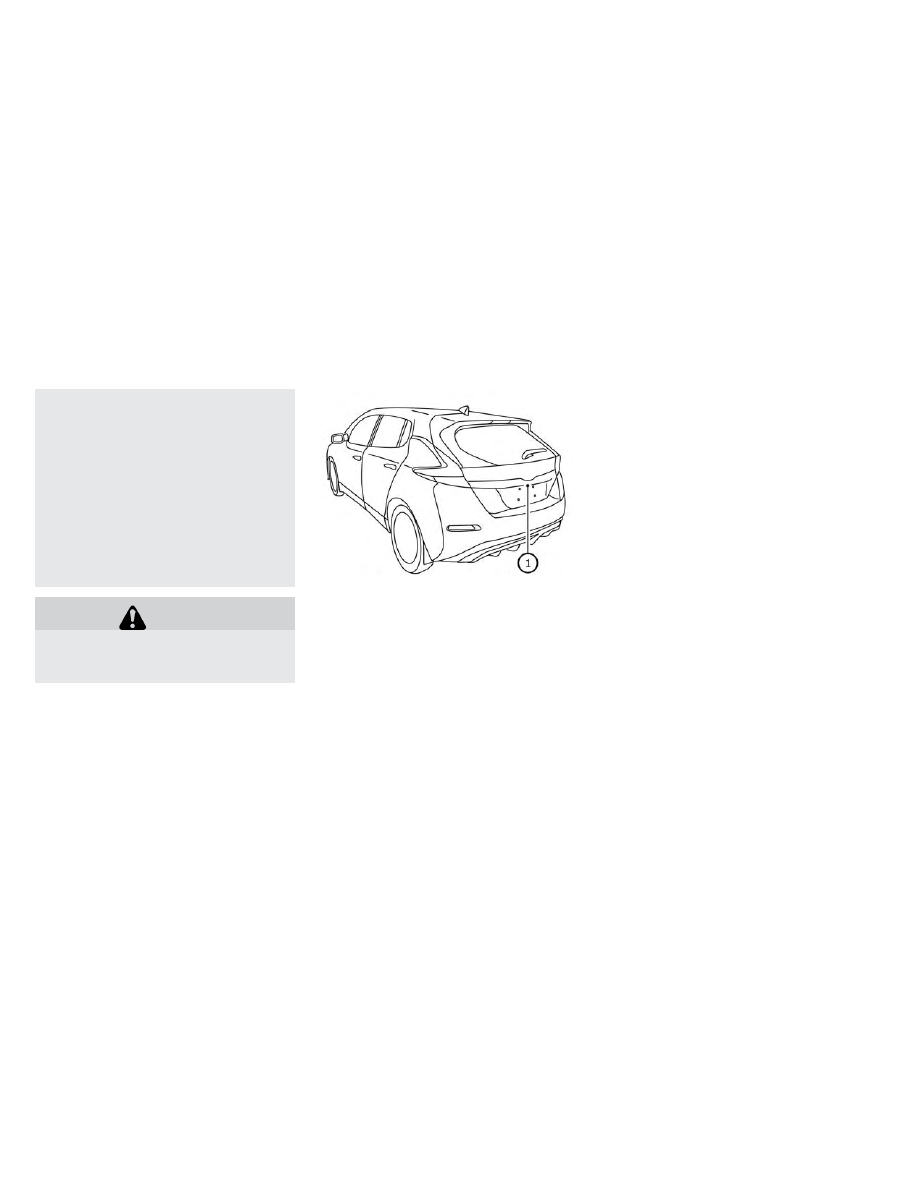

To display the rear view, the RearView Moni-
tor system uses a camera located just
above the vehicle’s license plate

䊊

REARVIEW MONITOR SYSTEM
OPERATION

With the EV (electric vehicle) system on and
in “Ready to Drive”, move the shift lever to
the R (Reverse) position to operate the
RearView Monitor.

Monitor, climate, audio, phone and voice recognition systems

4-5

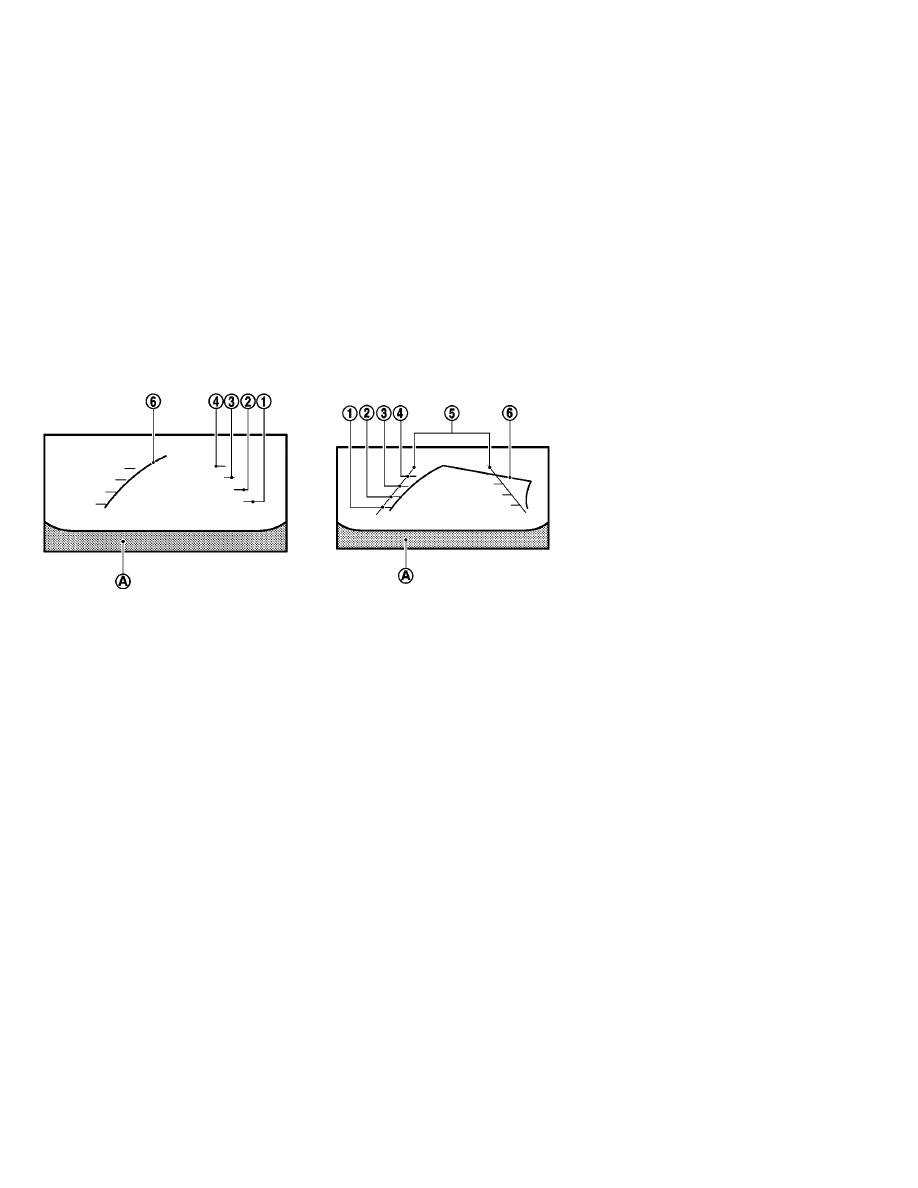

HOW TO READ THE DISPLAYED
LINES

Guiding lines which indicate the vehicle
width and distances to objects with refer-
ence to the vehicle body line

䊊

are dis-

played on the monitor.

Distance guide lines

Indicate distances from the vehicle body.

• Red line

䊊

: approx. 1.5 ft (0.5 m)

• Yellow line

䊊

: approx. 3 ft (1 m )

• Green line

䊊

: approx. 7 ft (2 m)

• Green line

䊊

: approx. 10 ft (3 m ) (if so

equipped)

Vehicle width guide lines

䊊

Indicate the vehicle width when backing
up.

Predicted course lines (models with
Navigation System)

䊊

Indicate the predicted course when back-
ing up. The predicted course lines will be
displayed on the monitor when the shift
lever is in the R (Reverse) position and the
steering wheel is turned. The predicted
course lines will move depending on how
much the steering wheel is turned and will
not be displayed while the steering wheel is
in the straight-ahead position.

The vehicle width guide lines and the width
of the predicted course lines are wider than
the actual width and course.

DIFFERENCE BETWEEN PREDICTED
AND ACTUAL DISTANCES

The displayed guidelines and their loca-
tions on the ground are for approximate
reference only. Objects on uphill or downhill
surfaces or projecting objects will be actu-
ally located at distances different from
those displayed in the monitor relative to
the guidelines (refer to illustrations). When
in doubt, turn around and view the objects
as you are backing up, or park and exit the
vehicle to view the positioning of objects
behind the vehicle.

4-6

Monitor, climate, audio, phone and voice recognition systems

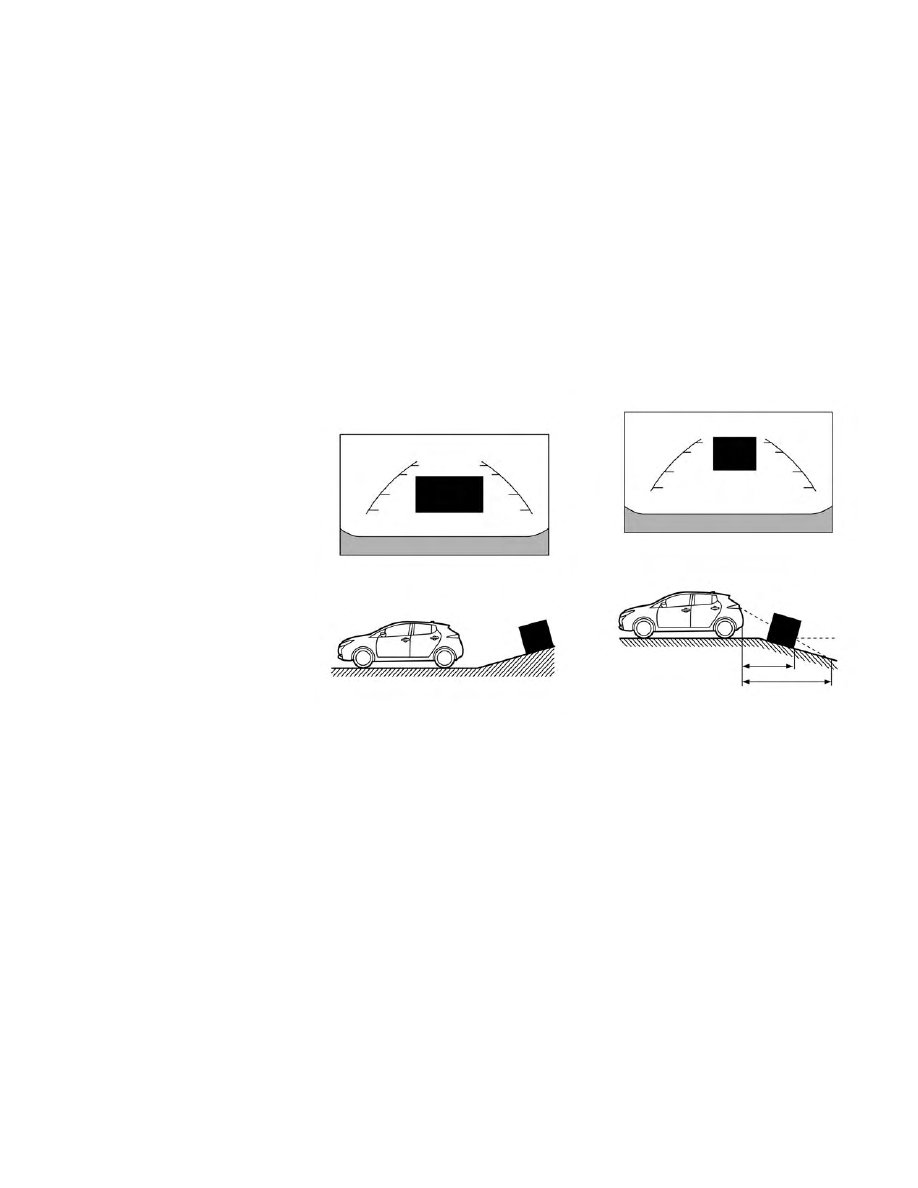

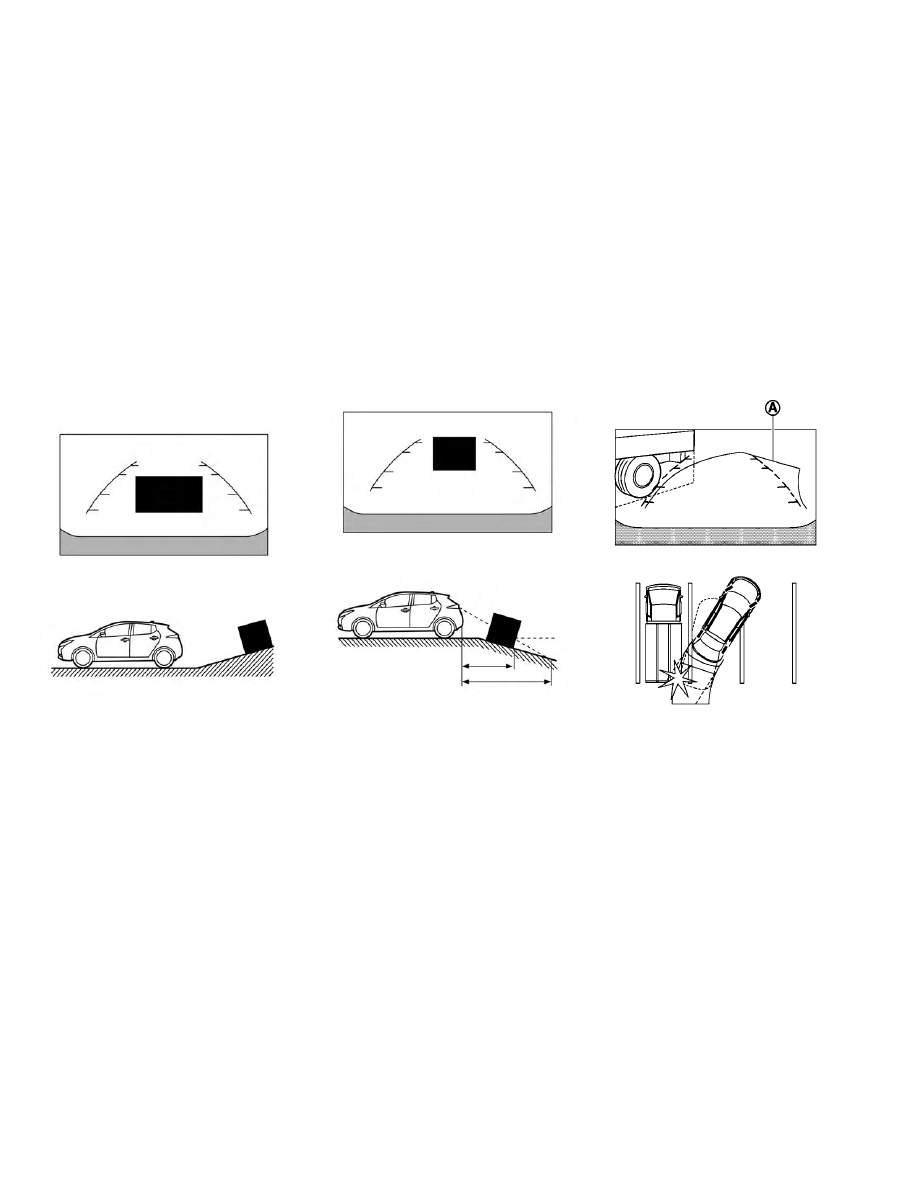

Backing up on a steep uphill

When backing up the vehicle up a hill, the
distance guide lines and the vehicle width
guide lines are shown closer than the actual
distance. Note that any object on the hill is
further than it appears on the monitor.

Backing up on a steep downhill

When backing up the vehicle down a hill, the
distance guide lines and the vehicle width
guide lines are shown farther than the actual
distance. Note that any object on the hill is
closer than it appears on the monitor.

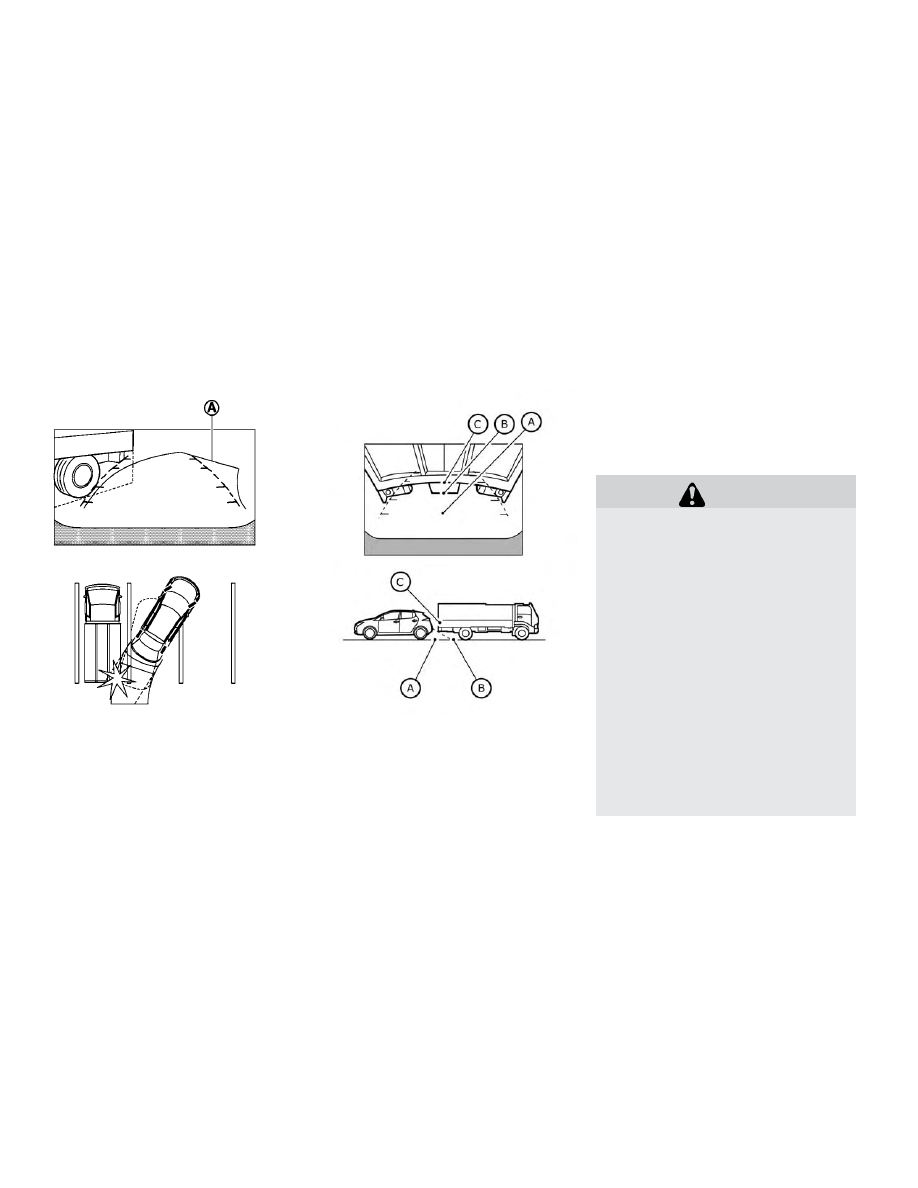

Backing up near a projecting
object

The predicted course lines (models with
navigation system)

䊊

do not touch the

object in the display. However, the vehicle
may hit the object if it projects over the
actual backing up course.

Monitor, climate, audio, phone and voice recognition systems

4-7

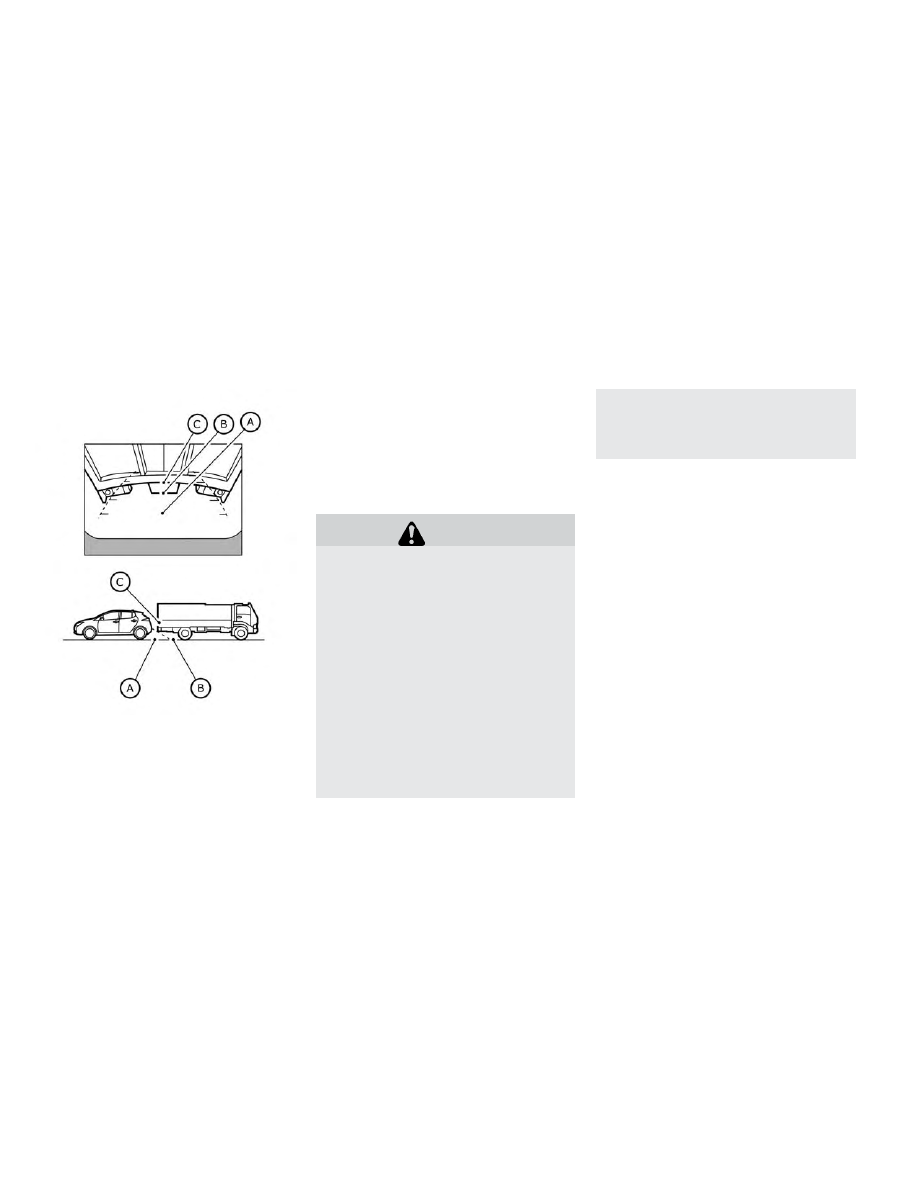

Backing up behind a projecting
object

The position

䊊

is shown farther than the

position

䊊

in the display. However, the po-

sition

䊊

is actually at the same distance as

the position

䊊

. The vehicle may hit the

object when backing up to the position

䊊

if the object projects over the actual back-
ing up course.

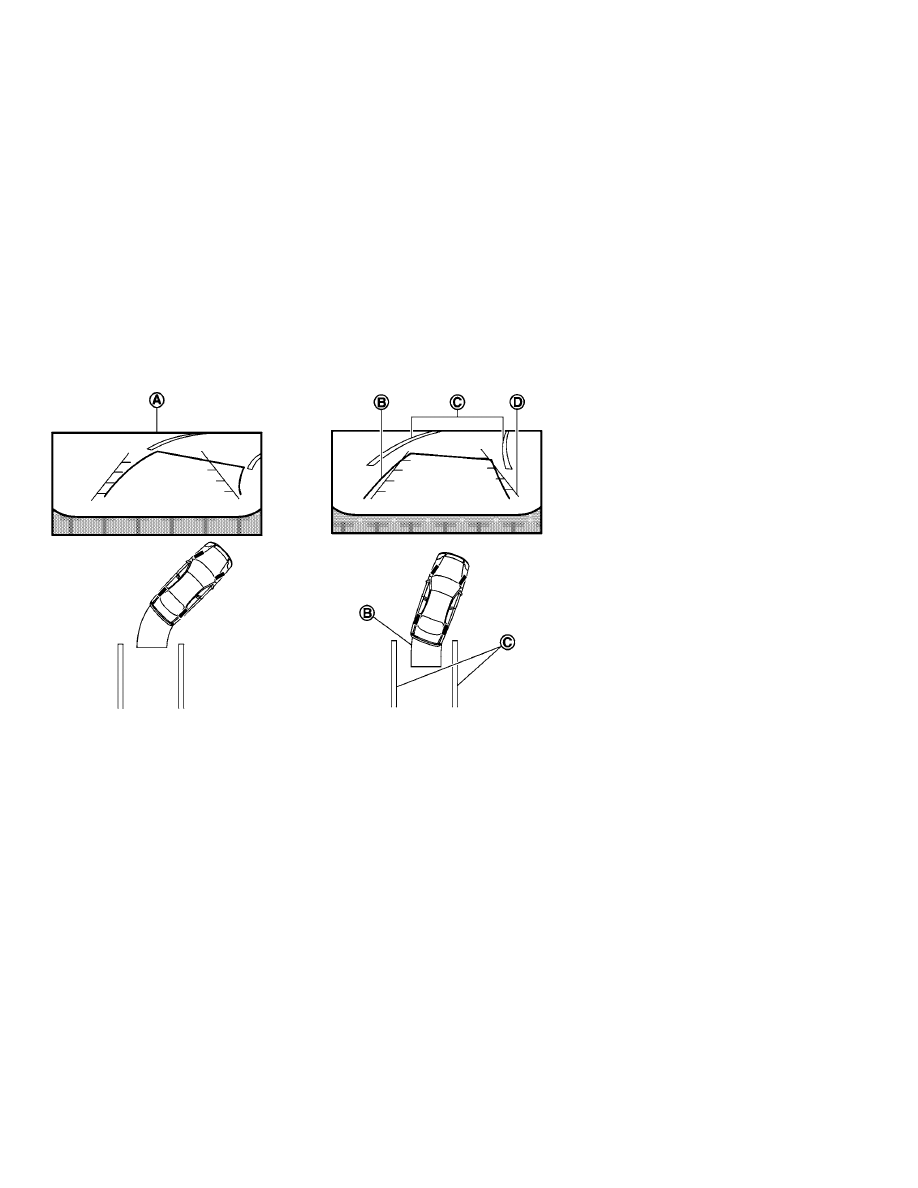

HOW TO PARK WITH PREDICTED
COURSE LINES (MODELS WITH
NAVIGATION SYSTEM)

WARNING

• If the tires are replaced with differ-

ent sized tires, the predicted course
lines may be displayed incorrectly.

• On a snow-covered or slippery road,

there may be a difference between
the predicted course line and the ac-
tual course line.

• If the battery is disconnected or be-

comes discharged, the predicted
course lines may be displayed incor-
rectly. If this occurs, please perform
the following procedures:
- Turn the steering wheel from lock
to lock while the EV (electric vehicle)
system is running.
- Drive the vehicle on a straight road
for more than 5 minutes.

• When the steering wheel is turned

with the power switch in the ACC
position, the predicted course lines
may be displayed incorrectly.

4-8

Monitor, climate, audio, phone and voice recognition systems

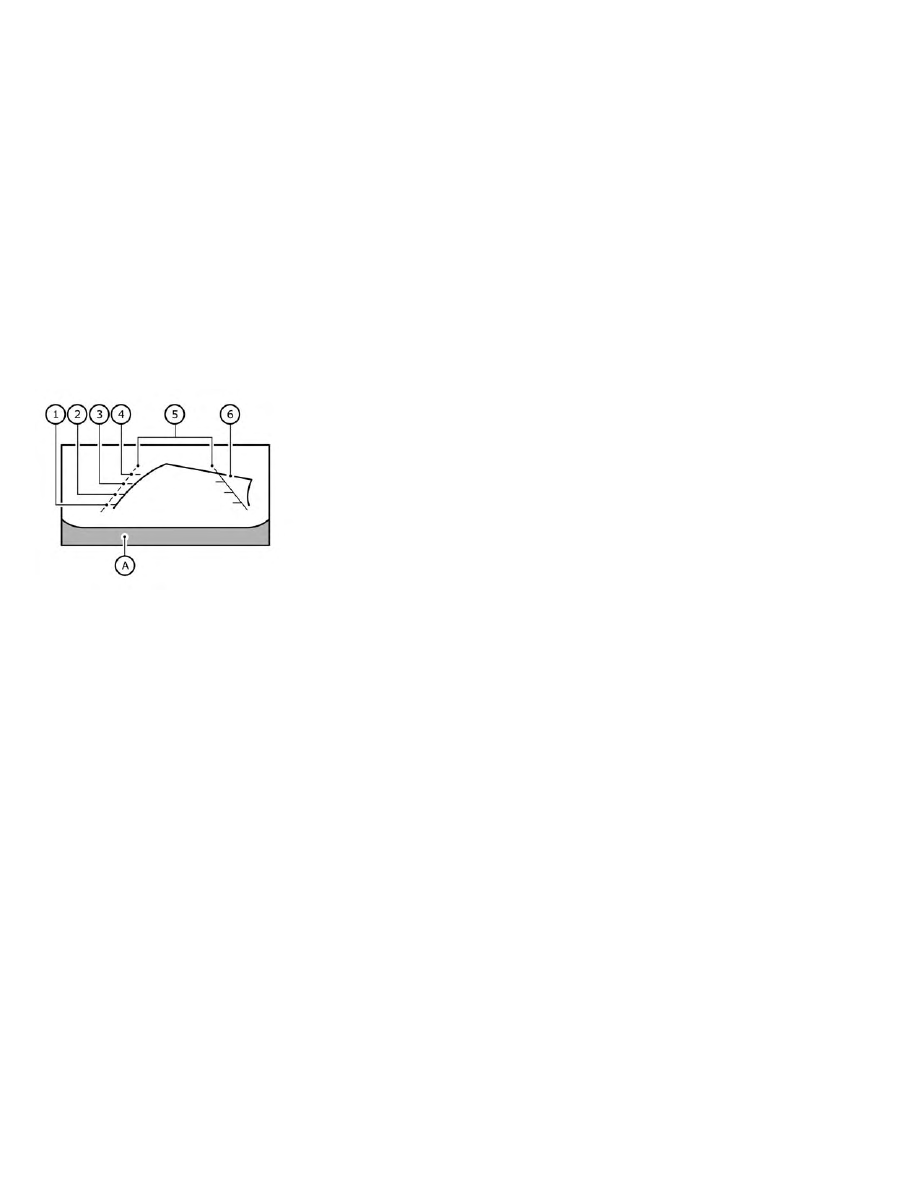

1. Visually check that the parking space is

safe before parking your vehicle.

2. The rear view of the vehicle is displayed

on the screen

䊊

when the shift lever is

moved to the R (Reverse) position.

3. Slowly back up the vehicle adjusting the

steering wheel so that the predicted
course lines

䊊

enter the parking space

䊊

4. Maneuver the steering wheel to make

the vehicle width guide lines

䊊

parallel

to the parking space

䊊

while referring

to the predicted course lines.

5. When the vehicle is parked in the space

completely, move the shift lever to the P
(Park) position and apply the parking
brake.

Monitor, climate, audio, phone and voice recognition systems

4-9

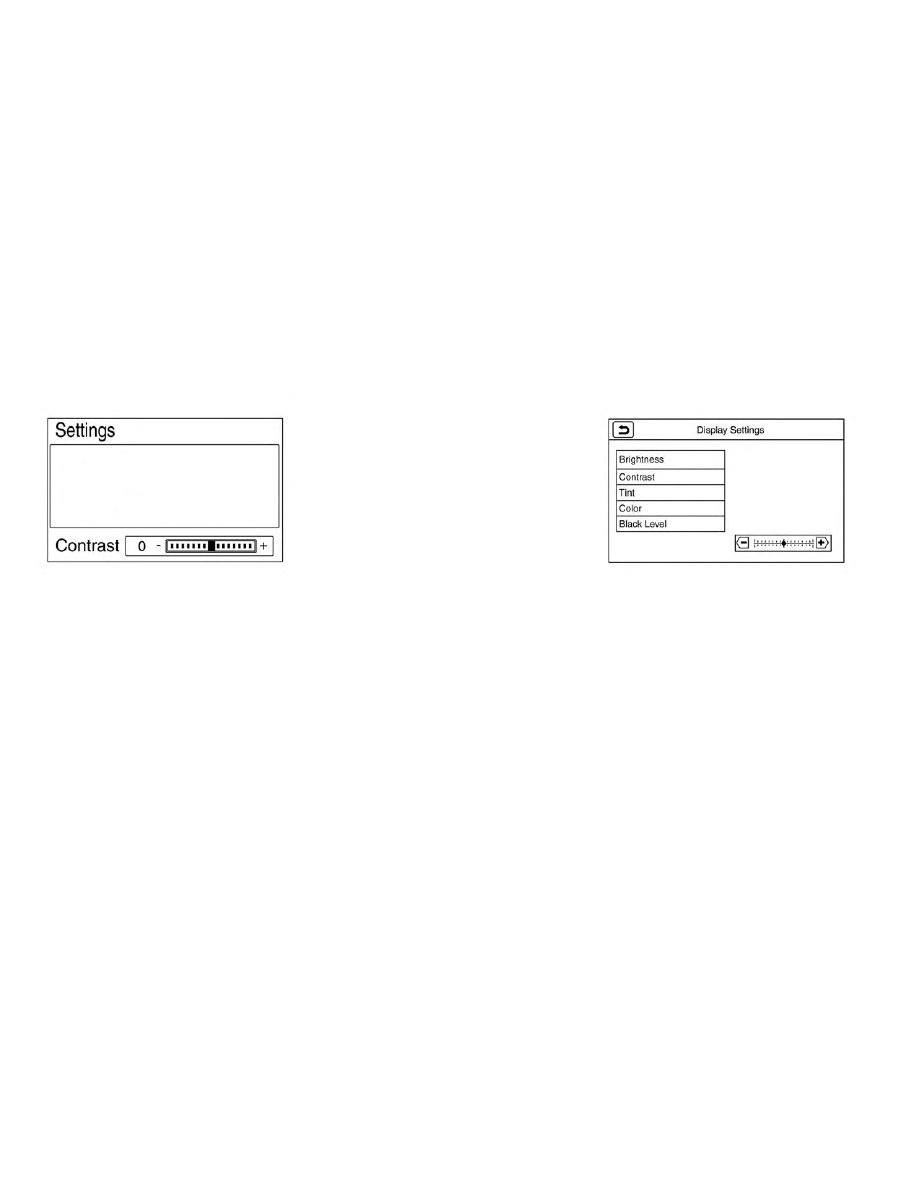

ADJUSTING THE SCREEN

1. While on a RearView Monitor screen, press

the ENTER/SETTING button until the
Brightness or Contrast setting bar is dis-
played on the RearView Monitor screen.

2. Turn the TUNE/SCROLL knob to adjust

the level.

3. To complete the adjustment, press the

ENTER/SETTING button until the Bright-
ness or Contrast setting bar disappears
from the RearView Monitor screen.

NOTE:
Do not adjust any of the display set-
tings of the RearView Monitor while
the vehicle is moving. Make sure the
parking brake is firmly applied

1. While on a RearView Monitor screen,

touch the touch-screen display. Touch
the “Display Settings” key to bring up the
Display Settings screen.

2. Touch the “Brightness,” “Contrast,” “Tint,”

“Color,” or “Black Level” key.

3. Adjust the item by touching the + or - key

on the touch-screen display.

Models without Navigation System

Models with Navigation System

4-10

Monitor, climate, audio, phone and voice recognition systems

HOW TO TURN ON AND OFF
PREDICTED COURSE LINES
(MODELS WITH NAVIGATION)

To toggle ON and OFF the predicted course
lines while in the P (Park) position:

1. Touch the Settings key.

2. Touch the Camera key.

3. Touch the Predicted Course Lines key to

turn the feature ON or OFF.

To toggle ON and OFF the predicted course
lines while in the R (Reverse) position:

1. Touch the touch-screen display.

2. Touch the Predicted Course Lines key to

turn the feature ON or OFF.

REARVIEW MONITOR SYSTEM
LIMITATIONS

WARNING

Listed below are the system limita-
tions for RearView Monitor. Failure to
operate the vehicle in accordance with
these system limitations could result
in serious injury or death.

• The

system

cannot

completely

eliminate blind spots and may not
show every object.

• Underneath the bumper and the

corner areas of the bumper cannot
be viewed on the RearView Monitor
because of its monitoring range
limitation. The system will not show
small objects below the bumper,
and may not show objects close to
the bumper or on the ground.

• Objects viewed in the RearView

Monitor differ from actual distance
because a wide-angle lens is used.

• Objects in the RearView Monitor will

appear visually opposite compared
to when viewed in the rearview and
outside mirrors.

• Use the displayed lines as a refer-

ence. The lines are highly affected by
the number of occupants, fuel level,
vehicle position, road conditions
and road grade.

• Make sure that the rear hatch is se-

curely closed when backing up.

• Do not put anything on the rearview

camera. The rearview camera is in-
stalled above the license plate.

• When washing the vehicle with high

pressure water, be sure not to spray
it around the camera. Otherwise,
water may enter the camera unit
causing water condensation on the
lens, a malfunction, fire or an electric
shock.

• Do not strike the camera. It is a pre-

cision instrument. Otherwise, it may
malfunction or cause damage re-
sulting in a fire or an electric shock.

The following are operating limitations and
do not represent a system malfunction:

• When the temperature is extremely high

or low, the screen may not clearly display
objects.

• When strong light directly shines on the

camera, objects may not be displayed
clearly.

• Vertical lines may be seen in objects on

the screen. This is due to strong reflected
light from the bumper.

• The screen may flicker under fluorescent

light.

• The colors of objects on the RearView

Monitor may differ somewhat from the
actual color of objects.

Monitor, climate, audio, phone and voice recognition systems

4-11

• Objects on the monitor may not be clear

in a dark environment.

• There may be a delay when switching be-

tween views.

• If dirt, rain or snow accumulate on the

camera, RearView Monitor may not dis-
play objects clearly. Clean the camera.

• Do not use wax on the camera lens. Wipe

off any wax with a clean cloth dampened
with a diluted mild cleaning agent, then
wipe with a dry cloth.

SYSTEM MAINTENANCE

CAUTION

• Do not use alcohol, benzine or thin-

ner to clean the camera. This will
cause discoloration.

• Do not damage the camera as the

monitor screen may be adversely af-
fected.

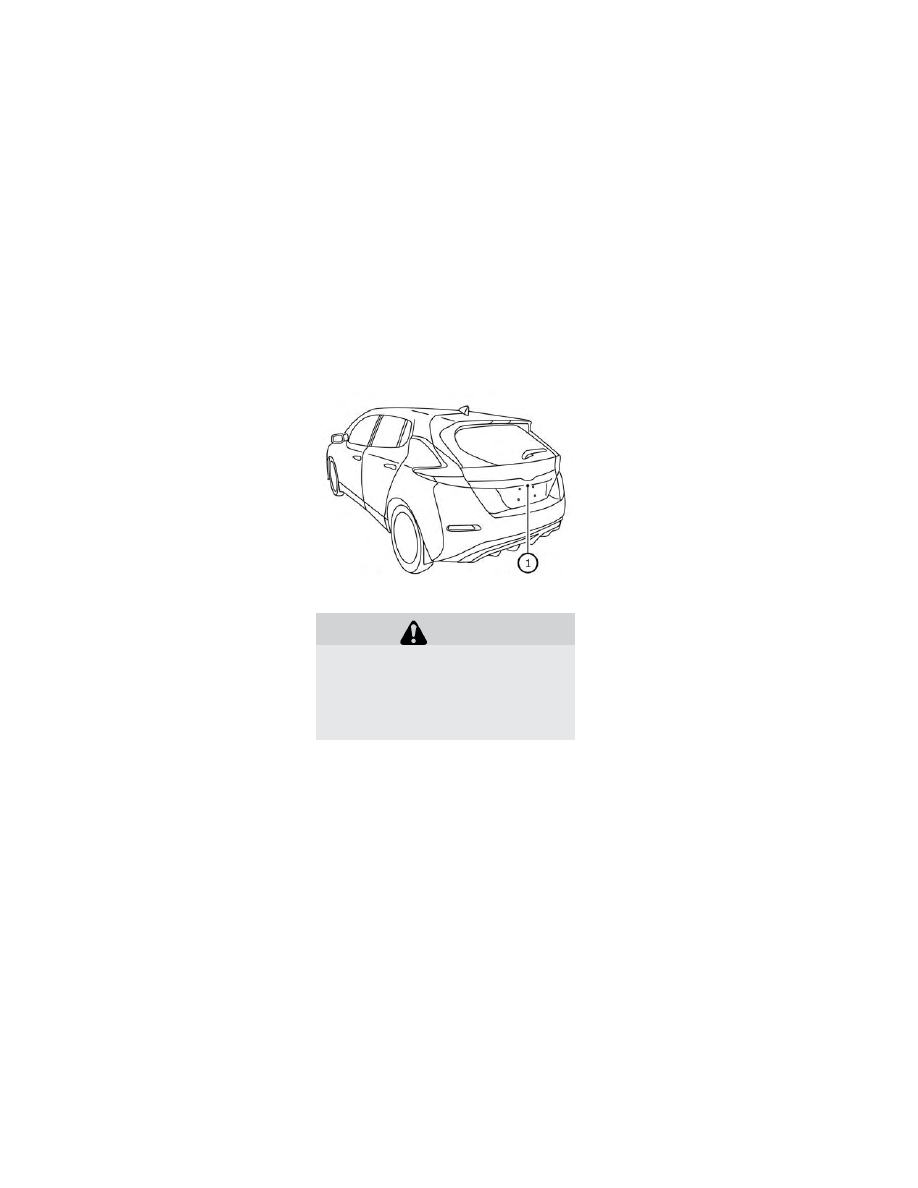

If dirt, rain or snow accumulates on the
camera

䊊

, the RearView Monitor may not

display objects clearly. Clean the camera
by wiping it with a cloth dampened with a
diluted mild cleaning agent and the wiping
it with a dry cloth.

4-12

Monitor, climate, audio, phone and voice recognition systems

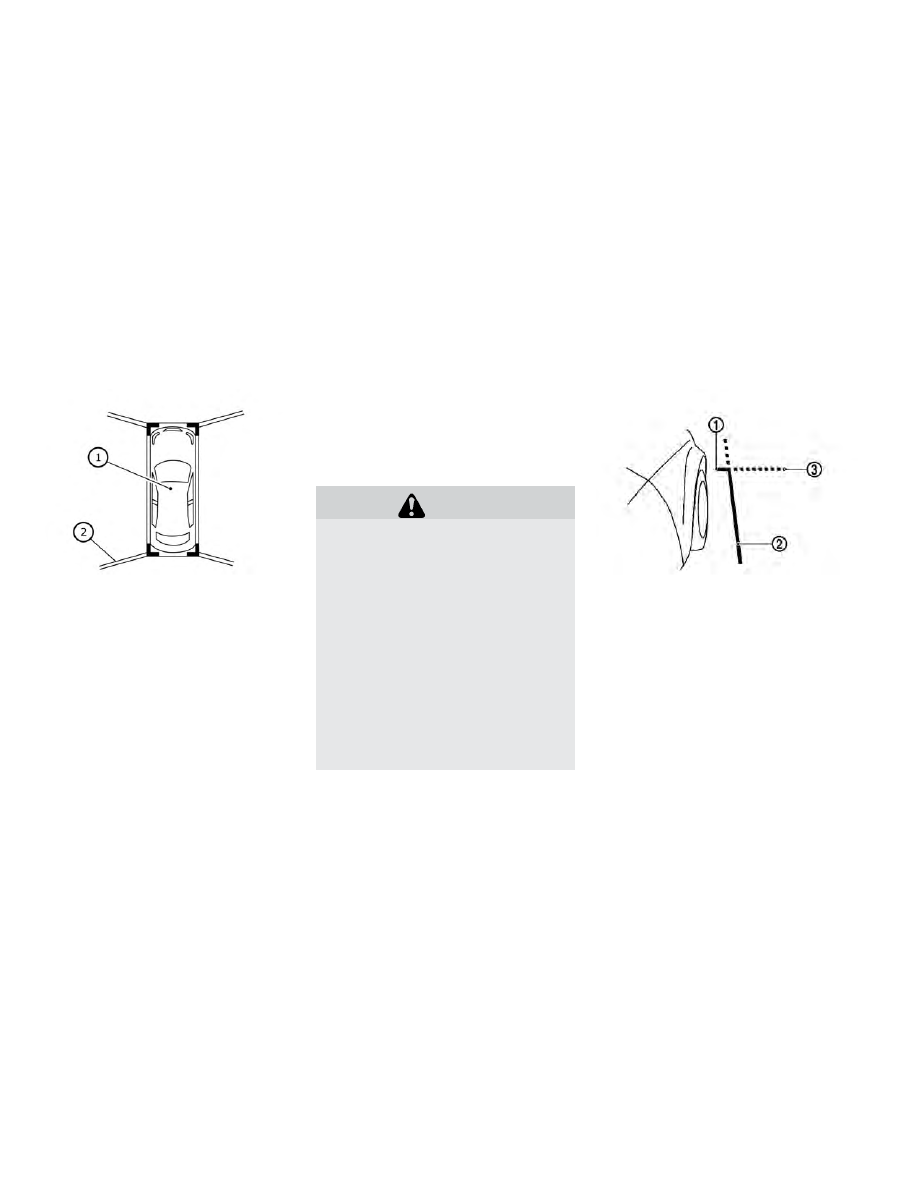

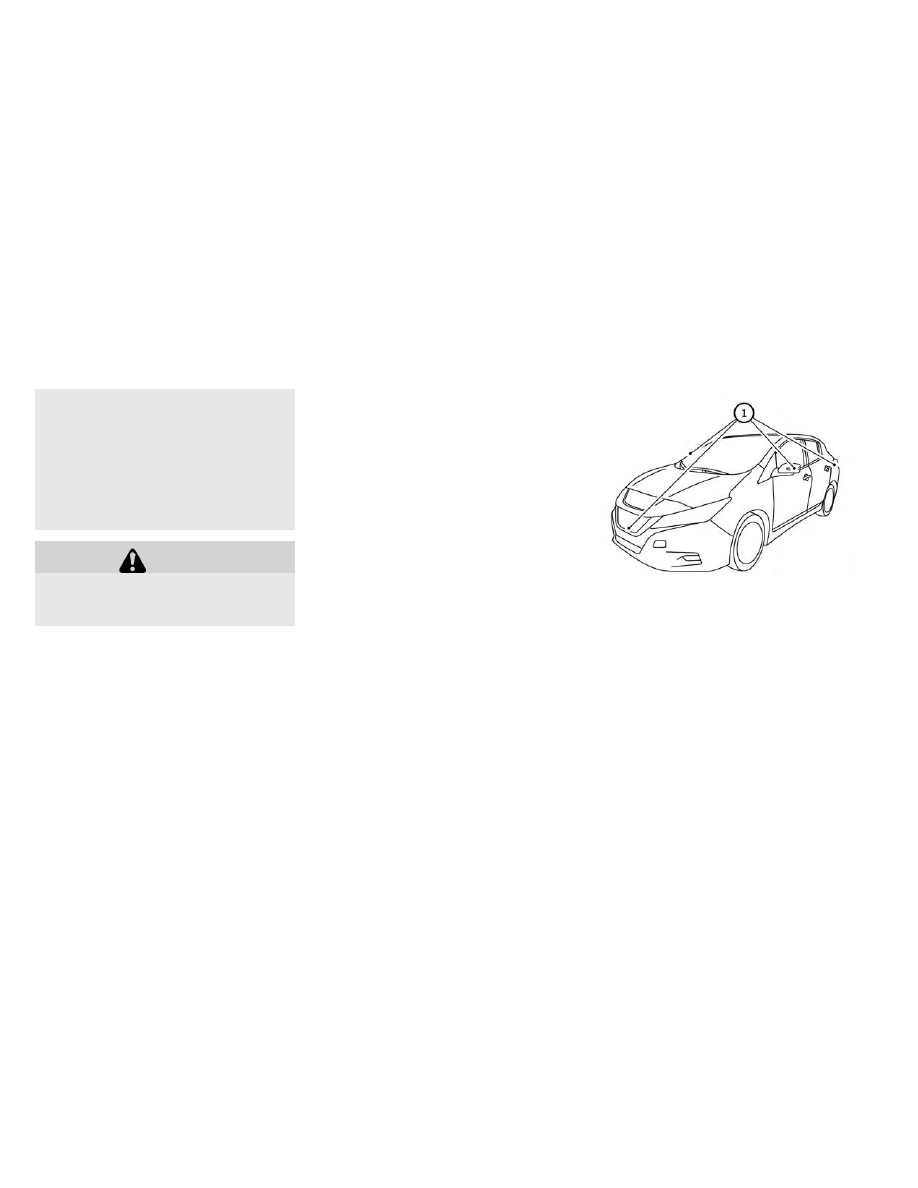

1. CAMERA button

WARNING

Failure to follow the warnings and in-
structions for proper use of the Intelli-
gent Around View Monitor system
could result in serious injury or death.

• The Intelligent Around View Monitor

is a convenience feature and is not a
substitute for proper vehicle opera-
tion because it has areas where ob-
jects cannot be viewed. The four cor-
ners of the vehicle in particular, are

INTELLIGENT AROUND VIEW
MONITOR (IF SO EQUIPPED)

Monitor, climate, audio, phone and voice recognition systems

4-13

areas where objects do not always
appear in the bird’s-eye, front, or
rear views. Always check your sur-
roundings to be sure that it is safe to
move before operating the vehicle.
Always operate the vehicle slowly.

• The driver is always responsible for

safety during parking and other ma-
neuvers.

CAUTION

Do not scratch the camera lens when
cleaning dirt or snow from the front of
the camera.

The Intelligent Around View Monitor sys-
tem is designed as an aid to the driver in
situations such as slot parking or parallel
parking. The monitor displays various
views of the position of the vehicle in a split
screen format. Not all views are available at
all times.

Available views:

• Front View

An approximately 150–degree view of
the front of the vehicle.

• Rear View

An approximately 150–degree view of
the rear of the vehicle.

• Bird’s-Eye View

The surrounding views of the vehicle
from above.

• Front-Side View

The view around and ahead of the front
passenger’s side wheel.

• Full screen rear view

The view to the rear of the vehicle (which
is a little wider than the standard rear
view).

To display the multiple views, the Intelligent
Around View Monitor system uses cam-
eras located in the front grille, on the vehi-
cle’s outside mirrors and one just above
the vehicle’s license plates

䊊

4-14

Monitor, climate, audio, phone and voice recognition systems

INTELLIGENT AROUND VIEW
MONITOR SYSTEM OPERATION

With the EV (electric vehicle) system on,
move the shift lever to the R (Reverse) po-
sition or press the CAMERA button to oper-
ate the Intelligent Around View Monitor. The
screen displayed on the Intelligent Around
View Monitor will automatically return to
the previous screen 3 minutes after the
CAMERA button has been pressed with the
shift lever in a position other than the R
(Reverse) position.

Available views

WARNING

• The distance guide lines and the ve-

hicle width lines should be used as a
reference only when the vehicle is on
a paved, level surface. The apparent
distance viewed on the monitor may
be different than the actual distance
between the vehicle and displayed
objects.

• Use the displayed lines and the

bird’s eye view as a reference. The
lines and the bird’s-eye view are
greatly affected by the number of
occupants, cargo, fuel level, vehicle
position, road condition and road
grade.

• If the tires are replaced with differ-

ent sized tires, the predicted course
lines and the bird’s-eye view may be
displayed incorrectly.

• When driving the vehicle up a hill,

objects viewed in the monitor are
further than they appear. When driv-
ing the vehicle down a hill, objects
viewed in the monitor are closer
than they appear.

• Objects in the rear view will appear

visually opposite compared to when
viewed in the rear view and outside
mirrors.

• Use the mirrors or actually look to

properly judge distances to other
objects.

• On a snow-covered or slippery road,

there may be a difference between
the predicted course lines and the
actual course line.

• The vehicle width and predicted

course lines are wider than the ac-
tual width and course.

• The

displayed

lines

will

appear

slightly off to the right, because the
rearview camera is not installed in
the rear center of the vehicle.

Monitor, climate, audio, phone and voice recognition systems

4-15

Front and rear view:

Guiding lines that indicate the approximate
vehicle width and distance to objects with
reference to the vehicle body lines

䊊

are

displayed on the monitor.

Distance guide lines

Indicate distances from the vehicle body:

• Red line

䊊

: approximately 1.5 ft (0.5 m)

• Yellow lines

䊊

: approximately 3 ft (1 m)

• Green lines

䊊

: approximately 7 ft (2 m)

• Green lines

䊊

: approximately 10 ft (3 m)

(if so equipped)

Vehicle width guide lines

䊊

Indicate the approximate vehicle width
when backing up.

Predicted course lines

䊊

Indicate the predicted course when oper-
ating the vehicle. The predicted course
lines will be displayed on the monitor when
the steering wheel is turned. The predicted
course lines will move depending on how
much the steering wheel is turned and
may not be displayed while the steering
wheel is in the straight-ahead position. The

front view will not be displayed when the
vehicle speed is above 6 mph (10 km/h).

NOTE:
When the monitor displays the front
view and the steering wheel turns
about 90 degrees or less from the
straight-ahead position, both the right
and left predicted course lines

䊊

are

displayed. When the steering wheel
turns about 90 degrees or more, a line
is displayed only on the opposite side
of the turn.

Front View

Rear View

4-16

Monitor, climate, audio, phone and voice recognition systems

Birds-eye view:

The bird’s-eye view shows the overhead
view of the vehicle, which helps confirm the
vehicle position and the predicted course
to a parking space. The vehicle icon

䊊

shows the position of the vehicle. Note that
the apparent distance between objects
viewed in the bird’s-eye view may differ
somewhat from the actual distance to the
vehicle.

The areas that the cameras cannot cover

䊊

are indicated in black.

After the EV system is placed in the ON
position, the non-viewable areas

䊊

are

highlighted in yellow for several seconds
after the bird’s-eye view is displayed. It will
be shown only the first time after the
power switch is placed in the ON position.

WARNING

• Objects in the bird’s-eye view will

appear further than the actual dis-
tance.

• Tall objects, such as a curb or vehicle,

may be misaligned or not displayed
at the seam of the views.

• Objects that are above the camera

cannot be displayed.

• The view for the bird’s-eye view may

be misaligned when the camera po-
sition alters.

• A line on the ground may be mis-

aligned and is not seen as being
straight at the seam of the views.
The misalignment will increase as
the line proceeds away from the ve-
hicle.

Front-side view:

Guiding lines

Guiding lines that indicate the approximate
width and the front end of the vehicle are
displayed on the monitor.

The front-of-vehicle line

䊊

shows the front

part of the vehicle.

The side-of-vehicle line

䊊

shows the ap-

proximate vehicle width including the out-
side mirrors.

The extensions

䊊

of both the front

䊊

and

side

䊊

lines are shown with a green dotted

line.

Monitor, climate, audio, phone and voice recognition systems

4-17

DIFFERENCE BETWEEN PREDICTED
AND ACTUAL DISTANCES

Backing up on a steep uphill

Backing up on a steep downhill

4-18

Monitor, climate, audio, phone and voice recognition systems

Backing up near a projecting
object

The predicted course lines

䊊

do not touch

the object in the display. However, the ve-
hicle may hit the object if it projects over
the actual backing up course.

Backing up behind a projecting
object

The position

䊊

is shown farther than the

position

䊊

in the display. However, the po-

sition

䊊

is actually at the same distance as

the position

䊊

. The vehicle may hit the

object when backing up to the position

䊊

if the object projects over the actual back-
ing up course.

HOW TO PARK WITH PREDICTED
COURSE LINES

WARNING

• If the tires are replaced with differ-

ent sized tires, the predicted course
lines may be displayed incorrectly.

• On a snow-covered or slippery road,

there may be a difference between
the predicted course line and the ac-
tual course line.

• If the battery is disconnected or be-

comes discharged, the predicted
course lines may be displayed incor-
rectly. If this occurs, please perform
the following procedures:
- Turn the steering wheel from lock
to lock while the EV (electric vehicle)
System is running.
- Drive the vehicle on a straight road
for more than 5 minutes.

• When the steering wheel is turned

with the power switch in the ACC po-
sition, the predicted course lines
may be displayed incorrectly.

Monitor, climate, audio, phone and voice recognition systems

4-19

Content .. 15 16 17 18 ..
