Nissan Kicks (2018 year). Instruction

PASSENGER COMPARTMENT

CAUTION

Never use a fuse of a higher or lower
amperage rating than that specified on
the fuse box cover. This could damage
the electrical system or electronic con-
trol units or cause a fire.

If any electrical equipment does not oper-
ate, check for an open fuse.

NOTE:

The fuse box is located on the driver’s
side of the instrument panel.

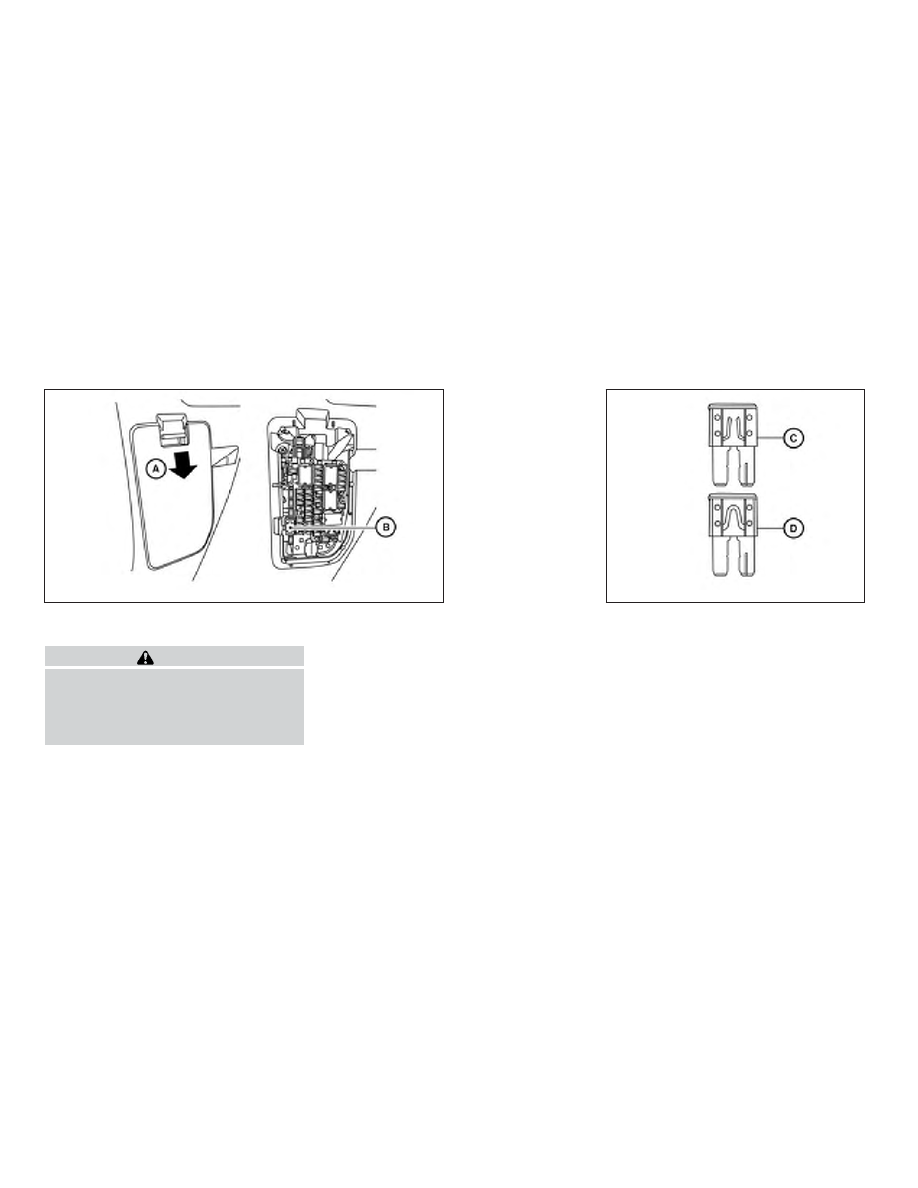

1. Be sure the ignition switch and the

headlight switch are OFF.

2. Remove the fuse box cover

䊊

with a

suitable tool. Use a cloth to avoid dam-
aging the trim.

3. Locate the fuse that needs to be re-

placed.

4. Remove the fuse with the fuse puller

䊊

5. If the fuse is open

䊊

, replace it with an

equivalent good fuse

䊊

6. Push the fuse box cover to install.

If a new fuse also opens, have the electrical
system checked and repaired. It is recom-
mended that you visit a NISSAN dealer for
this service.

NOTE:

Your vehicle may not be equipped with
all fuses listed on the fuse label.

LDI3087

LDI2998

8-20

Do-it-yourself

CAUTION

Be careful not to allow children to swal-
low the battery or removed parts.

∙ An improperly disposed battery can

harm the environment. Always con-
firm local regulations for battery
disposal.

∙ When changing batteries, do not let

dust or oil get on the components.

∙ There is danger of explosion if the

lithium battery is incorrectly replaced.
Replace only with the same or equiva-
lent type.

NISSAN INTELLIGENT KEY®

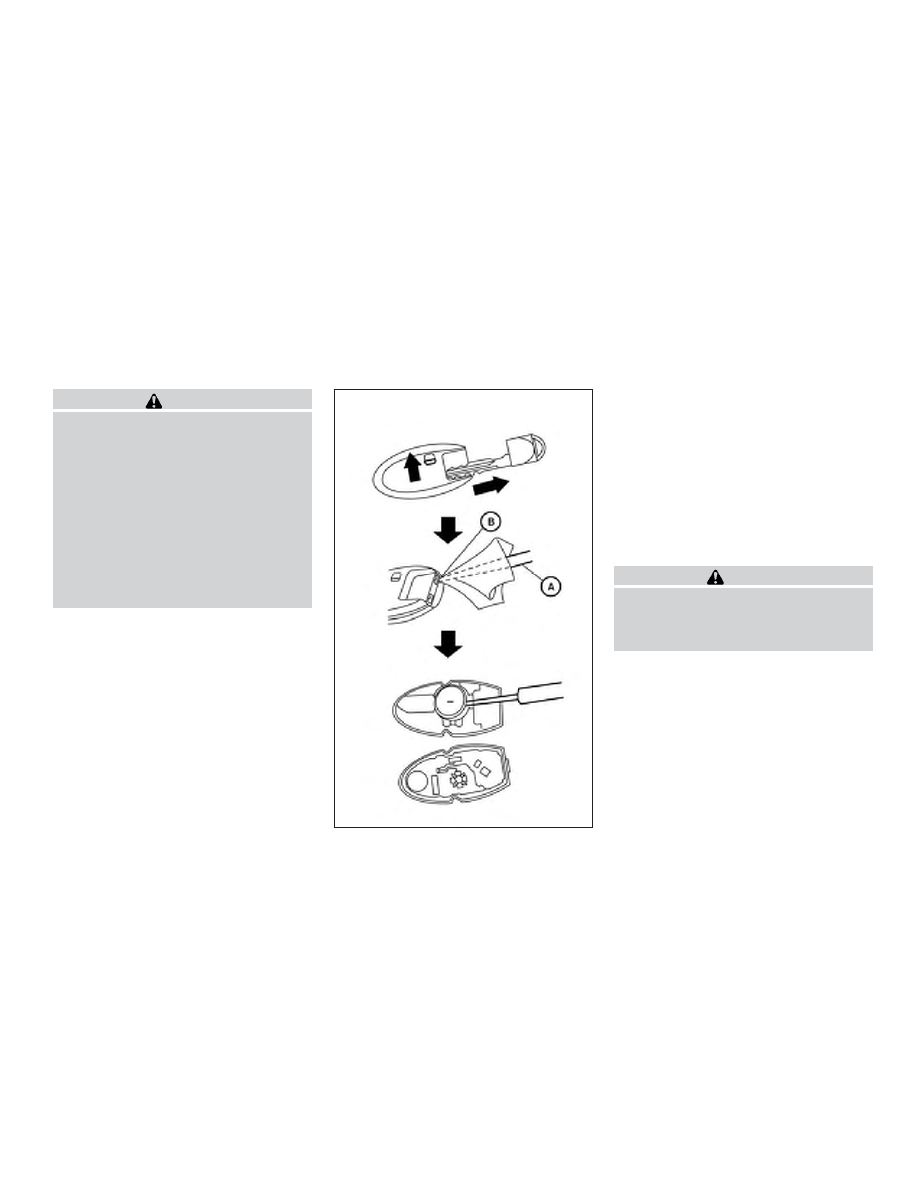

Replace the battery in the Intelligent Key as
follows:

1. Remove the mechanical key from the

Intelligent Key.

2. Insert a small flathead screwdriver

䊊

into the slit

䊊

of the corner and twist it

to separate the upper part from the
lower part. Place a cloth over the
screwdriver to protect the casing.

CAUTION

To prevent damage of the Intelligent
Key, do not compress the screwdriver
too hard when you insert the screw-
driver into the slit.

LDI2001

BATTERY REPLACEMENT

Do-it-yourself

8-21

3. Replace the battery with a new one.

Recommended battery: CR2032 or
equivalent.

∙ Do not touch the internal circuit and

electric terminals as doing so could
cause a malfunction.

∙ Hold the battery by the edges. Hold-

ing the battery across the contact
points will seriously deplete the stor-
age capacity.

∙ Make sure that the + side faces the

bottom of the lower part.

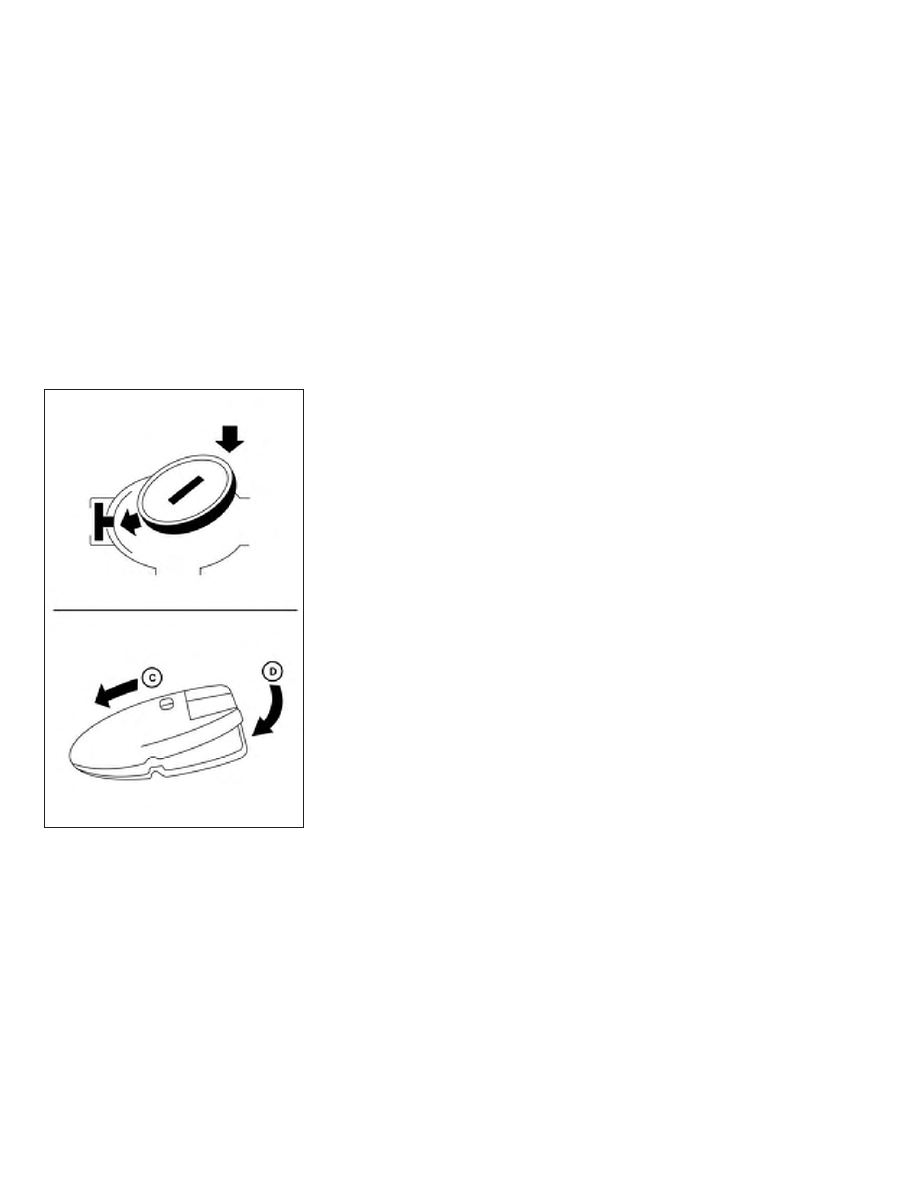

4. Close the lid securely as illustrated with

䊊

and

䊊

5. Operate the buttons to check the op-

eration.

If you need assistance for replacement, it is
recommended that you visit a NISSAN
dealer for this service.

FCC Notice:

For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference
that may cause undesired operation.

Note:

Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s author-
ity to operate the equipment.

For Canada:
This

device

complies

with

Industry

Canada licence-exempt RSS standard(s).
Operation is subject to the following two
conditions: (1) this device may not cause
interference, and (2) this device must ac-
cept any interference, including interfer-
ence that may cause undesired opera-
tion of the device.

LDI2637

8-22

Do-it-yourself

HEADLIGHTS

For additional information on headlight
bulb replacement, refer to the instructions
outlined in this section.

Replacing the halogen headlight
bulb (if so equipped)

The headlight is a semi-sealed beam type
which uses a replaceable headlight (halo-
gen) bulb. They can be replaced from inside
the engine compartment without remov-
ing the headlight assembly.

If headlight bulb replacement is required, It
is recommended that you visit a NISSAN
dealer for this service.

CAUTION

∙ Aiming is not necessary after replac-

ing the bulb. When aiming adjustment
is necessary, it is recommended that
you visit a NISSAN dealer for this
service.

∙ Do not leave the headlight assembly

open without a bulb installed for a
long period of time. Dust, moisture,
smoke, etc. entering the headlight
body may affect bulb performance.
Remove the bulb from the headlight
assembly just before a replacement
bulb is installed.

∙ Only touch the base when handling

the bulb. Never touch the glass enve-
lope. Touching the glass could signifi-
cantly affect bulb life and/or head-
light performance.

∙ High pressure halogen gas is sealed

inside the halogen bulb. The bulb may
break

the

glass

envelope

scratched or the bulb is dropped.

∙ Use the same number and wattage as

shown in the chart.

Fog may temporarily form inside the lens
of the exterior lights in the rain or in a car
wash. A temperature difference between
the inside and the outside of the lens
causes the fog. This is not a malfunction. If
large drops of water collect inside the lens,
it is recommended that you visit a NISSAN
dealer for this service.

Replacing the LED headlight bulb
(if so equipped)

If LED headlight bulb replacement is re-
quired, it is recommended that you visit a
NISSAN dealer for this service.

FOG LIGHTS (if so equipped)

For additional information on fog light bulb
replacement, refer to the instructions out-
lined in this section.

LIGHTS

Do-it-yourself

8-23

Replacing the fog light bulb (if so
equipped)

CAUTION

∙ High pressure halogen gas is sealed

inside the halogen bulb. The bulb may
break

the

glass

envelope

scratched or the bulb is dropped.

∙ When handling the bulb, do not touch

the glass envelope.

∙ Use the same number and wattage as

originally installed as shown in the
chart.

∙ Do not leave the bulb out of the fog

light for a long period of time as dust,
moisture and smoke may enter the
fog light body and affect the perfor-
mance of the fog light.

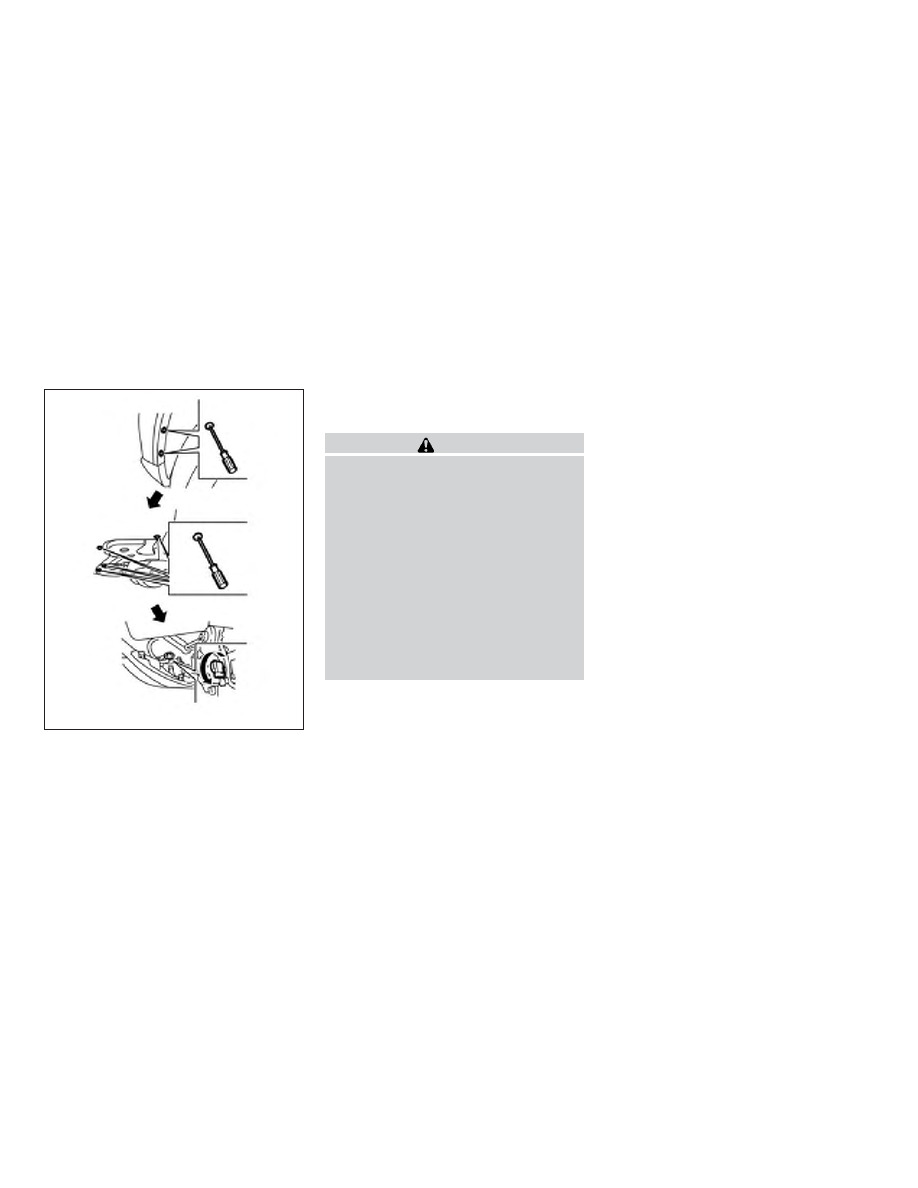

1. Disconnect the negative battery cable.

2. Access to the fog light is in front of and

behind the front tire and the fascia.

3. Remove the fasteners; carefully pull

back the front fender protector.

4. Rotate the bulb counterclockwise and

pull out to remove.

5. Remove by pulling straight off the fog

light. Do not shake or rotate the bulb
when removing it.

6. Install the new bulb in the reverse order

of removal.

LDI3036

8-24

Do-it-yourself

EXTERIOR AND INTERIOR LIGHTS

Item

Wattage (W)

Bulb No.*

Headlight assembly (Type A) (if so equipped)*

High

Low

H11

Turn/Park

27/7

3457NAK

Side marker

W5W

Headlight assembly (Type B) (if so equipped)*

High

Low

—

Turn signal

27/7

3457NAK

Park

—

Side marker

W5W

Fog light (Type A) (if so equipped)

Daytime Running Light (DRL)

W21W

Fog light (Type B) (if so equipped)

Door mirror turn signal light (if so equipped)*

—

Map light*

—

Room light*

—

Glove box light*

1.4

—

Cargo light*

W5W

High-mounted stop light*

—

Rear combination light*

Turn signal

WY21W

Stop/Tail

21/5

W21/5W

Tail

W5W

Backup (reversing)

W16W

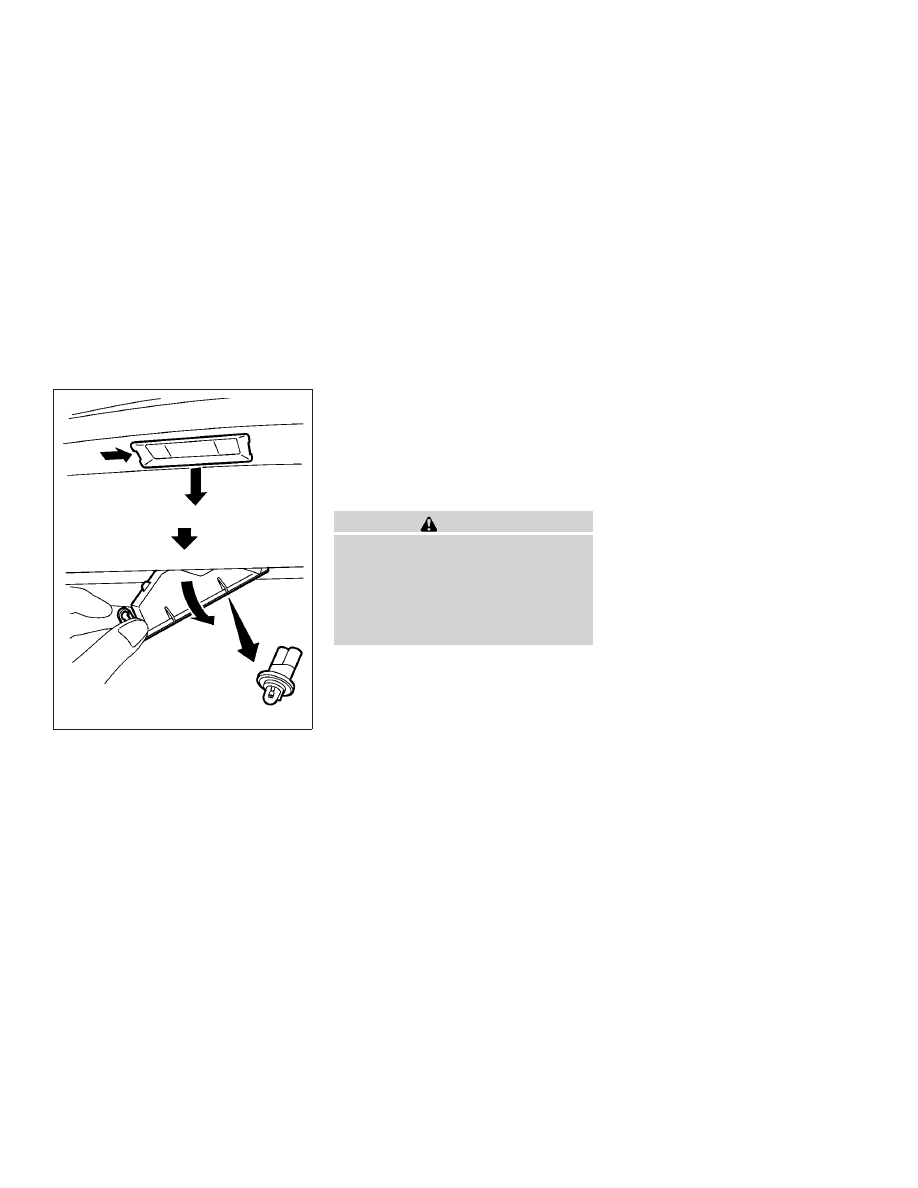

License plate light

W5W

Always check with the Parts Department at a NISSAN dealer for the latest parts informa-
tion.

* If replacement is required, it is recommended that you visit a NISSAN dealer for this
service.

Do-it-yourself

8-25

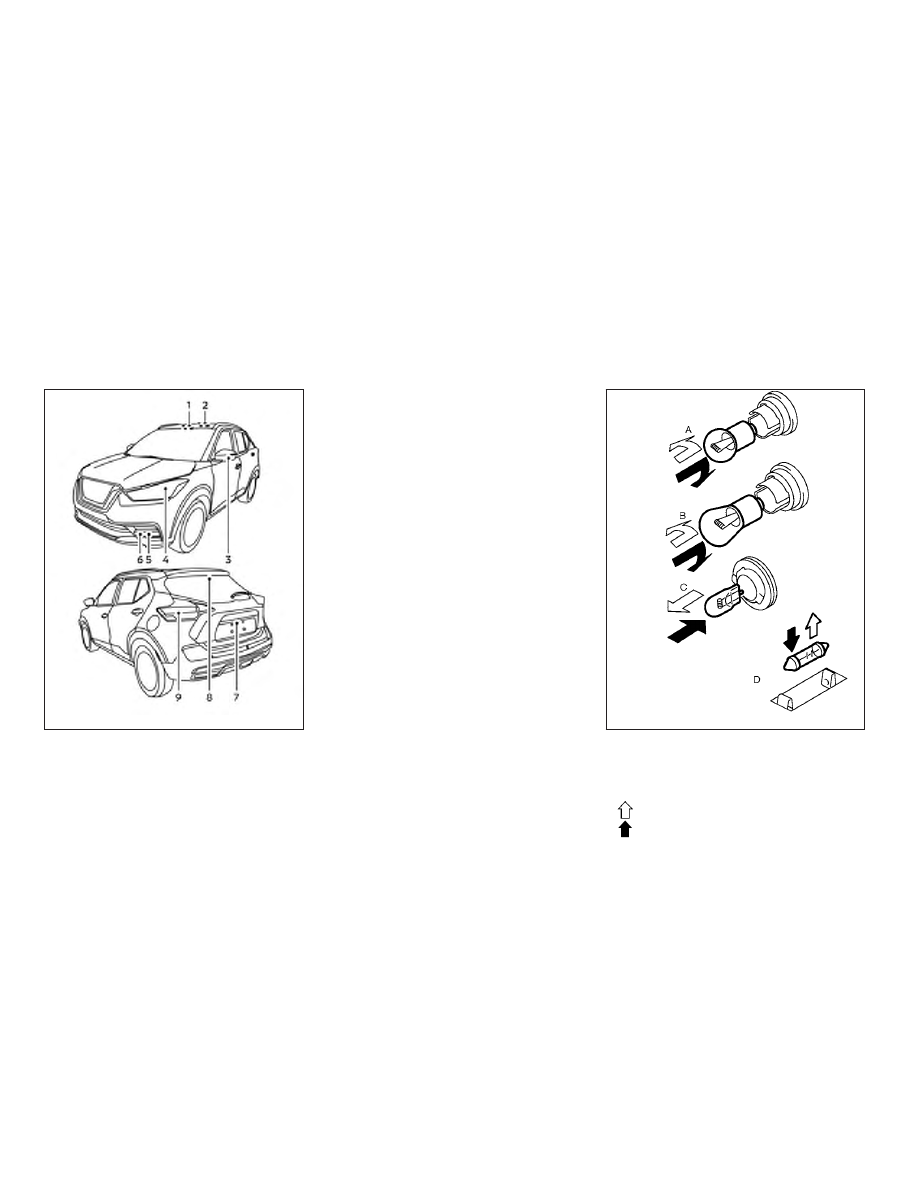

Map light

Room light

Door mirror turn signal light (if so
equipped)

Headlight assembly

Fog light (if so equipped)

Daytime Running Light (DRL) (if so
equipped)

License plate light

High-mounted stop light

Rear combination light

Replacement procedures

All other lights are either type A, B, C or D.
When replacing a bulb, first remove the
lens, lamp and/or cover.

Indicates bulb removal

Indicates bulb installation

LDI3233

SDI1805

8-26

Do-it-yourself

If you have a flat tire, refer to “Flat tire” in
the “In case of emergency” section of
this manual.

TIRE PRESSURE

Tire Pressure Monitoring System
(TPMS)

WARNING

Radio waves could adversely af-
fect electric medical equipment.
Those who use a pacemaker
should contact the electric medi-
cal equipment manufacturer for
the possible influences before
use.

This vehicle is equipped with the Tire
Pressure Monitoring System (TPMS).
It monitors tire pressure of all tires
except the spare. When the low tire
pressure warning light is lit and the
“Tire Pressure Low – Add Air” warning
appears in the vehicle information
display, one or more of your tires is
significantly

under-inflated.

equipped, the system also displays
pressure of all tires (except the spare

tire) on the display screen by send-
ing a signal from a sensor that is
installed in each wheel.

The TPMS will activate only when the
vehicle is driven at speeds above
16 mph (25 km/h). Also, this system
may not detect a sudden drop in tire
pressure (for example a flat tire while
driving).

For additional information, refer to
“Low tire pressure warning light” in
the “Instruments and controls” sec-
tion, “Tire Pressure Monitoring Sys-
tem (TPMS)” in the “Starting and driv-
ing” section and “Flat tire” in the “In
case of emergency” section of this
manual.

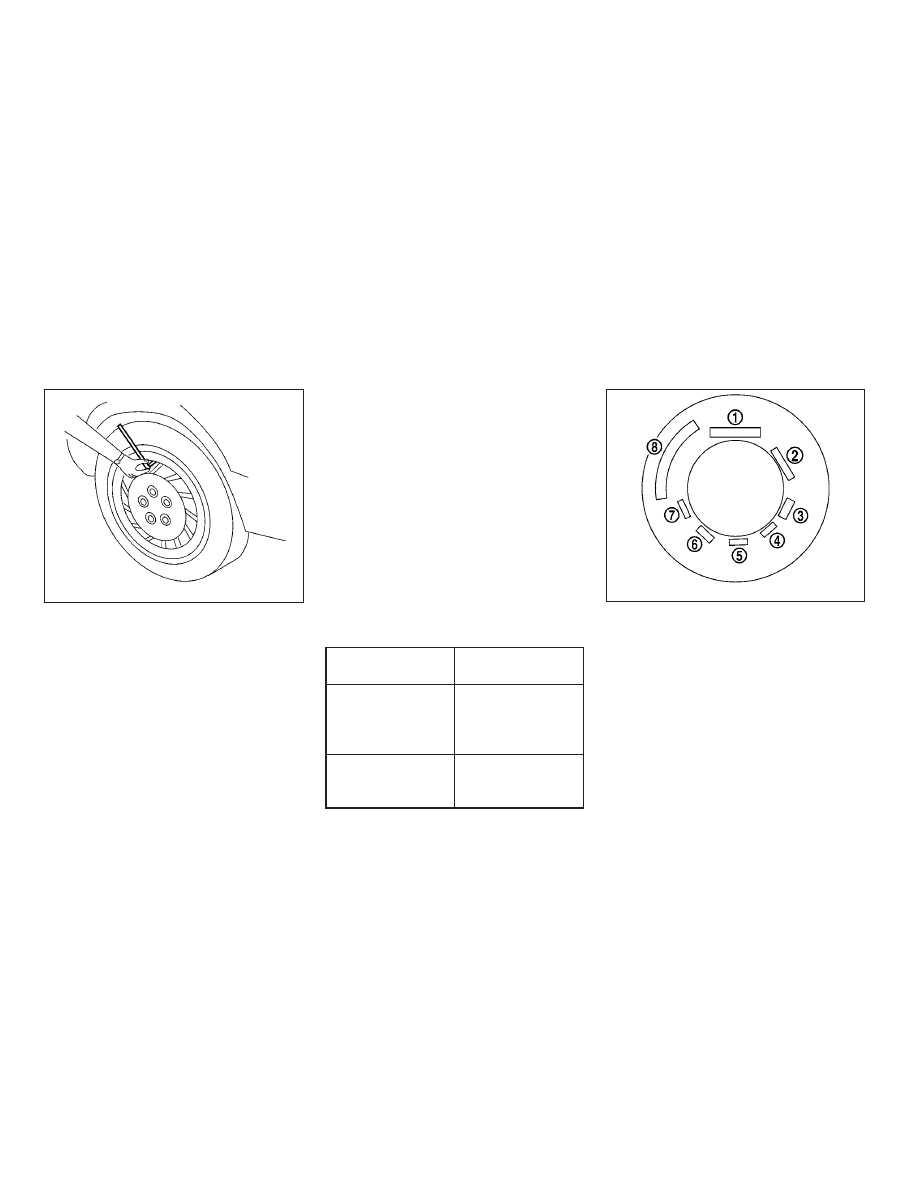

Tire inflation pressure

Check the tire pressures (including
the spare) often and always prior to
long distance trips. The recom-
mended tire pressure specifications
are shown on the F.M.V.S.S./C.M.V.S.S.

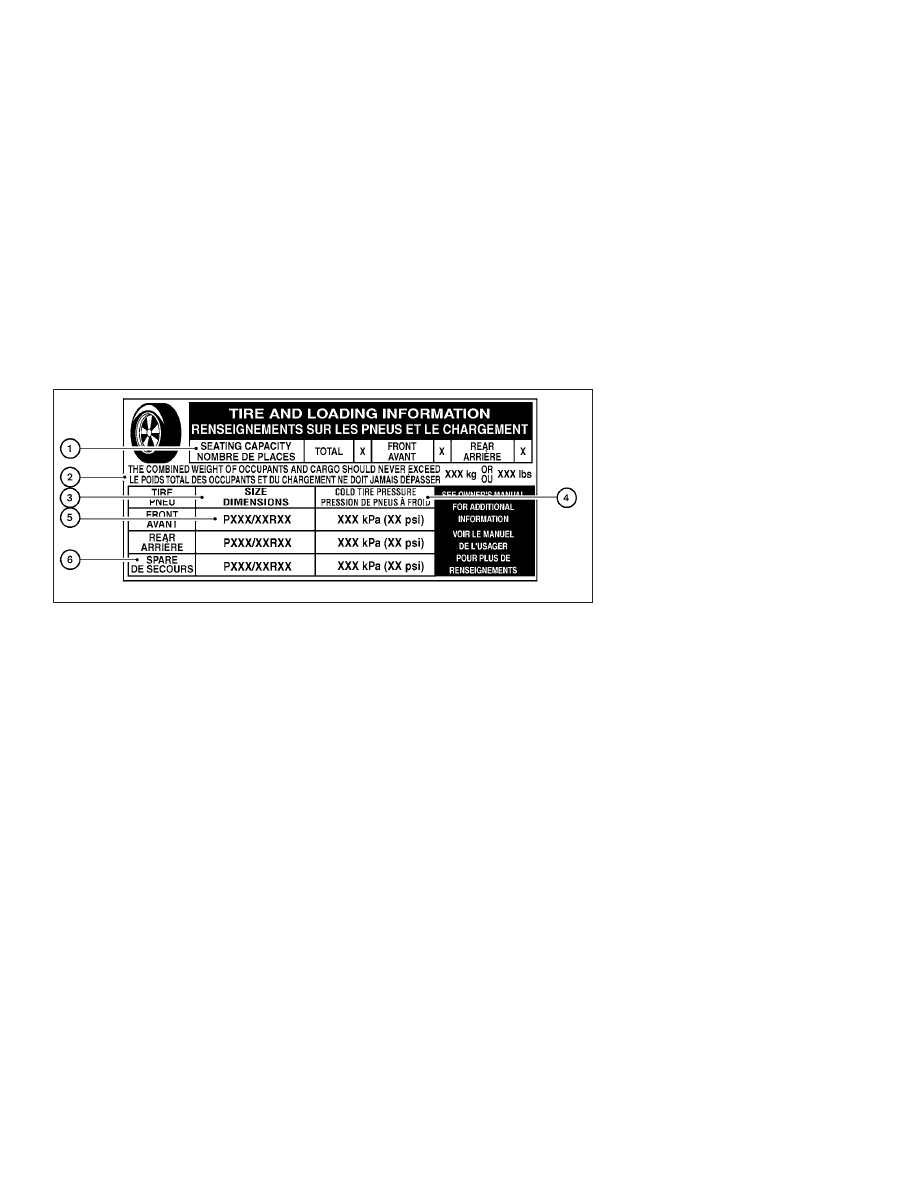

certification label or the Tire and
Loading Information label under the

License plate light

JVC0014X

WHEELS AND TIRES

Do-it-yourself

8-27

“Cold Tire Pressure” heading. The Tire
and Loading Information label is af-
fixed to the driver side center pillar.
Tire pressures should be checked
regularly because:

∙ Most tires naturally lose air over

time.

∙ Tires can lose air suddenly when

driven over potholes or other ob-
jects or if the vehicle strikes a
curb while parking.

The

tire

pressures

should

checked when the tires are cold. The
tires are considered COLD after the
vehicle has been parked for 3 or
more hours, or driven less than 1 mile
(1.6 km) at moderate speeds.

The TPMS with Easy-Fill Tire Alert
provides visual and audible signals
outside the vehicle for inflating tires
to the recommended COLD tire
pressure. For additional information,
refer to “TPMS with Easy-Fill Tire
Alert” in the “Starting and driving”
section of this manual.

Incorrect tire pressure, including
under inflation, may adversely af-
fect tire life and vehicle handling.

WARNING

∙ Improperly inflated tires can fail

suddenly

and

cause

accident.

∙ The Gross Vehicle Weight Rating

(GVWR)

located

the

F.M.V.S.S./C.M.V.S.S.

certifica-

tion label. The vehicle weight
capacity is indicated on the Tire
and Loading Information label.
Do not load your vehicle beyond
this capacity. Overloading your
vehicle may result in reduced
tire life, unsafe operating condi-
tions due to premature tire fail-
ure, or unfavorable handling
characteristics and could also
lead to a serious accident. Load-
ing beyond the specified capac-
ity may also result in failure of
other vehicle components.

∙ Before taking a long trip, or

whenever you heavily load your
vehicle, use

tire

pressure

gauge to ensure that the tire
pressures are at the specified
level.

∙ For additional information re-

garding tires, refer to “Impor-
tant Tire Safety Information”
(US) or “Tire Safety Information”
(Canada) in the Warranty Infor-
mation Booklet.

8-28

Do-it-yourself

Tire and Loading Information
label

䊊

Seating capacity: The maximum
number of occupants that can
be seated in the vehicle.

䊊

Vehicle load limit: For additional
information, refer

“Vehicle

information”

the

“Technical and consumer infor-
mation” section of this manual.

䊊

Original tire size: The size of the
tires originally installed on the
vehicle at the factory.

䊊

Cold tire pressure: Inflate the
tires to this pressure when the
tires are cold. Tires are consid-
ered COLD after the vehicle has
been parked for 3 or more hours,
or driven less than 1 mile (1.6 km)
at moderate speeds. The rec-
ommended cold tire inflation is
set by the manufacturer to pro-
vide the best balance of tire
wear, vehicle handling, driveabil-
ity, tire noise, etc., up to the vehi-
cle’s GVWR.

䊊

Tire size - For additional infor-
mation, refer to “Tire labeling” in
this section.

䊊

Spare tire size.

LDI2007

Do-it-yourself

8-29

Checking tire pressure

1. Remove the valve stem cap from

the tire.

2. Press the pressure gauge squarely

onto the valve stem. Do not press
too hard or force the valve stem
sideways, or air will escape. If the
hissing sound of air escaping from
the tire is heard while checking the
pressure, reposition the gauge to
eliminate this leakage.

3. Remove the gauge.

4. Read the tire pressure on the

gauge stem and compare to the
specification shown on the Tire
and Loading Information label.

5. Add air to the tire as needed. If

too much air is added, press the
core of the valve stem briefly
with the tip of the gauge stem to
release pressure. Recheck the
pressure and add or release air
as needed.

6. Install the valve stem cap.

7. Check the pressure of all other

tires, including the spare.

Size

Cold Tire Infla-
tion Pressure

Front and Rear
Original Tire:
P205/55R17 91V
P205/60R16 92H

32 PSI, 220 kPa

Spare Tire:
(Temporary)
T125/90D15

60 PSI, 420 kPa

TIRE LABELING

Federal law requires tire manufac-
turers to place standardized infor-
mation on the sidewall of all tires.
This information identifies and de-
scribes the fundamental character-
istics of the tire and also provides the
Tire Identification Number (TIN) for
safety standard certification. The TIN
can be used to identify the tire in
case of a recall.

LDI0393

Example

WDI0394

8-30

Do-it-yourself

䊊

Tire size (example: P215/65R15

95H)

1. P: The “P” indicates the tire is de-

signed for passenger vehicles
(not all tires have this informa-
tion).

2. Three-digit number (215): This

number gives the width in milli-
meters of the tire from sidewall
edge to sidewall edge.

3. Two-digit

number

(65):

This

number, known as the aspect
ratio, gives the tire’s ratio of
height to width.

4. R: The “R” stands for radial.

5. Two-digit number (15): This num-

ber is the wheel or rim diameter
in inches.

6. Two- or three-digit number (95):

This number is the tire’s load in-
dex. It is a measurement of how
much weight each tire can sup-
port. You may not find this infor-
mation on all tires because it is
not required by law.

7. H: Tire speed rating. You should

not drive the vehicle faster than
the tire speed rating.

Example

WDI0395

Do-it-yourself

8-31

䊊

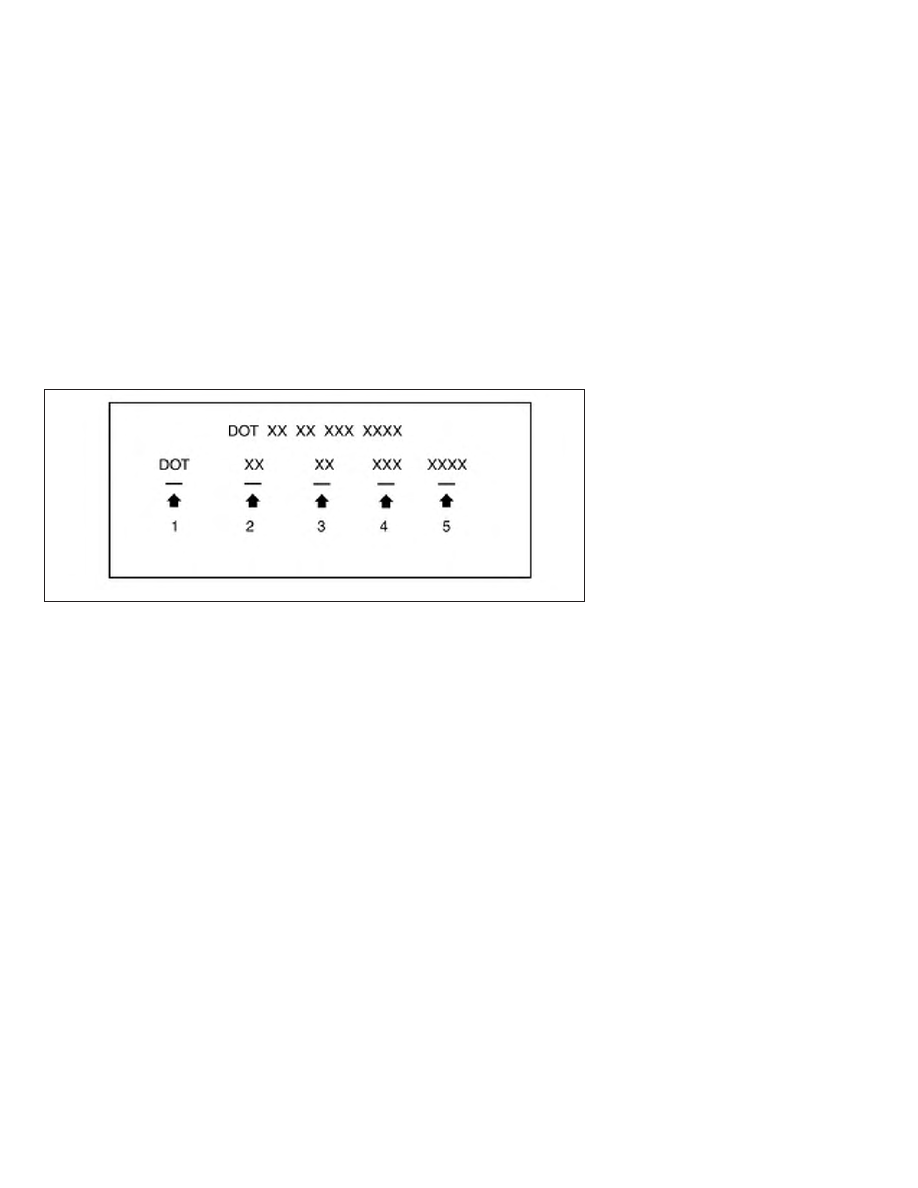

TIN (Tire Identification Number)

for a new tire (example: DOT XX XX
XXX XXXX)

1. DOT: Abbreviation for the “De-

partment

Transportation”.

The

symbol

can

placed

above, below or to the left or
right of the Tire Identification
Number.

2. Two-digit code: Manufacturer’s

identification mark.

3. Two-digit code: Tire size.

4. Three-digit code: Tire type code

(Optional).

5. Four numbers represent the

week and year the tire was built.
For example, the numbers 3103
means the 31st week of 2003. If
these numbers are missing then
look on the other sidewall of the
tire.

䊊

Tire ply composition and material

The number of layers or plies of
rubber-coated fabric in the tire. Tire
manufacturers also must indicate
the materials in the tire, which include
steel, nylon, polyester and others.

䊊

Maximum permissible inflation

pressure

This number is the greatest amount
of air pressure that should be put in
the tire. Do not exceed the maximum
permissible inflation pressure.

䊊

Maximum load rating

This number indicates the maxi-
mum load in kilograms and pounds
that can be carried by the tire. When
replacing the tires on the vehicle, al-
ways use a tire that has the same
load rating as the factory installed
tire.

䊊

Term of “tubeless” or “tube type”

Indicates whether the tire requires
an inner tube (“tube type”) or not
(“tubeless”).

Example

LDI2786

8-32

Do-it-yourself

䊊

The word “radial”

The word “radial” is shown if the tire
has radial structure.

䊊

Manufacturer or brand name

Manufacturer or brand name is
shown.

Other Tire-related Terminology

In addition to the many terms that
are defined throughout this section,
Intended Outboard Sidewall is (1) the
sidewall that contains a whitewall,
bears

white

lettering

bears

manufacturer, brand, and/or model
name molding that is higher or
deeper than the same molding on
the other sidewall of the tire, or (2)
the outward facing sidewall of an
asymmetrical tire that has a particu-
lar side that must always face out-
ward when mounted on a vehicle.

TYPES OF TIRES

WARNING

∙ When changing or replacing tires, be

sure all four tires are of the same type
(i.e., Summer, All Season or Snow) and
construction. A NISSAN dealer may be
able to help you with information
about tire type, size, speed rating and
availability.

∙ Replacement tires may have a lower

speed

rating

than

the

factory

equipped tires, and may not match
the

potential

maximum

vehicle

speed. Never exceed the maximum
speed rating of the tire.

∙ Replacing tires with those not origi-

nally specified by NISSAN could affect
the proper operation of the low tire
pressure warning system.

∙ Always use tires of the same type,

size, brand, construction and tread
pattern on all four wheels. Failure to
do so may result in a circumference
difference between tires on the front
and rear axles which can cause the
Vehicle Dynamic Control (VDC) system
to malfunction resulting in personal
injury or death, excessive tire wear
and may damage the transmission
and differential gears.

∙ For additional information regarding

tires, refer to “Important Tire Safety
Information” (US) or “Tire Safety Infor-
mation” (Canada) in the Warranty In-
formation Booklet.

All season tires

NISSAN specifies All Season tires on some
models to provide good performance all
year, including snowy and icy road condi-
tions. All Season tires are identified by ALL
SEASON and/or M&S on the tire sidewall.
Snow tires have better snow traction than
All Season tires and may be more appropri-
ate in some areas.

Do-it-yourself

8-33

Summer tires

NISSAN specifies summer tires on some
models to provide superior performance
on dry roads. Summer tire performance is
substantially reduced in snow and ice.
Summer tires do not have the tire traction
rating “M&S” on the tire sidewall.

If you plan to operate your vehicle in snowy
or icy conditions, NISSAN recommends the
use of SNOW tires or ALL SEASON tires on all
four wheels.

Snow tires

If snow tires are needed, it is necessary to
select tires equivalent in size and load rat-
ing to the original equipment tires. If you do
not, it can adversely affect the safety and
handling of your vehicle.

Generally, snow tires have lower speed rat-
ings than factory equipped tires and may
not match the potential maximum vehicle
speed. Never exceed the maximum speed
rating of the tire.

If you install snow tires, they must be the
same size, brand, construction and tread
pattern on all four wheels.

For additional traction on icy roads, stud-
ded tires may be used. However, some
states, provinces and territories prohibit
their use. Check local laws before installing
studded tires. Skid and traction capabilities
of studded snow tires on wet or dry sur-
faces may be poorer than that of non-
studded snow tires.

TIRE CHAINS

Use of tire chains may be prohibited ac-
cording to location. Check the local laws
before installing tire chains. When installing
tire chains, make sure they are the proper
size for the tires on your vehicle and are
installed according to the chain manufac-
turer’s suggestions. Use only SAE class “S”
chains. Class “S” chains are used on ve-
hicles with restricted tire to vehicle clear-
ance. Vehicles that can use Class “S” chains
are designed to meet the minimum clear-
ances between the tire and the closest ve-
hicle suspension or body component re-
quired to accommodate the use of a
winter traction device (tire chains or
cables). The minimum clearances are de-
termined using the factory equipped tires.
Other types may damage your vehicle. Use
chain tensioners when recommended by
the tire chain manufacturer to ensure a
tight fit. Loose end links of the tire chain

must be secured or removed to prevent
the possibility of whipping action damage
to the fenders or underbody. If possible,
avoid fully loading your vehicle when using
tire chains. In addition, drive at a reduced
speed. Otherwise, your vehicle may be
damaged and/or vehicle handling and
performance may be adversely affected.

Tire chains must be installed only on the
front wheels and not on the rear wheels.

Never install tire chains on a TEMPORARY
USE ONLY spare tire.

Do not use tire chains on dry roads. Driving
with chains in such conditions can cause
damage to the various mechanisms of the
vehicle due to some overstress.

8-34

Do-it-yourself

CHANGING WHEELS AND TIRES

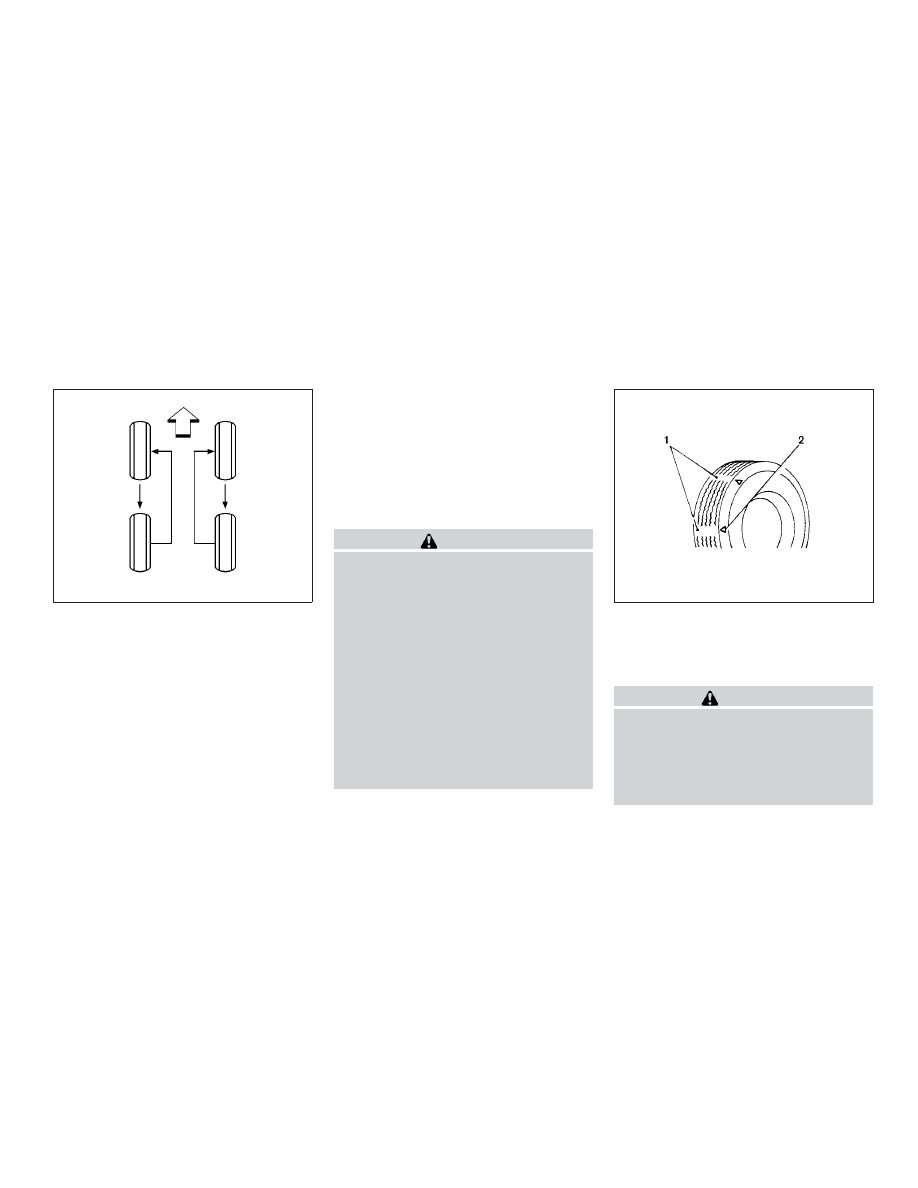

Tire rotation

NISSAN recommends rotating the
tires every 5,000 miles (8,000 km).

For additional information on the tire
replacing procedures, refer to “Flat
tire” in the “In case of emergency”
section of this manual.

As soon as possible, tighten the
wheel nuts to the specified torque
with a torque wrench.

Wheel nut tightening torque:

83 ft-lb (113 N·m)

The wheel nuts must be kept tight-
ened to specifications at all times.
It is recommended that wheel nuts
be tightened to specification at
each tire rotation interval.

WARNING

∙ After rotating the tires, check

and adjust the tire pressure.

∙ Retighten the wheel nuts when

the vehicle has been driven for
600 miles (1,000 km) (also in
cases of a flat tire, etc.).

∙ Do not include the spare tire in

the tire rotation.

∙ For additional information re-

garding tires, refer to “Impor-
tant Tire Safety Information”
(US) or “Tire Safety Information”
(Canada) in the Warranty Infor-
mation Booklet.

Tire wear and damage

1. Wear indicator

2. Location mark

WARNING

∙ Tires should be periodically in-

spected

for

wear,

cracking,

bulging or objects caught in the
tread. If excessive wear, cracks,
bulging or deep cuts are found,
the tire(s) should be replaced.

WDI0258

WDI0259

Do-it-yourself

8-35

Nissan Kicks (2018 year). Instruction - part 24
