Nissan Frontier (2019 year). Instruction

Under some driving or climate conditions,
occasional brake squeak, squeal or other
noise may be heard. Occasional brake
noise during light to moderate stops is nor-
mal and does not affect the function or
performance of the brake system.

Proper brake inspection intervals should
be followed. For additional information re-
garding brake inspections, refer to the ap-
propriate maintenance schedule informa-
tion in the "Maintenance and schedules"
section of this manual.

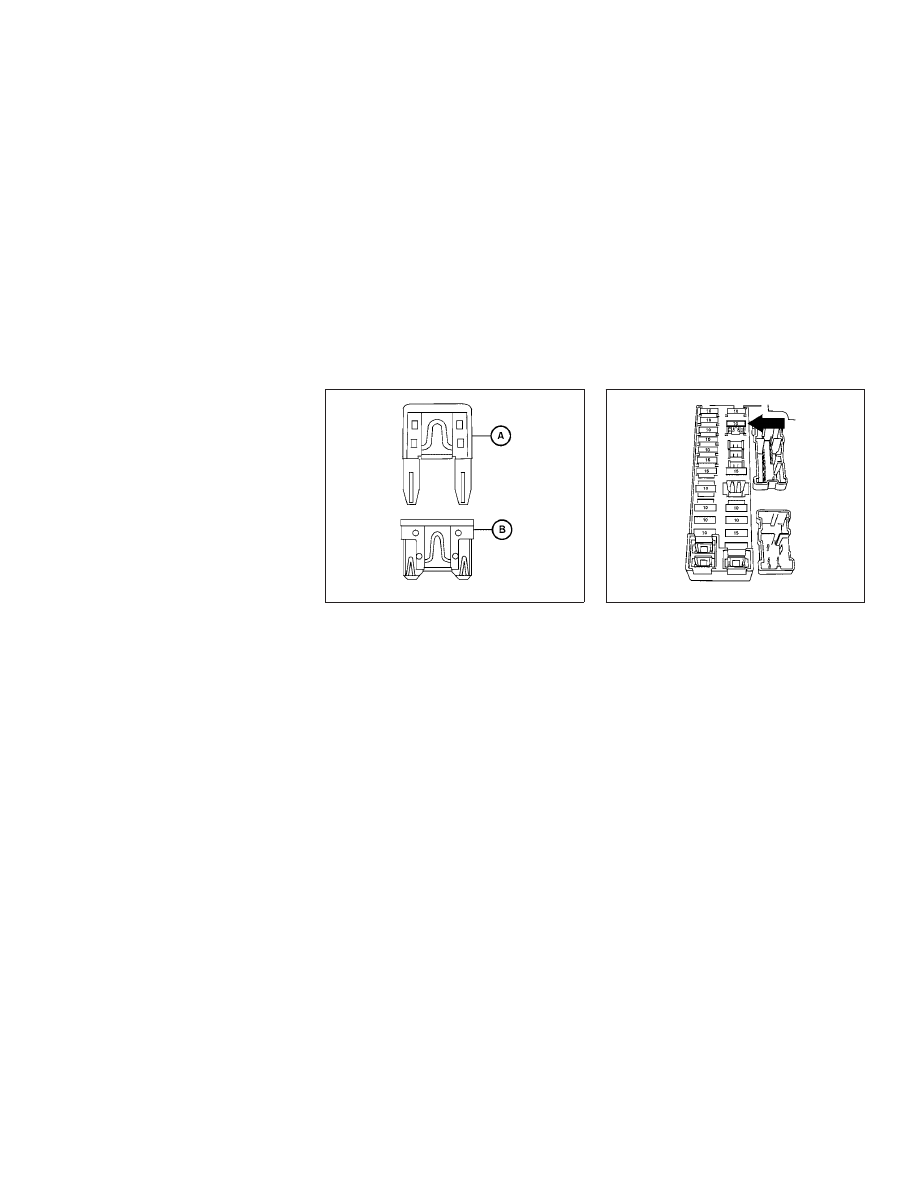

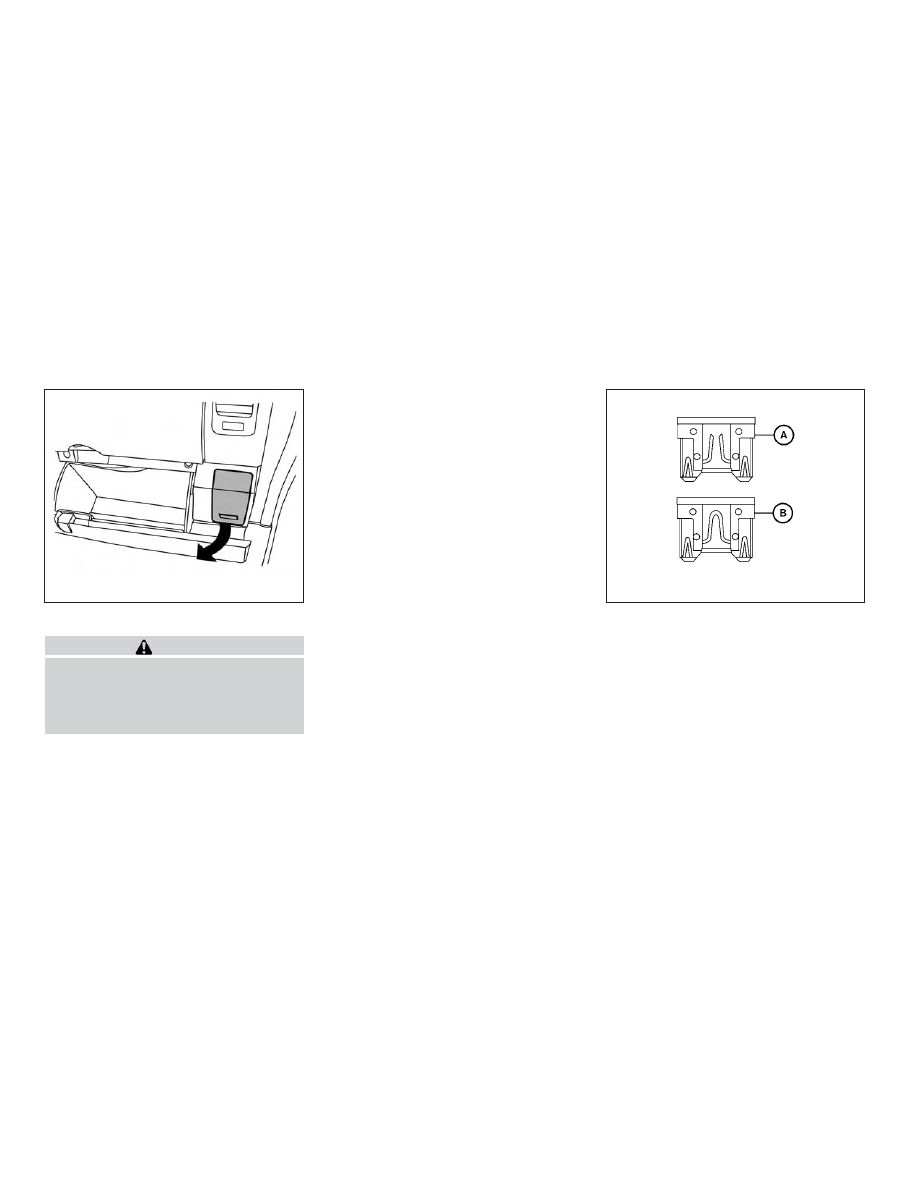

Two types of fuses are used. Type

䊊

used in the fuse boxes in the engine com-
partment. Type

䊊

is used in the passenger

compartment fuse box.

Type

䊊

fuses are provided as spare fuses.

They are stored in the passenger compart-
ment fuse box.

Type

䊊

fuses can be installed in the engine

compartment and passenger compart-
ment fuse boxes.

If a type

䊊

fuse is used to replace a type

䊊

fuse, the type

䊊

fuse will not be level with

the fuse pocket as shown in the illustration.
This will not affect the performance of the
fuse. Make sure the fuse is installed in the
fuse box securely.

Type

䊊

fuses cannot be installed in the

underhood fuse boxes. Only use type

䊊

fuses in the underhood fuse boxes.

LDI0455

LDI0457

FUSES

8-22

Do-it-yourself

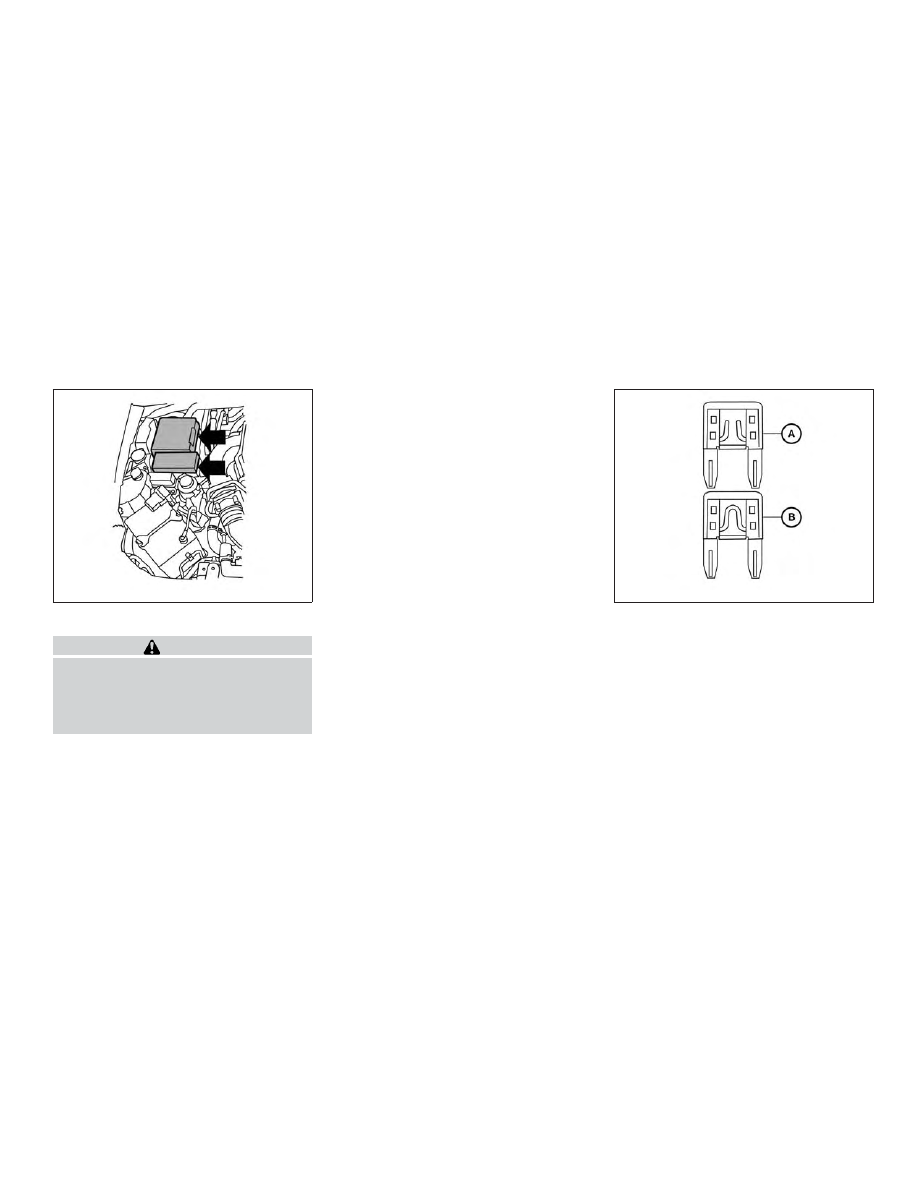

ENGINE COMPARTMENT

WARNING

Never use a fuse of a higher or lower
amperage rating than that specified on
the fuse box cover. This could damage
the electrical system or electronic con-
trol units or cause a fire.

If any electrical equipment does not come
on, check for an open fuse.

1. Be sure the ignition switch and the

headlight switch are OFF.

2. Open the engine hood.

3. Remove the fuse box cover by pushing

the tab and lifting the cover up.

4. Remove the fuse with the fuse puller.

The fuse puller is located in the center
of the fuse block in the passenger
compartment.

5. If the fuse is open

䊊

, replace it with a

new fuse

䊊

6. If a new fuse also opens, have the elec-

trical system checked and repaired. It is
recommended that you visit a NISSAN
dealer for this service.

Fusible links

If the electrical equipment does not oper-
ate and fuses are in good condition, check
the fusible links. If any of these fusible links
are melted, replace with only Genuine
NISSAN parts.

LDI2838

LDI2826

Do-it-yourself

8-23

PASSENGER COMPARTMENT

WARNING

Never use a fuse of a higher or lower
amperage rating than that specified on
the fuse box cover. This could damage
the electrical system or electronic con-
trol units or cause a fire.

If any electrical equipment does not oper-
ate, check for an open fuse.

1. Be sure the ignition switch and the

headlight switch are OFF.

2. Pull the fuse box cover to remove.

3. Remove the fuse with the fuse puller.

4. If the fuse is open

䊊

, replace it with an

equivalent good fuse

䊊

5. Reverse step 2 to reinstall fuse box

cover.

6. If a new fuse also opens, have the elec-

trical system checked and repaired. It is
recommended that you visit a NISSAN
dealer for this service.

LDI2839

LDI0456

8-24

Do-it-yourself

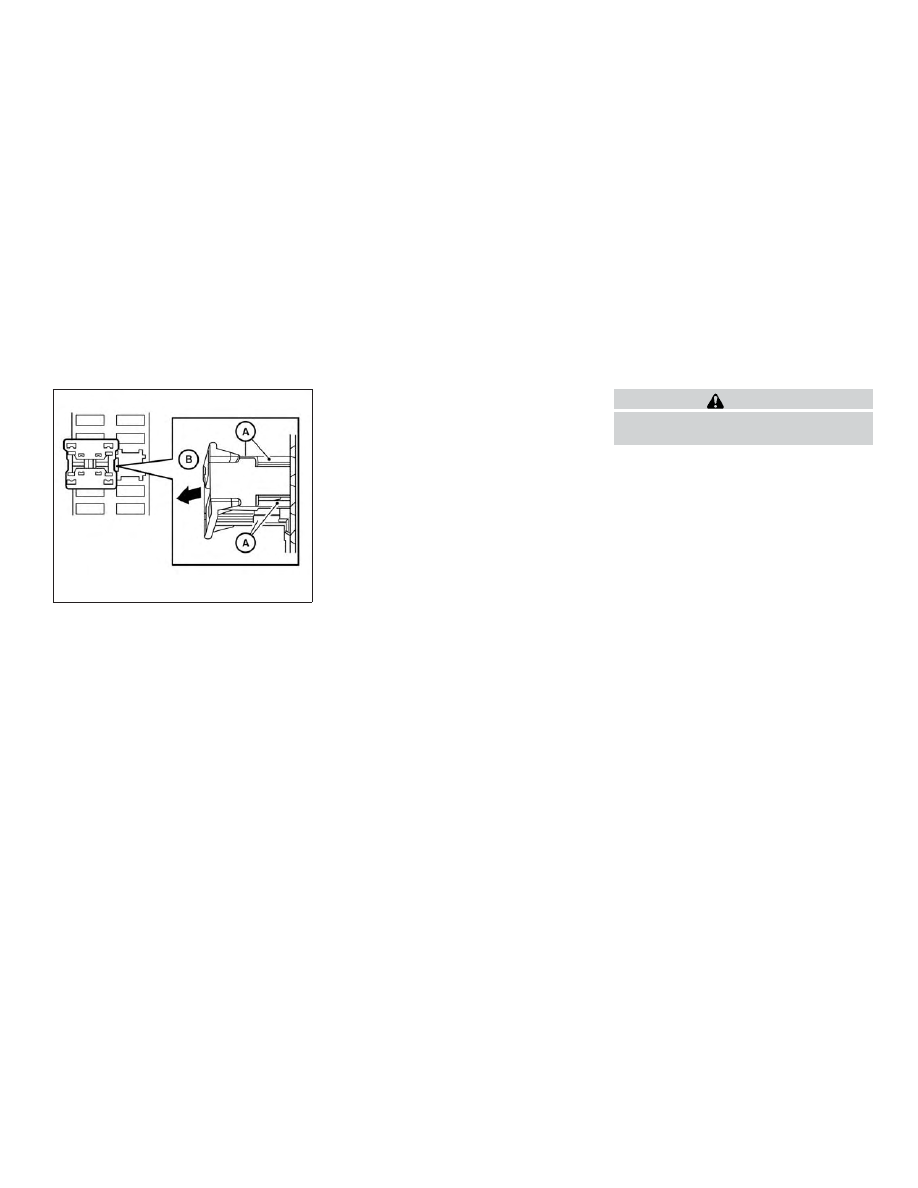

Extended storage switch

If any electrical equipment does not oper-
ate, remove the extended storage switch
and check for an open fuse.

NOTE:

The extended storage switch is used for
long term vehicle storage. Even if the ex-
tended storage switch is broken it is not
necessary to replace it. Replace only the
open fuse in the switch with a new fuse.

How to replace the extended storage
switch:

1. To

remove

the

extended

storage

switch, be sure the ignition switch is in
the OFF or LOCK position.

2. Be sure the headlight switch is in the

OFF position.

3. Remove the fuse box cover.

4. Pinch the locking tabs

䊊

found on

each side of the storage switch.

5. Pull the storage switch straight out

from the fuse box

䊊

CAUTION

Be careful not to allow children to swal-
low the battery or removed parts.

LDI2736

BATTERY REPLACEMENT

Do-it-yourself

8-25

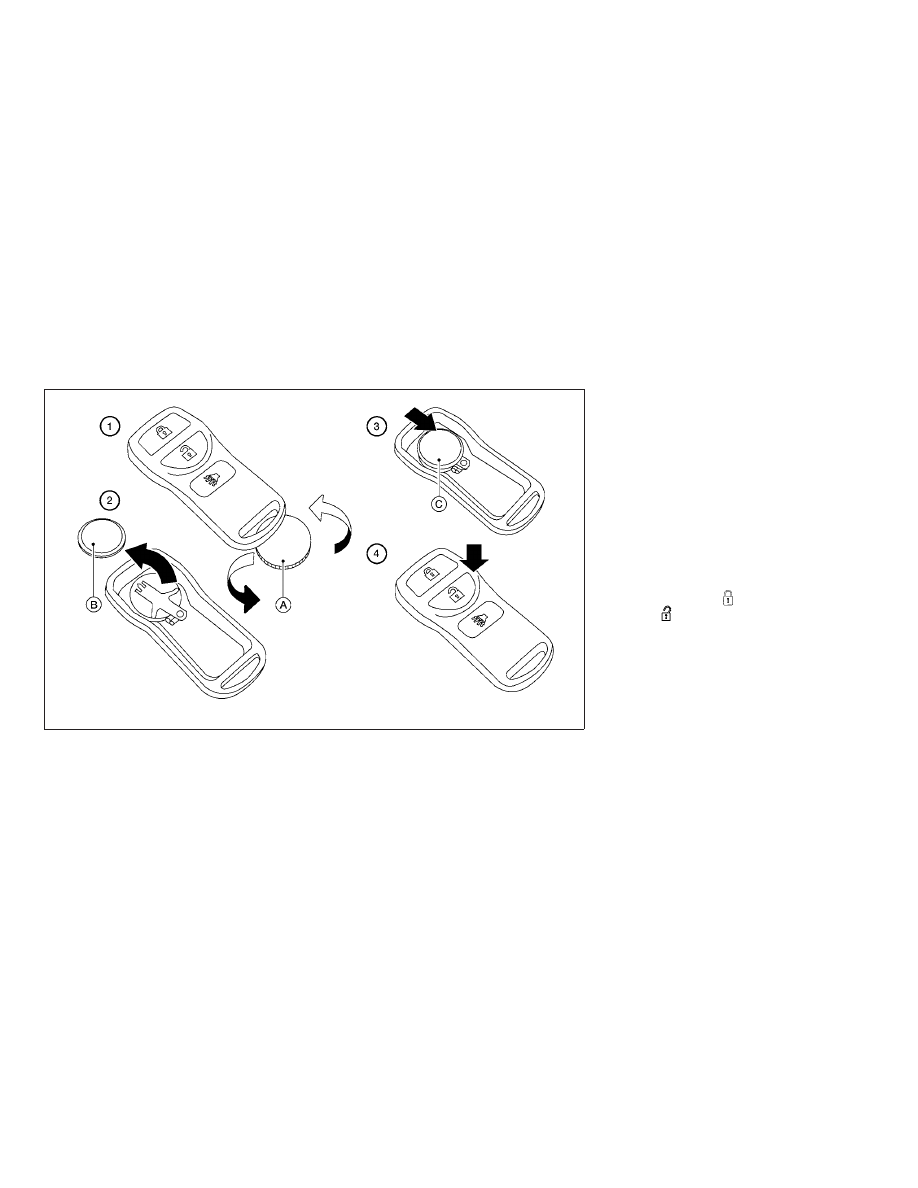

KEY FOB (if so equipped)

Replace the battery in the key fob as fol-
lows:

䊊

Open the lid using a coin

䊊

Remove the battery

䊊

Install a new battery

䊊

with the “+” fac-

ing down.

∙ Hold the battery by the edges. Holding

the battery across the contact points
will seriously deplete the storage ca-
pacity.

∙ Do not touch the internal circuit and

electric terminals as it could cause a
malfunction.

∙ When changing the battery, do not let

dust or oil get on the key fob.

∙ There is danger of explosion if a lithium

battery is incorrectly replaced. Replace
only with the same or equivalent type.

Recommended battery: CR2025 or equiva-
lent.

䊊

Close the lid securely.

5. Press

the

button,

then

the

button two or three times to

check the key fob operation.

If the battery is removed for any reason
other than replacement, perform step 5.

∙ An improperly disposed battery can

hurt the environment. Always confirm
local regulations for battery disposal.

∙ The key fob is water-resistant; how-

ever, if it does get wet, immediately
wipe completely dry.

∙ The operational range of the key fob

extends to approximately 33 ft (10 m)
from the vehicle. This range may vary
with conditions.

LDI2026

8-26

Do-it-yourself

FCC Notice:

For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference
that may cause undesired operation.

Note:

Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s author-
ity to operate the equipment.

For Canada:
This

devise

complies

with

Industry

Canada licence-exempt RSS standard(s).
Operation is subject to the following two
conditions: (1) this device may not cause
interference, and (2) this device must ac-
cept any interference, including interfer-
ence that may cause undesired opera-
tion of the device.

HEADLIGHTS

The headlight is a semi-sealed beam type
which uses a replaceable headlight (halo-
gen) bulb. A bulb can be replaced from in-
side the engine compartment without re-
moving the headlight assembly.

CAUTION

∙ High pressure halogen gas is sealed

inside the halogen bulb. The bulb may
break

the

glass

envelope

scratched or the bulb is dropped.

∙ When handling the bulb, do not touch

the glass envelope.

∙ DO NOT TOUCH THE BULB WITH BARE

HANDS.

∙ Use the same number and wattage as

shown in the chart.

∙ Do not leave the bulb out of the head-

light reflector for a long period of time
as dust, moisture and smoke may en-
ter the headlight body and affect the
performance of the headlight.

∙ Aiming is not necessary after replac-

ing the bulb. When aiming adjustment
is necessary, it is recommended that
you visit a NISSAN dealer for this
service.

Fog may temporarily form inside the lens
of the exterior lights in the rain or in a car
wash. A temperature difference between
the inside and the outside of the lens
causes the fog. This is not a malfunction. If
large drops of water collect inside the lens,
it is recommended that you visit a NISSAN
dealer for servicing.

LIGHTS

Do-it-yourself

8-27

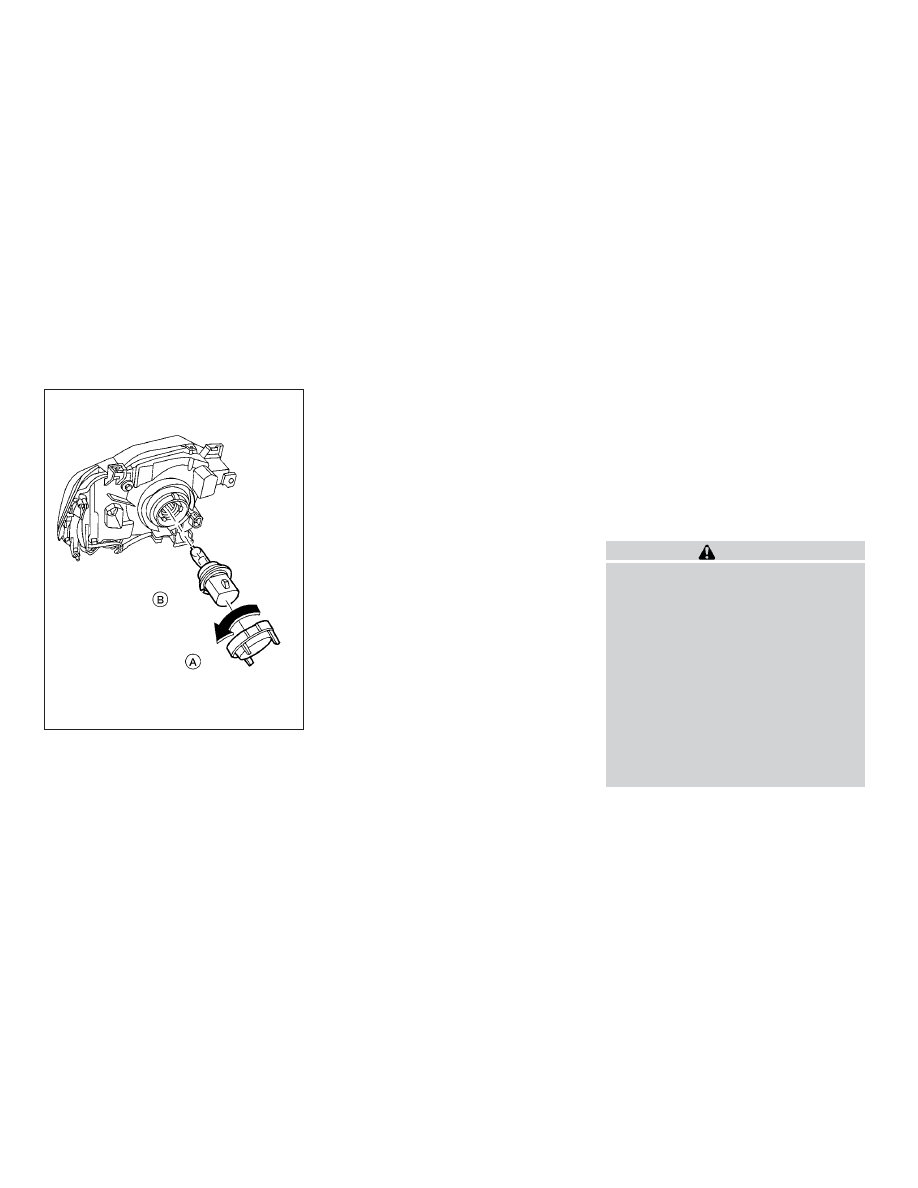

Removing the headlight bulb

1. Open the hood.

2. Disconnect the negative (-) battery

cable.

3. Disconnect the electrical connector

from the rear end of the bulb.

4. Turn the bulb retaining ring

䊊

counter-

clockwise until it is free from the head-
light reflector and then remove it.

5. Carefully remove the headlight bulb. Do

not shake or rotate the bulb

䊊

when

removing it.

Replacing the headlight bulb

1. Insert the bulb.

DO NOT TOUCH THE BULB WITH BARE
HANDS.

2. Install and tighten the bulb retainer.

∙ Be sure the lip of the bulb socket con-

tacts the headlight body.

3. Push the electrical connector into the

bulb plastic base until it snaps and
stops.

4. Connect the negative (-) battery cable.

5. Close the hood.

FOG LIGHTS (if so equipped)

For additional information on fog light bulb
replacement, refer to the instructions out-
lined in this section.

Replacing the fog light bulb

If fog light bulb replacement is required, it is
recommended that you visit a NISSAN
dealer for this service.

CAUTION

∙ High pressure halogen gas is sealed

inside the halogen bulb. The bulb may
break

the

glass

envelope

scratched or the bulb is dropped.

∙ When handling the bulb, do not touch

the glass envelope.

∙ Use the same number and wattage as

originally installed as shown in the
chart.

∙ Do not leave the bulb out of the fog

light for a long period of time as dust,
moisture and smoke may enter the
fog light body and affect the perfor-
mance of the fog light.

WDI0294

8-28

Do-it-yourself

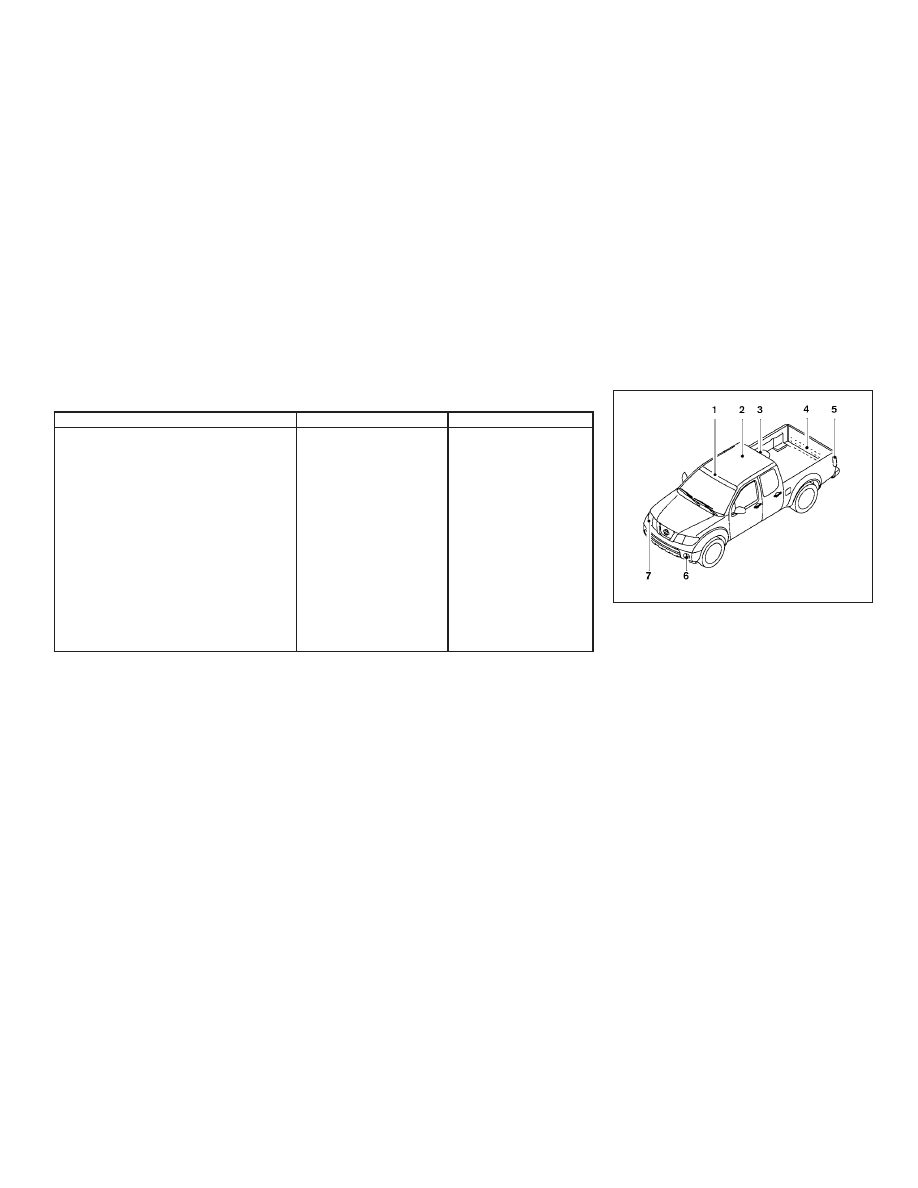

EXTERIOR AND INTERIOR LIGHTS

Item

Wattage (W)

Bulb No.*

Headlight assembly

High/Low/Daytime running lights (if so
equipped)

60/55

HB5

Turn/Park

28/8

W28/8W

Side marker

3.8

194

Fog lights* (if so equipped)

H11

Map light

—

Room light*

—

Vanity mirror light (if so equipped)*

2.1

—

High-mounted stop light/Cargo light*

12.8

912

Rear combination light

Turn

3156AK

Stop/Tail

27/8

3157K

Back-up

921

License plate light

W5W

Always check with the Parts Department at a NISSAN dealer for the latest parts information.

*It is recommended that you visit a NISSAN dealer for replacement.

Map light

Room light

High-mounted stop light/Cargo
light

License plate light

Rear combination light

Fog light (if so equipped)

Headlight assembly/Daytime run-
ning light

LDI0713

Do-it-yourself

8-29

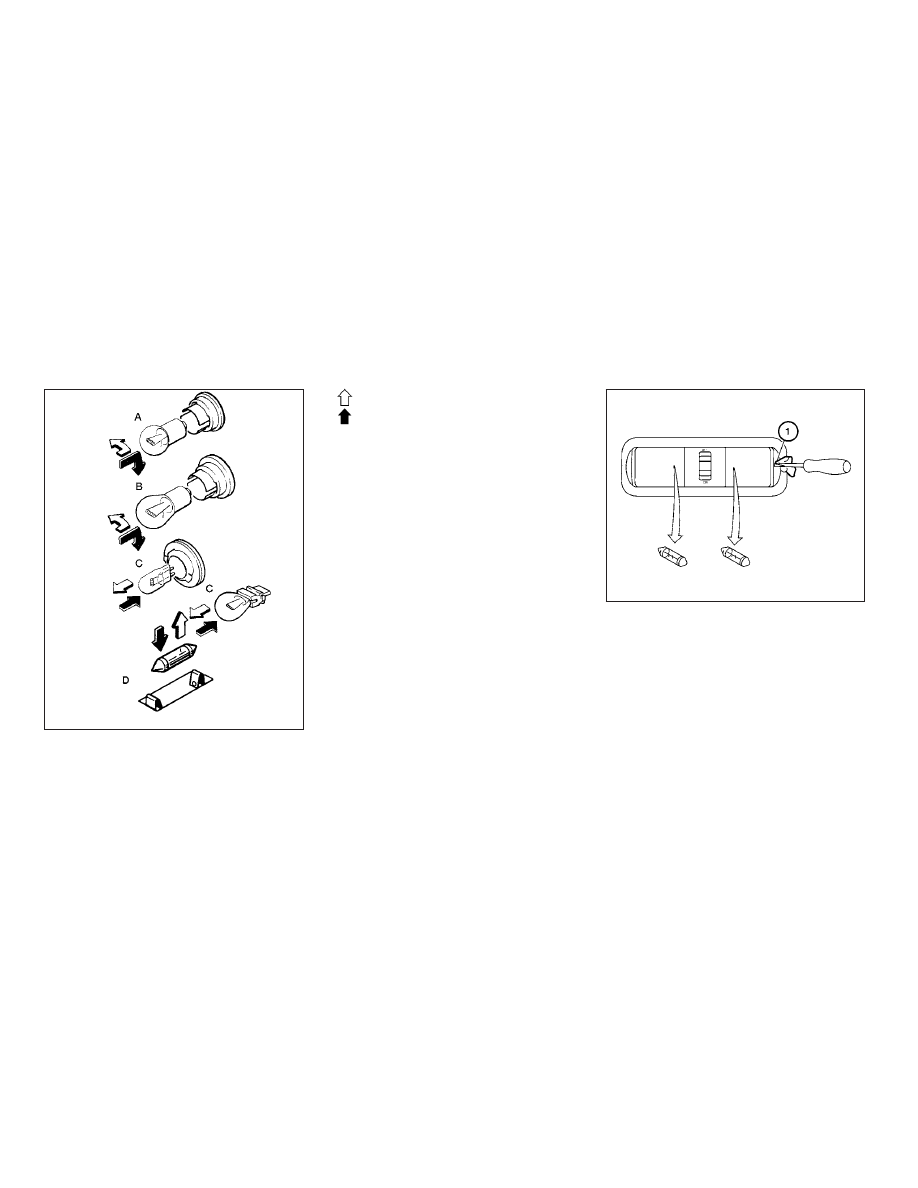

Replacement procedures

All other lights are either type A, B, C or D.
When replacing a bulb, first remove the lens
and/or cover using a cloth and suitable
tool.

: Indicates bulb removal

: Indicates bulb installation

Use a cloth

䊊

to protect the housing.

WDI0306

Map light

LDI0478

8-30

Do-it-yourself

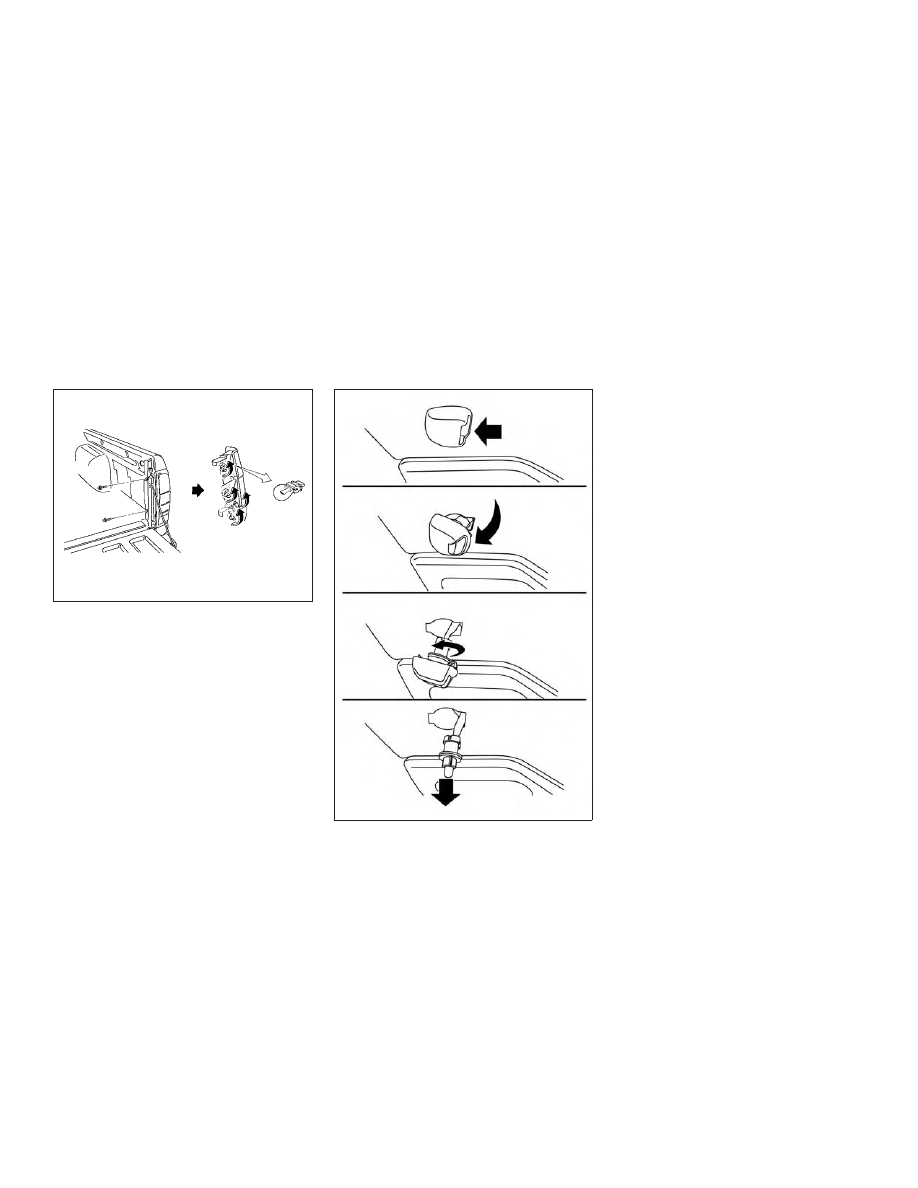

To replace the license plate light:

1. Apply force as shown in image to re-

move tension that locks bulb assembly
to the bumper.

2. Pivot bulb assembly away from bum-

per to release fully.

3. Rotate the bulb retainer as shown in

the image.

4. Pull the bulb out to remove and re-

place.

*Left side assembly is shown. Right
side assembly is mirror.

Rear combination light

WDI0300

License plate light

LDI3134

Do-it-yourself

8-31

If you have a flat tire, refer to “Flat tire” in
the “In case of emergency” section of
this manual.

TIRE PRESSURE

Tire Pressure Monitoring System
(TPMS)

This vehicle is equipped with TPMS. It
monitors tire pressure of all tires ex-
cept the spare. When the low tire
pressure warning light is lit and the
CHECK TIRE PRES (pressure) warning
message is displayed in the odom-
eter, one or more of your tires is sig-
nificantly under-inflated.

TPMS will activate only when the ve-
hicle is driven at speeds above
16 mph (25 km/h). Also, this system
may not detect a sudden drop in tire
pressure (for example, a flat tire while
driving).

For additional information, refer to
“Low tire pressure warning light” in
the “Instruments and controls” sec-
tion, “Tire Pressure Monitoring Sys-
tem (TPMS)” in the “Starting and driv-

ing” section, and “Flat tire” in the “In
case of emergency” section of this
manual.

Tire inflation pressure

Check the tire pressures (including
the spare) often and always prior to
long distance trips. The recom-
mended tire pressure specifications
are shown on the F.M.V.S.S./C.M.V.S.S.
certification label or the Tire and
Loading Information label under the
“Cold Tire Pressure” heading. The Tire
and Loading Information label is af-
fixed to the driver side center pillar.
Tire pressures should be checked
regularly because:

∙ Most tires naturally lose air over

time.

∙ Tires can lose air suddenly when

driven over potholes or other ob-
jects or if the vehicle strikes a
curb while parking.

The

tire

pressures

should

checked when the tires are cold. The
tires are considered COLD after the
vehicle has been parked for 3 or
more hours, or driven less than 1 mile
(1.6 km) at moderate speeds.

WHEELS AND TIRES

8-32

Do-it-yourself

Incorrect tire pressure, including
under inflation, may adversely af-
fect tire life and vehicle handling.

WARNING

∙ Improperly inflated tires can fail

suddenly

and

cause

accident.

∙ The Gross Vehicle Weight Rating

(GVWR)

located

the

F.M.V.S.S./C.M.V.S.S.

certifica-

tion label. The vehicle weight
capacity is indicated on the Tire
and Loading Information label.
Do not load your vehicle beyond
this capacity. Overloading your
vehicle may result in reduced
tire life, unsafe operating condi-
tions due to premature tire fail-
ure, or unfavorable handling
characteristics and could also
lead to a serious accident. Load-
ing beyond the specified capac-
ity may also result in failure of
other vehicle components.

∙ Before taking a long trip, or

whenever you heavily load your
vehicle, use

tire

pressure

gauge to ensure that the tire
pressures are at the specified
level.

∙ For additional information re-

garding tires, refer to “Impor-
tant Tire Safety Information”
(US) or “Tire Safety Information”
(Canada) in the Warranty Infor-
mation Booklet.

Do-it-yourself

8-33

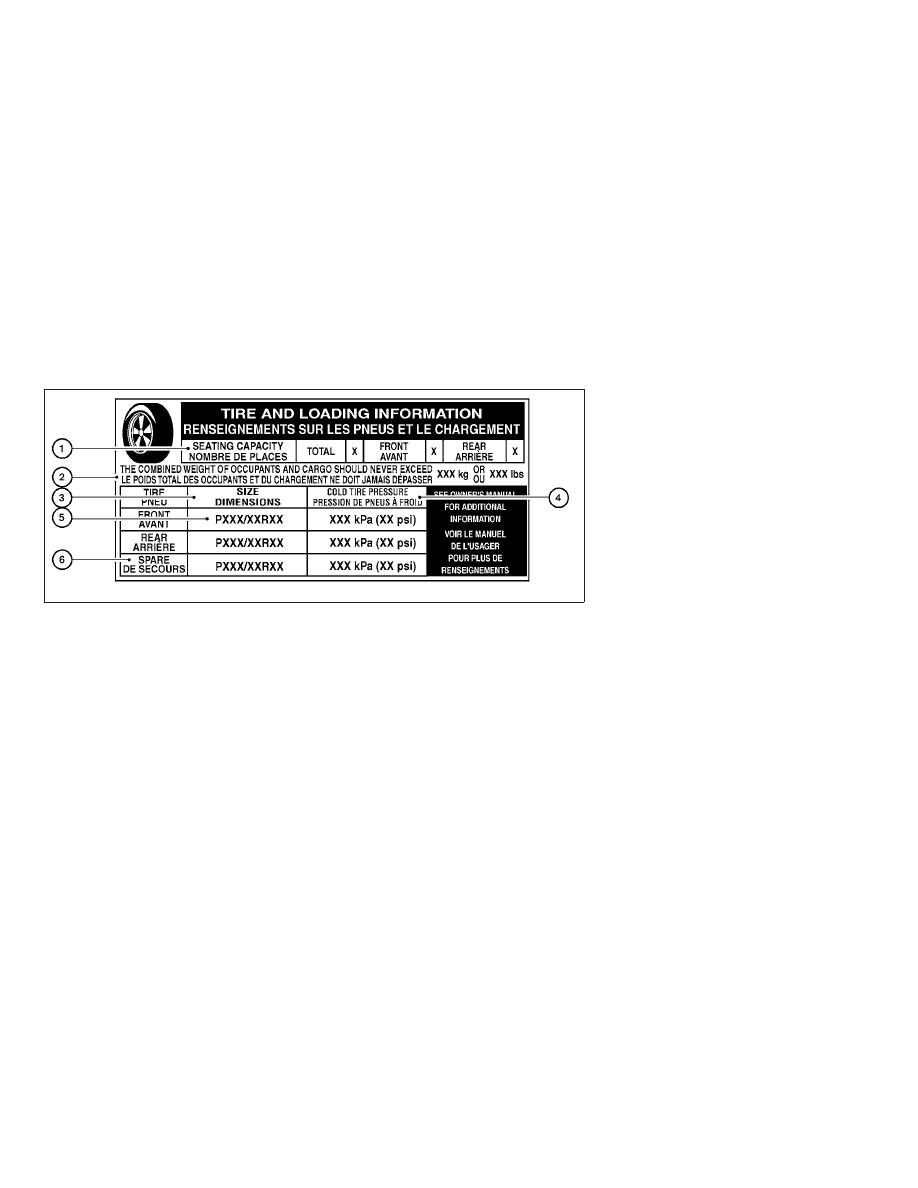

Tire and Loading Information
label

䊊

Seating capacity: The maximum
number of occupants that can
be seated in the vehicle.

䊊

Vehicle load limit: Refer to “Ve-
hicle loading information” in the
“Technical and consumer infor-
mation” section of this manual.

䊊

Original tire size: The size of the
tires originally installed on the
vehicle at the factory.

䊊

Cold tire pressure: Inflate the
tires to this pressure when the
tires are cold. Tires are consid-
ered COLD after the vehicle has
been parked for 3 or more hours,
or driven less than 1 mile (1.6 km)
at moderate speeds. The rec-
ommended cold tire inflation is
set by the manufacturer to pro-
vide the best balance of tire
wear, vehicle handling, driveabil-
ity, tire noise, etc., up to the vehi-
cle’s GVWR.

䊊

Tire size: Refer to “Tire labeling” in
this section.

䊊

Spare tire size.

LDI2007

8-34

Do-it-yourself

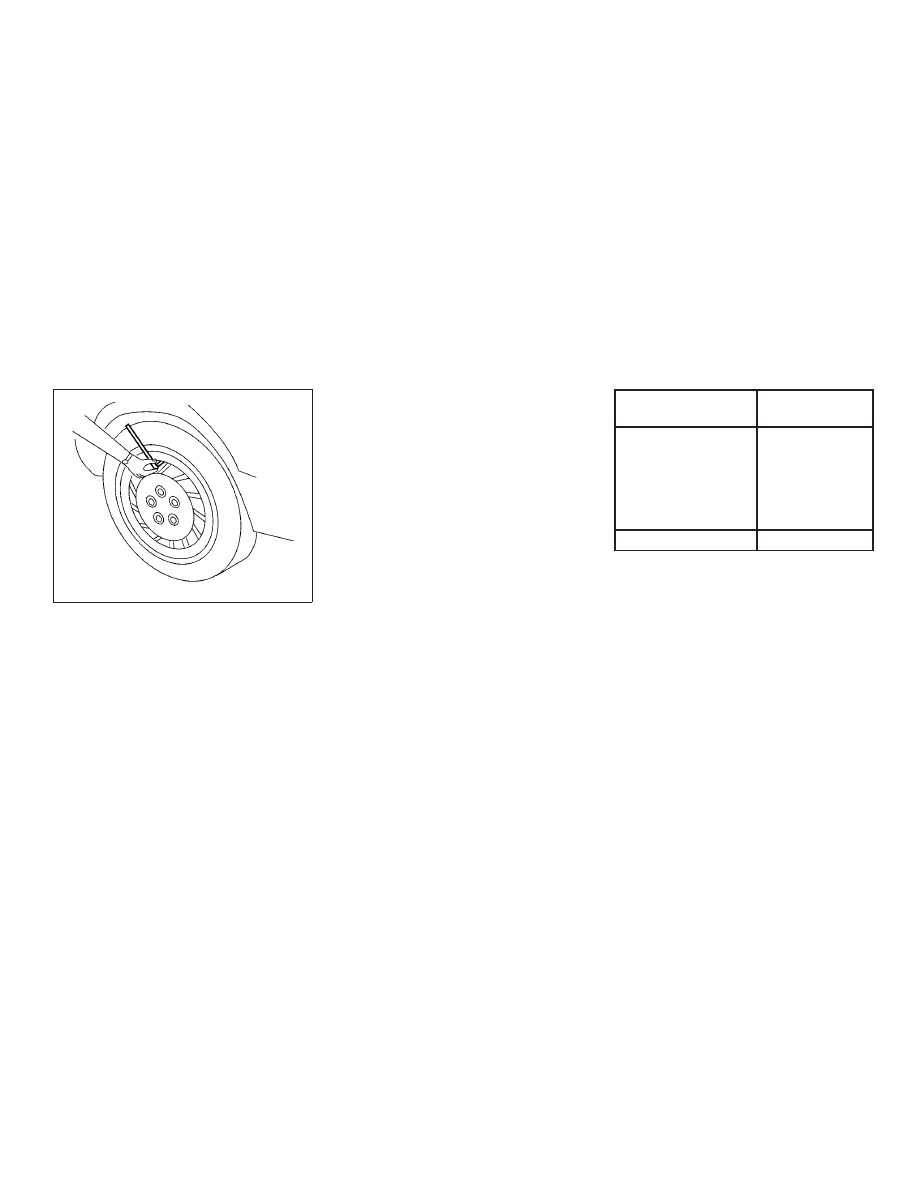

Checking tire pressure

1. Remove the valve stem cap from

the tire.

2. Press

the

pressure

gauge

squarely onto the valve stem. Do
not press too hard or force the
valve stem sideways, or air will
escape. If the hissing sound of air
escaping from the tire is heard
while checking the pressure, re-
position the gauge to eliminate
this leakage.

3. Remove the gauge.

4. Read the tire pressure on the

gauge stem and compare to the
specification

shown

the

F.M.V.S.S./C.M.V.S.S. label or the
Tire and Loading Information la-
bel.

5. Add air to the tire as needed. If

too much air is added, press the
core of the valve stem briefly
with the tip of the gauge stem to
release pressure. Recheck the
pressure and add or release air
as needed.

6. Install the valve stem cap.

7. Check the pressure of all other

tires, including the spare.

Size

Cold Tire Infla-
tion Pressure

Front and Rear
Original Tire:
235/75R15
P265/70R16
P265/75R16
P265/60R18

240 kPa, 35 PSI

Spare Tire:

Full size

LDI0393

Do-it-yourself

8-35

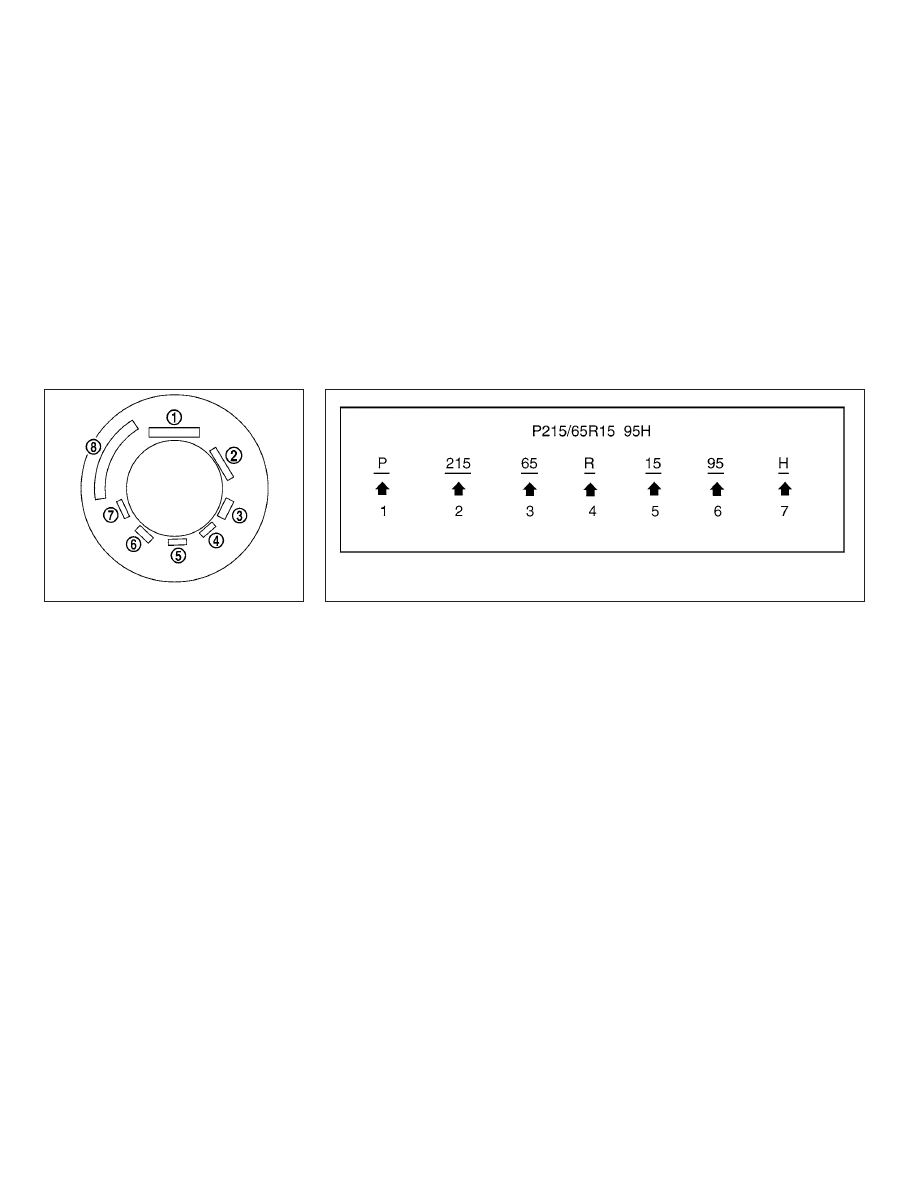

TIRE LABELING

Federal law requires tire manufac-
turers to place standardized infor-
mation on the sidewall of all tires.
This information identifies and de-
scribes the fundamental character-
istics of the tire and also provides the
Tire Identification Number (TIN) for
safety standard certification. The TIN
can be used to identify the tire in
case of a recall.

䊊

Tire size (example: P215/65R15

95H)

1. P: The “P” indicates the tire is de-

signed for passenger vehicles
(not all tires have this informa-
tion).

2. Three-digit number (215): This

number gives the width in milli-
meters of the tire from sidewall
edge to sidewall edge.

3. Two-digit

number

(65):

This

number, known as the aspect
ratio, gives the tire’s ratio of
height to width.

4. R: The “R” stands for radial.

5. Two-digit number (15): This num-

ber is the wheel or rim diameter
in inches.

Example

WDI0394

Example

WDI0395

8-36

Do-it-yourself

6. Two- or three-digit number (95):

This number is the tire’s load in-
dex. It is a measurement of how
much weight each tire can sup-
port. You may not find this infor-
mation on all tires because it is
not required by law.

7. H: Tire speed rating. You should

not drive the vehicle faster than
the tire speed rating.

䊊

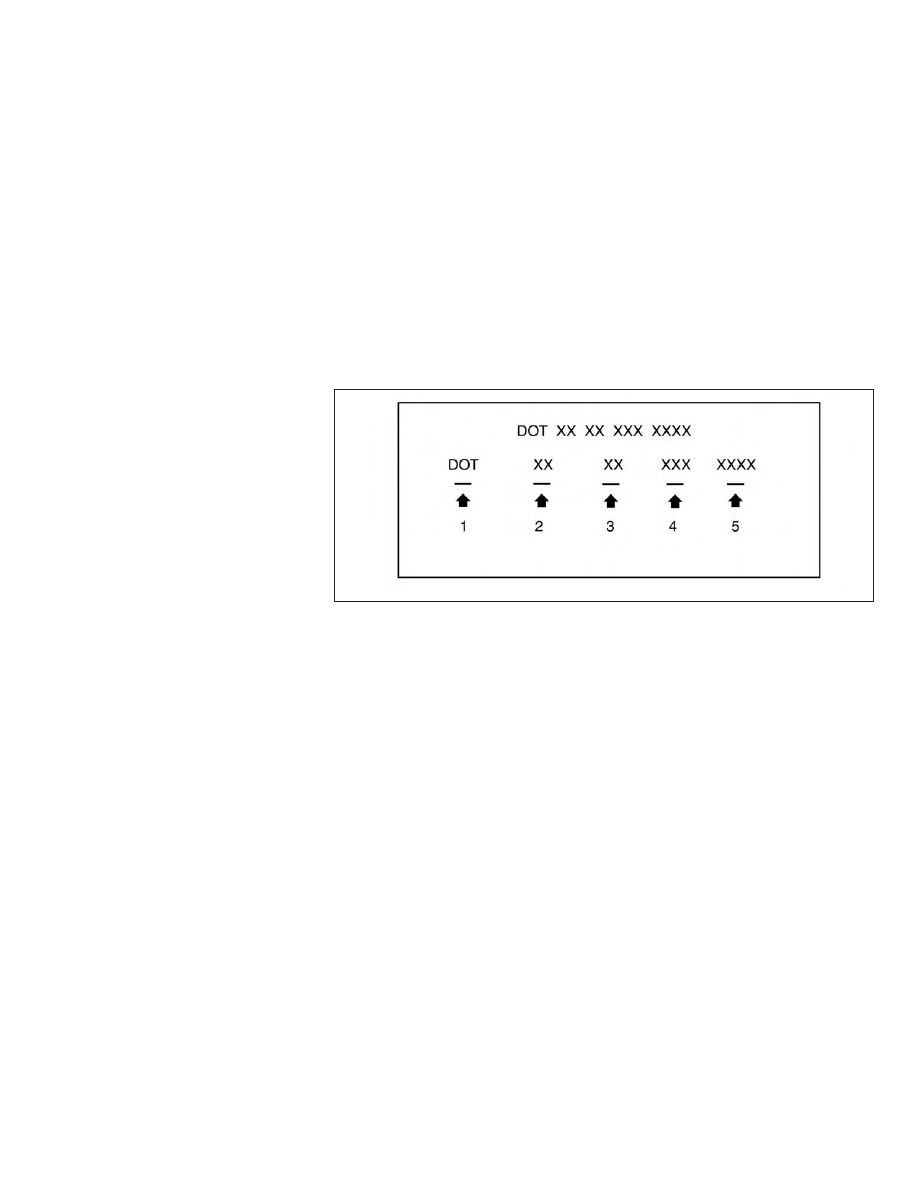

TIN (Tire Identification Number)

for a new tire (example: DOT XX XX
XXX XXXX)

1. DOT: Abbreviation for the “De-

partment

Transportation”.

The

symbol

can

placed

above, below or to the left or
right of the Tire Identification
Number.

2. Two-digit code: Manufacturer’s

identification mark.

3. Two-digit code: Tire size.

4. Three-digit code: Tire type code

(Optional).

5. Four numbers represent the

week and year the tire was built.
For example, the numbers 3103
means the 31st week of 2003. If
these numbers are missing then
look on the other sidewall of the
tire.

Example

LDI2786

Do-it-yourself

8-37

Nissan Frontier (2019 year). Instruction - part 26
