Nissan Frontier (2019 year). Instruction - part 16

SEEK tuning

When in FM or AM mode, press the
or

seek buttons to tune from low to

high or high to low frequencies and to stop
at the next broadcasting station.

When

SXM

mode,

press

the

seek buttons to change the cat-

egory.

1 to 6 Station memory operations
Twelve stations can be set for the FM band
(six for FM1, six for FM2) and six stations can
be set for the AM band. Eighteen stations
can be set for the SXM band (six for SXM1, six
for SXM2 & six SXM3).

1. Choose the radio band AM, FM1 or FM2

using the FM·AM select button or
choose the radio band SXM1, SXM2 &
SXM3 using the SXM button.

2. Tune to the desired station using

manual or seek tuning. Press and hold
any of the desired station memory but-
tons (1 – 6) until a beep sound is heard.

3. The channel indicator will then come

on and the sound will resume. Pro-
gramming is now complete.

4. Other buttons can be set in the same

manner.

If the battery cable is disconnected or if the
fuse opens, the radio memory will be can-
celed. In that case, reset the desired sta-
tions.

Presets can also be selected by touching
the desired preset number on the screen.

LHA2899

4-54

Monitor, climate, audio, phone and voice recognition systems

Smart Favorites Preset Setup (if
so equipped)

The Smart Favorites feature allows the
user to designate presets, within the SXM1,
SXM2 and SXM3 bands, as their Smart Fa-
vorites. When any of the Smart Favorite
presets are selected, the current track on
that station will play from the beginning of
the song.

To program a Smart Favorite preset:

1. Press the SXM button.

2. Touch the “Setup” key.

3. Touch the “Tune Start” key to activate

(ON) or deactivate (OFF) Smart Favor-
ites.

4. Touch the “Add Preset” key to select an

available preset.

For additional information, refer to “1 to 6
station memory operations” in this section
regarding preset memory options.

NOTE:

• Smart Favorites will start functioning
only after the audio unit is turned on for
a few minutes.
• Tune Start is supported for music chan-
nels only.

Replay Screen

The Replay Screen gives the user the ability
to replay, skip, pause or rewind the cur-
rently aired track.

When the “Replay” key is touched, the Re-
play Screen is prompted.

LHA3085

LHA3087

Monitor, climate, audio, phone and voice recognition systems

4-55

REPLAY

To replay a track from
the beginning, press the

“

” key. The user can

continue to press the

“

” key to replay pre-

vious songs, but can only
go back as far as the
system permits. The sys-
tem will warn the user
when they cannot skip
any further back by dis-
playing “At the End” in the
bottom left corner of the
screen.

SKIP

To skip a track, press the

“

” key. “Live” will ap-

pear in the bottom left
corner of the screen indi-
cating the difference
from play time to live
audio.

PAUSE

To pause a track, press

the “

” key.

REWIND/
FAST
FORWARD

To rewind/ fast forward a

track, hold the “

” or

“

” key.

Compact Disc (CD) player
operation

If the radio is already operating, it automati-
cally turns off and the compact disc begins
to play.

CD button

When the CD button is pressed with the
system off and the compact disc loaded,
the system will turn on and the compact
disc will start to play.

When the CD button is pressed with a com-
pact disc loaded and the radio playing, the
radio will automatically be turned off and
the compact disc will start to play.

4-56

Monitor, climate, audio, phone and voice recognition systems

CD/MP3 display mode

Menu item

CD/MP3 display mode

While listening to a CD or an MP3/WMA CD, certain text may be displayed (when a CD encoded
with text is being used). Depending on how the CD or MP3/WMA CD is encoded, the text is dis-
played listing the artist, album and song title. There are other keys displayed on the screen when
a CD is playing:

Random/Mix

Touch the “Random” key to apply a random play pattern to the CD. If an MP3 CD is playing, touch-
ing “Random” or alternates between Random Folder, and Random All. This text will appear on the
display. To cancel Random/Mix mode, touch the “Random” or “Mix” key until the key is no longer
highlighted.

Repeat

Touch the “Repeat” key to apply a repeat play pattern to the CD. If an MP3 CD is playing, touching
“Repeat” alternates between repeating the current song and repeating the current folder. This text
will appear on the display. To cancel Repeat mode, touch the “Repeat” key until the key is no longer
highlighted

Browse

Touch the “Browse” key to display the titles on the CD in list format. Touch the title of a song in the
list to begin playing that song. If an MP3 CD is playing, touching the “Browse” key will also list the
folders on the disc. Follow the procedure for selecting a song with the touch-screen to choose a
folder.

Monitor, climate, audio, phone and voice recognition systems

4-57

SEEK (Reverse or Fast

Forward) buttons

Press and hold the

seek but-

tons for 1.5 seconds while the compact disc
is playing to reverse or fast forward the
track being played. The compact disc plays
at an increased speed while reversing or
fast forwarding. When the button is re-
leased, the compact disc returns to normal
play speed.

SEEK buttons

Press the

seek button while a CD or

MP3/WMA CD is playing to return to the
beginning of the current track. Press
the

seek button several times to skip

backward several tracks.

Press the

seek button while a CD or

MP3/WMA CD is playing to advance one
track. Press the

seek button several

times to skip forward several tracks. If the
last track on a CD is skipped, the first track
on the disc is played. If the last track in a
folder of an MP3/WMA CD is skipped, the
first track of the next folder is played.

AUX button
The AUX IN audio input port accepts any
standard analog audio input such as from
a portable cassette tape/CD player, MP3
player or a laptop computer. Press the AUX
button

play

compatible

device

plugged into the AUX IN port.

CD EJECT button

When the

CD EJECT button is pressed

with a compact disc loaded, the compact
disc will eject and the last source will be
played.
If the disc is not removed within 10 seconds,
the disc will reload.

Additional features

For additional information, refer to “iPod®
player operation with Navigation System”
in this section.

For additional information, refer to “USB
(Universal Serial Bus) connection port
(models with Navigation System)” in this
section.

For

additional

information,

refer

“Bluetooth® streaming audio with Naviga-
tion System” in this section.

USB (Universal Serial Bus)
CONNECTION PORT (models
without Navigation System) (if so
equipped)

Connecting a device to the USB
connection port

WARNING

Do not connect, disconnect, or operate
the USB device while driving. Doing so
can be a distraction. If distracted you
could lose control of your vehicle and
cause an accident or serious injury.

LHA4319

4-58

Monitor, climate, audio, phone and voice recognition systems

CAUTION

∙ To avoid damage and loss of function

when using a USB device, note the fol-
lowing precautions.

∙ Do not force the USB device into the

USB port. Inserting the USB device
tilted or up-side-down into the port
may damage the port. Make sure that
the USB device is connected correctly
into the USB port.

∙ Do not grab the USB port cover (if so

equipped) when pulling the USB de-
vice out of the port. This could dam-
age the port and the cover.

∙ Do not leave the USB cable in a place

where it can be pulled unintentionally.
Pulling the cable may damage the
port.

For additional information, refer to your de-
vice manufacturer’s owner information re-
garding the proper use and care of the
device.

The USB port is located on the center con-
sole beneath the heater and air condi-
tioner controls. Insert the USB device into
the connection port.

When a compatible storage device is
plugged into the connection port, compat-
ible audio files on the storage device can be
played through the vehicle’s audio system.
The port is illuminated for better visibility
when the headlight switch is in the ON po-
sition.

USB connections screen

Press the

MENU button and touch the

“Connections” key or press the “Settings”
key and touch the “Connections” key to
change USB settings.

∙ Auto Change Source

Touch ON or OFF to change the audio
source settings for USB memory de-
vices or an iPod® connected through a
USB cable.

LHA4711

Monitor, climate, audio, phone and voice recognition systems

4-59

USB screen

1. “USB Menu” key

Touch to switch to the USB Menu
screen.

2. Track information

Track information such as the song
name, artist name and album name
are displayed.

3. Audio source indicator

Indicates the currently selected audio
source.

4. USB operation keys

Touch to control USB playback func-
tions

5. Play time and progress bar

The play time of the track is displayed.
The bar indicates the progress in play-
ing a track.

USB operation keys

Touch to control USB playback functions.

Keys

Description

Each time “

” key is

touched, the repeat mode
changes.

Touch to return to the be-
ginning of the current track.
Touch again to select the
previous track. Touch and
hold to rewind the current
track.

Touch to play the track.

Touch to pause the track.

Touch to select the next
track. Touch and hold to
fast-forward the track.

Each time “

” key is

touched, the random mode
changes.

USB memory device player
operation

Activation and playing
Connecting the USB memory device into
the port will start playing the USB memory.

USB memory device can also be played by
touching the “USB” key on the Menu screen
or by touching USB on the Launch Bar.

To pause playing the USB memory device
touch the “

” key. To resume playing,

touch the “

” key.

Skipping tracks

To skip the tracks, push the

buttons on the control panel or touch the

“

” or “

” keys on the screen repeat-

edly until the preferred track is selected.

NOTE:

Depending on the condition, skipping to
the previous track may require pushing
the button or touching the key twice.
Pushing the button or touching the key
once may only restart the current track
from the beginning.

LHA4710

4-60

Monitor, climate, audio, phone and voice recognition systems

Fast-forwarding/rewinding
To rewind or fast-forward the track, push

and hold the

buttons on the

control panel or touch and hold the “

”

or “

” keys on the screen.

Changing play mode
Repeat mode

Touch the “

” key on the USB screen to

change the repeat mode.
The following modes are available:
No text displayed: Repeat off

All: Repeat all

1 Folder: Repeat folder/sub-folder

1 Track: Repeat track

Random mode

Touch the “

” key on the screen to

change the random mode as follows:
No text displayed: Random off

Random: Random play

All: Repeat all

1 Folder: Repeat folder/sub-folder

USB menu

Touch the “USB Menu” key on the USB
screen to display the USB Menu screen.

“Now Playing” key

Touch to display the USB
screen.

“Folder List” key

Touch to display the folder
list. Touch an item on the list
to select the folder. The sub-
folder or track list will be
displayed. Select a sub-folder
or track from the list.

“Album Artwork”

Touch to run on/off the al-
bum artwork display on the
USB screen.

USB (Universal Serial Bus)
CONNECTION PORT (models with
Navigation System) (if so
equipped)

Connecting a device to the USB
connection port

WARNING

Do not connect, disconnect, or operate
the USB device while driving. Doing so
can be a distraction. If distracted you
could lose control of your vehicle and
cause an accident or serious injury.

LHA4319

Monitor, climate, audio, phone and voice recognition systems

4-61

CAUTION

∙ Do not force the USB device into the

USB port. Inserting the USB device
tilted or up-side-down into the port
may damage the port. Make sure that
the USB device is connected correctly
into the USB port.

∙ Do not grab the USB port cover (if so

equipped) when pulling the USB de-
vice out of the port. This could dam-
age the port and the cover.

∙ Do not leave the USB cable in a place

where it can be pulled unintentionally.
Pulling the cable may damage the
port.

For additional information, refer to your de-
vice manufacturer’s owner information re-
garding the proper use and care of the
device.

The USB port is located on the instrument
panel. Insert the USB device into the instru-
ment panel.

When a compatible storage device is
plugged into the connection port, compat-
ible audio files on the storage device can be
played through the vehicle’s audio system.

Audio file operation

AUX (auxiliary) button

Place the ignition switch in the ON or ACC
position and press the AUX button to
switch to the USB input mode. If another
audio source is playing and a USB connec-
tion port device is inserted, press the AUX
button until the center display changes to
the USB memory mode.

If the system has been turned off while the
USB memory was playing, press the ON-
OFF button to restart the USB memory.

Play information

Information about the audio files being
played is shown on the display screen of
the vehicle’s audio system. Touch “Browse”
to display the list of folders and files on the
USB device. Touch the name of a song on
the screen to begin playing that song.

Seeking buttons

Press the

seeking button while an

audio file on the USB device is playing to
return to the beginning of the current track.
Press the

seeking button several

times to skip backward several tracks.

LHA4006

4-62

Monitor, climate, audio, phone and voice recognition systems

Press the

seeking button while an

audio file on the USB device is playing to
advance one track. Press the

seeking

button several times to skip forward sev-
eral tracks. If the last track in a folder on the
USB device is skipped, the first track of the
next folder is played.

Random and repeat play mode
While files on a USB device are playing, the
play pattern can be altered so that songs
are repeated or played randomly.

Random
Touch the “Random” key to apply a random
play pattern to the USB device. When the
Random mode is active, the text “Random”
on the key will illuminate and the text “Ran-
dom Folder” appears. By touching the “Ran-
dom” key once more, the text “Random All”
appears. To cancel Random mode, touch
the “Random” key until no text is illumi-
nated.

Repeat
Touch the “Repeat” key to apply a repeat
play pattern to the USB device. When the
Repeat mode is active, the text on the “Re-
peat” key will illuminate and the text “Re-
peat Track” appears. By touching the “Re-
peat” key once more, the text “Repeat
Folder” appears. To cancel Repeat mode,
touch the “Repeat” key until no text is illumi-
nated.

iPod®* PLAYER OPERATION
WITHOUT NAVIGATION SYSTEM (if
so equipped)

Connecting iPod®

WARNING

Do not connect, disconnect, or operate
the USB device while driving. Doing so
can be a distraction. If distracted you
could lose control of your vehicle and
cause an accident or serious injury.

LHA4319

Monitor, climate, audio, phone and voice recognition systems

4-63

CAUTION

∙ Do not force the USB device into the

USB port. Inserting the USB device
tilted or up-side-down into the port
may damage the port. Make sure that
the USB device is connected correctly
into the USB port.

∙ Do not grab the USB port cover (if so

equipped) when pulling the USB de-
vice out of the port. This could dam-
age the port and the cover.

∙ Do not leave the USB cable in a place

where it can be pulled unintentionally.
Pulling the cable may damage the
port.

For additional information, refer to your de-
vice manufacturer’s owner information re-
garding the proper use and care of the
device.

To connect an iPod® to the vehicle so that
the iPod® can be controlled with the audio
system controls and display screen, use
the USB connection port located on the
center console below the heater and air
conditioner controls. Connect the iPod®-
specific end of the cable to the iPod® and
the USB end of the cable to the USB con-
nection port on the vehicle. If your iPod®

supports charging via a USB connection, its
battery will be charged while connected to
the vehicle with the ignition switch in the
ON position. The port is illuminated for bet-
ter visibility when the headlight switch is in
the ON position.

While connected to the vehicle, the iPod®
can only be operated by the vehicle audio
controls.

To disconnect the iPod® from the vehicle,
remove the USB end of the cable from the
USB connection port on the vehicle, then
remove the cable from the iPod®.

* iPod® is a trademark of Apple Inc., regis-
tered in the U.S. and other countries.

Compatibility

The following models are compatible:

∙ iPod® Classic 5th generation (firmware

version 1.3.0 or later)

∙ iPod® Classic 6th generation (firmware

version 2.0.1 or later)

∙ iPod® Classic 7th generation (firmware

version 2.0.4 or later)

∙ iPod® Touch 2nd generation (firmware

version 4.2.1 or later)*

∙ iPod® Touch 3rd generation (firmware

version 5.1 or later)

∙ iPod® Touch 4th generation (firmware

version 5.1 or later)

∙ iPod® nano - 1st generation (firmware

version 1.3.1 or later)

∙ iPod® nano - 2nd generation (firmware

version 1.1.3 or later)

∙ iPod® nano - 3rd generation (firmware

version 1.1.3 or later)

∙ iPod® nano - 4th generation (firmware

version 1.0.4 or later)

∙ iPod® nano - 5th generation (firmware

version 1.0.2 or later)

∙ iPod® nano - 6th generation (firmware

version 1.1 or later)

∙ iPhone® 3G (firmware version 4.2.1 or

later)

∙ iPhone® 3GS (firmware version 5.1 or

later)

∙ iPhone® 4 (firmware version 5.1 or later)

∙ iPhone® 4S (firmware version 5.1 or later)

* Some features of this iPod® may not be
fully functional.

4-64

Monitor, climate, audio, phone and voice recognition systems

Make sure that your iPod® firmware is up-
dated to the version indicated above.

iPod screen

1. “iPod Menu” key

Touch to switch to the iPod Menu
screen.

2. Track information

Track information such as the song
name, artist name and album name
are displayed.

3. Audio source indicator

Indicates the currently selected audio
source.

4. Album artwork

An image of the album artwork is dis-
played when available if the setting is
turned on.

5. iPod® operation keys

Touch to control iPod® playback func-
tions

6. Play time and progress bar

The play time of the track is displayed.
The bar indicates the progress in play-
ing a track.

iPod® operation keys

Touch to control iPod® playback functions.

Keys

Description

Each time “

” key is

touched, the repeat mode
changes.

Touch to return to the be-
ginning of the current track.
Touch again to select the
previous track. Touch and
hold to rewind the current
track.

Touch to play the track.

Touch to pause the track.

LHA4724

Monitor, climate, audio, phone and voice recognition systems

4-65

Keys

Description

Touch to select the next
track. Touch and hold to
fast-forward the track.

Each time “

” key is

touched, the random mode
changes.

iPod® memory device player
operation

Activation and playing

Connecting the iPod® to the vehicle via USB
cable will activate the iPod® mode.

The iPod® can also be played by touching
the “iPod” key on the Menu screen or by
touching iPod on the Launch Bar.

Skipping tracks

To skip the tracks, push the

buttons on the control panel or touch the

“

” or “

” keys on the screen repeat-

edly until the preferred track is selected.

NOTE:

Fast-forwarding/rewinding

To rewind or fast-forward the track, push

and hold the

buttons on the

control panel or touch and hold the “

”

or “

” keys on the screen,

Changing play mode
Repeat mode

Touch the “

” key on the iPod® screen

to change the repeat mode. The following
modes are available.
No text displayed: Repeat off

All: Repeat all

One: Repeat track

Random mode

Touch the “

” key on the screen to

change the random mode as follows.
No text displayed: Random off

Songs: Random play

iPod® Menu

Touch the “iPod Menu” key on the iPod®
screen to display the iPod® Menu screen.

“Now Playing” key

Touch to display the USB
screen.

“Folder List” key
(if so equipped)

Touch to display the folder
list. Touch an item on the list
to select the folder. The sub-
folder or track list will be
displayed. Select a sub-folder
or track from the list.

“Album Artwork”
key

Touch to run on/off the al-
bum artwork display on the
USB screen.

“Playlists” key

Touch to display the list ac-
cording to the selected item.

“Artists” key

“Albums” key

“Songs” key

“Podcasts” key

“Genres” key

“Composers” key

“Audiobooks” key

“iTunes Radio”
key

4-66

Monitor, climate, audio, phone and voice recognition systems

iPod®* PLAYER OPERATION WITH
NAVIGATION SYSTEM (if so
equipped)

Connecting iPod®

WARNING

Do not connect, disconnect or operate
the USB device while driving. Doing so
can be a distraction. If distracted you
could lose control of your vehicle and
cause an accident or serious injury.

CAUTION

∙ Do not force the USB device into the

USB port. Inserting the USB device
tilted or up-side-down into the port
may damage the port. Make sure that
the USB device is connected correctly
into the USB port.

∙ Do not grab the USB port cover (if so

equipped) when pulling the USB de-
vice out of the port. This could dam-
age the port and the cover.

∙ Do not leave the USB cable in a place

where it can be pulled unintentionally.
Pulling the cable may damage the
port.

For additional information, refer to your de-
vice manufacturer’s owner information re-
garding the proper use and care of the
device.

To connect an iPod® to the vehicle so that
the iPod® can be controlled with the audio
system controls and display screen, use
the USB port located on the instrument
panel. Connect the iPod®-specific end of
the cable to the iPod® and the USB end of
the cable to the USB port on the vehicle. If
your iPod® supports charging via a USB
connection, its battery will be charged

while connected to the vehicle with the ig-
nition switch in the ACC or ON position.

While connected to the vehicle, the iPod®
can only be operated by the vehicle audio
controls.

To disconnect the iPod® from the vehicle,
remove the USB end of the cable from the
USB port on the vehicle, then remove the
cable from the iPod®.

* iPod® is a trademark of Apple Inc., regis-
tered in the U.S. and other countries.

Compatibility

The following models are compatible:

∙ iPod® Classic 5th generation (firmware

version 1.3.0 or later)

∙ iPod® Classic 6th generation (firmware

version 2.0.1 or later)

∙ iPod® Classic 7th generation (firmware

version 2.0.4 or later)

∙ iPod® Touch 2nd generation (firmware

version 4.2.1 or later)*

∙ iPod® Touch 3rd generation (firmware

version 5.1 or later)

∙ iPod® Touch 4th generation (firmware

version 5.1 or later)

LHA4319

Monitor, climate, audio, phone and voice recognition systems

4-67

∙ iPod® nano - 1st generation (firmware

version 1.3.1 or later)

∙ iPod® nano - 2nd generation (firmware

version 1.1.3 or later)

∙ iPod® nano - 3rd generation (firmware

version 1.1.3 or later)

∙ iPod® nano - 4th generation (firmware

version 1.0.4 or later)

∙ iPod® nano - 5th generation (firmware

version 1.0.2 or later)

∙ iPod® nano - 6th generation (firmware

version 1.1 or later)

∙ iPhone® 3G (firmware version 4.2.1 or

later)

∙ iPhone® 3GS (firmware version 5.1 or

later)

∙ iPhone® 4 (firmware version 5.1 or later)

∙ iPhone® 4S (firmware version 5.1 or later)

* Some features of this iPod® may not be
fully functional.

Make sure that your iPod® firmware is up-
dated to the version indicated above.

Audio main operation

Place the ignition switch in the ACC or ON
position. Press the AUX button repeatedly
to switch to the iPod® mode.

If the system has been turned off while the
iPod® was playing, pressing the ON·OFF
button will start the iPod®.

AUX button

When the AUX button is pressed with the
system off and the iPod® connected, the
system will turn on. If another audio source
is playing and the iPod® is connected, press
the AUX button repeatedly until the center
display changes to the iPod® mode.

LHA4007

4-68

Monitor, climate, audio, phone and voice recognition systems

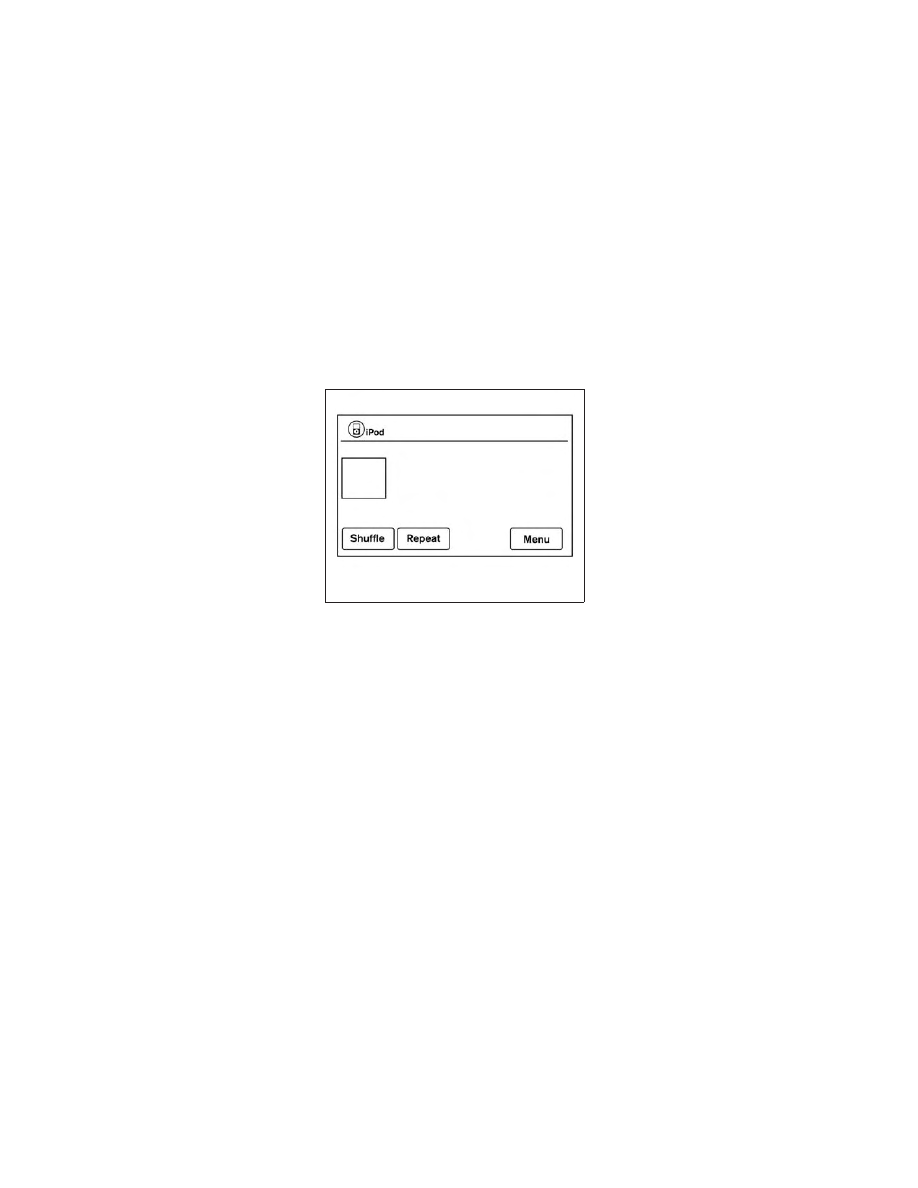

Interface

The interface for iPod® operation shown on
the vehicle’s audio system display screen is
similar to the iPod® interface. Use the
touch-screen, BACK button or the scrolling
knob to navigate the menus on the screen.

When the iPod® is playing, touch the “Menu”
key to bring up the iPod® interface.

Depending on the iPod® model, the follow-
ing items may be available on the menu list
screen. For additional information, refer to
the iPod® Owner’s Manual regarding each
menu item.

∙ Playlists

∙ Artists

∙ Albums

∙ Genres

∙ Songs

∙ Composers

∙ Audiobooks

∙ Podcasts

Shuffle and repeat play mode

While the iPod® is playing, the play pattern
can be altered so that songs are repeated
or played randomly.

Shuffle
Touch the “Shuffle” key to apply a random
play pattern to the iPod®. When the Shuffle
mode is active, the text is illuminated and
will display “Shuffle songs” text above the
“Shuffle” key. To cancel Shuffle mode, touch
the “Shuffle” key again until the text is no
longer illuminated.

Repeat
Touch the “Repeat” key to apply a repeat
play pattern to the iPod®. When the repeat
mode is active, the text is illuminated and
will display “Repeat song” text above the
“Repeat” key. To cancel Repeat mode, touch
the “Repeat” key again until the text is no
longer illuminated.

SEEK buttons

Press the SEEK button

skip backward or forward one track.

Press and hold the SEEK button
or

for 1.5 seconds while a track is

playing to reverse or fast forward the track
being played. The track plays at an in-
creased speed while reversing or fast for-
warding. When the button is released, the
track returns to normal play speed.

LHA2907

Monitor, climate, audio, phone and voice recognition systems

4-69

Content .. 14 15 16 17 ..
