Nissan Cube (2014 year). Instruction

1-2

Safety — Seats, seat belts and supplemental restraint system

SSS0133

WARNING

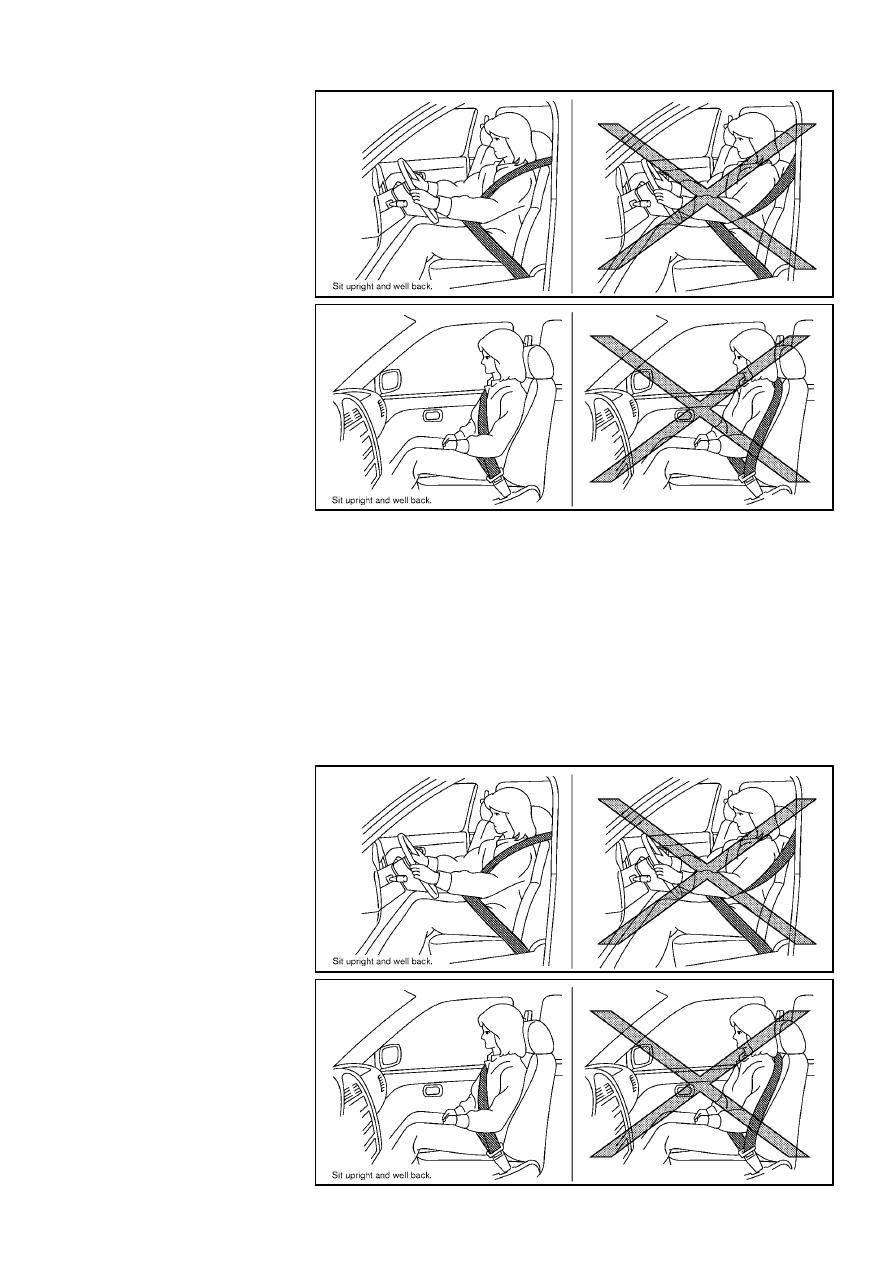

. Do not ride in a moving vehicle

when the seatback is reclined. This
can be dangerous. The shoulder belt
will not be against your body. In an
accident, you could be thrown into it
and receive neck or other serious
injuries. You could also slide under
the lap belt and receive serious
internal injuries.

. For the most effective protection

when the vehicle is in motion, the
seat should be upright. Always sit

well back in the seat with both feet
on the floor and adjust the seat
properly. See “Precautions on seat
belt usage” (P.1-11).

. After adjustment, gently rock in the

seat to make sure it is securely
locked.

. Do not leave children unattended

inside the vehicle. They could un-
knowingly activate switches or con-
trols. Unattended children could
become involved in serious acci-
dents.

. The seatback should not be reclined

any more than needed for comfort.
Seat belts are most effective when
the passenger sits well back and
straight up in the seat. If the seat-
back is reclined, the risk of sliding
under the lap belt and being injured
is increased.

CAUTION

When adjusting the seat positions, be
sure not to contact any moving parts to
avoid possible injuries and/or damage.

SEATS

1-2

Safety — Seats, seat belts and supplemental restraint system

SSS0133

WARNING

. Do not ride in a moving vehicle

. For the most effective protection

when the vehicle is in motion, the
seat should be upright. Always sit

well back in the seat with both feet
on the floor and adjust the seat
properly. See “Precautions on seat
belt usage” (P.1-11).

. After adjustment, gently rock in the

seat to make sure it is securely
locked.

. Do not leave children unattended

inside the vehicle. They could un-
knowingly activate switches or con-
trols. Unattended children could
become involved in serious acci-
dents.

. The seatback should not be reclined

CAUTION

When adjusting the seat positions, be
sure not to contact any moving parts to
avoid possible injuries and/or damage.

SEATS

SSS0792

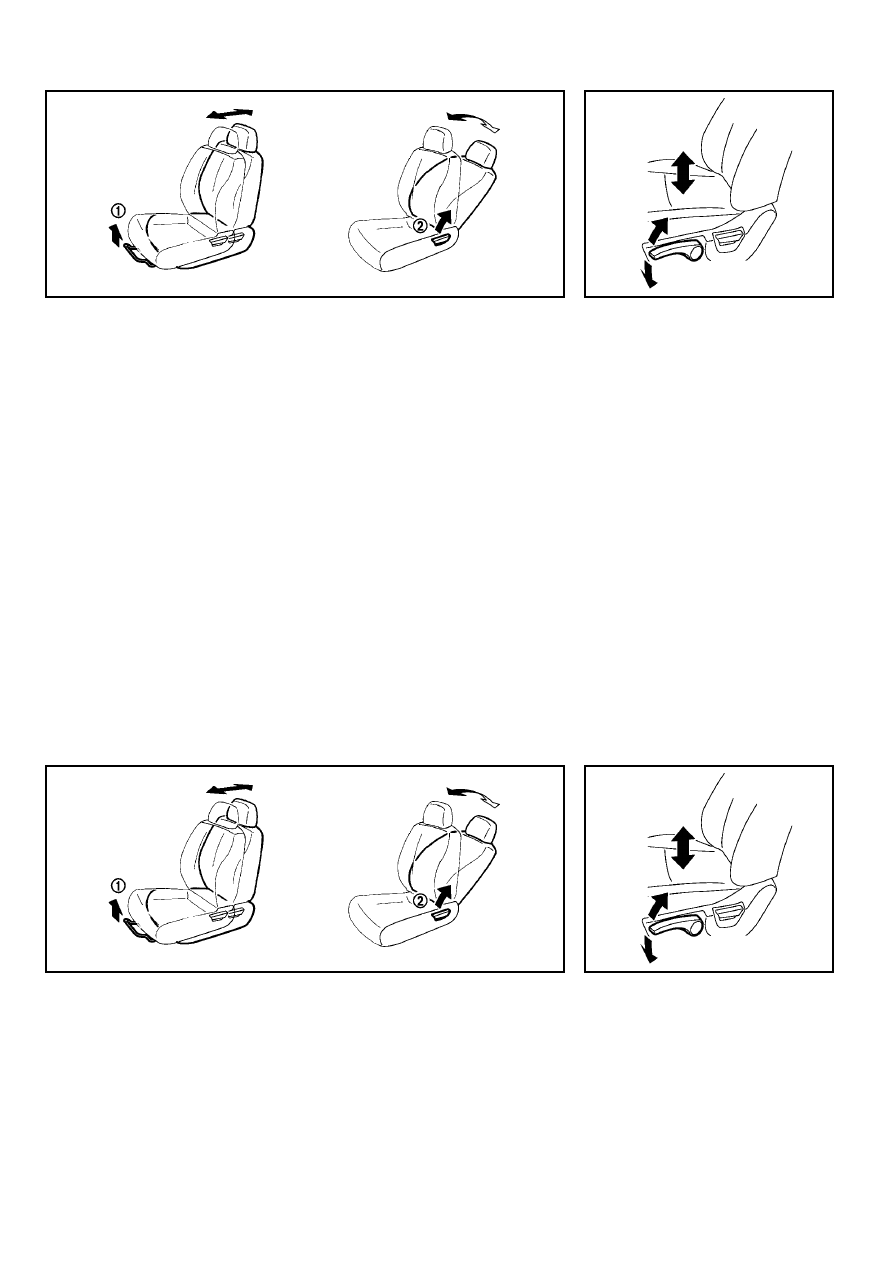

FRONT SEATS

Front manual seat adjustment

Forward and backward:

Pull the lever

up and hold it while you slide

the seat forward or backward to the desired
position. Release the lever to lock the seat in
position.

Reclining:

To recline the seatback, pull the lever

up and

lean back. To bring the seatback forward, pull
the lever up and lean your body forward. Release
the lever to lock the seatback in position.

The reclining feature allows adjustment of the

seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. (See “Precautions on seat belt usage”
(P.1-11).) Also, the seatback can be reclined to
allow occupants to rest when the vehicle is
stopped and the transmission is in the P (Park)
position or N (Neutral) position with the parking
brake fully applied.

SSS0793

Seat lifter (for driver’s seat):

Pull up or push down the adjusting lever to
adjust the seat height until the desired position
is achieved.

Safety — Seats, seat belts and supplemental restraint system

1-3

SSS0792

FRONT SEATS

Front manual seat adjustment

Forward and backward:

Pull the lever

up and hold it while you slide

the seat forward or backward to the desired
position. Release the lever to lock the seat in
position.

Reclining:

To recline the seatback, pull the lever

up and

lean back. To bring the seatback forward, pull
the lever up and lean your body forward. Release
the lever to lock the seatback in position.

The reclining feature allows adjustment of the

SSS0793

Seat lifter (for driver’s seat):

Pull up or push down the adjusting lever to
adjust the seat height until the desired position
is achieved.

Safety — Seats, seat belts and supplemental restraint system

1-3

1-4

Safety — Seats, seat belts and supplemental restraint system

SSS0961

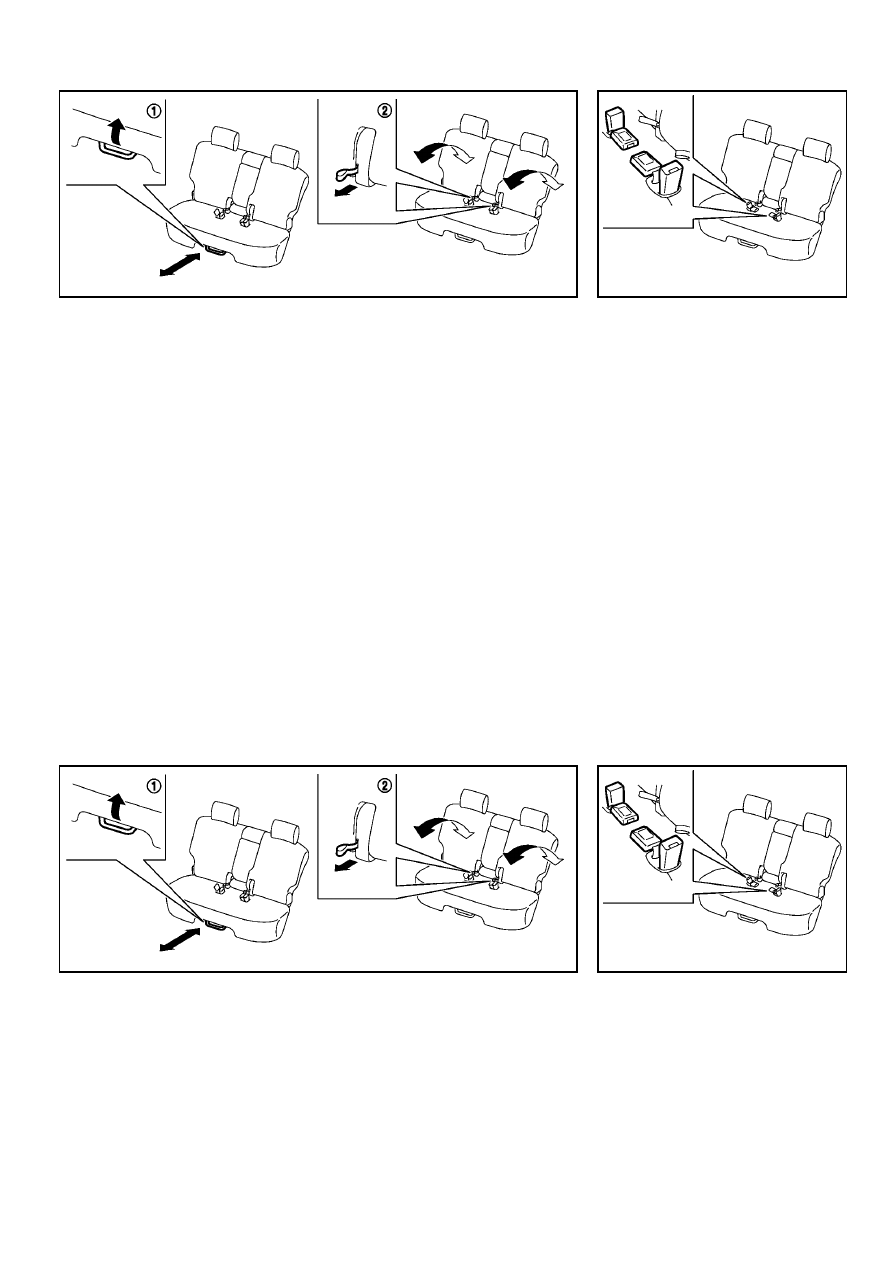

REAR SEATS

Forward and backward

Pull the lever

up and hold it while you slide

the seat forward or backward to the desired
position. Release the lever to lock the seat in
position.

Reclining

To recline the seatback, pull the strap

and

lean back. To bring the seatback forward, pull
the strap up and lean your body forward.
Release the strap to lock the seatback in
position.

The reclining feature allows adjustment of the
seatback for occupants of different sizes for

added comfort and to help obtain proper seat
belt fit. (See “Precautions on seat belt usage”
(P.1-11).)

Folding

Before folding the rear seats:
. Secure the seat belts on the seat belt hooks

on the side wall. (See “Seat belt hooks”
(P.1-17).)

. Release the connector tongue of the rear

center seat belt from the buckle, and secure
the connector and seat belt tongues on the
seat belt hook. (See “Rear center seat belt”
(P.1-17).)

SSS0987

. Stow seat belt buckles by pushing the seat

belt buckles into seat pockets.

The seat belt buckles should only be stowed
when the rear seat is folded. The rear seat belt
buckles should be in the unstowed position at all
other times.

1-4

Safety — Seats, seat belts and supplemental restraint system

SSS0961

REAR SEATS

Forward and backward

Pull the lever

up and hold it while you slide

the seat forward or backward to the desired
position. Release the lever to lock the seat in
position.

Reclining

To recline the seatback, pull the strap

and

lean back. To bring the seatback forward, pull
the strap up and lean your body forward.
Release the strap to lock the seatback in
position.

The reclining feature allows adjustment of the
seatback for occupants of different sizes for

added comfort and to help obtain proper seat
belt fit. (See “Precautions on seat belt usage”
(P.1-11).)

Folding

Before folding the rear seats:
. Secure the seat belts on the seat belt hooks

on the side wall. (See “Seat belt hooks”
(P.1-17).)

. Release the connector tongue of the rear

center seat belt from the buckle, and secure
the connector and seat belt tongues on the
seat belt hook. (See “Rear center seat belt”
(P.1-17).)

SSS0987

. Stow seat belt buckles by pushing the seat

belt buckles into seat pockets.

The seat belt buckles should only be stowed
when the rear seat is folded. The rear seat belt
buckles should be in the unstowed position at all
other times.

SSS0962

To fold down the seatback of each rear seat, pull
the strap

CAUTION

W h e n

f o l d i n g

o r

r e t u r n i n g

t h e

seatback(s) to the upright position, to
avoid injury to yourself and others:

. Make sure that the seat path is clear

before moving the seat.

. The seatback is spring assisted and

may move at a rapid rate. Be careful
not to allow the seatback to pinch or
hit any part of your body when you
fold it.

To return the seatback to the seating position, lift
up each seatback and push it to the upright
position until it is latched. Unstow the seat belt
buckles by pulling the buckles out of the seat
pockets.

WARNING

. Do not use the rear seat belts when

the buckles are stowed in the seat
pockets. Failure to do so may re-
duce the effectiveness of the entire
restraint system and increase the
chance or severity of injury in an
accident.

. Do not fold down the rear seats

when occupants are in the rear seat
area or any objects are on the rear
seats.

. Never allow anyone to ride in the

cargo area or on the rear seats
when they are in the fold-down
position. Use of these areas by
passengers without proper re-
straints could result in serious injury
in an accident or sudden stop.

. Properly secure all cargo with ropes

or straps to help prevent it from
sliding or shifting. Do not place
cargo higher than the seatbacks. In
a sudden stop or collision, unse-
cured cargo could cause personal
injury.

. When returning the seatbacks to the

upright position, be certain they are
completely secured in the latched
position. If they are not completely
secured, passengers may be injured
in an accident or sudden stop.

Safety — Seats, seat belts and supplemental restraint system

1-5

SSS0962

To fold down the seatback of each rear seat, pull
the strap

CAUTION

W h e n

f o l d i n g

o r

r e t u r n i n g

t h e

seatback(s) to the upright position, to
avoid injury to yourself and others:

. Make sure that the seat path is clear

before moving the seat.

. The seatback is spring assisted and

may move at a rapid rate. Be careful
not to allow the seatback to pinch or
hit any part of your body when you
fold it.

WARNING

. Do not use the rear seat belts when

the buckles are stowed in the seat
pockets. Failure to do so may re-
duce the effectiveness of the entire
restraint system and increase the
chance or severity of injury in an
accident.

. Do not fold down the rear seats

when occupants are in the rear seat
area or any objects are on the rear
seats.

. Never allow anyone to ride in the

cargo area or on the rear seats
when they are in the fold-down
position. Use of these areas by
passengers without proper re-
straints could result in serious injury
in an accident or sudden stop.

. Properly secure all cargo with ropes

or straps to help prevent it from
sliding or shifting. Do not place
cargo higher than the seatbacks. In
a sudden stop or collision, unse-
cured cargo could cause personal
injury.

. When returning the seatbacks to the

upright position, be certain they are
completely secured in the latched
position. If they are not completely
secured, passengers may be injured
in an accident or sudden stop.

Safety — Seats, seat belts and supplemental restraint system

1-5

1-6

Safety — Seats, seat belts and supplemental restraint system

SSS0970

ARMREST

Front

Pull the armrest down until it is horizontal.

SSS0963

Rear

Pull the armrest down until it is horizontal.

WARNING

Head restraint/headrest supplement
the other vehicle safety systems. They
may provide additional protection
against injury in certain rear end colli-
sions. Adjustable head restraints/head-
rests must be adjusted properly, as
specified in this section. Check the
adjustment after someone else uses
the seat. Do not attach anything to the
head restraint/headrest stalks or re-
move the head restraint/headrest. Do
not use the seat if the head restraint/
headrest has been removed. If the head
restraint/headrest was removed, rein-
stall and properly adjust the head
restraint/headrest before an occupant
uses the seating position. Failure to
follow these instructions can reduce the
effectiveness of the head restraint/
headrest. This may increase the risk of
serious injury or death in a collision.

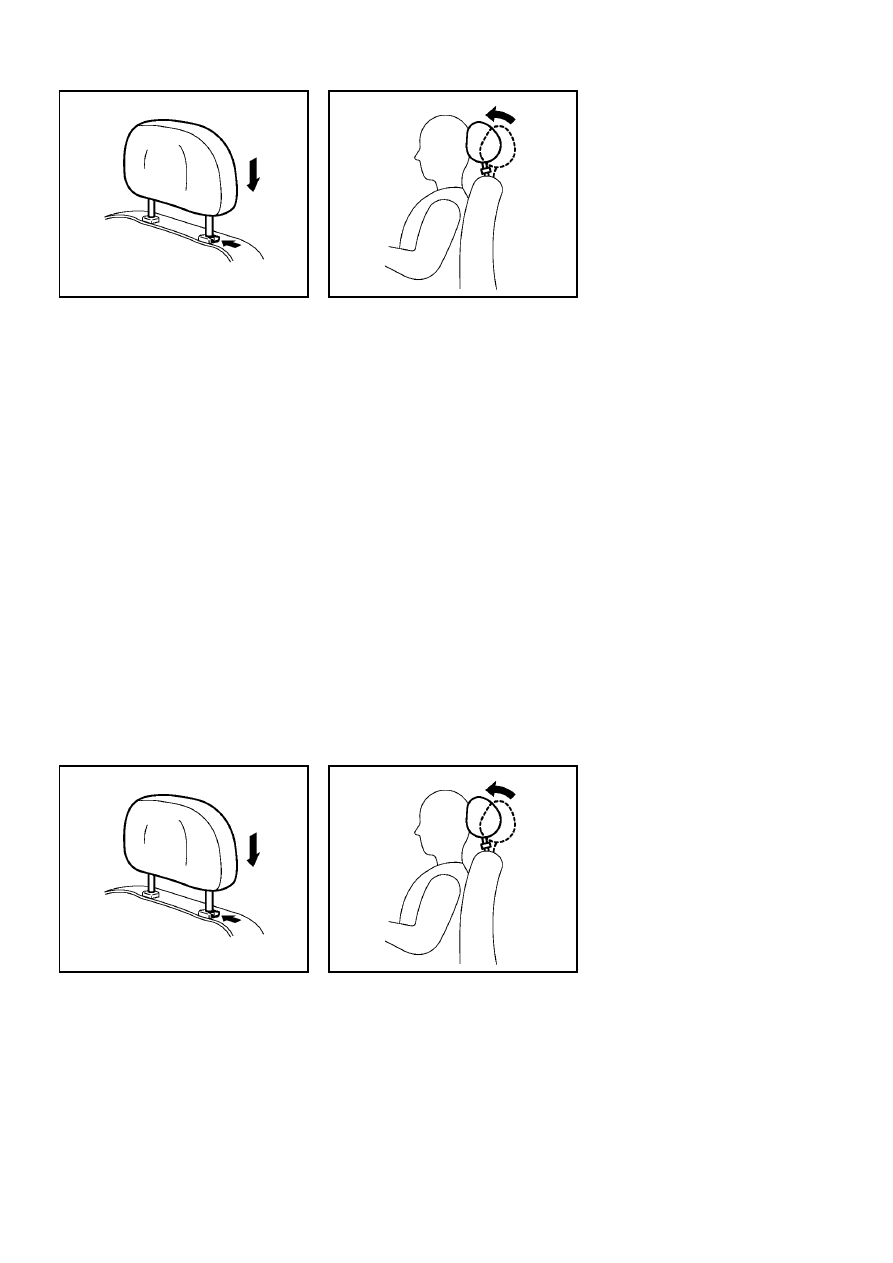

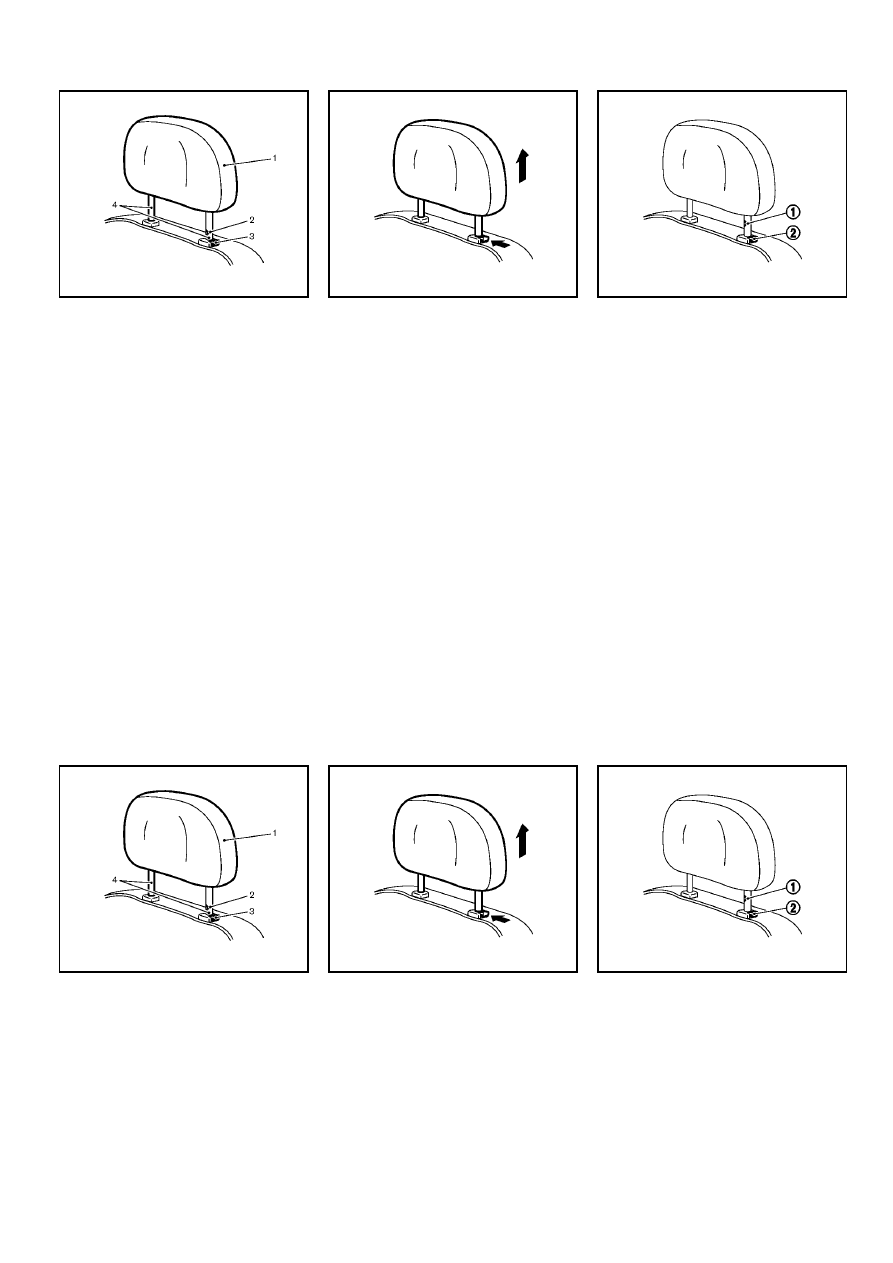

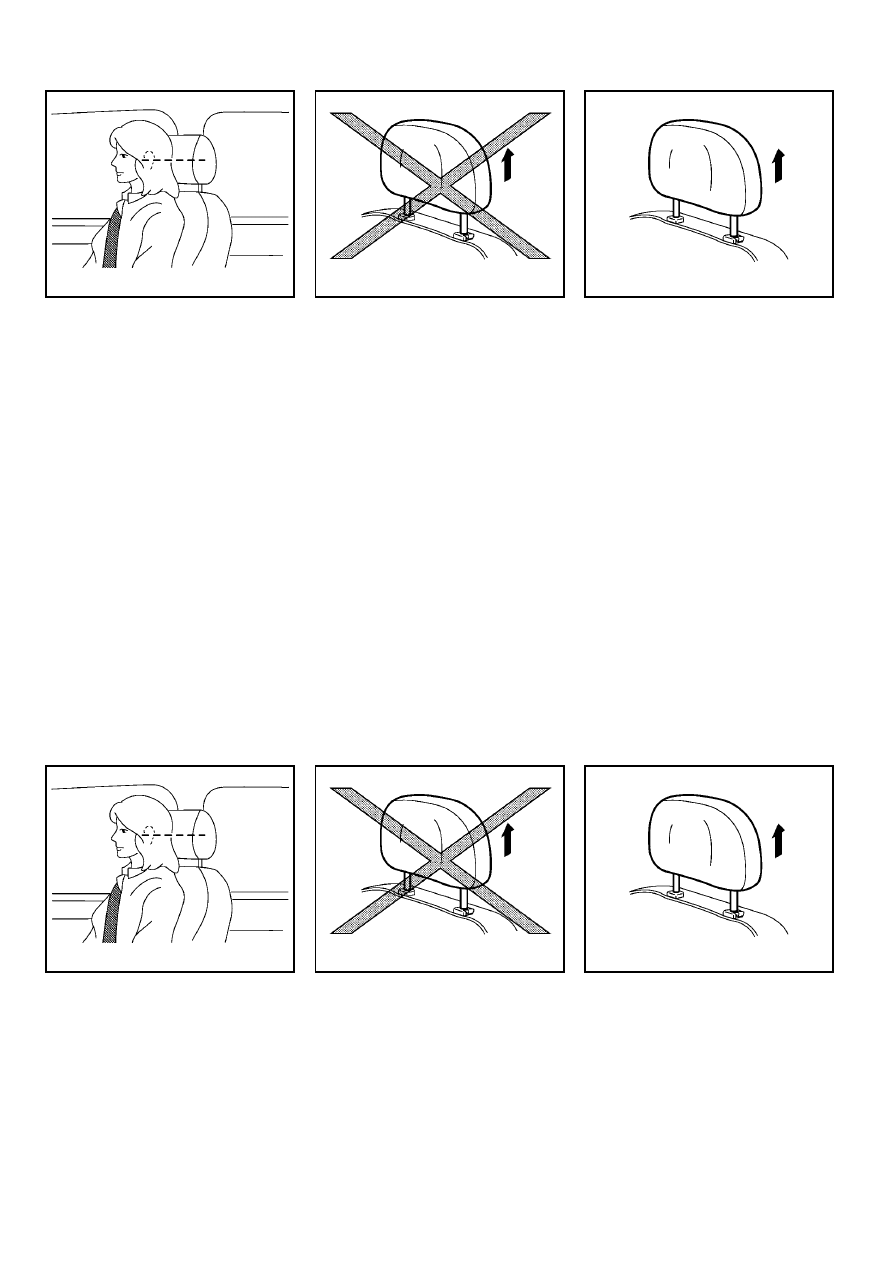

HEAD RESTRAINTS/HEADRESTS

1-6

Safety — Seats, seat belts and supplemental restraint system

SSS0970

ARMREST

Front

Pull the armrest down until it is horizontal.

SSS0963

Rear

Pull the armrest down until it is horizontal.

WARNING

HEAD RESTRAINTS/HEADRESTS

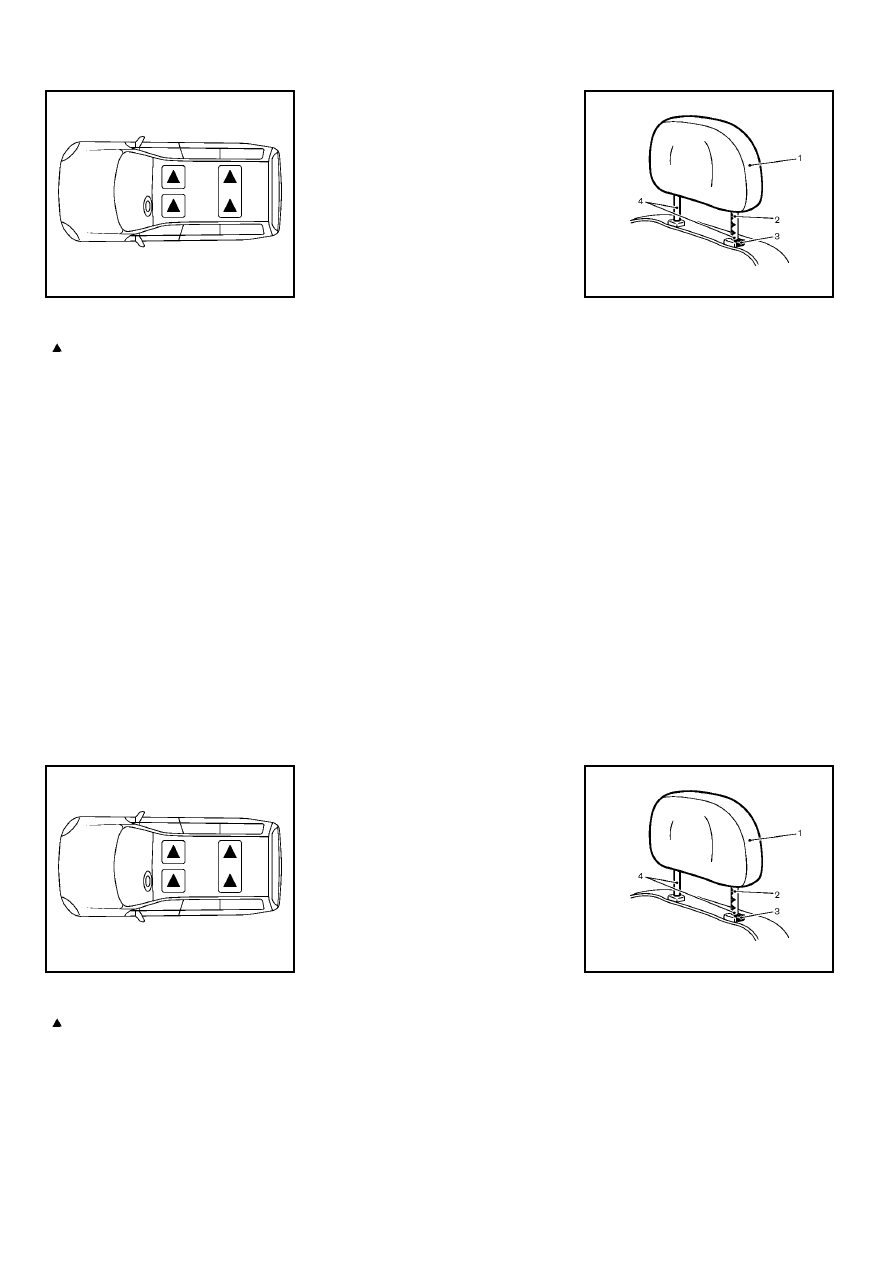

JVR0060X

The illustration shows the seating positions
equipped with head restraint/headrest.

Indicates the seating position is equipped

with a head restraint.
. Your vehicle is equipped with a head

restraint/headrest that may be integrated,
adjustable or non-adjustable.

. Adjustable head restraints/headrests have

multiple notches along the stalk to lock them
in a desired adjustment position.

. The non-adjustable head restraints/head-

rests have a single locking notch to secure
them to the seat frame.

. Proper Adjustment:

— For the adjustable type, align the head

restraint/headrest so the center of your
ear is approximately level with the center
of the head restraint/headrest.

— If your ear position is still higher than the

recommended alignment, place the head
restraint/headrest at the highest position.

. If the head restraint/headrest has been

removed, ensure that it is reinstalled and
locked in place before riding in that desig-
nated seating position.

SSS0992

ADJUSTABLE HEAD RESTRAINT/
HEADREST COMPONENTS

1. Removable head restraint/headrest

2. Multiple notches

3. Lock knob

4. Stalks

Safety — Seats, seat belts and supplemental restraint system

1-7

JVR0060X

The illustration shows the seating positions
equipped with head restraint/headrest.

Indicates the seating position is equipped

with a head restraint.
. Your vehicle is equipped with a head

restraint/headrest that may be integrated,
adjustable or non-adjustable.

. Adjustable head restraints/headrests have

multiple notches along the stalk to lock them
in a desired adjustment position.

. The non-adjustable head restraints/head-

rests have a single locking notch to secure
them to the seat frame.

. Proper Adjustment:

— For the adjustable type, align the head

restraint/headrest so the center of your
ear is approximately level with the center
of the head restraint/headrest.

— If your ear position is still higher than the

recommended alignment, place the head
restraint/headrest at the highest position.

. If the head restraint/headrest has been

removed, ensure that it is reinstalled and
locked in place before riding in that desig-
nated seating position.

SSS0992

ADJUSTABLE HEAD RESTRAINT/
HEADREST COMPONENTS

1. Removable head restraint/headrest

2. Multiple notches

3. Lock knob

4. Stalks

Safety — Seats, seat belts and supplemental restraint system

1-7

1-8

Safety — Seats, seat belts and supplemental restraint system

JVR0203X

NON-ADJUSTABLE HEAD RE-
STRAINT/HEADREST COMPONENTS

1. Removable head restraint/headrest

2. Single notch

3. Lock knob

4. Stalks

SSS1037

REMOVE

Use the following procedure to remove the head
restraint/headrest.

1. Pull the head restraint/headrest up to the

highest position.

2. Push and hold the lock knob.

3. Remove the head restraint/headrest from

the seat.

4. Store the head restraint/headrest properly in

a secure place so it is not loose in the
vehicle.

5. Reinstall and properly adjust the head

restraint/headrest before an occupant uses
the seating position.

SSS1038

INSTALL

1. Align the head restraint/headrest stalks with

the holes in the seat. Make sure that the
head restraint/headrest is facing the correct
direction. The stalk with the adjustment
notch

must be installed in the hole with

the lock knob

2. Push and hold the lock knob and push the

head restraint/headrest down.

3. Properly adjust the head restraint/headrest

before an occupant uses the seating posi-
tion.

1-8

Safety — Seats, seat belts and supplemental restraint system

JVR0203X

NON-ADJUSTABLE HEAD RE-
STRAINT/HEADREST COMPONENTS

1. Removable head restraint/headrest

2. Single notch

3. Lock knob

4. Stalks

SSS1037

REMOVE

Use the following procedure to remove the head
restraint/headrest.

1. Pull the head restraint/headrest up to the

highest position.

2. Push and hold the lock knob.

3. Remove the head restraint/headrest from

the seat.

4. Store the head restraint/headrest properly in

a secure place so it is not loose in the
vehicle.

5. Reinstall and properly adjust the head

restraint/headrest before an occupant uses
the seating position.

SSS1038

INSTALL

1. Align the head restraint/headrest stalks with

the holes in the seat. Make sure that the
head restraint/headrest is facing the correct
direction. The stalk with the adjustment
notch

must be installed in the hole with

the lock knob

2. Push and hold the lock knob and push the

head restraint/headrest down.

3. Properly adjust the head restraint/headrest

before an occupant uses the seating posi-
tion.

SSS0997

ADJUST

For adjustable head restraint/headrest

Adjust the head restraint/headrest so the center
is level with the center of your ears. If your ear
position is still higher than the recommended
alignment, place the head restraint/headrest at
the highest position.

JVR0259X

For non-adjustable head restraint/head-
rest

Make sure the head restraint/headrest is posi-
tioned so the lock knob is engaged in the notch
before riding in that designated seating position.

SSS1035

Raise

To raise the head restraint/headrest, pull it up.

Make sure the head restraint/headrest is posi-
tioned so the lock knob is engaged in the notch
before riding in that designated seating position.

Safety — Seats, seat belts and supplemental restraint system

1-9

SSS0997

ADJUST

For adjustable head restraint/headrest

JVR0259X

For non-adjustable head restraint/head-
rest

Make sure the head restraint/headrest is posi-
tioned so the lock knob is engaged in the notch
before riding in that designated seating position.

SSS1035

Raise

To raise the head restraint/headrest, pull it up.

Make sure the head restraint/headrest is posi-
tioned so the lock knob is engaged in the notch
before riding in that designated seating position.

Safety — Seats, seat belts and supplemental restraint system

1-9

1-10

Safety — Seats, seat belts and supplemental restraint system

SSS1036

Lower

To lower, push and hold the lock knob and push
the head restraint/headrest down.

Make sure the head restraint/headrest is posi-
tioned so the lock knob is engaged in the notch
before riding in that designated seating position.

SSS0508

FRONT-SEAT ACTIVE HEAD RE-
STRAINT

The Active Head Restraint moves forward
utilizing the force that the seatback receives
from the occupant in a rear-end collision. The
movement of the head restraint helps support
the occupant’s head by reducing its backward
movement and helping absorb some of the
forces that may lead to whiplash-type injuries.

Active Head Restraints are effective for colli-
sions at low to medium speeds in which it is said
that whiplash injury occurs most.

Active Head Restraints operate only in certain
rear-end collisions. After the collision, the head
restraints return to their original position.

Adjust the Active Head Restraints properly as
described earlier in this section.

1-10

Safety — Seats, seat belts and supplemental restraint system

SSS1036

Lower

To lower, push and hold the lock knob and push
the head restraint/headrest down.

Make sure the head restraint/headrest is posi-
tioned so the lock knob is engaged in the notch
before riding in that designated seating position.

SSS0508

FRONT-SEAT ACTIVE HEAD RE-
STRAINT

Active Head Restraints are effective for colli-
sions at low to medium speeds in which it is said
that whiplash injury occurs most.

Active Head Restraints operate only in certain
rear-end collisions. After the collision, the head
restraints return to their original position.

Adjust the Active Head Restraints properly as
described earlier in this section.

PRECAUTIONS ON SEAT BELT
USAGE

If you are wearing your seat belt properly
adjusted, and you are sitting upright and well
back in your seat with both feet on the floor, your
chances of being injured or killed in an accident
and/or the severity of injury may be greatly
reduced. NISSAN strongly encourages you and
all of your passengers to buckle up every time
you drive, even if your seating position includes a
supplemental air bag.

Most U.S. states specify that seat belts be
worn at all times when a vehicle is being
driven.

SSS0136

SSS0134

Safety — Seats, seat belts and supplemental restraint system

1-11

SEAT BELTS

PRECAUTIONS ON SEAT BELT
USAGE

Most U.S. states specify that seat belts be
worn at all times when a vehicle is being
driven.

SSS0136

SSS0134

Safety — Seats, seat belts and supplemental restraint system

1-11

SEAT BELTS

1-12

Safety — Seats, seat belts and supplemental restraint system

SSS0016

SSS0014

WARNING

. Every person who drives or rides in

this vehicle should use a seat belt at
all times. Children should be prop-
erly restrained in the rear seat and,
if appropriate, in a child restraint.

. The seat belt should be properly

adjusted to a snug fit. Failure to do
so may reduce the effectiveness of
the entire restraint system and in-
crease the chance or severity of
injury in an accident. Serious injury
or death can occur if the seat belt is
not worn properly.

. Always route the shoulder belt over

your shoulder and across your
chest. Never put the belt behind
your back, under your arm or across
your neck. The belt should be away
from your face and neck, but not
falling off your shoulder.

. Position the lap belt as low and

snug as possible AROUND THE
HIPS, NOT THE WAIST. A lap belt
worn too high could increase the
risk of internal injuries in an acci-
dent.

. Be sure the seat belt tongue is

securely fastened to the proper
buckle.

. Do not wear the seat belt inside out

or twisted. Doing so may reduce its
effectiveness.

. Do not allow more than one person

to use the same seat belt.

. Never carry more people in the

vehicle than there are seat belts.

. If the seat belt warning light glows

continuously while the ignition is
turned ON with all doors closed and
all seat belts fastened, it may in-
dicate a malfunction in the system.
Have the system checked by a
NISSAN dealer.

. No changes should be made to the

seat belt system. For example, do
not modify the seat belt, add mate-
rial, or install devices that may
change the seat belt routing or
tension. Doing so may affect the
operation of the seat belt system.
Modifying or tampering with the
seat belt system may result in
serious personal injury.

1-12

Safety — Seats, seat belts and supplemental restraint system

SSS0016

SSS0014

WARNING

. Every person who drives or rides in

this vehicle should use a seat belt at
all times. Children should be prop-
erly restrained in the rear seat and,
if appropriate, in a child restraint.

. The seat belt should be properly

. Always route the shoulder belt over

your shoulder and across your
chest. Never put the belt behind
your back, under your arm or across
your neck. The belt should be away
from your face and neck, but not
falling off your shoulder.

. Position the lap belt as low and

snug as possible AROUND THE
HIPS, NOT THE WAIST. A lap belt
worn too high could increase the
risk of internal injuries in an acci-
dent.

. Be sure the seat belt tongue is

securely fastened to the proper
buckle.

. Do not wear the seat belt inside out

or twisted. Doing so may reduce its
effectiveness.

. Do not allow more than one person

to use the same seat belt.

. Never carry more people in the

vehicle than there are seat belts.

. If the seat belt warning light glows

continuously while the ignition is
turned ON with all doors closed and
all seat belts fastened, it may in-
dicate a malfunction in the system.
Have the system checked by a
NISSAN dealer.

. No changes should be made to the

. Once a seat belt pretensioner has

activated, it cannot be reused and
must be replaced together with the
retractor. See a NISSAN dealer.

. Removal and installation of the

pretensioner system components
should be done by a NISSAN dealer.

. All seat belt assemblies, including

retractors and attaching hardware,
should be inspected after any colli-
sion by a NISSAN dealer. NISSAN
recommends that all seat belt as-
semblies in use during a collision be
replaced unless the collision was
minor and the belts show no da-
mage and continue to operate prop-
erly. Seat belt assemblies not in use
during a collision should also be
inspected and replaced if either
damage or improper operation is
noted.

. All child restraints and attaching

hardware should be inspected after
any collision. Always follow the
restraint manufacturer’s inspection
instructions and replacement re-
commendations. The child restraints
should be replaced if they are

damaged.

PREGNANT WOMEN

NISSAN recommends that pregnant women use
seat belts. The seat belt should be worn snug,
and always position the lap belt as low as
possible around the hips, not the waist. Place
the shoulder belt over your shoulder and across
your chest. Never put the lap/shoulder belt over
your abdominal area. Contact your doctor for
specific recommendations.

INJURED PERSONS

NISSAN recommends that injured persons use
seat belts, depending on the injury. Check with
your doctor for specific recommendations.

THREE-POINT TYPE SEAT BELT

WARNING

. Every person who drives or rides in

this vehicle should use a seat belt at
all times.

. Do not ride in a moving vehicle

. For the most effective protection

when the vehicle is in motion, the
seat should be upright. Always sit
well back in the seat with both feet
on the floor and adjust the seat belt
properly.

Safety — Seats, seat belts and supplemental restraint system

1-13

. Once a seat belt pretensioner has

activated, it cannot be reused and
must be replaced together with the
retractor. See a NISSAN dealer.

. Removal and installation of the

pretensioner system components
should be done by a NISSAN dealer.

. All seat belt assemblies, including

. All child restraints and attaching

damaged.

PREGNANT WOMEN

INJURED PERSONS

NISSAN recommends that injured persons use
seat belts, depending on the injury. Check with
your doctor for specific recommendations.

THREE-POINT TYPE SEAT BELT

WARNING

. Every person who drives or rides in

this vehicle should use a seat belt at
all times.

. Do not ride in a moving vehicle

. For the most effective protection

when the vehicle is in motion, the
seat should be upright. Always sit
well back in the seat with both feet
on the floor and adjust the seat belt
properly.

Safety — Seats, seat belts and supplemental restraint system

1-13

1-14

Safety — Seats, seat belts and supplemental restraint system

JVR0276X

WARNING

Do not allow children to play with the
seat belts. Most seating positions are
equipped with Automatic Locking Re-
tractor (ALR) mode seat belts. If the
seat belt becomes wrapped around a
child’s neck with the ALR mode acti-
vated, the child can be seriously injured
or killed if the seat belt retracts and
becomes tight. This can occur even if
the vehicle is parked. Unbuckle the seat
belt to release the child. For the center
of the rear seat, the connector tongue

may also be released. Release the
connector tongue

by inserting a

suitable tool (such as a key)

into the

connector buckle. If the seat belt can
not be unbuckled or is already un-
buckled, release the child by cutting
the seat belt with a suitable tool (such
as a knife or scissors) to release the
seat belt.

Fastening the seat belts

1. Adjust the seat. See “Seats” (P.1-2).

2. Make sure rear seat belt buckles are

removed from the stowed position. See
“Rear seat belt buckles” (P.1-16).

SSS0292

3. Slowly pull the seat belt out of the retractor

and insert the tongue into the buckle until
you hear and feel the latch engage.

The retractor is designed to lock

during a sudden stop or on impact.
A slow pulling motion permits the
belt to move and allows you some
freedom of movement in the seat.

If the seat belt cannot be pulled from

its fully retracted position, firmly pull
the belt and release it. Then
smoothly pull the belt out of the
retractor.

1-14

Safety — Seats, seat belts and supplemental restraint system

JVR0276X

WARNING

may also be released. Release the
connector tongue

by inserting a

suitable tool (such as a key)

into the

Fastening the seat belts

1. Adjust the seat. See “Seats” (P.1-2).

2. Make sure rear seat belt buckles are

removed from the stowed position. See
“Rear seat belt buckles” (P.1-16).

SSS0292

3. Slowly pull the seat belt out of the retractor

and insert the tongue into the buckle until
you hear and feel the latch engage.

The retractor is designed to lock

during a sudden stop or on impact.
A slow pulling motion permits the
belt to move and allows you some
freedom of movement in the seat.

If the seat belt cannot be pulled from

its fully retracted position, firmly pull
the belt and release it. Then
smoothly pull the belt out of the
retractor.

SSS0290

4. Position the lap belt portion low and snug

on the hips as shown.

5. Pull the shoulder belt portion toward the

retractor to take up extra slack. Be sure the
shoulder belt is routed over your shoulder
and across your chest.

The front passenger seat and the rear seating
positions three-point seat belts have two modes
of operation:
. Emergency Locking Retractor (ELR)
. Automatic Locking Retractor (ALR)
The Emergency Locking Retractor (ELR) mode
allows the seat belt to extend and retract to
allow the driver and passengers some freedom

of movement in the seat. The ELR locks the seat
belt when the vehicle slows down rapidly or
during certain impacts.

The Automatic Locking Retractor (ALR) mode
(child restraint mode) locks the seat belt for
child restraint installation.

When ALR mode is activated the seat belt
cannot be extended again until the seat belt
tongue is detached from the buckle and fully
retracted. The seat belt returns to the ELR mode
after the seat belt fully retracts. For additional
information, see “Child restraints” (P.1-22).

The ALR mode should be used only for
child restraint installation. During normal
seat belt use by an occupant, the ALR
mode should not be activated. If it is
activated, it may cause uncomfortable seat
belt tension.

WARNING

When fastening the seat belts, be
certain that seatbacks are completely
secured in the latched position. If they
are not completely secured, passengers
may be injured in an accident or sudden
stop.

SSS0326

Unfastening the seat belts

To unfasten the seat belt, push the button on the
buckle. The seat belt automatically retracts.

Safety — Seats, seat belts and supplemental restraint system

1-15

SSS0290

4. Position the lap belt portion low and snug

on the hips as shown.

5. Pull the shoulder belt portion toward the

retractor to take up extra slack. Be sure the
shoulder belt is routed over your shoulder
and across your chest.

of movement in the seat. The ELR locks the seat
belt when the vehicle slows down rapidly or
during certain impacts.

The Automatic Locking Retractor (ALR) mode
(child restraint mode) locks the seat belt for
child restraint installation.

WARNING

When fastening the seat belts, be
certain that seatbacks are completely
secured in the latched position. If they
are not completely secured, passengers
may be injured in an accident or sudden
stop.

SSS0326

Unfastening the seat belts

To unfasten the seat belt, push the button on the
buckle. The seat belt automatically retracts.

Safety — Seats, seat belts and supplemental restraint system

1-15

1-16

Safety — Seats, seat belts and supplemental restraint system

SSS0987

Rear seat belt buckles

The rear seat belt buckles can be stowed by
pushing the buckles into the pockets of the seat
cushion when the rear seatback is folded. The
buckles should only be stowed when the seat-
back is folded. At all other times the seat belt
buckles must be pulled out of the pockets in the
unstowed position.

WARNING

Do not use the rear seat belts when the
buckles are stowed in the seat pockets.
Failure to do so may reduce the effec-

tiveness of the entire restraint system
and increase the chance or severity of
injury in an accident.

Checking seat belt operation

Seat belt retractors are designed to lock seat
belt movement by two separate methods:
. When the belt is pulled quickly from the

retractor.

. When the vehicle slows down rapidly.
To increase your confidence in the seat belts,
check the operation as follows:
. Grasp the shoulder belt and pull forward

quickly. The retractor should lock and
restrict further belt movement.

If the retractor does not lock during this check or
if you have any question about seat belt
operation, see a NISSAN dealer.

SSS0351A

Shoulder belt height adjustment (for front
seats)

The shoulder belt anchor height should be
adjusted to the position best for you. (See
“Precautions on seat belt usage” (P.1-11).)

To adjust, pull the adjustment button

, and

then move the shoulder belt anchor to the
desired position

, so that the belt passes

over the center of the shoulder. The belt should
be away from your face and neck, but not falling
off of your shoulder. Release the adjustment
button to lock the shoulder belt anchor into
position.

1-16

Safety — Seats, seat belts and supplemental restraint system

SSS0987

Rear seat belt buckles

WARNING

Do not use the rear seat belts when the
buckles are stowed in the seat pockets.
Failure to do so may reduce the effec-

tiveness of the entire restraint system
and increase the chance or severity of
injury in an accident.

Checking seat belt operation

Seat belt retractors are designed to lock seat
belt movement by two separate methods:
. When the belt is pulled quickly from the

retractor.

. When the vehicle slows down rapidly.
To increase your confidence in the seat belts,
check the operation as follows:
. Grasp the shoulder belt and pull forward

quickly. The retractor should lock and
restrict further belt movement.

If the retractor does not lock during this check or
if you have any question about seat belt
operation, see a NISSAN dealer.

SSS0351A

Shoulder belt height adjustment (for front
seats)

The shoulder belt anchor height should be
adjusted to the position best for you. (See
“Precautions on seat belt usage” (P.1-11).)

To adjust, pull the adjustment button

, and

then move the shoulder belt anchor to the
desired position

, so that the belt passes

over the center of the shoulder. The belt should
be away from your face and neck, but not falling
off of your shoulder. Release the adjustment
button to lock the shoulder belt anchor into
position.

WARNING

. After adjustment, release the ad-

justment button and try to move the
shoulder belt anchor up and down
to make sure it is securely fixed in
position.

. The shoulder belt anchor height

should be adjusted to the position
best for you. Failure to do so may
reduce the effectiveness of the
entire restraint system and increase
the chance or severity of injury in an
accident.

SSS0964

Seat belt hooks

When the rear seat belts are not in use and
when folding down the rear seats, hook the rear
outer seat belts on the seat belt hooks.

The hook for the rear center seat belt is located
on the left wall behind the rear seat. (See “Rear
center seat belt” (P.1-17) for details.)

SSS0391

Rear center seat belt

The rear center seat belt has a connector tongue

and a seat belt tongue

. Both the

connector tongue and the seat belt tongue must
be securely latched for proper seat belt opera-
tion.

Safety — Seats, seat belts and supplemental restraint system

1-17

WARNING

. After adjustment, release the ad-

justment button and try to move the
shoulder belt anchor up and down
to make sure it is securely fixed in
position.

. The shoulder belt anchor height

should be adjusted to the position
best for you. Failure to do so may
reduce the effectiveness of the
entire restraint system and increase
the chance or severity of injury in an
accident.

SSS0964

Seat belt hooks

When the rear seat belts are not in use and
when folding down the rear seats, hook the rear
outer seat belts on the seat belt hooks.

The hook for the rear center seat belt is located
on the left wall behind the rear seat. (See “Rear
center seat belt” (P.1-17) for details.)

SSS0391

Rear center seat belt

The rear center seat belt has a connector tongue

and a seat belt tongue

. Both the

connector tongue and the seat belt tongue must
be securely latched for proper seat belt opera-
tion.

Safety — Seats, seat belts and supplemental restraint system

1-17

Nissan Cube (2014 year). Instruction - part 2
