Nissan Altima (2018 year). Instruction - part 11

The Remote Engine Start operating range
is approximately 197 ft (60 m) from the ve-
hicle.

REMOTE STARTING THE VEHICLE

To use the Remote Engine Start feature to
start the engine perform the following:

1. Aim the Intelligent Key at the vehicle.

2. Press the

button to lock all

doors.

3. Within 5 seconds press and hold

the

button until the turn signal

lights flash and the tail lamps turn on. If
the vehicle is not within view press and
hold the

button for at least 2 sec-

onds.

The following events will occur when the
engine starts:

∙ The parking lights will turn on and remain

on as long as the engine is running.

∙ The doors will be locked and the climate

control system may come on.

∙ The engine will continue to run for

10 minutes. Repeat the steps to extend
the time for an additional 10 minutes.
For additional information, refer to “Ex-
tending engine run time” in this section.

Depress and hold the brake then push the
push-button ignition switch to the ON po-
sition before driving. For additional infor-
mation, refer to “Driving the vehicle” in the
“Starting

and

driving”

section

this

manual.

EXTENDING ENGINE RUN TIME

The Remote Engine Start feature can be
extended one time by performing the
steps listed in “Remote starting the vehicle”
in this section. Run time will be calculated
as follows:

∙ The first 10 minute run time will start

when the Remote Engine Start function
is performed.

∙ The second 10 minutes will start imme-

diately when the Remote Engine Start
function is performed again. For ex-
ample, if the engine has been running
for 5 minutes, and 10 minutes are
added, the engine will run for a total of
15 minutes.

∙ Extending engine run time will count to-

wards the two Remote Engine Start
limit.

A maximum of two Remote Engine Starts,
or a single Remote Engine Start with an
extension, are allowed between ignition
cycles. The ignition switch must be cycled
to the ON position and then back to the
OFF position before the Remote Engine
Start procedure can be used again.

CANCELING A REMOTE ENGINE
START

To cancel a Remote Engine Start, perform
one of the following:

∙ Aim the Intelligent Key at the vehicle

and press

until the parking lights

turn off.

∙ Turn on the hazard warning flashers.

∙ Cycle the ignition switch ON and then

OFF.

∙ The extended engine run time has ex-

pired.

∙ The first 10 minute timer has expired.

∙ The engine hood has been opened.

∙ The shift lever is moved out of park.

∙ The alarm sounds due to illegal entry

into the vehicle.

Pre-driving checks and adjustments

3-21

∙ The ignition switch is pushed without

an Intelligent Key in the vehicle.

∙ The ignition switch is pushed with an

Intelligent Key in the vehicle but the
brake pedal is not depressed.

CONDITIONS THE REMOTE ENGINE
START WILL NOT WORK

The Remote Engine Start will not operate if
any of the following conditions are present:

∙ The ignition switch is placed in the ON

position.

∙ The hood is not securely closed.

∙ The hazard indicator lights are on.

∙ The engine is still running. The engine

must be completely stopped. Wait at
least 6 seconds if the engine goes from
running to off. This is not applicable
when extending engine run time.

∙ The

button is not pressed and

held for at least 2 seconds.

∙ The

button is not pressed and

held within 5 seconds of pressing the
lock button.

∙ The brake is pressed.

∙ The doors are not closed and locked.

∙ The trunk or back door is open.

∙ The I–Key Indicator Light remains solid

in the vehicle information display.

∙ The alarm sounds due to illegal entry

into the vehicle.

∙ Two Remote Engine Starts, or a single

Remote Engine Start with an extension,
have already been used.

∙ The vehicle is not in P (Park).

∙ There is a detected registered key al-

ready inside of the vehicle.

∙ The Remote Engine Start function has

been switched to the OFF position in
Vehicle Settings of the vehicle informa-
tion display. For additional information,
refer to “Vehicle information display” in
the “Instruments and controls” section
of this manual.

The Remote Engine Start may display a
warning or indicator in the vehicle informa-
tion display. For additional information, re-
fer to “Vehicle information display” in the
“Instruments and controls” section of this
manual.

3-22

Pre-driving checks and adjustments

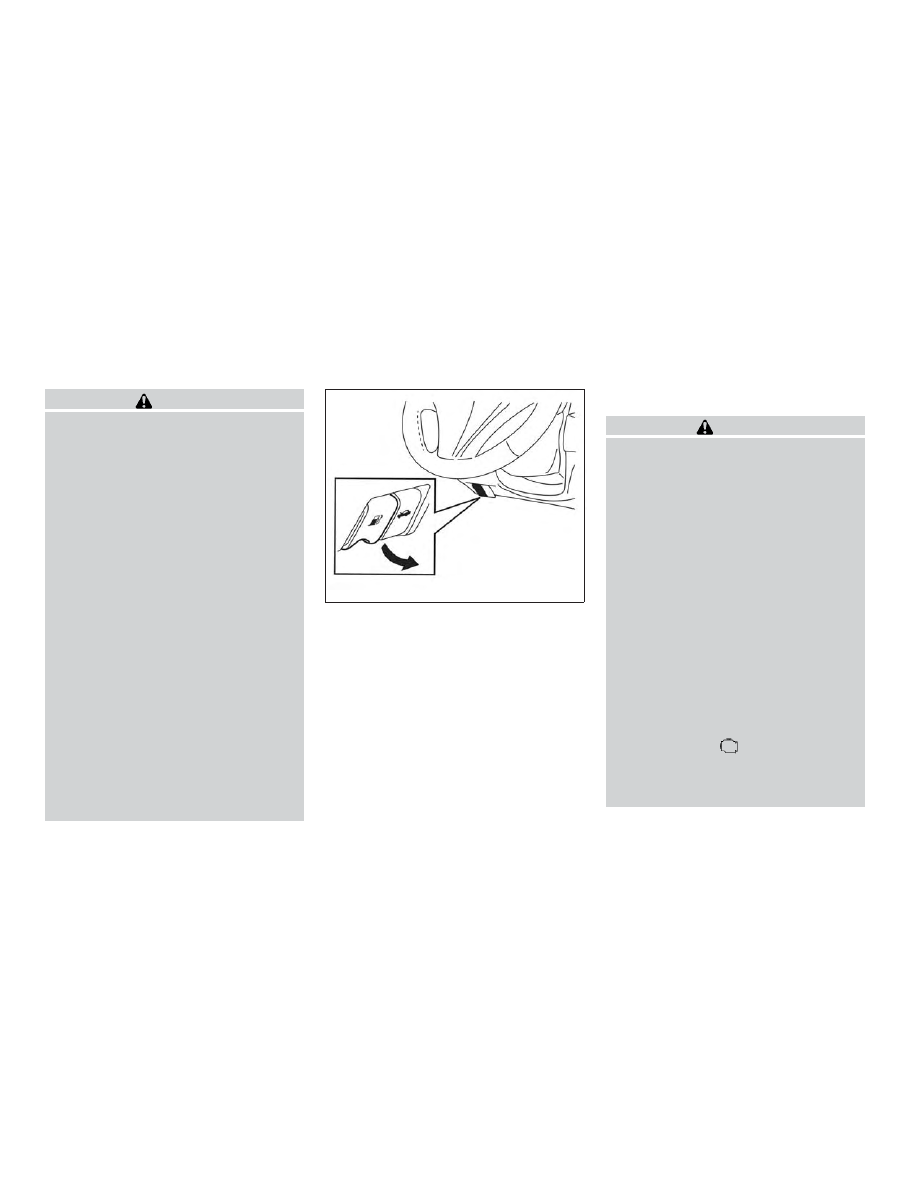

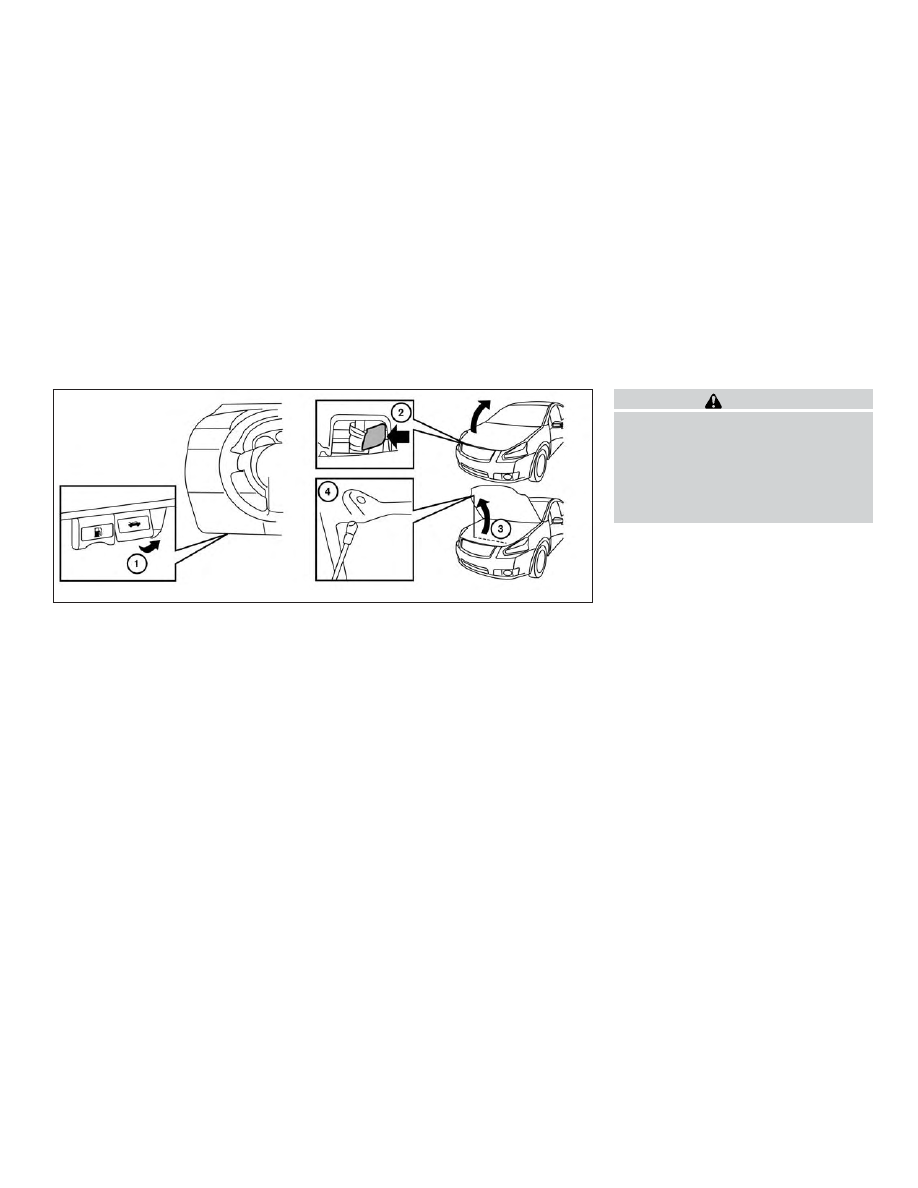

1. Pull the hood lock release handle

䊊

located below the driver’s side instru-
ment panel; the hood springs up
slightly.

2. To open the hood, push the lever

䊊

underneath the front of the hood to the
side with your fingertips as illustrated
and raise the hood.

3. Remove the support rod from the

clamp

䊊

4. Insert the support rod

䊊

into the slot

on the passenger side of the hood.

5. When closing the hood, return the sup-

port rod to its original position, lower
the hood to approximately 12 in (30 cm)
above the latch and release it. This al-
lows proper engagement of the hood
latch.

WARNING

∙ Make sure the hood is completely

closed and latched before driving. The
vehicle should only ever be operated
with the hood securely closed.

∙ If you see steam or smoke coming

from the engine compartment, to
avoid injury do not open the hood.

LPD2220

HOOD

Pre-driving checks and adjustments

3-23

OPENER OPERATION

WARNING

∙ Do not drive with the trunk lid open.

This could allow dangerous exhaust
gases to be drawn into the vehicle. For
additional information, refer to “Ex-
haust gas (carbon monoxide)” in the
“Starting and driving” section of the
manual.

∙ Closely supervise children when they

are around cars to prevent them from
playing and becoming locked in the
trunk where they could be seriously
injured. Keep the car locked, with the
rear seatback and trunk lid securely
latched when not in use, and prevent
children’s access to car keys.

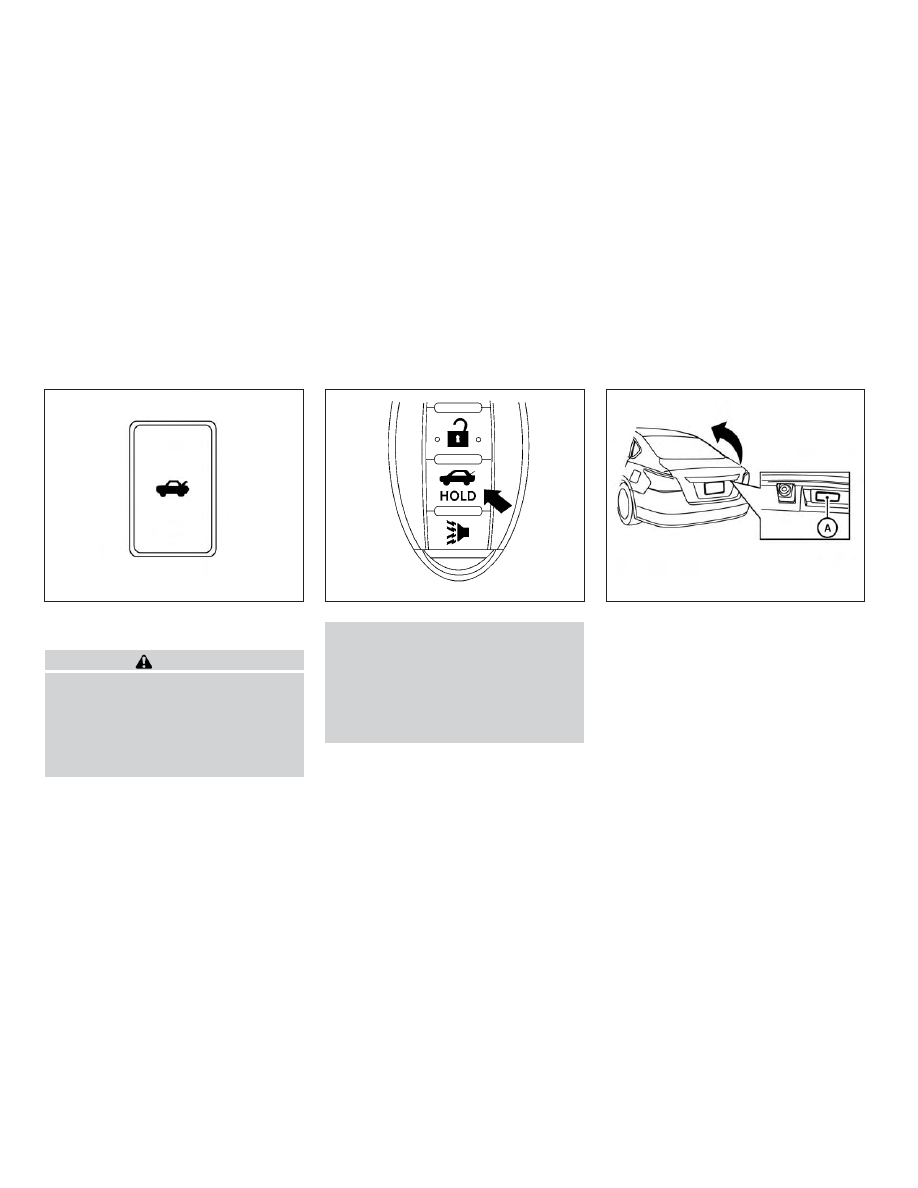

To open the trunk lid perform one of the
following after unlocking all doors:

∙ Press the button on the instrument

panel.

∙ Press the button on the Intelligent Key.

∙ Push the

䊊

release switch.

To close the trunk lid, lower and push the
trunk lid down securely.

Instrument panel

LPD2080

Intelligent Key

WPD0364

Request switch

LPD2077

TRUNK LID

3-24

Pre-driving checks and adjustments

NOTE:

Request switches for all doors and trunk
can be deactivated when the I-Key Door
Lock setting is switched to OFF in the
Vehicle Settings of the vehicle informa-
tion display. For additional information,
refer to “Vehicle information display” in
the “Instruments and controls” section
of the manual.

INTERIOR TRUNK LID RELEASE

WARNING

Closely supervise children when they
are around cars to prevent them from
playing and becoming locked in the
trunk where they could be seriously in-
jured. Keep the car locked, with the rear
seatback and trunk lid securely latched
when not in use, and prevent children’s
access to car keys.

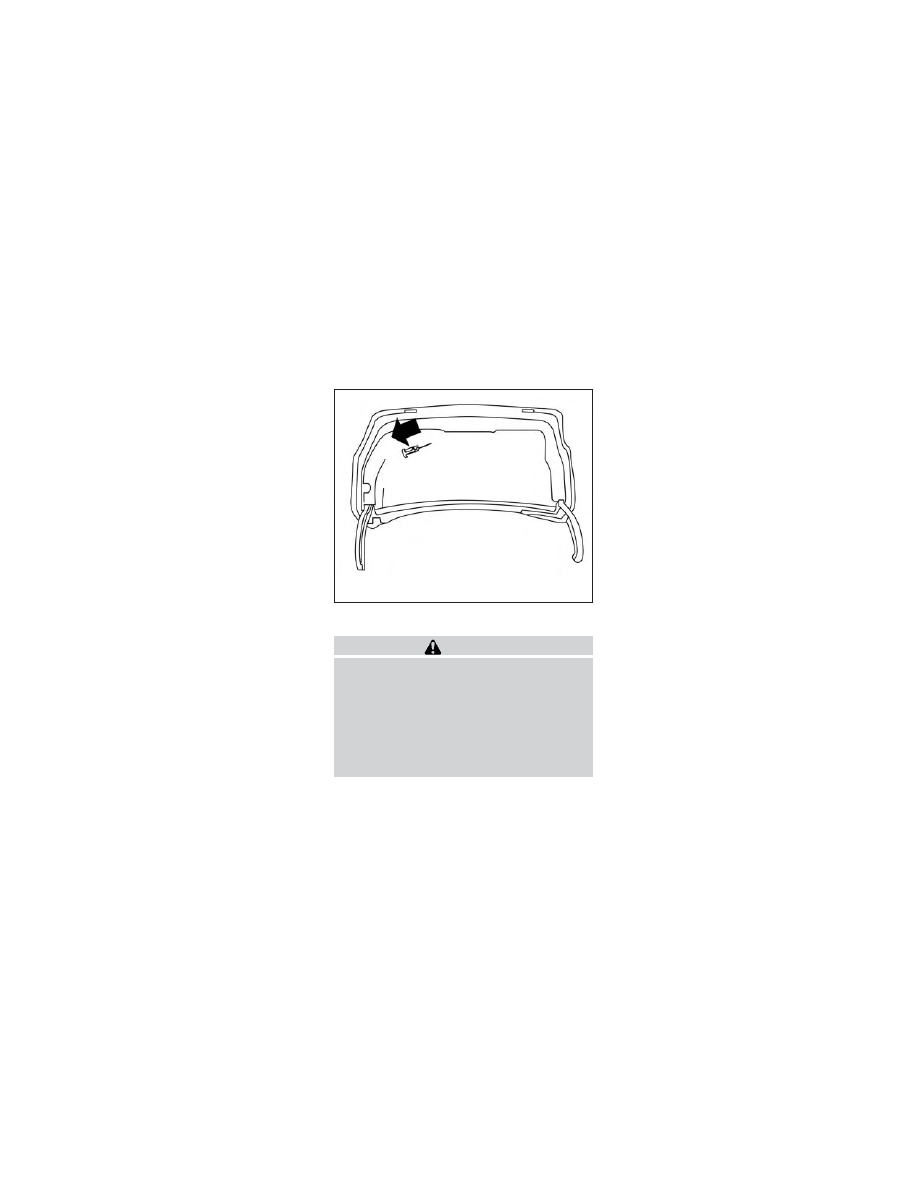

The interior trunk lid release mechanism
provides a means of escape for children
and adults in the event they become
locked inside the trunk.

To open the trunk from the inside, pull the
illuminated release handle until the lock re-
leases and push up on the trunk lid. The
release handle is made of a material that
glows in the dark after a brief exposure to
ambient light.

The handle is located inside the trunk com-
partment on the interior of the trunk lid.

INTERIOR TRUNK ACCESS

The trunk can be accessed from the pas-
senger side of the rear seat.

1. Move the front passenger seat to the

most forward position.

2. Open the access cover on the rear par-

cel shelf.

3. Push down on the button on the rear

parcel shelf.

4. Fold down the passenger’s side seat-

back.

LPD2081

Pre-driving checks and adjustments

3-25

WARNING

∙ Never allow anyone to ride in the

cargo area or on the rear seat when it
is in the fold-down position. Use of
these areas by passengers without
proper restraints could result in seri-
ous injury or death in an accident or
sudden stop.

∙ Properly secure all cargo with ropes or

straps to help prevent it from sliding
or shifting. Do not place cargo higher
than the seatbacks. In a sudden stop
or collision, unsecured cargo could
cause personal injury.

∙ When returning the seatbacks to the

upright position, be certain they are
completely secured in the latched po-
sition. If they are not completely se-
cured, passengers may be injured in
an accident or sudden stop.

∙ Closely supervise children when they

OPENER OPERATION

The fuel-filler door release is located below
the instrument panel. To open the fuel-filler
door, pull the release. To lock, close the fuel-
filler door securely.

FUEL-FILLER CAP

WARNING

∙ Gasoline is extremely flammable and

highly explosive under certain condi-
tions. You could be burned or seri-
ously injured if it is misused or mis-
handled. Always stop the engine and
do not smoke or allow open flames or
sparks

near

the

vehicle

when

refueling.

∙ Do not attempt to top off the fuel tank

after the fuel pump nozzle shuts off
automatically.

Continued

refueling

may cause fuel overflow, resulting in
fuel spray and possibly a fire.

∙ Use only an original equipment type

fuel-filler cap as a replacement. It has
a built-in safety valve needed for
proper operation of the fuel system
and emission control system. An in-
correct cap can result in a serious mal-
function and possible injury. It could
also cause the

Malfunction Indi-

cator Light (MIL) to come on.

∙ Never pour fuel into the throttle body

to attempt to start your vehicle.

LPD2578

FUEL-FILLER DOOR

3-26

Pre-driving checks and adjustments

∙ Do not fill a portable fuel container in

the vehicle or trailer. Static electricity
can cause an explosion of flammable
liquid, vapor or gas in any vehicle or
trailer. To reduce the risk of serious
injury or death when filling portable
fuel containers:

– Always place the container on the

ground when filling.

– Do not use electronic devices when

filling.

– Keep the pump nozzle in contact

with the container while you are
filling it.

– Use only approved portable fuel

containers for flammable liquid.

CAUTION

∙ Do not use a fuel that contains more

than 15% ethanol in your vehicle. For
additional information, refer to “Fuel
recommendation” in the “Technical
and consumer information” section of
this manual.

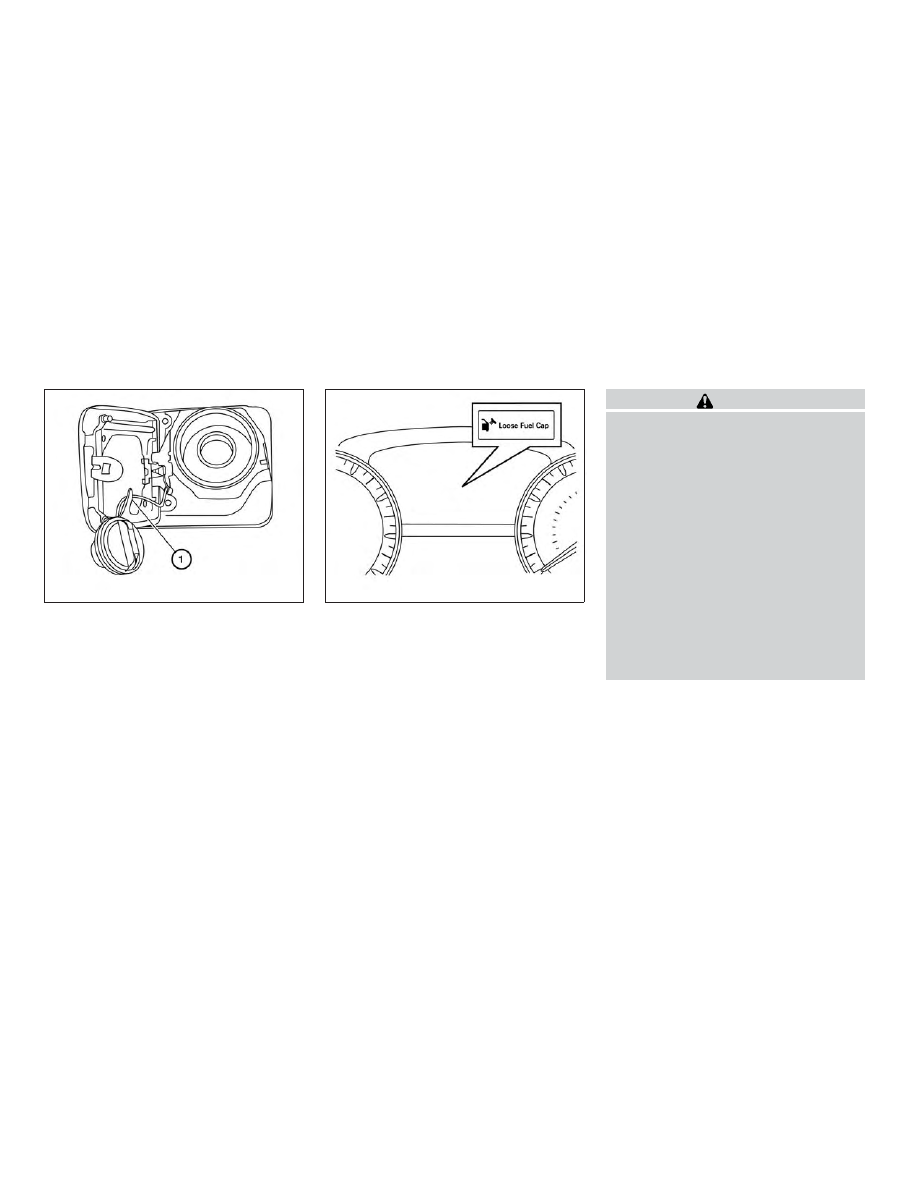

∙ The Loose Fuel Cap warning message

will be displayed/warning will appear
if the fuel-filler cap is not properly
tightened. It may take a few driving
trips for the message to be displayed.
Failure to tighten the fuel-filler cap
properly after the Loose Fuel Cap
warning

message

displayed/warning

appears

may

cause the

Malfunction Indicator

Light (MIL) to illuminate.

∙ Failure to tighten the fuel-filler cap

properly may cause the

Mal-

function Indicator Light (MIL) to illumi-
nate. If the

light illuminates be-

cause the fuel-filler cap is loose or
missing, tighten or install the cap and
continue

drive

the

vehicle.

The

light should turn off after a

few driving trips. If the

light does

not turn off after a few driving trips,
have the vehicle inspected. It is rec-
ommended that you visit a NISSAN
dealer for this service.

∙ For additional information, refer to

“Malfunction Indicator Light (MIL)” in
the “Instruments and controls” sec-
tion of this manual.

∙ If fuel is spilled on the vehicle body,

flush it away with water to avoid paint
damage.

NOTE:

Changing ignition switch status during
the refueling process may cause a delay
in fuel gauge response.

Pre-driving checks and adjustments

3-27

To remove the fuel-filler cap:

1. Turn the fuel-filler cap counterclock-

wise to remove.

2. Put the fuel-filler cap on the cap holder

䊊

while refueling.

To install the fuel-filler cap:

1. Insert the fuel-filler cap straight into the

fuel-filler tube.

2. Turn the fuel-filler cap clockwise until a

single click is heard.

Loose Fuel Cap warning

The Loose Fuel Cap warning appears in the
vehicle information display when the fuel-
filler cap is not tightened correctly after the
vehicle has been refueled. It may take a few
driving trips for the message to be dis-
played. To turn off the warning, perform the
following:

1. Remove and install the fuel-filler cap as

soon as possible. For additional infor-
mation, refer to “Fuel-filler cap” in this
section.

2. Tighten the fuel-filler cap until it clicks.

WARNING

∙ Do not adjust the steering wheel while

driving. You could lose control of your
vehicle and cause an accident.

∙ Do not adjust the steering wheel any

closer to you than is necessary for
proper steering operation and com-
fort. The driver’s air bag inflates with
great force. If you are unrestrained,
leaning forward, sitting sideways or
out of position in any way, you are at
greater risk of injury or death in a
crash. You may also receive serious or
fatal injuries from the air bag if you
are up against it when it inflates. Al-
ways sit back against the seatback
and as far away as practical from the
steering wheel. Always use the seat
belts.

LPD2082

LPD2619

STEERING WHEEL

3-28

Pre-driving checks and adjustments

TILT OPERATION

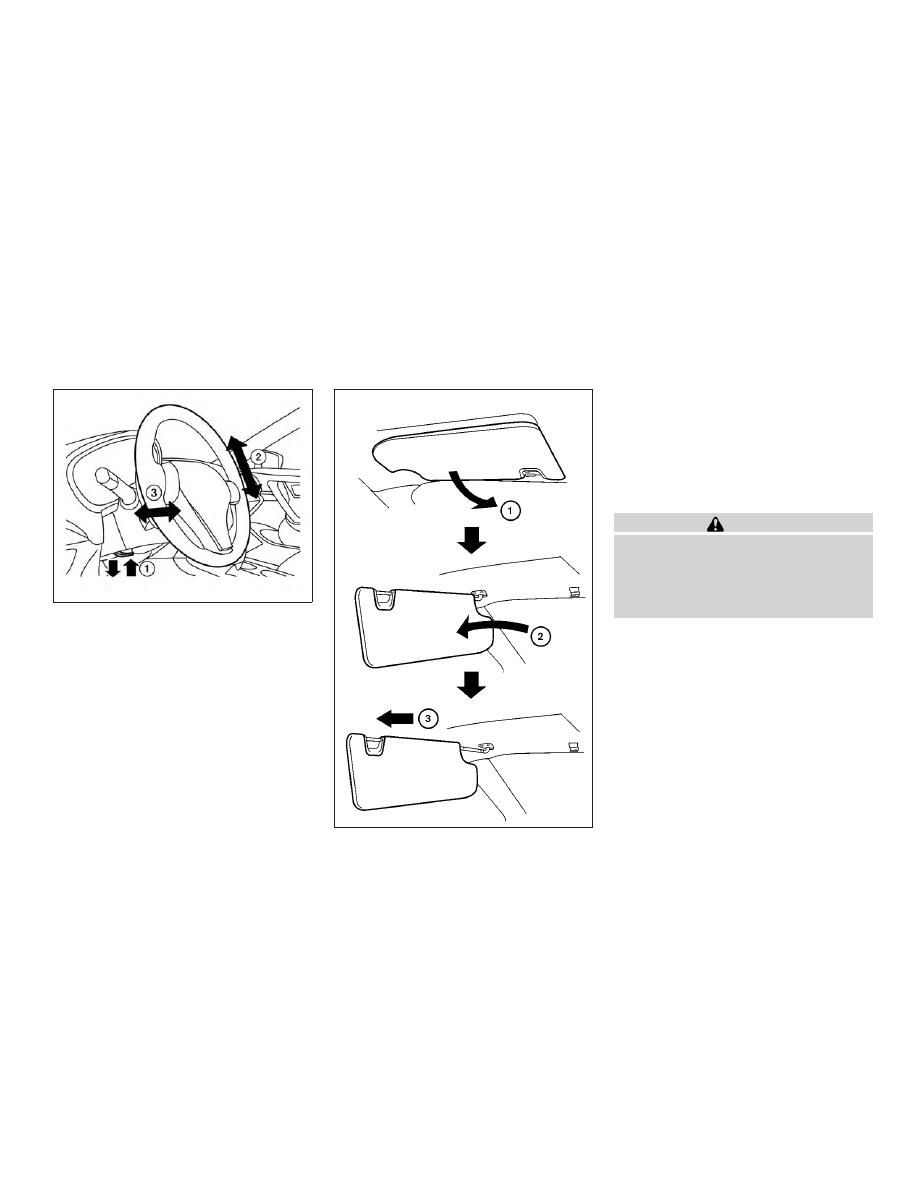

Pull the lock lever down

䊊

and adjust the

steering wheel up or down

䊊

to the de-

sired position.

Push the lock lever up

䊊

firmly to lock the

steering wheel in place.

TELESCOPIC OPERATION

Pull the lock lever down

䊊

and adjust the

steering wheel forward or backward

䊊

the desired position.

Push the lock lever up

䊊

firmly to lock the

steering wheel in place.

1. To block glare from the front, swing

down the main sun visor

䊊

2. To block glare from the side, remove

the main sun visor

䊊

from the center

mount and swing the visor to the side.

3. To extend the sun visor, slide in or out

as needed

䊊

CAUTION

∙ Do not store the sun visor before re-

turning the extension to its original
position.

∙ Do not pull the extension sun visor

forcedly downward.

LPD2100

WPD0344

SUN VISORS

Pre-driving checks and adjustments

3-29

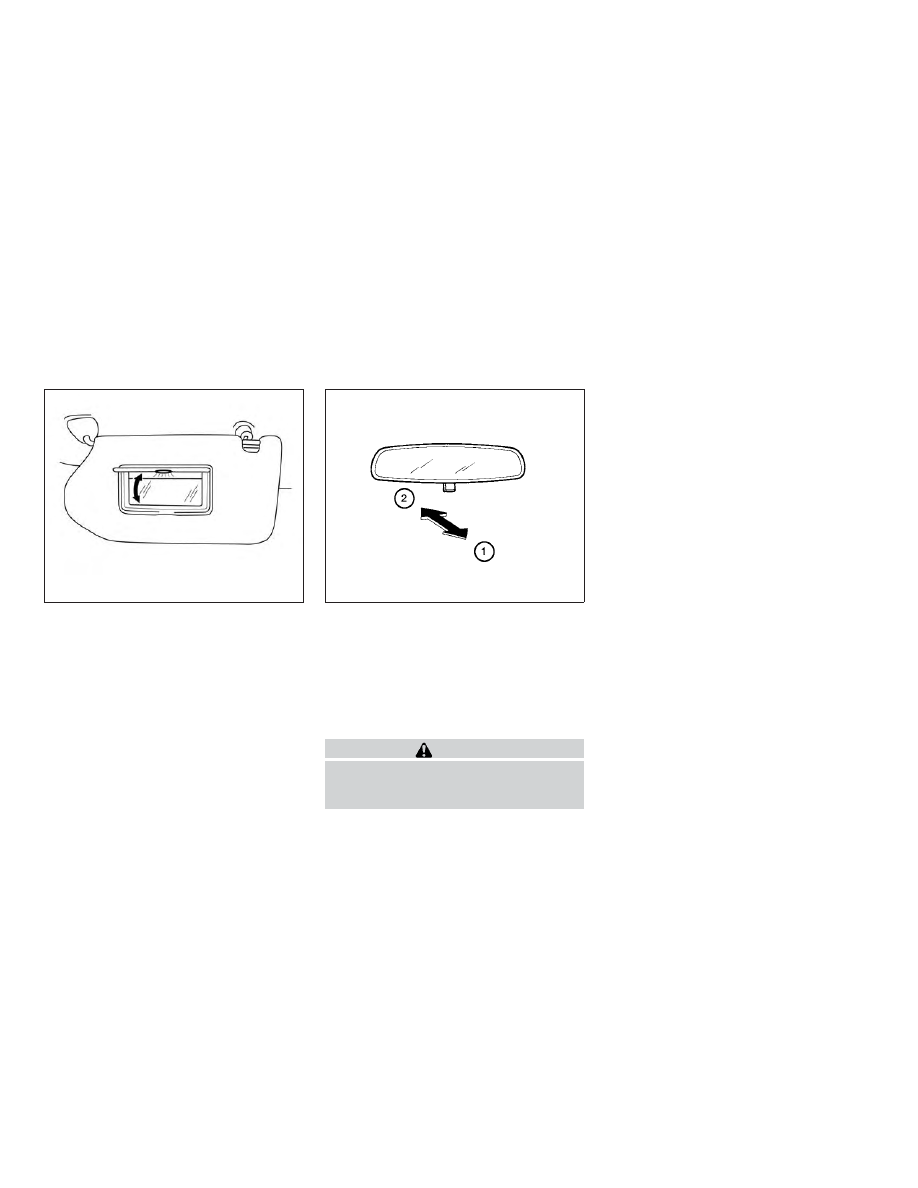

VANITY MIRRORS

To access the vanity mirror, pull the sun
visor down and flip open the mirror cover.
Some vanity mirrors are illuminated and
turn on when the mirror cover is open.

MANUAL ANTI-GLARE REARVIEW
MIRROR (if so equipped)

Use the night position

䊊

to reduce glare

from the headlights of vehicles behind you
at night.

Use the day position

䊊

when driving in

daylight hours.

WARNING

Use the night position only when neces-
sary, because it reduces rear view
clarity.

AUTOMATIC ANTI-GLARE
REARVIEW MIRROR (if so equipped)

The inside mirror is designed so that it au-
tomatically dims during night time condi-
tions and according to the intensity of the
headlights of the vehicle following you. The
automatic anti-glare feature is activated
when the ignition switch is in the ON posi-
tion.

The indicator light

䊊

will illuminate when

the automatic anti-glare feature is operat-
ing.

NOTE:

Do not hang any objects over the sen-
sors

䊊

or apply glass cleaner to the sen-

sors. Doing so will reduce the sensitivity
of the sensors, resulting in improper op-
eration.

LPD2589

WPD0126

MIRRORS

3-30

Pre-driving checks and adjustments

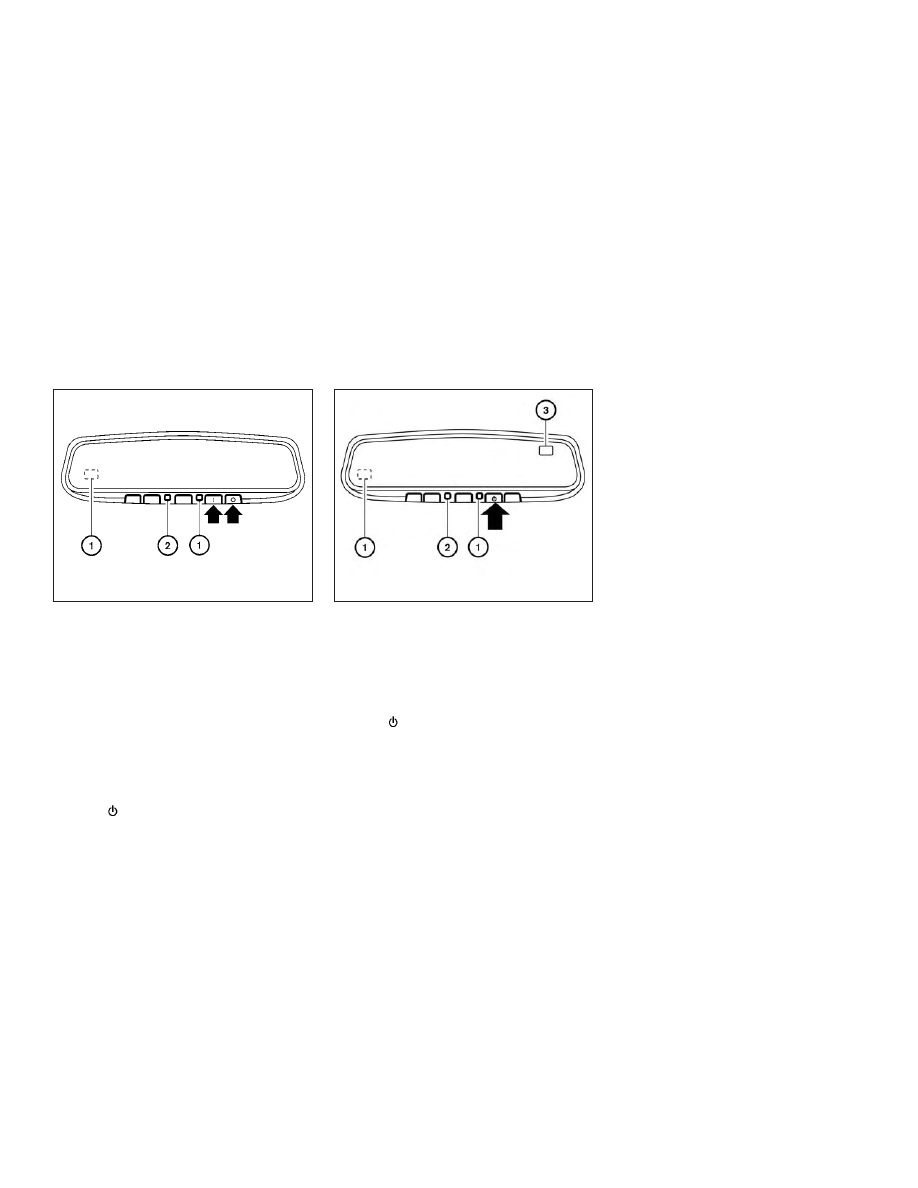

Type A (if so equipped) and Type B
(if so equipped)

The indicator light

䊊

will illuminate when

the automatic anti-glare feature is operat-
ing.

To turn off the automatic anti-glare feature,
press:

∙ The

button for inside mirrors with-

out compass.

∙ The

button for inside mirrors with

compass.

The indicator light will turn off.

To turn on the automatic anti-glare feature
again, press:

∙ The

button for inside mirrors with-

out compass.

∙ The

button for inside mirrors with

compass.

The indicator light will turn on.

For additional information on HomeLink®
Universal

Transceiver

operation

(if

equipped), refer to the “HomeLink® Univer-
sal Transceiver” in the “Instruments and
controls” section of this manual.

For additional information on the compass
display

䊊

(if so equipped), refer to “Com-

pass display” in the “Instruments and con-
trols” section of this manual.

Type A - Without compass

(if so equipped)

LPD0469

Type B - With compass (if so equipped)

LPD2419

Pre-driving checks and adjustments

3-31

OUTSIDE MIRRORS

WARNING

∙ Do not adjust the mirrors while driv-

ing. You could lose control of your ve-
hicle and cause an accident.

∙ Objects viewed in the outside mirror

on the passenger side are closer than
they appear. Be careful when moving
to the right. Using only this mirror
could cause an accident. Use the in-
side mirror or glance over your shoul-
der to properly judge distances to
other objects.

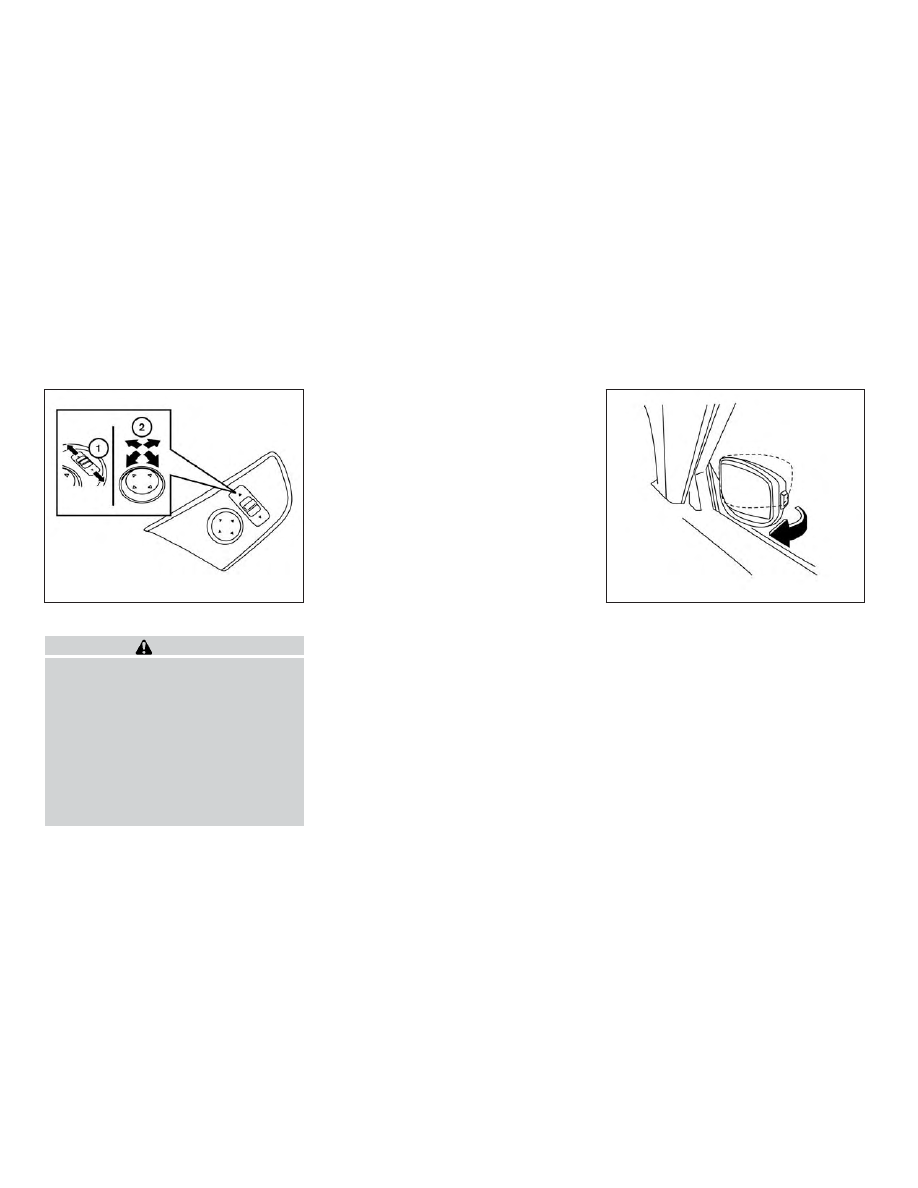

The outside mirror remote control only op-
erates when the ignition switch is placed in
the ACC or ON position.

Move the small switch

䊊

to select the right

or left mirror. Adjust each mirror to the de-
sired position using the large switch

䊊

Move the small switch

䊊

to the center

(neutral) position to prevent accidentally
moving the mirror.

Manual folding outside mirrors (if
so equipped)

Pull the outside mirror toward the door to
fold it.

Heated mirrors (if so equipped)

Some outside mirrors can be heated to
defrost, defog, or de-ice for improved vis-
ibility. For additional information, refer to
“Rear window and outside mirror (if so
equipped) defroster switch” in the “Instru-
ments and controls” section of this manual.

LPD2452

LPD2084

3-32

Pre-driving checks and adjustments

MEMO

Pre-driving checks and adjustments

3-33

4 Monitor, climate, audio, phone and
voice recognition systems

NissanConnect® Owner’s Manual . . . . . . . . . . . . . . . . 4-2
RearView Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3
