Nissan Altima Coupe (2013 year). Instruction

TIRE AND LOADING INFORMATION
LABEL

The cold tire pressure is shown on the Tire and
Loading Information label. The label is located as
shown.

AIR CONDITIONER SPECIFICATION
LABEL

The air conditioner specification label is affixed to
the underside of the hood as shown.

To mount the front license plate, attach the li-
cense plate bracket

䊊

to the plastic finisher at

the location marks (small dimples) using the two
6 mm screws provided.

LTI0225

WTI0178

LTI2013

INSTALLING FRONT LICENSE PLATE

Technical and consumer information

9-11

WARNING

● It is extremely dangerous to ride

in a cargo area inside a vehicle. In
a collision, people riding in these
areas are more likely to be seri-
ously injured or killed.

● Do not allow people to ride in any

area of your vehicle that is not
equipped with seats and seat
belts.

● Be sure everyone in your vehicle

is in a seat and using a seat belt
properly.

TERMS

It is important to familiarize yourself with
the following terms before loading your
vehicle:

● Curb Weight (actual weight of your

vehicle) - vehicle weight including:
standard and optional equipment, flu-
ids, emergency tools, and spare tire
assembly. This weight does not in-
clude passengers and cargo.

● GVW (Gross Vehicle Weight) - curb

weight plus the combined weight of
passengers and cargo.

● GVWR (Gross Vehicle Weight Rat-

ing) - maximum total combined
weight of the unloaded vehicle, pas-
sengers,

luggage,

hitch,

trailer

tongue load and any other optional
equipment. This information is lo-
cated on the F.M.V.S.S./C.M.V.S.S.
certification label.

● GAWR (Gross Axle Weight Rating) -

maximum weight (load) limit specified
for the front or rear axle. This informa-
tion

located

the

F.M.V.S.S./C.M.V.S.S.

certification

label.

● GCWR (Gross Combined Weight

rating) - The maximum total weight
rating of the vehicle, passengers,
cargo, and trailer.

● Vehicle Capacity Weight, Load limit,

Total load capacity - maximum total
weight limit specified of the load
(passengers and cargo) for the ve-
hicle. This is the maximum combined
weight of occupants and cargo that
can be loaded into the vehicle. If the
vehicle is used to tow a trailer, the
trailer tongue weight must be in-
cluded as part of the cargo load. This
information is located on the Tire and
Loading Information label.

● Cargo capacity - permissible weight

of cargo, the subtracted weight of
occupants from the load limit.

VEHICLE LOADING INFORMATION

9-12

Technical and consumer information

Steps for determining correct load
limit

1. Locate the statement “The combined

weight of occupants and cargo
should never exceed XXX lbs or XXX
kg” on your vehicle’s placard.

2. Determine the combined weight of

the driver and passengers that will be
riding in your vehicle.

3. Subtract the combined weight of the

driver and passengers from XXX lbs
or XXX kg.

4. The resulting figure equals the avail-

able amount of cargo and luggage
load capacity. For example, if the
XXX amount equals 1,400 lbs. and
there will be five 150 lb. passengers
in your vehicle, the amount of avail-
able cargo and luggage load capac-
ity is 650 lbs. (1,400-750 (5 X 150)
= 650 lbs) or (640-340 (5 X 70) =
300 kg.)

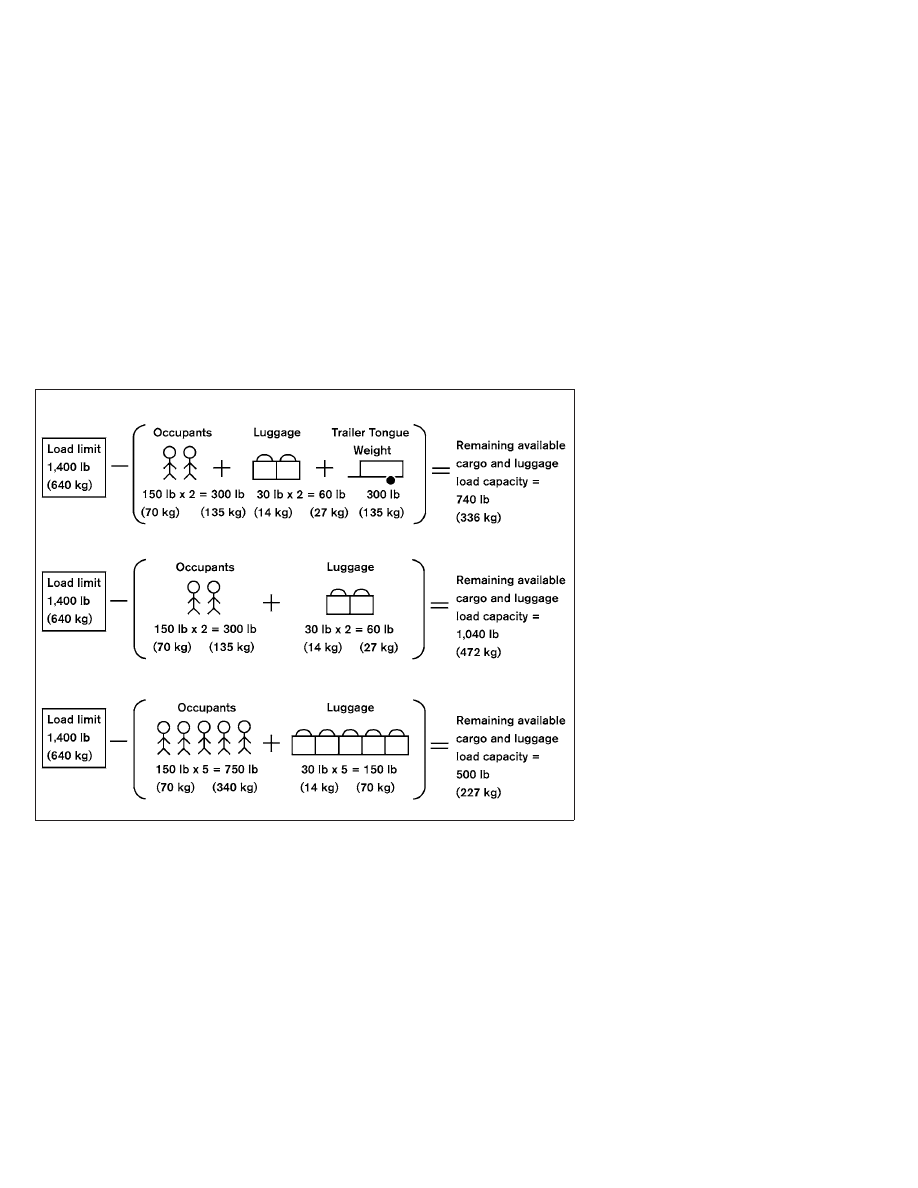

Example

LTI0152

9-14

Technical and consumer information

5. Determine the combined weight of

luggage and cargo being loaded on
the vehicle. That weight may not
safely exceed the available cargo and
luggage load capacity calculated in
Step 4.

6. If your vehicle will be towing a trailer,

load from your trailer will be trans-
ferred to your vehicle. Consult this
manual to determine how this re-
duces the available cargo and lug-
gage load capacity of your vehicle.

Before driving a loaded vehicle, confirm
that you do not exceed the Gross Vehicle
Weight Rating (GVWR) or the Gross Axle
Weight Rating (GAWR) for your vehicle.
See “Measurement of weights” later in
this section.

Also check tires for proper inflation pres-
sures. See the Tire and Loading Informa-
tion label.

LOADING TIPS

● The GVW must not exceed GVWR

or GAWR as specified on the
F.M.V.S.S./C.M.V.S.S.

certification

label.

● Do not load the front and rear axle to

the GAWR. Doing so will exceed the
GVWR.

WARNING

● Properly secure all cargo with

ropes or straps to help prevent it
from sliding or shifting. Do not
place cargo higher than the seat-
backs. In a sudden stop or colli-
sion,

unsecured

cargo

could

cause personal injury.

● Do not load your vehicle any

heavier than the GVWR or the
maximum front and rear GAWRs.
If you do, parts of your vehicle
can break, tire damage could oc-
cur, or it can change the way your
vehicle handles. This could result
in loss of control and cause per-
sonal injury.

● Overloading not only can shorten

the life of your vehicle and the
tire, but can also cause unsafe
vehicle handling and longer brak-
ing distances. This may cause a
premature

tire

failure

which

could result in a serious accident
and

personal

injury.

Failures

caused by overloading are not
covered

the

vehicle’s

warranty.

MEASUREMENT OF WEIGHTS

Secure loose items to prevent weight
shifts that could affect the balance of your
vehicle. When the vehicle is loaded, drive
to a scale and weigh the front and the rear
wheels separately to determine axle
loads. Individual axle loads should not ex-
ceed either of the gross axle weight rat-
ings (GAWR). The total of the axle loads
should not exceed the gross vehicle
weight rating (GVWR). These ratings are
given on the vehicle certification label. If
weight ratings are exceeded, move or re-
move items to bring all weights below the
ratings.

Technical and consumer information

9-15

WARNING

Overloading or improper loading of a
trailer and its cargo can adversely affect
vehicle handling, braking and perfor-
mance and may lead to accidents.

CAUTION

● Do not tow a trailer or haul a heavy load

for the first 500 miles (800 km). Your
engine, axle or other parts could be
damaged.

● For the first 500 miles (800 km) that you

tow a trailer, do not drive over 50 mph
(80 km/h) and do not make starts at full
throttle. This helps the engine and other
parts of your vehicle wear in at the
heavier loads.

Your new vehicle was designed to be used pri-
marily to carry passengers and cargo. Remember
that towing a trailer places additional loads on
your vehicle’s engine, drive train, steering, brak-
ing and other systems.

A NISSAN Towing Guide (U.S. only) is available
on the website at www.nissanusa.com. This
guide includes information on trailer towing ca-
pability and the special equipment required for
proper towing.

MAXIMUM LOAD LIMITS
Maximum trailer loads

Never allow the total trailer load to exceed the
value

specified

the

“Towing

Load/Specification” chart found later in this sec-
tion. The total trailer load equals trailer weight
plus its cargo weight.

● When towing a trailer load of 1,000 lbs.

(454 kg) or more, trailers with a brake
system must be used.

The Gross Combined Weight Rating (GCWR)
equals the combined weight of the towing vehicle
(including passengers and cargo) plus the total
trailer load. Towing loads greater than these or
using improper towing equipment could ad-
versely affect vehicle handling, braking and per-
formance.

The ability of your vehicle to tow a trailer is not
only related to the maximum trailer loads, but also
the places you plan to tow. Tow weights appro-
priate for level highway driving may have to be
reduced for low traction situations (for example,
on slippery boat ramps).

LTI0164

TOWING A TRAILER

9-16

Technical and consumer information

Temperature conditions can also affect towing.
For example, towing a heavy trailer in high outside
temperatures on graded roads can affect engine
performance and cause overheating. The engine
protection mode, which helps reduce the chance
of engine damage, could activate and automati-
cally decrease engine power. Vehicle speed may
decrease under high load. Plan your trip carefully
to account for trailer and vehicle load, weather
and road conditions.

WARNING

Overheating can result in reduced engine
power and vehicle speed. The reduced
speed may be lower than other traffic,
which could increase the chance of a col-
lision. Be especially careful when driving.
If the vehicle cannot maintain a safe driv-
ing speed, pull to the side of the road in a
safe area. Allow the engine to cool and
return to normal operation. See “If your
vehicle overheats” in the “In case of emer-
gency” section of this manual.

CAUTION

Vehicle damage resulting from improper
towing procedures is not covered by
NISSAN warranties.

Tongue load

Keep the tongue load between 10 - 15 percent of
the total trailer load or use the trailer tongue load
specified by the trailer manufacturer. The tongue
load must be within the maximum tongue load
limits

shown

the

following

“Towing

Load/Specification” chart. If the tongue load be-
comes excessive, rearrange cargo to allow for
proper tongue load.

Maximum Gross Vehicle Weight
(GVW)/Maximum Gross Axle Weight
(GAW)

The GVW of the towing vehicle must not exceed
the Gross Vehicle Weight Rating (GVWR)
shown on the F.M.V.S.S./C.M.V.S.S. certification
label. The GVW equals the combined weight of
the unloaded vehicle, passengers, luggage,
hitch, trailer tongue load and any other optional
equipment. In addition, front or rear GAW must
not exceed the Gross Axle Weight Rating
(GAWR) shown on the F.M.V.S.S./C.M.V.S.S.
certification label.

WTI0160

TI1012M

Technical and consumer information

9-17

Towing capacities are calculated assuming a
base vehicle with driver and any options required
to achieve the rating. Additional passengers,
cargo and/or optional equipment, such as the
trailer hitch, will add weight to the vehicle and
reduce your vehicle’s maximum towing capacity
and trailer tongue load.

The vehicle and trailer need to be weighed to
confirm the vehicle is within the GVWR, Front
GAWR, Rear GAWR, Gross Combined Weight
Rating (GCWR) and Towing capacity.

All vehicle and trailer weights can be measured
using platform type scales commonly found at
truck stops, highway weigh stations, building
supply centers or salvage yards.

To determine the available payload capacity for
tongue load, use the following procedure.

1. Locate

the

GVWR

the

F.M.V.S.S./C.M.V.S.S. certification label.

2. Weigh your vehicle on the scale with all of

the passengers and cargo that are normally
in the vehicle when towing a trailer.

3. Subtract the actual vehicle weight from the

GVWR. The remaining amount is the avail-
able maximum tongue load.

To determine the Gross Trailer Weight, weigh
your trailer on a scale with all equipment and
cargo, that are normally in the trailer when it is
towed. Make sure the Gross Trailer Weight is not
more than the Gross Trailer Weight Rating shown
on the trailer and is not more than the calculated
available maximum towing capacity.

Also weigh the front and rear axles on the scale to
make sure the Front Gross Axle Weight and Rear
Gross Axle Weight are not more than Front
Gross Axle Weight and Rear Gross Axle Weight
on the F.M.V.S.S./C.M.V.S.S. certification label.
The cargo in the trailer and vehicle may need to
be moved or removed to meet the specified rat-
ings.

Example:

● Gross Vehicle Weight (GVW) as weighed

on a scale - including passengers, cargo and
hitch - 4,103 lb. (1861 kg).

● Gross Vehicle Weight Rating (GVWR) from

F.M.V.S.S./C.M.V.S.S. certification label -
4,203 lb. (1906 kg).

● Maximum Towing Load from “Towing

Load/Specification

⬙ chart - 1,000 lb. (454

kg).

4,203 lb. (1906 kg)

GVWR

– 4,103 lb. (1861 kg)

GVW

= 100 lb. (45 kg)

Available for tongue

weight

1,000 lb. (454 kg)

Capacity available for

towing

100 lb. (45 kg)

Available tongue weight

/ 1,000 lb. (454 kg)

Available capacity

10 % tongue weight

The available towing capacity may be less than
the maximum towing capacity due to the passen-
ger and cargo load in the vehicle.

Remember to keep trailer tongue weight be-
tween 10 - 15% of the trailer weight or within the
trailer tongue load specification recommended
by the trailer manufacturer. If the tongue load
becomes excessive, rearrange the cargo to ob-
tain the proper tongue load. Do not exceed the
maximum tongue weight specification shown in
the “Towing load/specification” chart even if the
calculated available tongue weight is greater
than 15%. If the calculated tongue weight is less
than 10% , reduce the total trailer weight to
match the available tongue weight.

Always verify that available capacities are within
the required ratings.

9-18

Technical and consumer information

TOWING LOAD/SPECIFICATION

TOWING LOAD / SPECIFICATION

UNIT: lb (kg)

MAXIMUM TOWING

LOAD

1,000 (454)

MAXIMUM TONGUE

LOAD

100 (45)

TOWING SAFETY

Trailer hitch

Choose a proper hitch for your vehicle and trailer.
Make sure the trailer hitch is securely attached to
the vehicle, to help avoid personal injury or prop-
erty damage due to sway caused by crosswinds,
rough road surfaces or passing trucks.

WARNING

Trailer hitch components have specific
weight ratings. Your vehicle may be ca-
pable of towing a trailer heavier than the
weight rating of the hitch components.
Never exceed the weight rating of the
hitch components. Doing so can cause
serious

personal

injury

property

damage.

Hitch ball

Choose a hitch ball of the proper size and weight
rating for your trailer:

● The required hitch ball size is stamped on

most trailer couplers. Most hitch balls also
have the size printed on the top of the ball.

● Choose the proper class hitch ball based on

the trailer weight.

● The diameter of the threaded shank of the

hitch ball must be matched to the ball mount
hole diameter. The hitch ball shank should
be no more than 1/16” smaller than the hole
in the ball mount.

● The threaded shank of the hitch ball must be

long enough to be properly secured to the
ball mount. There should be at least 2
threads showing beyond the lock washer
and nut.

Ball mount

The hitch ball is attached to the ball mount and
the ball mount is inserted into the hitch receiver.
Choose a proper class ball mount based on the
trailer weight. Additionally, the ball mount should
be chosen to keep the trailer tongue level with the
ground.

Sway control device

Sudden maneuvers, wind gusts, and buffeting
caused by other vehicles can affect trailer han-
dling. Sway control devices may be used to help
control these affects. If you choose to use one,
contact a reputable trailer hitch supplier to make
sure the sway control device will work with the
vehicle, hitch, trailer and the trailer’s brake sys-
tem. Follow the instructions provided by the
manufacturer for installing and using the sway
control device.

Class I hitch

Class I trailer hitch equipment (receiver, ball
mount and hitch ball) can be used to tow trailers
of a maximum weight of 2,000 lb (907 kg).

You may add Class I trailer hitch equipment that
has a 2,000 lb (907 kg) maximum weight rating to
the vehicle, but your vehicle is only capable of
towing the maximum trailer weights shown in the
Towing Load/Specification chart earlier in this
section.

Technical and consumer information

9-19

CAUTION

● Do not use axle-mounted hitches.
● The hitch should not be attached to or

affect the operation of the impact-
absorbing bumper.

● Do not modify the vehicle exhaust sys-

tem, brake system, etc. to install a
trailer hitch.

● To reduce the possibility of additional

damage if your vehicle is struck from
the rear, where practical, remove the
receiver when not in use.

● After the hitch is removed, seal the bolt

holes to prevent exhaust fumes, water
or dust from entering the passenger
compartment.

● Regularly check that all trailer hitch

mounting bolts are securely mounted.

Tire pressures

● When towing a trailer, inflate the ve-

hicle tires to the recommended cold
tire pressure indicated on the Tire
and Loading Information label.

● Trailer tire condition, size, load rating

and proper inflation pressure should
be in accordance with the trailer and
tire manufacturer’s specifications.

Safety chains

Always use suitable safety chains between your
vehicle and the trailer. The safety chains should
be crossed and should be attached to the hitch,
not to the vehicle bumper or axle. Be sure to leave
enough slack in the chains to permit turning
corners.

Trailer lights

CAUTION

When splicing into the vehicle electrical
system, a commercially available power-
type module/converter must be used to
provide power for all trailer lighting. This
unit uses the vehicle battery as a direct
power source for all trailer lights while
using the vehicle tail light, stoplight and
turn signal circuits as a signal source. The
module/converter must draw no more
that 15 milliamps from the stop and tail
lamp circuits. Using a module/converter
that exceeds these power requirements
may damage the vehicle’s electrical sys-
tem. See a reputable trailer dealer to ob-
tain the proper equipment and to have it
installed.

Trailer lights should comply with federal and/or
local regulations. For assistance in hooking up
trailer lights, contact a NISSAN dealer or repu-
table trailer dealer.

Trailer brakes

If your trailer is equipped with a braking system,
make sure it conforms to federal and/or local
regulations and that it is properly installed.

9-20

Technical and consumer information

WARNING

Never connect a trailer brake system di-
rectly to the vehicle brake system.

Pre-towing tips

● Be certain your vehicle maintains a level

position when a loaded and/or unloaded
trailer is hitched. Do not drive the vehicle if it
has an abnormal nose-up or nose-down
condition; check for improper tongue load,
overload, worn suspension or other possible
causes of either condition.

● Always secure items in the trailer to prevent

load shift while driving.

● Keep the cargo load as low as possible in

the trailer to keep the trailer center of gravity
low.

● Load the trailer so approximately 60% of the

trailer load is in the front half and 40% is in
the back half. Also make sure the load is
balanced side to side.

● Check your hitch, trailer tire pressure, ve-

hicle tire pressure, trailer light operation, and
trailer wheel lug nuts every time you attach a
trailer to the vehicle.

● Be certain your rearview mirrors conform to

all federal, state or local regulations. If not,
install any mirrors required for towing before
driving the vehicle.

● Determine the overall height of the vehicle

and trailer so the required clearance is
known.

Trailer towing tips

In order to gain skill and an understanding of the
vehicle’s behavior, you should practice turning,
stopping and backing up in an area which is free
from traffic. Steering stability and braking perfor-
mance will be somewhat different than under
normal driving conditions.

● Always secure items in the trailer to prevent

load shift while driving.

● Lock the trailer hitch coupler with a pin or

lock to prevent the coupler from inadver-
tently becoming unlatched.

● Avoid abrupt starts, acceleration or stops.
● Avoid sharp turns or lane changes.
● Always drive your vehicle at a moderate

speed.

● When backing up, hold the bottom of the

steering wheel with one hand. Move your
hand in the direction in which you want the
trailer to go. Make small corrections and
back up slowly. If possible, have someone
guide you when you are backing up.

Always block the wheels on both vehicle and
trailer when parking. Parking on a slope is not
recommended; however, if you must do so:

CAUTION

If you move the shift selector to the P
(Park)

position

before

blocking

the

wheels and applying the parking brake,
transmission damage could occur.

1. Apply and hold the brake pedal.

2. Have someone place blocks on the downhill

side of the vehicle and trailer wheels.

3. After the wheel blocks are in place, slowly

release the brake pedal until the blocks ab-
sorb the vehicle load.

4. Apply the parking brake.

5. Shift the transmission into P (Park).

6. Turn off the engine.

Technical and consumer information

9-21

To drive away:

1. Start the vehicle.

2. Apply and hold the brake pedal.

3. Shift the transmission into gear.

4. Release the parking brake.

5. Drive slowly until the vehicle and trailer are

clear from the blocks.

6. Apply and hold the brake pedal.

7. Have someone retrieve and store the blocks.

● While going downhill, the weight of the

trailer pushing on the tow vehicle may dete-
riorate

overall

handling

characteristics.

Therefore, to maintain adequate control, re-
duce your speed and shift to a lower gear.
Avoid long or repeated use of the brakes
when descending a hill, as this reduces their
effectiveness and could cause overheating.
Shifting to a lower gear instead provides
“engine braking” and reduces the need to
brake as frequently.

● If the engine coolant temperature rises to a

high temperature, refer to “If your vehicle
overheats” in the “In case of emergency”
section of this owner’s manual.

● Trailer towing requires more fuel than normal

circumstances.

● Avoid towing a trailer for your vehicle’s first

500 miles (805 km).

● For the first 500 miles (805 km) that you do

tow, do not drive over 50 MPH (80 km/h).

● Have your vehicle serviced more often than

at intervals specified in the recommended
Maintenance Schedule in the “NISSAN Ser-
vice and Maintenance Guide”.

● When making a turn, your trailer wheels will

be closer to the inside of the turn than your
vehicle wheels. To compensate for this,
make a larger than normal turning radius
during the turn.

● Crosswinds and rough roads will adversely

affect vehicle/trailer handling, possibly caus-
ing vehicle sway. When being passed by
larger vehicles, be prepared for possible
changes in crosswinds that could affect ve-
hicle handling.

Do the following if the trailer begins to sway:

1. Take your foot off the accelerator pedal to

allow the vehicle to coast and steer as
straight ahead as the road conditions allow.
This combination will help stabilize the ve-
hicle

– Do not correct trailer sway by steering or

applying the brakes.

2. When the trailer sway stops, gently apply the

brakes and pull to the side of the road in a
safe area.

3. Try to rearrange the trailer load so it is bal-

anced as described earlier in this section.

● Be careful when passing other vehicles.

Passing while towing a trailer requires con-
siderably more distance than normal pass-
ing. Remember, the length of the trailer must
also pass the other vehicle before you can
safely change lanes.

● Use the Tow Mode or downshift the trans-

mission to a lower gear for engine braking
when driving down steep or long hills. This
will help slow the vehicle without applying
the brakes.

● Avoid holding the brake pedal down too long

or too frequently. This could cause the
brakes to overheat, resulting in reduced
braking efficiency.

● Increase your following distance to allow for

greater stopping distances while towing a
trailer. Anticipate stops and brake gradually.

● NISSAN recommends that the cruise con-

trol not be used while towing a trailer.

9-22

Technical and consumer information

● Some states or provinces have specific

regulations and speed limits for vehicles that
are towing trailers. Obey the local speed
limits.

● Check your hitch, trailer wiring harness con-

nections, and trailer wheel lug nuts after 50
miles (80 km) of travel and at every break.

● When launching a boat, don’t allow the wa-

ter level to go over the exhaust tail pipe or
rear bumper.

● Make sure you disconnect the trailer lights

before backing the trailer into the water or
the trailer lights may burn out.

When towing a trailer, final drive gear oil
should

replaced

and

transmission

oil/fluid should be changed more fre-
quently. For additional information, see the
“Maintenance and do-it-yourself” section
earlier in this manual.

FLAT TOWING

Towing your vehicle with all four wheels on the
ground is sometimes called flat towing. This
method is sometimes used when towing a vehicle
behind a recreational vehicle, such as a motor
home.

CAUTION

● Failure to follow these guidelines can

result in severe transmission damage.

● Whenever flat towing your vehicle, al-

ways tow forward, never backward.

● DO NOT tow any continuously variable

transmission

vehicle

with

all

four

wheels on the ground (flat towing). Do-
ing so WILL DAMAGE internal transmis-
sion parts due to lack of transmission
lubrication.

● For emergency towing procedures refer

to “Towing recommended by NISSAN”
in the “In case of emergency” section of
this manual.

Continuously Variable Transmission

To tow a vehicle equipped with a continuously
variable transmission, an appropriate vehicle
dolly MUST be placed under the towed vehicle’s
drive wheels. Always follow the dolly manufac-
turer’s recommendations when using their prod-
uct.

DOT (Department of Transportation) Quality
Grades: All passenger car tires must conform to
federal safety requirements in addition to these
grades.

Quality grades can be found where applicable on
the tire sidewall between tread shoulder and
maximum section width. For example:

Treadwear 200 Traction AA Temperature A

Treadwear

The treadwear grade is a comparative rating
based on the wear rate of the tire when tested
under controlled conditions on a specified gov-
ernment test course. For example, a tire graded
150 would wear one and one-half (1 1/2) times
as well on the government course as a tire graded
100. The relative performance of tires depends
upon the actual conditions of their use, however,
and may depart significantly from the norm due to
variations in driving habits, service practices and
differences in road characteristics and climate.

Traction AA, A, B and C

The traction grades, from highest to lowest, are
AA, A, B, and C. Those grades represent the
tire’s ability to stop on wet pavement as mea-
sured under controlled conditions on specified
government test surfaces of asphalt and con-
crete. A tire marked C may have poor traction
performance.

UNIFORM TIRE QUALITY GRADING

Technical and consumer information

9-23

WARNING

The traction grade assigned to this tire is
based on straight-ahead braking traction
tests, and does not include acceleration,
cornering, hydroplaning, or peak traction
characteristics.

Temperature A, B and C

The temperature grades are A (the highest), B,
and C, representing the tire’s resistance to the
generation of heat, and its ability to dissipate heat
when tested under controlled conditions on a
specified indoor laboratory test wheel. Sustained
high temperature can cause the material of the
tire to degenerate and reduce tire life, and exces-
sive temperature can lead to sudden tire failure.
The grade C corresponds to a level of perfor-
mance which all passenger car tires must meet
under the Federal Motor Safety Standard No.
109. Grades B and A represent higher levels of
performance on the laboratory test wheel than
the minimum required by law.

WARNING

The temperature grade for this tire is es-
tablished for a tire that is properly inflated
and not overloaded. Excessive speed,
under-inflation, or excessive loading, ei-
ther separately or in combination, can
cause heat build-up and possible tire
failure.

Your NISSAN vehicle is covered by the following
emission warranties:

For USA

1. Emission Defects Warranty

2. Emissions Performance Warranty

Details of this warranty may be found with other
vehicle warranties in your Warranty Information
Booklet which comes with your NISSAN vehicle.
If you did not receive a Warranty Information
Booklet, or it is lost, you may obtain a replace-
ment by writing to:

● Nissan North America, Inc.

Consumer Affairs Department
P.O. Box 685003
Franklin, TN 37068-5003

For Canada

Emission Control System Warranty

● Nissan Canada Inc.

5290 Orbitor Drive
Mississauga, Ontario, L4W 4Z5

EMISSION CONTROL SYSTEM
WARRANTY

9-24

Technical and consumer information

For USA

If you believe that your vehicle has a de-
fect which could cause a crash or could
cause injury or death, you should immedi-
ately inform the National Highway Traffic
Safety Administration (NHTSA) in addi-
tion to notifying NISSAN.

If NHTSA receives similar complaints, it
may open an investigation, and if it finds
that a safety defect exists in a group of
vehicles, it may order a recall and remedy
campaign. However, NHTSA cannot be-
come involved in individual problems be-
tween you, your dealer, or NISSAN.

To contact NHTSA, you may call the Ve-
hicle Safety Hotline toll-free at 1-888-
327-4236 (TTY: 1-800-424-9153); go
to http://www.safercar.gov; or write to:
Administrator, NHTSA, 400 Seventh
Street, SW., Washington, D.C. 20590.
You can also obtain other information
about

motor

vehicle

safety

from

http://www.safercar.gov.

You may notify NISSAN by contacting our
Consumer Affairs Department, toll-free, at
1-800-NISSAN-1.

For Canada

If you believe that your vehicle has a de-
fect which could cause a crash or could
cause injury or death, you should immedi-
ately inform Transport Canada in addition
to notifying NISSAN.

If Transport Canada receives complaints,
it may open an investigation, and if it finds
that a safety defect exists in a group of
vehicles, it may request that NISSAN con-
duct a recall campaign. However, Trans-
port Canada cannot become involved in
individual problems between you, your
dealer, or NISSAN.

You may contact Transport Canada’s De-
fect Investigations and Recalls Division
toll free at 1-800-333-0510. You may
also report safety defects online at:
https://wwwapps.tc.gc.ca/Saf-Sec-
Sur/7/PCDB-BDPP/Index.aspx.

Additional information concerning motor
vehicle safety may be obtained from Trans-
port Canada’s Road Safety Information
Centre at 1-800-333-0371 or online at
www.tc.gc.ca/roadsafety (English speak-
ers)

www.tc.gc.ca/securiteroutiere

(French speakers).

To notify NISSAN of any safety concerns
please contact our Consumer Information
Centre toll free at 1-800-387-0122.

REPORTING SAFETY DEFECTS

Technical and consumer information

9-25

Due to legal requirements in some states and
Canadian Provinces, your vehicle may be re-
quired to be in what is called the “ready condi-
tion” for an Inspection/Maintenance (I/M) test of
the emission control system.

The vehicle is set to the “ready condition” when it
is driven through certain driving patterns. Usually,
the ready condition can be obtained by ordinary
usage of the vehicle.

If a powertrain system component is repaired or
the battery is disconnected, the vehicle may be
reset to a “not ready” condition. Before taking the
I/M

test,

check

the

vehicle’s

inspection/maintenance test readiness condi-
tion. Place the ignition switch in the ON position
without starting the engine. If the Malfunction
Indicator Light (MIL) comes on steady for 20
seconds and then blinks for 10 seconds , the I/M
test condition is “not ready”. If the MIL does not
blink after 20 seconds, the I/M test condition is
“ready”. Contact a NISSAN dealer to set the
“ready condition” or to prepare the vehicle for
testing.

This vehicle is equipped with an Event Data Re-
corder (EDR). The main purpose of an EDR is to
record, in certain crash or near crash-like situa-
tions, such as an air bag deployment or hitting a
road obstacle, data that will assist in understand-
ing how a vehicle’s systems performed. The EDR
is designed to record data related to vehicle
dynamics and safety systems for a short period of
time, typically 30 seconds or less. The EDR in this
vehicle is designed to record such data as:

● How various systems in your vehicle were

operating;

● Whether or not the driver and passenger

safety belts were buckled/fastened;

● How far (if at all) the driver was depressing

the accelerator and/or brake pedal; and,

● How fast the vehicle was traveling.
● Sounds are not recorded.

These data can help provide a better understand-
ing of the circumstances in which crashes and
injuries occur. NOTE: EDR data are recorded by
your vehicle only if a nontrivial crash situation
occurs; no data are recorded by the EDR under
normal driving conditions and no personal data
(e.g. name, gender, age and crash location) are
recorded. However, other parties, such as law
enforcement, could combine the EDR data with
the type of personally identifying data routinely
acquired during a crash investigation.

To read data recorded by an EDR, special equip-
ment is required and access to the vehicle or the
EDR is needed. In addition to the vehicle manu-
facturer and NISSAN dealer, other parties, such
as law enforcement, that have the special equip-
ment, can read the information if they have ac-
cess to the vehicle or the EDR. EDR data will only
be accessed with the consent of the vehicle
owner or lessee or as otherwise required or per-
mitted by law.

READINESS FOR INSPECTION/
MAINTENANCE (I/M) TEST

EVENT DATA RECORDERS (EDR)

9-26

Technical and consumer information

Nissan Altima Coupe (2013 year). Instruction - part 25
