Nissan 370Z (2018 year). Instruction

Outside air is drawn into the passen-

ger compartment to improve the

defogging performance.

Manual operation

Fan speed control:
Turn the “

” fan speed control dial to

manually control the fan speed.
Push the “AUTO” button to return to

automatic control of the fan speed.
Temperature control:
Turn the temperature control dial to set

the desired temperature.
. The temperature can be set within the

following range.
— For U.S.: 60 to 90°F (16 to 32°C)
— For Canada: 64 to 90°F (18 to 32°C)

Air intake control:
. Push the “

” air intake control

button to recirculate interior air inside

the vehicle. The indicator light “

”

will come on.
The air recirculation mode cannot be

activated when the air conditioner is

in the front defrosting mode “

”.

. Push the “

” air intake control

button to switch to the outside air

intake mode. The indicator light “

”

will turn off.

. To switch to the automatic control

mode, push the “

” air intake control

button for approximately 2 seconds.

The indicator light will flash, and then

the air intake will be controlled auto-

matically.

Air flow control:
Pushing the “MODE” manual air flow

control button selects the air outlet to:

Air flows from center and side venti-

lators.

Air flows from center and side venti-

lators and foot outlets.

Air flows mainly from foot outlets.

Air flows from defroster and foot

outlets.

To turn the system off

Push the “OFF” button.

SAA2324

SAA2315

Center display, heater, air conditioner, audio, phone and voice recognition systems

4-29

4-30

Center display, heater, air conditioner, audio, phone and voice recognition systems

OPERATING TIPS

When the engine coolant temperature

and outside air temperature are low, the

air flow from the foot outlets may not

operate. This is not a malfunction. After

the coolant temperature warms up, air

will flow normally from the foot outlets.
The sensors

and

on the instrument

panel helps maintain a constant tem-

perature. Do not put anything on or

around this sensor.

IN-CABIN MICROFILTER

The air conditioning system is equipped

with an in-cabin microfilter which collects

dirt, pollen, dust, etc. To make sure the air

conditioner heats, defogs, and ventilates

efficiently, replace the filter in accordance

with the specified maintenance intervals

listed in the “9. Maintenance and sche-

dules” section. It is recommended to see a

NISSAN dealer to replace the filter.
The filter should be replaced if air flow

is extremely decreased or when win-

dows fog up easily when operating

heater or air conditioning system.

SERVICING AIR CONDITIONER

The air conditioning system in your

NISSAN is charged with a refrigerant

designed with the environment in mind.

This refrigerant will not harm the

earth’s ozone layer. However, special

charging equipment and lubricant are

required when servicing your NISSAN air

conditioner. Using improper refrigerants

or lubricants will cause severe damage to

your air conditioning system. (See “Capa-

cities and recommended fluids/lubri-

cants” (P.10-2) for air conditioning

system refrigerant and lubricant recom-

mendations.)
Your NISSAN dealer will be able to service

your environmentally friendly air condi-

tioning system.

WARNING

The system contains refrigerant un-

der high pressure. To avoid personal

injury, any air conditioner service

should be done only by an experi-

enced technician with the proper

equipment.

AUDIO OPERATION PRECAUTIONS
Radio

Push the ignition switch to the ACC or ON

position and push the radio band select

button to turn on the radio. If you listen to

the radio with the engine not running, the

ignition switch should be pushed to the

ACC position.
Radio reception is affected by station

signal strength, distance from radio

transmitter, buildings, bridges, mountains

and other external influences. Intermit-

tent changes in reception quality nor-

mally are caused by these external

influences.
Using a cellular phone in or near the

vehicle may influence radio reception

quality.
Radio reception:
Your NISSAN radio system is equipped

with state-of-the-art electronic circuits to

enhance radio reception. These circuits

are designed to extend reception range,

and to enhance the quality of that recep-

tion.
However there are some general charac-

teristics of both FM and AM radio signals

that can affect radio reception quality in a

moving vehicle, even when the finest

equipment is used. These characteristics

AUDIO SYSTEM

are completely normal in a given recep-

tion area, and do not indicate any mal-

function in your NISSAN radio system.
Reception conditions will constantly

change because of vehicle movement.

Buildings, terrain, signal distance and

interference from other vehicles can work

against ideal reception. Described below

are some of the factors that can affect

your radio reception.
Some cellular phones or other devices

may cause interference or a buzzing

noise to come from the audio system

speakers. Storing the device in a different

location may reduce or eliminate the

noise.

SAA0306

FM radio reception:
Range: FM range is normally limited to 25

to 30 miles (40 to 48 km), with monaural

(single channel) FM having slightly more

range than stereo FM. External influences

may sometimes interfere with FM station

reception even if the FM station is within

25 miles (40 km). The strength of the FM

signal is directly related to the distance

between the transmitter and receiver. FM

signals follow a line-of-sight path, exhibit-

ing many of the same characteristics as

light. For example they will reflect off

objects.
Fade and drift: As your vehicle moves

away from a station transmitter, the

signals will tend to fade and/or drift.
Static and flutter: During signal interfer-

ence from buildings, large hills or due to

antenna position, usually in conjunction

with increased distance from the station

transmitter, static or flutter can be heard.

This can be reduced by lowering the

treble setting to reduce the treble re-

sponse.
Multipath reception: Because of the re-

flective characteristics of FM signals, di-

rect and reflected signals reach the

receiver at the same time. The signals

may cancel each other, resulting in mo-

mentary flutter or loss of sound.
AM radio reception:
AM signals, because of their low fre-

quency, can bend around objects and

skip along the ground. In addition, the

signals can be bounced off the iono-

sphere and bent back to earth. Because

of these characteristics. AM signals are

also subject to interference as they travel

from transmitter to receiver.
Fading: Occurs while the vehicle is pas-

sing through freeway underpasses or in

areas with many tall buildings. It can also

occur for several seconds during iono-

spheric turbulence even in areas where

no obstacles exist.
Static: Caused by thunderstorms, electri-

Center display, heater, air conditioner, audio, phone and voice recognition systems

4-31

4-32

Center display, heater, air conditioner, audio, phone and voice recognition systems

cal power lines, electric signs and even

traffic lights.
Satellite radio reception (if so
equipped):
When the satellite radio is used for the

first time or the battery has been re-

placed, the satellite radio may not work

properly. This is not a malfunction. Wait

more than 10 minutes with the satellite

radio ON and the vehicle outside of any

metal or large building for the satellite

radio to receive all of the necessary data.
The satellite radio mode requires an

active SiriusXM Satellite Radio subscrip-

tion. The satellite radio is not available in

Alaska, Hawaii and Guam.
The satellite radio performance may be

affected if cargo carried on the roof

blocks the satellite radio signal.
If possible, do not put cargo near the

satellite antenna.
A build up of ice on the satellite radio

antenna can affect satellite radio perfor-

mance. Remove the ice to restore satellite

radio reception.

SAA0480

Compact Disc (CD) player

. Do not force a compact disc into the

CD insert slot. This could damage the

CD and/or CD changer/player.

. Trying to load a CD with the CD door

closed could damage the CD and/or

CD changer.

. During cold weather or rainy days, the

player may malfunction due to the

humidity. If this occurs, remove the CD

and dehumidify or ventilate the player

completely.

. The player may skip while driving on

rough roads.

. The CD player sometimes cannot

function when the passenger com-

partment temperature is extremely

high. Decrease the temperature be-

fore use.

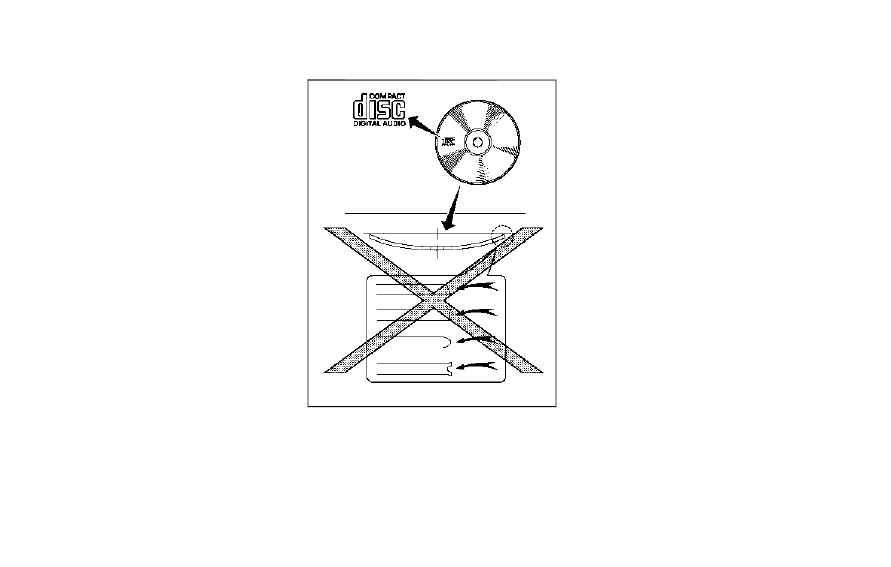

. Only use high quality 4.7 in (12 cm)

round discs that have the “COMPACT

disc DIGITAL AUDIO” logo on the disc

or packaging.

. Do not expose the CD to direct sun-

light.

. CDs that are of poor quality, dirty,

scratched, covered with fingerprints,

or that have pin holes may not work

properly.

. The following CDs may not work

properly:
— Copy control compact discs (CCCD)
— Recordable compact discs (CD-R)
— Rewritable compact discs (CD-RW)

. Do not use the following CDs as they

may cause the CD player to malfunc-

tion.

— 3.1 in (8 cm) discs
— CDs that are not round
— CDs with a paper label
— CDs that are warped, scratched, or

have abnormal edges

. This audio system can only play pre-

recorded CDs. It has no capabilities to

record or burn CDs.

. If the CD cannot be played, one of the

following messages will be displayed.
CHECK DISC:
— Confirm that the CD is inserted

correctly (the label side is facing

up, etc.).

— Confirm that the CD is not bent or

warped and it is free of scratches.

PUSH EJECT:
This is an error due to the tempera-

ture inside the player is too high.

Remove the CD by pushing the EJECT

button, and after a short time reinsert

the CD. The CD can be played when

the temperature of the player returns

to normal.
UNPLAYABLE:
The file is unplayable in this audio

system (only MP3 or WMA CD).

LHA0484

DVD (Digital Versatile Disc) player

(models with navigation system)

. Do not force a compact disc into the

CD/DVD insert slot. This could damage

the CD/DVD player.

. During cold weather or rainy days, the

player may malfunction due to hu-

midity. If this occurs, remove the CD/

DVD and dehumidify or ventilate the

player completely.

. The player may skip while driving on

rough roads.

. The CD/DVD player sometimes cannot

function when the passenger com-

partment temperature is extremely

high. Decrease the temperature be-

fore use.

. Only use high quality 4.7 in (12 cm)

round discs that have the “COMPACT

disc DIGITAL AUDIO” or “DVD Video”

logo on the disc or packaging.

. Do not expose the CD/DVD to direct

sunlight.

. CD/DVDs that are of poor quality,

dirty, scratched, covered with finger-

prints, or that have pinholes may not

work properly.

. The following CD/DVDs are not guar-

anteed to play:
— Copy control compact discs (CCCD)
— Recordable compact discs (CD-R)
— Rewritable compact discs (CD-RW)
— Recordable DVDs (DVD±R, DVD±R

DL)

— Rewritable DVDs (DVD±RW, DVD±RW

DL)

. Do not use the following CD/DVDs as

they may cause the CD/DVD player to

malfunction.

Center display, heater, air conditioner, audio, phone and voice recognition systems

4-33

4-34

Center display, heater, air conditioner, audio, phone and voice recognition systems

— 3.1 in (8 cm) discs
— CD/DVDs that are not round
— CD/DVDs with a paper label
— C D / D V D s t h a t a r e w a r p e d ,

scratched or have abnormal edges

— This audio system can only play

prerecorded CD/DVDs. It has no

capabilities to record or burn CD/

DVDs.

. If the CD/DVD cannot be played, one

of the following messages will be

displayed.
Disc Read Error:
— Confirm that the CD/DVD is in-

serted correctly (the label side is

facing up, etc.).

— Confirm that the CD/DVD is not

bent or warped and it is free of

scratches.

Please Eject Disc:
— This may be an error due to the

temperature inside the player being

too high. Remove the CD/DVD by

pushing the EJECT button, and

after a short time reinsert the CD/

DVD. The CD/DVD can be played

when the temperature of the player

returns to normal. If the error

persists, consult your local dealer.

Unplayable File:
— The file may be copy protected.
— The file is not MP3, WMA, AAC, M4A

or DivX® type.

Region Invalid:
— The DVD is not for region 1 or all

regions. Use DVDs with a region

code “1”, “ALL” or “1 included” for

your DVD entertainment system.

(The region code

is displayed as

a small symbol printed on the top

of the DVD .) This vehicle-installed

DVD player cannot play DVDs with a

region code other than “1” or “ALL”.

Copyright and trademark:
. The technology protected by the U.S.

patent and other intellectual property

rights owned by Macrovision Corpora-

tion and other right holders is

adopted for this system.

. This copyright protected technology

cannot be used without a permit from

Macrovision Corporation. It is limited

to be personal use, etc., as long as the

permit from Macrovision Corporation

is not issued.

. Modifying or disassembling is prohib-

ited.

. Dolby digital is manufactured under

license from Dolby Laboratories, Inc.

. Dolby and the double D mark “

” are

trademarks of Dolby Laboratories, Inc.

. DTS and DTS 2.0 “

” are registered

trademarks of DTS, Inc.

Parental level (parental control):
DVDs with the parental control setting

can be played with this system. Please

use your own judgement to set the

parental control with the system.
Disc selection:
The following disc formats can be played

with the DVD drive.
. DVD-VIDEO

. VIDEO-CD

. CD-DA (Conventional Compact Disc)

. DTS-CD

USB (Universal Serial Bus) connec-

tion port

WARNING

Do not connect, disconnect or oper-

ate the USB device while driving.

Doing so can be a distraction. If

distracted you could lose control of

your vehicle and cause an accident

or serious injury.

CAUTION

. Do not force the USB device into

the USB connection port. Insert-

ing the USB device tilted or up-

side-down into the port may da-

mage the port. Make sure that

the USB device is connected cor-

rectly into the USB connection

port.

. Do not grab the USB connection

port cover (if so equipped) when

pulling the USB device out of the

port. This could damage the port

and the cover.

. Do not leave the USB cable in a

place where it can be pulled

unintentionally. Pulling the cable

may damage the port.

The vehicle is not equipped with a USB

device. USB devices should be purchased

separately as necessary.
This system cannot be used to format

USB devices. To format a USB device, use

a personal computer.
In some states/area, the USB device for

the front seats plays only sound without

images for regulatory reasons, even when

the vehicle is parked.

This system supports various USB mem-

ory devices, USB hard drives and iPod®

players. Some USB devices may not be

supported by this system.
. Partitioned USB devices may not be

played correctly.

. Some characters used in other lan-

guages (Chinese, Japanese, etc.) may

not appear properly in the display.

Using English language characters

with a USB device is recommended.

General notes for USB use:
Refer to your device manufacturer’s own-

er information regarding the proper use

and care of the device.
Notes for iPod® use:
“Made for iPod®”, “Made for iPhone®”, and

“Made for iPad®” mean that an electronic

accessory has been designed to connect

specifically to iPod®, iPhone®, or iPad®,

respectively, and has been certified by the

developer to meet Apple performance

standards.
Apple is not responsible for the operation

of this device or its compliance with

safety and regulatory standards.
Please note that the use of this accessory

with iPod®, iPhone®, or iPad® may affect

wireless performance.
iPad®, iPhone®, iPod®, iPod classic®, iPod

nano®, iPod shuffle®, and iPod touch® are

trademarks of Apple Inc., registered in the

U.S. and other countries. Lightning is a

trademark of Apple Inc.
. Improperly plugging in the iPod® may

cause a checkmark to be displayed on

and off (flickering). Always make sure

that the iPod® is connected properly.

. An iPod nano® (1st Generation) may

remain in fast forward or rewind mode

if it is connected during a seek opera-

tion. In this case, please manually

reset the iPod®.

. An iPod nano® (2nd Generation) will

continue to fast-forward or rewind if it

is disconnected during a seek opera-

tion.

. An incorrect song title may appear

when the Play Mode is changed while

using an iPod nano® (2nd Generation)

. Audiobooks may not play in the same

order as they appear on an iPod®.

. Large video files cause slow responses

in an iPod®. The vehicle center display

may momentarily black out, but will

soon recover.

. If an iPod® automatically selects large

video files while in the shuffle mode,

the vehicle center display may mo-

mentarily black out, but will soon

recover.

Center display, heater, air conditioner, audio, phone and voice recognition systems

4-35

4-36

Center display, heater, air conditioner, audio, phone and voice recognition systems

Compressed Audio Files (MP3/

WMA/AAC) (if so equipped)

Explanation of terms:
. MP3 — MP3 is short for Moving Pic-

tures Experts Group Audio Layer 3.

MP3 is the most well known com-

pressed digital audio file format. This

format allows for near “CD quality”

sound, but at a fraction of the size of

normal audio files. MP3 conversion of

an audio track can reduce the file size

by approximately a 10:1 ratio (Sam-

pling: 44.1 kHz, Bit rate: 128 kbps) with

virtually no perceptible loss in quality.

The compression reduces certain

parts of sound that seem inaudible

to most people.

. WMA — Windows Media Audio (WMA) is

a compressed audio format created

by Microsoft as an alternative to MP3.

The WMA codec offers greater file

compression than the MP3 codec,

enabling storage of more digital audio

tracks in the same amount of space

when compared to MP3s at the same

level of quality.
This product is protected by certain

intellectual property rights of Micro-

soft Corporation and third parties. Use

or distribution of such technology

outside of this product is prohibited

without a license from Microsoft or an

authorized Microsoft subsidiary and

third parties.

. AAC/M4A — Advanced Audio Coding

(AAC) is a lossy audio compression

format. Audio files that have been

encoded with AAC are generally smal-

ler in size and deliver a higher quality

of sound than MP3.

. Bit rate — Bit rate denotes the number

of bits per second used by a digital

music file. The size and quality of a

compressed digital audio file is deter-

mined by the bit rate used when

encoding the file.

. Sampling frequency — Sampling fre-

quency is the rate at which the

samples of a signal are converted

from analog to digital (A/D conver-

sion) per second.

. Multisession — Multisession is one of

the methods for writing data to med-

ia. Writing data once to the media is

called a single session, and writing

more than once is called a multises-

sion.

. ID3/WMA Tag — The ID3/WMA tag is

the part of the encoded MP3 or WMA

file that contains information about

the digital music file such as song title,

artist, album title, encoding bit rate,

track time duration, etc. ID3 tag in-

formation is displayed on the Album/

Artist/Track title line on the display.

* Windows® and Windows Media® are

registered trademarks or trademarks of

Microsoft Corporation in the United

States of America and/or other countries.

4-38

Center display, heater, air conditioner, audio, phone and voice recognition systems

Specification chart:

Supported media

CD, CD-R, CD-RW, DVD-ROM*5, DVD±R*5, DVD±RW*5, DVD±R DL*5, USB2.0

Supported file

systems

Models with navigation sys-

tem

CD, CD-R, CD-RW, DVD-ROM, DVD±R, DVD±RW, DVD±R DL: ISO9660 LEVEL1, ISO9660 LEVEL2, Romeo,

Joliet

* ISO9660 Level 3 (packet writing) is not supported.

* Files saved using the Live File System component (on a Windows Vista-based computer) are not

supported.

UDF Bridge (UDF1.02+ISO9660), UDF1.5, UDF2.0

* VDF1.5/VDF2.0 (packet writing) is not supported.

Models without navigation

system

CD, CD-R, CD-RW: ISO9660 LEVEL1, ISO9660 LEVEL2, Romeo, Joliet

* ISO9660 Level 3 (packet writing) is not supported.

* Files saved using the Live File System component (on a Windows Vista-based computer) are not

supported.
USB memory: FAT16, FAT32

Supported

versions*1

MP3

Version

Models with navigation system:

MPEG1 Audio Layer 3

Models without navigation system:

MPEG1, MPEG2, MPEG2.5

Sampling fre-

quency

8 kHz - 48 kHz

Bit rate

8 kbps - 320 kbps, VBR*4

WMA*2

Version

Models with navigation system:

WMA7, WMA8, WMA9

Models without navigation system:

WMA7, WMA8, WMA9 except WMA9 Pro, WMA9 Lossless, WMA9 Voice

Sampling fre-

quency

32 kHz - 48 kHz

Bit rate

32 kbps - 192 kbps, VBR (Ver.9)*4

AAC*5

Version

MPEG-AAC

Sampling fre-

quency

8 kHz - 96 kHz

Bit rate

16 kbps - 320 kbps, VBR*4

Tag information (Song title and Artist name)

ID3 tag VER1.0, VER1.1, VER2.2, VER2.3, VER2.4 (MP3 only)
WMA tag (WMA only)

Folder levels

With navigation system:

Folder levels: 8, Folders: 512 (including root folder), Files: 5000

Without navigation system:

Folder levels: 8, Folders: 255 (including root folder), files: 512

Displayable character codes*3

01: ASCII, 02: ISO-8859-1, 03: UNICODE (UTF-16 BOM Big Endian), 04: UNICODE (UTF-16 Non-BOM Big

Endian), 05: UNICODE (UTF-8), 06: UNICODE (Non-UTF-16 BOM Little Endian), 07: SHIFT-JIS

Files created with a combination of 48 kHz sampling frequency and 64 kbps bit rate cannot be played.

Protected WMA files (DRM) cannot be played.

Available codes depend on what kind of media, versions and information are going to be displayed.

When VBR files are played, the playback time may not be displayed correctly.

Models with navigation system

Center display, heater, air conditioner, audio, phone and voice recognition systems

4-39

4-40

Center display, heater, air conditioner, audio, phone and voice recognition systems

Troubleshooting guide:

Symptom

Cause and Countermeasure

Cannot play

Check if the disc or USB device was inserted correctly.
Check if the disc is scratched or dirty.
Check if there is condensation inside the player, and if there is, wait until the condensation is gone (about 1 hour)

before using the player.
If there is a temperature increase error, the player will play correctly after it returns to the normal temperature.
If there is a mixture of music CD files (CD-DA data) and compressed audio files on a CD, only the music CD files (CD-

DA data) will be played.
Files with extensions other than “.MP3 (.mp3)”, “.WMA (.wma)”, “.AAC (.aac)”, “.M4A (.m4a)”, or “.AA3 (.aa3)” cannot be

played. In addition, the character codes and number of characters for folder names and file names should be in

compliance with the specifications.
Check if the disc or the file is generated in an irregular format. This may occur depending on the variation or the

setting of compressed audio writing applications or other text editing applications.
Check if the finalization process, such as session close and disc close, is done for the disc.
Check if the disc or USB device is protected by copyright.

Poor sound quality

Check if the disc is scratched or dirty.

It takes a relatively long time

before the music starts playing.

If there are many folder or file levels on the disc or USB device, some time may be required before the music starts

playing.

Music cuts off or skips

The writing software and hardware combination might not match, or the writing speed, writing depth, writing

width, etc., might not match the specifications. Try using the slowest writing speed.

Skipping with high bit rate files Skipping may occur with large quantities of data, such as for high bit rate data.
Move immediately to the next

song when playing.

If an unsupported compressed audio file has been given a supported extension like .MP3, or when play is prohibited

by copyright protection, the player will skip to the next song.

The songs do not play back in

the desired order.

The playback order is the order in which the files were written by the writing software, so the files might not play in

the desired order.
Random/Shuffle may be active on the audio system or on a USB device.

Compressed Video Files (models

with navigation system)

Explanation of terms:
. DivX® - DivX® refers to the DivX® codec

owned by DivX, Inc. used for a lossy

compression of video based on MPEG-

. AVI - AVI stands for Audio Video

Interleave. It is a standard file format

originated by Microsoft Corporation. A

“.divx” encoded file can be saved into

the “.avi” file format for playback on

this system if it meets the require-

ments stated in the table in this

section. However, not all the “.avi” files

are playable on this system since

different encodings can be used than

the DivX® codec.

. ASF - ASF stands for Advanced Sys-

tems Format. It is a file format owned

by Microsoft Corporation. Note: Only “.

asf” files that meet the requirements

stated in the table in this section can

be played.

. Bit rate — Bit rate denotes the number

of bits per second used by a digital

video file. The size and quality of a

compressed digital audio file is deter-

mined by the bit rate used when

encoding the file.

Requirement for Supporting Video Playback:

Media

CD, CD-R, CD-RW, DVD, DVD±R, DVD±RW, DVD±RW DL, USB 2.0 Memory

File Systems

CD,

CD-R,

CD-RW,

DVD,

DVD±R,

DVD±RW,

DVD±RW DL

ISO9660 LEVEL1, ISO9660 LEVEL2, Romeo, Joliet, UDF Bridge

(UDF1.02+ISO9660), UDF1.5, UDF2.0

- ISO9660 Level 3 (packet writing) is not supported.

- Files saved using the Live File System component (on a

Windows Vista-based computer) are not supported.

- VDF1.5/VDF2.0 (packet writing) is not supported.

USB Memory

FAT16, FAT32

File Types

.divx, .avi

Video Codecs

DivX3, DivX4, DivX5, DivX6

Audio Codecs

MP3, MPEG2.5 Audio Layer3, Dolby

Digital, LPCM

.asf

Video Codec

ISO-MPEG4

Audio Codec

G.726

Bit Rates

.divx, .avi

Maximum Average

4Mbps

Maximum Peak

8Mbps

Resolution

.divx, .avi

Minimum

32 × 32

Maximum

720 × 480

.asf

Minimum

32 × 32

Maximum

720 × 576

Center display, heater, air conditioner, audio, phone and voice recognition systems

4-41

4-42

Center display, heater, air conditioner, audio, phone and voice recognition systems

Bluetooth® Audio player (models

with navigation system)

Bluetooth® is a trademark

owned by Bluetooth SIG, Inc.

and licensed to Clarion Co.,

Ltd.

. Some Bluetooth® audio devices may

not be recognized by the in-vehicle

audio system.

. It is necessary to set up the wireless

connection between a compatible

Bluetooth® audio device and the in-

vehicle Bluetooth® module before

using the Bluetooth® audio player.

. Operating procedure of the Blue-

tooth® audio player will vary depend-

ing on the device. Make sure it is

understood how to operate an audio

device before using it with this system.

. The Bluetooth® audio player may be

stopped under the following condi-

tions:
— Receiving a hands-free call.
— Checking the connection to the

hands-free phone.

. Do not place a Bluetooth® audio

device in an area surrounded by metal

or far away from the in-vehicle Blue-

tooth® module to prevent tone quality

degradation and wireless connection

disruption.

. While an audio device is connected

through a Bluetooth® wireless con-

nection, the battery power of the

device may discharge quicker than

usual.

. This system supports the Bluetooth®

Audio Distribution Profile (A2DP,

AVRCP).

. Wireless LAN (Wi-Fi) and the Blue-

tooth® functions share the same fre-

quency band (2.4 GHz). Using the

Bluetooth® and the wireless LAN func-

tions at the same time may slow down

or disconnect the communication and

cause undesired noise. It is recom-

mended that you turn off the wireless

LAN (Wi-Fi) when using the Bluetooth®

functions.

JVH0923X

CD eject button

FM·AM button

RPT (repeat) button

RDM (random play) button

Radio memory buttons

A-Z button

USB button

SCAN button

CD button

10.

Power button/VOL (volume) control knob

11.

Rewind button

12.

Fast Forward button

13.

DISP (display) button

14.

SETUP button

15.

Back button

16.

TUNE/MENU knob/ENTER button

17.

AUX button

FM-AM RADIO WITH COMPACT DISC

(CD) PLAYER
Audio main operation

The audio system operates when the

ignition switch is in the “ACC” or “ON”

position.
POWER ON/OFF:
To turn on the audio system, push the

Power button.
. The system will turn on in the mode

which was used immediately before

the system was turned off.

. If there is no CD loaded, the radio will

be turned on.

To turn off the audio system, push the

Power button.
Volume control:
To control the volume, turn the VOL

control knob.
Turn the VOL control knob clockwise to

make the sound louder.
Turn the VOL control knob counterclock-

wise to make the sound quieter.

Center display, heater, air conditioner, audio, phone and voice recognition systems

4-43

4-44

Center display, heater, air conditioner, audio, phone and voice recognition systems

SETUP button:
To configure Audio, Clock, Language or

Scroll direction settings, perform the

following procedure:
1. Push the SETUP button.
2. Push the ENTER button.
3. Turn the TUNE/MENU knob clockwise

or counterclockwise, the display will

appear in the following order:
Audio Clock Language Scroll

Direction

After the desired levels have been set,

push either the back button repeatedly,

the SETUP button, or wait for 8 seconds

without pushing any buttons to exit the

menu screen.
Audio adjustments:
Push the SETUP button to enter the setup

menu screen then select Audio by using

TUNE/MENU knob.
Each time the ENTER button is pushed,

the mode will change as follows:
Bass

? Treble ? Fade ? Balance ? AUX

VOL

? SPD VOL ? Audio (setup menu

screen)
Turn the TUNE/MENU knob clockwise or

counterclockwise to adjust the following

items and push the ENTER button to

confirm.

Bass control:
Use this control to enhance or attenuate

bass response sound.
Treble control:
Use this control to enhance or attenuate

the treble.
Fade control:
Use this control to adjust the balance of

the volume between the front and rear (if

so equipped) speakers.
Balance control:
Use this control to adjust the balance of

the volume between the left and right

speakers.
AUX VOL (Auxiliary volume) control:
Use this control to adjust the volume

output from the auxiliary source.
SPD VOL (Speed volume) control:
This mode controls the volume output

from the speakers automatically in rela-

tion to vehicle speed.
Adjusting the setting to 0 (zero) turns off

the speed volume feature.
Clock setting:
Push the SETUP button to enter the setup

menu screen then select Clock.
Turn the TUNE/MENU knob, the mode will

change as follows:

Set Time ON/OFF Clock Format

Set time
Set Time:
Select Set Time then adjust the clock as

follows:
1. The hour display will start flashing.

Turn the TUNE/MENU knob to adjust

the hour and push the ENTER button.

2. The minute display will start flashing.

Turn the TUNE/MENU knob to adjust

the minute and push the ENTER

button to finish the clock adjustment.

ON/OFF:
Set the clock display between on or off

when the audio unit is turned off. If set in

the ON position, the clock will be dis-

played when the audio unit is turned off

either by pushing the power button or

when the ignition switch is placed in the

“OFF” position.
Clock Format:
Switch the clock display between 24-hour

mode and 12-hour clock mode.
Language setting:
Push the SETUP button to enter the setup

menu screen then select Language.
Select the appropriate language and

push the ENTER button. Upon completion,

the screen will automatically adapt the

Nissan 370Z (2018 year). Instruction - part 13
