Nissan 370Z (2018 year). Instruction - part 2

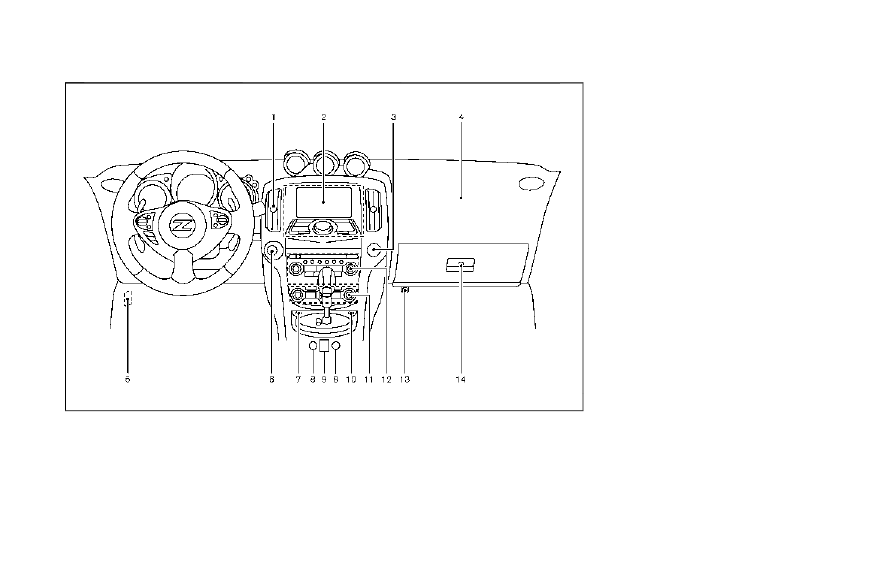

SSI0653

Ventilator (P.4-24)

Center display and multi-function control

panel (if so equipped) (P.4-4) or Instru-

ment pocket (if so equipped) (P.2-43)
— Navigation system* (if so equipped)
— Vehicle information and setting but-

tons (if so equipped) (P.4-8)

— Bluetooth® Hands-Free Phone System

(if so equipped) (P.4-76, P.4-86)

Front passenger air bag status light

(P.1-36)

Front passenger supplemental air bag

(P.1-30)

Fuse box cover (P.8-18)

Push-button ignition switch (P.5-8)

Hazard warning flasher switch (P.6-2)

Seat heater switch (if so equipped)

(P.2-38) or Climate controlled seat switch

(if so equipped) (P.2-40)

Soft top operating switch (for Roadster

models) (P.3-23) or Rear hatch release

switch (for Coupe models) (P.3-19)

10.

SynchroRev Match mode (S-MODE) switch

(if so equipped) (P.5-18)

11.

Heater and air conditioner (P.4-25)
— Rear window defroster switch (P.2-33)

12.

Audio system (P.4-30)

13.

Power outlet (P.2-42)

14.

Glove box (P.2-44)

*: Refer to the separate Navigation Sys-

tem Owner’s Manual.

Illustrated table of contents

0-11

INSTRUMENT PANEL

0-12

Illustrated table of contents

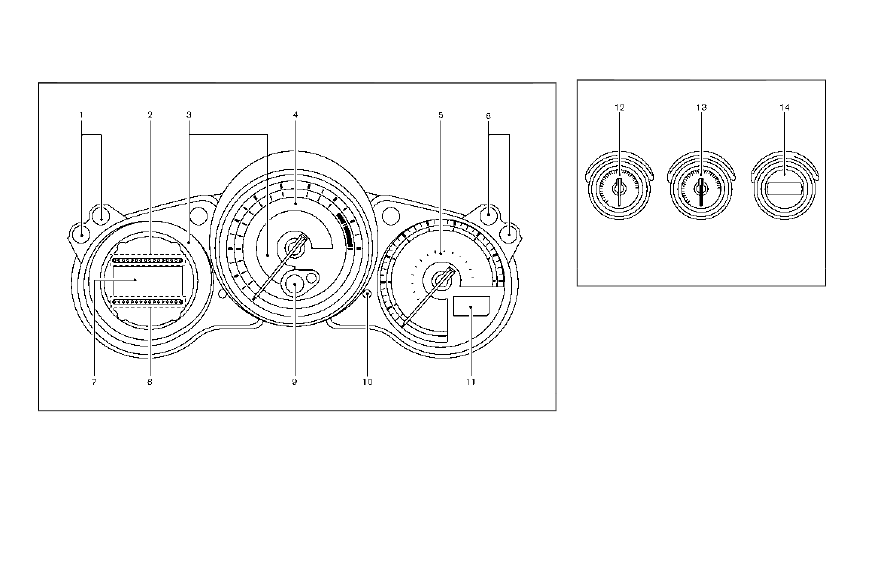

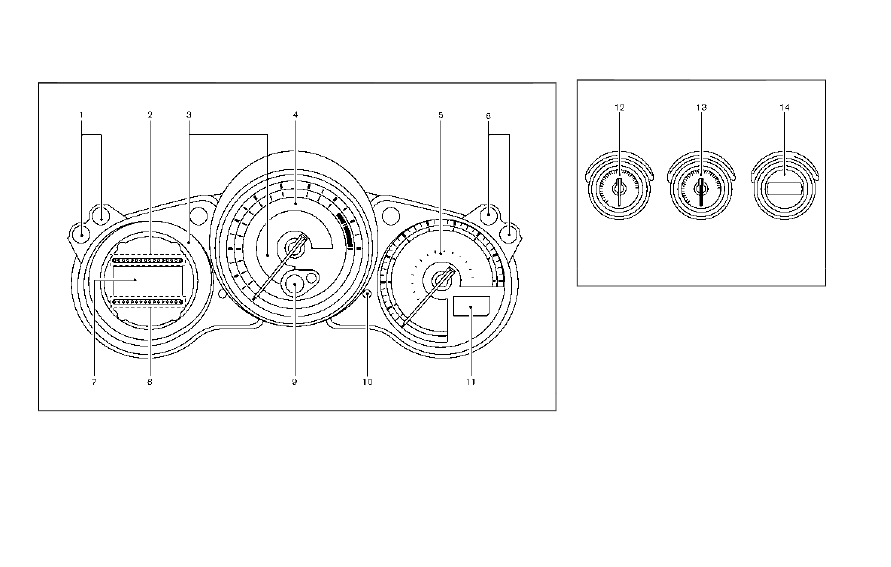

SSI0509

ENTER/NEXT switch (P.2-23)

Fuel gauge (P.2-8)

Warning/Indicator lights (P.2-10)

Tachometer (P.2-7)

Speedometer (P.2-6)

Instrument brightness control switch

(P.2-37)

Vehicle information display (P.2-19)

Engine coolant temperature gauge (P.2-7)

Transmission position indicator (if so

equipped) (P.2-18)
— SynchroRev Match mode (S-MODE) in-

dicator (if so equipped) (P.5-18)

SSI0521

10.

Odometer/Twin trip odometer control

knob (P.2-6)

11.

Odometer/Twin trip odometer (P.2-6)

12.

Engine oil temperature gauge (P.2-8)

13.

Voltmeter (P.2-9)

14.

Clock (P.2-9, P.2-27)

METERS AND GAUGES

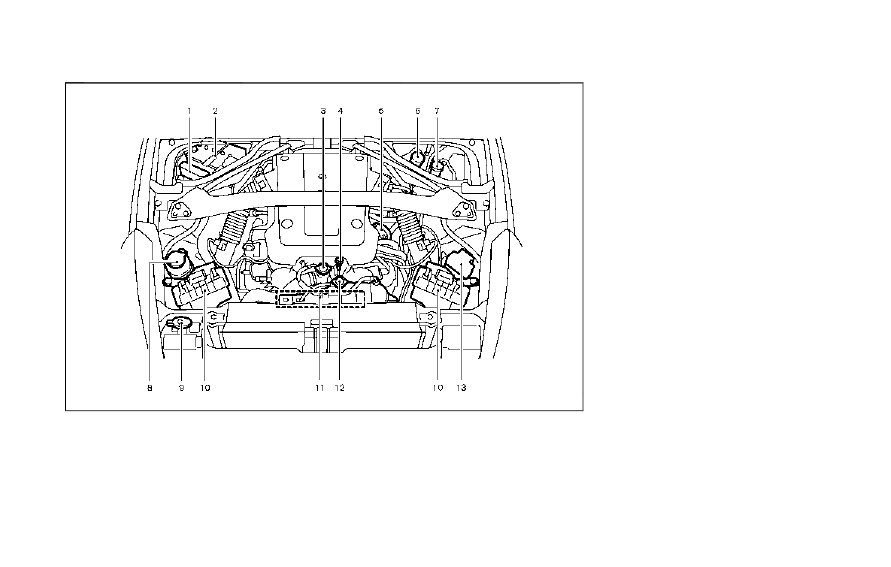

JVC0785X

VQ37VHR ENGINE MODEL

Fuse/fusible link holder (P.8-18)

Battery (P.8-11)

Radiator filler cap (P.8-4)

Engine oil dipstick (P.8-6)

Engine oil filler cap (P.8-6)

Brake fluid reservoir (P.8-9)

Clutch fluid reservoir (Manual Transmis-

sion models) (P.8-9)

Power steering fluid reservoir (P.8-8)

Window washer fluid reservoir (P.8-10)

10.

Air cleaner (P.8-15)

11.

Drive belt location (P.8-14)

12.

Engine coolant reservoir (P.8-4)

13.

Fuse/fusible link holder (P.8-18)

Illustrated table of contents

0-13

ENGINE COMPARTMENT

0-14

Illustrated table of contents

Warning

light

Name

Page

Anti-lock Braking System

(ABS) warning light

2-11

Automatic Transmission

(AT) check warning light (if

so equipped)

2-11

Brake warning light

2-11

Charge warning light

2-12

Engine oil pressure warning

light

2-12

Intelligent Key system

warning light

2-12

Low tire pressure warning

light

2-13

Master warning light

2-14

Seat belt warning light

2-14

Supplemental air bag

warning light

2-14

Vehicle Dynamic Control

(VDC) warning light

2-15

Indica-

tor light

Name

Page

Cruise indicator light

2-15

Exterior light indicator

2-15

Front passenger air bag

status light

2-16

High beam indicator light

2-16

Malfunction Indicator Light

(MIL)

2-16

Rear fog light indicator light

(if so equipped)

2-17

Security indicator light

2-17

Soft top indicator light

(Roadster models)

2-17

SynchroRev Match mode

(S-MODE) indicator (if so

equipped)

2-17

Transmission position indi-

cator light (if so equipped)

2-18

Turn signal/hazard indica-

tor lights

2-18

Vehicle Dynamic Control

(VDC) off indicator light

2-18

WARNING AND INDICATOR LIGHTS

1 Safety — Seats, seat belts and supple-

mental restraint system

Seats ......................................................................................................... 1-2

Front seats .................................................................................... 1-3

Head restraints/headrests ...................................................... 1-6

Adjustable head

restraint/headrest components .................................. 1-7
Remove (if so equipped) .................................................... 1-7
Install (if so equipped) .......................................................... 1-7
Adjust (if so equipped) ......................................................... 1-8
Front-seat Active Head Restraints (if

so equipped) ................................................................................ 1-9

Seat belts ............................................................................................ 1-10

Precautions on seat belt usage ................................. 1-10
Pregnant women ................................................................... 1-12
Injured persons ........................................................................ 1-12
Three-point type seat belt ............................................. 1-12
Seat belt extenders .............................................................. 1-15
Seat belt maintenance ...................................................... 1-15

Child safety ........................................................................................ 1-16

Infants ............................................................................................. 1-16
Small children (for Coupe models) .......................... 1-16
Larger children ......................................................................... 1-17
For Roadster models .......................................................... 1-18

Child restraints .............................................................................. 1-19

Precautions on child restraints ................................ 1-19
Top tether strap child restraint (for

Coupe models) ..................................................................... 1-20
Forward-facing child restraint installation

using the seat belts (for Coupe models) ......... 1-22
Installing top tether strap (for

Coupe models) ..................................................................... 1-26
Booster seats......................................................................... 1-26

Supplemental restraint system ....................................... 1-30

Precautions on supplemental

restraint system .................................................................. 1-30
NISSAN Advanced Air Bag System

(front seats) ............................................................................. 1-36
Front seat-mounted side-impact and roof/

door-mounted curtain side-impact and

rollover (if so equipped) supplemental air

bag systems ............................................................................ 1-41
Seat belts with pretensioners

(front seats) ............................................................................. 1-43
Supplemental air bag warning labels ................ 1-44
Supplemental air bag warning light ................... 1-44
Repair and replacement procedure .................... 1-45

1-2

Safety — Seats, seat belts and supplemental restraint system

SSS0133

WARNING

. Do not ride in a moving vehicle

when the seatback is reclined.

This can be dangerous. The

shoulder belt will not be against

your body. In an accident, you

could be thrown into it and re-

ceive neck or other serious inju-

ries. You could also slide under

the lap belt and receive serious

internal injuries.

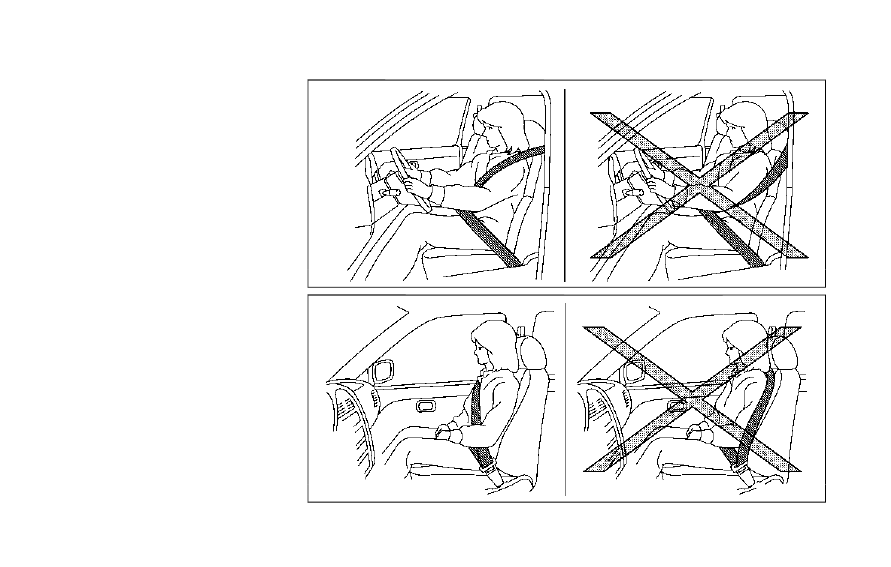

. For the most effective protection

when the vehicle is in motion, the

seat should be upright. Always sit

well back and upright in the seat

with both feet on the floor and

adjust the seat belt properly. See

“Precautions on seat belt usage”

(P.1-10).

. After adjustment, gently rock in

the seat to make sure it is se-

curely locked.

. Do not leave children unattended

inside the vehicle. They could

unknowingly activate switches

or controls. Unattended children

could become involved in serious

accidents.

. To help avoid risk of injury or

death through unintended opera-

tion of the vehicle and/or its

systems, do not leave children,

people who require the assis-

tance of others or pets unat-

t e n d e d i n y o u r v e h i c l e .

Additionally, the temperature in-

side a closed vehicle on a warm

day can quickly become high

enough to cause a significant risk

of injury or death to people and

pets.

. The seatback should not be re-

clined any more than needed for

comfort. Seat belts are most ef-

fective when the passenger sits

well back and straight up in the

seat. If the seatback is reclined,

the risk of sliding under the lap

belt and being injured is in-

creased.

CAUTION

. When adjusting the seat posi-

tions, be sure not to contact any

moving parts to avoid possible

injuries and/or damages.

SEATS

FRONT SEATS
Front power seat adjustment

Operating tips:
. The power seat motor has an auto-

reset overload protection circuit. If the

motor stops during operation, wait 30

seconds, then reactivate the switch.

. Do not operate the power seat switch

for a long period of time when the

engine is off. This will discharge the

battery.

SSS0928

Forward and backward (if so equipped):
Moving the switch

forward or back-

ward will slide the seat forward or back-

ward to the desired position.
Reclining (if so equipped):
Move the recline switch

backward until

the desired angle is obtained. To bring the

seatback forward again, move the switch

forward.

The reclining feature allows adjustment

of the seatback for occupants of different

sizes for added comfort and to help

obtain proper seat belt fit. (See “Precau-

tions on seat belt usage” (P.1-10).) The

seatback may also be reclined to allow

occupants to rest when the vehicle is

stopped and the transmission is in the P

(Park) position or N (Neutral) position with

the parking brake fully applied.

Safety — Seats, seat belts and supplemental restraint system

1-3

1-4

Safety — Seats, seat belts and supplemental restraint system

SSS0394

Type A (if so equipped)

JVR0389X

Type B (if so equipped)

Front manual seat adjustment

Forward and backward:
Pull the lever up

while you slide the seat

forward or backward to the desired posi-

tion. Release the lever to lock the seat in

position.
Reclining:
Type A (if so equipped): To recline the

seatback, pull the lever up

and lean

back. To bring the seatback forward

again, pull the lever and move your body

forward. The seatback will move forward.
Type B (if so equipped): To recline the

seatback, turn the adjusting dial

to-

ward the rear of the vehicle and lean

back. To bring the seatback forward, turn

the adjusting dial toward the front of the

vehicle and lean your body forward.
The reclining feature allows adjustment

of the seatback for occupants of different

sizes for added comfort and to help

obtain proper seat belt fit. See “Precau-

tions on seat belt usage” (P.1-10). The

seatback may also be reclined to allow

occupants to rest when the vehicle is

stopped and the transmission is in the P

(Park) position or N (Neutral) position with

the parking brake fully applied.

JVR0391X

Type B (if so equipped)

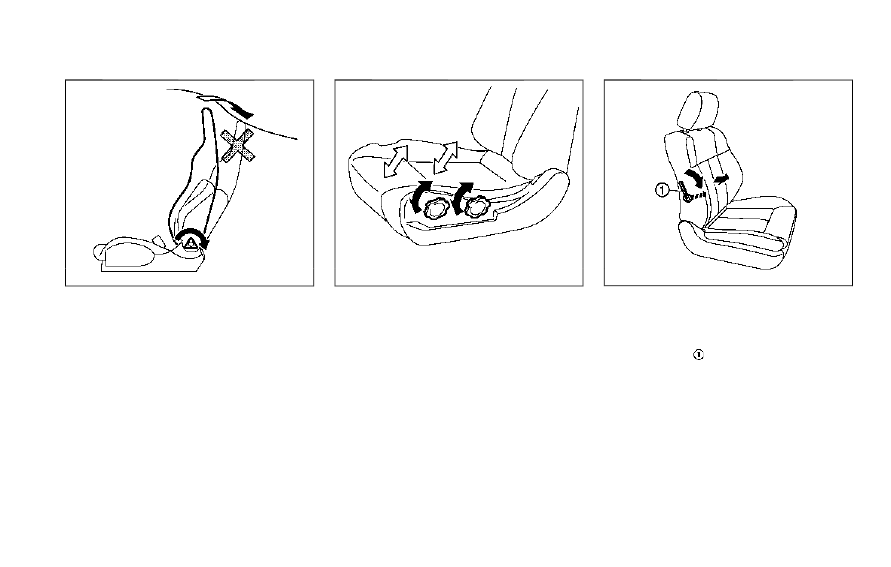

NOTE:
When reclining the seat, do not allow

the seatback to contact the roof. Doing

so may leave temporary indentations

on the seat.

SPA1715

Seat lifter (if so equipped)

Turn either dial to adjust the angle and

height of the seat cushion to the desired

position.

SSS0684

Lumbar support (if so equipped)

The lumbar support feature provides low-

er back support to the driver.
Move the lever

up or down to adjust the

seatback lumbar area.

Safety — Seats, seat belts and supplemental restraint system

1-5

1-6

Safety — Seats, seat belts and supplemental restraint system

WARNING

Head restraints/headrests supple-

ment the other vehicle safety sys-

tems. They may provide additional

protection against injury in certain

rear end collisions. Adjustable head

restraints/headrests must be ad-

justed properly, as specified in this

section. Check the adjustment after

someone else uses the seat. Do not

attach anything to the head re-

straint/headrest stalks or remove

the head restraint/headrest. Do not

use the seat if the head restraint/

headrest has been removed. If the

head restraint/headrest was re-

moved, reinstall and properly adjust

the head restraint/headrest before

an occupant uses the seating posi-

tion. Failure to follow these instruc-

tions can reduce the effectiveness of

the head restraint/headrest. This

may increase the risk of serious

injury or death in a collision.

SSS1007

The illustration shows the seating posi-

tions equipped with head restraints/

headrests.

Indicates the seating position is

equipped with a head restraint.
. Your vehicle is equipped with a head

restraint/headrest that may be inte-

grated, adjustable or non-adjustable.

. Adjustable head restraints/headrests

have multiple notches along the stalk

to lock them in a desired adjustment

position.

. The non-adjustable head restraints/

headrests have a single locking notch

to secure them to the seat frame.

. Proper Adjustment:

— For the adjustable type, align the

head restraint/headrest so the

center of your ear is approximately

level with the center of the head

restraint/headrest.

— If your ear position is still higher

than the recommended alignment,

place the head restraint/headrest

at the highest position.

. If the head restraint/headrest has

been removed, ensure that it is re-

installed and locked in place before

riding in that designated seating posi-

tion.

HEAD RESTRAINTS/HEADRESTS

SSS0992

ADJUSTABLE HEAD RESTRAINT/

HEADREST COMPONENTS

1. Removable head restraint/headrest
2. Multiple notches
3. Lock knob
4. Stalks

SSS1037

REMOVE (if so equipped)

Use the following procedure to remove

the head restraint/headrest.
1. Pull the head restraint/headrest up to

the highest position.

2. Push and hold the lock knob.
3. Remove the head restraint/headrest

from the seat.

4. Store the head restraint/headrest

properly in a secure place so it is not

loose in the vehicle.

5. Reinstall and properly adjust the head

restraint/headrest before an occu-

pant uses the seating position.

SSS1038

INSTALL (if so equipped)

1. Align the head restraint/headrest

stalks with the holes in the seat. Make

sure that the head restraint/headrest

is facing the correct direction. The

stalk with the adjustment notch

must be installed in the hole with the

lock knob

2. Push and hold the lock knob and push

the head restraint/headrest down.

3. Properly adjust the head restraint/

headrest before an occupant uses

the seating position.

Safety — Seats, seat belts and supplemental restraint system

1-7

1-8

Safety — Seats, seat belts and supplemental restraint system

SSS0997

ADJUST (if so equipped)

Adjust the head restraint/headrest so the

center is level with the center of your ears.

If your ear position is still higher than the

recommended alignment, place the head

restraint/headrest at the highest posi-

tion.

SSS1035

Raise

To raise the head restraint/headrest, pull

it up.
Make sure the head restraint/headrest is

positioned so the lock knob is engaged in

the notch before riding in that designated

seating position.

SSS1036

Lower

To lower, push and hold the lock knob

and push the head restraint/headrest

down.
Make sure the head restraint/headrest is

positioned so the lock knob is engaged in

the notch before riding in that designated

seating position.

SSS0508

FRONT-SEAT ACTIVE HEAD RE-

STRAINTS (if so equipped)

The Active Head Restraint moves forward

utilizing the force that the seatback

receives from the occupant in a rear-end

collision. The movement of the head

restraint helps support the occupant’s

head by reducing its backward move-

ment and helping absorb some of the

forces that may lead to whiplash-type

injuries.
Active Head Restraints are effective for

collisions at low to medium speeds in

which it is said that whiplash injury occurs

most.
Active Head Restraints operate only in

certain rear-end collisions. After the colli-

sion, the head restraints return to their

original positions.
The front head restraints have multiple

adjustment notches.
Properly adjust the Active Head Restraints

as described in this section.

Safety — Seats, seat belts and supplemental restraint system

1-9

1-10

Safety — Seats, seat belts and supplemental restraint system

PRECAUTIONS ON SEAT BELT

USAGE

If you are wearing your seat belt properly

adjusted, and you are sitting upright and

well back in your seat with both feet on

the floor, your chances of being injured or

killed in an accident and/or the severity of

injury may be greatly reduced. NISSAN

strongly encourages you and all of your

passengers to buckle up every time you

drive, even if your seating position in-

cludes a supplemental air bag.
Most U.S. states and Canadian pro-

vinces or territories specify that seat

belts be worn at all times when a

vehicle is being driven.

SSS0136A

SSS0134A

SEAT BELTS

SSS0016

SSS0014

WARNING

. Every person who drives or rides

in this vehicle should use a seat

belt at all times.

. The seat belt should be properly

adjusted to a snug fit. Failure to

do so may reduce the effective-

ness of the entire restraint sys-

tem and increase the chance or

severity of injury in an accident.

Serious injury or death can occur

if the seat belt is not worn prop-

erly.

. Always route the shoulder belt

over your shoulder and across

your chest. Never put the belt

behind your back, under your

arm or across your neck. The belt

should be away from your face

and neck, but not falling off your

shoulder.

. Position the lap belt as low and

snug as possible AROUND THE

HIPS, NOT THE WAIST. A lap belt

worn too high could increase the

risk of internal injuries in an

accident.

. Be sure the seat belt tongue is

securely fastened to the proper

buckle.

. Do not wear the seat belt inside

out or twisted. Doing so may

reduce its effectiveness.

. Do not allow more than one

person to use the same seat belt.

. Never carry more people in the

vehicle than there are seat belts.

. If the seat belt warning light

glows continuously while the

ignition is turned ON with all

doors closed and all seat belts

fastened, it may indicate a mal-

function in the system. Have the

system checked. It is recom-

mended you visit a NISSAN dealer

for this service.

. No changes should be made to

the seat belt system. For exam-

ple, do not modify the seat belt,

add material or install devices

that may change the seat belt

routing or tension. Doing so may

affect the operation of the seat

belt system. Modifying or tam-

pering with the seat belt system

may result in serious personal

injury.

. Once a seat belt pretensioner has

activated, it cannot be reused and

must be replaced together with

Safety — Seats, seat belts and supplemental restraint system

1-11

1-12

Safety — Seats, seat belts and supplemental restraint system

the retractor. It is recommended

you visit a NISSAN dealer for this

service.

. All seat belt assemblies, including

retractors and attaching hard-

ware, should be inspected after

any collision. It is recommended

you visit a NISSAN dealer for this

service. NISSAN recommends that

all seat belt assemblies in use

during a collision be replaced

unless the collision was minor

and the belts show no damage

and continue to operate properly.

Seat belt assemblies not in use

during a collision should also be

inspected and replaced if either

damage or improper operation is

noted.

. All child restraints and attaching

hardware should be inspected

after any collision. Always follow

the restraint manufacturer’s in-

spection instructions and repla-

cement recommendations. The

child restraints should be re-

placed if they are damaged.

PREGNANT WOMEN

NISSAN recommends that pregnant wo-

men use seat belts. The seat belt should

be worn snug, and always position the lap

belt as low as possible around the hips,

not the waist, and place the shoulder belt

over your shoulder and across your chest.

Never run the lap/shoulder belt over your

abdominal area. Contact your doctor for

specific recommendations.

INJURED PERSONS

NISSAN recommends that injured persons

use seat belts, depending on the injury.

Check with your doctor for specific re-

commendations.

THREE-POINT TYPE SEAT BELT

WARNING

. Every person who drives or rides

in this vehicle should use a seat

belt at all times.

. Do not ride in a moving vehicle

when the seatback is reclined.

This can be dangerous. The

shoulder belt will not be against

your body. In an accident, you

could be thrown into it and re-

ceive neck or other serious inju-

ries. You could also slide under

the lap belt and receive serious

internal injuries.

. For the most effective protection

when the vehicle is in motion, the

seat should be upright. Always sit

well back and upright in the seat

with both feet on the floor and

adjust the seat belt properly.

. Do not allow children to play with

the seat belts. Most seating posi-

tions are equipped with Auto-

matic Locking Retractor (ALR)

mode seat belts. If the seat belt

becomes wrapped around a

child’s neck with the ALR mode

activated, the child can be ser-

iously injured or killed if the seat

belt retracts and becomes tight.

This can occur even if the vehicle

is parked. Unbuckle the seat belt

to release the child. If the seat

belt can not be unbuckled or is

already unbuckled, release the

child by cutting the seat belt with

a suitable tool (such as a knife or

scissors) to release the seat belt.

Content .. 1 2 3 ..
