Nissan 370Z Coupe (2017 year). Instruction

(194,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

4-30

Center display, heater, air conditioner, audio, phone and voice recognition systems

OPERATING TIPS

When the engine coolant temperature and
outside air temperature are low, the air flow
from the foot outlets may not operate. This is not
a malfunction. After the coolant temperature
warms up, air will flow normally from the foot
outlets.

The sensors

and

on the instrument

panel helps maintain a constant temperature. Do
not put anything on or around this sensor.

IN-CABIN MICROFILTER

The air conditioning system is equipped with an
in-cabin microfilter which collects dirt, pollen,
dust, etc. To make sure the air conditioner heats,
defogs, and ventilates efficiently, replace the
filter in accordance with the specified main-
tenance intervals listed in the “9. Maintenance
and schedules” section. It is recommended to
see a NISSAN dealer to replace the filter.

The filter should be replaced if air flow is
extremely decreased or when windows fog
up easily when operating heater or air
conditioning system.

SERVICING AIR CONDITIONER

The air conditioning system in your NISSAN is
charged with a refrigerant designed with the
environment in mind. This refrigerant will not
harm the earth’s ozone layer. However,
special charging equipment and lubricant are
required when servicing your NISSAN air con-
ditioner. Using improper refrigerants or lubri-
cants will cause severe damage to your air
conditioning system. (See “Capacities and
recommended fluids/lubricants” (P.10-2) for air
conditioning system refrigerant and lubricant
recommendations.)

Your NISSAN dealer will be able to service your
environmentally friendly air conditioning system.

WARNING

The system contains refrigerant under
high pressure. To avoid personal injury,
any air conditioner service should be
done only by an experienced technician
with the proper equipment.

AUDIO OPERATION PRECAUTIONS

Radio

Push the ignition switch to the ACC or ON
position and push the radio band select button
to turn on the radio. If you listen to the radio with
the engine not running, the ignition switch
should be pushed to the ACC position.

Radio reception is affected by station signal
strength, distance from radio transmitter, build-
ings, bridges, mountains and other external
influences. Intermittent changes in reception
quality normally are caused by these external
influences.

Using a cellular phone in or near the
vehicle may influence radio reception
quality.

Radio reception:

Your NISSAN radio system is equipped with
state-of-the-art electronic circuits to enhance
radio reception. These circuits are designed to
extend reception range, and to enhance the
quality of that reception.

However there are some general characteristics
of both FM and AM radio signals that can affect
radio reception quality in a moving vehicle, even
when the finest equipment is used. These
characteristics are completely normal in a given
reception area, and do not indicate any mal-

AUDIO SYSTEM

Condition:

(195,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

function in your NISSAN radio system.

Reception conditions will constantly change
because of vehicle movement. Buildings, terrain,
signal distance and interference from other
vehicles can work against ideal reception.
Described below are some of the factors that
can affect your radio reception.

Some cellular phones or other devices may
cause interference or a buzzing noise to come
from the audio system speakers. Storing the
device in a different location may reduce or
eliminate the noise.

SAA0306

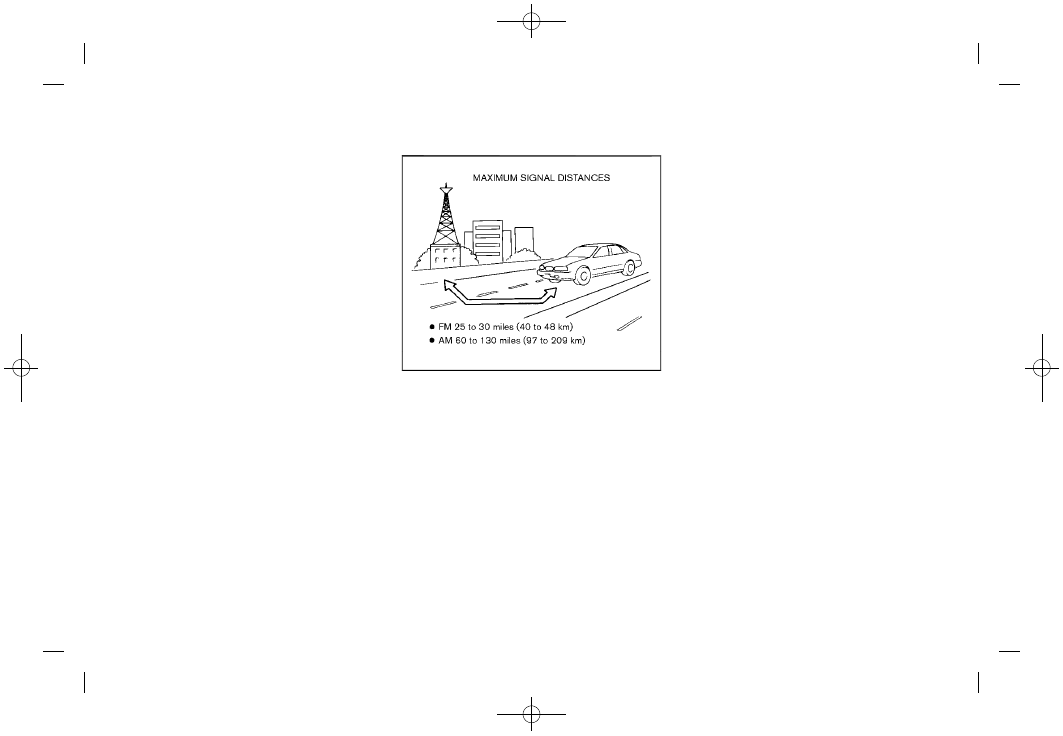

FM radio reception:

Range: FM range is normally limited to 25 to 30
miles (40 to 48 km), with monaural (single
channel) FM having slightly more range than
stereo FM. External influences may sometimes
interfere with FM station reception even if the
FM station is within 25 miles (40 km). The
strength of the FM signal is directly related to the
distance between the transmitter and receiver.
FM signals follow a line-of-sight path, exhibiting
many of the same characteristics as light. For
example they will reflect off objects.

Fade and drift: As your vehicle moves away from
a station transmitter, the signals will tend to fade
and/or drift.

Static and flutter: During signal interference from
buildings, large hills or due to antenna position,
usually in conjunction with increased distance
from the station transmitter, static or flutter can
be heard. This can be reduced by lowering the
treble setting to reduce the treble response.

Multipath reception: Because of the reflective
characteristics of FM signals, direct and re-
flected signals reach the receiver at the same
time. The signals may cancel each other,
resulting in momentary flutter or loss of sound.

AM radio reception:

AM signals, because of their low frequency, can
bend around objects and skip along the ground.
In addition, the signals can be bounced off the
ionosphere and bent back to earth. Because of
these characteristics. AM signals are also
subject to interference as they travel from
transmitter to receiver.

Fading: Occurs while the vehicle is passing
through freeway underpasses or in areas with
many tall buildings. It can also occur for several
seconds during ionospheric turbulence even in
areas where no obstacles exist.

Static: Caused by thunderstorms, electrical
power lines, electric signs and even traffic lights.

Center display, heater, air conditioner, audio, phone and voice recognition systems

4-31

Condition:

(196,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

4-32

Center display, heater, air conditioner, audio, phone and voice recognition systems

Satellite radio reception (if so equipped):

When the satellite radio is used for the first time
or the battery has been replaced, the satellite
radio may not work properly. This is not a
malfunction. Wait more than 10 minutes with the
satellite radio ON and the vehicle outside of any
metal or large building for the satellite radio to
receive all of the necessary data.

The satellite radio mode requires an active
SiriusXM Satellite Radio subscription. The sa-
tellite radio is not available in Alaska, Hawaii and
Guam.

The satellite radio performance may be affected
if cargo carried on the roof blocks the satellite
radio signal.

If possible, do not put cargo near the satellite
antenna.

A build up of ice on the satellite radio antenna
can affect satellite radio performance. Remove
the ice to restore satellite radio reception.

SAA0480

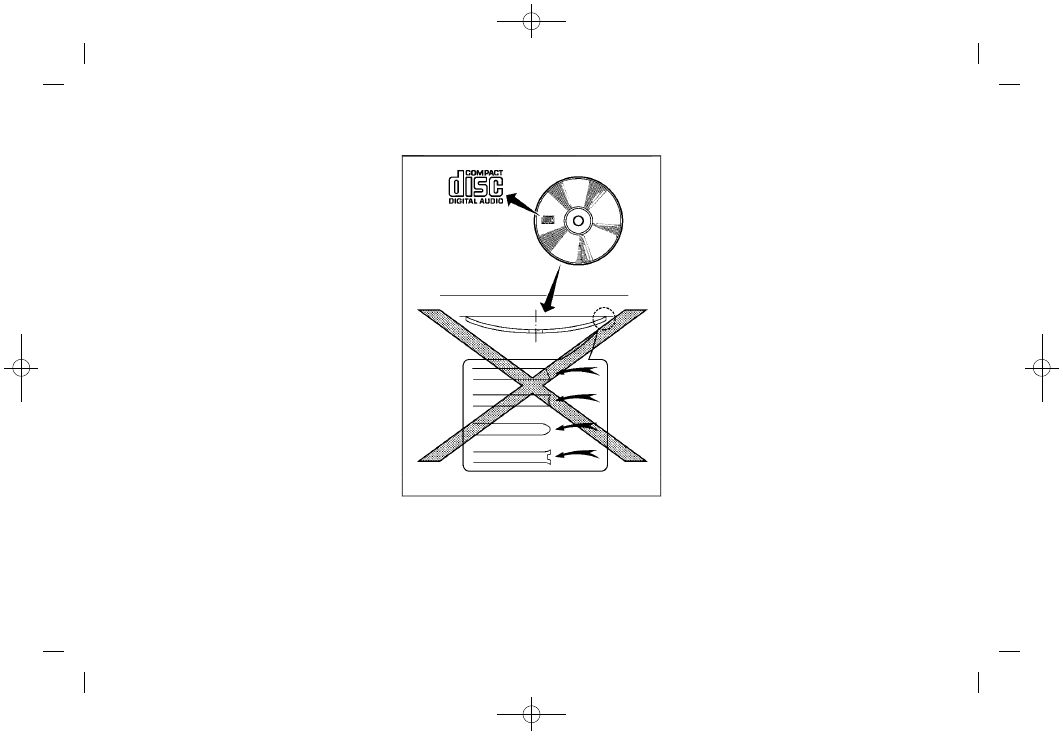

Compact Disc (CD) player

Do not force a compact disc into the CD
insert slot. This could damage the CD and/
or CD changer/player.

Trying to load a CD with the CD door closed
could damage the CD and/or CD changer.

During cold weather or rainy days, the player
may malfunction due to the humidity. If this
occurs, remove the CD and dehumidify or
ventilate the player completely.

The player may skip while driving on rough
roads.

The CD player sometimes cannot function
when the passenger compartment tempera-
ture is extremely high. Decrease the tem-
perature before use.

Only use high quality 4.7 in (12 cm) round
discs that have the “COMPACT disc DIGI-
TAL AUDIO” logo on the disc or packaging.

Do not expose the CD to direct sunlight.

CDs that are of poor quality, dirty, scratched,
covered with fingerprints, or that have pin
holes may not work properly.

The following CDs may not work properly:

— Copy control compact discs (CCCD)

— Recordable compact discs (CD-R)

— Rewritable compact discs (CD-RW)

Do not use the following CDs as they may
cause the CD player to malfunction.

— 3.1 in (8 cm) discs

— CDs that are not round

— CDs with a paper label

— CDs that are warped, scratched, or have

abnormal edges

Condition:

(197,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

This audio system can only play prerecorded
CDs. It has no capabilities to record or burn
CDs.

If the CD cannot be played, one of the
following messages will be displayed.

CHECK DISC:

— Confirm that the CD is inserted correctly

(the label side is facing up, etc.).

— Confirm that the CD is not bent or

warped and it is free of scratches.

PUSH EJECT:

This is an error due to the temperature inside
the player is too high. Remove the CD by
pushing the EJECT button, and after a short
time reinsert the CD. The CD can be played
when the temperature of the player returns
to normal.

UNPLAYABLE:

The file is unplayable in this audio system
(only MP3 or WMA CD).

LHA0484

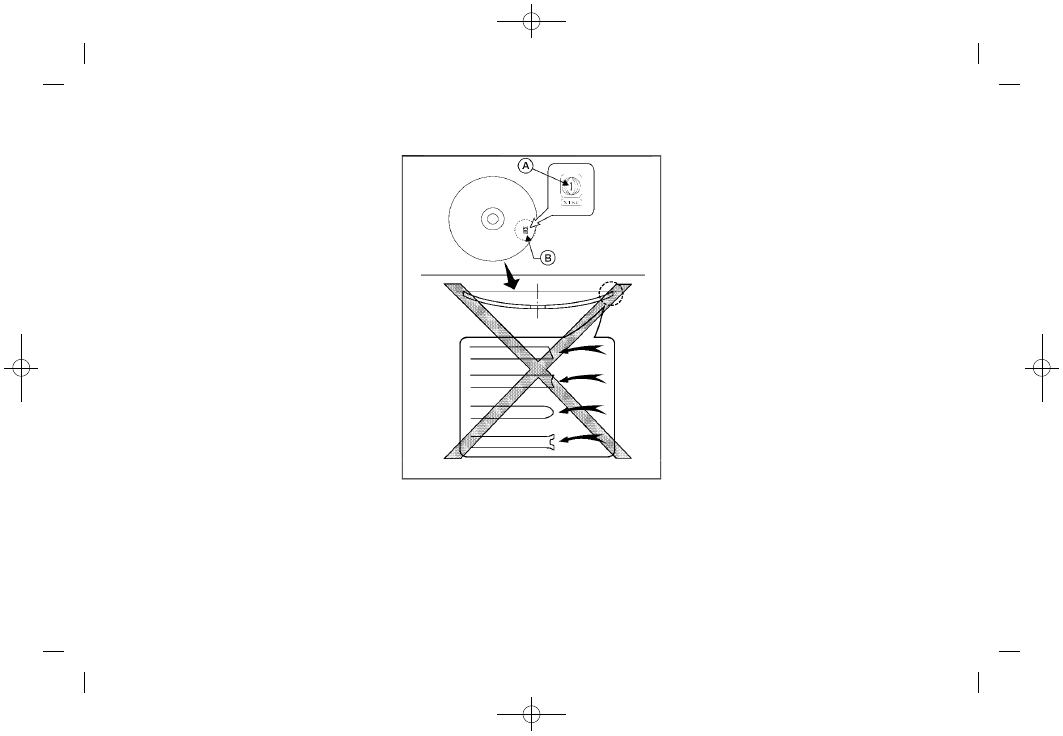

DVD (Digital Versatile Disc) player
(models with navigation system)

Do not force a compact disc into the CD/
DVD insert slot. This could damage the CD/
DVD player.

During cold weather or rainy days, the player
may malfunction due to humidity. If this
occurs, remove the CD/DVD and dehumidify

or ventilate the player completely.

The player may skip while driving on rough
roads.

The CD/DVD player sometimes cannot
function when the passenger compartment
temperature is extremely high. Decrease the
temperature before use.

Only use high quality 4.7 in (12 cm) round
discs that have the “COMPACT disc DIGI-
TAL AUDIO” or “DVD Video” logo on the
disc or packaging.

Do not expose the CD/DVD to direct
sunlight.

CD/DVDs that are of poor quality, dirty,
scratched, covered with fingerprints, or that
have pinholes may not work properly.

The following CD/DVDs are not guaranteed
to play:

— Copy control compact discs (CCCD)

— Recordable compact discs (CD-R)

— Rewritable compact discs (CD-RW)

— Recordable DVDs (DVD±R, DVD±R DL)

— Rewritable DVDs (DVD±RW, DVD±RW

DL)

Do not use the following CD/DVDs as they
may cause the CD/DVD player to malfunc-
tion.

Center display, heater, air conditioner, audio, phone and voice recognition systems

4-33

Condition:

(198,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

4-34

Center display, heater, air conditioner, audio, phone and voice recognition systems

— 3.1 in (8 cm) discs

— CD/DVDs that are not round

— CD/DVDs with a paper label

— CD/DVDs that are warped, scratched or

have abnormal edges

— This audio system can only play pre-

recorded CD/DVDs. It has no capabilities
to record or burn CD/DVDs.

If the CD/DVD cannot be played, one of the
following messages will be displayed.

Disc Read Error:

— Confirm that the CD/DVD is inserted

correctly (the label side is facing up,
etc.).

— Confirm that the CD/DVD is not bent or

warped and it is free of scratches.

Please Eject Disc:

— This may be an error due to the

temperature inside the player being too
high. Remove the CD/DVD by pushing
the EJECT button, and after a short time
reinsert the CD/DVD. The CD/DVD can
be played when the temperature of the
player returns to normal. If the error
persists, consult your local dealership.

Unplayable File:

— The file may be copy protected.

— The file is not MP3, WMA, AAC, M4A or

DivX

type.

Region Invalid:

— The DVD is not for region 1 or all regions.

Use DVDs with a region code “1”, “ALL”
or “1 included” for your DVD entertain-
ment system. (The region code

displayed as a small symbol printed on
the top of the DVD

.) This vehicle-

installed DVD player cannot play DVDs
with a region code other than “1” or
“ALL”.

Copyright and trademark:

The technology protected by the U.S. patent
and other intellectual property rights owned
by Macrovision Corporation and other right
holders is adopted for this system.

This copyright protected technology cannot
be used without a permit from Macrovision
Corporation. It is limited to be personal use,
etc., as long as the permit from Macrovision
Corporation is not issued.

Modifying or disassembling is prohibited.

Dolby digital is manufactured under license
from Dolby Laboratories, Inc.

Dolby and the double D mark “

” are

trademarks of Dolby Laboratories, Inc.

DTS and DTS 2.0 “

” are registered

trademarks of DTS, Inc.

Parental level (parental control):

DVDs with the parental control setting can be
played with this system. Please use your own
judgement to set the parental control with the
system.

Disc selection:

The following disc formats can be played with
the DVD drive.

DVD-VIDEO

VIDEO-CD

CD-DA (Conventional Compact Disc)

DTS-CD

USB (Universal Serial Bus) connection
port

WARNING

Do not connect, disconnect or operate
the USB device while driving. Doing so
can be a distraction. If distracted you
could lose control of your vehicle and
cause an accident or serious injury.

Condition:

(199,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

CAUTION

Do not force the USB device into the
USB port. Inserting the USB device
tilted or up-side-down into the port
may damage the port. Make sure
that the USB device is connected
correctly into the USB port.

Do not grab the USB port cover (if
so equipped) when pulling the USB
device out of the port. This could
damage the port and the cover.

Do not leave the USB cable in a
place where it can be pulled unin-
tentionally. Pulling the cable may
damage the port.

The vehicle is not equipped with a USB device.
USB devices should be purchased separately
as necessary.

This system cannot be used to format USB
devices. To format a USB device, use a personal
computer.

In some states/area, the USB device for the
front seats plays only sound without images for
regulatory reasons, even when the vehicle is
parked.

This system supports various USB memory

devices, USB hard drives and iPod

players.

Some USB devices may not be supported by
this system.

Partitioned USB devices may not be played
correctly.

Some characters used in other languages
(Chinese, Japanese, etc.) may not appear
properly in the display. Using English lan-
guage characters with a USB device is
recommended.

General notes for USB use:

Refer to your device manufacturer’s owner
information regarding the proper use and care
of the device.

Notes for iPod

use:

iPod

is a trademark of Apple Inc., registered in

the U.S. and other countries.

Improperly plugging in the iPod

may cause

a checkmark to be displayed on and off
(flickering). Always make sure that the iPod

is connected properly.

An iPod nano

(1st Generation) may remain

in fast forward or rewind mode if it is
connected during a seek operation. In this
case, please manually reset the iPod

An iPod nano

(2nd Generation) will con-

tinue to fast-forward or rewind if it is
disconnected during a seek operation.

An incorrect song title may appear when the
Play Mode is changed while using an iPod
nano

(2nd Generation)

Audiobooks may not play in the same order
as they appear on an iPod

Large video files cause slow responses in an
iPod

. The vehicle center display may

momentarily black out, but will soon recover.

If an iPod

automatically selects large video

files while in the shuffle mode, the vehicle
center display may momentarily black out,
but will soon recover.

Compressed Audio Files (MP3/WMA/
AAC) (if so equipped)

Explanation of terms:

MP3 — MP3 is short for Moving Pictures
Experts Group Audio Layer 3. MP3 is the
most well known compressed digital audio
file format. This format allows for near “CD
quality” sound, but at a fraction of the size of
normal audio files. MP3 conversion of an
audio track can reduce the file size by
approximately a 10:1 ratio (Sampling: 44.1
kHz, Bit rate: 128 kbps) with virtually no
perceptible loss in quality. The compression
reduces certain parts of sound that seem
inaudible to most people.

Center display, heater, air conditioner, audio, phone and voice recognition systems

4-35

Condition:

(200,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

4-36

Center display, heater, air conditioner, audio, phone and voice recognition systems

WMA — Windows Media Audio (WMA) is a
compressed audio format created by Micro-
soft as an alternative to MP3. The WMA
codec offers greater file compression than
the MP3 codec, enabling storage of more
digital audio tracks in the same amount of
space when compared to MP3s at the same
level of quality.

AAC/M4A — Advanced Audio Coding
(AAC) is a lossy audio compression format.
Audio files that have been encoded with
AAC are generally smaller in size and deliver
a higher quality of sound than MP3.

Bit rate — Bit rate denotes the number of
bits per second used by a digital music file.
The size and quality of a compressed digital
audio file is determined by the bit rate used
when encoding the file.

Sampling frequency — Sampling frequency
is the rate at which the samples of a signal
are converted from analog to digital (A/D
conversion) per second.

Multisession — Multisession is one of the
methods for writing data to media. Writing
data once to the media is called a single
session, and writing more than once is
called a multisession.

ID3/WMA Tag — The ID3/WMA tag is the
part of the encoded MP3 or WMA file that

contains information about the digital music
file such as song title, artist, album title,
encoding bit rate, track time duration, etc.
ID3 tag information is displayed on the
Album/Artist/Track title line on the display.

* Windows

and Windows Media

are regis-

tered trademarks or trademarks of Microsoft
Corporation in the United States of America
and/or other countries.

SAA2494

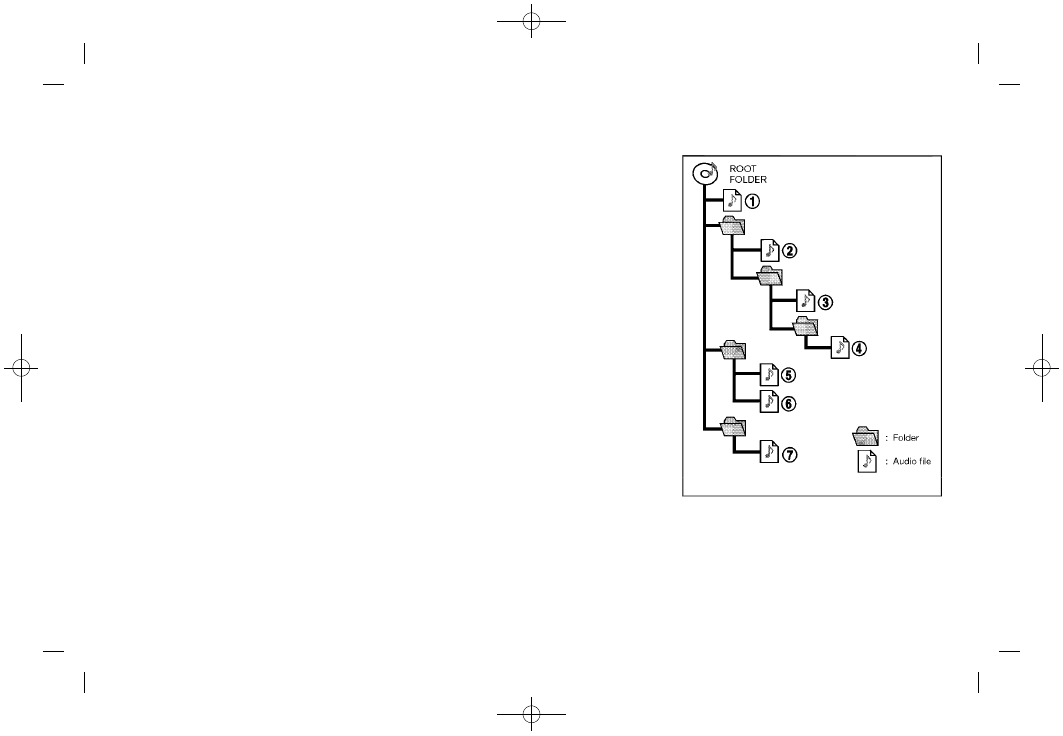

Playback order:

The folder names of folders not containing
compressed audio files are not shown in the
display.

If there is a file in the top level of a disc/USB,
“Root Folder” is displayed.

Condition:

(202,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

4-38

Center display, heater, air conditioner, audio, phone and voice recognition systems

Specification chart:

Supported media

CD, CD-R, CD-RW, DVD-ROM*5, DVD±R*5, DVD±RW*5, DVD±R DL*5, USB2.0

Supported file sys-
tems

Models with navigation system

CD, CD-R, CD-RW, DVD-ROM, DVD±R, DVD±RW, DVD±R DL: ISO9660 LEVEL1, ISO9660 LEVEL2, Romeo,
Joliet
* ISO9660 Level 3 (packet writing) is not supported.
* Files saved using the Live File System component (on a Windows Vista-based computer) are not supported.
UDF Bridge (UDF1.02+ISO9660), UDF1.5, UDF2.0
* VDF1.5/VDF2.0 (packet writing) is not supported.

Models without navigation sys-
tem

CD, CD-R, CD-RW: ISO9660 LEVEL1, ISO9660 LEVEL2, Romeo, Joliet
* ISO9660 Level 3 (packet writing) is not supported.
* Files saved using the Live File System component (on a Windows Vista-based computer) are not supported.

USB memory: FAT16, FAT32

Supported
versions*1

MP3

Version

Models with navigation system:
MPEG1 Audio Layer 3
Models without navigation system:
MPEG1, MPEG2, MPEG2.5

Sampling frequency

8 kHz - 48 kHz

Bit rate

8 kbps - 320 kbps, VBR*4

WMA*2

Version

Models with navigation system:
WMA7, WMA8, WMA9
Models without navigation system:
WMA7, WMA8, WMA9 except WMA9 Pro, WMA9 Lossless, WMA9 Voice

Sampling frequency

32 kHz - 48 kHz

Bit rate

32 kbps - 192 kbps, VBR (Ver.9)*4

AAC*5

Version

MPEG-AAC

Sampling frequency

8 kHz - 96 kHz

Bit rate

16 kbps - 320 kbps, VBR*4

Tag information (Song title and Artist name)

ID3 tag VER1.0, VER1.1, VER2.2, VER2.3, VER2.4 (MP3 only)

WMA tag (WMA only)

Condition:

(203,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

Folder levels

With navigation system:
Folder levels: 8, Folders: 512 (including root folder), Files: 5000
Without navigation system:
Folder levels: 8, Folders: 255 (including root folder), files: 512

Displayable character codes*3

01: ASCII, 02: ISO-8859-1, 03: UNICODE (UTF-16 BOM Big Endian), 04: UNICODE (UTF-16 Non-BOM Big
Endian), 05: UNICODE (UTF-8), 06: UNICODE (Non-UTF-16 BOM Little Endian), 07: SHIFT-JIS

Files created with a combination of 48 kHz sampling frequency and 64 kbps bit rate cannot be played.

Protected WMA files (DRM) cannot be played.

Available codes depend on what kind of media, versions and information are going to be displayed.

When VBR files are played, the playback time may not be displayed correctly.

Models with navigation system

Center display, heater, air conditioner, audio, phone and voice recognition systems

4-39

Condition:

(204,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

4-40

Center display, heater, air conditioner, audio, phone and voice recognition systems

Troubleshooting guide:

Symptom

Cause and Countermeasure

Cannot play

Check if the disc or USB device was inserted correctly.

Check if the disc is scratched or dirty.

Check if there is condensation inside the player, and if there is, wait until the condensation is gone (about 1 hour) before using the
player.

If there is a temperature increase error, the player will play correctly after it returns to the normal temperature.

If there is a mixture of music CD files (CD-DA data) and compressed audio files on a CD, only the music CD files (CD-DA data) will
be played.

Files with extensions other than “.MP3 (.mp3)”, “.WMA (.wma)”, “.AAC (.aac)”, “.M4A (.m4a)”, or “.AA3 (.aa3)” cannot be played. In
addition, the character codes and number of characters for folder names and file names should be in compliance with the
specifications.

Check if the disc or the file is generated in an irregular format. This may occur depending on the variation or the setting of
compressed audio writing applications or other text editing applications.

Check if the finalization process, such as session close and disc close, is done for the disc.

Check if the disc or USB device is protected by copyright.

Poor sound quality

Check if the disc is scratched or dirty.

It takes a relatively long time before
the music starts playing.

If there are many folder or file levels on the disc or USB device, some time may be required before the music starts playing.

Music cuts off or skips

The writing software and hardware combination might not match, or the writing speed, writing depth, writing width, etc., might not
match the specifications. Try using the slowest writing speed.

Skipping with high bit rate files

Skipping may occur with large quantities of data, such as for high bit rate data.

Move immediately to the next song
when playing.

If an unsupported compressed audio file has been given a supported extension like .MP3, or when play is prohibited by copyright
protection, the player will skip to the next song.

The songs do not play back in the
desired order.

The playback order is the order in which the files were written by the writing software, so the files might not play in the desired order.

Random/Shuffle may be active on the audio system or on a USB device.

Condition:

(205,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

Compressed Video Files (models with
navigation system)

Explanation of terms:

DivX

- DivX

refers to the DivX

codec

owned by DivX, Inc. used for a lossy
compression of video based on MPEG-4.

AVI - AVI stands for Audio Video Interleave.
It is a standard file format originated by
Microsoft Corporation. A “.divx” encoded file
can be saved into the “.avi” file format for
playback on this system if it meets the
requirements stated in the table in this
section. However, not all the “.avi” files are
playable on this system since different
encodings can be used than the DivX

codec.

ASF - ASF stands for Advanced Systems
Format. It is a file format owned by Microsoft
Corporation. Note: Only “.asf” files that meet
the requirements stated in the table in this
section can be played.

Bit rate — Bit rate denotes the number of
bits per second used by a digital video file.
The size and quality of a compressed digital
audio file is determined by the bit rate used
when encoding the file.

Requirement for Supporting Video Playback:

Media

CD, CD-R, CD-RW, DVD, DVD±R, DVD±RW, DVD±RW DL, USB 2.0 Memory

File Systems

CD,
CD-R,
CD-RW,
DVD,
DVD±R,
DVD±RW,
DVD±RW DL

ISO9660 LEVEL1, ISO9660 LEVEL2, Romeo, Joliet, UDF Bridge
(UDF1.02+ISO9660), UDF1.5, UDF2.0
- ISO9660 Level 3 (packet writing) is not supported.
- Files saved using the Live File System component (on a
Windows Vista-based computer) are not supported.
- VDF1.5/VDF2.0 (packet writing) is not supported.

USB Memory

FAT16, FAT32

File Types

.divx, .avi

Video Codecs

DivX3, DivX4, DivX5, DivX6

Audio Codecs

MP3, MPEG2.5 Audio Layer3, Dolby
Digital, LPCM

.asf

Video Codec

ISO-MPEG4

Audio Codec

G.726

Bit Rates

.divx, .avi

Maximum Average

4Mbps

Maximum Peak

8Mbps

Resolution

.divx, .avi

Minimum

32 6 32

Maximum

720 6 480

.asf

Minimum

32 6 32

Maximum

720 6 576

Center display, heater, air conditioner, audio, phone and voice recognition systems

4-41

Condition:

(206,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

4-42

Center display, heater, air conditioner, audio, phone and voice recognition systems

Bluetooth

Audio player (models with

navigation system)

Bluetooth

is a trademark

owned by Bluetooth SIG,
Inc. and licensed to Clar-
ion Co., Ltd.

Some Bluetooth

audio devices may not

be recognized by the in-vehicle audio
system.

It is necessary to set up the wireless
connection between a compatible Blue-
tooth

audio device and the in-vehicle

Bluetooth

module before using the

Bluetooth

audio player.

Operating procedure of the Bluetooth

audio player will vary depending on
the device. Make sure it is understood
how to operate an audio device before
using it with this system.

The Bluetooth

audio player may be

stopped under the following condi-
tions:

— Receiving a hands-free call.

— Checking the connection to the hands-

free phone.

Do not place a Bluetooth

audio device in

an area surrounded by metal or far
away from the in-vehicle Bluetooth

module to prevent tone quality degra-

dation and wireless connection disrup-
tion.

While an audio device is connected through
a Bluetooth

wireless connection, the

battery power of the device may dis-
charge quicker than usual.

This system supports the Bluetooth

Audio

Distribution Profile (A2DP, AVRCP).

Wireless LAN (Wi-Fi) and the Bluetooth

functions share the same frequency
band (2.4 GHz). Using the Bluetooth

and the wireless LAN functions at the
same time may slow down or discon-
nect the communication and cause
undesired noise. It is recommended
that you turn off the wireless LAN (Wi-
Fi) when using the Bluetooth

func-

tions.

Condition:

(207,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

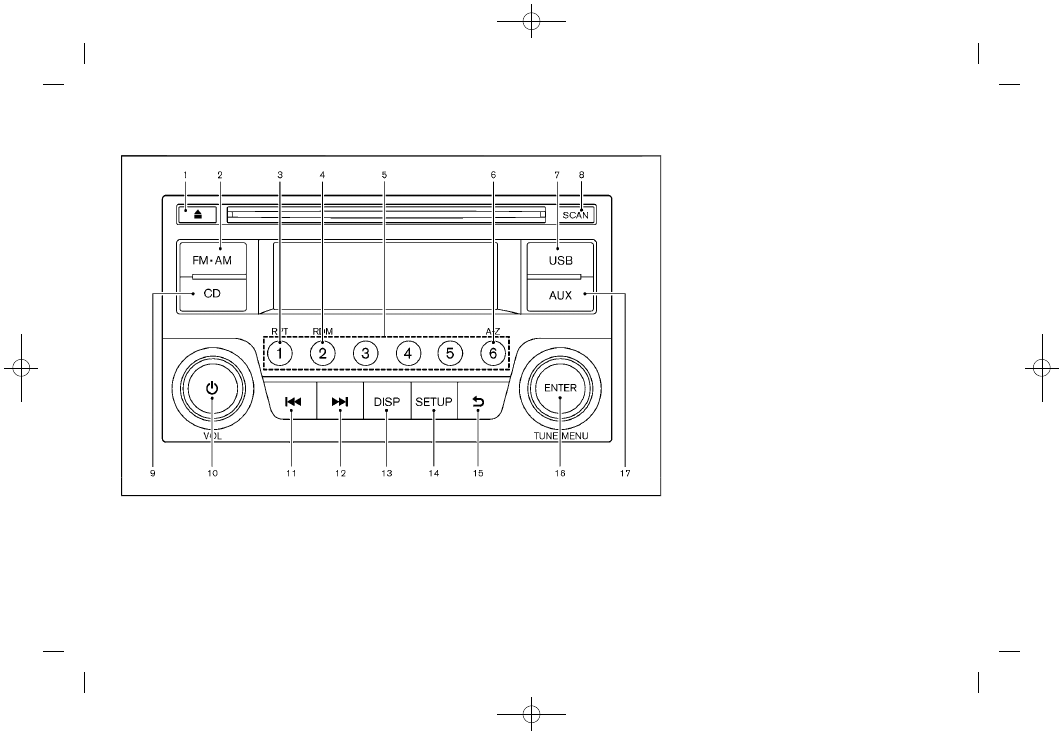

JVH0923X

FM-AM RADIO WITH COMPACT DISC
(CD) PLAYER

CD eject button

FM·AM button

RPT (repeat) button

RDM (random play) button

Radio memory buttons

A-Z button

USB button

SCAN button

CD button

10.

Power button/VOL (volume) control knob

11.

Rewind button

12.

Fast Forward button

13.

DISP (display) button

14.

SETUP button

15.

Back button

16.

TUNE/MENU knob/ENTER button

17.

AUX button

Center display, heater, air conditioner, audio, phone and voice recognition systems

4-43

Condition:

(208,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

4-44

Center display, heater, air conditioner, audio, phone and voice recognition systems

Audio main operation

The audio system operates when the ignition
switch is in the “ACC” or “ON” position.

POWER ON/OFF:

To turn on the audio system, push the Power
button.

The system will turn on in the mode which
was used immediately before the system
was turned off.

If there is no CD loaded, the radio will be
turned on.

To turn off the audio system, push the Power
button.

Volume control:

To control the volume, turn the VOL control
knob.

Turn the VOL control knob clockwise to make
the sound louder.

Turn the VOL control knob counterclockwise to
make the sound quieter.

SETUP button:

To configure Audio, Clock, Language or Scroll
direction settings, perform the following proce-
dure:

1. Push the SETUP button.

2. Push the ENTER button.

3. Turn the TUNE/MENU knob clockwise or

counterclockwise, the display will appear in
the following order:

Audio Û Clock Û Language Û Scroll
Direction

After the desired levels have been set, push
either the back button repeatedly, the SETUP
button, or wait for 8 seconds without pushing
any buttons to exit the menu screen.

Audio adjustments:

Push the SETUP button to enter the setup menu
screen then select Audio by using TUNE/MENU
knob.

Each time the ENTER button is pushed, the
mode will change as follows:

Bass ? Treble ? Fade ? Balance ? AUX
VOL ? SPD VOL ? Audio (setup menu
screen)

Turn the TUNE/MENU knob clockwise or
counterclockwise to adjust the following items
and push the ENTER button to confirm.

Bass control:

Use this control to enhance or attenuate bass
response sound.

Treble control:

Use this control to enhance or attenuate the

treble.

Fade control:

Use this control to adjust the balance of the
volume between the front and rear (if so
equipped) speakers.

Balance control:

Use this control to adjust the balance of the
volume between the left and right speakers.

AUX VOL (Auxiliary volume) control:

Use this control to adjust the volume output from
the auxiliary source.

SPD VOL (Speed volume) control:

This mode controls the volume output from the
speakers automatically in relation to vehicle
speed.

Adjusting the setting to 0 (zero) turns off the
speed volume feature.

Clock setting:

Push the SETUP button to enter the setup menu
screen then select Clock.

Turn the TUNE/MENU knob, the mode will
change as follows:

Set Time Û ON/OFF Û Clock Format Û Set
time

Set Time:

Select Set Time then adjust the clock as follows:

Condition:

(209,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

1. The hour display will start flashing. Turn the

TUNE/MENU knob to adjust the hour and
push the ENTER button.

2. The minute display will start flashing. Turn

the TUNE/MENU knob to adjust the minute
and push the ENTER button to finish the
clock adjustment.

ON/OFF:

Set the clock display between on or off when the
audio unit is turned off. If set in the ON position,
the clock will be displayed when the audio unit is
turned off either by pushing the power button or
when the ignition switch is placed in the “OFF”
position.

Clock Format:

Switch the clock display between 24-hour mode
and 12-hour clock mode.

Language setting:

Push the SETUP button to enter the setup menu
screen then select Language.

Select the appropriate language and push the
ENTER button. Upon completion, the screen will
automatically adapt the language setting.

Scroll direction:

Set the scrolling behavior of the TUNE/MENU
knob to scroll UP or DOWN.

FM·AM radio operation

The audio system operates when the ignition
switch is in the “ACC” or “ON” position.

FM·AM button:

When the FM·AM button is pushed while the
audio system is off, the audio system will turn on
and the radio will turn on. When the FM·AM
button is pushed while another audio source is
already operating, it will automatically turn off,
and the radio will turn on.

To change the radio bands, push the FM·AM
button until the desired band appears.

AM ? FM 1 ? FM 2 ? AM

TUNE/MENU knob:

When adjusting the broadcasting station fre-
quency manually, turn the TUNE/MENU knob
until the preferred frequency is achieved.

Seek tuning button:

When adjusting the broadcasting station fre-
quency automatically, push the

button.

When the system detects a broadcasting
station, it will stop at the station.

Radio memory

buttons:

During radio reception, pushing the radio

memory button for less than 2 seconds will
select the stored radio station.

The audio system can store up to 12 FM station
frequencies (six in each of FM 1and FM 2) and 6
AM station frequencies.

To store the station frequency manually:

1. Tune to the desired broadcasting station

frequency by using the

button.

2. Push and hold a radio memory button

until a beep sounds. (The radio

mutes when the radio memory button
is pushed.)

3. The channel indicator will display and the

radio mute disengages, indicating that the
memory is stored properly.

4. Perform steps 1 - 3 for all other memory

buttons.

If the battery cable is disconnected, or if the
audio fuse blows, the radio memory will be
erased. In such a case, reset the desired
stations.

SCAN button:

Push the SCAN button to tune from low to high
frequencies and stops at each broadcasting
station for 5 seconds. Pushing the SCAN button
again during this 5 seconds period will stop
SCAN tuning and the radio will remain tuned to

Center display, heater, air conditioner, audio, phone and voice recognition systems

4-45

Condition:

Nissan 370Z Coupe (2017 year). Instruction - part 13
