Nissan Frontier D40. Manual - part 988

SRC-4

< BASIC INSPECTION >

DIAGNOSIS AND REPAIR WORK FLOW

>> GO TO 3

3.

TECHNICAL SERVICE BULLETINS

Check for technical service bulletins.

>> GO TO 4

4.

USER MODE

Perform self-diagnosis using the "AIR BAG" warning lamp in User mode.  Refer to

SRC-13, "SRS Operation

Check"

.

>> GO TO 5

5.

SELF-DIAGNOSIS

Perform SELF-DIAGNOSIS.  Refer to

SRC-15, "CONSULT-III Function (AIR BAG)"

 (w/CONSULT-III) or

SRC-

15, "Self-Diagnosis Function (Without CONSULT-III)"

 (w/o CONSULT- III).

>> GO TO 6

6.

REPLACE PART

Replace the malfunctioning part.

>> GO TO 7

7.

FINAL CHECK

Check SRS using Diagnosis mode and User mode.

Does Diagnosis mode and User mode indicate SRS normal?

YES

>> Inspection end.

NO

>> GO TO 5

INTERMITTENTS INCIDENT

SRC-5

< BASIC INSPECTION >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

INTERMITTENTS INCIDENT

Inspection Procedure

INFOID:0000000005274365

INTERMITTENT TROUBLE

An intermittent incident may have occured in the past but is not being detected currently.  This DTC will not be
detected on SELF DIAG [CURRENT], but may be viewed on SELF DIAG [PAST] using CONSULT-III.

Trouble Diagnosis with CONSULT-III

INFOID:0000000005274366

DIAGNOSTIC PROCEDURE 4

Check SRS Repair History

1.

CONSIDER POSSIBILITY THAT SELF-DIAGNOSTIC RESULT WAS NOT ERASED AFTER REPAIR

Check repair history of the SRS.

Have any previous repairs been made to the SRS?

YES

>> Self-diagnostic result “SELF-DIAG [PAST]” (previously stored in the memory) might not be erased

after repair. Go to "DIAGNOSTIC PROCEDURE 3".  Refer to

SRC-15, "Self-Diagnosis Function

(Without CONSULT-III)"

.

NO

>> Go to "DIAGNOSTIC PROCEDURE 2".  Refer to

SRC-13, "SRS Operation Check"

.

SRC-6

< FUNCTION DIAGNOSIS >

SRS AIR BAG SYSTEM

FUNCTION DIAGNOSIS

SRS AIR BAG SYSTEM

SRS Configuration

INFOID:0000000005274367

The air bag deploys if the air bag diagnosis sensor unit is activated while the ignition switch is in the ON or
START position.
The collision modes for which supplemental restraint systems are activated are different among the SRS sys-
tems. For example, the driver air bag module, front passenger air bag module and front seat belt pre-tension-
ers are activated in a frontal collision but not in a side collision.

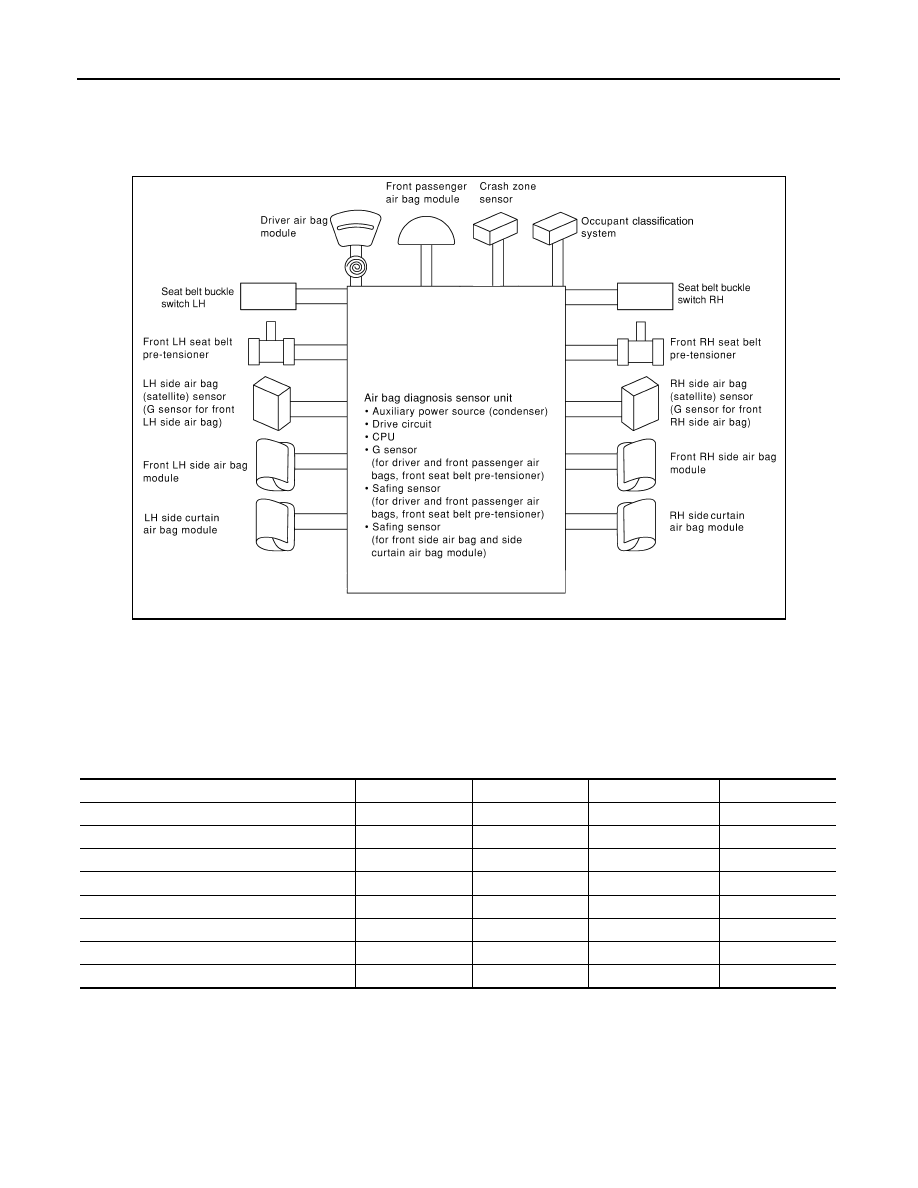

SRS configurations for some collision modes are as follows:

WHIA0186E

SRS configuration

Frontal collision

Left side collision

Right side collision

Rollover

Driver air bag module

x

—

—

—

Front passenger air bag module

x

—

—

—

Front LH seat belt pre-tensioner

x

—

—

x

Front RH seat belt pre-tensioner

x

—

—

x

Front LH side air bag module

—

x

—

—

Front RH side air bag module

—

—

x

—

LH side curtain air bag module

—

x

—

x

RH side curtain air bag module

—

—

x

x

SRS AIR BAG SYSTEM

SRC-7

< FUNCTION DIAGNOSIS >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

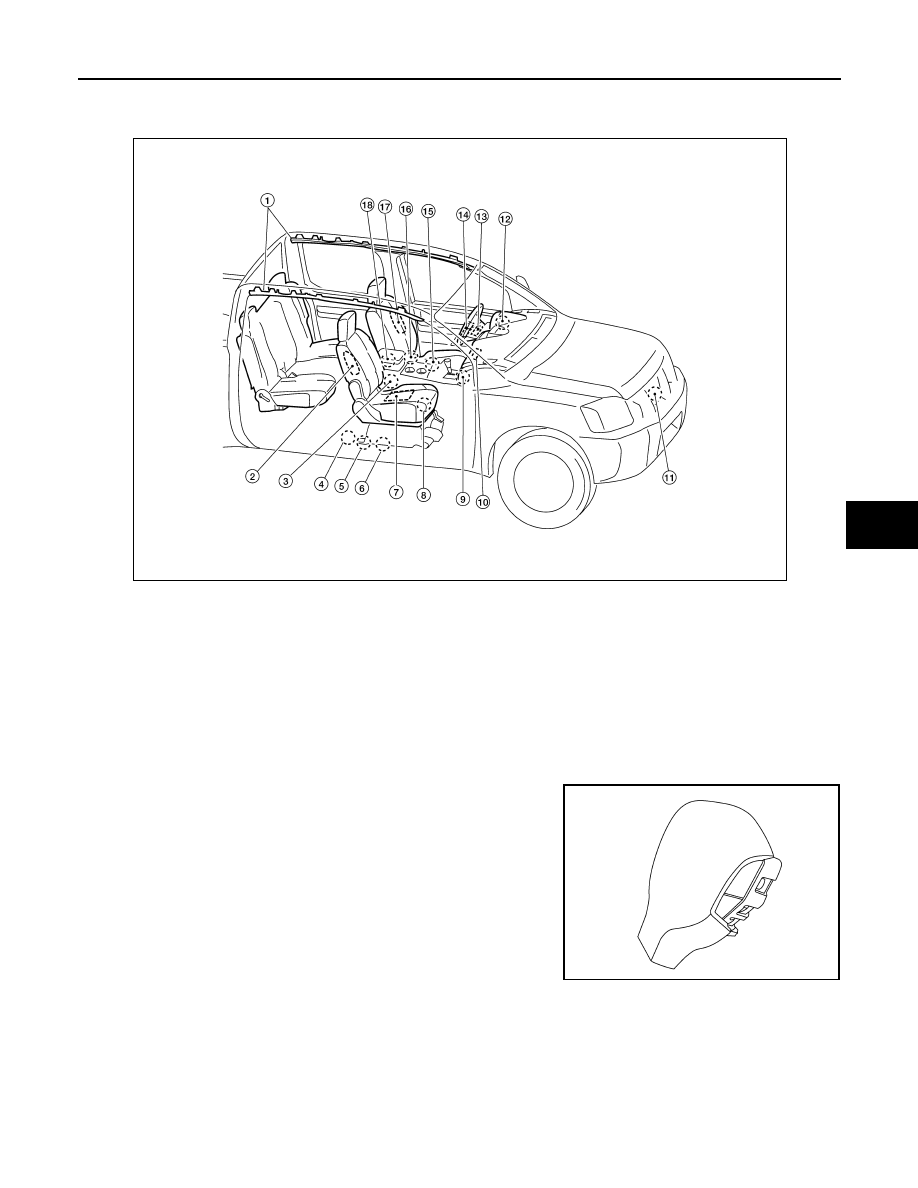

SRS Component Parts Location

INFOID:0000000005274368

Driver Air Bag Module

INFOID:0000000005274369

The driver air bag module is dual stage and located in the steering
wheel assembly.  It operates with the SRS system in a frontal colli-
sion exceeding a specified level.

1.

Side curtain air bag modules

2.

Front RH side air bag module

3.

Seat belt buckle switch RH

4.

Front RH seat belt pre-tensioner

5.

Belt tension sensor

6.

RH side air bag (satellite) sensor

7.

Occupant classification system sen-
sor

8.

Occupant classification system
control unit

9.

Front passenger air bag off indicator

10. Front passenger air bag module

11.

Crash zone sensor

12. Air bag warning lamp

13. Spiral cable

14. Driver air bag module

15. LH side air bag (satellite) sensor

16. Front LH seat belt pre-tensioner

17. Front LH side air bag module

18. Air bag diagnosis sensor unit

WHIA0226E

WHIA0325E
