SE-28

< ON-VEHICLE REPAIR >

FRONT SEAT

Removal and Installation

INFOID:0000000005274467

REMOVAL

When removing or installing the seat trim, handle it carefully to keep dirt out and avoid damage.

CAUTION:

• Before removing the front seat, turn the ignition switch off, disconnect both battery terminals and

wait at least 3 minutes.

• When checking the power seat circuit for continuity using a circuit tester, do not confuse its connec-

tor with the side air bag module connector. Such an error may cause the air bag to deploy.

• Do not drop, tilt, or bump the side air bag module while installing the seat. Always handle it with

care.

• After front side air bag module inflates, front seatback assembly must be replaced.
• Front passenger seat is equipped with an Occupant Classification System sensor and control mod-

ule. Do not disassemble front passenger seat cushion assembly or remove the trim as this will affect
the Occupant Classification System calibration.

• Always replace passenger seat cushion as an assembly.
1.

Slide the seat until the four body bolts are visible and a tool can be inserted.
NOTE:
Set the front/rear cushion lifters to the top position.

2.

Disconnect both battery terminals and wait at least 3 minutes.

3.

Disconnect the side air bag module harness connector.

4.

Remove the leg covers.

5.

Remove the four body bolts.

6.

Disconnect the power seat harness connectors and remove the seat from the vehicle.
NOTE:
When removing and installing the seat, use shop cloths to protect the vehicle from damage.

INSTALLATION

Installation is in the reverse order of removal.

1.

Front seatback lever

2.

Headrest

3.

Seatback assembly

4.

Seat cushion assembly

5.

Seat cushion outer finisher

6.

Leg cover

7.

Seat frame assembly

8.

Passenger seat wiring harness

9.

Seat cushion inner cover

10. Inboard reclining arm outer cover

11. Seat belt buckle assembly

12. Leg cover

13. Inboard reclining arm inner cover

14. Outboard reclining arm inner cover

15. Seat cushion rear finisher

16. Outboard reclining arm outer cover

17. Seatback board

18. Headrest holder with multi position

lock

19. Headrest holder

REAR SEAT

SE-29

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

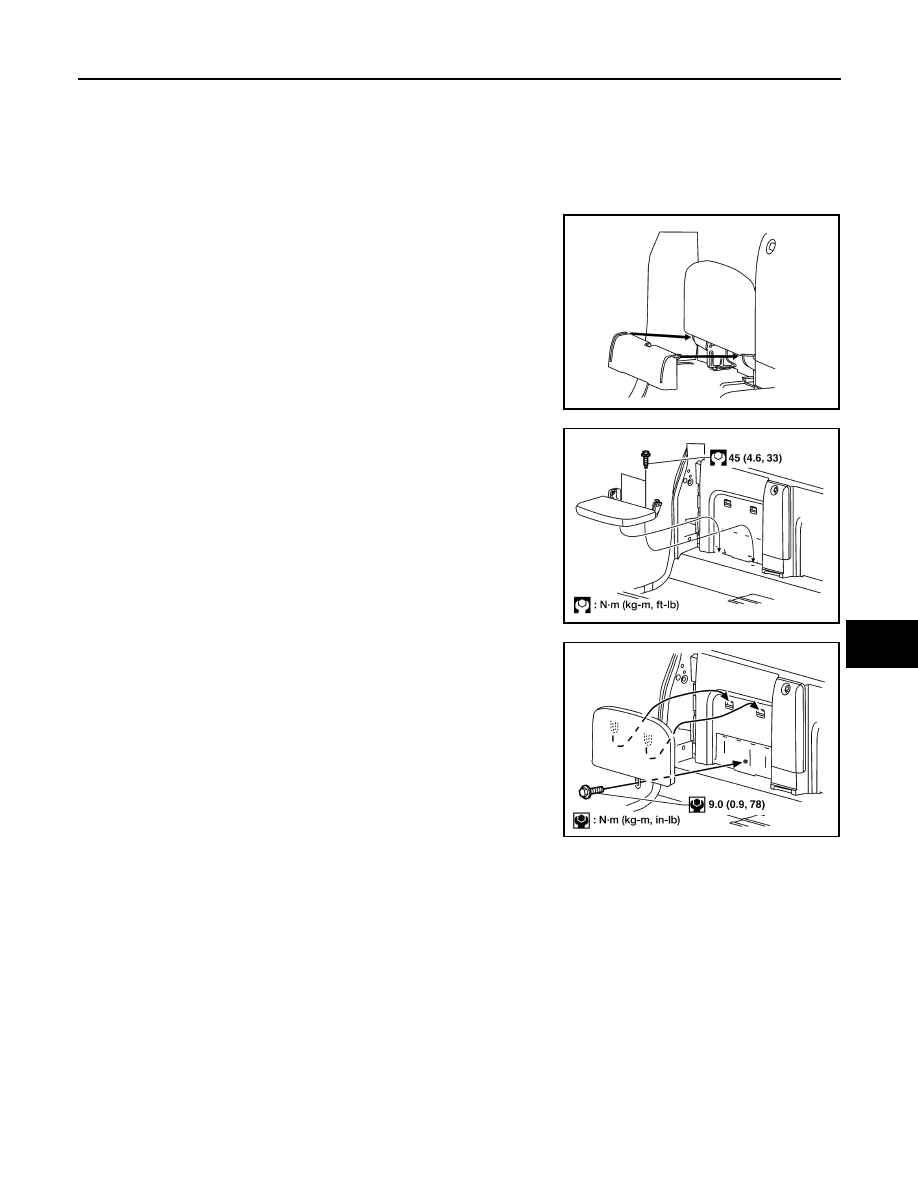

REAR SEAT

Removal and Installation

INFOID:0000000005274468

JUMP SEAT (KING CAB)

Removal

1.

Remove seat base trim panel.

2.

Remove the seat cushion bolts and assembly.

3.

Remove the bolt, lift and remove the seatback assembly.

Installation

Installation is in the reverse order of removal.

BENCH SEAT LH (CREW CAB)

Removal

1.

Remove the seat hinge finishers.

LIIA1950E

LIIA1951E

LIIA1952E

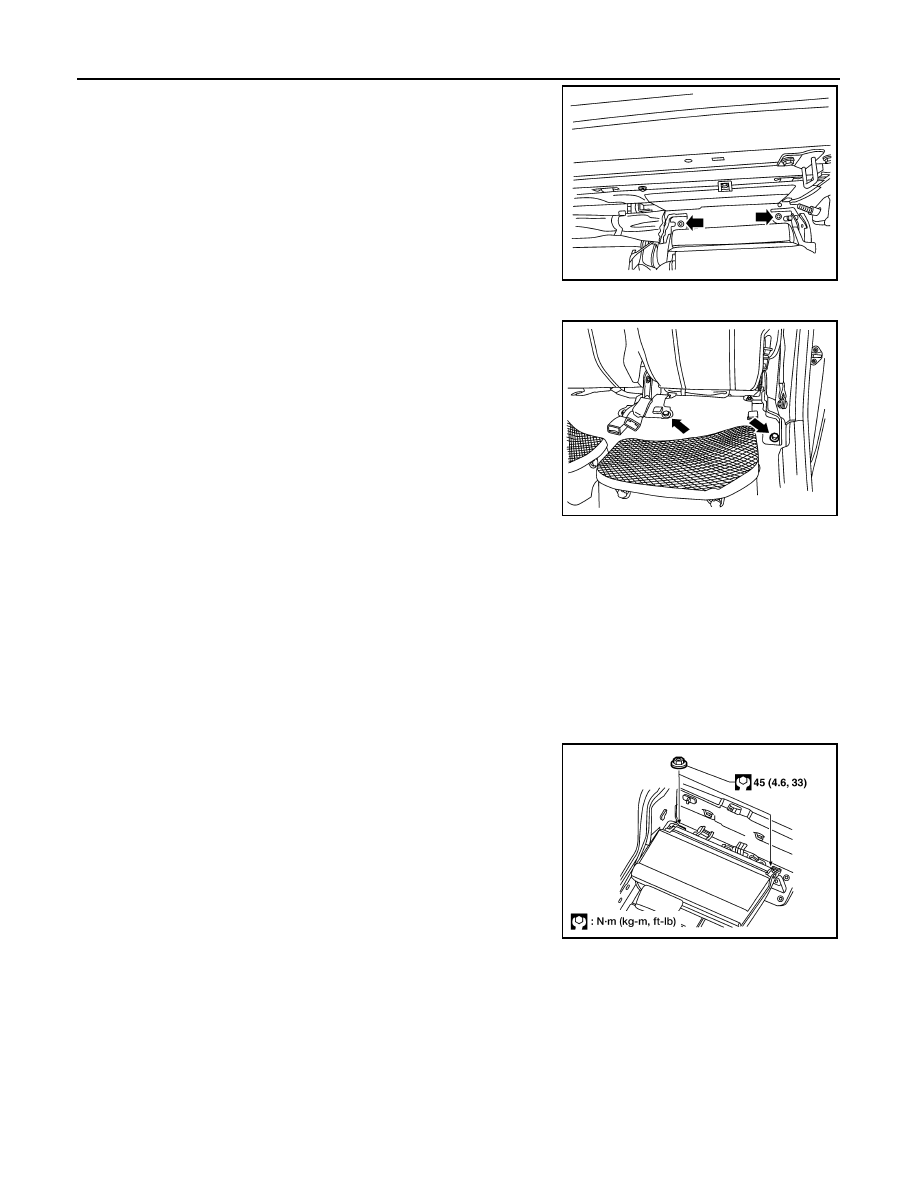

SE-30

< ON-VEHICLE REPAIR >

REAR SEAT

2.

Release the seatback latch and tilt the seatback down. Remove
the nuts.

3.

Raise the seatback.

4.

Tilt the seat cushion up.

5.

Remove the seat bolts.

6.

Remove the seat.

Installation

Installation is in the reverse order of removal.
NOTE:
Make sure the washers are on the rear studs prior to seat assembly installation.

BENCH SEAT RH (CREW CAB)

Removal

1.

Remove the seat hinge finishers.

2.

Release the seatback latch and tilt the seatback down. Remove
the nuts.

3.

Raise the seatback.

LIIA1953E

LIIA1954E

Seat nuts

: 45 N·m (4.6 kg-m, 33 ft-lb)

Seat bolts

: 45 N·m (4.6 kg-m, 33 ft-lb)

LIIA1955E

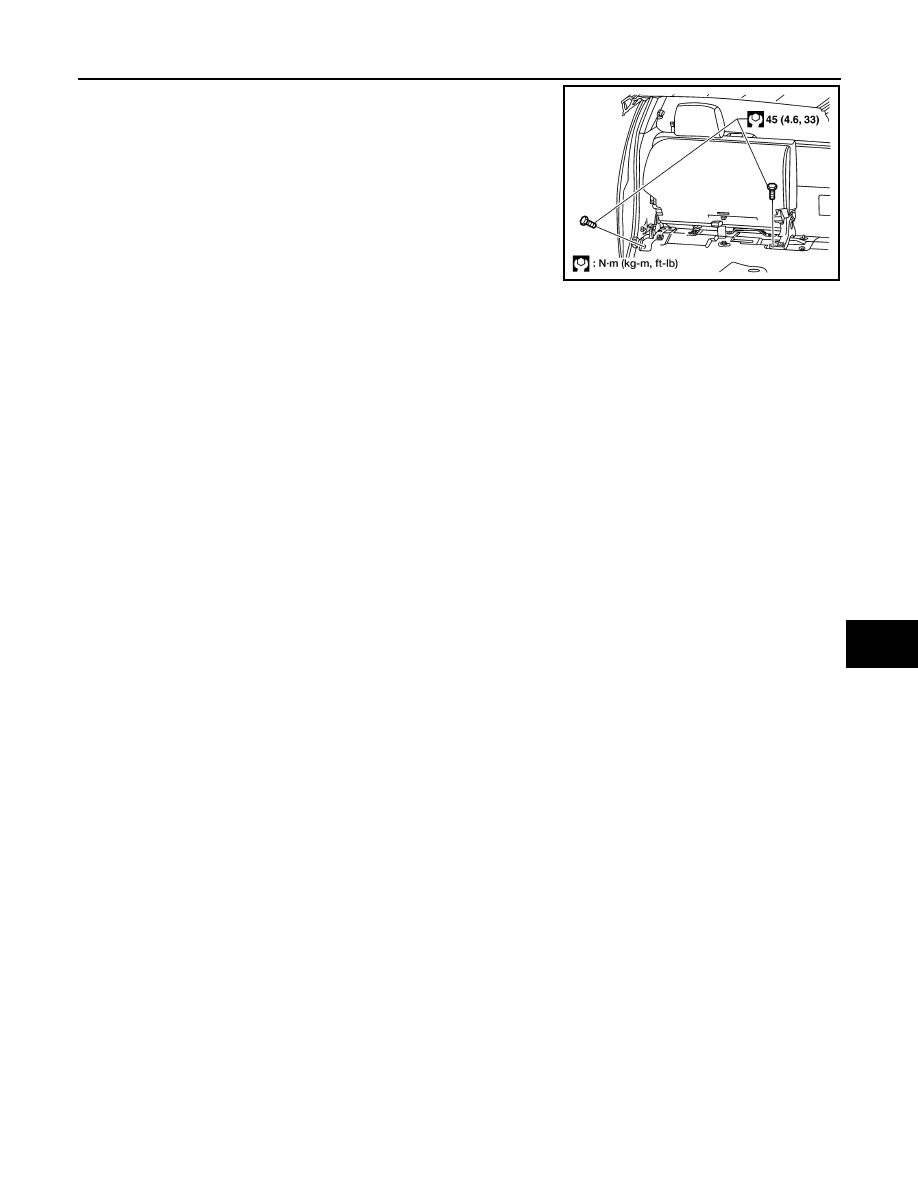

REAR SEAT

SE-31

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

4.

Remove the seat belt buckle from the cushion.

5.

Remove the seat bolts.

6.

Remove the seat assembly.

Installation

Installation is in the reverse order of removal.
NOTE:
Make sure the washers are on the rear studs prior to seat assembly installation.

LIIA1956E
