POWER SEAT

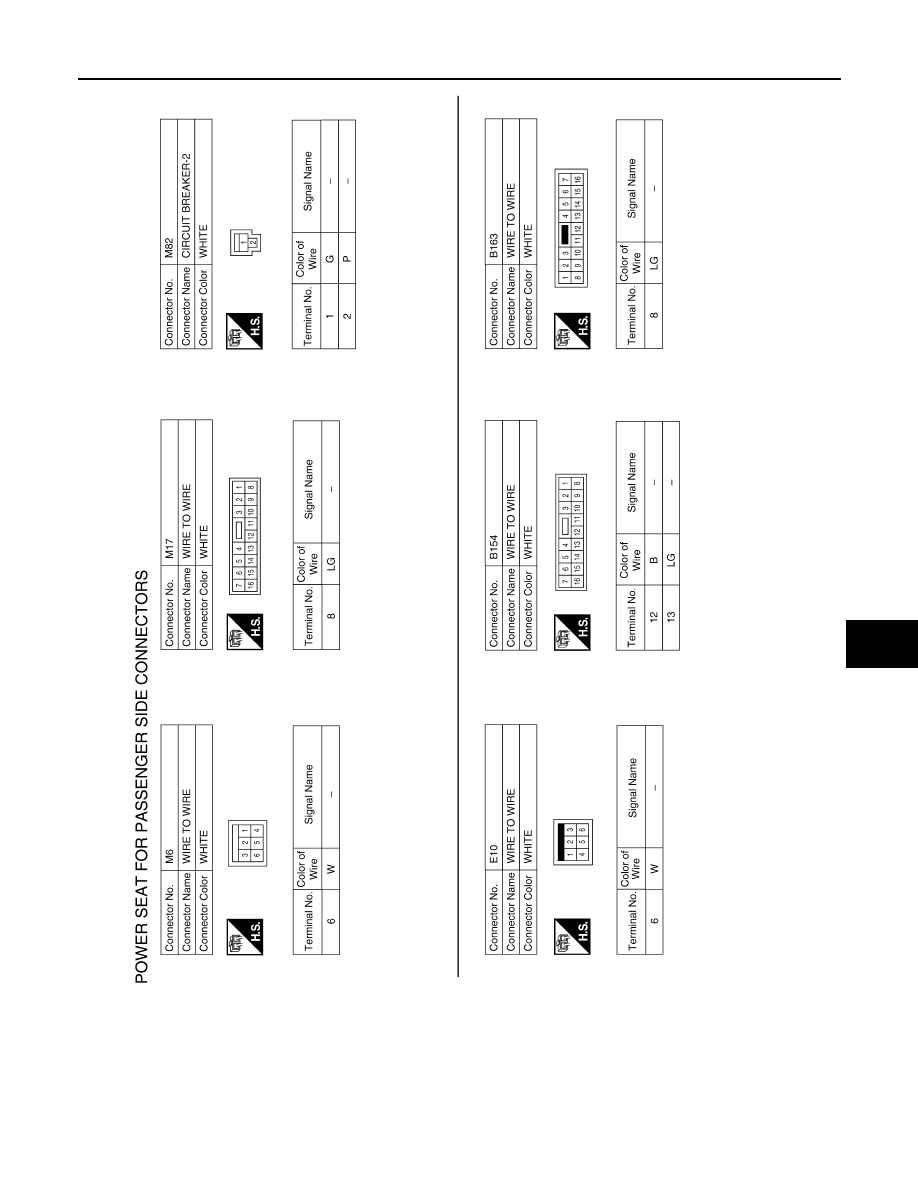

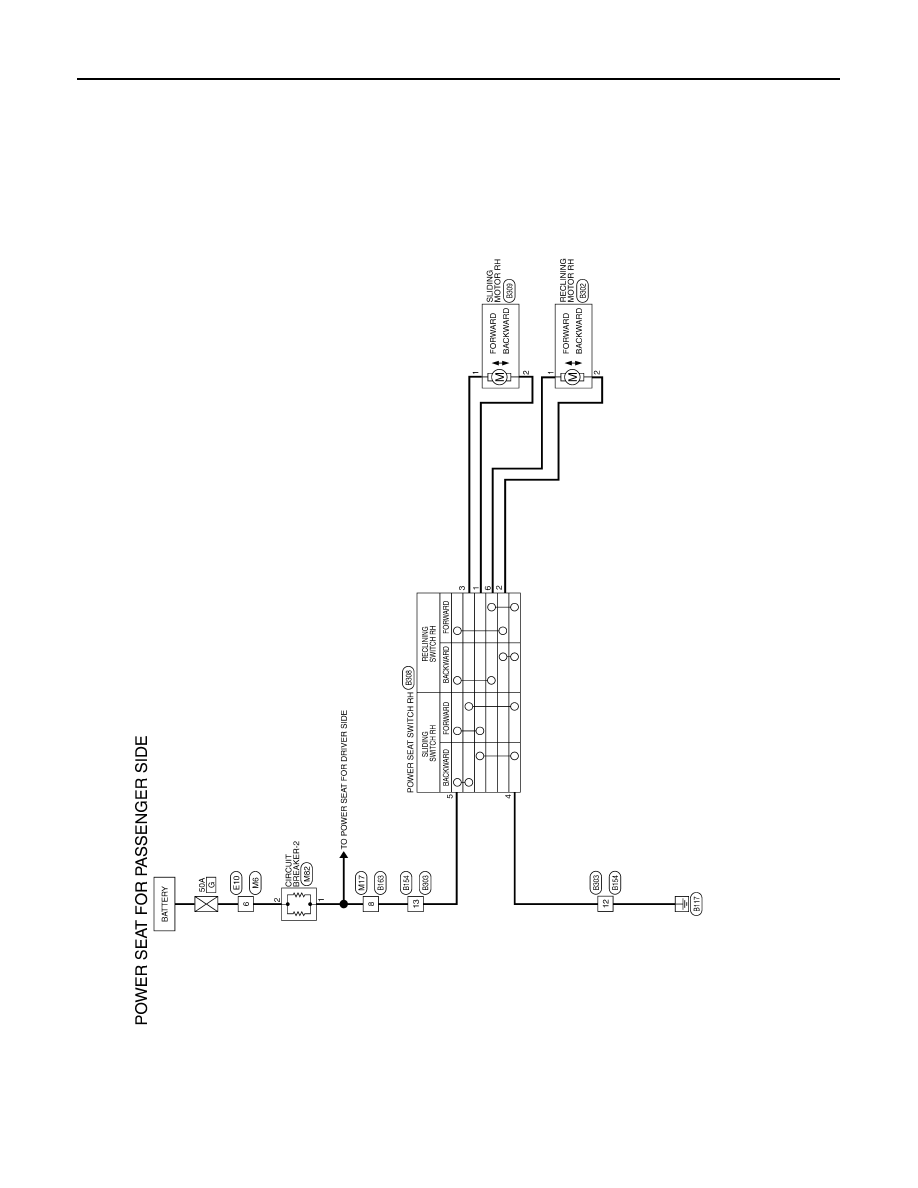

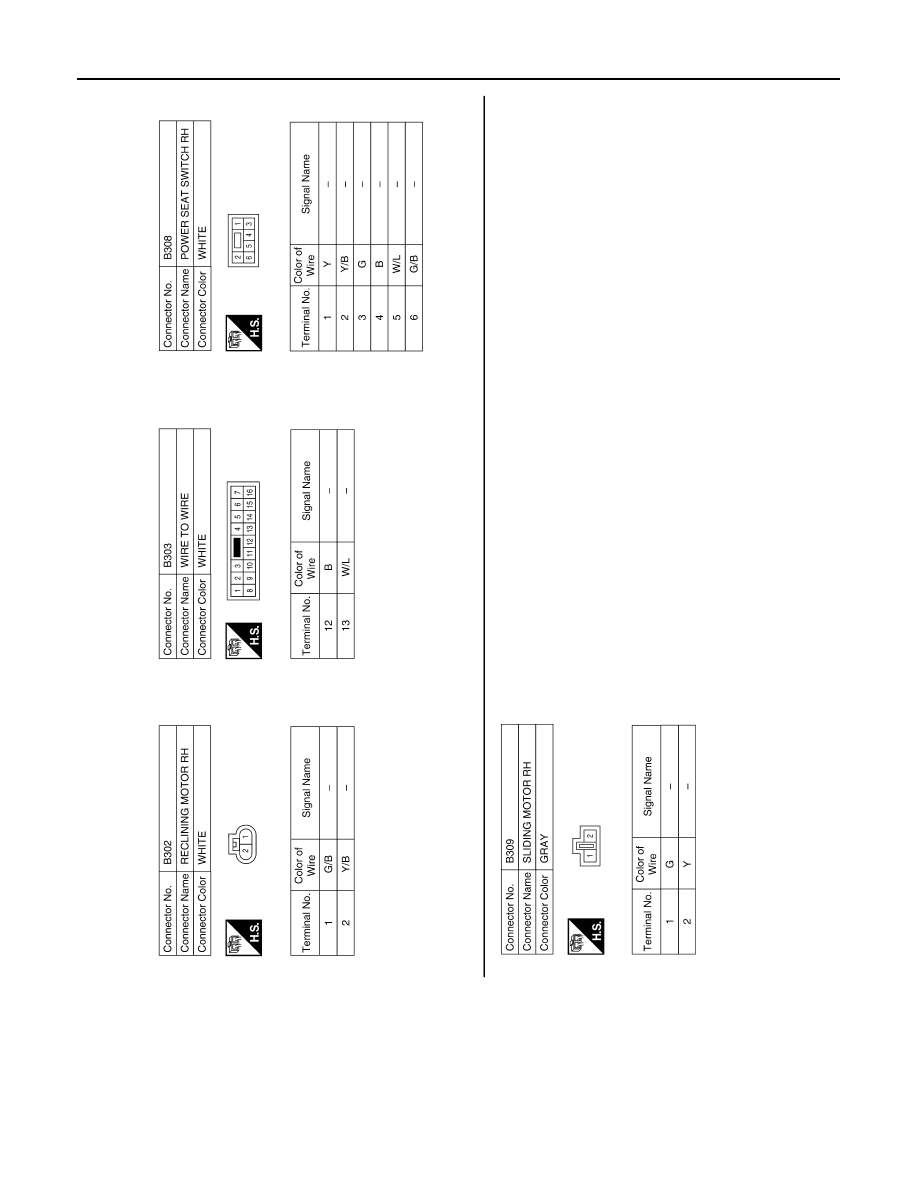

Wiring Diagram — Passenger Side —

INFOID:0000000005274459

ABJWA0058GB

POWER SEAT

SE-13

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

AAJIA0040GB

SE-14

< COMPONENT DIAGNOSIS >

POWER SEAT

ABJIA0180GB

HEATED SEAT

SE-15

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

HEATED SEAT

Description

INFOID:0000000005274460

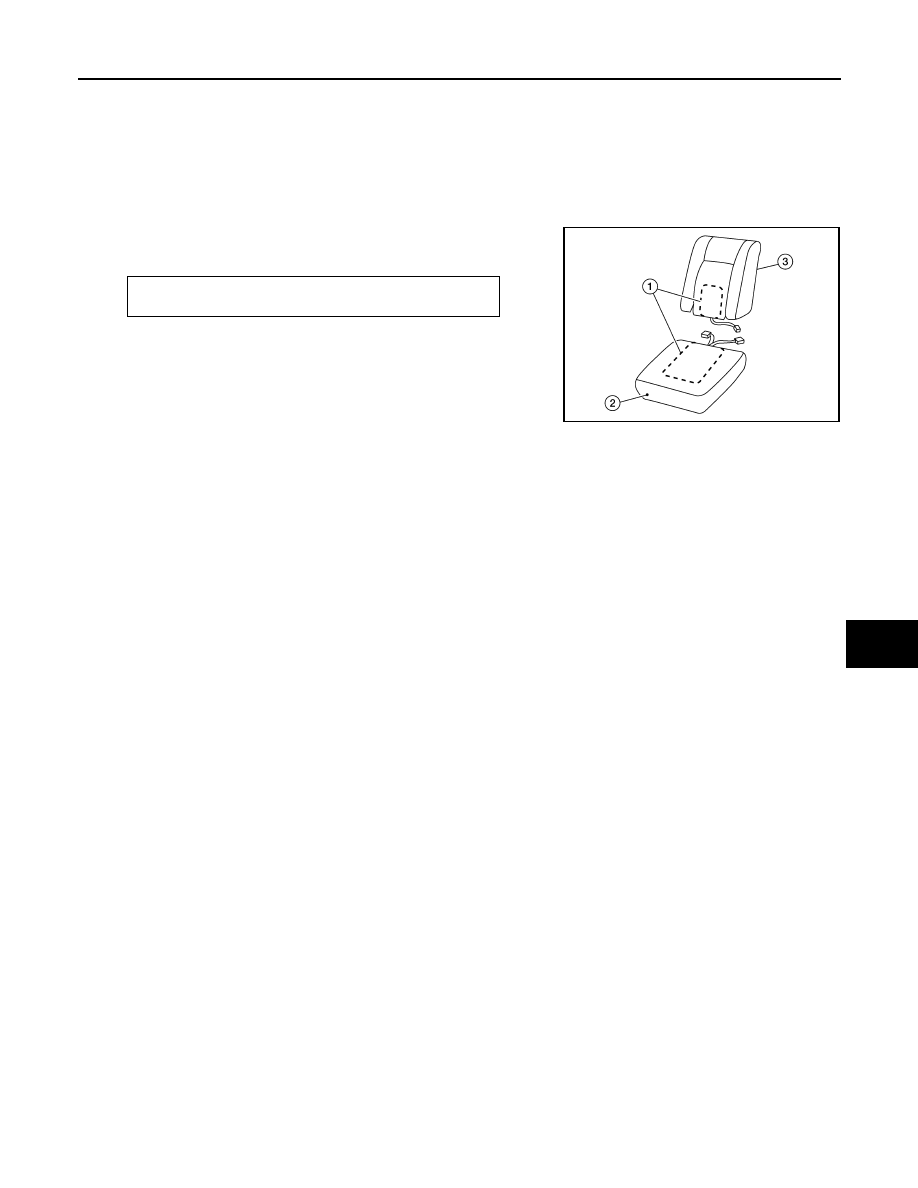

• When handling seat, be extremely careful not to scratch heating unit (1).
• To replace heating unit for vehicles without side air bags, seat trim and pad should be separated. For vehi-

cles equipped with side air bags, seat trim and pad should be separated for the front seat cushion LH. For
seatback and front seat cushion RH, complete cushion (2) or seatback assembly (3) must be replaced.

• Do not use any organic solvent, such as thinner, benzene, alcohol,

etc. to clean trim.

Thermostat operation

ON

OFF

Trim temperature

°

C (

°

F)

25 -35 (77 - 95)

35 - 45 (95 - 113)

AWJIA0054ZZ
