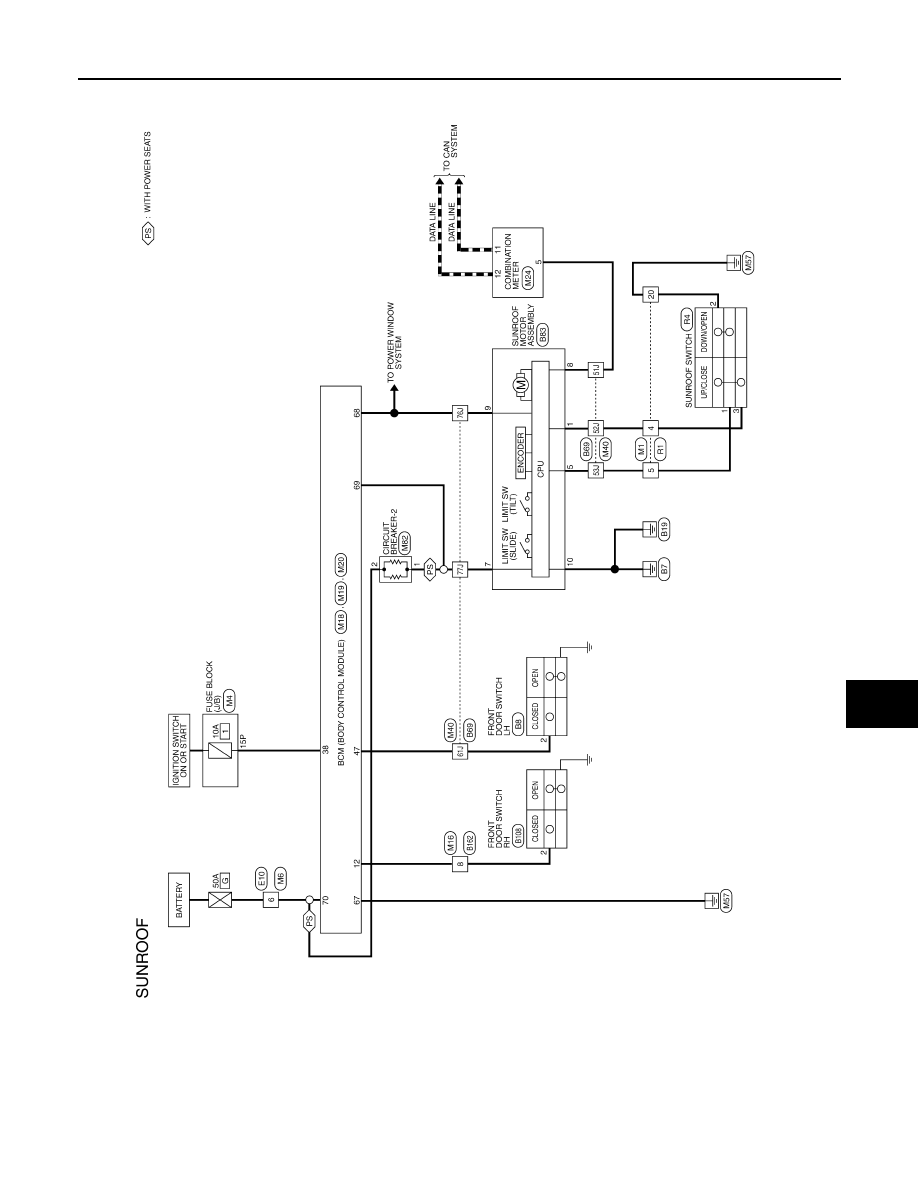

SUNROOF MOTOR ASSEMBLY
SUNROOF MOTOR ASSEMBLY
Reference Value
INFOID:0000000005272942

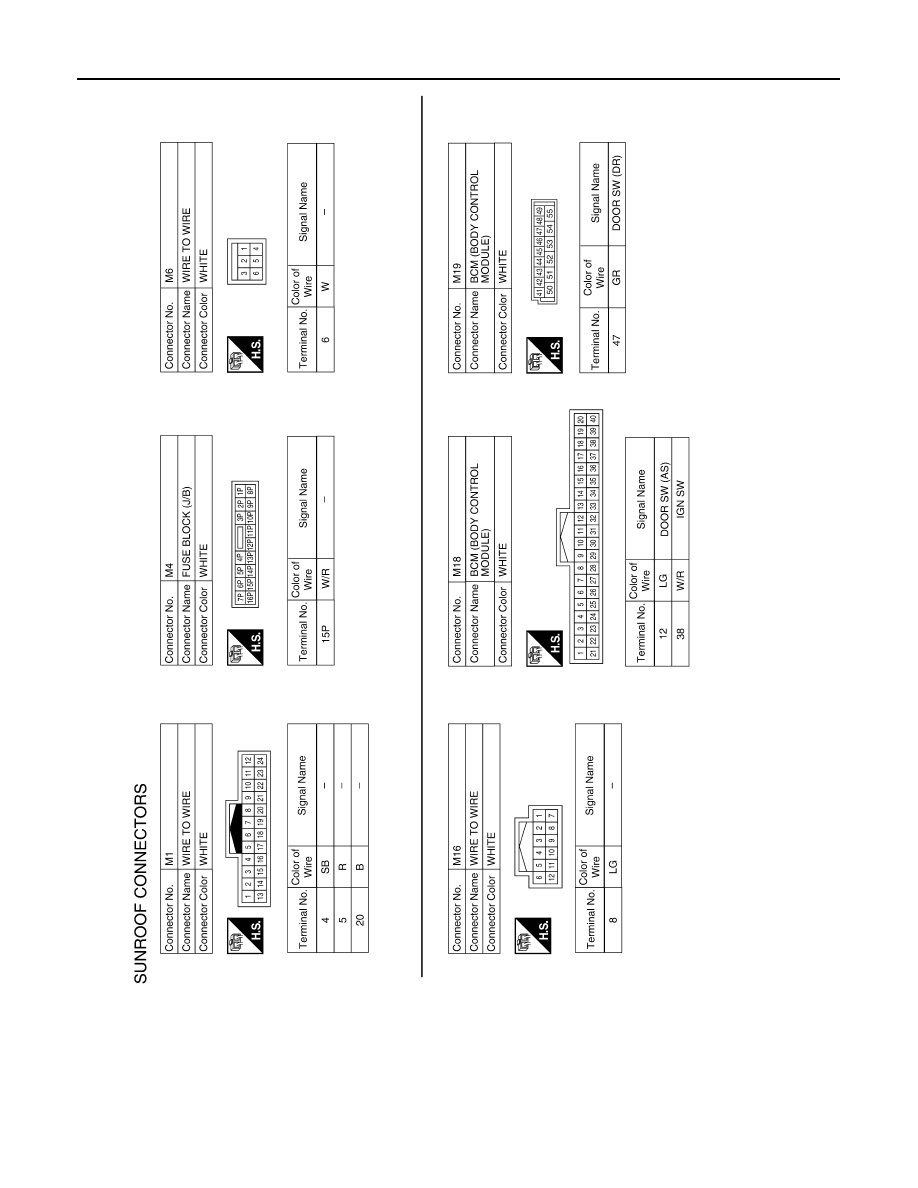

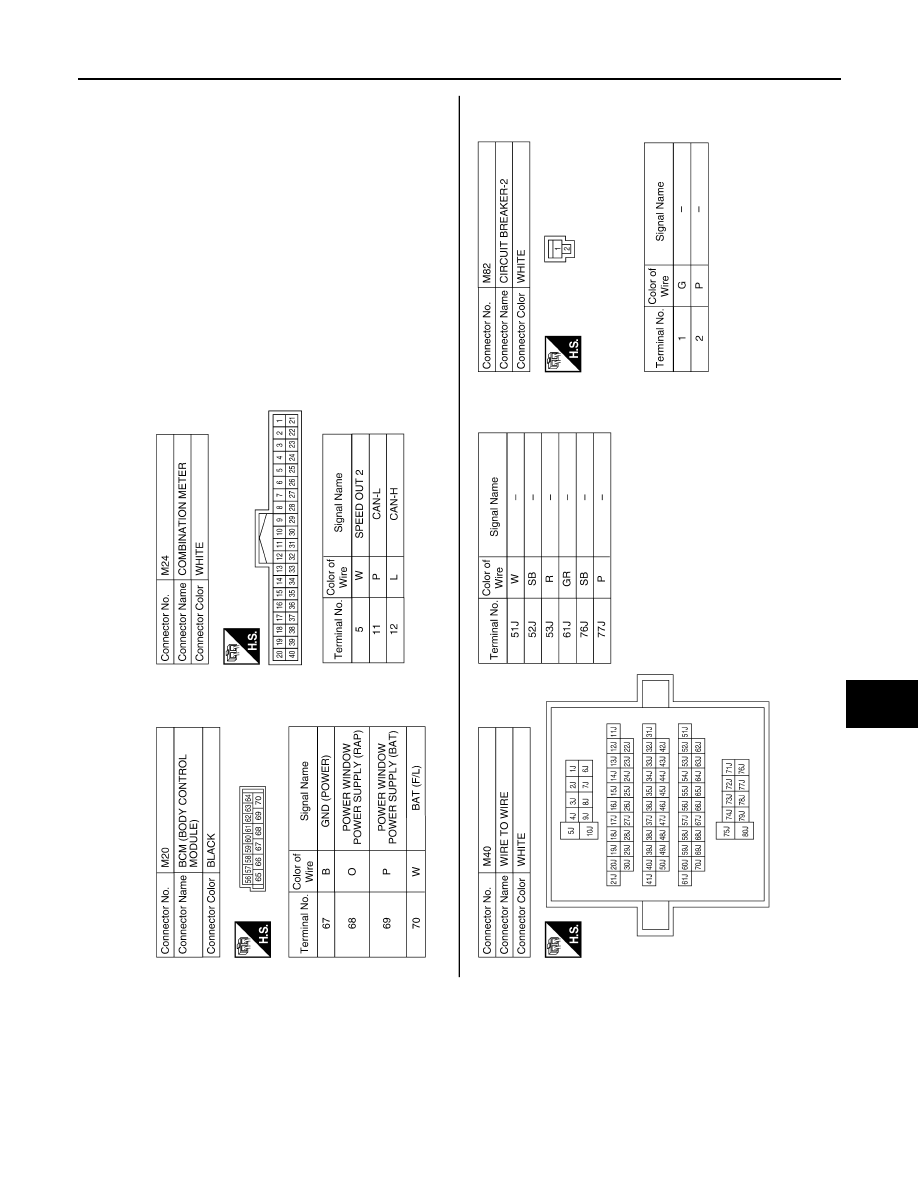

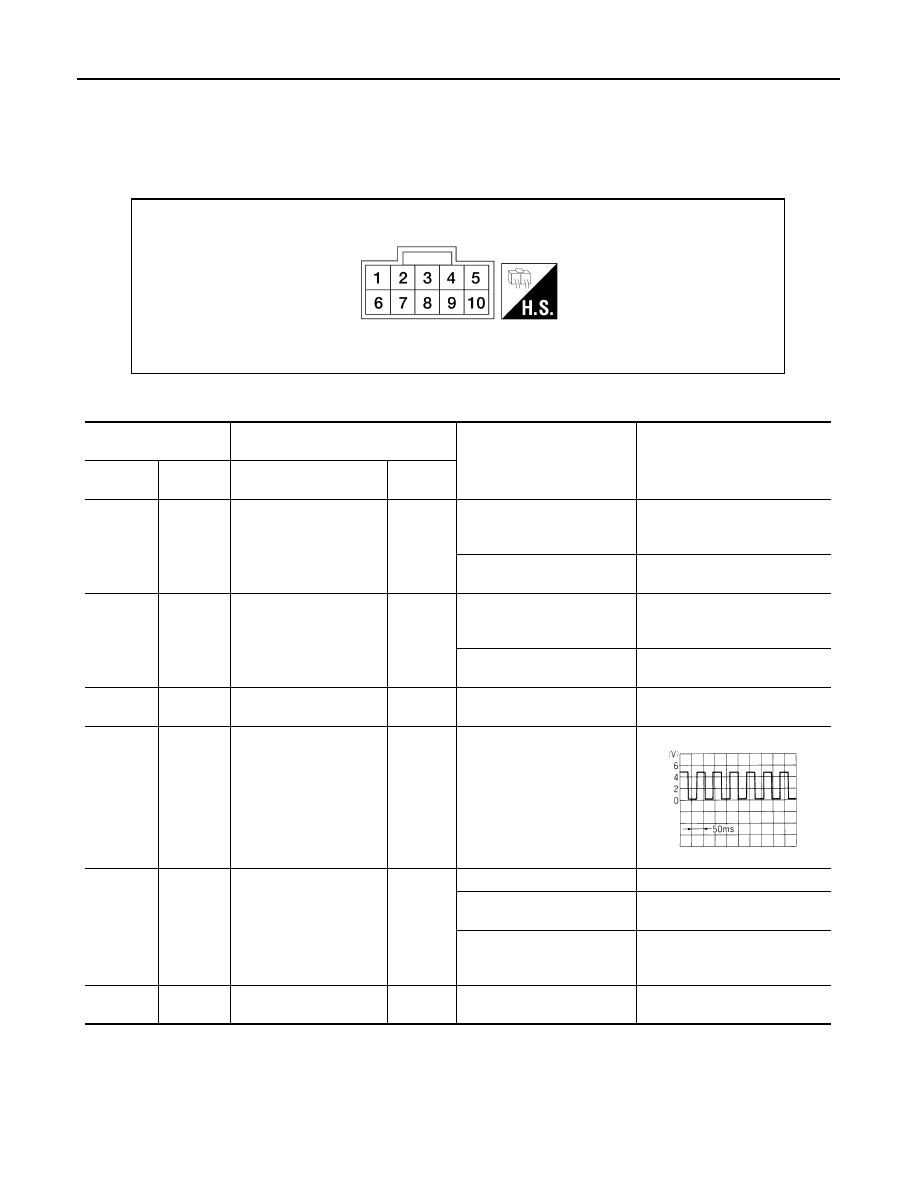

TERMINAL LAYOUT
PHYSICAL VALUES
WIIA1344E
Terminal No.
(Wire color)
Description
Condition
Voltage (V)
(Approx.)
+
-
Signal name
Input/
Output
1
(SB)
Ground
Sunroof switch (UP/
CLOSE) signal
Input
Ignition switch ON and sun-
roof switch in UP/CLOSE po-
sition
0V
Ignition switch ON and sun-
roof switch in OFF position
Battery voltage
5
(R)
Ground
Sunroof switch (DOWN/
OPEN) signal
Input
Ignition switch ON and sun-
roof switch in DOWN/OPEN
position
0V
Ignition switch ON and sun-
roof switch in OFF position
Battery voltage
7
(P)
Ground
BAT power supply
Input
—
Battery voltage
8
(W)
Ground
Vehicle speed signal
Input
Speedometer operated [when
vehicle speed is approx. 40
km/h (25 MPH)]
9
(SB)
Ground
RAP signal
Input
Ignition switch ON
Battery voltage
Within 45 seconds after igni-
tion switch turned OFF
Battery voltage
When front door LH or RH is
opened while retained power
is operating
0V
10
(B)
Ground
Ground
Input
—
0V
ELF1080D
