Nissan Frontier D40. Manual - part 922

PWO

POWER SOCKET

PWO-3

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

COMPONENT DIAGNOSIS

POWER SOCKET

Wiring Diagram - Power Socket -

INFOID:0000000005272880

ABMWA0525GB

PWO-4

< COMPONENT DIAGNOSIS >

POWER SOCKET

ABMIA1353GB

PWO

POWER SOCKET

PWO-5

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

ABMIA0266GB

PWO-6

< ON-VEHICLE REPAIR >

POWER SOCKET

ON-VEHICLE REPAIR

POWER SOCKET

FRONT OR CONSOLE POWER SOCKET

INFOID:0000000005550751

REMOVAL AND INSTALLATION

Removal

1.

Access both front and back of power socket assembly. Refer to

IP-17, "Exploded View"

 (Cluster Lid C),

IP-19, "Exploded View"

 (Center Console).

2.

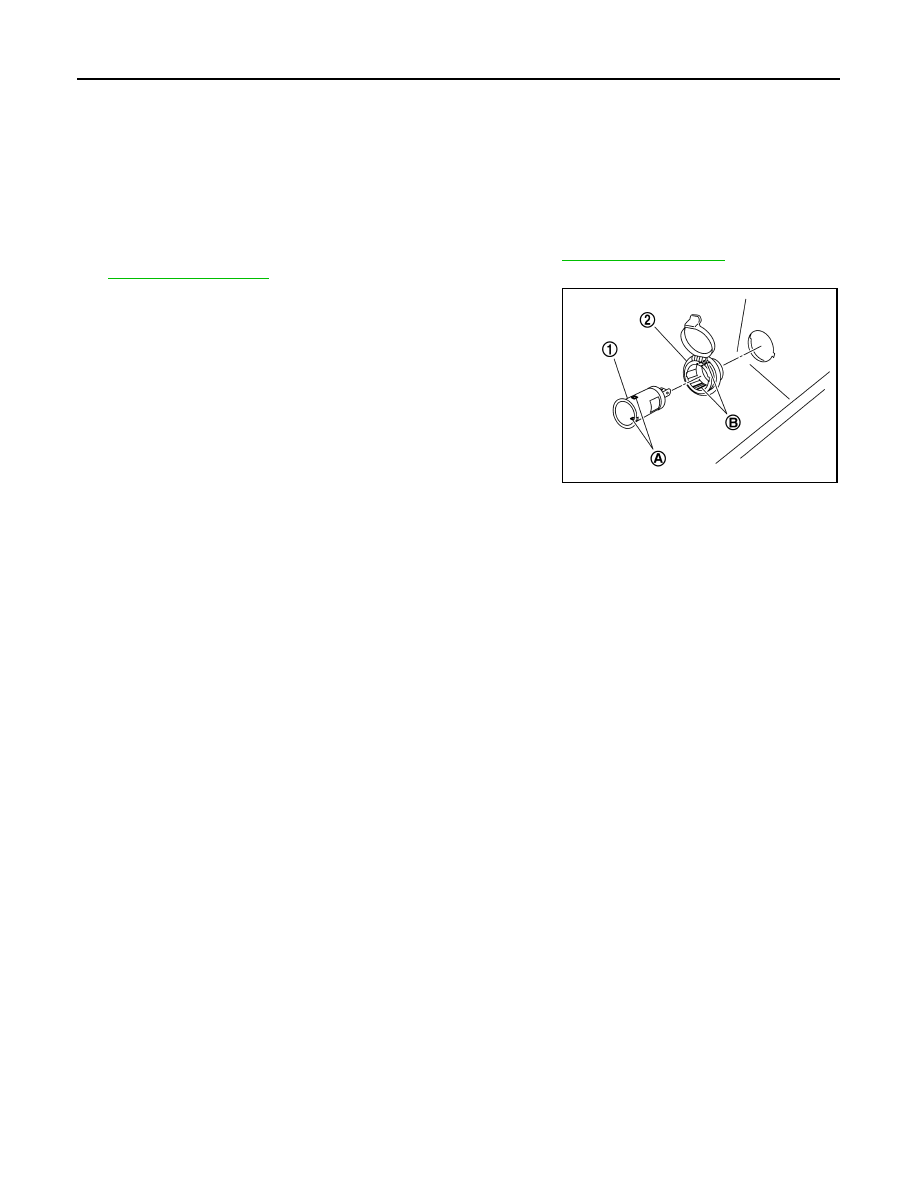

Remove inner socket (1) from the ring (2) while pressing the
hook (B) on the ring out from square hole (A).

3.

Disconnect power socket connector.

4.

Remove ring from power socket finisher while pressing pawls.

Installation

Installation is in the reverse order of removal.

CAUTION:

Align notches of inner socket and ring, and socket finisher when installing.

SKIB4263E
