BCM (BODY CONTROL MODULE)

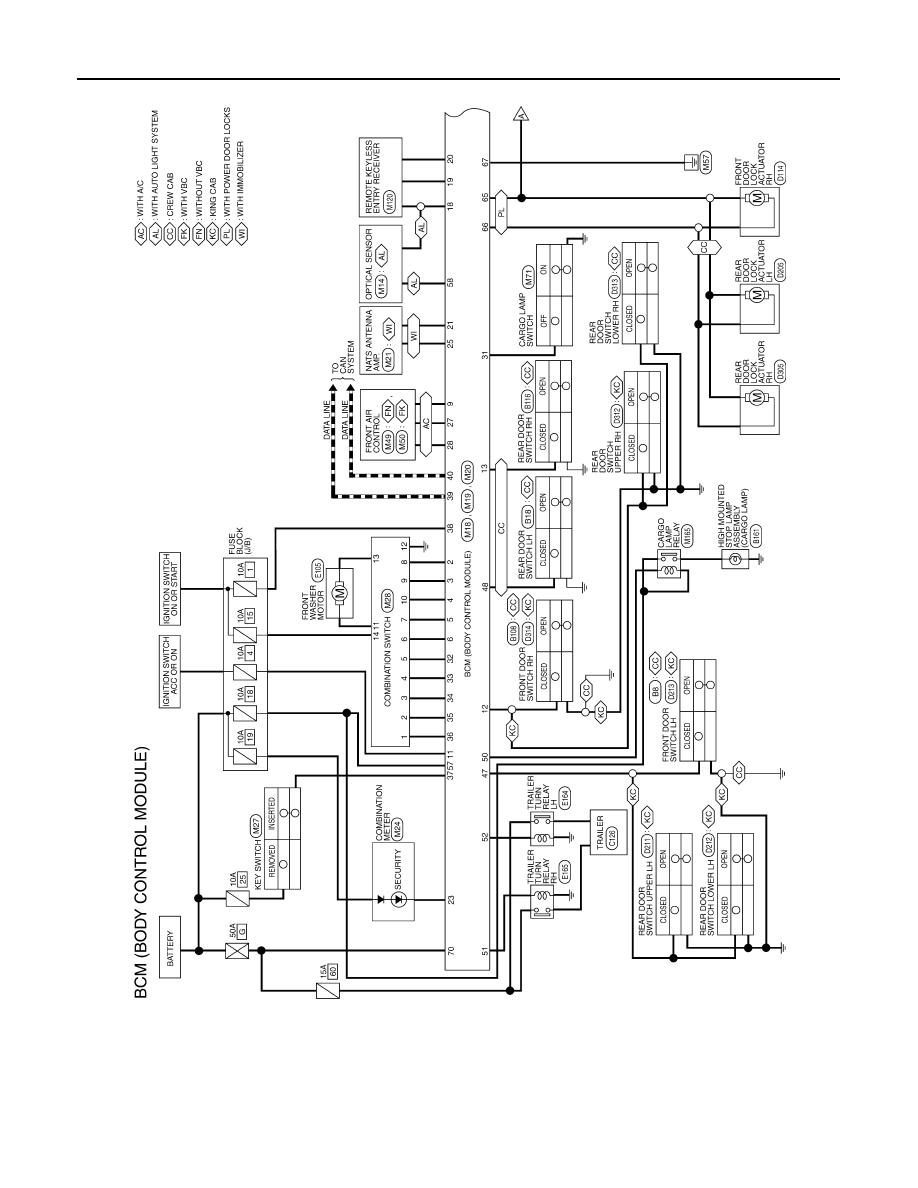

Wiring Diagram

INFOID:0000000005550706

ABMWA0544GB

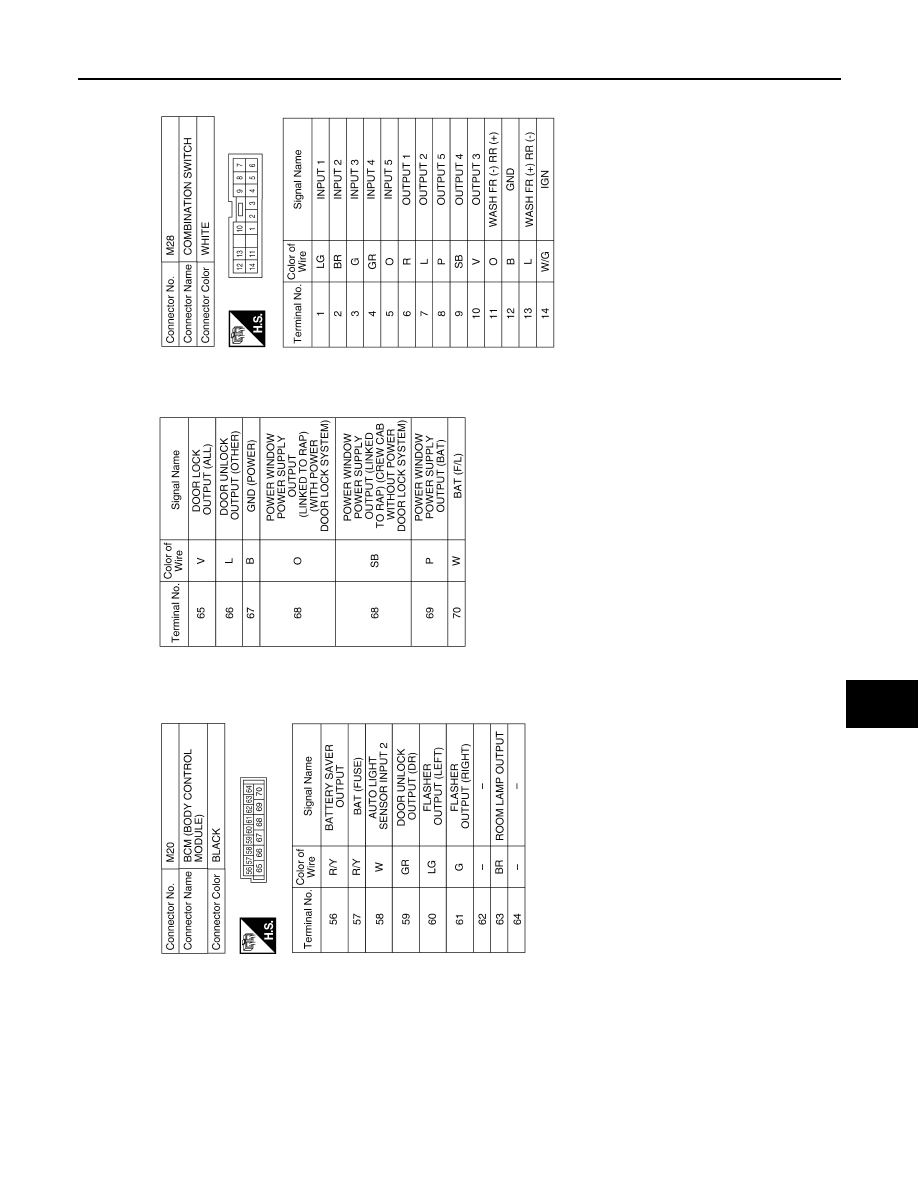

BCM (BODY CONTROL MODULE)

PWC-51

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

ABMWA0545GB

PWC-52

< ECU DIAGNOSIS >

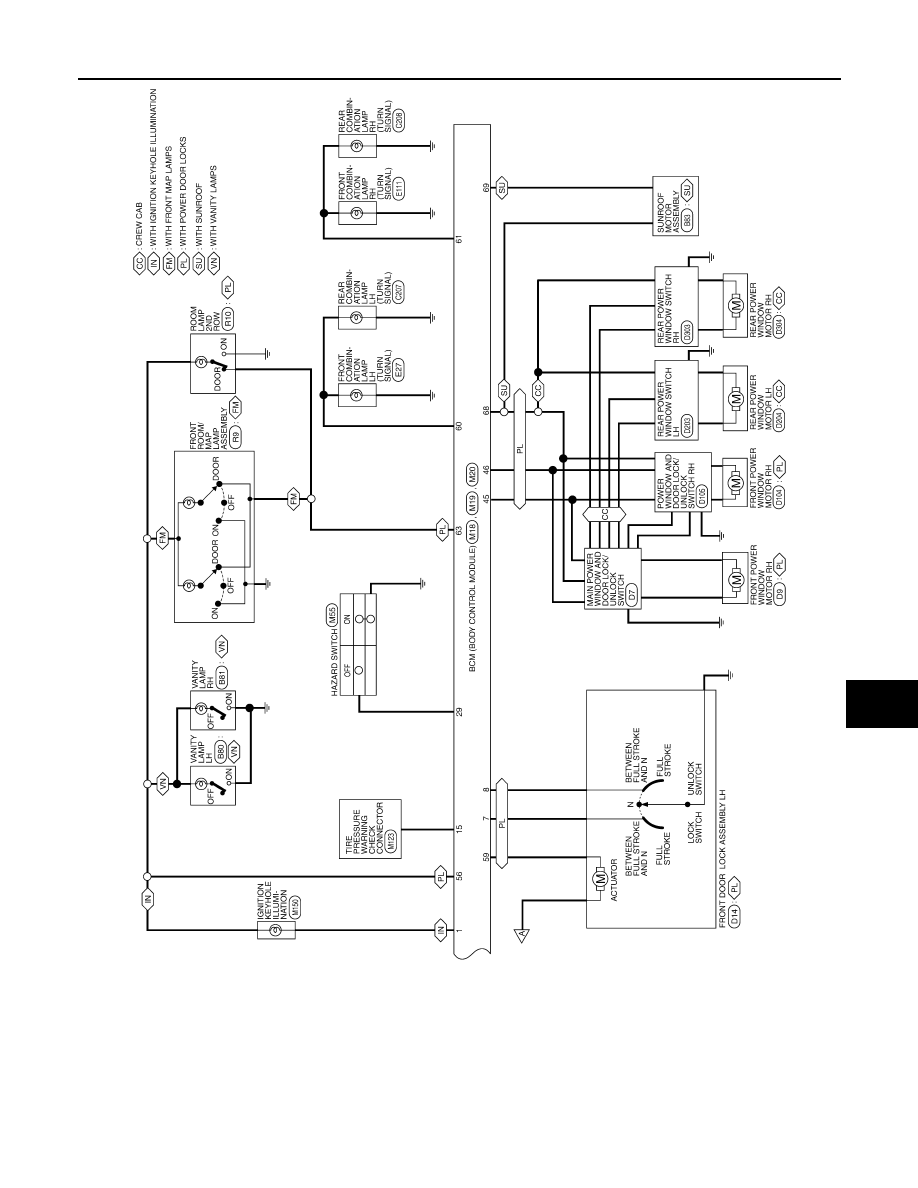

BCM (BODY CONTROL MODULE)

ABMIA1431GB

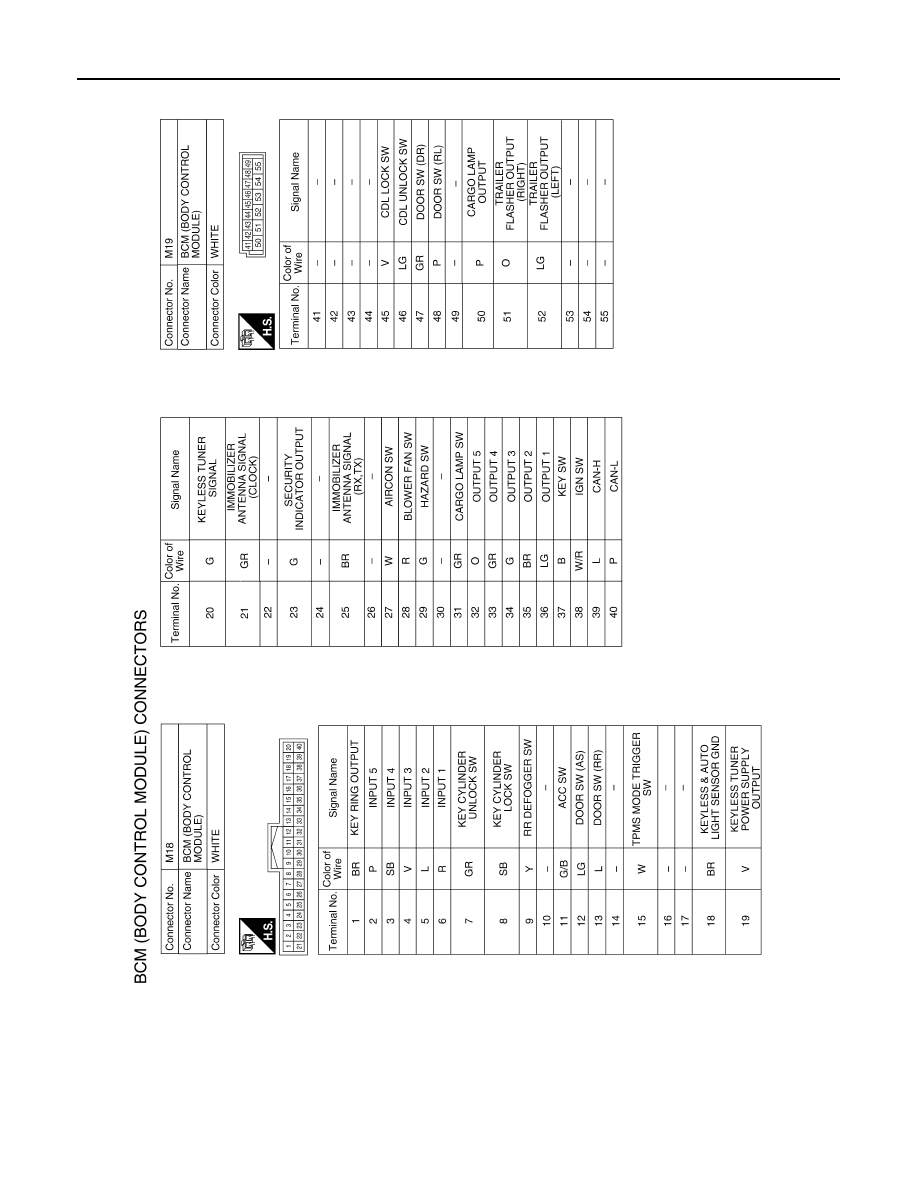

BCM (BODY CONTROL MODULE)

PWC-53

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

Fail Safe

INFOID:0000000005550707

Fail-safe index

BCM performs fail-safe control when any DTC listed below is detected.

ABMIA1432GB
