IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

PG-83

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

IPDM E/R Terminal Arrangement - Type B

INFOID:0000000005589587

NOTE:
Numbers preceded by an "F" represent the fuse numbers imprinted on the IPDM E/R. The other numbers
represent the fuse numbers as they appear in the wiring diagrams.

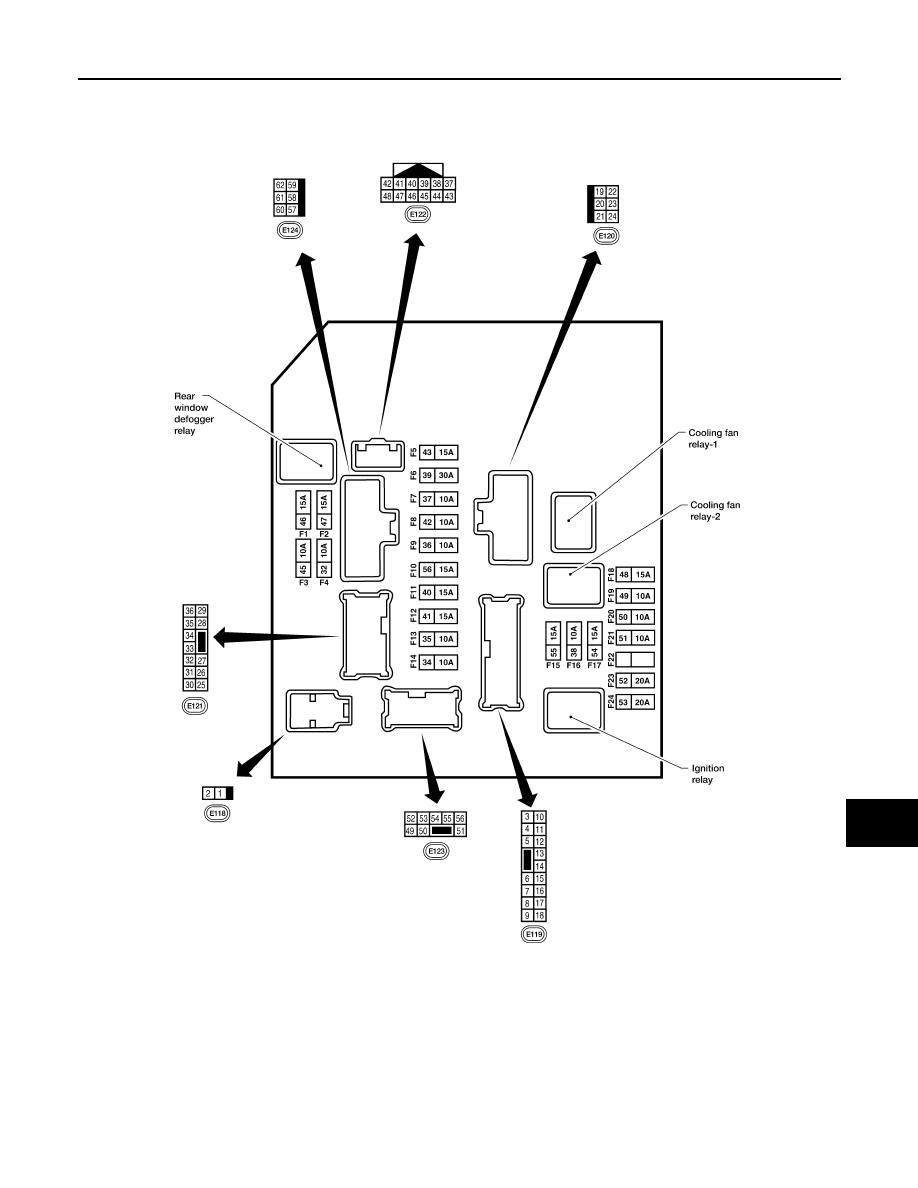

ABMIA1481GB

PG-84

< ON-VEHICLE REPAIR >

BATTERY

ON-VEHICLE REPAIR

BATTERY

Removal and Installation

INFOID:0000000005272429

REMOVAL

1.

Disconnect both negative and positive battery terminals.

CAUTION:

Disconnect negative battery terminal first.

2.

Remove battery clamp nuts and battery clamp.

3.

Remove battery.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Connect positive battery terminal first.

Reset electronic systems as necessary. Refer to

PG-7, "ADDITIONAL SERVICE WHEN REMOVING BAT-

TERY NEGATIVE TERMINAL : Special Repair Requirement"

.

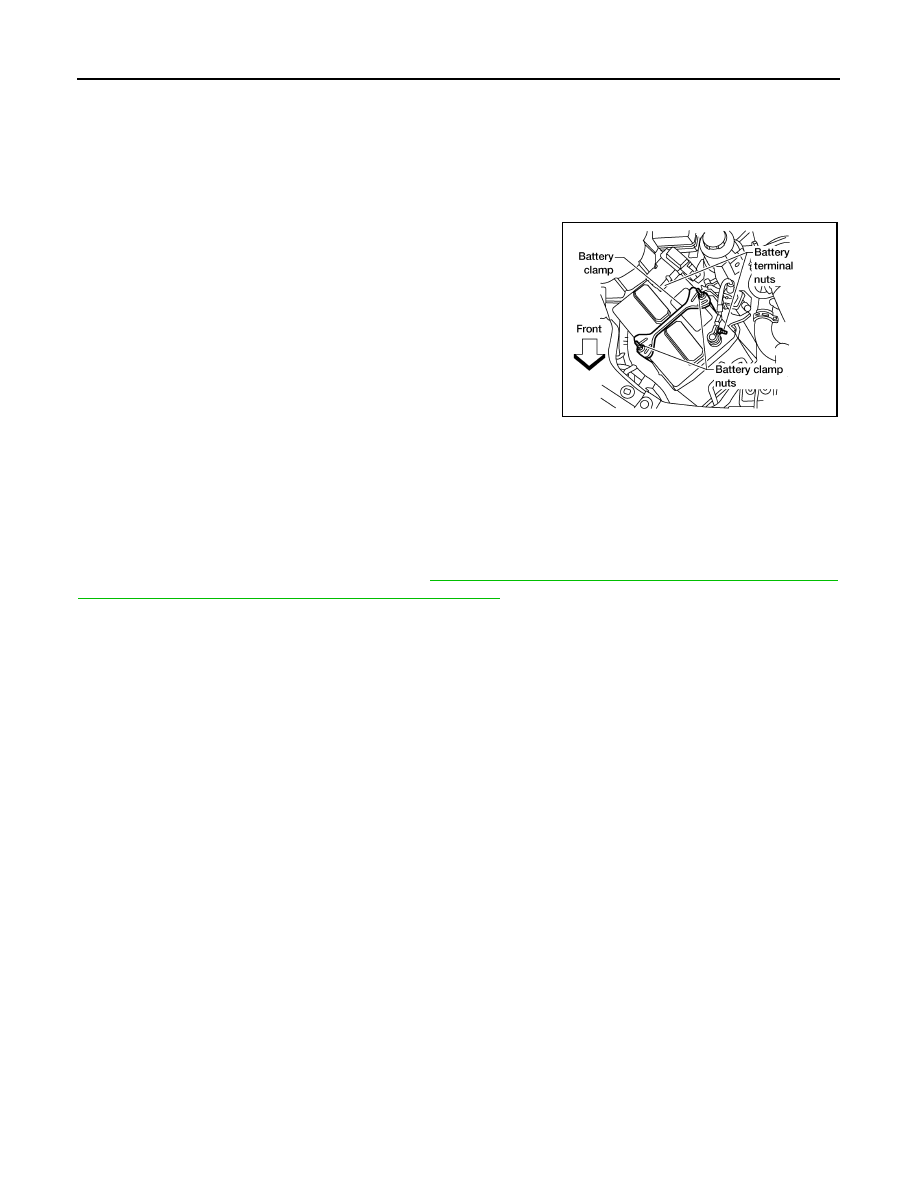

WKIA3188E

Battery clamp nuts

: 3.92 N·m (0.40 kg-m, 35 in-lb)

Battery terminal nut

: 3.4 N·m (0.35 kg-m, 30 in-lb)

PG

SERVICE DATA AND SPECIFICATIONS (SDS)

PG-85

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Battery

INFOID:0000000005272430

*: Always check with the Parts Department for the latest parts information

Application (Standard battery)

VQ40DE

QR25DE

Type*

GR35

Capacity (20 HR) minimum

V-AH

12-63

Cold cranking current A
(For reference value)

550
