Nissan Frontier D40. Manual - part 880





PCS-20

< ECU DIAGNOSIS >

[IPDM E/R]

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

Terminal Layout

INFOID:0000000005276005

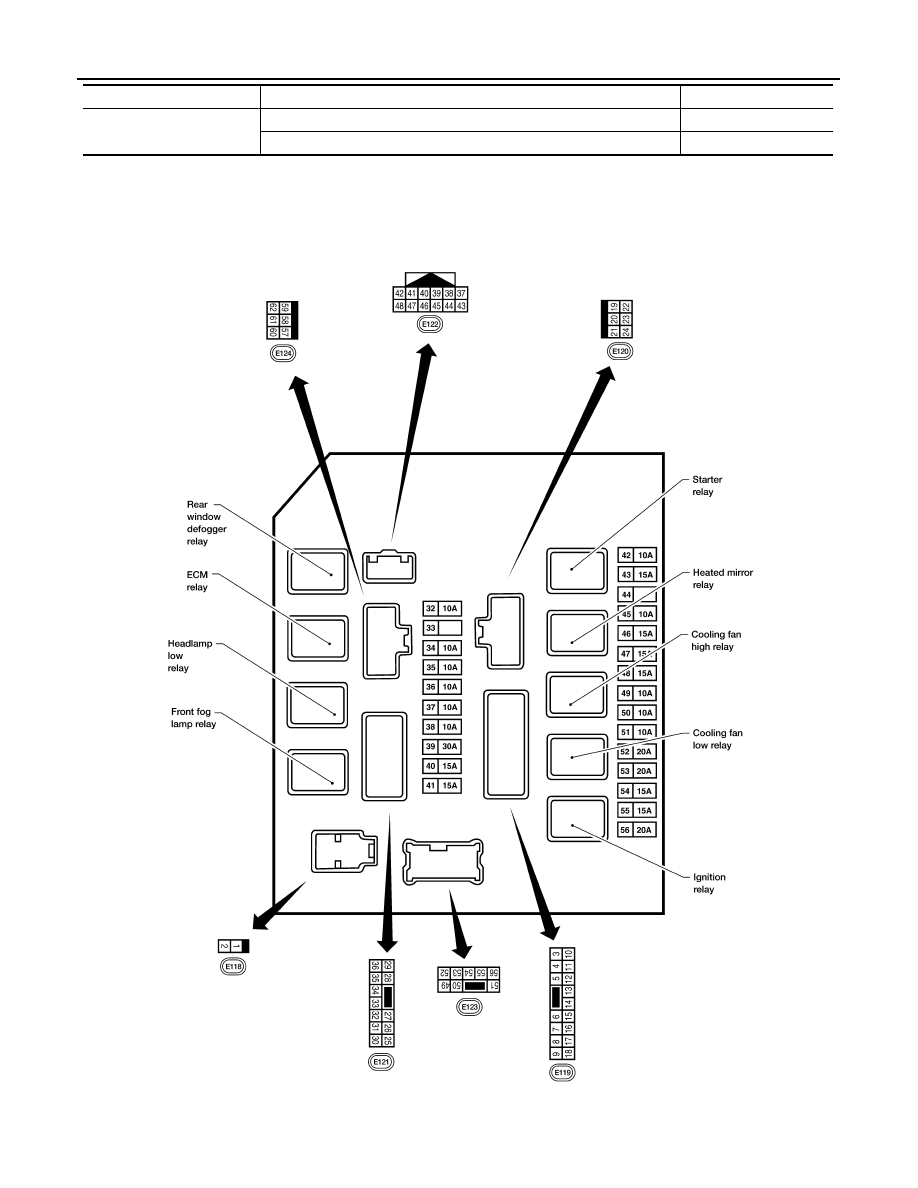

TERMINAL LAYOUT —TYPE A

HORN CHIRP

Not operated

OFF

Door locking with keyfob (horn chirp mode)

ON

Monitor Item

Condition

Value/Status

WKIA5883E

PCS

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

PCS-21

< ECU DIAGNOSIS >

[IPDM E/R]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

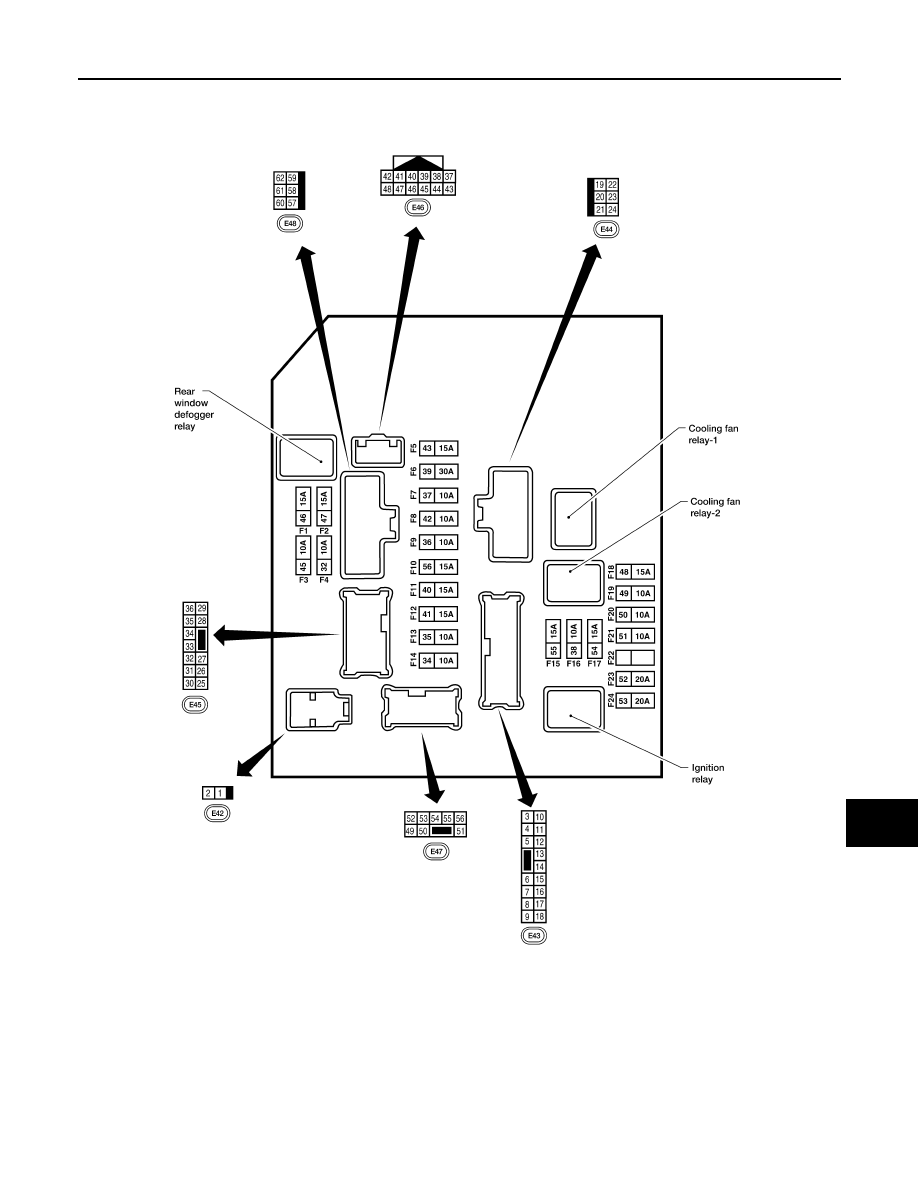

TERMINAL LAYOUT —TYPE B

Physical Values

INFOID:0000000005276006

PHYSICAL VALUES

AAMIA0364GB

PCS-22

< ECU DIAGNOSIS >

[IPDM E/R]

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

Terminal

Wire

color

Signal name

Signal

input/

output

Measuring condition

Reference value

(Approx.)

Igni-

tion

switch

Operation or condition

1

W

Battery power supply

Input

OFF

Battery voltage

2

R

Battery power supply

Input

OFF

Battery voltage

3

G

ECM relay

Output

Ignition switch ON or START

Battery voltage

Ignition switch OFF or ACC

0V

4

P

ECM relay

Output

Ignition switch ON or START

Battery voltage

Ignition switch OFF or ACC

0V

6

V

Throttle control motor
relay

Output

Ignition switch ON or START

Battery voltage

Ignition switch OFF or ACC

0V

7

BR

ECM relay control

Input

Ignition switch ON or START

0V

Ignition switch OFF or ACC

Battery voltage

8

W/R

Fuse 54

Output

Ignition switch ON or START

Battery voltage

Ignition switch OFF or ACC

0V

10

R/B

Fuse 45

Output

ON

Daytime light system active

0V

Daytime light system inactive

Battery voltage

11

Y

A/C compressor

Output

ON or

START

A/C switch ON or defrost A/C
switch

Battery voltage

A/C switch OFF or defrost A/C
switch

0V

12

W/G

Ignition switch sup-
plied power

Input

OFF or ACC

0V

ON or START

Battery voltage

13

R

Fuel pump relay

Output

Ignition switch ON or START

Battery voltage

Ignition switch OFF or ACC

0V

14

W/G

Fuse 49

Output

Ignition switch ON or START

Battery voltage

Ignition switch OFF or ACC

0V

15

W/R

Fuse 50 (ABS)

Output

Ignition switch ON or START

Battery voltage

Ignition switch OFF or ACC

0V

16

W/G

Fuse 51

Output

Ignition switch ON or START

Battery voltage

Ignition switch OFF or ACC

0V

17

W/G

Fuse 55

Output

Ignition switch ON or START

Battery voltage

Ignition switch OFF or ACC

0V

19

W

Starter motor

Output

START

Battery voltage

20

BR

Cooling fan motor
(low)

Output

ON or

START

Battery voltage

21

GR

Ignition switch sup-
plied power

Input

OFF or ACC

0V

START

Battery voltage

22

G

Battery power supply

Output

OFF

Battery voltage

23

LG

Door mirror defogger
output signal

Output

When rear defogger switch is
ON

Battery voltage

When raker defogger switch is
OFF

0V

PCS

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

PCS-23

< ECU DIAGNOSIS >

[IPDM E/R]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

24

P

Cooling fan motor
(high)

Output

Conditions correct for cooling
fan operation

Battery voltage

Conditions not correct for
cooling fan operation

0V

27

W

Fuse 38

Output

Ignition switch ON or START

Battery voltage

Ignition switch OFF or ACC

0V

28

R

LH front parking and
front side marker lamp

Output

OFF

Lighting
switch 1st po-
sition

OFF

0V

ON

Battery voltage

29

G

Trailer tow relay

Output

ON

Lighting
switch 1st po-
sition

OFF

0V

ON

Battery voltage

30

R/B

Fuse 53

Output

Ignition switch ON or START

Battery voltage

Ignition switch OFF or ACC

0V

32

GR

Wiper low speed sig-
nal

Output

ON or

START

Wiper switch

OFF

Battery voltage

LO or INT

0V

35

L

Wiper high speed sig-
nal

Output

ON or

START

Wiper switch

OFF, LO, INT

Battery voltage

HI

0V

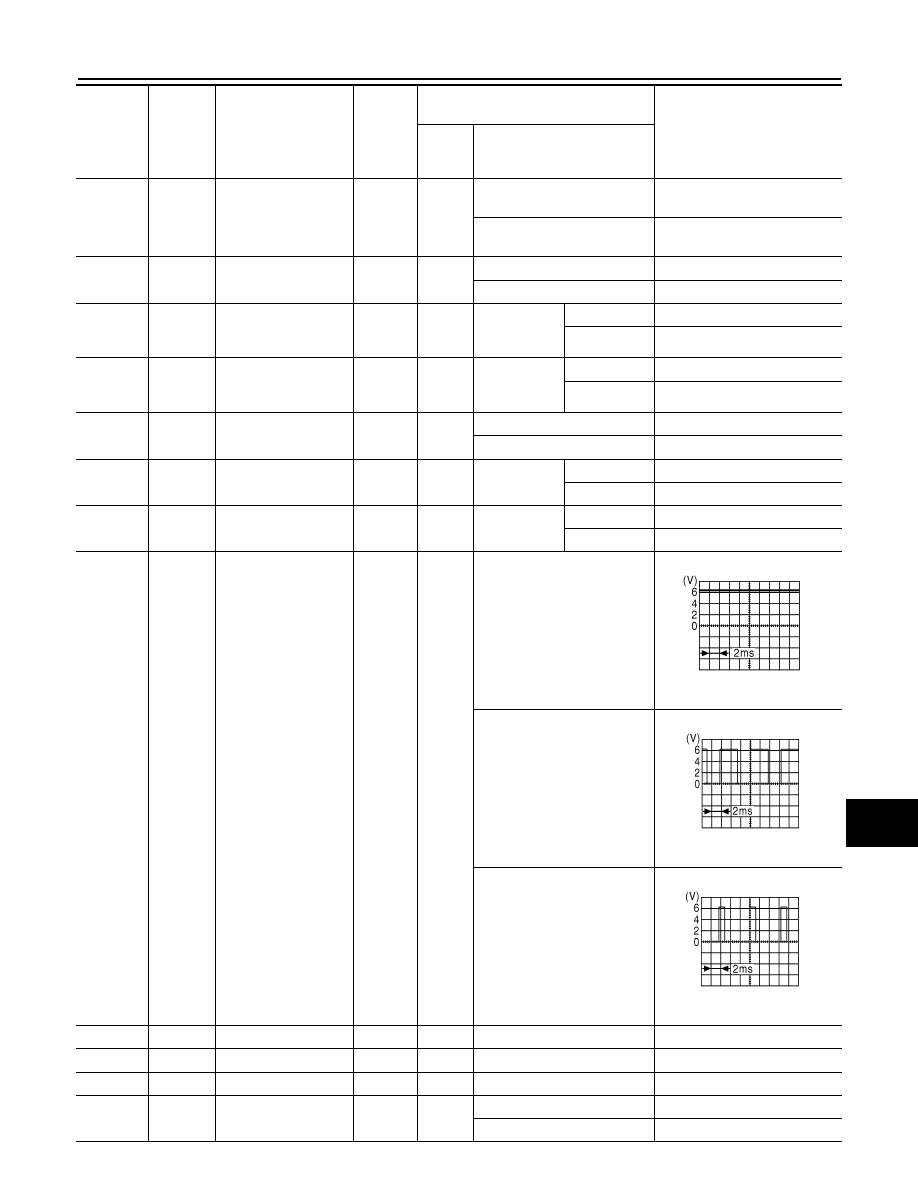

37

Y

Power generation
command signal

Output

Ignition switch ON

6.3 V

40% is set on "Active test,"
"ALTERNATOR DUTY" of
"ENGINE"

3.8 V

40% is set on "Active test,"
"ALTERNATOR DUTY" of
"ENGINE"

1.4 V

38

B

Ground

Input

0V

39

L

CAN-H

ON

40

P

CAN-L

ON

42

GR

Oil pressure switch

Input

Engine running

Battery voltage

Engine stopped

0V

Terminal

Wire

color

Signal name

Signal

input/

output

Measuring condition

Reference value

(Approx.)

Igni-

tion

switch

Operation or condition

JPMIA0001GB

JPMIA0002GB

JPMIA0003GB
