Nissan Frontier D40. Manual - part 875





PB-10

< SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Parking Drum Brake

INFOID:0000000005598075

Unit: mm (in)

Parking Brake Control

INFOID:0000000005598076

Type

Drum

Brake lining

Standard thickness (new)

3.33 (0.131)

Wear limit thickness

0.5 (0.020)

Drum inner diameter (disc)

Standard inner diameter (new)

195 + 0.15 / -0.00  (7.480 + 0.006 / -0.000)

Wear limit of inner diameter

190.7 (7.508)

Control type

Control lever

Number of notches [under force of 196 N (20.0 kg-f, 44.1 lb-f)]

6 – 8 notches

Number of notches when warning lamp switch comes on

1 notch

PCS

PCS-1

ELECTRICAL & POWER CONTROL

C

D

E

F

G

H

I

J

K

L

B

SECTION

PCS

A

O

P

N

CONTENTS

POWER  CONTROL SYSTEM

IPDM E/R

BASIC INSPECTION  ....................................

2

DIAGNOSIS AND REPAIR WORKFLOW  ..........

2

Work Flow  .................................................................

2

FUNCTION DIAGNOSIS ...............................

5

RELAY CONTROL SYSTEM  ..............................

5

System Diagram ........................................................

5

System Description  ...................................................

6

Component Parts Location ........................................

7

POWER DISTRIBUTION SYSTEM  .....................

8

System Description  ...................................................

8

Component Parts Location ........................................

8

Component Description ............................................

8

POWER CONTROL SYSTEM .............................

9

System Diagram ........................................................

9

System Description  ...................................................

9

SIGNAL BUFFER SYSTEM  ...............................

10

System Diagram ......................................................

10

System Description  .................................................

10

POWER CONSUMPTION CONTROL SYS-
TEM ....................................................................

11

System Diagram ......................................................

11

System Description  .................................................

11

Component Parts Location ......................................

12

DIAGNOSIS SYSTEM (IPDM E/R) .....................

13

Diagnosis Description  .............................................

13

CONSULT - III Function (IPDM E/R)  .......................

15

COMPONENT DIAGNOSIS  .........................

17

U1000 CAN COMM CIRCUIT  ...........................

17

Description ...............................................................

17

DTC Logic ................................................................

17

Diagnosis Procedure  ...............................................

17

POWER SUPPLY AND GROUND CIRCUIT  ....

18

Diagnosis Procedure  ...............................................

18

ECU DIAGNOSIS .........................................

19

IPDM E/R (INTELLIGENT POWER DISTRI-
BUTION MODULE ENGINE ROOM)  ................

19

Reference Value ......................................................

19

Terminal Layout .......................................................

20

Physical Values  .......................................................

21

Wiring Diagram ........................................................

25

Fail Safe ..................................................................

29

DTC Index ...............................................................

31

PRECAUTION ..............................................

32

PRECAUTIONS .................................................

32

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................

32

ON-VEHICLE REPAIR .................................

33

IPDM E/R (INTELLIGENT POWER DISTRI-
BUTION MODULE ENGINE ROOM)  ................

33

Removal and Installation of IPDM E/R  ....................

33

PCS-2

< BASIC INSPECTION >

[IPDM E/R]

DIAGNOSIS AND REPAIR WORKFLOW

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000005275984

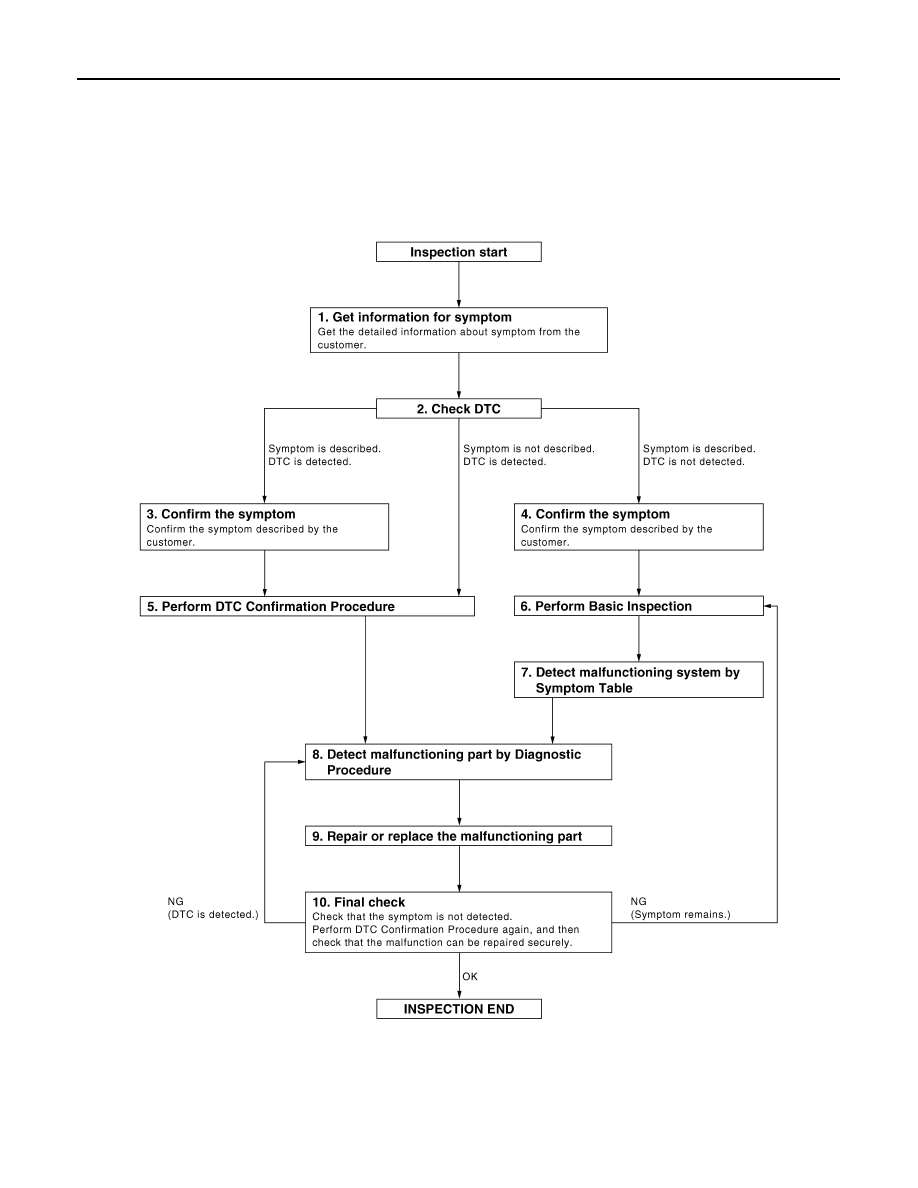

OVERALL SEQUENCE

DETAILED FLOW

JMKIA0101GB

PCS

DIAGNOSIS AND REPAIR WORKFLOW

PCS-3

< BASIC INSPECTION >

[IPDM E/R]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

1.

 GET INFORMATION FOR SYMPTOM

Get the detailed information from the customer about the symptom (the condition and the environment when
the incident/malfunction occurred).

>> GO TO 2

2.

 CHECK DTC

1.

Check DTC.

2.

Perform the following procedure if DTC is displayed.

-

Record DTC and freeze frame data.

-

Erase DTC.

-

Study the relationship between the cause detected by DTC and the symptom described by the customer.

3.

Check related service bulletins for information.

Is any symptom described and any DTC detected?

Symptom is described, DTC is displayed>>GO TO 3
Symptom is described, DTC is not displayed>>GO TO 4
Symptom is not described, DTC is displayed>>GO TO 5

3.

 CONFIRM THE SYMPTOM

Confirm the symptom described by the customer.
Connect CONSULT-III to the vehicle in “DATA MONITOR” mode and check real time diagnosis results.
Verify relationship between the symptom and the condition when the symptom is detected.

>> GO TO 5

4.

 CONFIRM THE SYMPTOM

Confirm the symptom described by the customer.
Connect CONSULT-III to the vehicle in “DATA MONITOR” mode and check real time diagnosis results.
Verify relationship between the symptom and the condition when the symptom is detected.

>> GO TO 6

5.

 PERFORM DTC CONFIRMATION PROCEDURE

Perform DTC Confirmation Procedure for the displayed DTC, and then check that DTC is detected again.
At this time, always connect CONSULT-III to the vehicle, and check diagnostic results in real time.
NOTE:
• Freeze frame data is useful if the DTC is not detected.
• Perform Component Function Check if DTC Confirmation Procedure is not included in Service Manual. This

simplified check procedure is an effective alternative though DTC cannot be detected during this check.
If the result of Component Function Check is NG, it is the same as the detection of DTC by DTC Confirma-
tion Procedure.

Is DTC detected?

YES

>> GO TO 8

NO

>> Refer to

GI-46, "Intermittent Incident"

.

6.

 PERFORM BASIC INSPECTION

Perform basic inspection of system.

Inspection End>>GO TO 7

7.

 DETECT MALFUNCTIONING SYSTEM BY SYMPTOM TABLE

Detect malfunctioning system according to

PCS-8, "System Description"

 based on the confirmed symptom in

step 4, and determine the trouble diagnosis order based on possible causes and symptom.

>> GO TO 8

8.

 DETECT MALFUNCTIONING PART BY DIAGNOSTIC PROCEDURE
