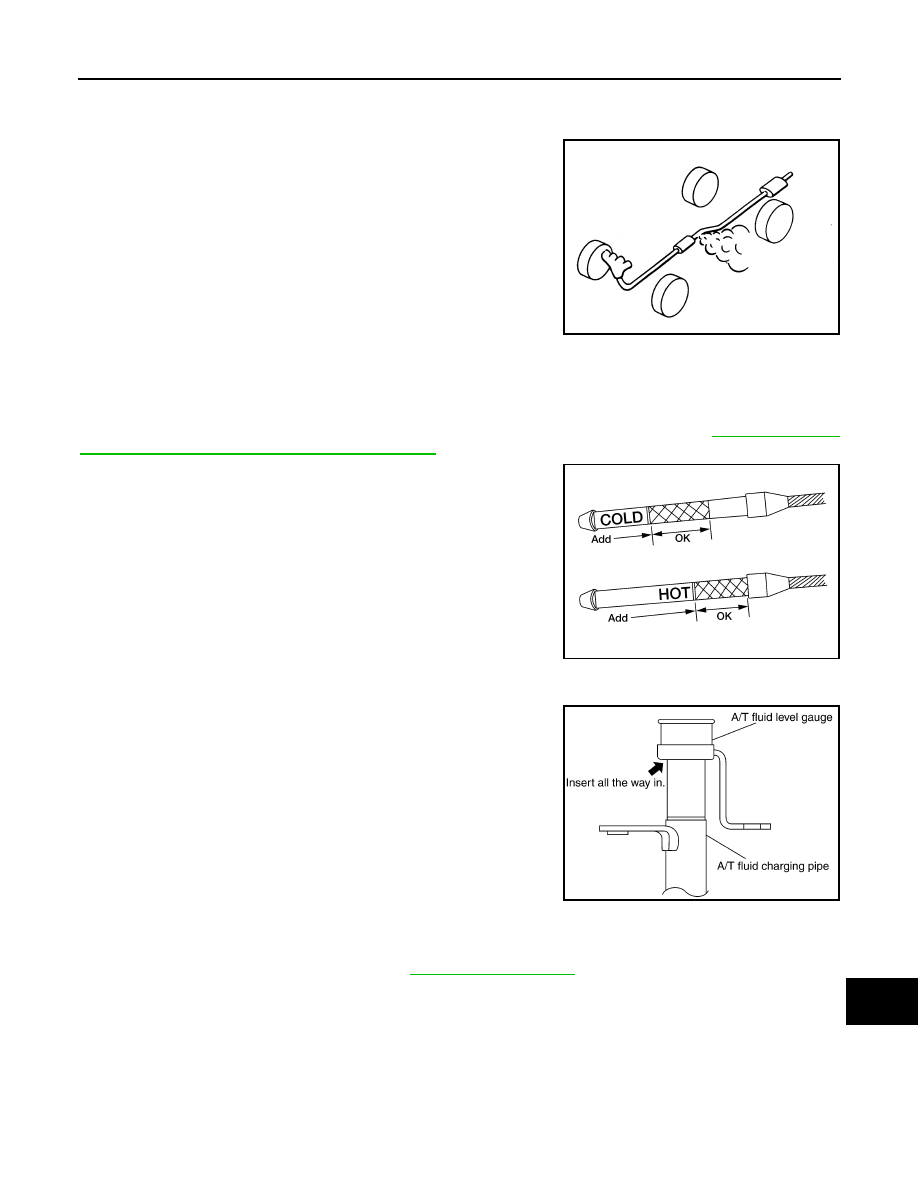

CHASSIS AND BODY MAINTENANCE

MA-45

< ON-VEHICLE MAINTENANCE >

EXHAUST SYSTEM : Checking Exhaust System

INFOID:0000000005272764

Check exhaust pipes, muffler and mounting for improper attachment, leaks, cracks, damage or deterioration.
• If anything is found, repair or replace damaged parts.

TRANSMISSION OIL

TRANSMISSION OIL : Checking the A/T Fluid (ATF)

INFOID:0000000005272765

CAUTION:

If using the vehicle for towing, the A/T fluid must be replaced as specified. Refer to

MA-9, "For North

America: Introduction of Periodic Maintenance"

Before driving, the A/T fluid level can be checked at A/T fluid
temperatures of 30

to 50

C (86

to 122

F) using the “COLD”

range on the A/T fluid level gauge as follows:

Park the vehicle on a level surface and set the parking brake.

Start the engine and move the selector lever through each gear
position. Shift the selector lever into the “P” position.

Check the A/T fluid level with the engine idling.

Remove the A/T fluid level gauge and wipe it clean with a lint-
free paper.

CAUTION:

When wiping the A/T fluid from the A/T fluid level gauge,
always use a lint-free paper, not a cloth.

Re-insert the A/T fluid level gauge into the A/T fluid charging
pipe until the cap contacts the top of the A/T fluid charging pipe
as shown.

CAUTION:

To check A/T fluid level, insert the A/T fluid level gauge until
the cap contacts the top of the A/T fluid charging pipe, with
the gauge reversed from the normal inserted position.

Remove the A/T fluid level gauge and note the A/T fluid level. If
the A/T fluid level is at low side of range, add A/T fluid to the
transmission through the A/T fluid charging pipe.

CAUTION:

Do not overfill the transmission with A/T fluid.

Install the A/T fluid level gauge and the A/T fluid level gauge bolt.

Warm up the engine and transmission.

Check for any A/T fluid leaks.

Drive the vehicle to increase the A/T fluid temperature to 80

C (176

F).

SMA211A

LLIA0071E

A/T fluid level gauge bolt

: Refer to

TM-297, "Component"

SCIA2899E

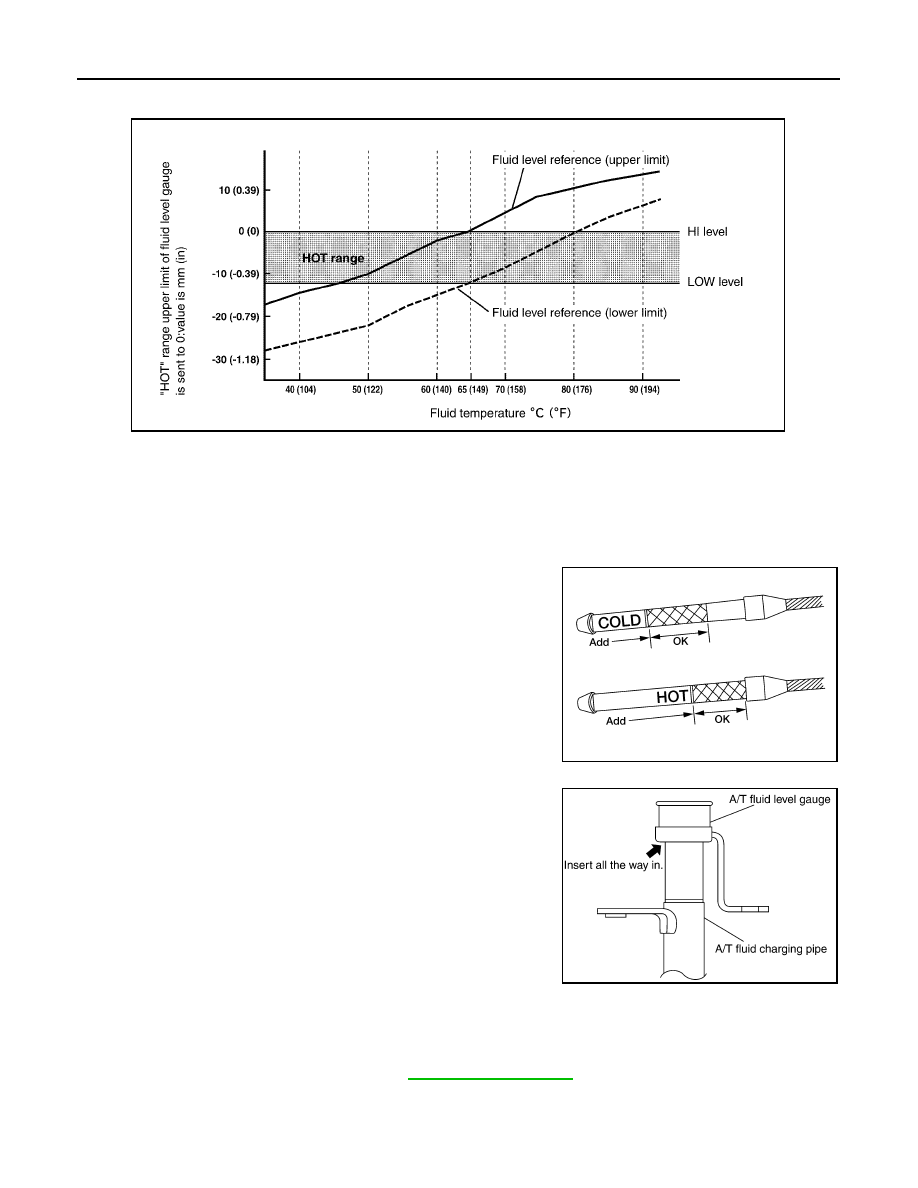

MA-46

< ON-VEHICLE MAINTENANCE >

CHASSIS AND BODY MAINTENANCE

Allow the A/T fluid temperature to fall to approximately 65

C (149

F). Use the CONSULT-III to monitor the

A/T fluid temperature as follows:

NOTE:
The A/T fluid level will be significantly affected by the A/T fluid temperature as shown. Therefore monitor
the A/T fluid temperature data using the CONSULT-III.

Connect CONSULT-III to data link connector.

Select “MAIN SIGNALS” in “DATA MONITOR” mode for “A/T” with CONSULT-III.

Read out the value of “ATF TEMP 1”.

Re-check the A/T fluid level at A/T fluid temperatures of approxi-
mately 65

C (149

F) using the “HOT” range on the A/T fluid

level gauge as shown. The HOT range is between 50

- 80

(122

- 176

F).

CAUTION:

• When wiping the A/T fluid from the A/T fluid level gauge,

always use lint-free paper, not a cloth.

• To check the A/T fluid level, insert the A/T fluid level

gauge until the cap contacts the top of the A/T fluid charg-
ing pipe, with the gauge reversed from the normal
inserted position as shown.

Check the A/T fluid condition.
• If the A/T fluid is very dark or has some burned smell, there

may be an internal problem with the transmission. Flush the
transmission cooling system after repairing the transmission.

• If the A/T fluid contains frictional material (clutches, bands,

etc.), replace the radiator and flush the transmission cooler
lines using cleaning solvent and compressed air after repairing
the transmission.

Install the A/T fluid level gauge in the A/T fluid charging pipe.

Tighten the A/T fluid level gauge bolt to specification.

SLIA0016E

LLIA0071E

A/T fluid level gauge bolt

: Refer to

TM-297, "Component"

SCIA2899E

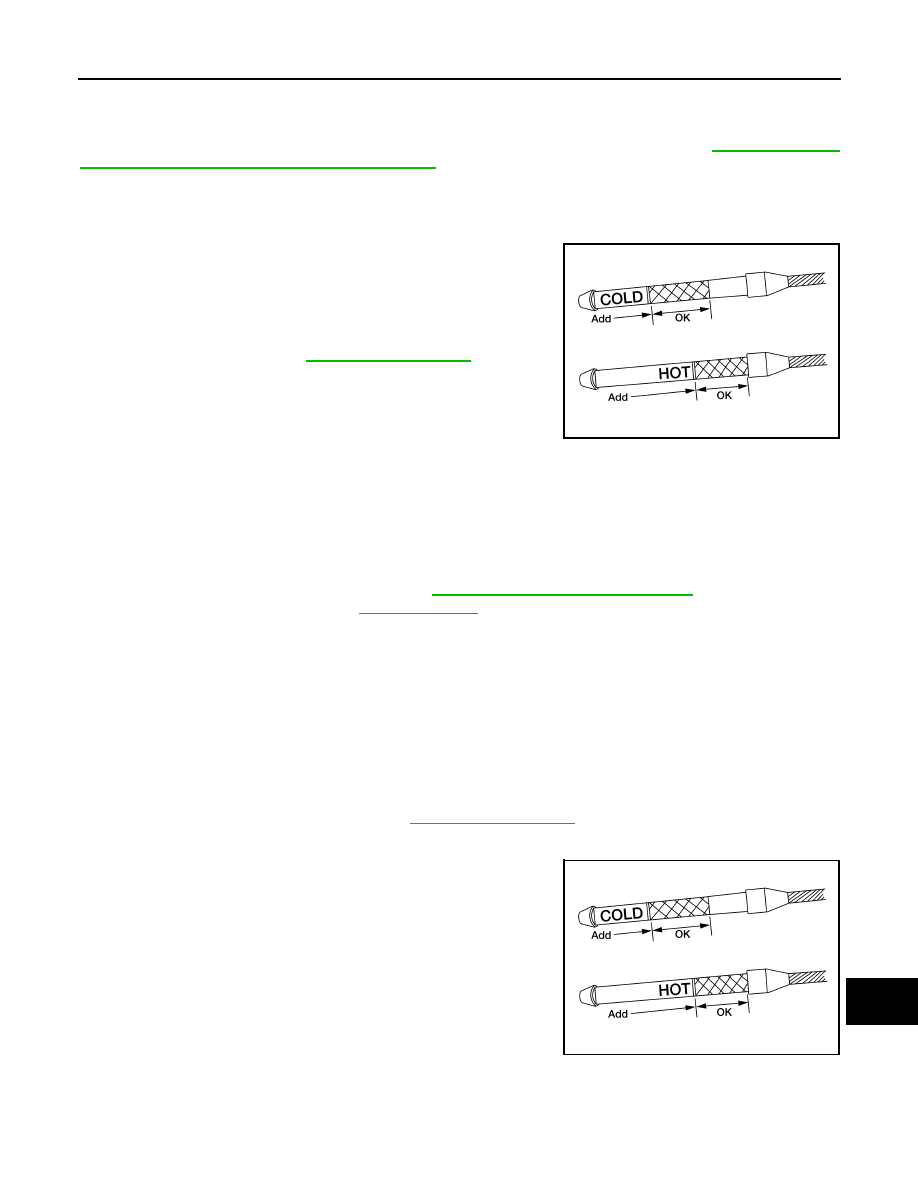

CHASSIS AND BODY MAINTENANCE

MA-47

< ON-VEHICLE MAINTENANCE >

TRANSMISSION OIL : Changing the A/T Fluid (ATF)

INFOID:0000000005272766

CAUTION:

If using the vehicle for towing, the A/T fluid must be replaced as specified. Refer to

MA-9, "For North

America: Introduction of Periodic Maintenance"

Drive the vehicle to warm up the A/T fluid to approximately 80

C (176

F).

Stop the engine.

Remove the A/T fluid level gauge.

Drain the A/T fluid from the drain plug hole, then install the drain
plug with a new gasket. Refill the transmission with new A/T
fluid. Always refill with the same volume as the drained A/T fluid.
Use the A/T fluid level gauge to check the A/T fluid level as
shown. Add A/T fluid as necessary.

• To flush out the old A/T fluid from the transmission oil coolers, pour new A/T fluid into the A/T fluid charg-

ing pipe with the engine idling and at the same time drain the old A/T fluid from the auxiliary transmis-
sion oil cooler hose return line.

• When the color of the A/T fluid coming out of the auxiliary transmission oil cooler hose return line is

about the same as the color of the new A/T fluid, flushing out the old A/T fluid is complete. The amount
of new A/T fluid used for flushing should be 30% to 50% increase of the specified capacity.

CAUTION:

• If genuine NISSAN Matic S ATF is not available, Genuine NISSAN Matic J ATF may also be used.

Using automatic transmission fluid other than Genuine NISSAN Matic S ATF or Matic J ATF will
cause deterioration in driveability and automatic transmission durability, and may damage the
automatic transmission, which is not covered by the NISSAN new vehicle limited warranty

• When filling the transmission with A/T fluid, do not spill the A/T fluid on any heat generating

parts such as the exhaust manifold.

• Do not reuse the drain plug gasket.

Install the A/T fluid level gauge and tighten the A/T fluid level gauge bolt to specification.

Drive the vehicle to warm up the A/T fluid to approximately 80

C (176

F).

Check the fluid level and condition. If the A/T fluid is still dirty,
repeat steps 2 through 6.

Install the A/T fluid level gauge in the A/T fluid charging pipe and install the A/T fluid level gauge bolt.

Tighten the A/T fluid level gauge bolt to specification.

Drain plug

: Refer to

TM-297, "Component"

LLIA0071E

A/T fluid grade and capacity

: Refer to

MA-16, "For North America: Fluids

and Lubricants"

A/T fluid level gauge bolt

: Refer to

TM-297, "Component"

LLIA0071E

MA-48

< ON-VEHICLE MAINTENANCE >

CHASSIS AND BODY MAINTENANCE

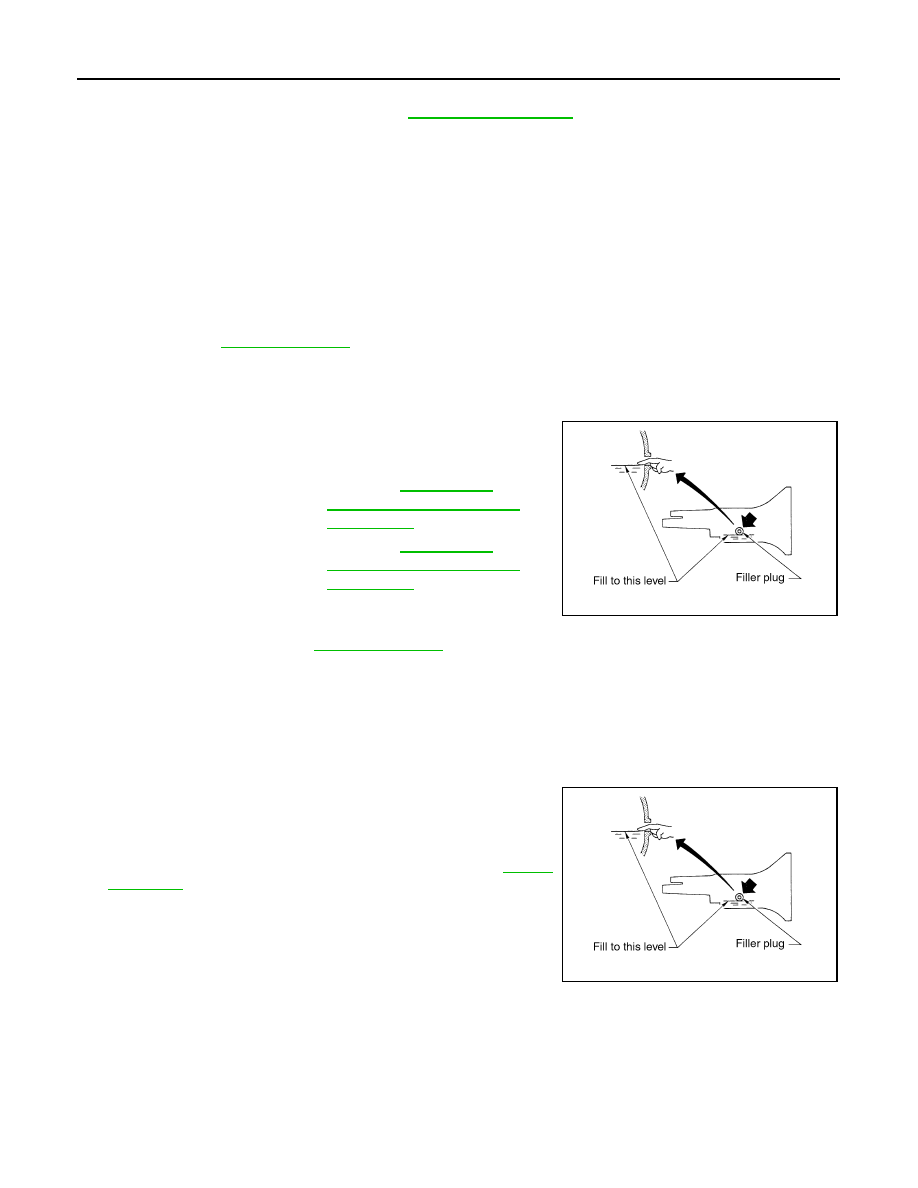

M/T OIL

M/T OIL : FS6R31A

INFOID:0000000005272767

M/T OIL : Changing

INFOID:0000000005272768

DRAINING

Start the engine and let it run to warm up the transmission.

Stop the engine. Remove the transmission drain plug and drain the oil.

Set a gasket on the drain plug and install it to the transmission. Tighten the drain plug to the specified
torque. Refer to

TM-73, "Overhaul"

CAUTION:

Do not reuse gasket.

FILLING

Remove the filler plug. Fill with new oil until oil level reaches the
specified limit near the filler plug hole as shown.

After refilling the oil, check oil level. Set a gasket to the filler
plug, then install it to the transmission. Tighten the filler plug to
the specified torque. Refer to

TM-73, "Overhaul"

CAUTION:

Do not reuse gasket.

M/T OIL : Checking

INFOID:0000000005272769

OIL LEAKAGE AND OIL LEVEL

Make sure that oil is not leaking from the transmission or around it.

Check oil level from the filler plug hole as shown.

CAUTION:

Do not start engine while checking oil level.

Set a gasket on the filler plug and install it to the transmission.
Tighten the filler plug to the specified torque. Refer to

TM-73,
