ENGINE OIL

LU-11

< ON-VEHICLE MAINTENANCE >

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

LU

N

P

O

7.

Stop the engine and wait for more than 10 minutes.

8.

Check the oil level using the dipstick as shown. Add oil as nec-
essary and install the oil filler cap. Refer to

LU-9, "Inspection"

.

CAUTION:

Do not overfill the engine with oil.

PBIC2823E

LU-12

< ON-VEHICLE MAINTENANCE >

[QR25DE]

OIL FILTER

OIL FILTER

Removal and Installation

INFOID:0000000005272519

REMOVAL

1.

Drain the engine oil. Refer to

LU-10, "Changing Engine Oil"

.

2.

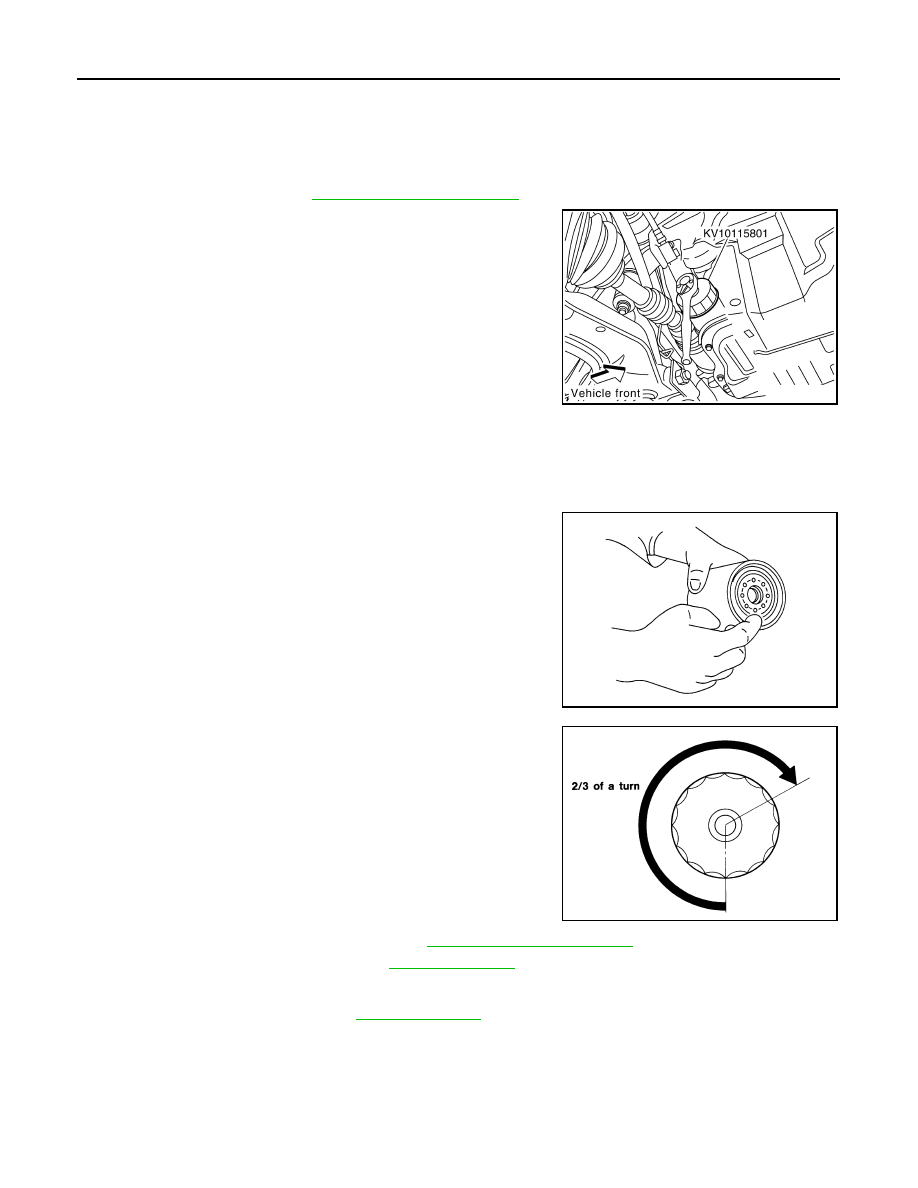

Remove the oil filter using Tool as shown.

WARNING:

Be careful not to burn yourself, as the engine and engine oil
may be hot.

CAUTION:

• Oil filter is equipped with a pressure relief valve.
• Use Genuine NISSAN Oil Filter or equivalent.
• When removing, position a shop cloth to absorb any

engine oil leaks or spills.

• Do not allow engine oil to adhere to drive belts.
• Completely wipe off any engine oil that adheres to the engine and the vehicle.

INSTALLATION

1.

Remove foreign materials adhering to the oil filter seal mating surface.

2.

Apply clean engine oil to the oil filter seal circumference of the
new oil filter as shown.

3.

Screw on the oil filter manually until it touches the installation
surface, then tighten it by 2/3 turn as shown. Or tighten to speci-
fication.

4.

Refill the engine with new engine oil. Refer to

LU-10, "Changing Engine Oil"

.

5.

Inspect the engine for oil leaks. Refer to

LU-9, "Inspection"

.

INSPECTION AFTER INSTALLATION

1.

Check the engine oil level. Refer to

LU-9, "Inspection"

.

2.

Start the engine and check for engine oil leaks.

3.

Stop the engine and wait for 10 minutes.

4.

Check the engine oil level and add engine oil as required.

Tool number

: KV10115801 (J-38956)

KBIA0303E

SMA010

Oil filter

: 17.7 N·m (1.8 kg-m, 13 ft-lb)

SMA702C

OIL COOLER

LU-13

< ON-VEHICLE REPAIR >

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

LU

N

P

O

ON-VEHICLE REPAIR

OIL COOLER

Exploded View

INFOID:0000000005272520

Removal and Installation

INFOID:0000000005272521

WARNING:

• Be careful not to burn yourself, as the engine oil and engine coolant may be hot.

CAUTION:

• Do not spill engine coolant on the drive belts.
• Do not spill engine oil on rubber parts such as drive belts and engine mounting insulator.

REMOVAL

NOTE:
When removing oil cooler only, step 1 is unnecessary.

1.

Drain engine coolant from radiator drain plug at the bottom of radiator and from water drain plug on cylin-
der block. Refer to

CO-12, "Changing Engine Coolant"

 and

EM-78, "Exploded View"

.

NOTE:
Perform this step only when removing water hoses.

2.

Disconnect water hoses from oil cooler, pinching water hoses near oil cooler to prevent engine coolant
spilling.

CAUTION:

• Perform this step when engine is cold.

3.

Remove oil filter. Refer to

LU-12, "Removal and Installation"

.

4.

Remove connector bolt, and remove oil cooler.

5.

Remove water hoses, brackets and water connector, as necessary.

INSPECTION AFTER REMOVAL

Oil Cooler

Check oil cooler for cracks. Check oil cooler for clogging by blowing compressed air through engine coolant
inlet. If necessary, replace oil cooler assembly.

Relief Valve

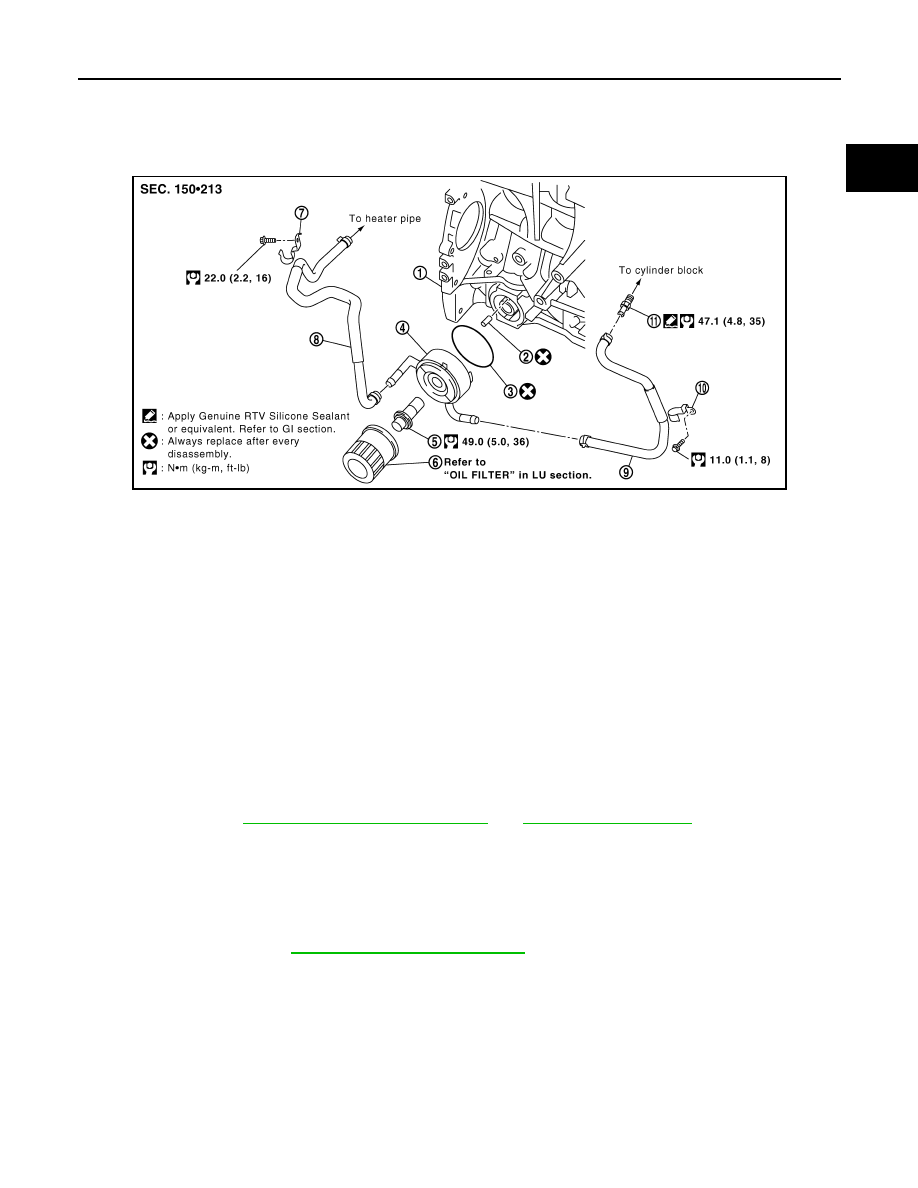

PBIC3007E

1.

Cylinder block

2.

Relief valve

3.

O-ring

4.

Oil cooler

5.

Connector bolt

6.

Oil filter

7.

Bracket

8.

Water hose

9.

Water hose

10. Bracket

11. Water connector

LU-14

< ON-VEHICLE REPAIR >

[QR25DE]

OIL COOLER

Check relief valve for movement, cracks and breaks by pushing the ball. If replacement is necessary, remove
valve by prying it out using a suitable tool. Install the new valve in place by tapping it in.

INSTALLATION

Installation is in the reverse order of removal, paying attention to the following.
• Confirm that no foreign objects are adhering to the sealing surfaces of the oil cooler and lower cylinder block.

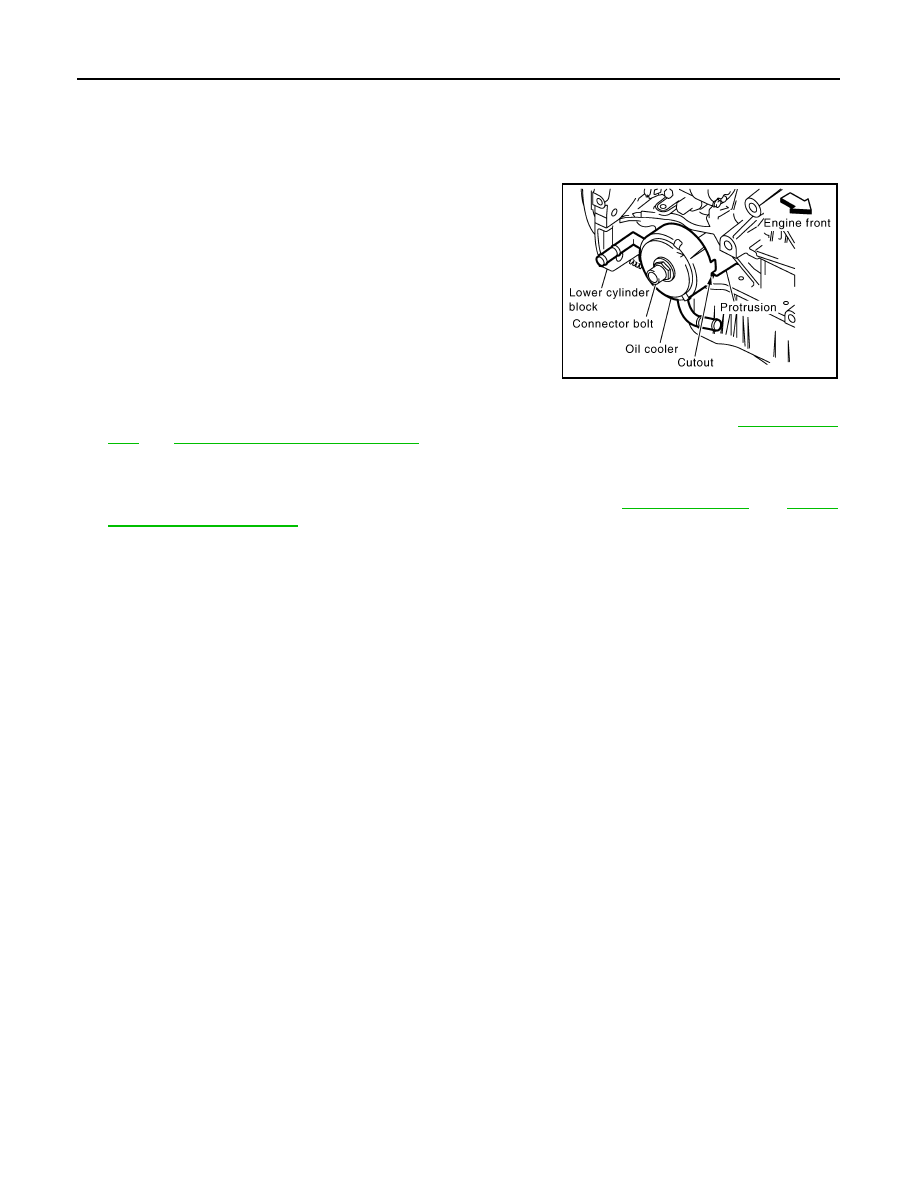

• Align cutout on oil cooler with protrusion on lower cylinder block

side, and tighten connector bolt.

INSPECTION AFTER INSTALLATION

1.

Check engine oil and engine coolant levels and add engine oil and engine coolant. Refer to

LU-9, "Inspec-

tion"

 and

CO-12, "Changing Engine Coolant"

.

2.

Start the engine, and check for leaks of engine oil or engine coolant.

3.

Stop the engine and wait for 10 minutes.

4.

Check the engine oil level and the engine coolant level again. Refer to

LU-9, "Inspection"

 and

CO-12,

"Changing Engine Coolant"

.

PBIC3048E
