Nissan Frontier D40. Manual - part 806





LAN

TROUBLE DIAGNOSIS

LAN-11

< FUNCTION DIAGNOSIS >

[CAN FUNDAMENTAL]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

Self-Diagnosis

INFOID:0000000005530344

CAN Diagnostic Support Monitor

INFOID:0000000005530345

CONSULT-III and CAN diagnostic support monitor (on-board diagnosis function) are used for detecting root
cause.

MONITOR ITEM (CONSULT-III)

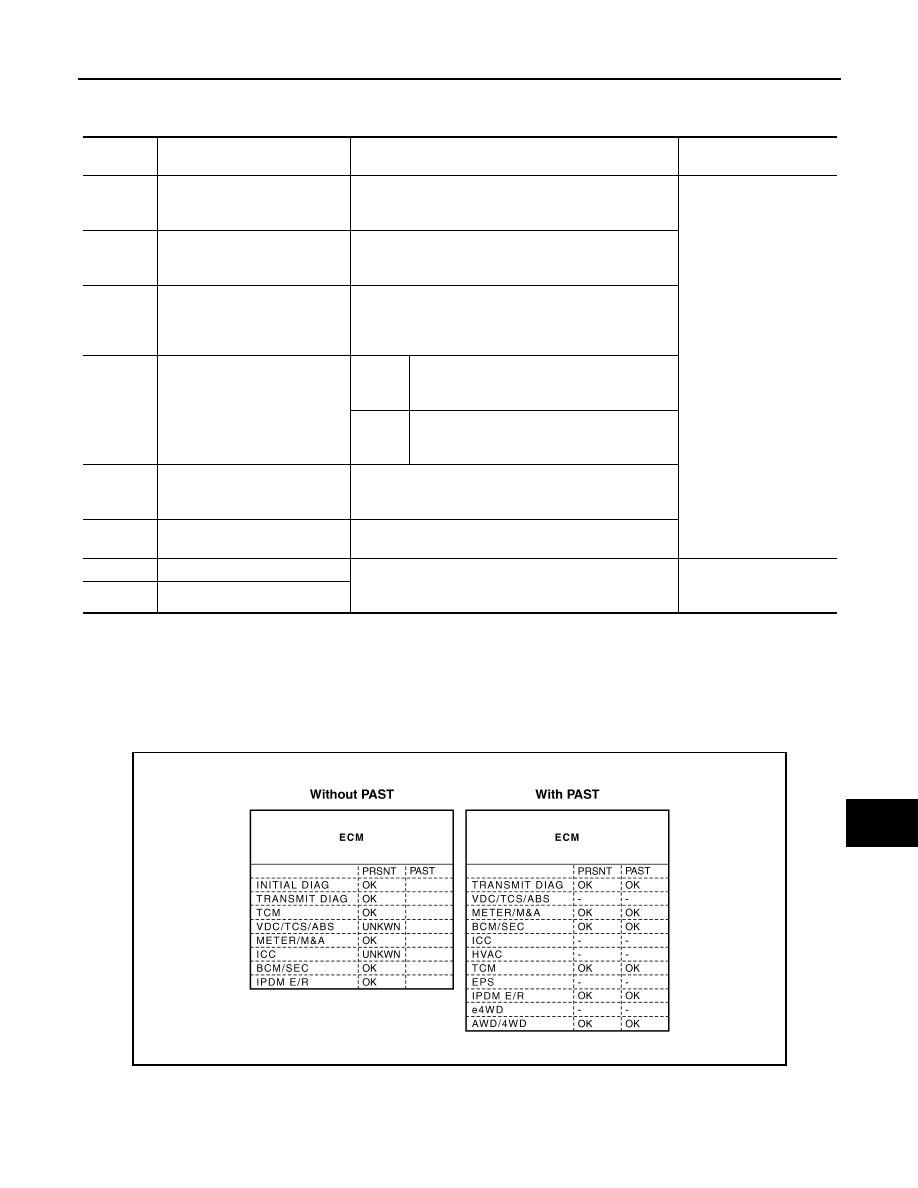

Example: CAN DIAG SUPPORT MNTR indication

Without PAST

DTC

Self-diagnosis item

 (CONSULT-III indication)

DTC detection condition

Inspection/Action

U0101

LOST COMM (TCM)

When ECM is not transmitting or receiving CAN commu-
nication signal of OBD (emission-related diagnosis) from
TCM for 2 seconds or more.

Start the inspection. Refer
to the applicable section
of the indicated control
unit.

U0140

LOST COMM (BCM)

When ECM is not transmitting or receiving CAN commu-
nication signal of OBD (emission-related diagnosis) from
BCM for 2 seconds or more.

U0164

LOST COMM (HVAC)

When ECM is not transmitting or receiving CAN commu-
nication signal of OBD (emission-related diagnosis) from
A/C auto amp. or unified meter and A/C amp. for 2 sec-
onds or more.

U1000

CAN COMM CIRCUIT

ECM

When ECM is not transmitting or receiving
CAN communication signal of OBD (emission-
related diagnosis) for 2 seconds or more.

Except
for ECM

When a control unit (except for ECM) is not
transmitting or receiving CAN communication
signal for 2 seconds or more.

U1001

CAN COMM CIRCUIT

When ECM is not transmitting or receiving CAN commu-
nication signal other than OBD (emission-related diagno-
sis) for 2 seconds or more.

U1002

SYSTEM COMM

When a control unit is not transmitting or receiving CAN
communication signal for 2 seconds or less.

U1010

CONTROL UNIT(CAN)

When an error is detected during the initial diagnosis for
CAN controller of each control unit.

Replace the control unit
indicating “U1010” or
“P0607”.

P0607

ECM

PKID1075E

LAN-12

< FUNCTION DIAGNOSIS >

[CAN FUNDAMENTAL]

TROUBLE DIAGNOSIS

With PAST

MONITOR ITEM (ON-BOARD DIAGNOSIS)

NOTE:
For some models, CAN communication diagnosis result is received from the vehicle monitor. (CONSULT-III is
not available.)

Example: Vehicle Display

Item

PRSNT

Description

Initial diagnosis

OK

Normal at present

NG

Control unit error (Except for some control units)

Transmission diagnosis

OK

Normal at present

UNKWN

Unable to transmit signals for 2 seconds or more.

Diagnosis not performed

Control unit name

(Reception diagnosis)

OK

Normal at present

UNKWN

Unable to receive signals for 2 seconds or more.

Diagnosis not performed

No control unit for receiving signals. (No applicable optional parts)

Item

PRSNT

PAST

Description

Transmission diagnosis

OK

OK

Normal at present and in the past

1 – 39

Normal at present, but unable to transmit signals for 2 seconds or more
in the past. (The number indicates the number of ignition switch cycles
from OFF to ON.)

UNKWN

0

Unable to transmit signals for 2 seconds or more at present.

Control unit name

(Reception diagnosis)

OK

OK

Normal at present and in the past

1 – 39

Normal at present, but unable to receive signals for 2 seconds or more
in the past. (The number indicates the number of ignition switch cycles
from OFF to ON.)

UNKWN

0

Unable to receive signals for 2 seconds or more at present.

Diagnosis not performed.

No control unit for receiving signals. (No applicable optional parts)

Item

Result indi-

cated

Error counter

Description

CAN_COMM

(Initial diagnosis)

OK

0

Normal at present

NG

1 – 50

Control unit error
(The number indicates how many times diagnosis has been
run.)

CAN_CIRC_1

(Transmission diagnosis)

OK

0

Normal at present

UNKWN

1 – 50

Unable to transmit for 2 seconds or more at present.
(The number indicates how many times diagnosis has been
run.)

CAN_CIRC_2 – 9

(Reception diagnosis of each unit)

OK

0

Normal at present

UNKWN

1 – 50

Unable to transmit for 2 seconds or more at present.
(The number indicates how many times diagnosis has been
run.)

Diagnosis not performed.

No control unit for receiving signals. (No applicable optional
parts)

LAN

DIAGNOSIS AND REPAIR WORKFLOW

LAN-13

< BASIC INSPECTION >

[CAN FUNDAMENTAL]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Information Needed for Trouble Diagnosis

INFOID:0000000005530346

CAN communication system performs trouble diagnosis with the following tools.

How to Use CAN Communication Signal Chart

INFOID:0000000005530347

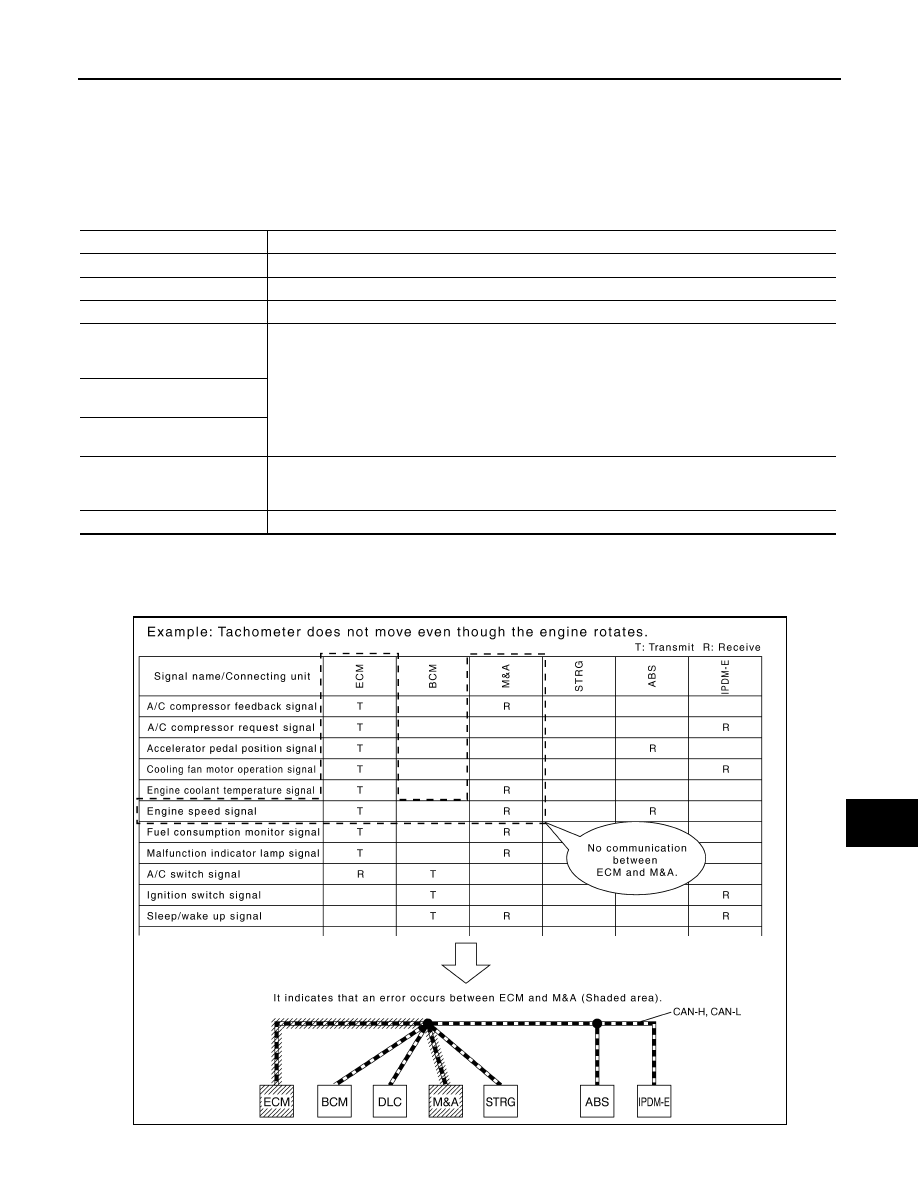

The CAN communication signal chart lists the signals needed for trouble diagnosis. It is useful for detecting
the root cause by finding a signal related to the symptom, and by checking transmission and reception unit.

Tool

Usage

Interview sheet

For filling in vehicle information and interview with customer.

Data sheet

For copying on-board diagnosis data.

Diagnosis sheet

For detecting the root cause. (Diagnosis sheet includes system diagram for every CAN system type)

ECU list
(On the “CAN DIAG SUPPORT
MNTR”)

For checking the condition of control units and the status of CAN communication.

SELF-DIAG RESULTS
(CONSULT-III)

CAN DIAG SUPPORT MNTR
(CONSULT-III)

CAN communication signal
chart

For converting information received from a customer into CAN communication signal transmission
and reception. This information can be used to judge whether a circuit between control units is nor-
mal or abnormal.

Abbreviation list

For checking abbreviations in CAN communication signal chart and diagnosis sheet.

SKIB8715E

LAN-14

< BASIC INSPECTION >

[CAN FUNDAMENTAL]

DIAGNOSIS AND REPAIR WORKFLOW

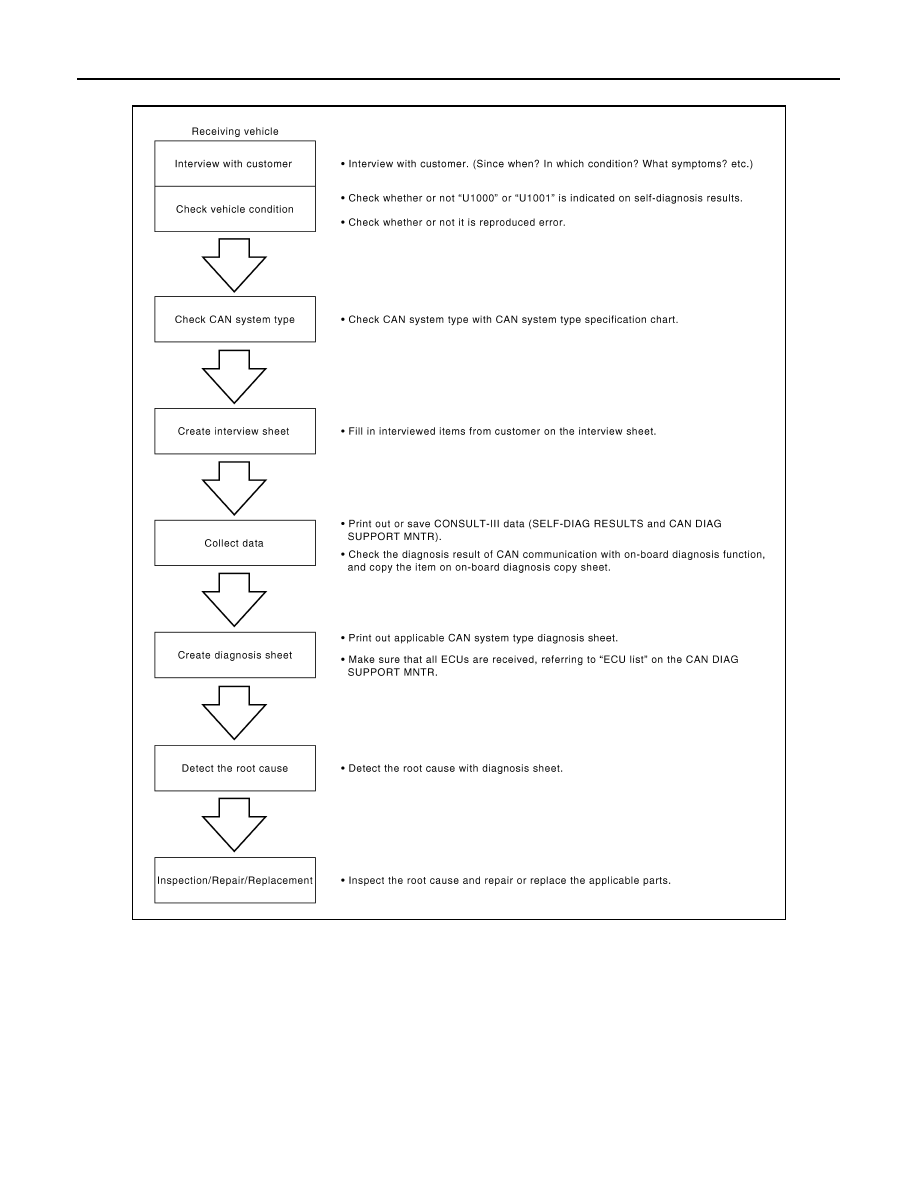

Trouble Diagnosis Flow Chart

INFOID:0000000005530348

Trouble Diagnosis Procedure

INFOID:0000000005530349

INTERVIEW WITH CUSTOMER

Interview with the customer is important to detect the root cause of CAN communication system errors and to
understand vehicle condition and symptoms for proper trouble diagnosis.

Points in interview

• What: Parts name, system name
• When: Date, Frequency
• Where: Road condition, Place
• In what condition: Driving condition/environment
