BCM (BODY CONTROL MODULE)

INL-111

< ECU DIAGNOSIS >

[WITHOUT POWER DOOR LOCKS]

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

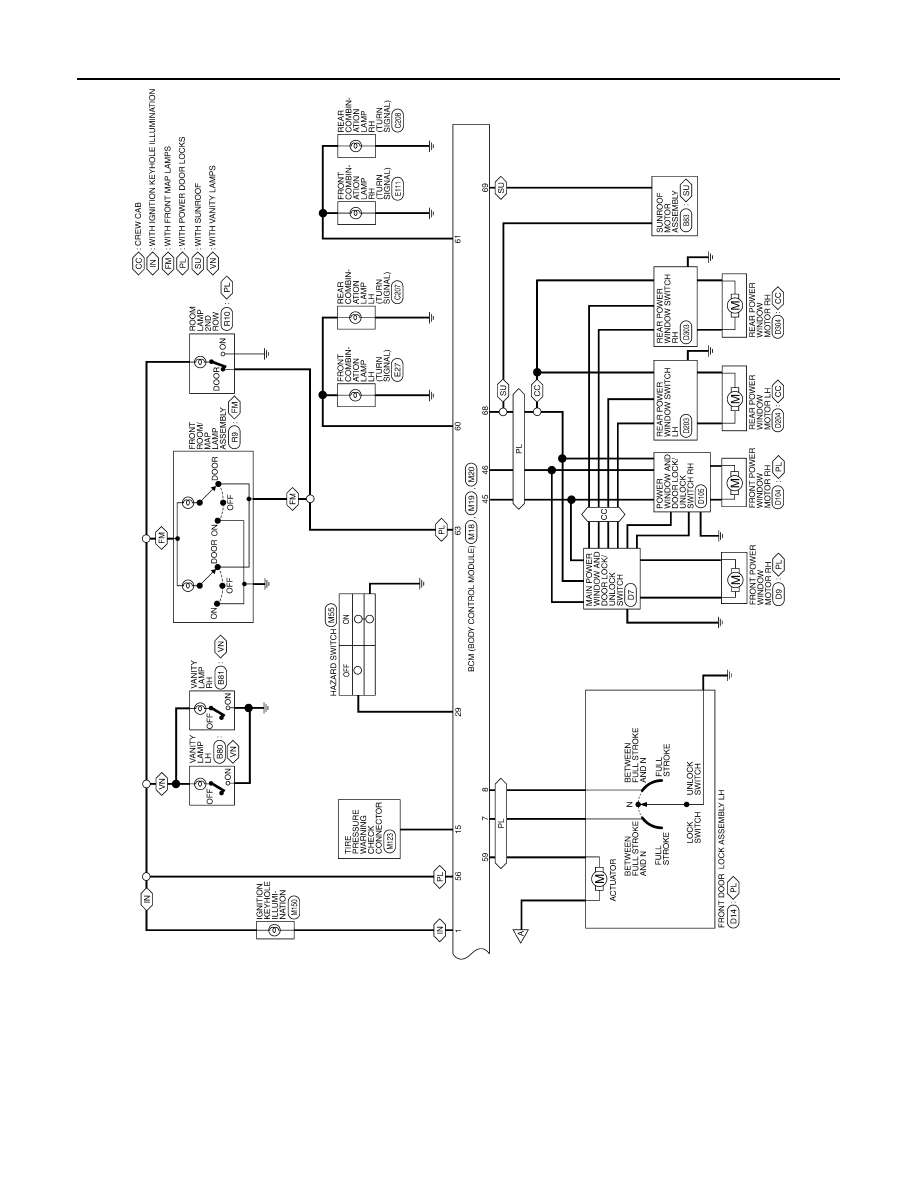

Wiring Diagram

INFOID:0000000005550770

ABMWA0544GB

INL-112

< ECU DIAGNOSIS >

[WITHOUT POWER DOOR LOCKS]

BCM (BODY CONTROL MODULE)

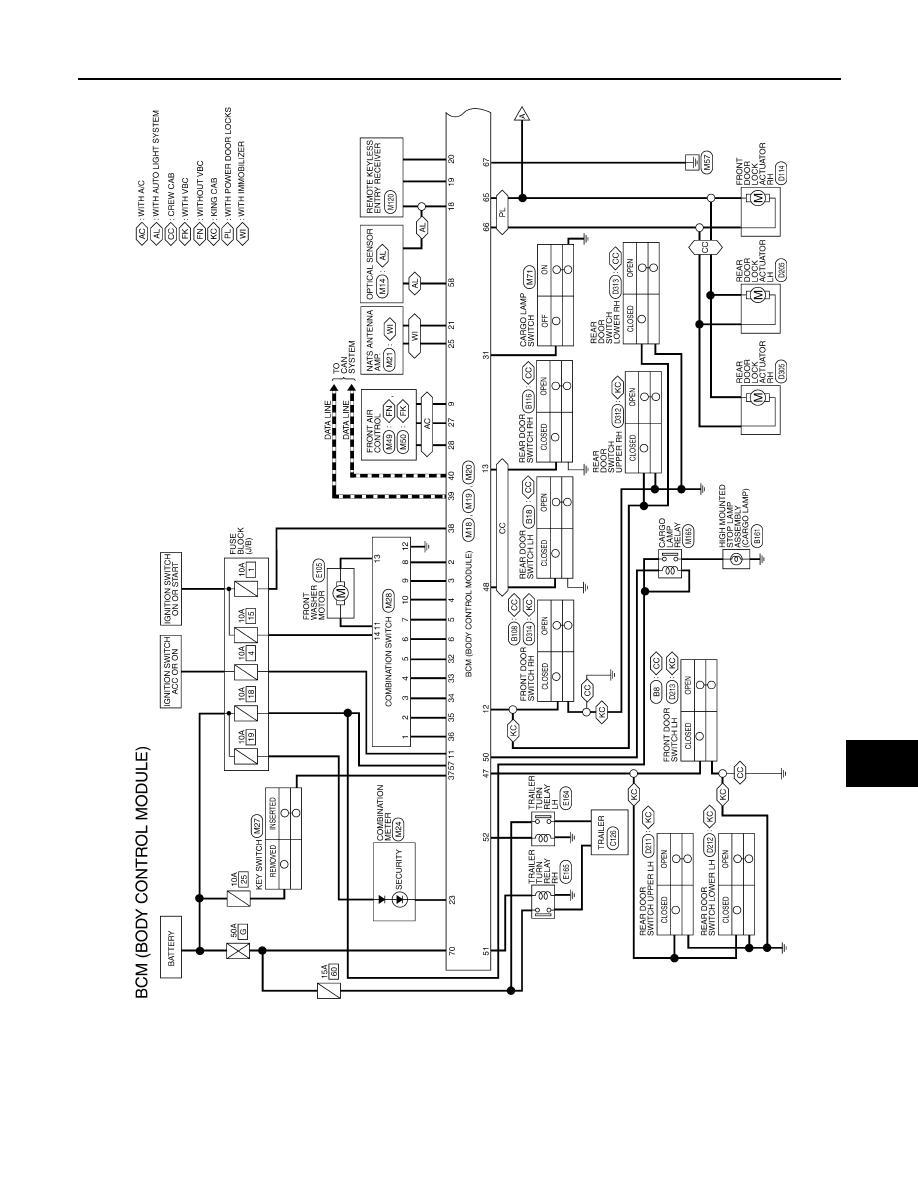

ABMWA0545GB

BCM (BODY CONTROL MODULE)

INL-113

< ECU DIAGNOSIS >

[WITHOUT POWER DOOR LOCKS]

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

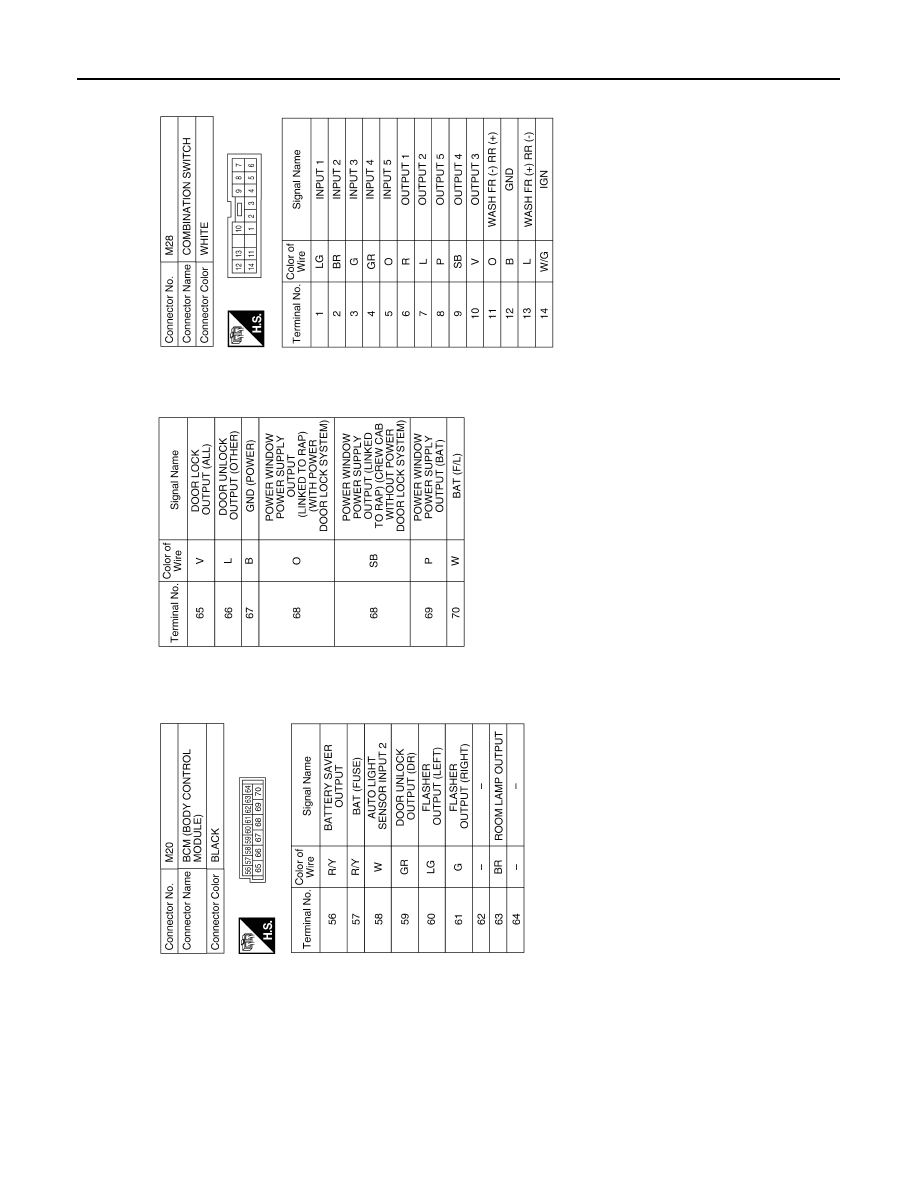

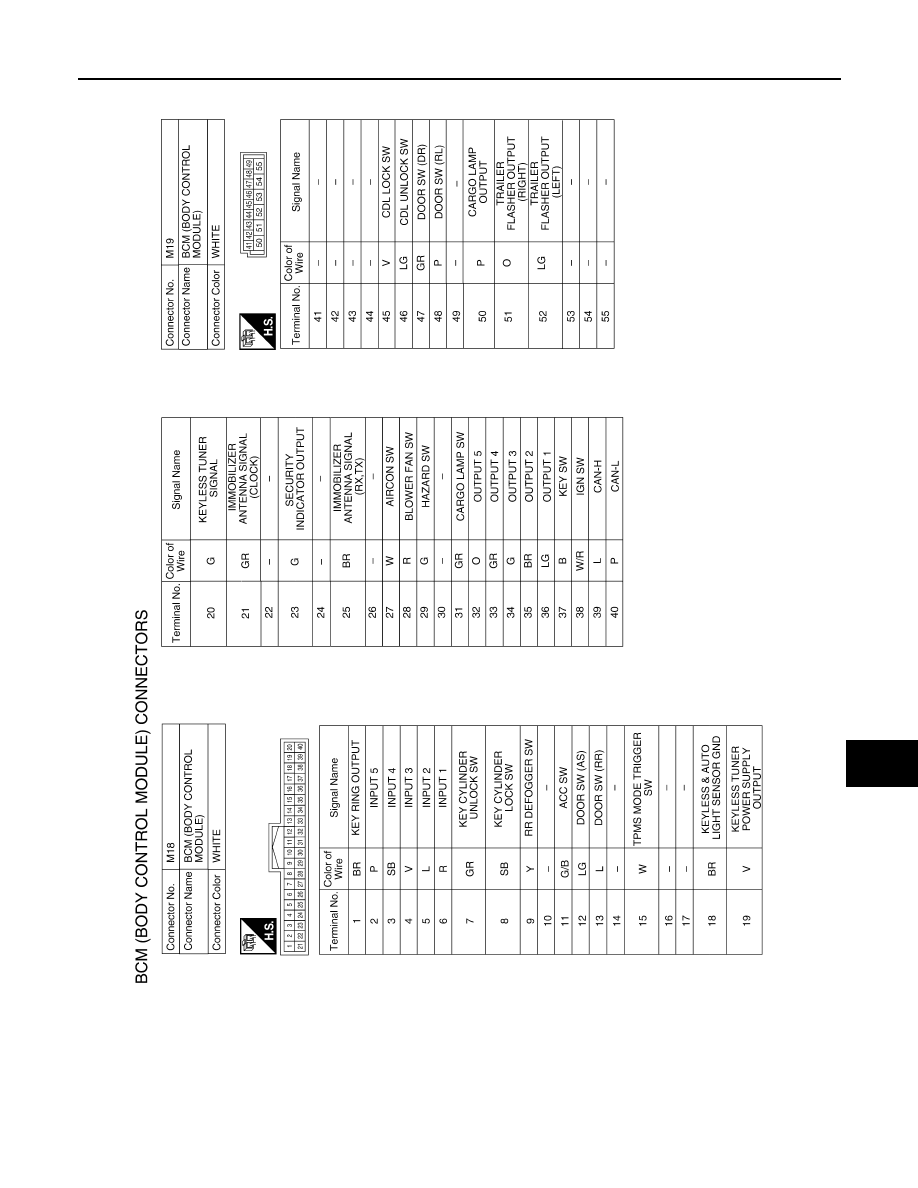

ABMIA1431GB

INL-114

< ECU DIAGNOSIS >

[WITHOUT POWER DOOR LOCKS]

BCM (BODY CONTROL MODULE)

Fail Safe

INFOID:0000000005550771

Fail-safe index

BCM performs fail-safe control when any DTC listed below is detected.

ABMIA1432GB
