Nissan Frontier D40. Manual - part 786

ILLUMINATION

INL-99

< COMPONENT DIAGNOSIS >

[WITHOUT POWER DOOR LOCKS]

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

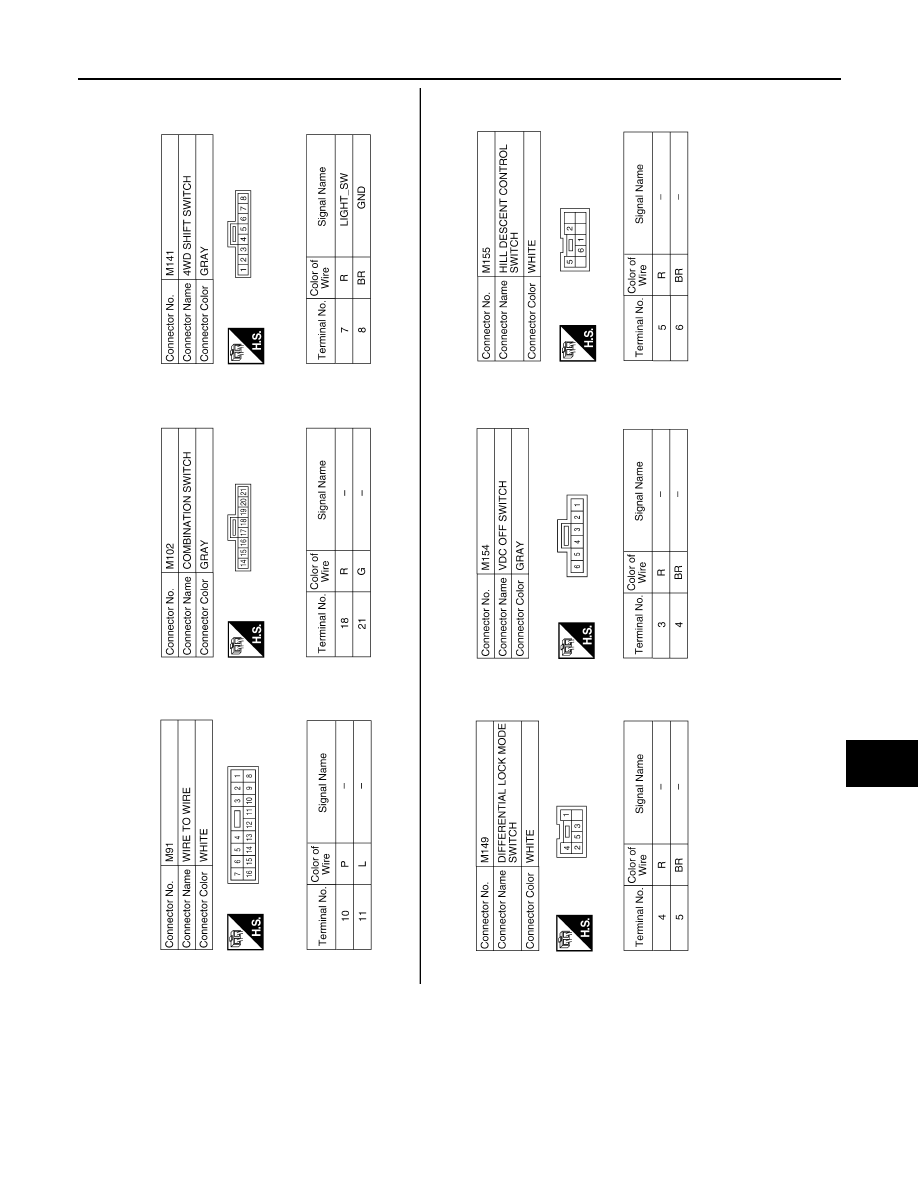

ABLIA1769GB

INL-100

< COMPONENT DIAGNOSIS >

[WITHOUT POWER DOOR LOCKS]

ILLUMINATION

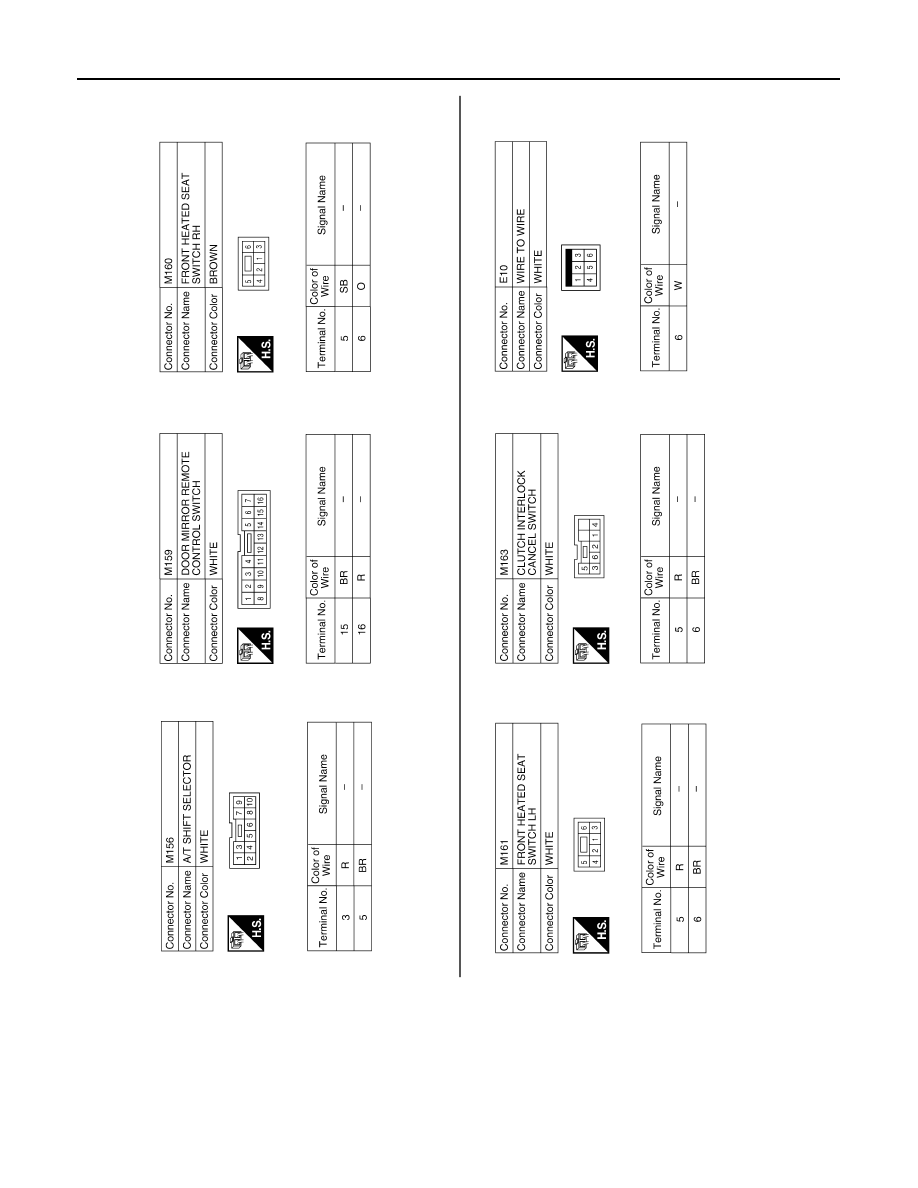

ABLIA1770GB

ILLUMINATION

INL-101

< COMPONENT DIAGNOSIS >

[WITHOUT POWER DOOR LOCKS]

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

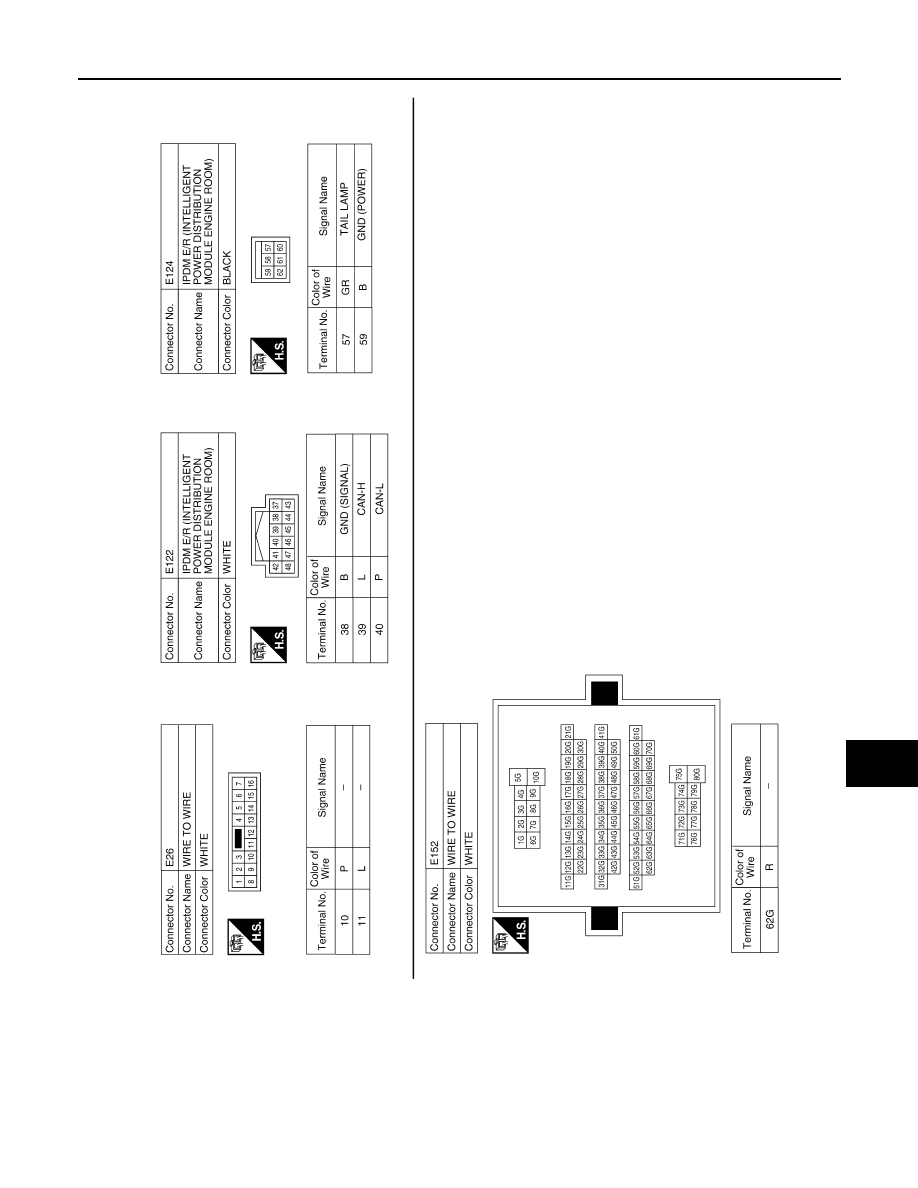

ABLIA1771GB

INL-102

< ECU DIAGNOSIS >

[WITHOUT POWER DOOR LOCKS]

BCM (BODY CONTROL MODULE)

ECU DIAGNOSIS

BCM (BODY CONTROL MODULE)

Reference Value

INFOID:0000000005550767

VALUES ON THE DIAGNOSIS TOOL

Monitor Item

Condition

Value/Status

IGN ON SW

Ignition switch OFF or ACC

OFF

Ignition switch ON

ON

KEY ON SW

Mechanical key is removed from key cylinder

OFF

Mechanical key is inserted to key cylinder

ON

CDL LOCK SW

Door lock/unlock switch does not operate

OFF

Press door lock/unlock switch to the lock side

ON

CDL UNLOCK SW

Door lock/unlock switch does not operate

OFF

Press door lock/unlock switch to the unlock side

ON

DOOR SW-DR

Driver's door closed

OFF

Driver's door opened

ON

DOOR SW-AS

Passenger door closed

OFF

Passenger door opened

ON

DOOR SW-RR

Rear RH door closed

OFF

Rear RH door opened

ON

DOOR SW-RL

Rear LH door closed

OFF

Rear LH door opened

ON

KEY CYL LK-SW

Other than driver door key cylinder LOCK position

OFF

Driver door key cylinder LOCK position

ON

KEY CYL UN-SW

Other than driver door key cylinder UNLOCK position

OFF

Driver door key cylinder UNLOCK position

ON

KEYLESS LOCK

“LOCK” button of key fob is not pressed

OFF

“LOCK” button of key fob is pressed

ON

KEYLESS UNLOCK

“UNLOCK” button of key fob is not pressed

OFF

“UNLOCK” button of key fob is pressed

ON

ACC ON SW

Ignition switch OFF

OFF

Ignition switch ACC or ON

ON

REAR DEF SW

Rear window defogger switch OFF

OFF

Rear window defogger switch ON

ON

LIGHT SW 1ST

Lighting switch OFF

OFF

Lighting switch 1ST

ON

BUCKLE SW

The seat belt (driver side) is unfastened. [Seat belt switch (driver
side) OFF]

OFF

The seat belt (driver side) is fastened. [Seat belt switch (driver side)
ON]

ON

KEYLESS PANIC

PANIC button of key fob is not pressed

OFF

PANIC button of key fob is pressed

ON
