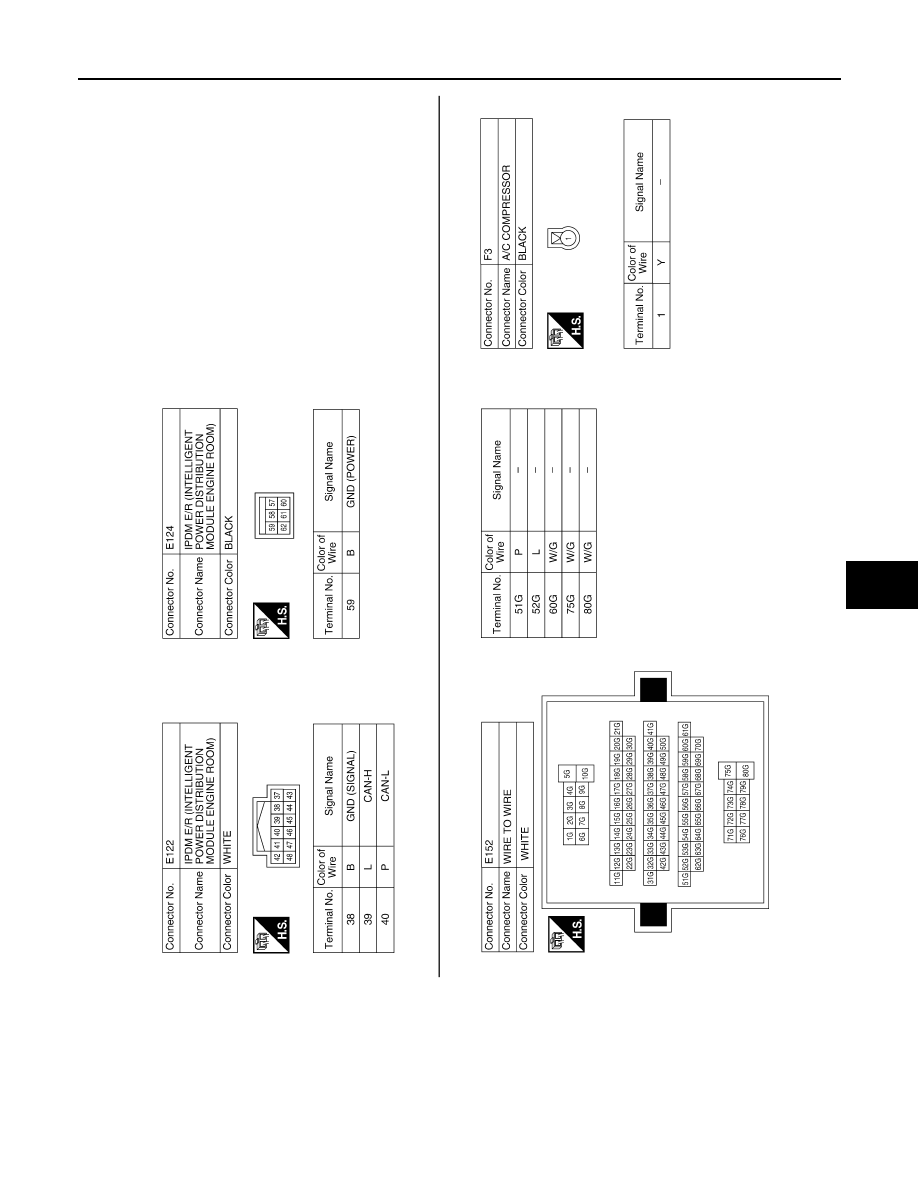

AIR CONDITIONER CONTROL

HAC-55

< ECU DIAGNOSIS >

[MANUAL A/C (TYPE 1)]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

ABIIA0402GB

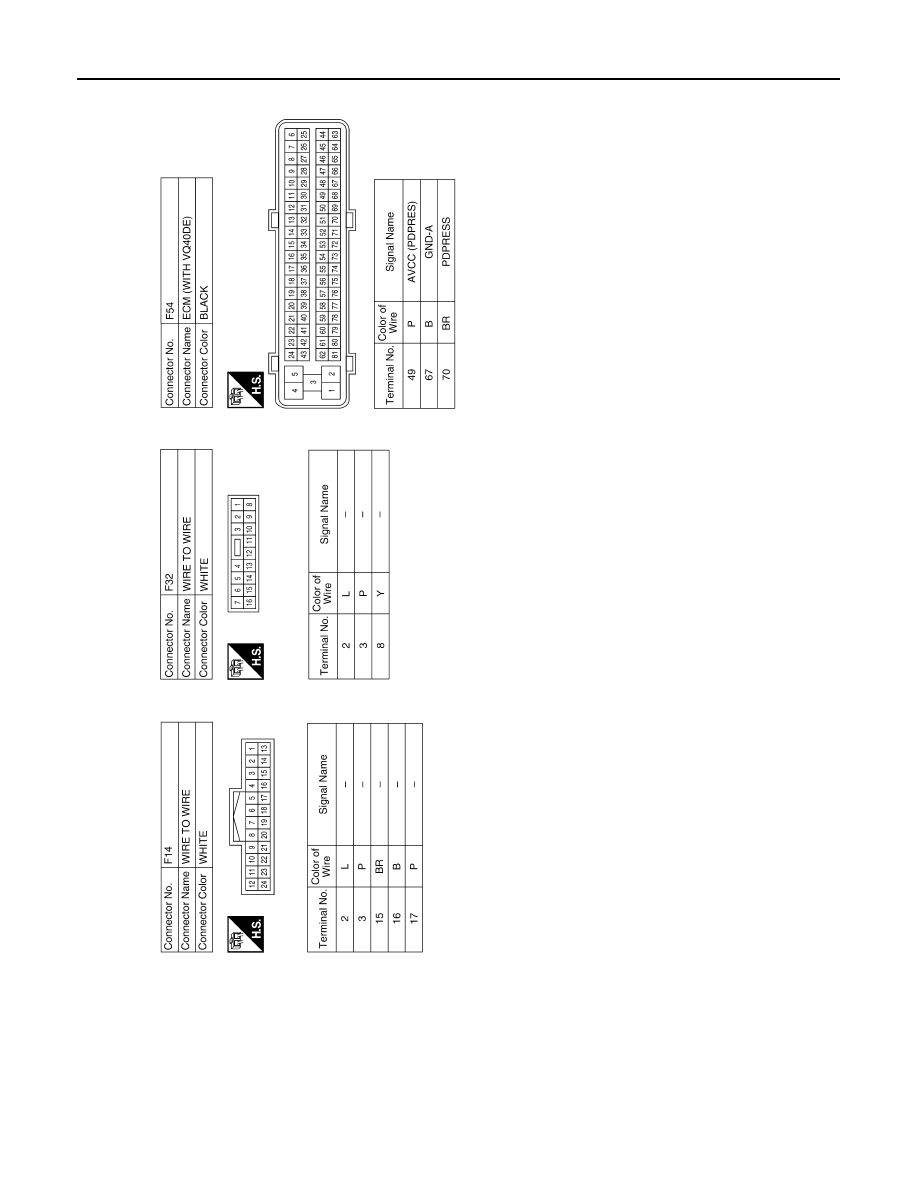

HAC-56

< ECU DIAGNOSIS >

[MANUAL A/C (TYPE 1)]

AIR CONDITIONER CONTROL

ABIIA0432GB

MANUAL A/C IDENTIFICATION TABLE

HAC-57

< SYMPTOM DIAGNOSIS >

[MANUAL A/C (TYPE 1)]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

SYMPTOM DIAGNOSIS

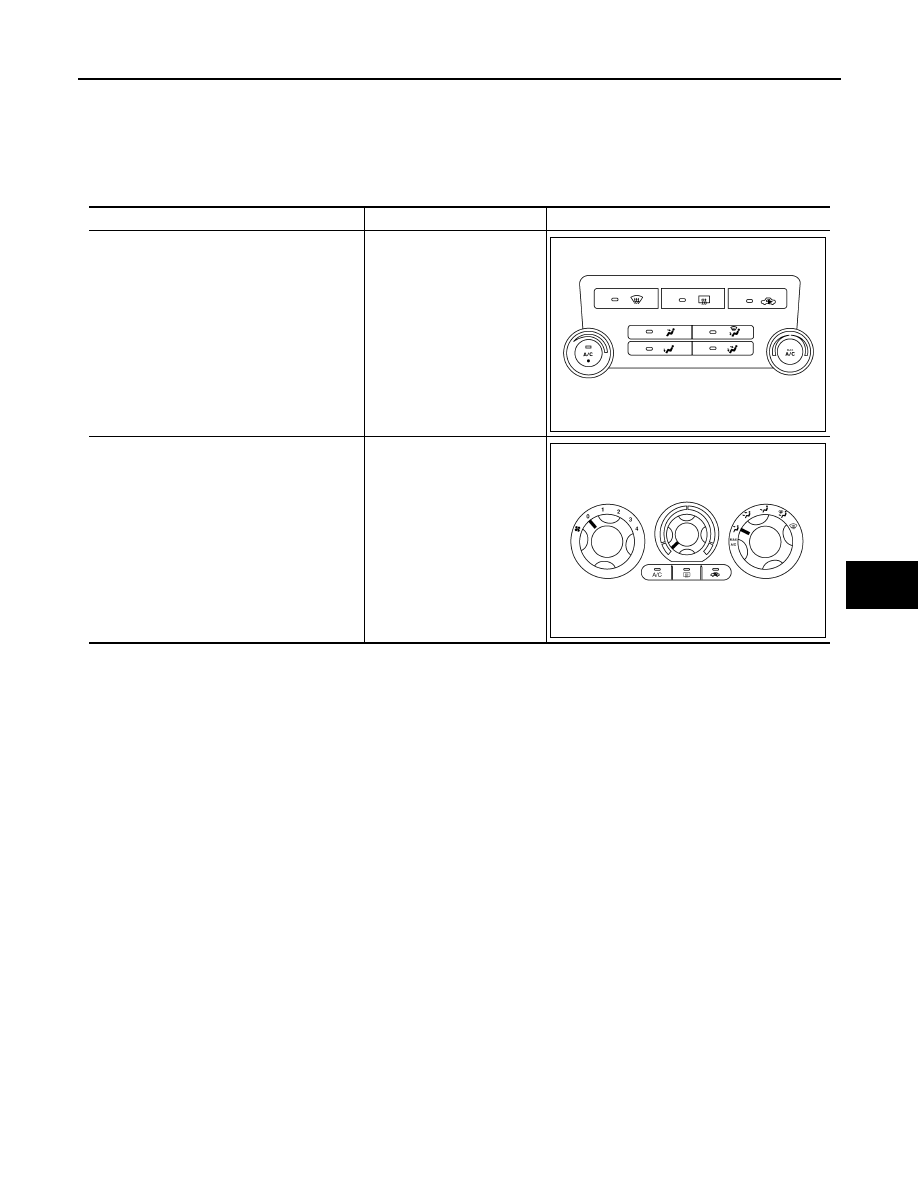

MANUAL A/C IDENTIFICATION TABLE

Application Table

INFOID:0000000005275900

Manual A/C Type

Description

Visual Identification

Manual A/C (Type 1)

Two Control Dial System

[with variable blower control

(VBC)]

Manual A/C (Type 2)

Three Control Dial System

[without variable blower con-

trol (VBC)]

AWIIA0481ZZ

AWIIA1228ZZ

HAC-58

< SYMPTOM DIAGNOSIS >

[MANUAL A/C (TYPE 1)]

AIR CONDITIONER CONTROL

AIR CONDITIONER CONTROL

Symptom Matrix Chart

INFOID:0000000005275901

SYMPTOM TABLE

Symptom

Reference Page

A/C system does not come on.

Go to Trouble Diagnosis Procedure for A/C System.

HAC-45

Air outlet does not change.

Go to Trouble Diagnosis Procedure for Mode Door Motor.

HAC-19

Mode door motor is malfunctioning.

Discharge air temperature does not change.

Go to Trouble Diagnosis Procedure for Air Mix Door Motor.

HAC-25

Air mix door motor is malfunctioning.

Intake door does not change.

Go to Trouble Diagnosis Procedure for Intake Door Motor.

HAC-29

Intake door motor is malfunctioning.

Front blower motor operation is malfunctioning.

Go to Trouble Diagnosis Procedure for Front Blower Motor.

HAC-32

Magnet clutch does not engage.

Go to Trouble Diagnosis Procedure for Magnet Clutch.

HAC-38

Insufficient cooling

Go to Trouble Diagnosis Procedure for Insufficient Cooling.

HAC-59

Insufficient heating

Go to Trouble Diagnosis Procedure for Insufficient Heating.

HAC-67

Noise

Go to Trouble Diagnosis Procedure for Noise.

HAC-69

Self-Diagnosis cannot be performed

Go to Trouble Diagnosis Procedure for Self-Diagnosis.

HAC-17
