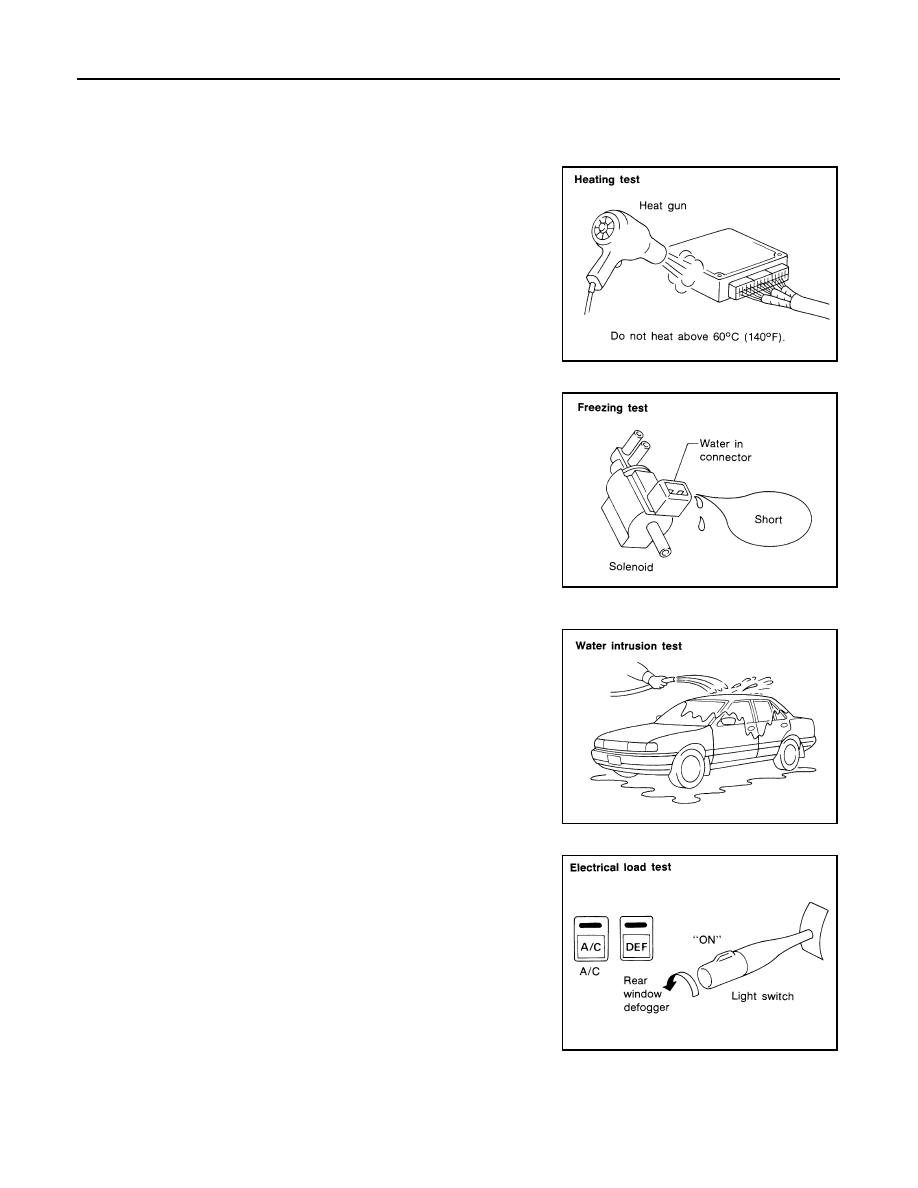

GI-48 < BASIC INSPECTION > SERVICE INFORMATION FOR ELECTRICAL INCIDENT An unclamped or loose harness can cause wiring to be pinched by seat components (such as slide guides) HEAT SENSITIVE • The customer's concern may occur during hot weather or after car has sat for a short time. In such cases you will want to check for a • To determine if an electrical component is heat sensitive, heat the component with a heat gun or equivalent. CAUTION: Do not heat components above 60 ° C (140 ° ). • If incident occurs while heating the unit, either replace or properly insulate the component. FREEZING • The customer may indicate the incident goes away after the car warms up (winter time). The cause could be related to water freez- • There are two methods to check for this. The first is to arrange for the owner to leave his car overnight. Make sure it will get cold • The second method is to put the suspect component into a freezer long enough for any water to freeze. Reinstall the part into the car WATER INTRUSION The incident may occur only during high humidity or in rainy/snowy CAUTION: Do not spray water directly on any electrical components. ELECTRICAL LOAD The incident may be electrical load sensitive. Perform diagnosis with COLD OR HOT START UP On some occasions an electrical incident may occur only when the car is started cold, or it may occur when SGI842 SGI843 SGI844 SGI845 |
