Nissan Frontier D40. Manual - part 660





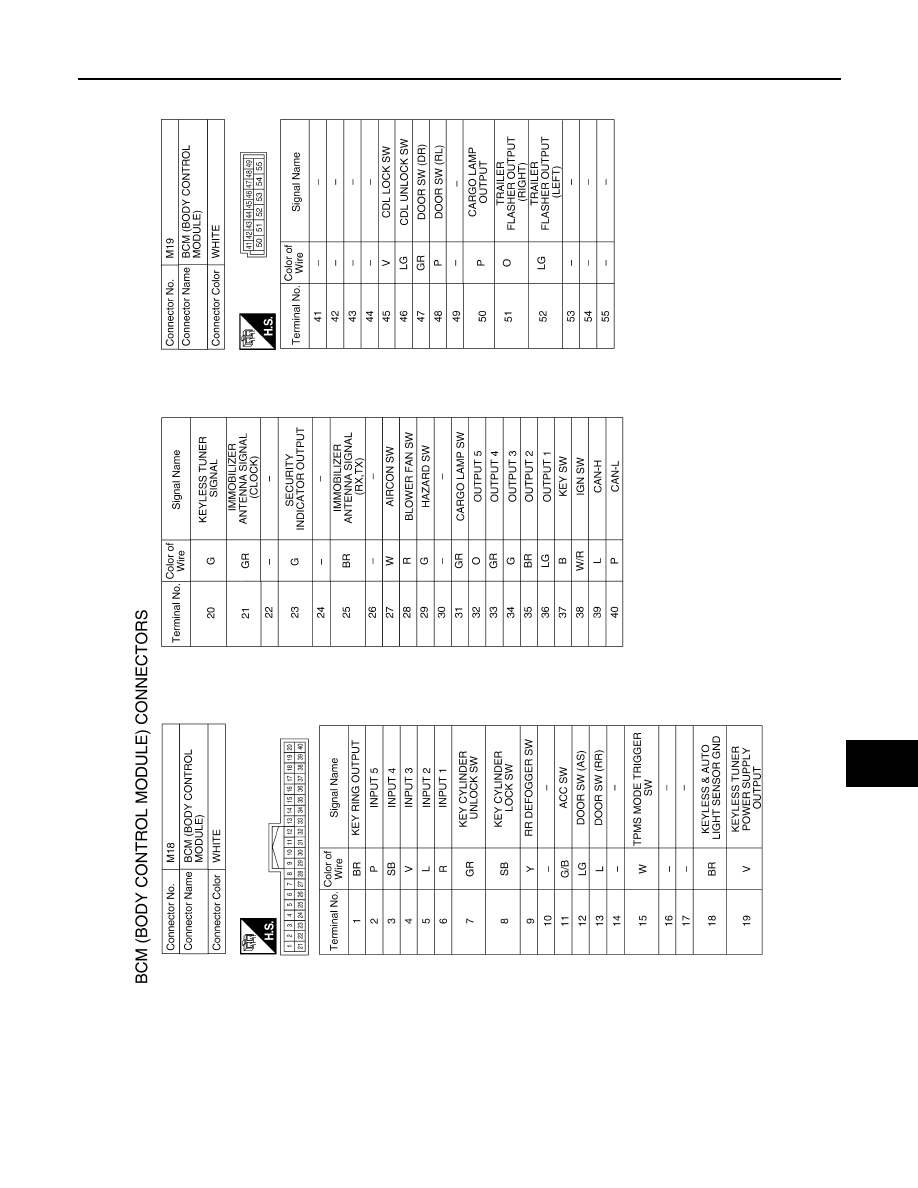

BCM (BODY CONTROL MODULE)

EXL-113

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

ABMIA1431GB

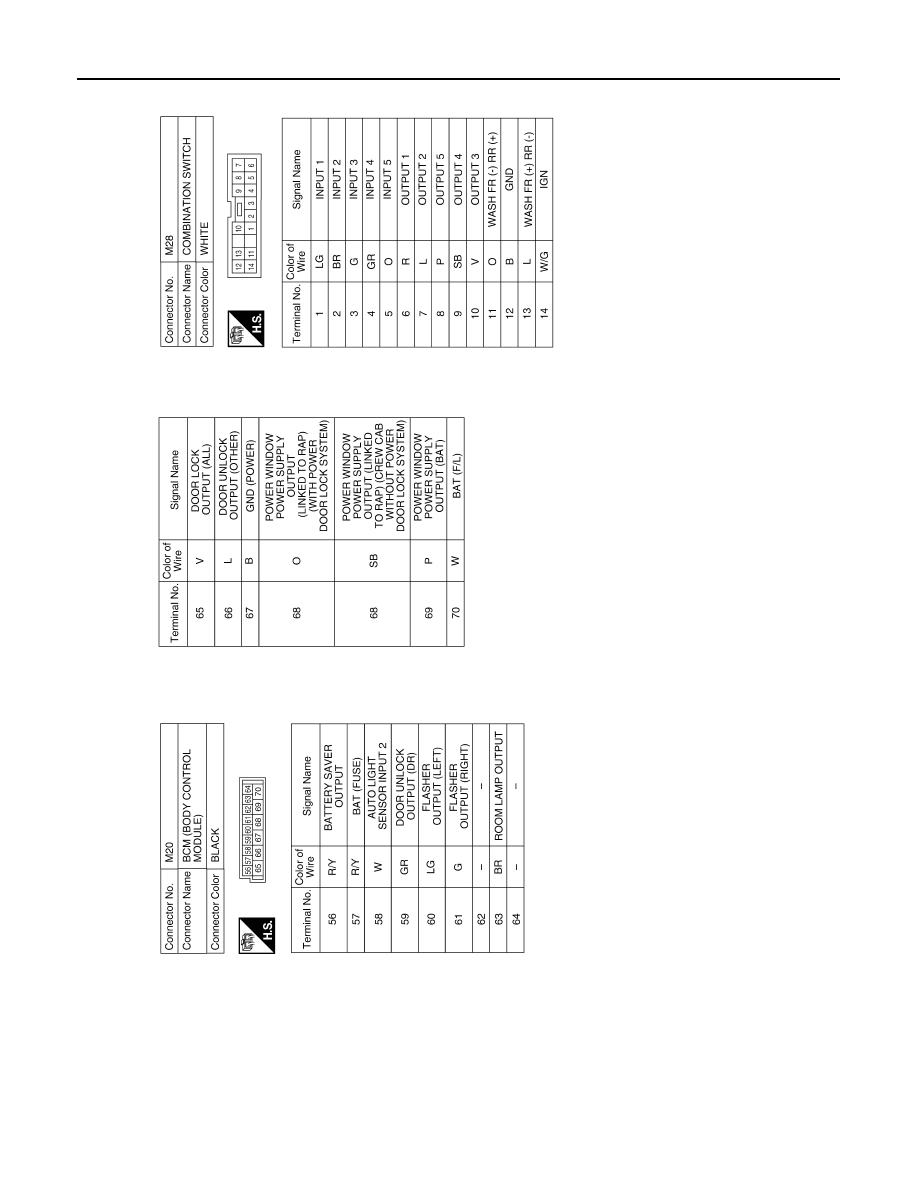

EXL-114

< ECU DIAGNOSIS >

BCM (BODY CONTROL MODULE)

Fail Safe

INFOID:0000000005561476

Fail-safe index

BCM performs fail-safe control when any DTC listed below is detected.

ABMIA1432GB

BCM (BODY CONTROL MODULE)

EXL-115

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

DTC Inspection Priority Chart

INFOID:0000000005561477

If some DTCs are displayed at the same time, perform inspections one by one based on the following priority
chart.

DTC Index

INFOID:0000000005561478

NOTE:

Details of time display

• CRNT: Displays when there is a malfunction now or after returning to the normal condition until turning igni-

tion switch OFF

 ON again.

• 1 - 39: Displayed if any previous malfunction is present when current condition is normal. It increases like 1

 2

 3...38

 39 after returning to the normal condition whenever ignition switch OFF

 ON. The counter

remains at 39 even if the number of cycles exceeds it. It is counted from 1 again when turning ignition switch
OFF

 ON after returning to the normal condition if the malfunction is detected again.

Display contents of CONSULT

Fail-safe

Cancellation

U1000: CAN COMM CIRCUIT

Inhibit engine cranking

When the BCM re-establishes communication with the other mod-
ules.

Priority

DTC

1

• U1000: CAN COMM CIRCUIT

2

• B2190: NATS ANTENNA AMP
• B2191: DIFFERENCE OF KEY
• B2192: ID DISCORD BCM-ECM
• B2193: CHAIN OF BCM-ECM

3

• C1729: VHCL SPEED SIG ERR
• C1735: IGNITION SIGNAL

4

• C1704: LOW PRESSURE FL
• C1705: LOW PRESSURE FR
• C1706: LOW PRESSURE RR
• C1707: LOW PRESSURE RL
• C1708: [NO DATA] FL
• C1709: [NO DATA] FR
• C1710: [NO DATA] RR
• C1711: [NO DATA] RL
• C1712: [CHECKSUM ERR] FL
• C1713: [CHECKSUM ERR] FR
• C1714: [CHECKSUM ERR] RR
• C1715: [CHECKSUM ERR] RL
• C1716: [PRESSDATA ERR] FL
• C1717: [PRESSDATA ERR] FR
• C1718: [PRESSDATA ERR] RR
• C1719: [PRESSDATA ERR] RL
• C1720: [CODE ERR] FL
• C1721: [CODE ERR] FR
• C1722: [CODE ERR] RR
• C1723: [CODE ERR] RL
• C1724: [BATT VOLT LOW] FL
• C1725: [BATT VOLT LOW] FR
• C1726: [BATT VOLT LOW] RR
• C1727: [BATT VOLT LOW] RL

CONSULT display

Fail-safe

Tire pressure

monitor warning

lamp ON

Reference page

No DTC is detected.
further testing
may be required.

U1000: CAN COMM CIRCUIT

BCS-28

EXL-116

< ECU DIAGNOSIS >

BCM (BODY CONTROL MODULE)

B2190: NATS ANTTENA AMP

SEC-18

B2191: DIFFERENCE OF KEY

SEC-21

B2192: ID DISCORD BCM-ECM

SEC-22

B2193: CHAIN OF BCM-ECM

SEC-24

C1708: [NO DATA] FL

WT-14

C1709: [NO DATA] FR

WT-14

C1710: [NO DATA] RR

WT-14

C1711: [NO DATA] RL

WT-14

C1712: [CHECKSUM ERR] FL

WT-16

C1713: [CHECKSUM ERR] FR

WT-16

C1714: [CHECKSUM ERR] RR

WT-16

C1715: [CHECKSUM ERR] RL

WT-16

C1716: [PRESSDATA ERR] FL

WT-18

C1717: [PRESSDATA ERR] FR

WT-18

C1718: [PRESSDATA ERR] RR

WT-18

C1719: [PRESSDATA ERR] RL

WT-18

C1720: [CODE ERR] FL

WT-16

C1721: [CODE ERR] FR

WT-16

C1722: [CODE ERR] RR

WT-16

C1723: [CODE ERR] RL

WT-16

C1724: [BATT VOLT LOW] FL

WT-16

C1725: [BATT VOLT LOW] FR

WT-16

C1726: [BATT VOLT LOW] RR

WT-16

C1727: [BATT VOLT LOW] RL

WT-16

C1729: VHCL SPEED SIG ERR

WT-19

C1735: IGNITION SIGNAL

CONSULT display

Fail-safe

Tire pressure

monitor warning

lamp ON

Reference page
