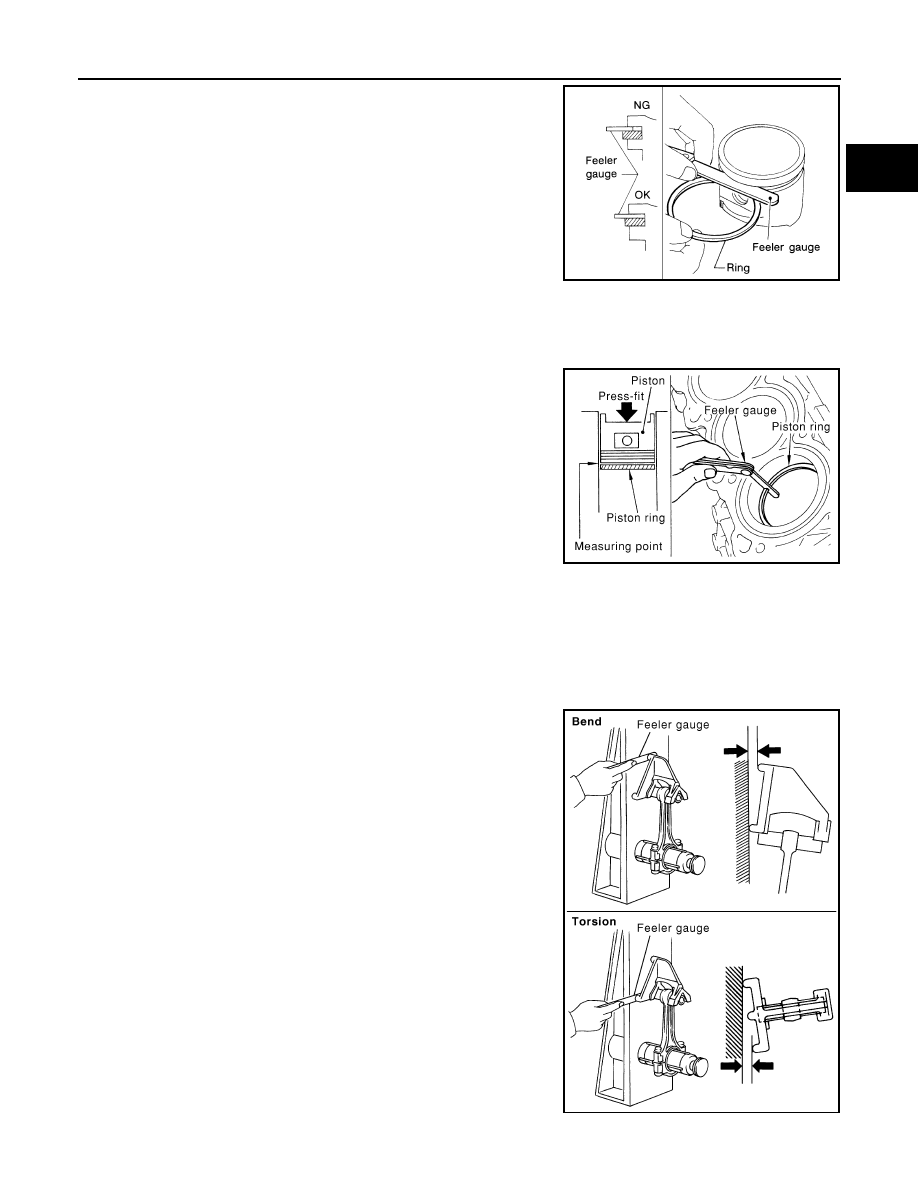

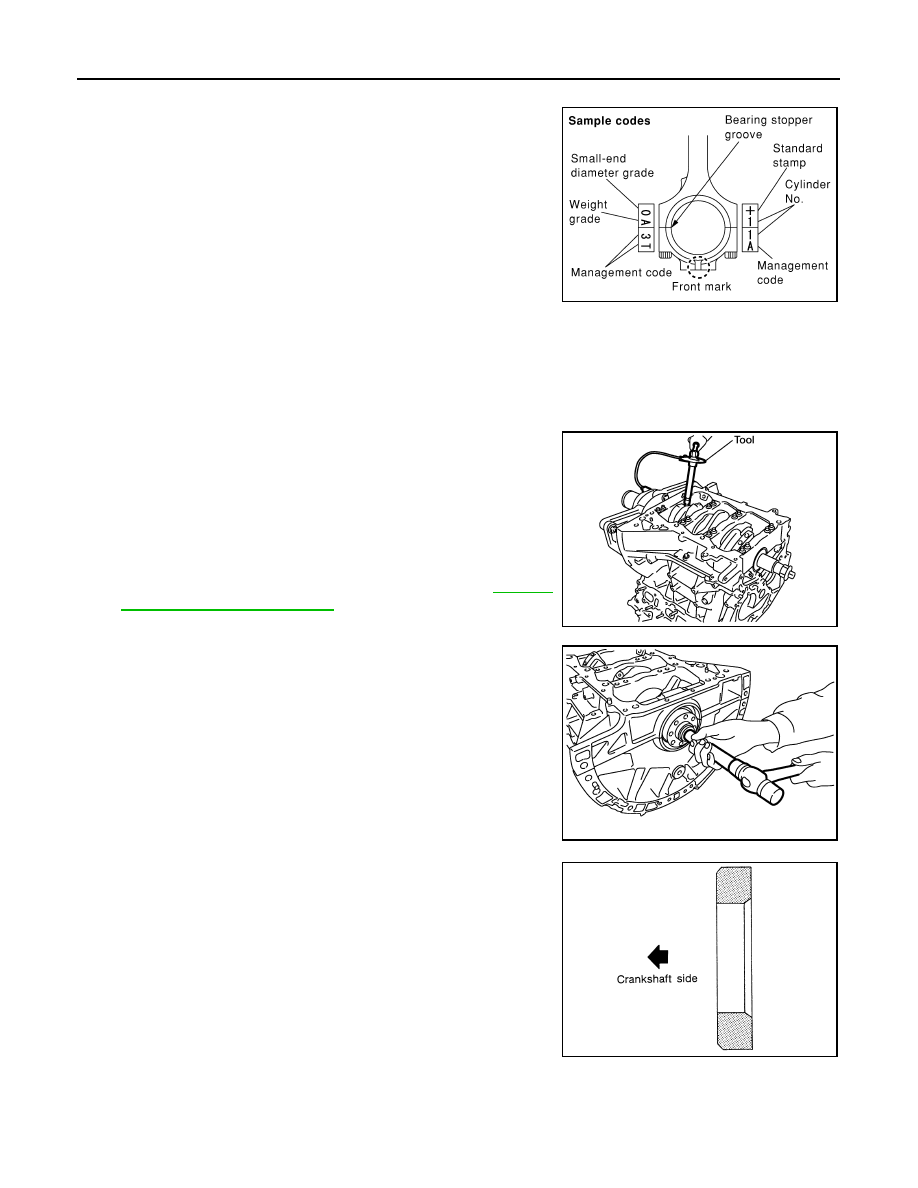

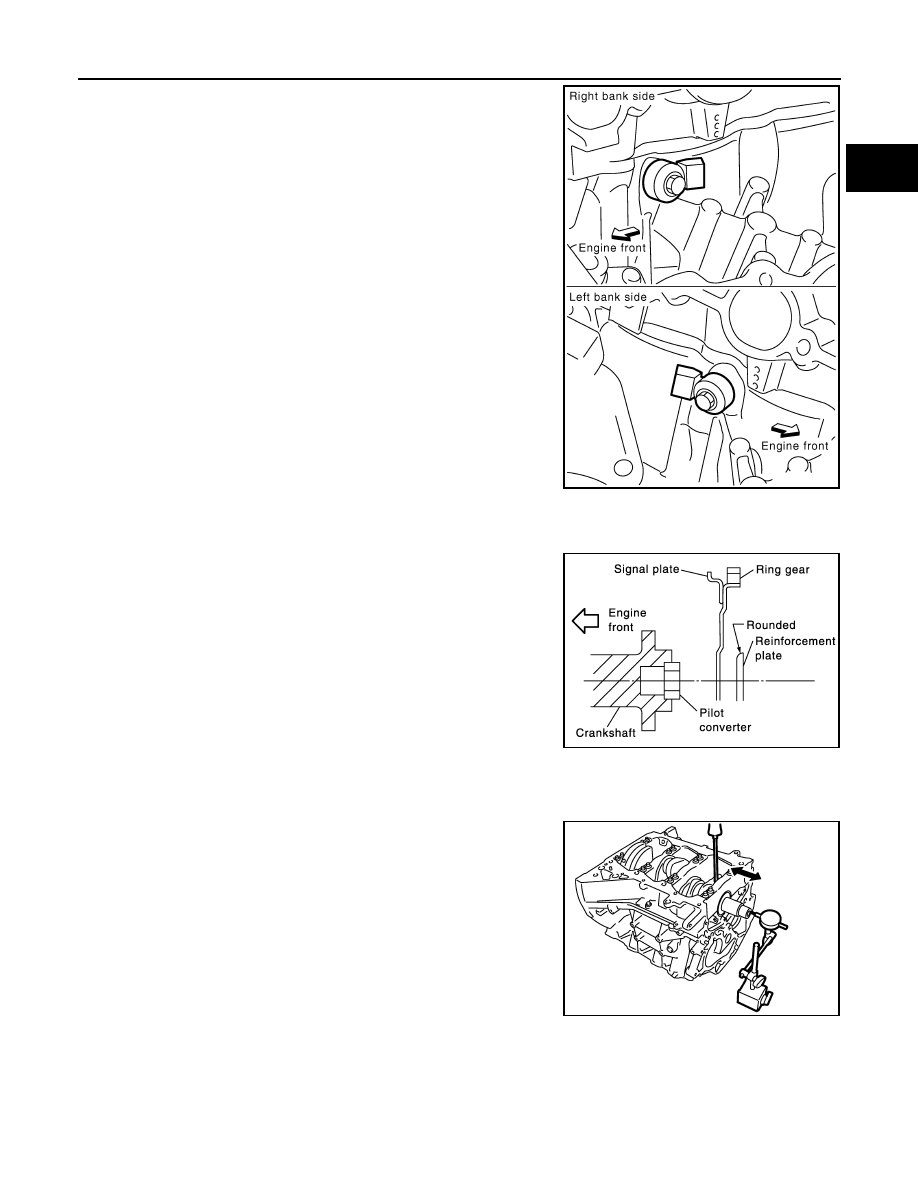

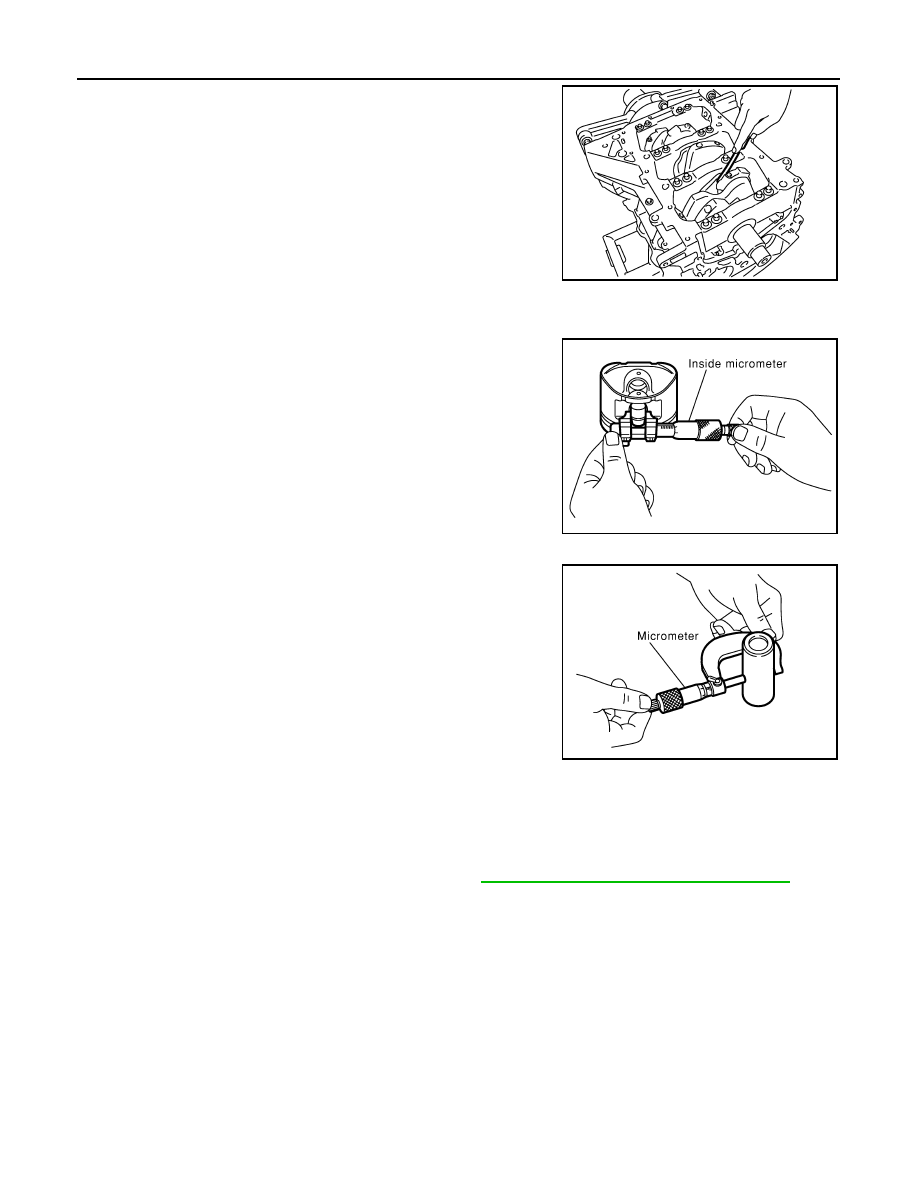

EM-224 < DISASSEMBLY AND ASSEMBLY > [VQ40DE] ENGINE UNIT 17. Install connecting rod bearing cap. • Match the stamped cylinder number marks on connecting rod with those on connecting rod bearing cap to install. • Be sure that front mark on connecting rod bearing cap is fac- ing front of engine. 18. Tighten connecting rod bolts as follows: a. Apply engine oil to the threads and seats of connecting rod bolts. b. Tighten connecting rod bolts. c. Then tighten all connecting rod bolts 90 ° clockwise. CAUTION: Always use Tool. Avoid tightening based on visual check • After tightening connecting rod bolts, make sure that crank- shaft rotates smoothly. • Check the connecting rod side clearance. Refer to "Inspection After Disassembly" . 19. Install pilot converter. • With drift of the following outer diameter, press-fit as far as it will go. • Press-fit pilot converter with its chamfer facing crankshaft as shown. PBIC0809E Connecting rod bolt : 19.6 N·m (2.0 kg-m, 14 ft-lb) Tool number : KV10112100 (BT-8653-A) WBIA0586E Pilot converter : Approx. 33 mm (1.30 in) PBIC2947E SEM537E |
