Nissan Frontier D40. Manual - part 572





EM-20

< ON-VEHICLE MAINTENANCE >

[QR25DE]

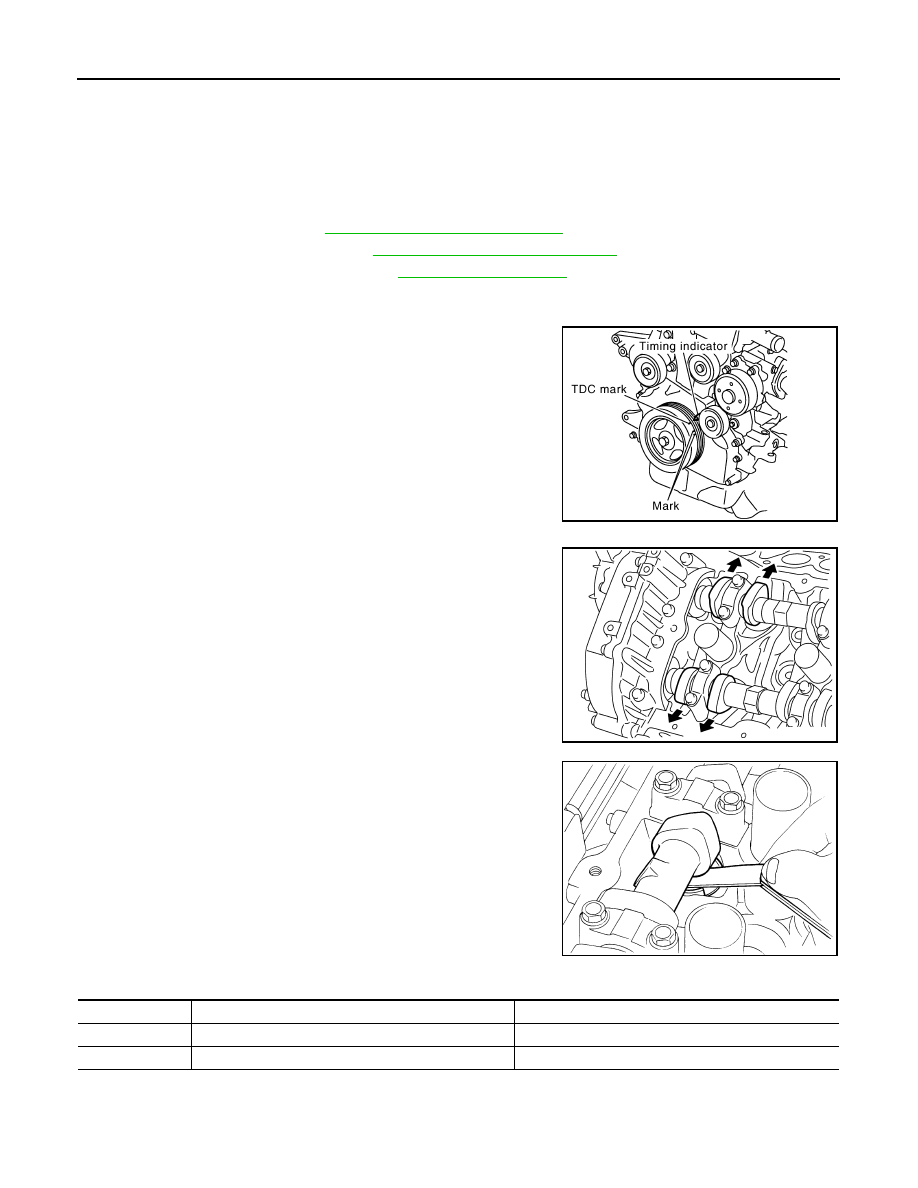

CAMSHAFT VALVE CLEARANCE

CAMSHAFT VALVE CLEARANCE

Valve Clearance

INFOID:0000000005274267

INSPECTION

Perform the following inspection after removal, installation or replacement of camshaft or valve-related parts,
or if there are unusual engine conditions due to changes in valve clearance over time (starting, idling or noise).

1.

Remove rocker cover. Refer to

EM-36, "Removal and Installation"

.

2.

Remove engine under cover. Refer to

EXT-13, "Removal and Installation"

.

3.

Remove radiator shroud (lower). Refer to

CO-16, "Exploded View"

.

4.

Measure the valve clearance as follows:

a.

Set No. 1 cylinder at TDC of its compression stroke.
• Rotate crankshaft pulley clockwise and align TDC mark to tim-

ing indicator on front cover.

• Make sure that intake and exhaust cam noses of No. 1 cylin-

der are located as shown.

• If not, rotate crankshaft one revolution (360

°

) and align as

shown.

b.

Use a feeler gauge to measure the clearance between valve
lifter and camshaft.

Valve clearance:

Unit: mm (in)

*:Approximately 80

°

C (176

°

F)

PBIC3015E

KBIA0400J

SEM139D

Cold

Hot * (reference data)

Intake

0.24 - 0.32 (0.009 - 0.013)

0.304 - 0.416 (0.012 - 0.016)

Exhaust

0.26 - 0.34 (0.010 - 0.013)

0.308 - 0.432 (0.012 - 0.017)

CAMSHAFT VALVE CLEARANCE

EM-21

< ON-VEHICLE MAINTENANCE >

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

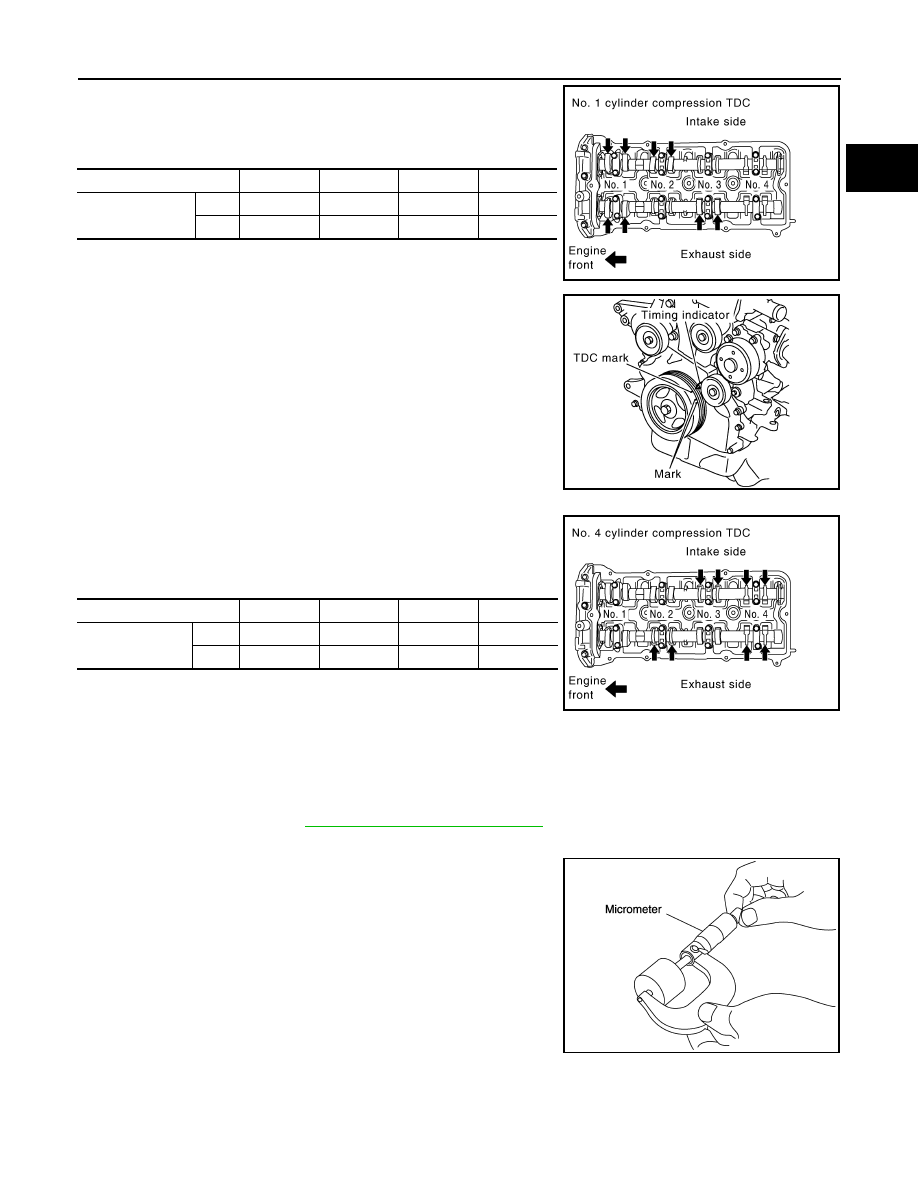

• Measure the valve clearances at locations marked “

×

” as

shown in the table below (locations indicated with black arrow
shown) with feeler gauge.

• No. 1 cylinder compression TDC

c.

Rotate crankshaft one revolution (360

°

) and align TDC mark to

timing indicator on front cover.

• Measure the valve clearance at locations marked “

×

” as shown

in the table below (locations indicated with black arrow shown)
with feeler gauge.

• No. 4 cylinder compression TDC

5.

If out of standard, perform adjustment.

ADJUSTMENT

• Perform adjustment depending on selected head thickness of valve lifter.

1.

Measure the valve clearance.

2.

Remove camshaft. Refer to

EM-52, "Removal and Installation"

.

3.

Remove valve lifters at the locations that are out of the standard.

4.

Measure the center thickness of the removed valve lifters with a
micrometer.

5.

Use the equation below to calculate valve lifter thickness for replacement.

Measuring position

No. 1 CYL.

No. 2 CYL.

No. 3 CYL.

No. 4 CYL.

No. 1 cylinder at
compression TDC

INT



×



×

EXH



×





×

PBIC3017E

PBIC3015E

Measuring position

No. 1 CYL.

No. 2 CYL.

No. 3 CYL.

No. 4 CYL.

No. 4 cylinder at
compression TDC

INT





×



×

EXH





×





×

PBIC3026E

KBIA0057E

EM-22

< ON-VEHICLE MAINTENANCE >

[QR25DE]

CAMSHAFT VALVE CLEARANCE

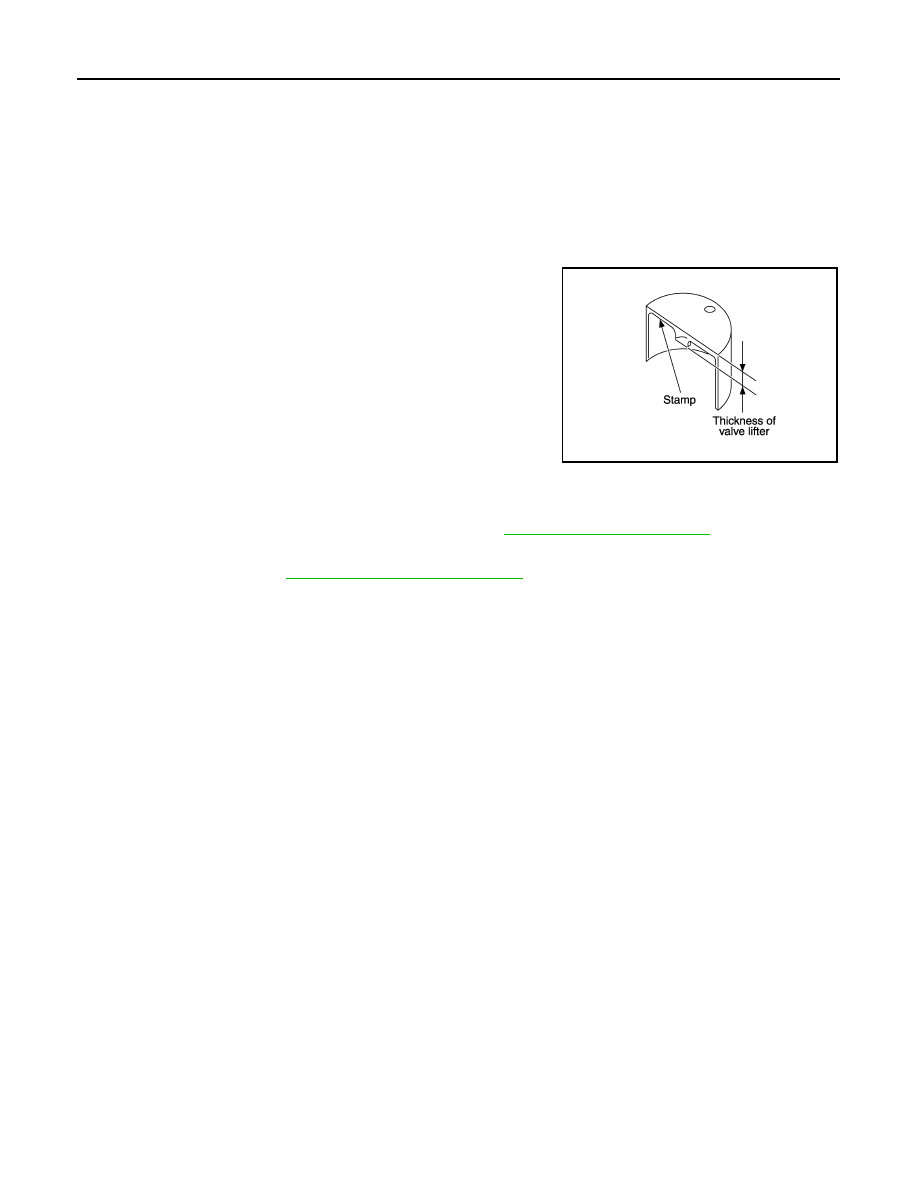

• Thickness of new valve lifter can be identified by stamp marks

on the reverse side (inside the cylinder).
Stamp mark “696” indicates 6.96 mm (0.2740 in) in thickness.

NOTE:
Available thickness of valve lifter: 26 sizes range 6.96 to 7.46 mm (0.2740 to 0.2937 in) in steps of 0.02
mm (0.0008 in) (when manufactured at factory). Refer to

EM-106, "Standard and Limit"

.

6.

Install the selected valve lifter.

7.

Install camshaft. Refer to

EM-52, "Removal and Installation"

.

8.

Manually rotate crankshaft pulley a few rotations.

9.

Make sure that the valve clearances for cold engine are within specifications by referring to the specified
values.

10. Installation of the remaining components is in the reverse order of removal.

11. Start the engine, and check for unusual noise and vibration.

Valve lifter thickness calculation:

t = t

1

 + (C

1

 – C

2

)

t

= Valve lifter thickness to be replaced

t

1



= Removed valve lifter thickness

C

1

= Measured valve clearance

C

2

= Standard valve clearance:

Intake

: 0.28 mm (0.011 in)

Exhaust

: 0.30 mm (0.012 in)

KBIA0119E

COMPRESSION PRESSURE

EM-23

< ON-VEHICLE MAINTENANCE >

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

COMPRESSION PRESSURE

Compression Pressure

INFOID:0000000005274268

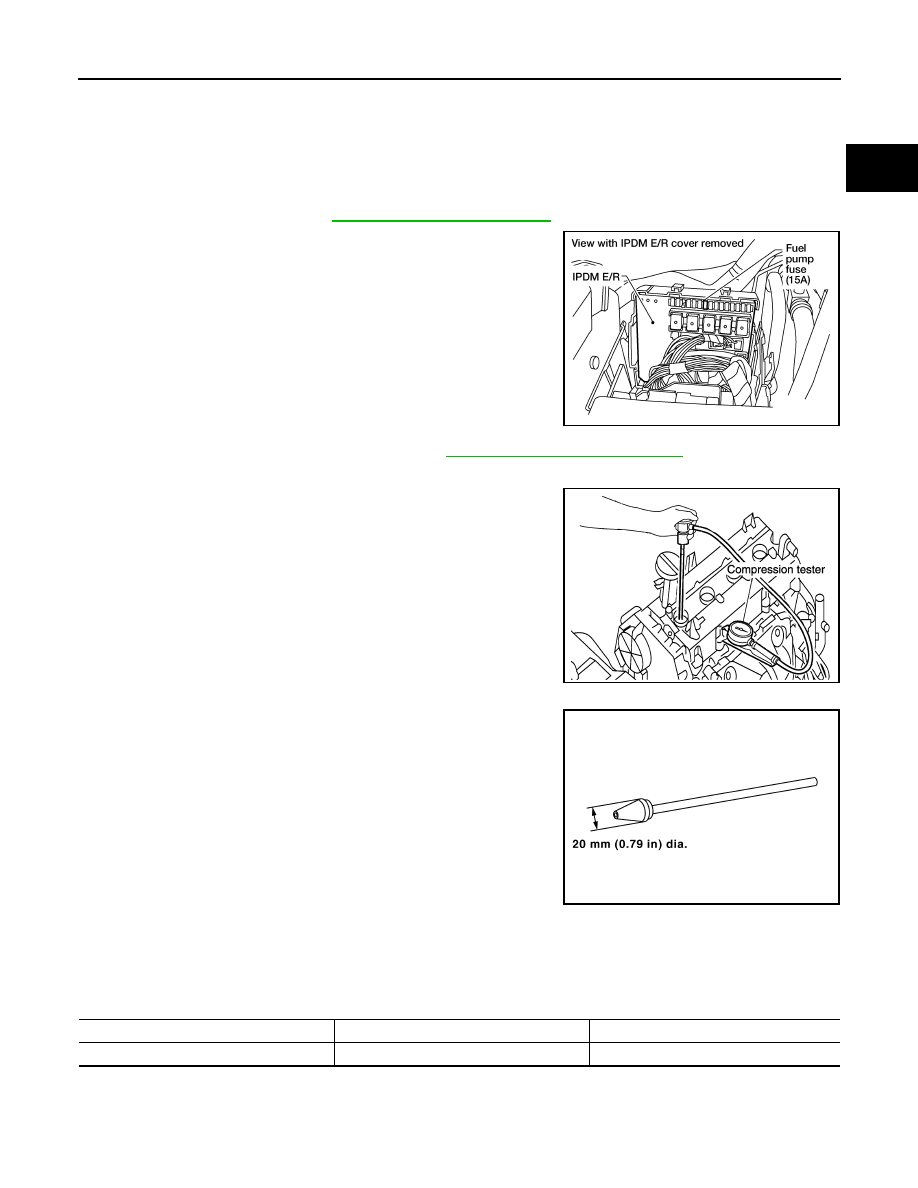

CHECKING COMPRESSION PRESSURE

1.

Warm up engine thoroughly.

2.

Release fuel pressure. Refer to

EC-454, "Fuel Pressure Check"

.

3.

Disconnect fuel pump fuse to avoid fuel injection during mea-
surement.

4.

Remove spark plug from each cylinder. Refer to

EM-18, "Removal and Installation"

.

5.

Connect engine tachometer (not required in use of CONSULT-III).

6.

Install compression tester with an adapter into spark plug hole.

• Use the adapter whose pick up end inserted to spark plug hole

is smaller than 20 mm (0.79 in) in diameter. Otherwise, it may
be caught by cylinder head during removal.

7.

With accelerator pedal fully depressed, turn ignition switch to “START” for cranking. When the gauge
pointer stabilizes, read the compression pressure and the engine rpm. Perform these steps to check each
cylinder.

Compression pressure:

Unit: kPa (kg/cm

2

, psi) /rpm

CAUTION:

Always use fully a charged battery to obtain the specified engine speed.
• If the engine speed is out of the specified range, check battery liquid for proper gravity. Check engine

speed again with normal battery gravity.

BBIA0534E

LBIA0448E

SBIA0533E

Standard

Minimum

Differential limit between cylinders

 1,304 (13.3, 189) / 250

 1,108 (11.3, 161) / 250

      100 (1.0, 14) / 250
