EM-8

< PREPARATION >

[QR25DE]

PREPARATION

EM03470000
(J-8037)

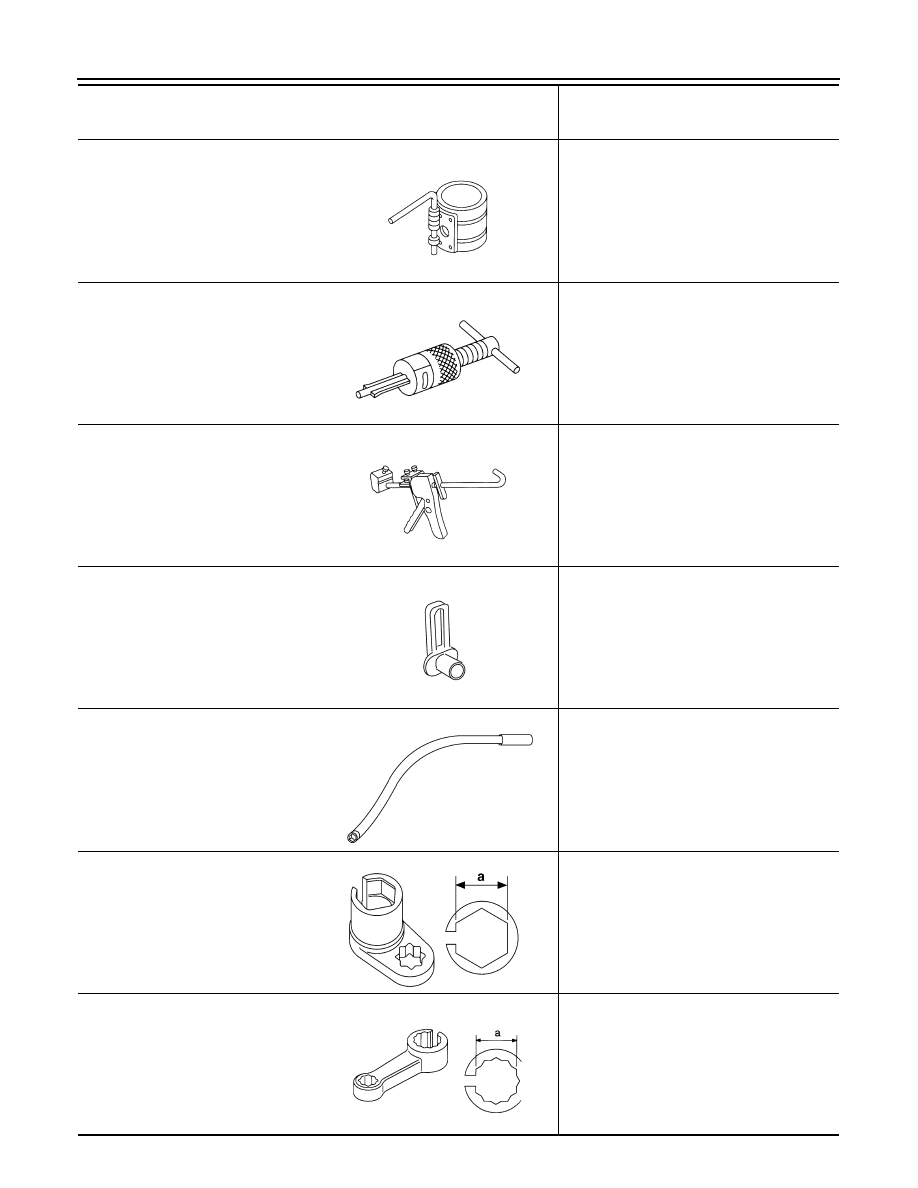

Piston ring compressor

Installing piston assembly into cylinder bore

ST16610001
(J-23907)
Pilot bushing puller

Removing pilot bushing (M/T models) or pilot
converter (A/T models)

WS39930000
(

—

)

Tube presser

Pressing the tube of liquid gasket

—

(J-45488)
Quick connector release

Removing fuel tube quick connectors in en-
gine room
(Available in SEC. 164 of PARTS CATALOG:
Part No. 16441 6N210)

—

(J-46535)
Drive belt tension releaser

Releasing drive belt tension

—

(J-44626)
Air fuel sensor Socket

Loosening or tightening air fuel ratio A/F sen-
sor
a: 22 mm (0.87 in)

KV10114400
(J-38365)
Heated oxygen sensor wrench

Loosening or tightening heated oxygen sen-
sor 1
a: 22 mm (0.87 in)

Tool number
(Kent-Moore No.)
Tool name

Description

NT044

NT045

NT052

PBIC0198E

WBIA0536E

LBIA0444E

NT636

PREPARATION

EM-9

< PREPARATION >

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

Commercial Service Tool

INFOID:0000000005274256

(Kent-Moore No.)
Tool name

Description

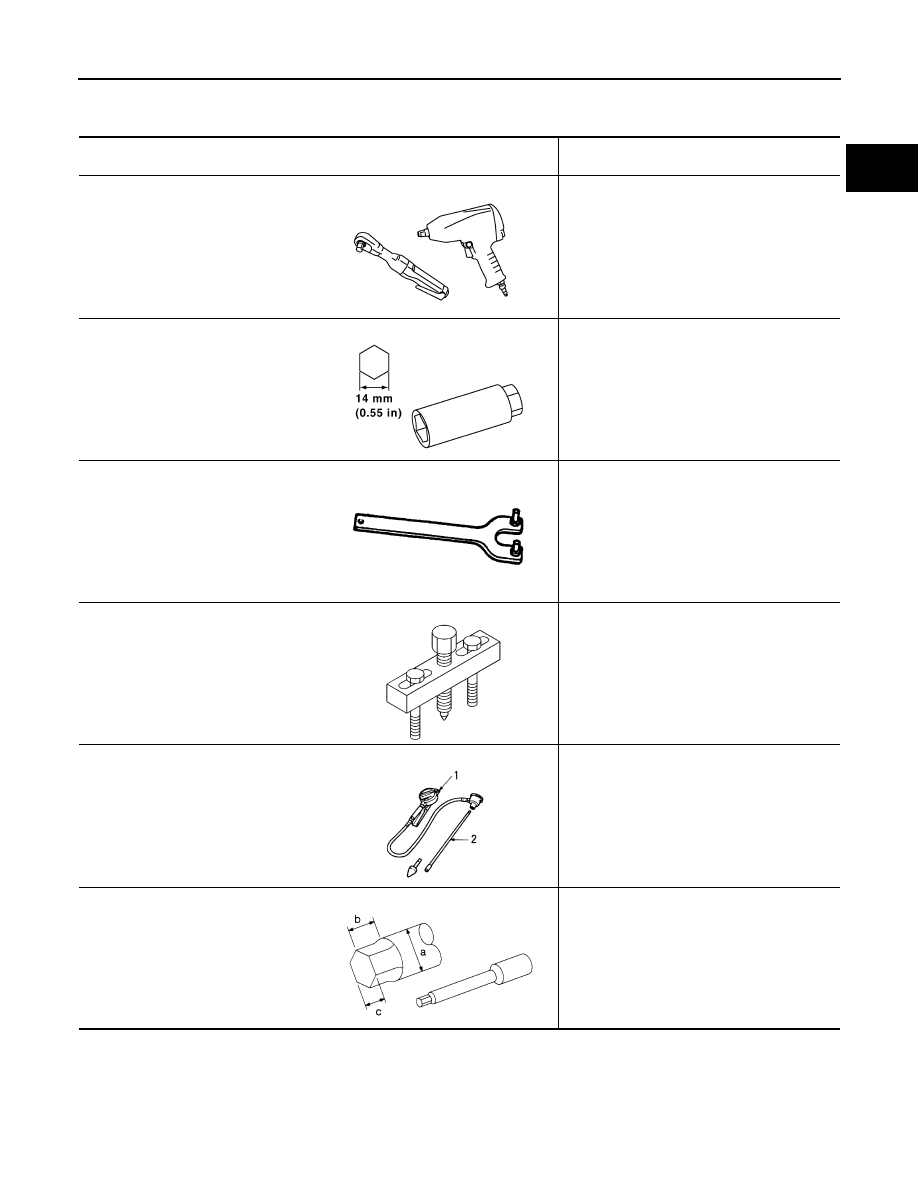

Power tool

Loosening nuts and bolts

(

—

)

Spark plug wrench

Removing and installing spark plug

(

—

)

Pulley holder

Removing and installing crankshaft pulley

(

—

)

Pulley puller

Removing crankshaft pulley

(

—

)

1. Compression tester
2. Adapter

Checking compression pressure

(J-24239-01)
Cylinder head bolt wrench

Loosening and tightening cylinder head bolt,
and used with the angle wrench [SST:
KV10112100 (BT8653-A)]
a: 13 (0.51) dia.
b: 12 (0.47)
c: 10 (0.39)
Unit: mm (in)

PBIC0190E

PBIC2982E

ZZA1010D

NT676

ZZA0008D

NT583

EM-10

< PREPARATION >

[QR25DE]

PREPARATION

(

—

)

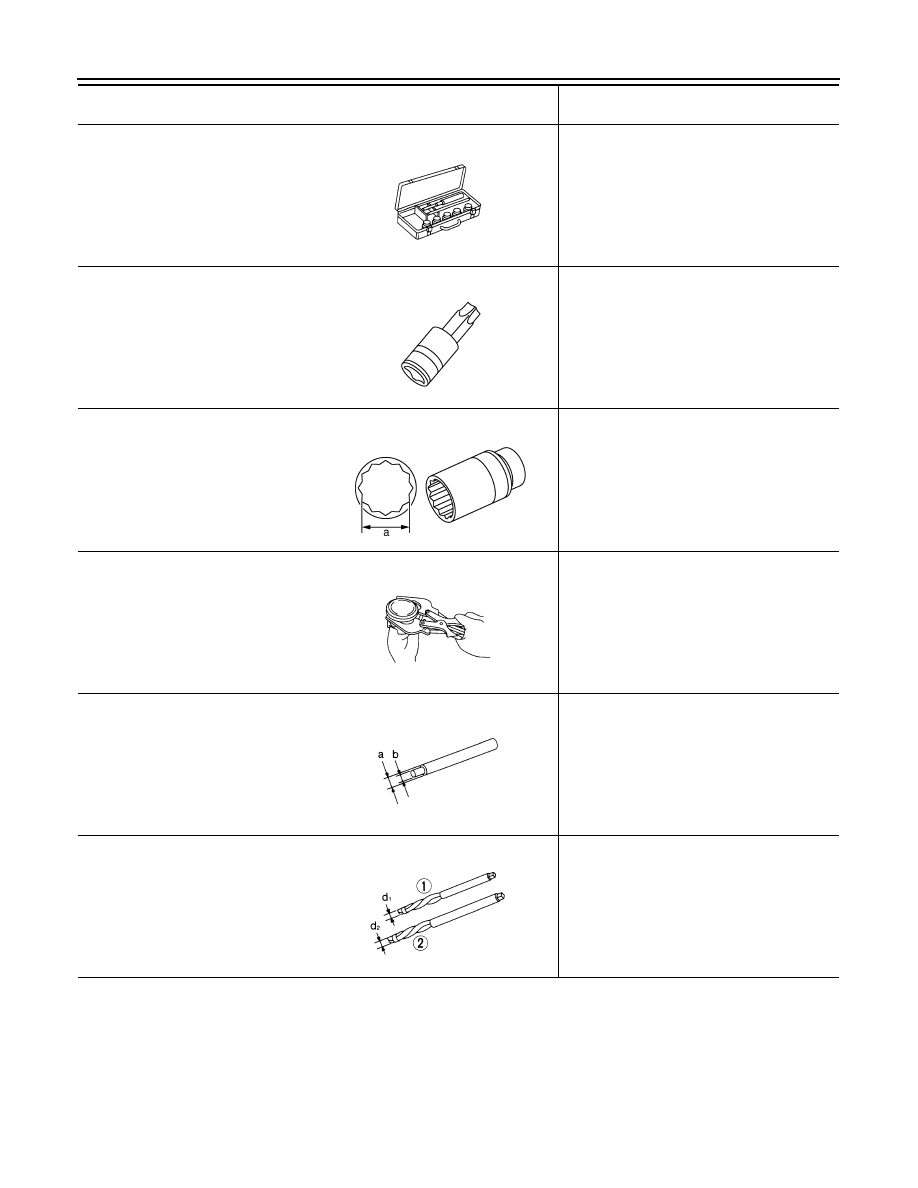

Valve seat cutter set

Finishing valve seat dimensions

TORX socket

Removing and installing flywheel
Size: T55

Deep socket

Removing and installing oil pressure switch
a: 27 mm (1.06 in)

(

—

)

Piston ring expander

Removing and installing piston ring

(

—

)

Valve guide drift

Removing and installing valve guide
Intake and Exhaust:
a: 9.5 mm (0.374 in) dia.
b: 5.5 mm (0.217 in) dia.

(

—

)

Valve guide reamer

1: Reaming valve guide inner hole
2: Reaming hole for oversize valve guide
Intake and Exhaust:
d

1

: 6.0 mm (0.236 in) dia.

d

2

: 10.2 mm (0.402 in) dia.

(Kent-Moore No.)
Tool name

Description

S-NT048

PBIC1113E

PBIC2072E

S-NT030

S-NT015

S-NT016

PREPARATION

EM-11

< PREPARATION >

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

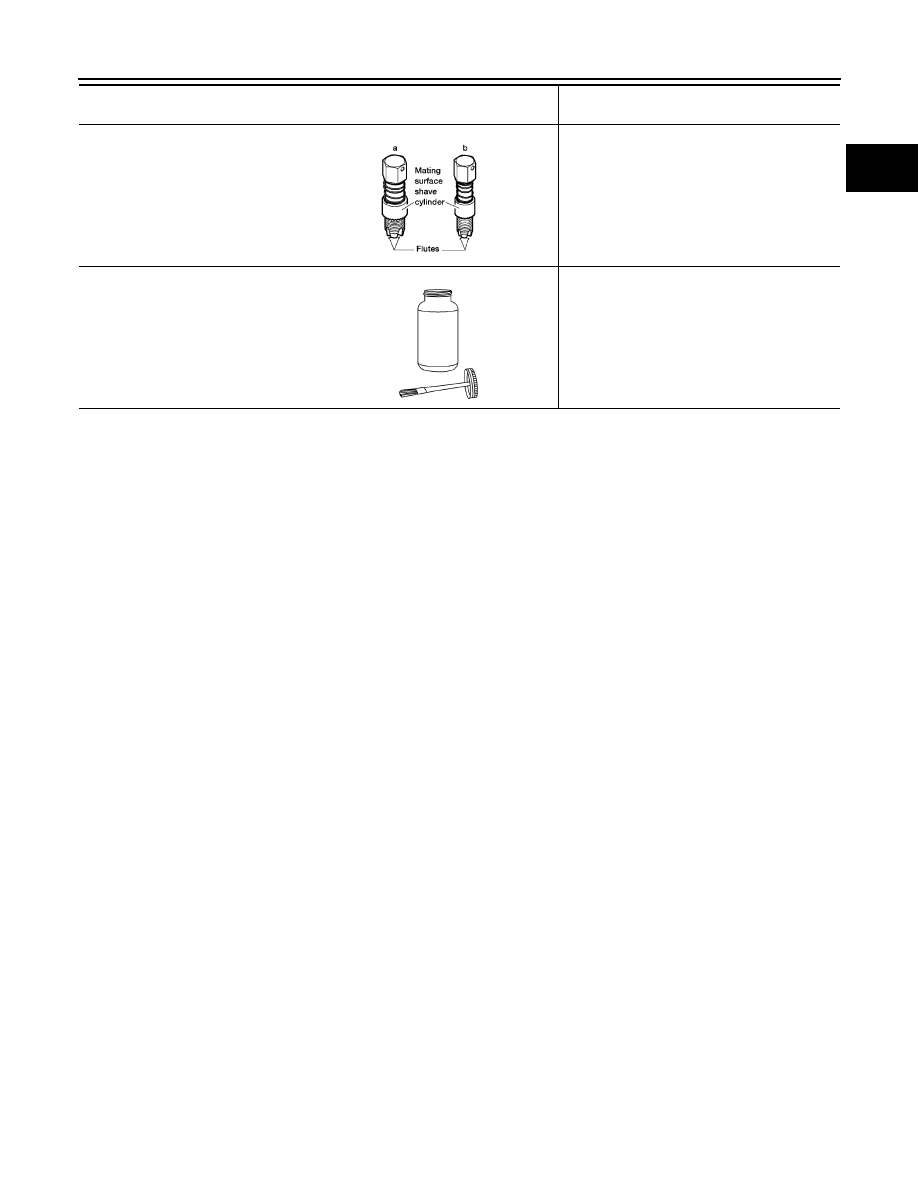

a: (J-43897-18)
b: (J-43897-12)
Oxygen sensor thread cleaner

Reconditioning the exhaust system threads
before installing a new heated oxygen sensor
(Use with anti-seize lubricant shown below.)
a = 18 mm (0.71 in) dia. for zirconia heated
oxygen sensor
b = 12 mm (0.47 in) dia. for titania heated
oxygen sensor

(

—

)

Anti-seize lubricant i.e.: (Permatex

TM



133AR or equivalent meeting MIL
specification MIL-A-907)

Lubricating oxygen sensor thread cleaning
tool when reconditioning exhaust system
threads

(Kent-Moore No.)
Tool name

Description

AEM488

AEM489
