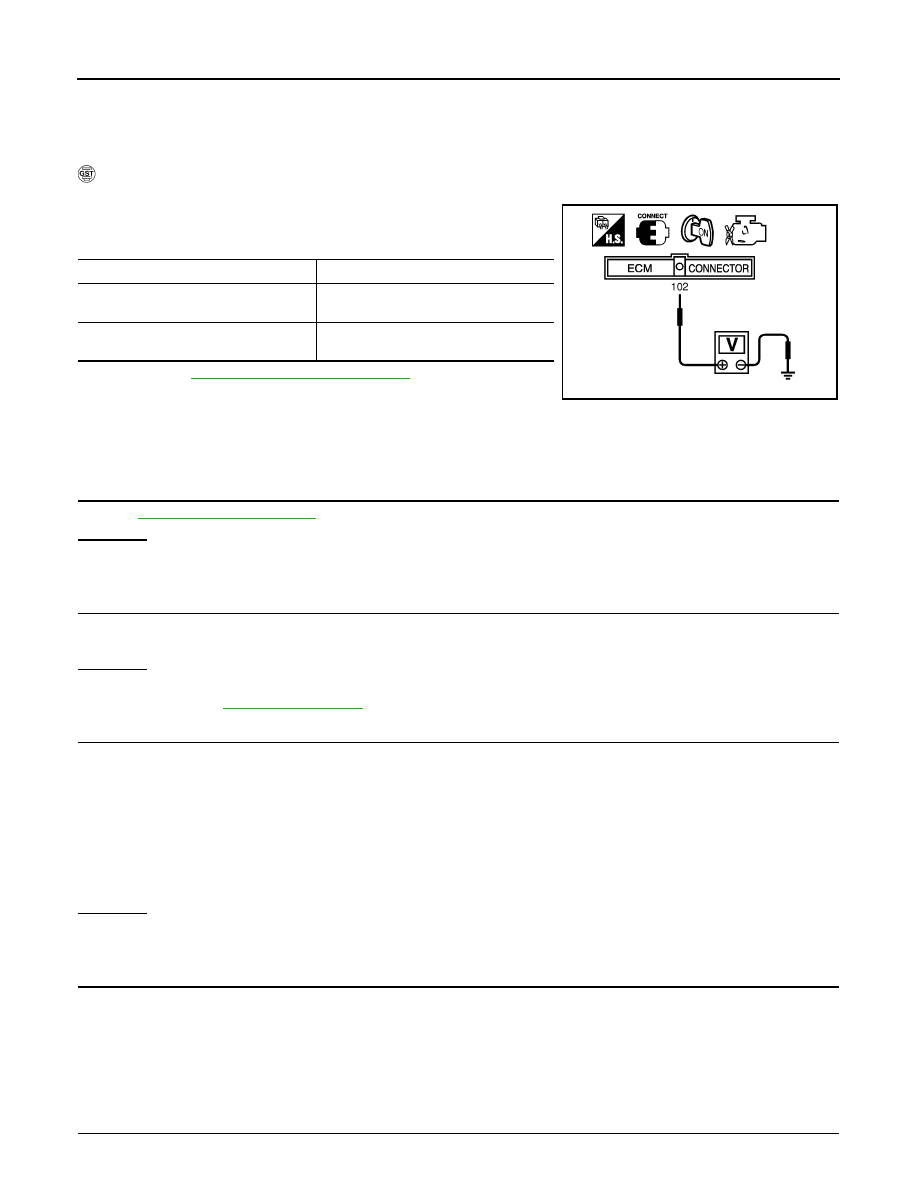

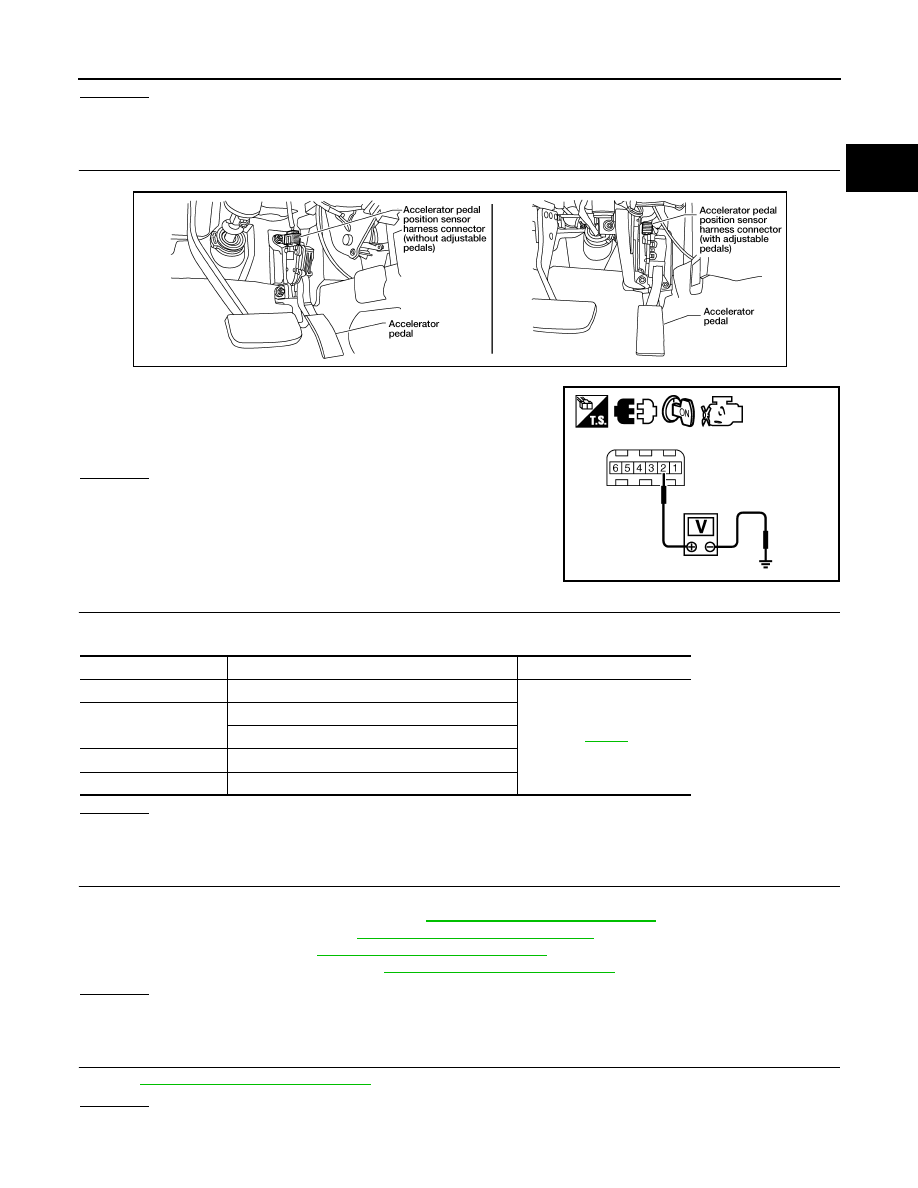

P0643 SENSOR POWER SUPPLY EC-759 < COMPONENT DIAGNOSIS > [VQ40DE] C D E F G H I J K L M A EC N P O OK or NG OK >> GO TO 2. NG >> Repair or replace ground connections. 2. CHECK ACCELERATOR PEDAL POSITION SENSOR 1 POWER SUPPLY CIRCUIT 1. Disconnect accelerator pedal position (APP) sensor harness connector. 2. Turn ignition switch ON. 3. Check voltage between APP sensor terminal 2 and ground with OK or NG OK >> GO TO 5. NG >> GO TO 3. 3. CHECK SENSOR POWER SUPPLY CIRCUITS Check harness for short to power and short to ground, between the following terminals. OK or NG OK >> GO TO 4. NG >> Repair short to ground or short to power in harness or connectors. 4. CHECK COMPONENTS Check the following. EC-710, "Component Inspection" .) • Refrigerant pressure sensor (Refer to EC-878, "Component Description" .) • Battery current sensor (Refer to EC-778, "Component Inspection" .) • Power steering pressure sensor (Refer to EC-752, "Component Inspection" OK or NG OK >> GO TO 5. NG >> Replace malfunctioning component. 5. CHECK APP SENSOR EC-827, "Component Inspection" OK or NG OK >> GO TO 7. Voltage: Approximately 5V BBIA0556E PBIB2608E ECM terminal Sensor terminal Reference Wiring Diagram 48 EVAP control system pressure sensor terminal 3 49 Refrigerant pressure sensor terminal 3 Battery current sensor terminal 1 68 PSP sensor terminal 3 90 APP sensor terminal 2 |
