TROUBLE DIAGNOSIS - SPECIFICATION VALUE

EC-539

< COMPONENT DIAGNOSIS >

[VQ40DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

JMBIA1468GB

EC-540

< COMPONENT DIAGNOSIS >

[VQ40DE]

TROUBLE DIAGNOSIS - SPECIFICATION VALUE

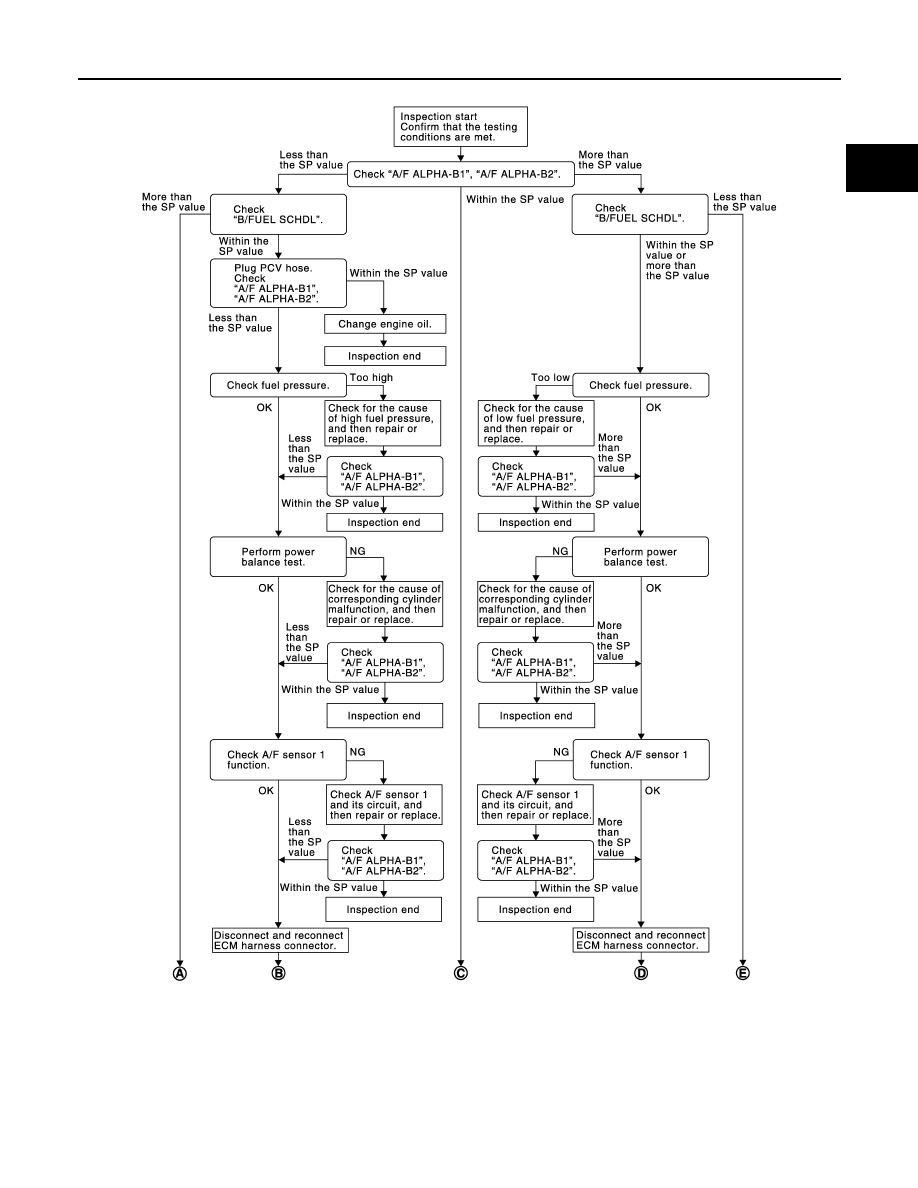

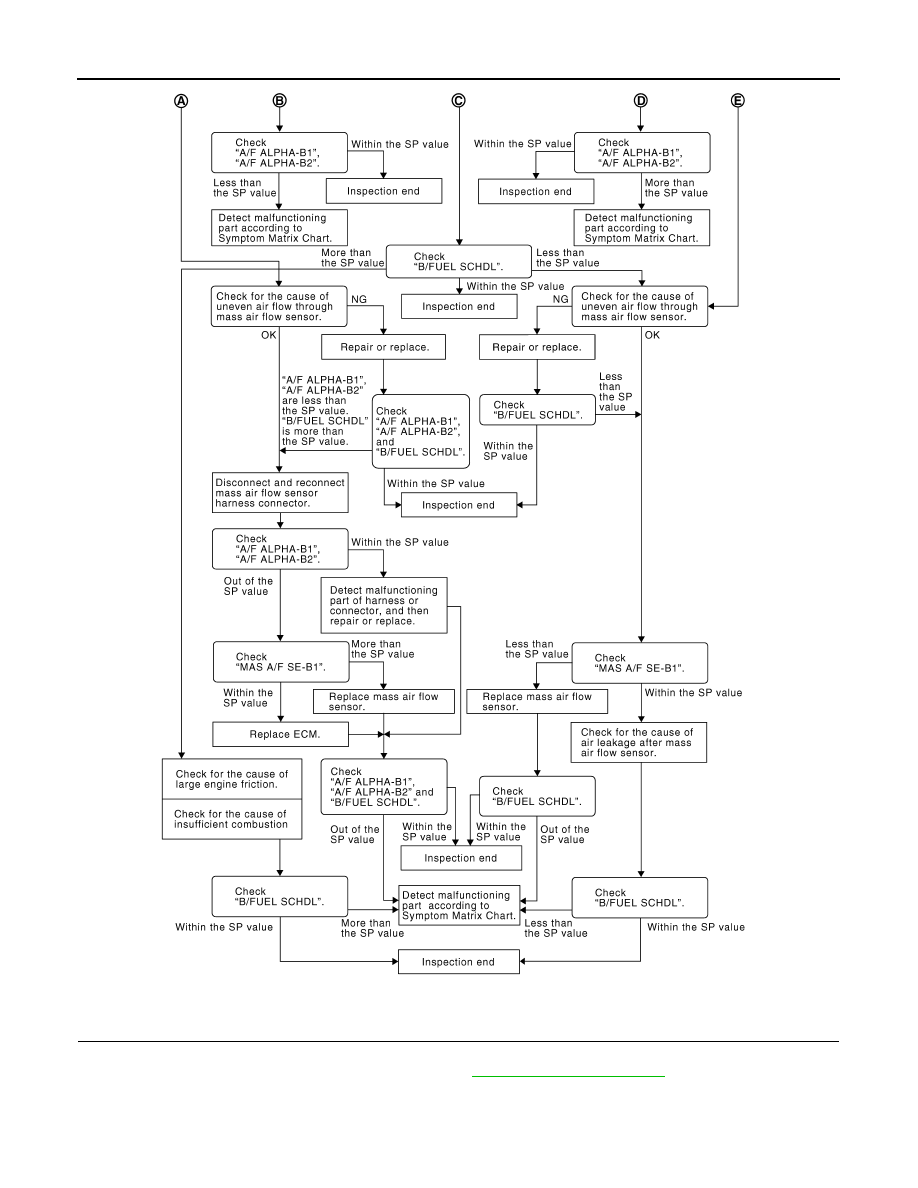

DETAILED PROCEDURE

1.

CHECK “A/F ALPHA-B1”, “A/F ALPHA-B2”

1.

Start engine.

2.

Confirm that the testing conditions are met. Refer to

EC-538, "Testing Condition"

.

3.

Select “A/F ALPHA-B1”, “A/F ALPHA-B2” in “SPEC” of “DATA MONITOR” mode, and make sure that
each indication is within the SP value.
NOTE:

PBIB3214E

TROUBLE DIAGNOSIS - SPECIFICATION VALUE

EC-541

< COMPONENT DIAGNOSIS >

[VQ40DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

Check “A/F ALPHA-B1”, “A/F ALPHA-B2” for approximately 1 minute because they may fluctuate. It is NG
if the indication is out of the SP value even a little.

OK or NG

OK

>> GO TO 17.

NG (Less than the SP value)>>GO TO 2.
NG (More than the SP value)>>GO TO 3.

2.

CHECK “B/FUEL SCHDL”

Select “B/FUEL SCHDL” in “SPEC” of “DATA MONITOR” mode, and make sure that the indication is within the
SP value.

OK or NG

OK

>> GO TO 4.

NG (More than the SP value)>>GO TO 19.

3.

CHECK “B/FUEL SCHDL”

Select “B/FUEL SCHDL” in “SPEC” of “DATA MONITOR” mode, and make sure that the indication is within the
SP value.

OK or NG

OK

>> GO TO 6.

NG (More than the SP value)>>GO TO 6.
NG (Less than the SP value)>>GO TO 25.

4.

CHECK “A/F ALPHA-B1”, “A/F ALPHA-B2”

1.

Stop the engine.

2.

Disconnect PCV hose, and then plug it.

3.

Start engine.

4.

Select “A/F ALPHA-B1”, “A/F ALPHA-B2” in “SPEC” of “DATA MONITOR” mode, and make sure that
each indication is within the SP value.

OK or NG

OK

>> GO TO 5.

NG

>> GO TO 6.

5.

CHANGE ENGINE OIL

1.

Stop the engine.

2.

Change engine oil.
NOTE:
This symptom may occur when a large amount of gasoline is mixed with engine oil because of driving
conditions (such as when engine oil temperature does not rise enough since a journey distance is too
short during winter). The symptom will not be detected after changing engine oil or changing driving con-
ditions.

>> INSPECTION END

6.

CHECK FUEL PRESSURE

Check fuel pressure. (Refer to

EC-954, "Fuel Pressure Check"

.)

OK or NG

OK

>> GO TO 9.

NG (Fuel pressure is too high)>>Replace fuel pressure regulator, refer to

EC-954, "Fuel Pressure Check"

.

GO TO 8.

NG (Fuel pressure is too low)>>GO TO 7.

7.

DETECT MALFUNCTIONING PART

1.

Check the following.

-

Clogged and bent fuel hose and fuel tube

-

Clogged fuel filter

-

Fuel pump and its circuit (Refer to

EC-862, "Description"

.)

2.

If NG, repair or replace the malfunctioning part. (Refer to

EC-538, "Diagnosis Procedure"

.)

If OK, replace fuel pressure regulator.

EC-542

< COMPONENT DIAGNOSIS >

[VQ40DE]

TROUBLE DIAGNOSIS - SPECIFICATION VALUE

>> GO TO 8.

8.

CHECK “A/F ALPHA-B1”, “A/F ALPHA-B2”

1.

Start engine.

2.

Select “A/F ALPHA-B1”, “A/F ALPHA-B2” in “SPEC” of “DATA MONITOR” mode, and make sure that
each indication is within the SP value.

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 9.

9.

PERFORM POWER BALANCE TEST

1.

Perform “POWER BALANCE” in “ACTIVE TEST” mode.

2.

Make sure that the each cylinder produces a momentary engine speed drop.

OK or NG

OK

>> GO TO 12.

NG

>> GO TO 10.

10.

DETECT MALFUNCTIONING PART

1.

Check the following below.

-

Ignition coil and its circuit (Refer to

EC-866, "Component Description"

.)

-

Fuel injector and its circuit (Refer to

EC-858, "Component Description"

.)

-

Intake air leakage

-

Low compression pressure (Refer to

EM-199, "Exploded View"

.)

2.

If NG, repair or replace the malfunctioning part.
If OK, replace fuel injector. (It may be caused by leakage from fuel injector or clogging.)

>> GO TO 11.

11.

CHECK “A/F ALPHA-B1”, “A/F ALPHA-B2”

1.

Start engine.

2.

Select “A/F ALPHA-B1”, “A/F ALPHA-B2” in “SPEC” of “DATA MONITOR” mode, and make sure that
each indication is within the SP value.

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 12.

12.

CHECK A/F SENSOR 1 FUNCTION

Perform all DTC Confirmation Procedure related with A/F sensor 1.
• For DTC P0130, P0150, refer to

EC-598, "DTC Confirmation Procedure"

.

• For DTC P0131, P0151, refer to

EC-602, "DTC Confirmation Procedure"

.

• For DTC P0132, P0152, refer to

EC-606, "DTC Confirmation Procedure"

.

• For DTC P0133, P0153, refer to

EC-610, "DTC Confirmation Procedure"

.

• For DTC P2A00, P2A03, refer to

EC-840, "DTC Confirmation Procedure"

.

OK or NG

OK

>> GO TO 15.

NG

>> GO TO 13.

13.

CHECK A/F SENSOR 1 CIRCUIT

Perform Diagnostic Procedure according to corresponding DTC.

>> GO TO 14.

14.

CHECK “A/F ALPHA-B1”, “A/F ALPHA-B2”

1.

Start engine.

2.

Select “A/F ALPHA-B1”, “A/F ALPHA-B2” in “SPEC” of “DATA MONITOR” mode, and make sure that
each indication is within the SP value.

OK or NG
