PRECAUTIONS

EC-451

< PRECAUTION >

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

• Do not depress accelerator pedal when starting.
• Immediately after starting, do not rev up engine unnecessar-

ily.

• Do not rev up engine just prior to shutdown.

• When installing C.B. ham radio or a mobile phone, be sure to

observe the following as it may adversely affect electronic
control systems depending on installation location.

- Keep the antenna as far as possible from the electronic con-

trol units.

- Keep the antenna feeder line more than 20 cm (8 in) away

from the harness of electronic controls.
Do not let them run parallel for a long distance.

- Adjust the antenna and feeder line so that the standing-wave

radio can be kept smaller.

- Be sure to ground the radio to vehicle body.

SEF709Y

SEF708Y

EC-452

< PREPARATION >

[QR25DE]

PREPARATION

PREPARATION

PREPARATION

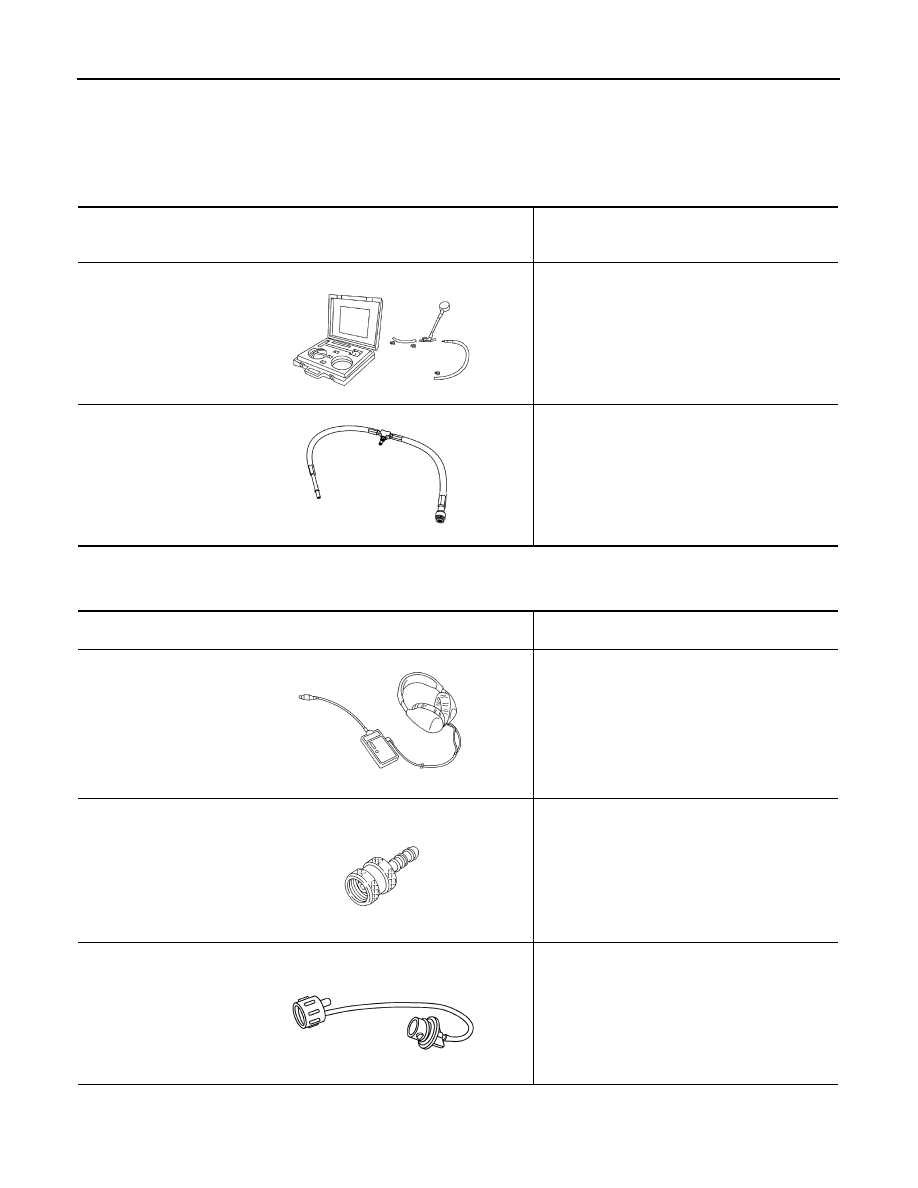

Special Service Tool

INFOID:0000000005273444

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Commercial Service Tool

INFOID:0000000005273445

Tool number
(Kent-Moore No.)
Tool name

Description

(J-44321)
 Fuel pressure gauge
kit

Checking fuel pressure

(J-44321-6)
Fuel pressure gauge
adapter

Connecting fuel pressure gauge to quick connec-
tor type fuel lines.

LEC642

LBIA0376E

Tool name
(Kent-Moore No.)

Description

Leak detector
i.e.:(J-41416)

Locating the EVAP leak

EVAP service port
adapter
i.e.:(J-41413-OBD)

Applying positive pressure through EVAP service
port

Fuel filler cap adapter
i.e.: (J-41416)

Checking fuel tank vacuum relief valve opening
pressure

S-NT703

S-NT704

S-NT815

PREPARATION

EC-453

< PREPARATION >

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

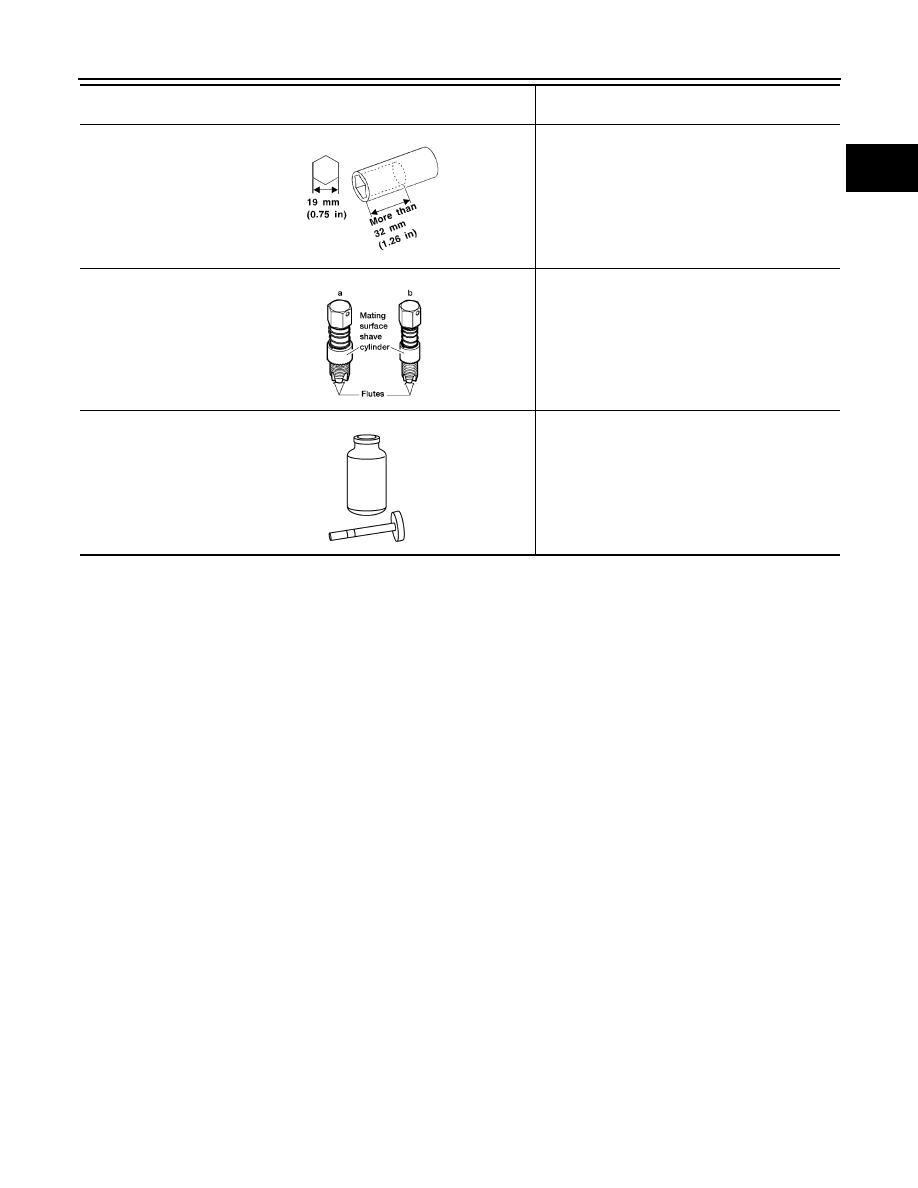

Socket wrench

Removing and installing engine coolant tempera-
ture sensor

Oxygen sensor thread
cleaner
i.e.: (J-43897-18)
(J-43897-12)

Reconditioning the exhaust system threads before
installing a new oxygen sensor. Use with anti-
seize lubricant shown below.
a: 18 mm diameter with pitch 1.5 mm for Zirco-
nia Oxygen Sensor
b: 12 mm diameter with pitch 1.25 mm for Tita-
nia Oxygen Sensor

Anti-seize lubricant

i.e.: (Permatex

TM

133AR or equivalent
meeting MIL specifica-
tion MIL-A-907)

Lubricating oxygen sensor thread cleaning tool
when reconditioning exhaust system threads.

Tool name
(Kent-Moore No.)

Description

S-NT705

AEM488

S-NT779

EC-454

< ON-VEHICLE MAINTENANCE >

[QR25DE]

FUEL PRESSURE

ON-VEHICLE MAINTENANCE

FUEL PRESSURE

Fuel Pressure Check

INFOID:0000000005273446

FUEL PRESSURE RELEASE

 With CONSULT-III

1.

Turn ignition switch ON.

2.

Perform “FUEL PRESSURE RELEASE” in “WORK SUPPORT” mode with CONSULT-III.

3.

Start engine.

4.

After engine stalls, crank it two or three times to release all fuel pressure.

5.

Turn ignition switch OFF.

 Without CONSULT-III

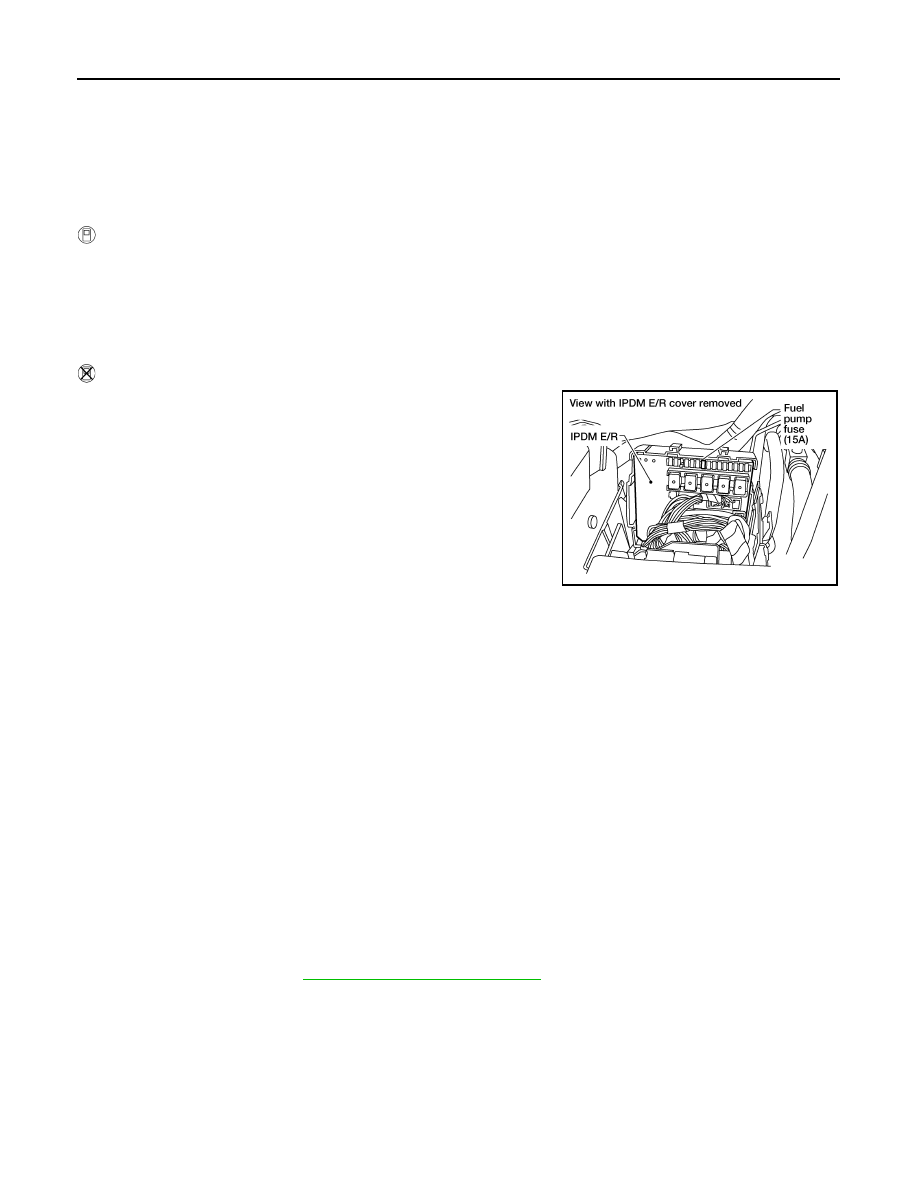

1.

Remove fuel pump fuse located in IPDM E/R.

2.

Start engine.

3.

After engine stalls, crank it two or three times to release all fuel
pressure.

4.

Turn ignition switch OFF.

5.

Reinstall fuel pump fuse after servicing fuel system.

FUEL PRESSURE CHECK

CAUTION:

Before disconnecting fuel line, release fuel pressure from fuel line to eliminate danger.
NOTE:
Prepare pans or saucers under the disconnected fuel line because the fuel may spill out. The fuel pres-
sure cannot be completely released because D40 models do not have fuel return system.

Method A

CAUTION:

• The fuel hose connection method used when taking fuel pressure check must not be used for other

purposes.

• Be careful not to scratch or put debris around connection area when servicing, so that the quick

connector maintains seal ability with O-rings inside.

• Never perform fuel pressure check with electrical systems operating (i.e. lights, A/C, etc.) Fuel pres-

sure gauge may indicate false readings due to varying engine load and changes in manifold vacuum.

1.

Release fuel pressure to zero. Refer to "FUEL PRESSURE RELEASE".

2.

Prepare fuel hose for fuel pressure check, and connect fuel pressure gauge.
•  Use suitable fuel hose for fuel pressure check (genuine NISSAN fuel hose without quick connector).
• To avoid unnecessary force or tension to hose, use moderately long fuel hose for fuel pressure check.
• Never use the fuel hose for checking fuel pressure with damage or cracks on it.
• Use Pressure Gauge to check fuel pressure.

3.

Remove fuel hose. Refer to

EM-27, "Removal and Installation"

.

• Never twist or kink fuel hose because it is plastic hose.
• Never remove fuel hose from quick connector.
• Keep the original fuel hose to be free from intrusion of dust or foreign substances with a suitable cover.

BBIA0534E
