P1217 ENGINE OVER TEMPERATURE

EC-295

< COMPONENT DIAGNOSIS >

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

Main 12 Causes of Overheating

INFOID:0000000005273311

*1: Engine running at 3,000 rpm for 10 minutes.

*2: Drive at 90 km/h (55 MPH) for 30 minutes and then let idle for 10 minutes.

*3: After 60 minutes of cool down time.

For more information, refer to

CO-9, "Troubleshooting Chart"

.

Engine

 Step

Inspection item

Equipment

 Standard

Reference page

OFF

1

• Blocked radiator
• Blocked condenser
• Blocked radiator grille
• Blocked bumper

• Visual

No blocking

—

2

• Coolant mixture

• Coolant tester

Refer to

CO-11, "System Inspection"

3

• Coolant level

• Visual

Coolant up to MAX level
in reservoir tank and radi-
ator filler neck

See

CO-12, "Changing

Engine Coolant"

.

4

• Radiator cap

• Pressure tester

See

CO-11, "System Inspection"

.

ON*

1

5

• Coolant leaks

• Visual

No leaks

See

CO-11, "System In-

spection"

.

ON*

1

6

• Thermostat

• Touch the upper and

lower radiator hoses

Both hoses should be hot

See

CO-11, "System In-

spection"

.

ON*

1

7

• Cooling fan

• Visual

Operating

See

CO-19, "Exploded

View"

.

OFF

8

• Combustion gas leak

• Color checker chemical

tester 4 Gas analyzer

Negative

—

ON*

2

9

• Coolant temperature

gauge

• Visual

Gauge less than 3/4 when
driving

—

• Coolant overflow to res-

ervoir tank

• Visual

No overflow during driving
and idling

See

CO-12, "Changing

Engine Coolant"

.

OFF*

3

10

• Coolant return from

reservoir tank to radia-
tor

• Visual

Should be initial level in
reservoir tank

See

CO-11, "System In-

spection"

.

OFF

11

• Cylinder head

• Straight gauge feeler

gauge

0.1 mm (0.004 in) Maxi-
mum distortion (warping)

See

EM-64, "Exploded

View"

.

12

• Cylinder block and pis-

tons

• Visual

No scuffing on cylinder
walls or piston

See

CO-9, "Troubleshoot-

ing Chart"

.

EC-296

< COMPONENT DIAGNOSIS >

[QR25DE]

P1225 TP SENSOR

P1225 TP SENSOR

Component Description

INFOID:0000000005273312

Electric throttle control actuator consists of throttle control motor,
throttle position sensor, etc. The throttle position sensor responds to
the throttle valve movement.
The throttle position sensor has two sensors. These sensors are a
kind of potentiometers which transform the throttle valve position into
output voltage, and emit the voltage signal to the ECM. In addition,
these sensors detect the opening and closing speed of the throttle
valve and feed the voltage signals to the ECM. The ECM judges the
current opening angle of the throttle valve from these signals and the
ECM controls the throttle control motor to make the throttle valve
opening angle properly in response to driving condition.

On Board Diagnosis Logic

INFOID:0000000005273313

The MIL will not light up for this self-diagnosis.

DTC Confirmation Procedure

INFOID:0000000005273314

NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10V at idle.

 WITH CONSULT-III

1.

Turn ignition switch OFF and wait at least 10 seconds.

2.

Turn ignition switch ON.

3.

Check 1st trip DTC.

4.

If 1st trip DTC is detected, go to

EC-296, "Diagnosis Procedure"

.

 WITH GST

Follow the procedure “With CONSULT-III” above.

Diagnosis Procedure

INFOID:0000000005273315

1.

CHECK ELECTRIC THROTTLE CONTROL ACTUATOR VISUALLY

1.

Turn ignition switch OFF.

2.

Remove the intake air duct.

3.

Check if foreign matter is caught between the throttle valve and
the housing.

OK or NG

OK

>> GO TO 2.

NG

>> Remove the foreign matter and clean the electric throttle

control actuator inside.

2.

REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR

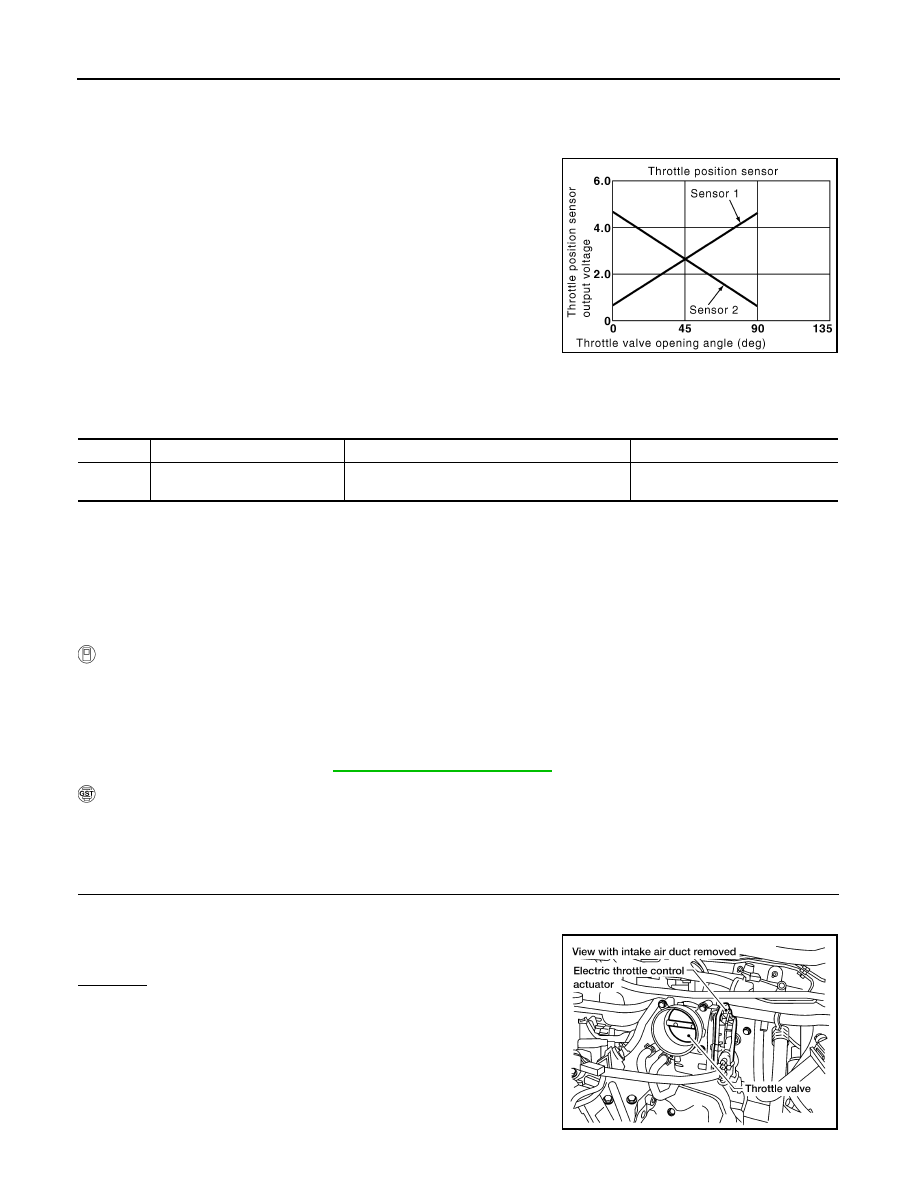

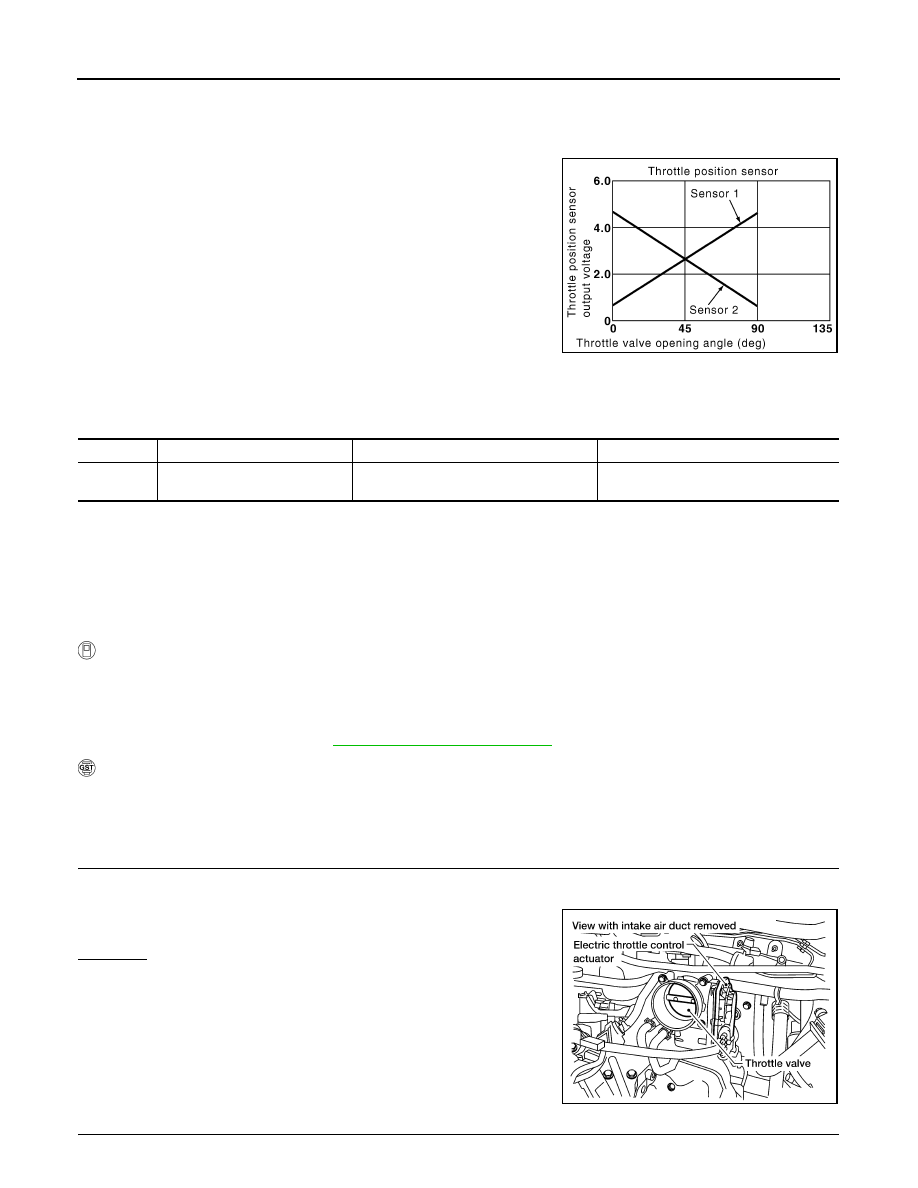

PBIB0145E

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P1225
1225

Closed throttle position learning
performance problem

Closed throttle position learning value is
excessively low.

• Electric throttle control actuator

(TP sensor 1 and 2)

BBIA0623E

P1225 TP SENSOR

EC-297

< COMPONENT DIAGNOSIS >

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

1.

Replace the electric throttle control actuator.

2.

Perform

EC-24, "Throttle Valve Closed Position Learning"

.

3.

Perform

EC-24, "Idle Air Volume Learning"

.

>> INSPECTION END

EC-298

< COMPONENT DIAGNOSIS >

[QR25DE]

P1226 TP SENSOR

P1226 TP SENSOR

Component Description

INFOID:0000000005273316

Electric throttle control actuator consists of throttle control motor,
throttle position sensor, etc. The throttle position sensor responds to
the throttle valve movement.
The throttle position sensor has two sensors. These sensors are a
kind of potentiometers which transform the throttle valve position into
output voltage, and emit the voltage signal to the ECM. In addition,
these sensors detect the opening and closing speed of the throttle
valve and feed the voltage signals to the ECM. The ECM judges the
current opening angle of the throttle valve from these signals and the
ECM controls the throttle control motor to make the throttle valve
opening angle properly in response to driving condition.

On Board Diagnosis Logic

INFOID:0000000005273317

The MIL will not light up for this self-diagnosis.

DTC Confirmation Procedure

INFOID:0000000005273318

NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10V at idle.

 WITH CONSULT-III

1.

Turn ignition switch OFF and wait at least 10 seconds.

2.

Turn ignition switch ON.

3.

Repeat steps 1 and 2 for 32 times.

4.

Check 1st trip DTC.

5.

If 1st trip DTC is detected, go to

EC-298, "Diagnosis Procedure"

.

 WITH GST

Follow the procedure “With CONSULT-III” above.

Diagnosis Procedure

INFOID:0000000005273319

1.

CHECK ELECTRIC THROTTLE CONTROL ACTUATOR VISUALLY

1.

Turn ignition switch OFF.

2.

Remove the intake air duct.

3.

Check if foreign matter is caught between the throttle valve and
the housing.

OK or NG

OK

>> GO TO 2.

NG

>> Remove the foreign matter and clean the electric throttle

control actuator inside.

PBIB0145E

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P1226
1226

Closed throttle position learning
performance problem

Closed throttle position learning is not performed
successfully, repeatedly.

• Electric throttle control actuator

(TP sensor 1 and 2)

BBIA0623E
