P0181 FTT SENSOR

EC-179

< COMPONENT DIAGNOSIS >

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

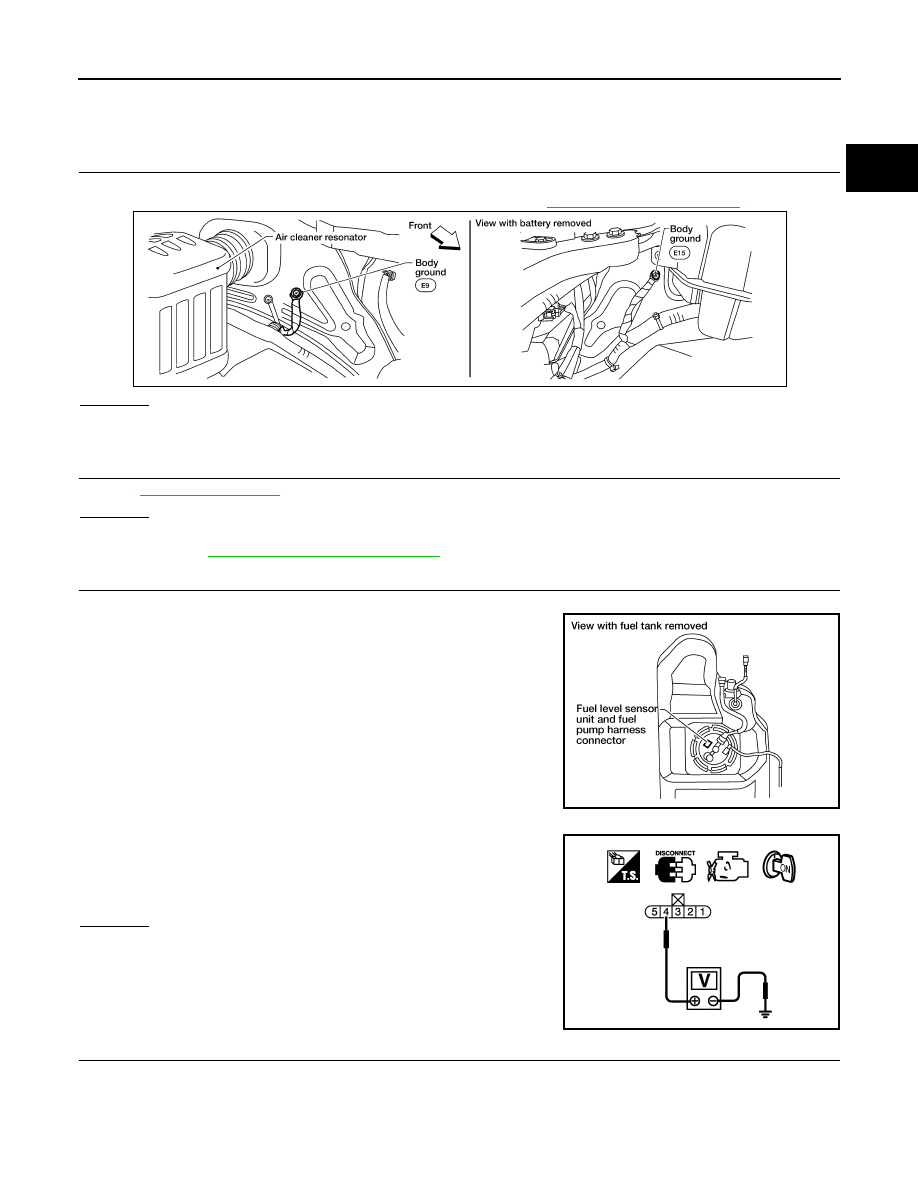

Follow the procedure “WITH CONSULT-III” above.

Diagnosis Procedure

INFOID:0000000005273170

1.

CHECK GROUND CONNECTIONS

1.

Turn ignition switch OFF.

2.

Loosen and retighten two ground screws on the body. Refer to

EC-90, "Ground Inspection"

.

OK or NG

OK

>> GO TO 2.

NG

>> Repair or replace ground connections.

2.

CHECK COMBINATION METER FUNCTION

Refer to

MWI-3, "Work Flow"

.

OK or NG

OK

>> GO TO 3.

NG

>> Go to

MWI-33, "Component Inspection"

.

3.

CHECK FUEL TANK TEMPERATURE SENSOR POWER SUPPLY CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect “fuel level sensor unit and fuel pump” harness con-
nector.

3.

Turn ignition switch ON.

4.

Check voltage between “fuel level sensor unit and fuel pump”
terminal 4 and ground with CONSULT-III or tester.

OK or NG

OK

>> GO TO 5.

NG

>> GO TO 4.

4.

DETECT MALFUNCTIONING PART

Check the following.
• Harness connectors E41, C1
• Harness for open or short between ECM and “fuel level sensor unit and fuel pump”

BBIA0614E

BBIA0545E

Voltage: Approximately 5V

PBIB0932E

EC-180

< COMPONENT DIAGNOSIS >

[QR25DE]

P0181 FTT SENSOR

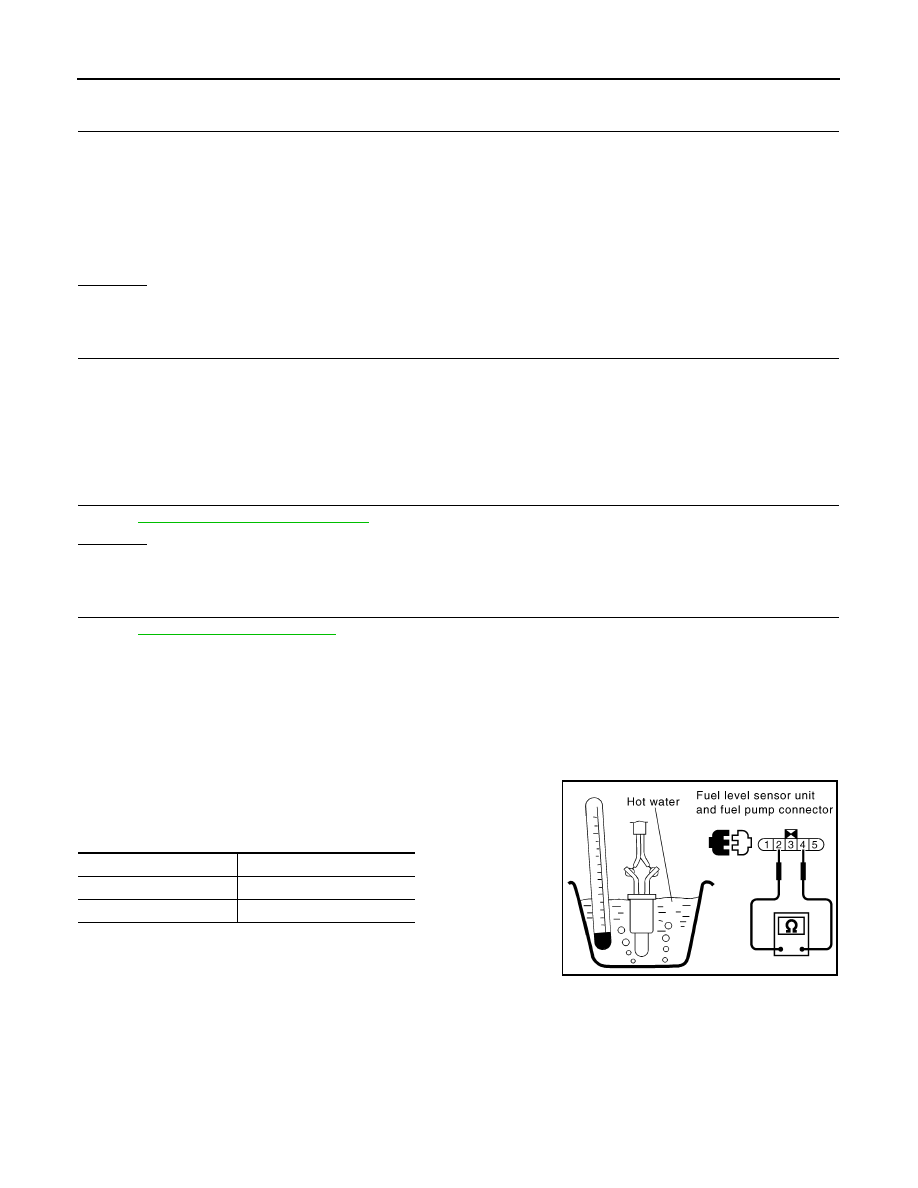

>> Repair harness or connector.

5.

CHECK FUEL TANK TEMPERATURE SENSOR GROUND CIRCUIT FOR OPEN AND SHORT

1.

Turn ignition switch OFF.

2.

Disconnect combination meter harness connector.

3.

Check harness continuity between “fuel level sensor unit and fuel pump” terminal 2 and combination
meter terminal 9. Refer to Wiring Diagram.

4.

Also check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 7.

NG

>> GO TO 6.

6.

DETECT MALFUNCTIONING PART

Check the following.
• Harness connectors E41, C1
• Harness connectors E152, M31
• Harness for open or short between “fuel level sensor unit and fuel pump” and combination meter

>> Repair open circuit, short to ground or short to power in harness or connector.

7.

CHECK FUEL TANK TEMPERATURE SENSOR

Refer to

EC-180, "Component Inspection"

.

OK or NG

OK

>> GO TO 8.

NG

>> Replace “fuel level sensor unit and fuel pump”.

8.

CHECK INTERMITTENT INCIDENT

Refer to

GI-46, "Intermittent Incident"

.

>> INSPECTION END

Component Inspection

INFOID:0000000005273171

FUEL TANK TEMPERATURE SENSOR

1.

Remove fuel level sensor unit.

2.

Check resistance between “fuel level sensor unit and fuel pump”
terminals 2 and 4 by heating with hot water or heat gun as
shown in the figure.

Continuity should exist.

Temperature [

°

C (

°

F)]

Resistance (k

Ω

20 (68)

2.3 - 2.7

50 (122)

0.79 - 0.90

PBIB2663E

P0182, P0183 FTT SENSOR

EC-181

< COMPONENT DIAGNOSIS >

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

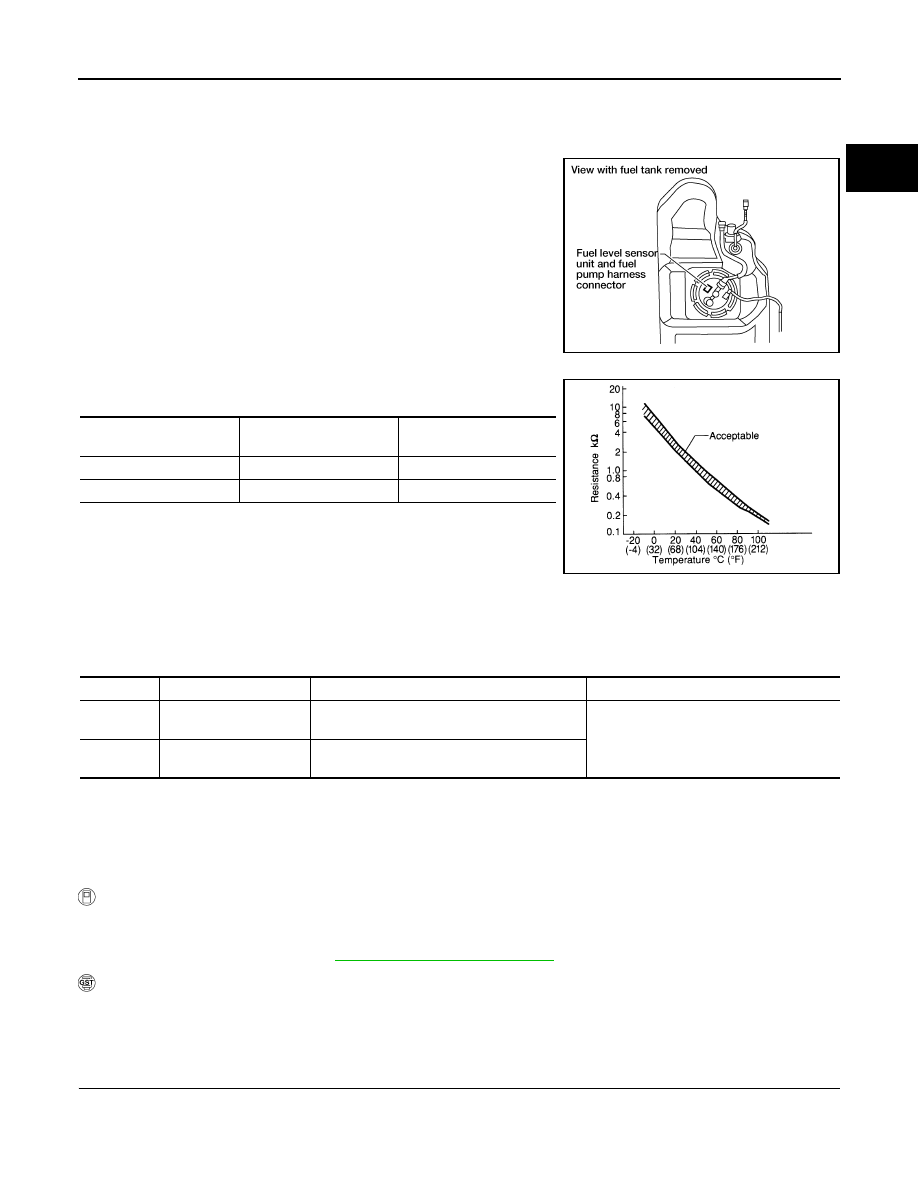

P0182, P0183 FTT SENSOR

Component Description

INFOID:0000000005273172

The fuel tank temperature sensor is used to detect the fuel tempera-
ture inside the fuel tank. The sensor modifies a voltage signal from
the ECM. The modified signal returns to the ECM as the fuel temper-
ature input. The sensor uses a thermistor which is sensitive to the
change in temperature. The electrical resistance of the thermistor
decreases as temperature increases.

<Reference data>

*: This data is reference value and is measured between ECM terminal 107 (Fuel
tank temperature sensor) and ground.

CAUTION:

Never use ECM ground terminals when measuring input/output
voltage. Doing so may result in damage to the ECM's transistor.
Use a ground other than ECM terminals, such as the ground.

On Board Diagnosis Logic

INFOID:0000000005273173

DTC Confirmation Procedure

INFOID:0000000005273174

NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.

 WITH CONSULT-III

1.

Turn ignition switch ON and wait at least 5 seconds.

2.

Check 1st trip DTC.

3.

If 1st trip DTC is detected, go to

EC-181, "Diagnosis Procedure"

.

 WITH GST

Follow the procedure “WITH CONSULT-III” above.

Diagnosis Procedure

INFOID:0000000005273175

1.

CHECK GROUND CONNECTIONS

1.

Turn ignition switch OFF.

BBIA0545E

Fluid temperature

[

°

C (

°

F)]

Voltage*

(V)

Resistance

(k

Ω

)

20 (68)

3.5

2.3 - 2.7

50 (122)

2.2

0.79 - 0.90

SEF012P

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P0182
0182

Fuel tank temperature
sensor circuit low input

An excessively low voltage from the sensor is
sent to ECM.

• Harness or connectors

(The sensor circuit is open or shorted.)

• Fuel tank temperature sensor

P0183
0183

Fuel tank temperature
sensor circuit high input

An excessively high voltage from the sensor is
sent to ECM.

EC-182

< COMPONENT DIAGNOSIS >

[QR25DE]

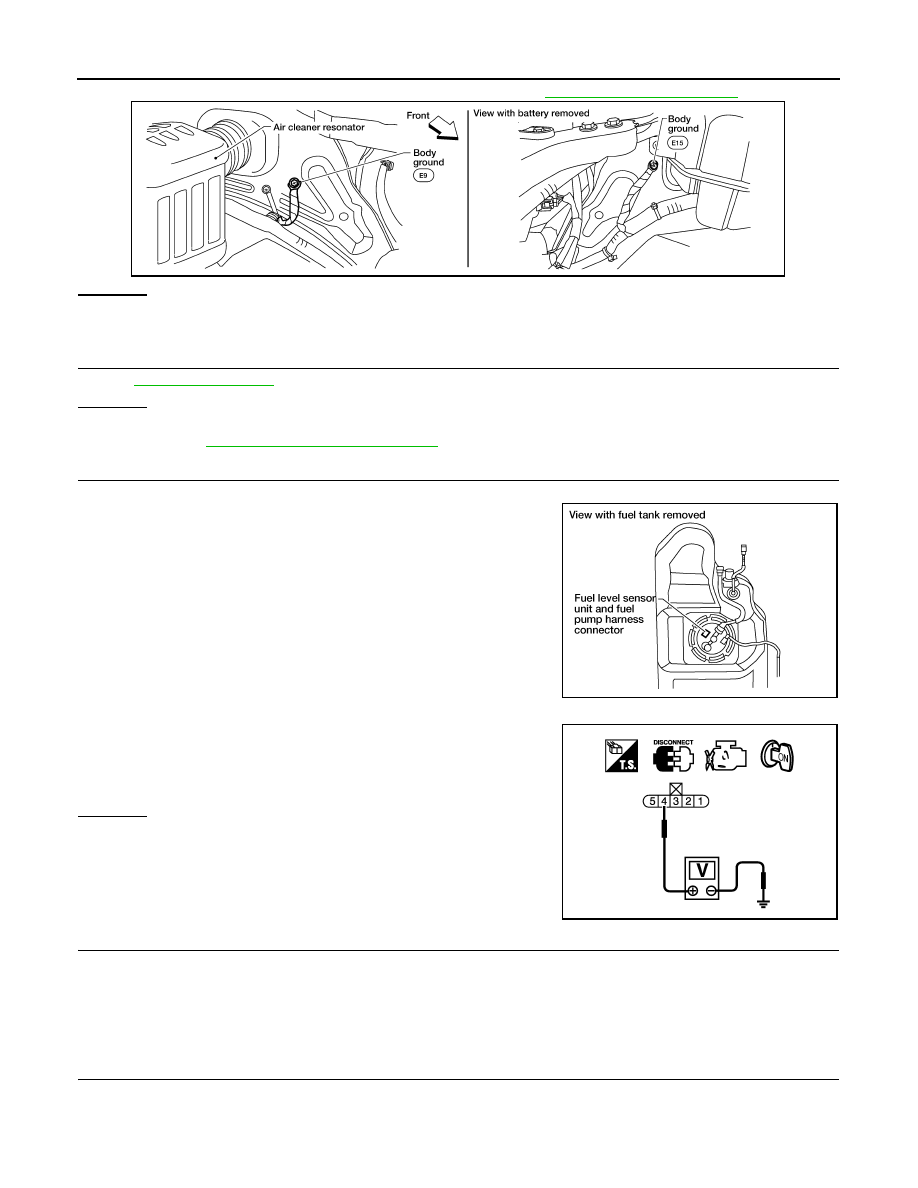

P0182, P0183 FTT SENSOR

2.

Loosen and retighten two ground screws on the body. Refer to

EC-90, "Ground Inspection"

.

OK or NG

OK

>> GO TO 2.

NG

>> Repair or replace ground connections.

2.

CHECK COMBINATION METER FUNCTION

Refer to

MWI-3, "Work Flow"

 .

OK or NG

OK

>> GO TO 3.

NG

>> Go to

MWI-33, "Component Inspection"

.

3.

CHECK FUEL TANK TEMPERATURE SENSOR POWER SUPPLY CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect “fuel level sensor unit and fuel pump” harness con-
nector.

3.

Turn ignition switch ON.

4.

Check voltage between “fuel level sensor unit and fuel pump”
terminal 4 and ground with CONSULT-III or tester.

OK or NG

OK

>> GO TO 5.

NG

>> GO TO 4.

4.

DETECT MALFUNCTIONING PART

Check the following.
• Harness connectors E41, C1
• Harness for open or short between ECM and “fuel level sensor unit and fuel pump”

>> Repair harness or connector.

5.

CHECK FUEL TANK TEMPERATURE SENSOR GROUND CIRCUIT FOR OPEN AND SHORT

1.

Turn ignition switch OFF.

2.

Disconnect combination meter harness connector.

BBIA0614E

BBIA0545E

Voltage: Approximately 5V

PBIB0932E
