FUNCTION DIAGNOSIS

ENGINE CONTROL SYSTEM

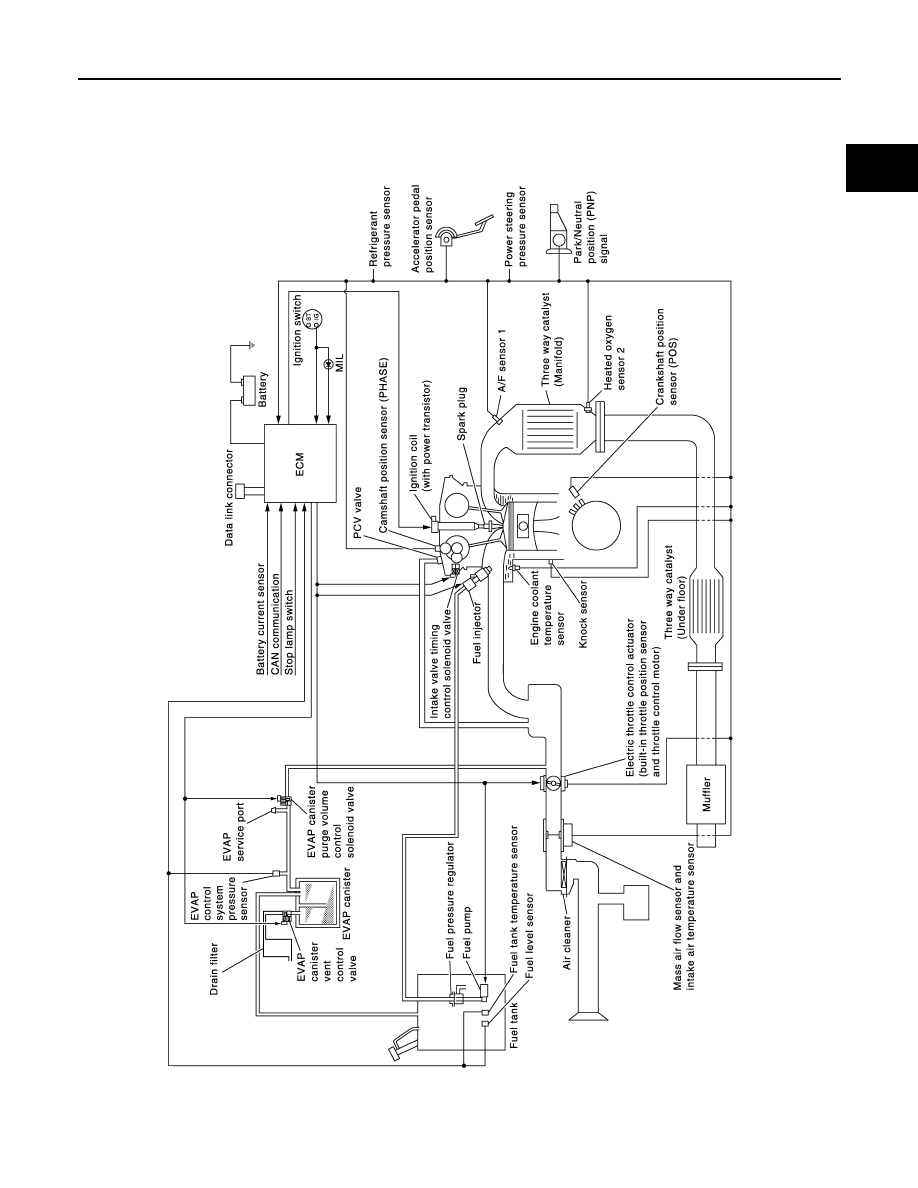

System Diagram

INFOID:0000000005273026

JPBIA3085GB

EC-28

< FUNCTION DIAGNOSIS >

[QR25DE]

ENGINE CONTROL SYSTEM

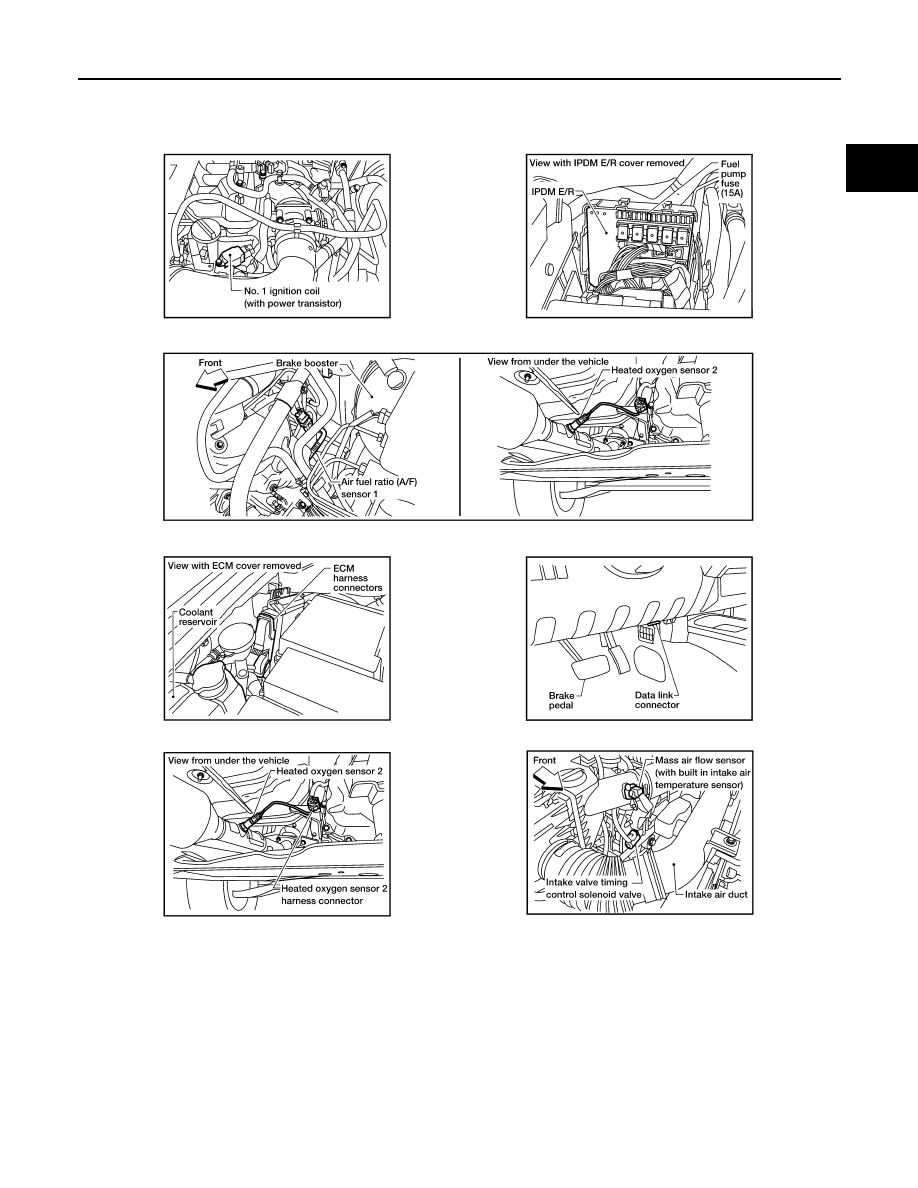

Engine Control Component Parts Location

INFOID:0000000005273027

BBIA0608E

ENGINE CONTROL SYSTEM

EC-29

< FUNCTION DIAGNOSIS >

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

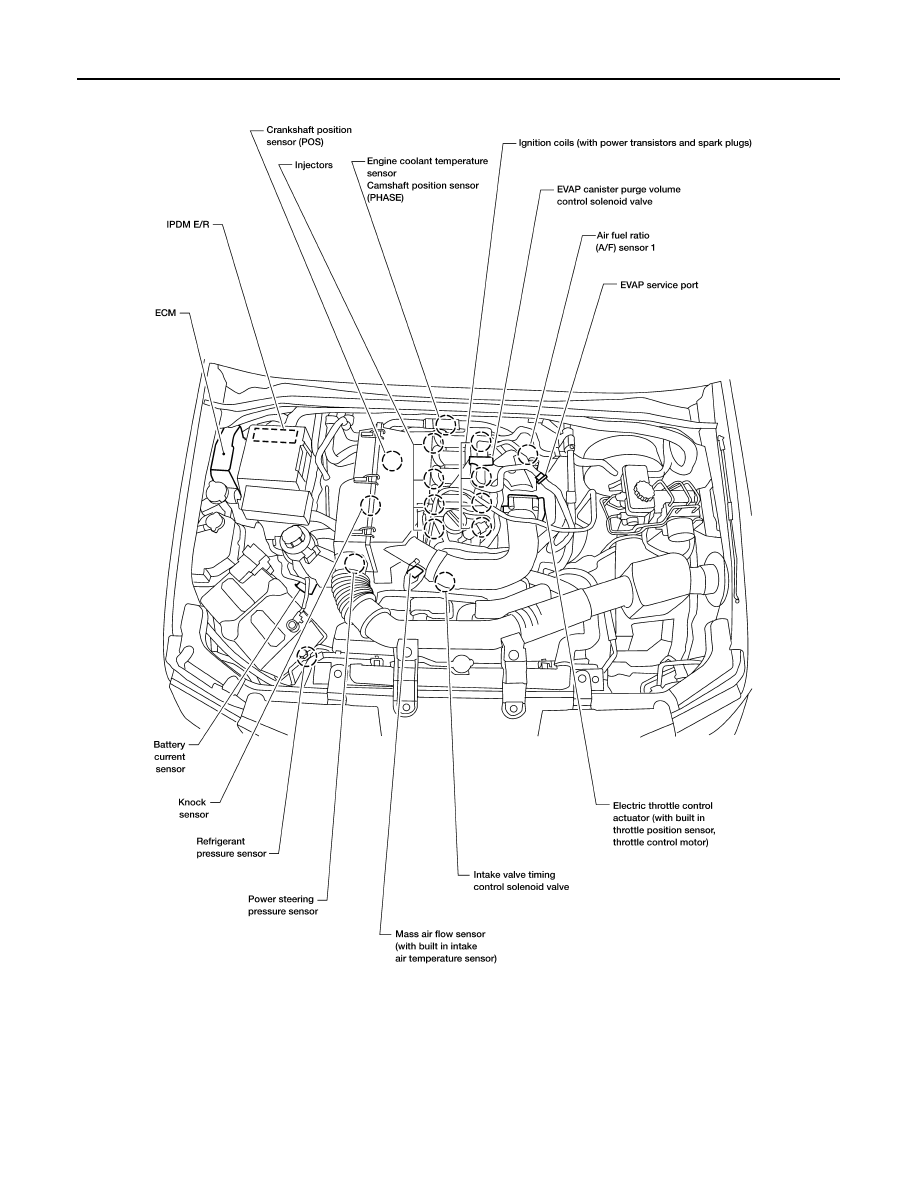

BBIA0609E

EC-30

< FUNCTION DIAGNOSIS >

[QR25DE]

ENGINE CONTROL SYSTEM

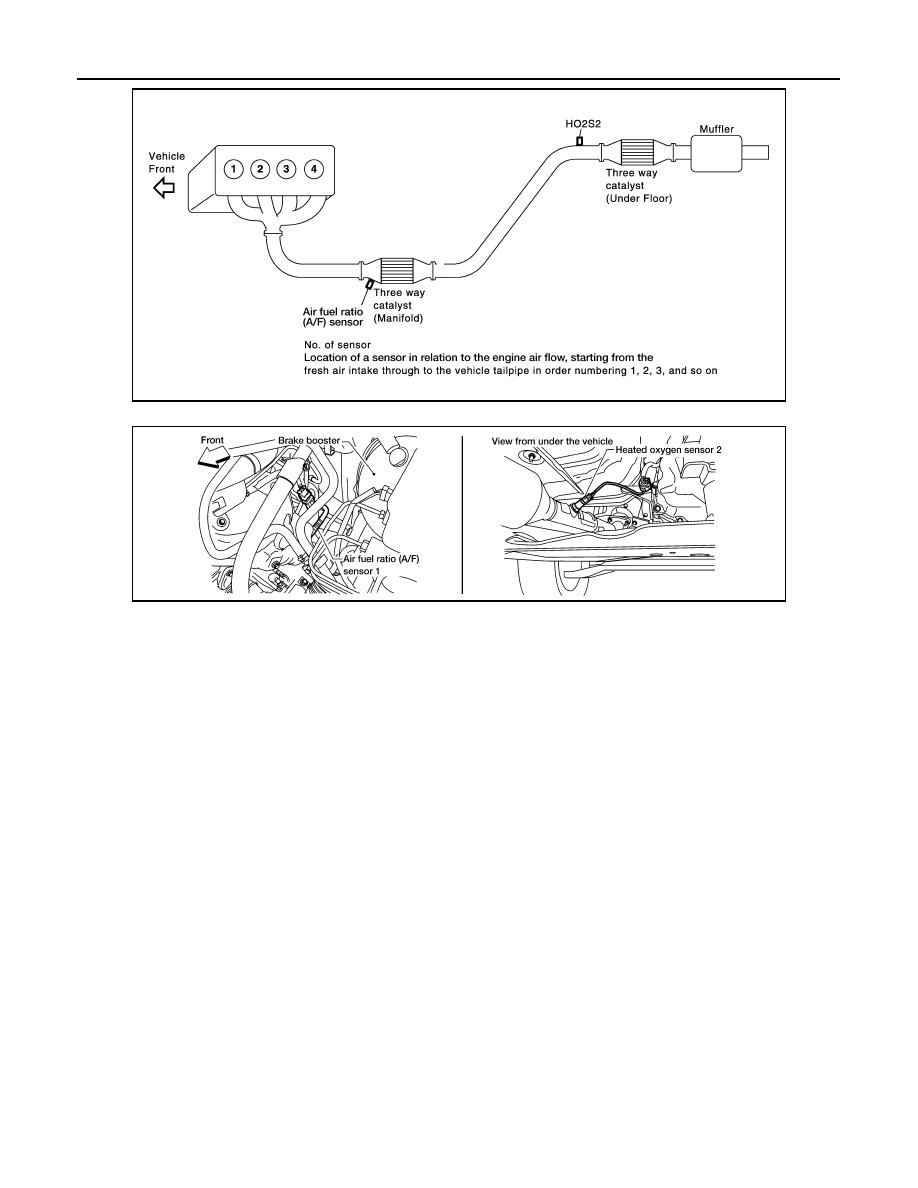

BBIA0638E

BBIA0610E
