PRECAUTIONS

DLK-123

< PRECAUTION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000005511855

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SR and SB section of this Service Man-
ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a
hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing
serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Precaution for work

INFOID:0000000005274569

• After removing and installing the opening/closing parts, be sure to carry out fitting adjustments to check their

operation.

• Check the lubrication level, damage, and wear of each part. If necessary, grease or replace it.

DLK-124

< PREPARATION >

PREPARATION

PREPARATION

PREPARATION

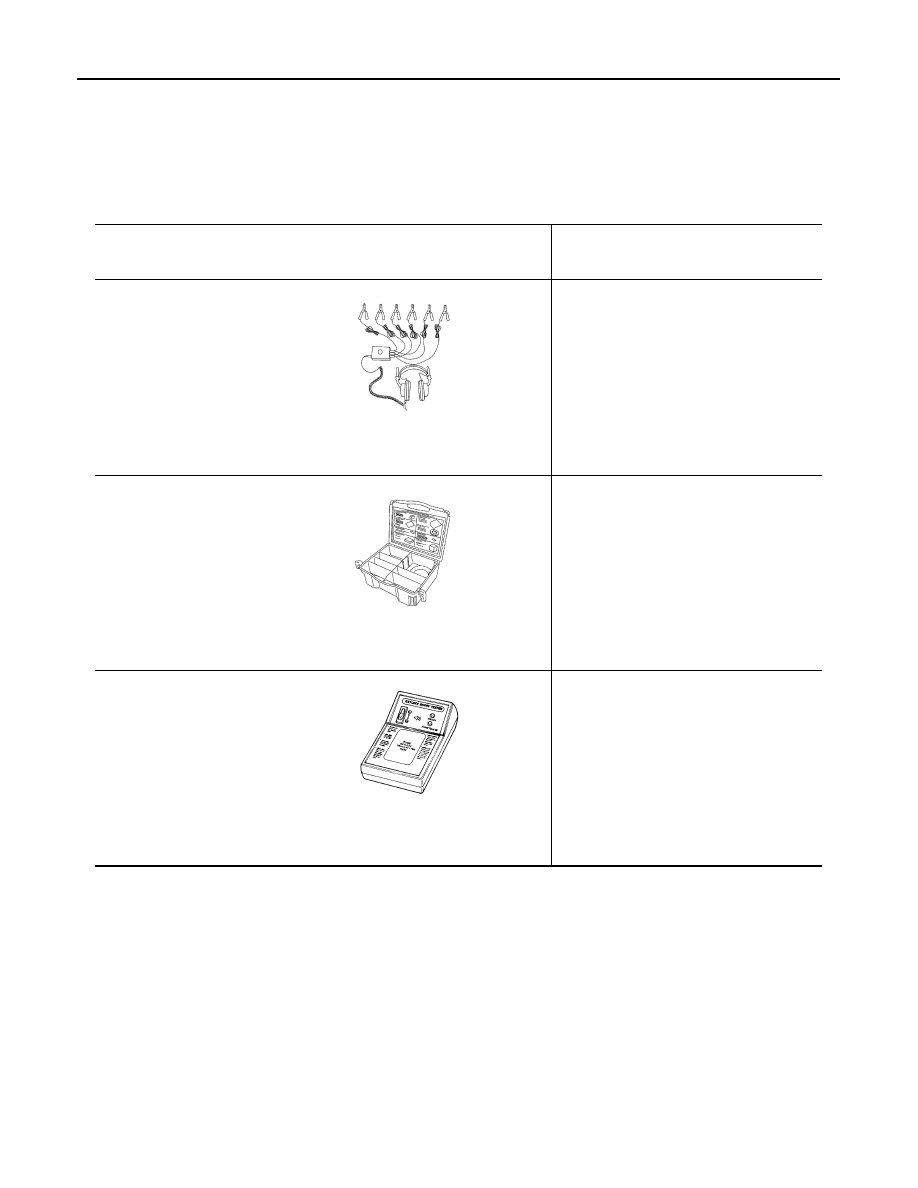

Special Service Tool

INFOID:0000000005274570

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Tool number
(Kent-Moore No.)
Tool name

Description

—

(J-39570)
Chassis ear

Locating the noise

—

(J-43980)
NISSAN Squeak  and Rat-
tle  Kit

Repairing the cause of noise

—

(J-43241)
Remote Keyless Entry
Tester

Testing  keyfobs

SIIA0993E

SIIA0994E

LEL946A

PREPARATION

DLK-125

< PREPARATION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

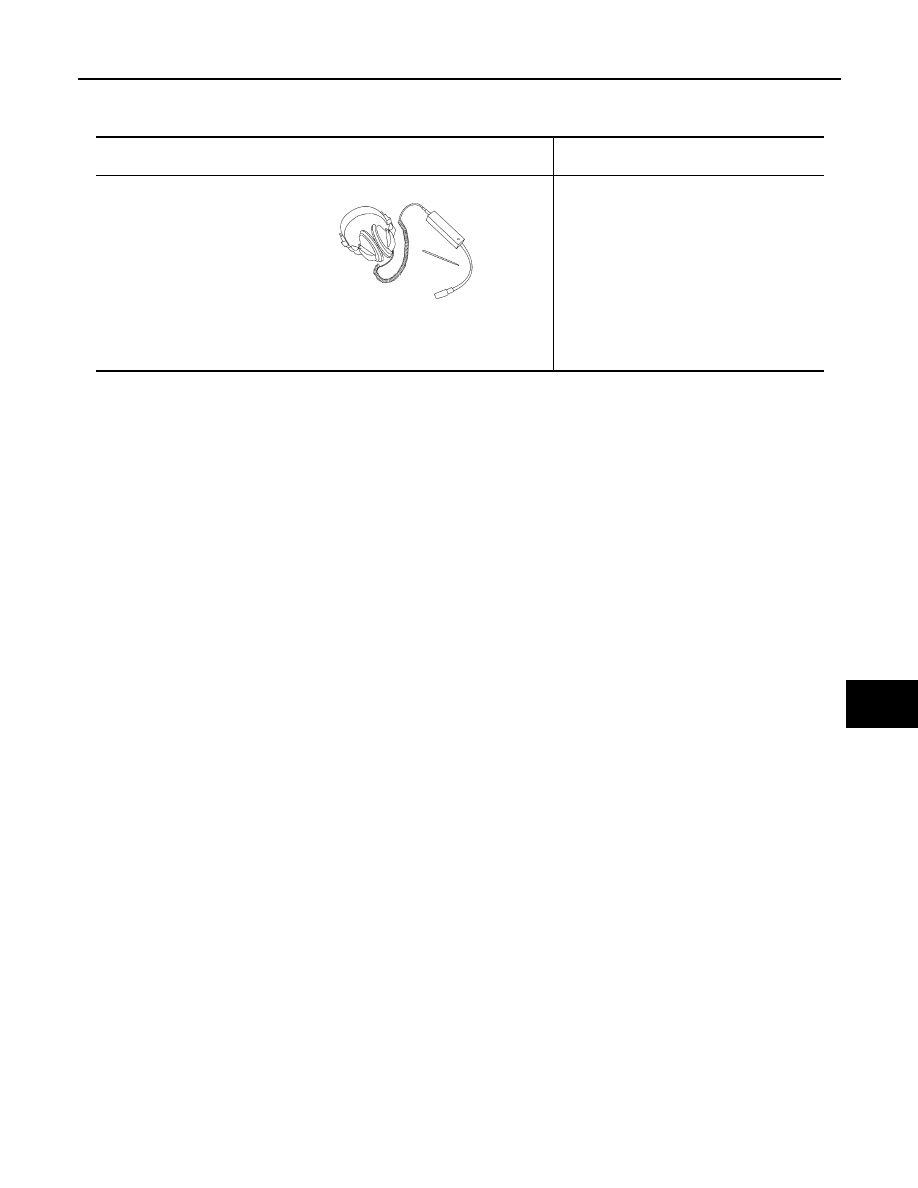

Commercial Service Tool

INFOID:0000000005274571

(Kent-Moore No.)
Tool name

Description

(J-39565)
Engine ear

Locating the noise

SIIA0995E

DLK-126

< ON-VEHICLE REPAIR >

HOOD

ON-VEHICLE REPAIR

HOOD

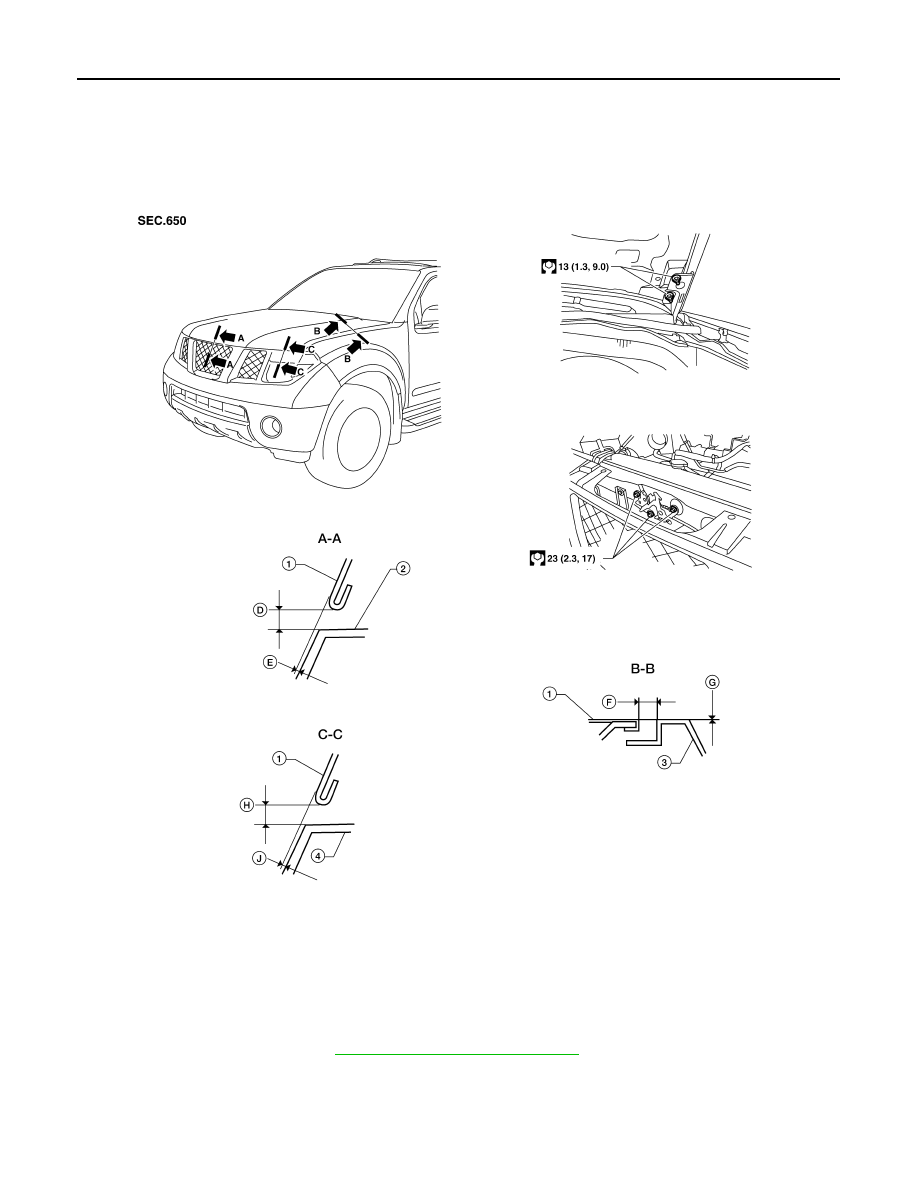

Fitting Adjustment

INFOID:0000000005274572

CLEARANCE AND SURFACE HEIGHT ADJUSTMENT

1.

Remove the front grille. Refer to

EXT-18, "Removal and Installation"

.

2.

Loosen the hood lock assembly and adjust the rubber bumpers until the surface height of the hood
becomes 1 mm (0.04 in) lower than the fender.

3.

Engage the hood striker and temporarily tighten.

4.

Check the lock and striker for looseness.

1.

Hood

2.

Front grille

3.

Front fender

4.

Headlamp assembly

D.

6.0 mm (0.24 in)

E.

0.7 mm (0.03 in)

F.

4.5 mm (0.18 in)

G.

0.0 mm (0.0 in)

H.

6.0 mm (0.24 in)

J.

0.7 mm (0.03 in)

AWKIA0543ZZ
