Nissan Frontier D40. Manual - part 212





AUTOMATIC DOOR LOCKS

DLK-11

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

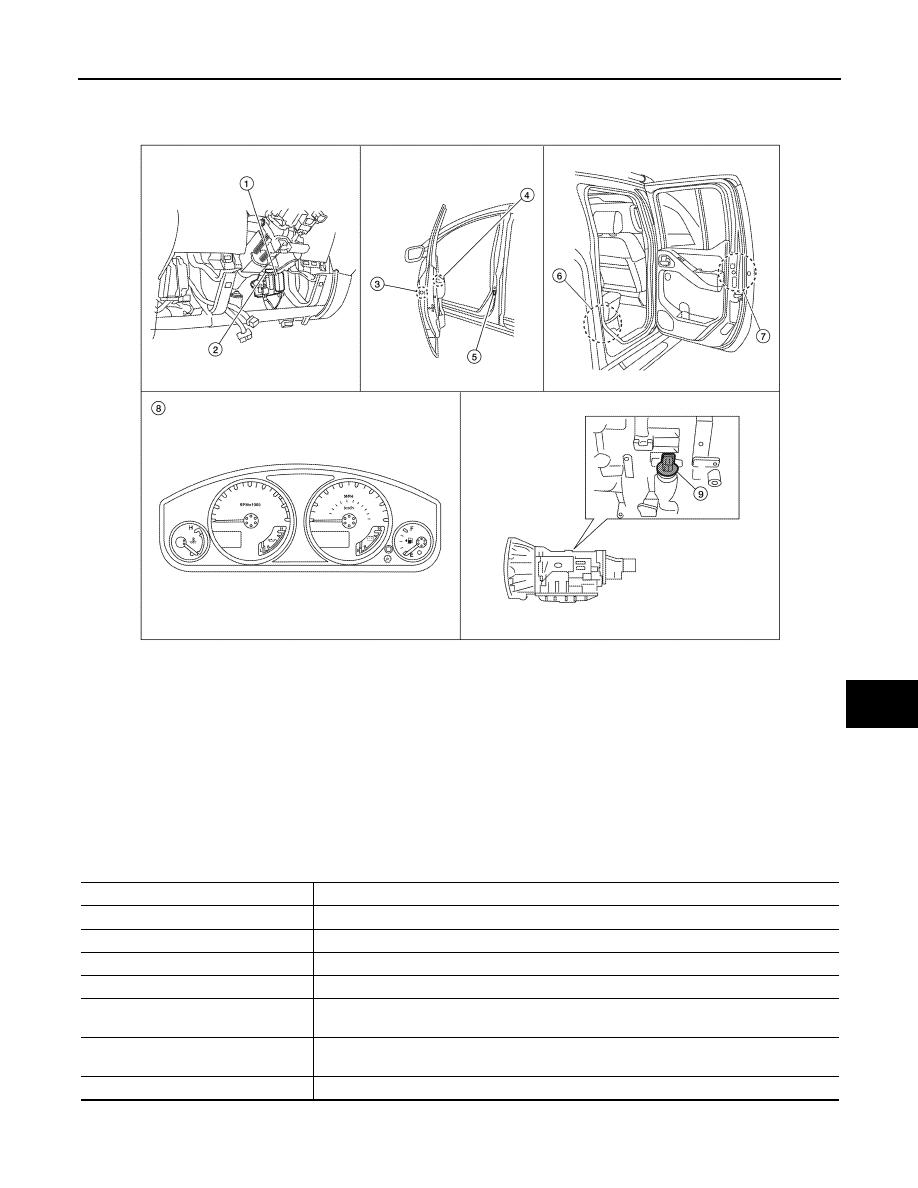

Component Parts Location - Crew Cab

INFOID:0000000005274479

Component Description

INFOID:0000000005274480

1.

BCM M18, M19, M20
(view with lower instrument panel LH
removed)

2.

Key switch M27

3.

Front door lock assembly LH (key
cylinder switch) D14
Front door lock actuator RH D114

4.

Main power window and door lock/un-
lock switch D7
Power window and door lock/unlock
switch RH D105

5.

Front door switch
LH B8
RH B108

6.

Rear door switch
LH B18
RH B116

7.

Rear door lock actuator LH D205
RH D305

8.

Combination meter M24

9.

A/T assembly (TCM) F9

ALKIA1724ZZ

Item

Function

BCM

Controls the door lock function and room lamp function.

Door lock and unlock switch

Input lock or unlock signal to BCM.

Door lock actuator

Output lock/unlock signal from BCM and locks/unlocks each door.

Door switch

Input door open/close condition to BCM.

Door key cylinder switch

• Input lock or unlock signal to main power window and door lock/unlock switch.
• Main power window and door lock/unlock switch transmits door lock/unlock signal to BCM.

Combination meter

• Receive buzzer signal from BCM via CAN communication line, and sounds the buzzer.
• Transmits vehicle speed signal to CAN communication line.

TCM

Transmit shift position signal to BCM via CAN communication line.

DLK-12

< FUNCTION DIAGNOSIS >

DOOR LOCK FUNCTION

DOOR LOCK FUNCTION

DOOR LOCK AND UNLOCK SWITCH

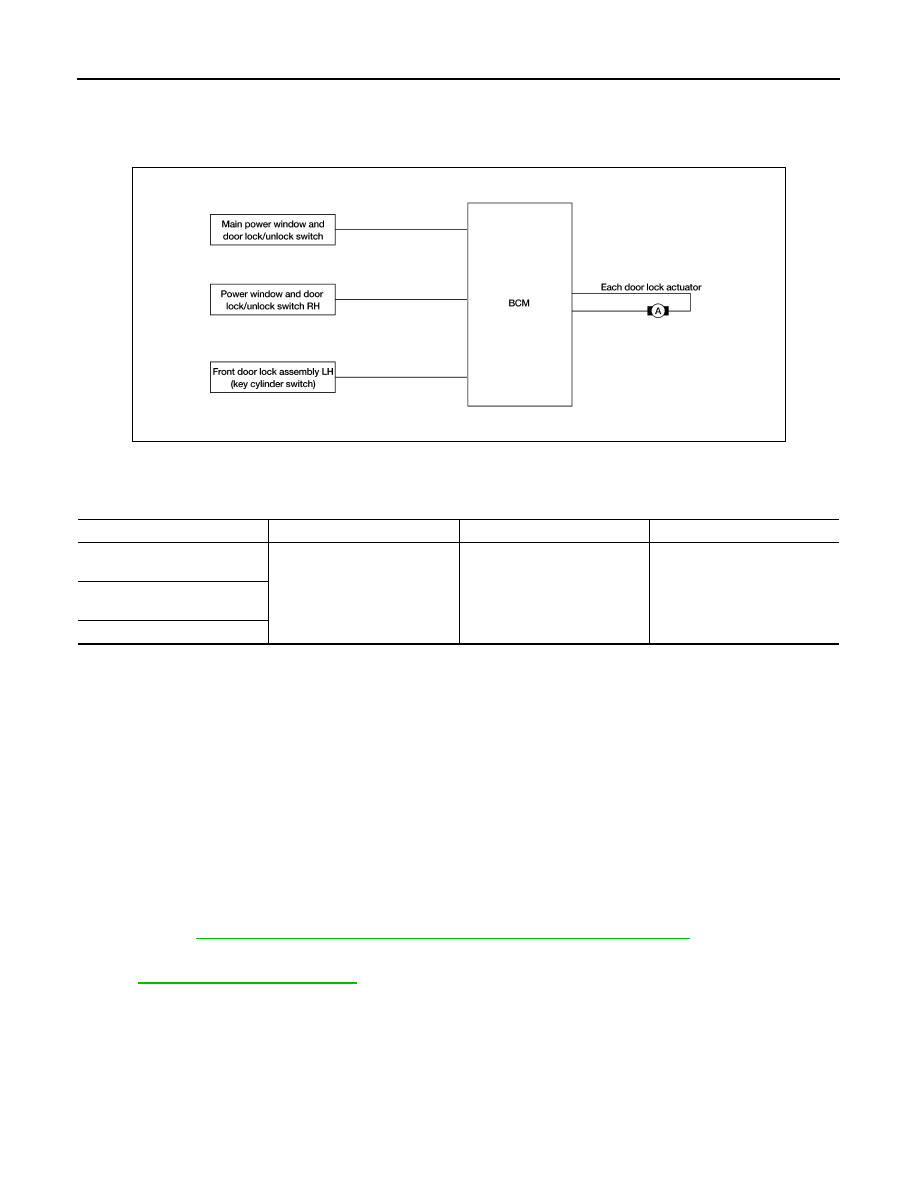

DOOR LOCK AND UNLOCK SWITCH : System Diagram

INFOID:0000000005274481

DOOR LOCK AND UNLOCK SWITCH : System Description

INFOID:0000000005274482

DOOR LOCK FUNCTION

Functions Available by Operating the Door Lock and Unlock Switches on Driver Door and Passenger Door

• Interlocked with the locking operation of door lock and unlock switch, door lock actuators of all door lock

actuators are locked.

• Interlocked with the unlocking operation of door lock and unlock switch, door lock actuators of all door lock

actuators are unlocked.

Functions Available by Operating the Key Cylinder Switch on Driver Door or Back Door

• Interlocked with the locking operation of door key cylinder, door lock actuators of all door lock actuators are

locked.

Selective Unlock Operation

• When driver door key cylinder is unlocked, door lock actuator driver side is unlocked.
• When driver door key cylinder is unlocked for the second time within 5 seconds after the first operation, door

lock actuators on all doors are unlocked.

Select unlock operation mode can be changed using DOOR LOCK-UNLOCK SET mode in “WORK SUP-
PORT”. Refer to

DLK-20, "DOOR LOCK : CONSULT-III Function (BCM - DOOR LOCK)"

.

Key Reminder System

Refer to

DLK-42, "Diagnosis Procedure"

.

ALKIA0178GB

Switch

Input/output signal to BCM

BCM function

Actuator

Main power window and door
lock/unlock switch

Door lock/unlock signal

Door lock/unlock control

Door lock actuator

Power window and door lock/
unlock switch

Front door key cylinder switch

DOOR LOCK FUNCTION

DLK-13

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

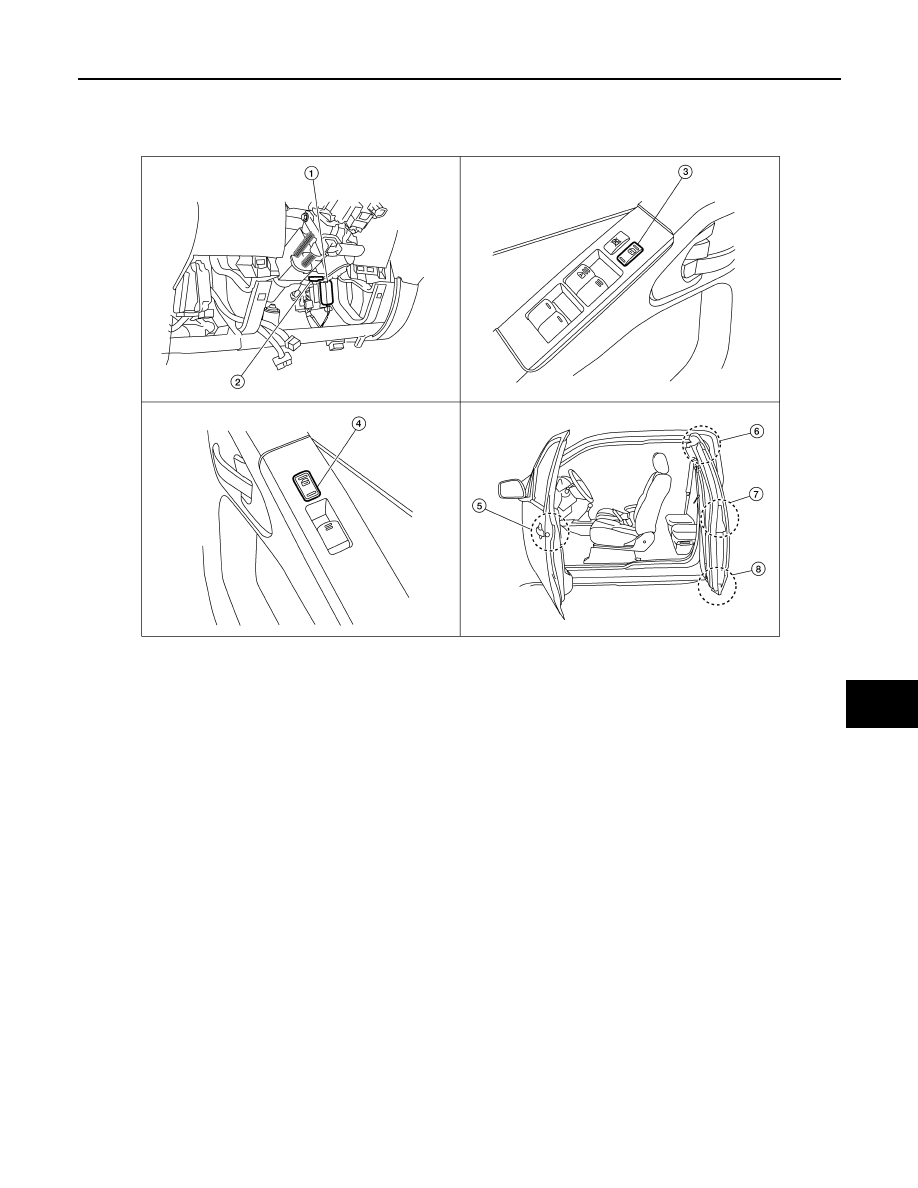

DOOR LOCK AND UNLOCK SWITCH : Component Parts Location - King Cab

INFOID:0000000005274483

ALKIA1383ZZ

1.

BCM M18, M19, M20
(view with lower instrument panel LH re-
moved)

2.

Key switch M27

3.

Main power window and door lock/un-
lock switch D7

4.

Power window and door lock/unlock
switch RH D105

5.

Front door lock assembly LH (key cyl-
inder switch) D14
Front door lock actuator RH D114

6.

Rear door switch upper
LH D211
RH D312

7.

Front door switch
LH D213
RH D314

8.

Rear door switch lower
LH D212
RH D313

DLK-14

< FUNCTION DIAGNOSIS >

DOOR LOCK FUNCTION

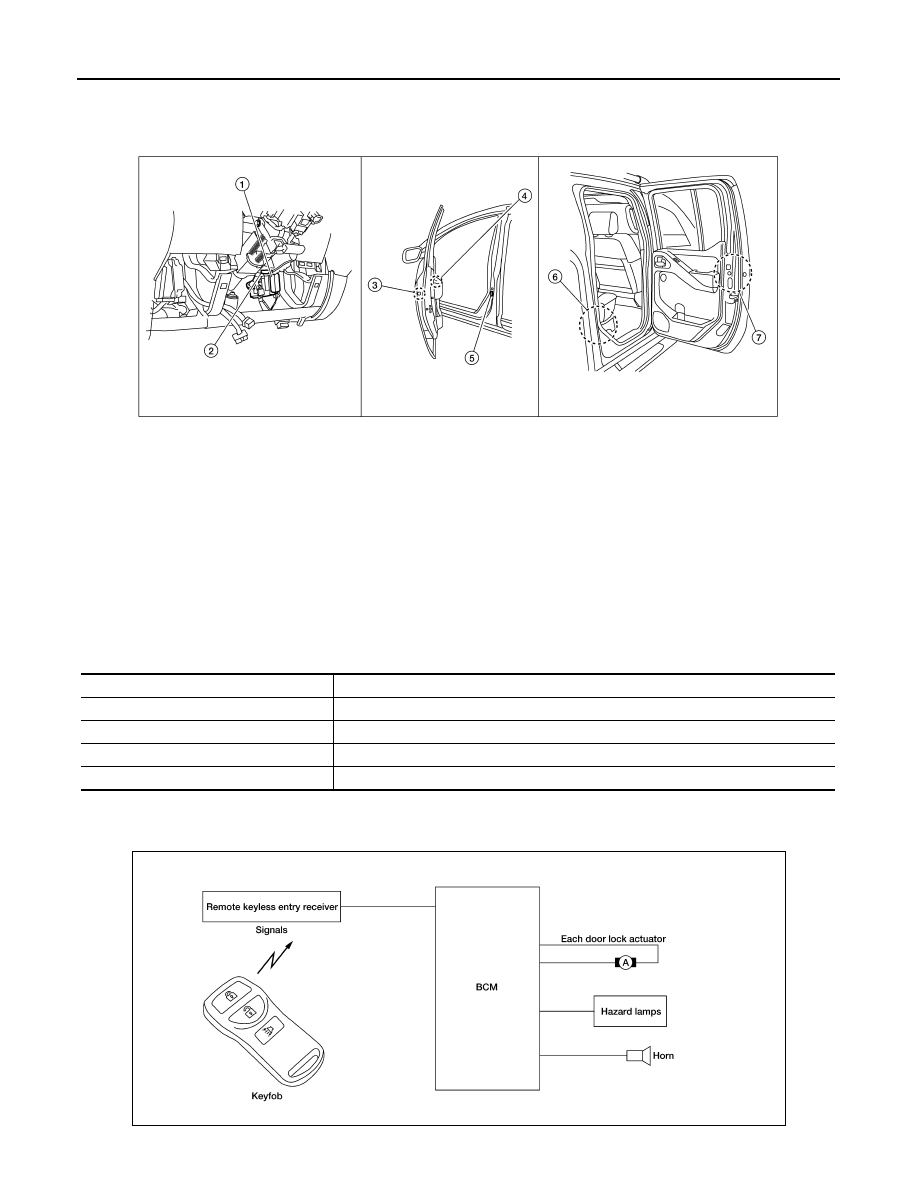

DOOR LOCK AND UNLOCK SWITCH : Component Parts Location - Crew Cab

INFOID:0000000005274484

DOOR LOCK AND UNLOCK SWITCH : Component Description

INFOID:0000000005274485

REMOTE KEYLESS ENTRY

REMOTE KEYLESS ENTRY : System Diagram

INFOID:0000000005274486

ALKIA1384ZZ

1.

BCM M18, M19, M20
(view with lower instrument panel LH re-
moved)

2.

Key switch M27

3.

Front door lock assembly LH (key cyl-
inder switch) D14
Front door lock actuator RH D114

4.

Main power window and door lock/un-
lock switch D7
Power window and door lock/unlock
switch RH D105

5.

Front door switch
LH B8
RH B108

6.

Rear door switch
LH B18
RH B116

7.

Rear door lock actuator
LH D205
RH D305

Item

Function

BCM

Controls the door lock function and room lamp function.

Door lock and unlock switch

Transmits lock or unlock signal to BCM.

Door lock actuator

Receives lock/unlock signal from BCM and locks/unlocks each door.

Door switch

Transmits door open/close condition to BCM.

ALKIA1171GB
