Nissan Frontier D40. Manual - part 178





CHG

GENERATOR

CHG-21

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

Removal and Installation - VQ40DE Models

INFOID:0000000005272453

REMOVAL

1.

Disconnect the negative battery terminal.Refer to

PG-84, "Removal and Installation"

.

2.

Partially drain engine coolant. Refer to

CO-39, "Changing Engine Coolant"

.

3.

Remove engine room cover. Refer to

EM-138, "Removal and Installation"

.

4.

Remove air duct and resonator assembly. Refer to

EM-139, "Exploded View"

.

5.

Remove upper radiator hose.

6.

Disconnect coolant reservoir hose from radiator.

7.

Remove the fan shroud. Refer to

CO-43, "Exploded View"

.

8.

Remove engine cooling fan (Motor driven type). Refer to

CO-47, "Removal and Installation (Motor driven

type)"

.

9.

Remove the drive belt. Refer to

EM-127, "Removal and Installation"

.

10. Remove generator stay, using power tools.

11. Remove the generator upper bolt, using power tools.
12. Disconnect the generator harness connectors.

13. Remove the generator.

INSTALLATION

Installation is in the reverse order of removal.
• Install the generator and check tension of drive belt. Refer to

EM-127, "Adjustment"

.

CAUTION:

Be sure to tighten terminal "1" nut carefully.

• For this model, the power generation voltage variable control system that controls the power generation volt-

age of the generator has been adopted. Therefore, the power generation voltage variable control system

1.

Generator

2.

Engine block

3.

Generator stay

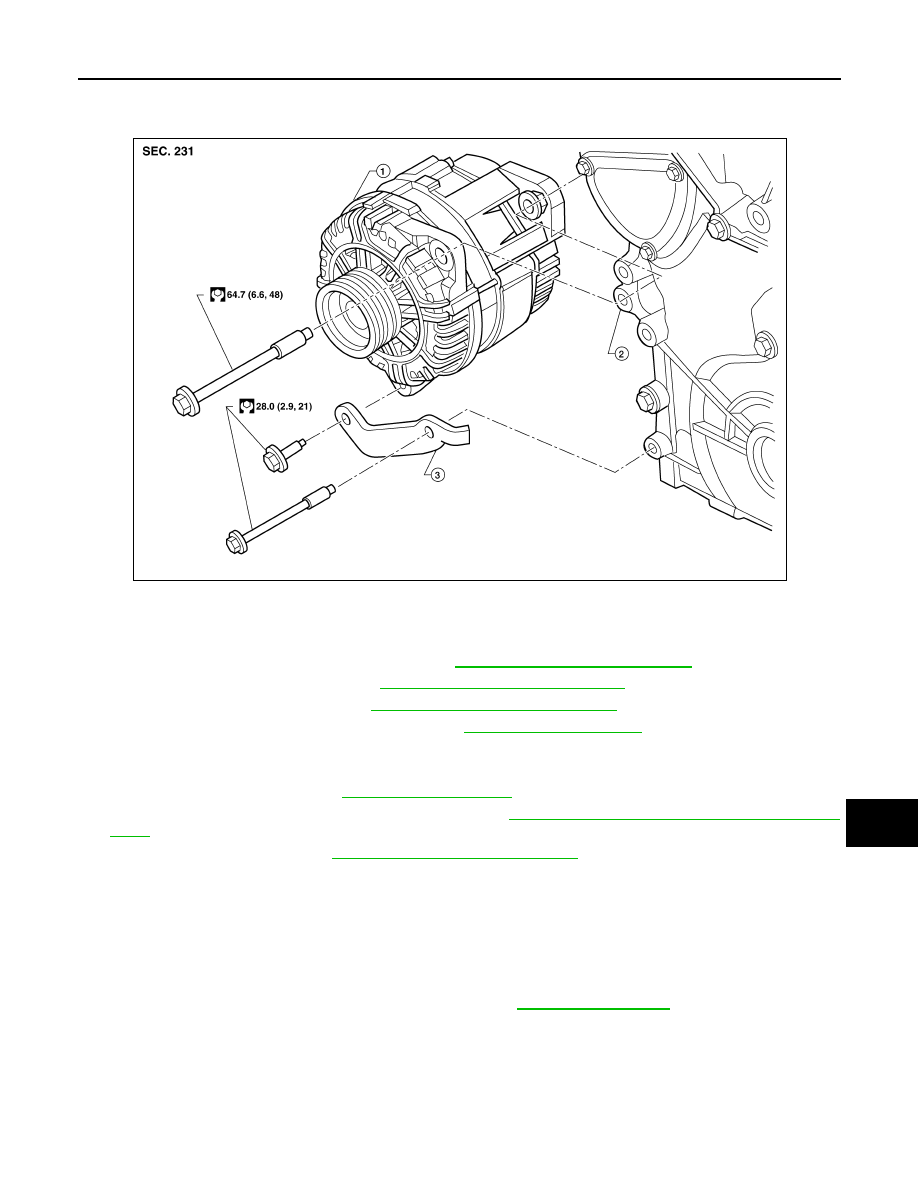

AWMIA1170GB

Terminal "1" nut

: 10.8 N·m (1.1 kg-m, 8 ft-lb)

CHG-22

< ON-VEHICLE REPAIR >

GENERATOR

operation inspection should be performed after replacing the generator, and then make sure that the system
operates normally. Refer to

CHG-8, "Inspection Procedure"

.

CHG

SERVICE DATA AND SPECIFICATIONS (SDS)

CHG-23

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Generator

INFOID:0000000005272454

*: Always check with the Parts Department for the latest parts information

QR25DE

VQ40DE

Type*

LR1110-724C

TG15S147

Hitachi

Valeo

Nominal rating

12V-110A

14V-130A

Ground polarity

Negative

Minimum revolution under no-load

1,100 rpm

1,200 rpm

Hot output current (When 13.5 volts is ap-
plied)

More than 35A/1,300 rpm
More than 70A/1,800 rpm
More than 91A/2,500 rpm

 More than 110A/5,000 rpm

More than 52A/1,500 rpm
More than 82A/1,800 rpm

More than 115A/2,500 rpm

More than 130A/5,000 rpm

Regulated output voltage

14.1 - 14.7V @ 20

°

C (68

°

F)

13.5 @ 5,000 rpm @ 20

°

C (68

°

F)

Adjustment range of power generation vari-
able voltage control

11.4 - 15.6V
