Body Component Parts

INFOID:0000000005274690

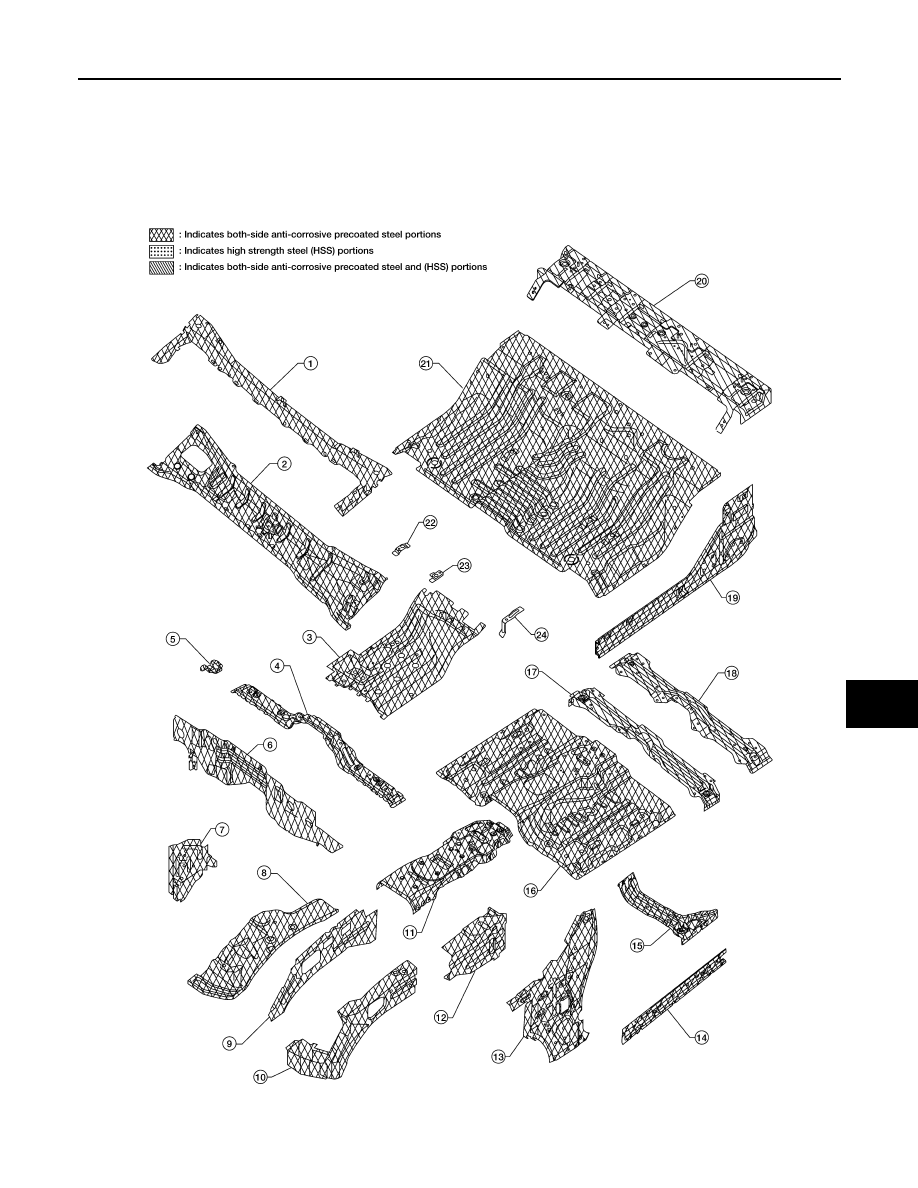

UNDERBODY COMPONENT PARTS

LIIA2026E

BRM-12

< ON-VEHICLE REPAIR >

BODY COMPONENT PARTS

1.

Upper dash crossmember

2.

Upper dash

3.

Rear floor reinforcement

4.

Front seat crossmember

5.

2nd crossmember extension

6.

Lower dash

7.

Battery tray

8.

Hoodledge lower panel (RH&LH)

9.

Hoodledge inner panel (RH&LH)

10. Hoodledge reinforcement (RH&LH)

11. Front floor reinforcement

12. Hoodledge rear reinforcement (RH&LH)
13. Side dash (RH&LH)

14. Inner sill (RH&LH)

15. 2nd crossmember (RH&LH)
16. Front floor

17. Front seat crossmember

18. Center pillar crossmember
19. Inner sill extension (RH&LH)

20. Cross-cab brace

21. Rear floor
22. Woofer bracket

23. Storage box bracket

24. Accessory storage box bracket

BODY COMPONENT PARTS

BODY COMPONENT PARTS

BRM-13

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

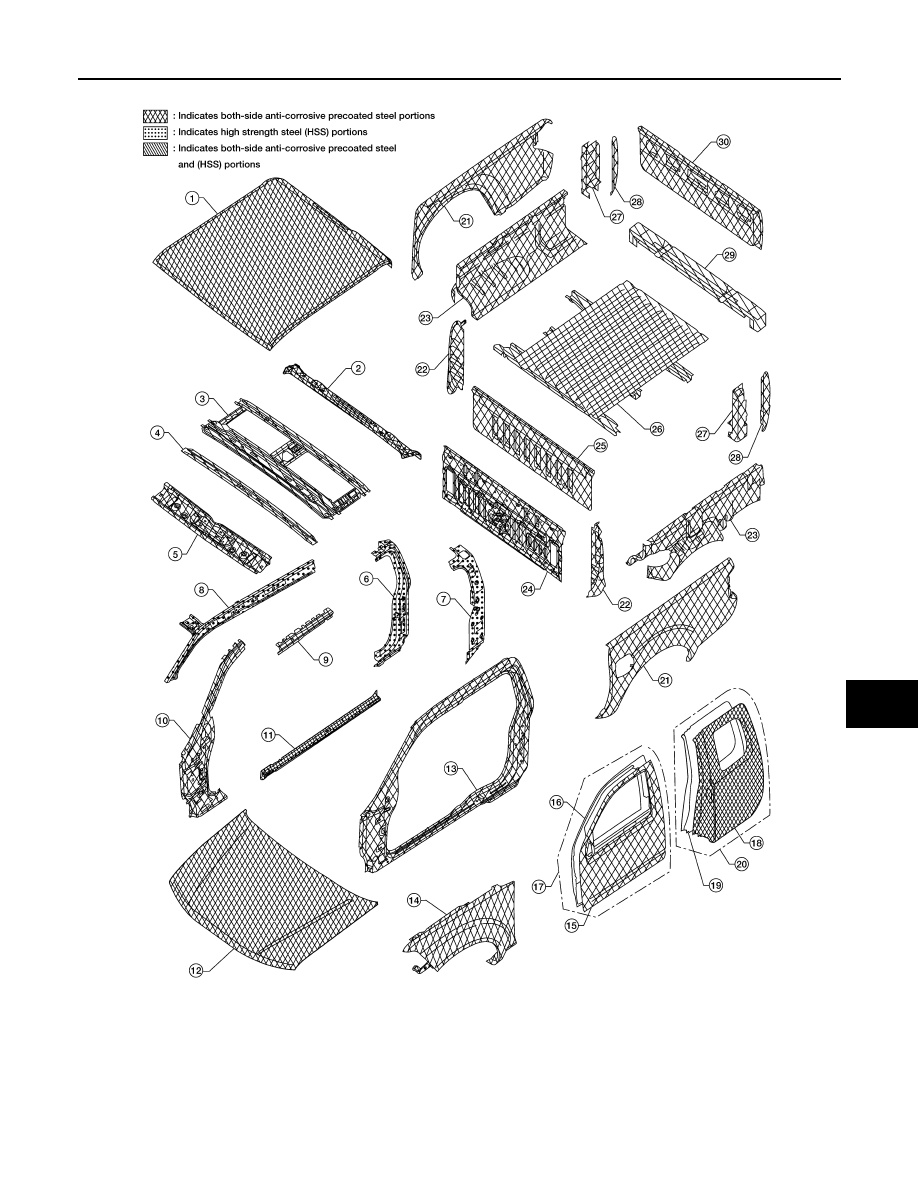

King Cab

1.

Roof

2.

Rear roof rail

3.

Roof bow No. 2

4.

Roof bow No. 1

5.

Front roof rail (RH&LH)

6.

Lock pillar reinforcement (RH&LH)

LIIA2027E

BRM-14

< ON-VEHICLE REPAIR >

BODY COMPONENT PARTS

7.

Lock pillar inner (RH&LH)

8.

Front pillar inner, upper (RH&LH)

9.

Roof side rail (RH&LH)

10. Front pillar reinforcement (RH&LH)

11. Inner sill (RH&LH)
12. Hood

13. Body side panel (RH&LH)

14. Front fender (RH&LH)

15. Front door outer (RH&LH)
16. Front door inner (RH&LH)

17. Front door assembly (RH&LH)

18. Rear door (RH&LH)
19. Rear door inner (RH&LH)

20. Rear door assembly (RH&LH)

21. Bed side outer (RH&LH)
22. Front outer strut (RH&LH)

23. Bed side inner (RH&LH)

24. Rear panel
25. Bed front panel

26. Floor board assembly

27. Rear strut inner (RH&LH)
28. Rear strut outer (RH&LH)

29. Rear floor bolster assembly

30. Rear gate
