Nissan Frontier D40. Manual - part 125

BRC-198

< FUNCTION DIAGNOSIS >

[TYPE 3]

TCS

Component Parts Location

INFOID:0000000005549776

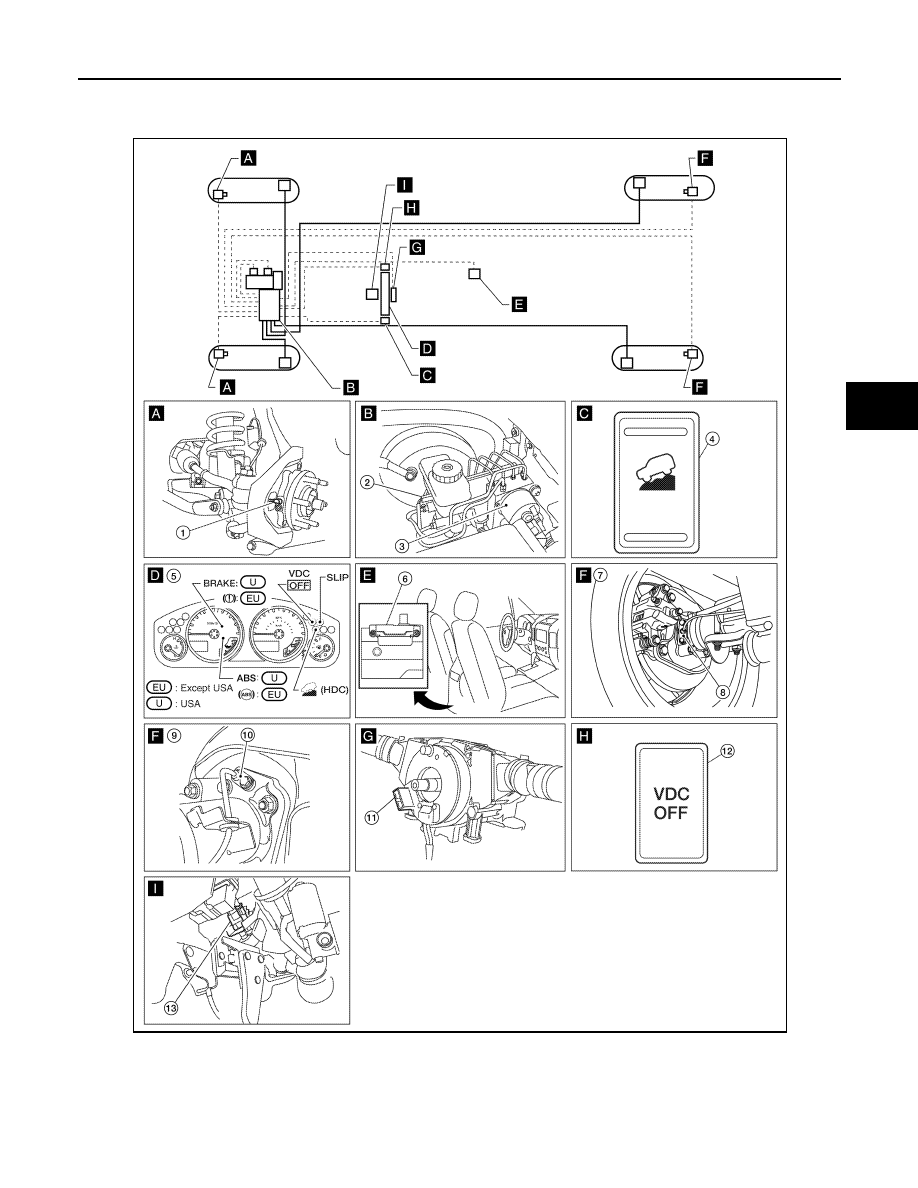

AWFIA0588GB

1.

Front wheel sensor LH E18
Front wheel sensor RH E117

2.

Brake fluid level switch E21

3.

ABS actuator and electric unit (control unit)
E127

4.

Hill descent control switch M155 5.

Combination meter M24

6.

Yaw rate/side/decel G sensor B73

7.

C200 rear axle

8.

Rear wheel sensor LH C11
Rear wheel sensor RH C10

9.

M226 rear axle

TCS

BRC-199

< FUNCTION DIAGNOSIS >

[TYPE 3]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

Component Description

INFOID:0000000005549777

10. Rear wheel sensor LH C11

Rear wheel sensor RH C10

11.

Steering angle sensor (behind spiral ca-
ble) M47
(Steering wheel removed for clarity)

12. VDC OFF switch M154

13. Stop lamp switch E39

Component parts

Reference

ABS actuator and electric unit (control unit)

Pump

BRC-227, "Description"

Motor

Actuator relay

BRC-244, "Description"

Solenoid valve

BRC-236, "Description"

VDC switch-over valve
(CV1, CV2, SV1, SV2)

BRC-255, "Description"

Wheel sensor

BRC-231, "Description"

Yaw rate/side/decel G sensor

BRC-229, "Description"

Brake fluid level switch

BRC-246, "Description"

Steering angle sensor

BRC-246, "Description"

Stop lamp switch

BRC-234, "Description"

VDC OFF switch

BRC-262, "Description"

Hill descent control switch

BRC-260, "Description"

ABS warning lamp

BRC-264, "Description"

Brake warning lamp

BRC-265, "Description"

VDC OFF indicator lamp

BRC-266, "Description"

SLIP indicator lamp

BRC-268, "Description"

Hill descent control indicator lamp

BRC-269, "Description"

BRC-200

< FUNCTION DIAGNOSIS >

[TYPE 3]

ABS

ABS

System Diagram

INFOID:0000000005275237

System Description

INFOID:0000000005275238

• Anti-Lock Braking System is a function that detects wheel revolution while braking, electronically controls

braking force, and prevents wheel locking during sudden braking. It improves handling stability and maneu-
verability for avoiding obstacles.

• Electrical system diagnosis by CONSULT-III is available.

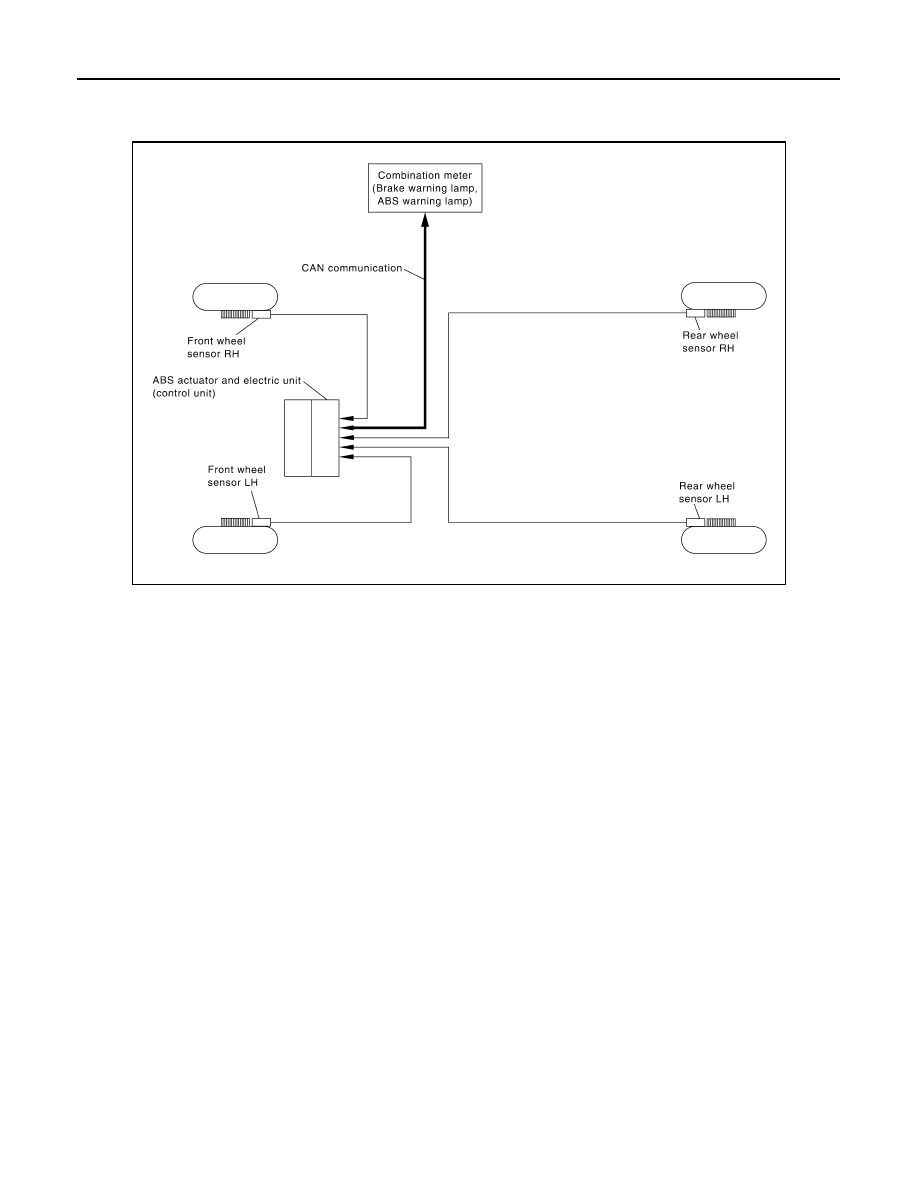

AWFIA0014GB

ABS

BRC-201

< FUNCTION DIAGNOSIS >

[TYPE 3]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

Component Parts Location

INFOID:0000000005549778

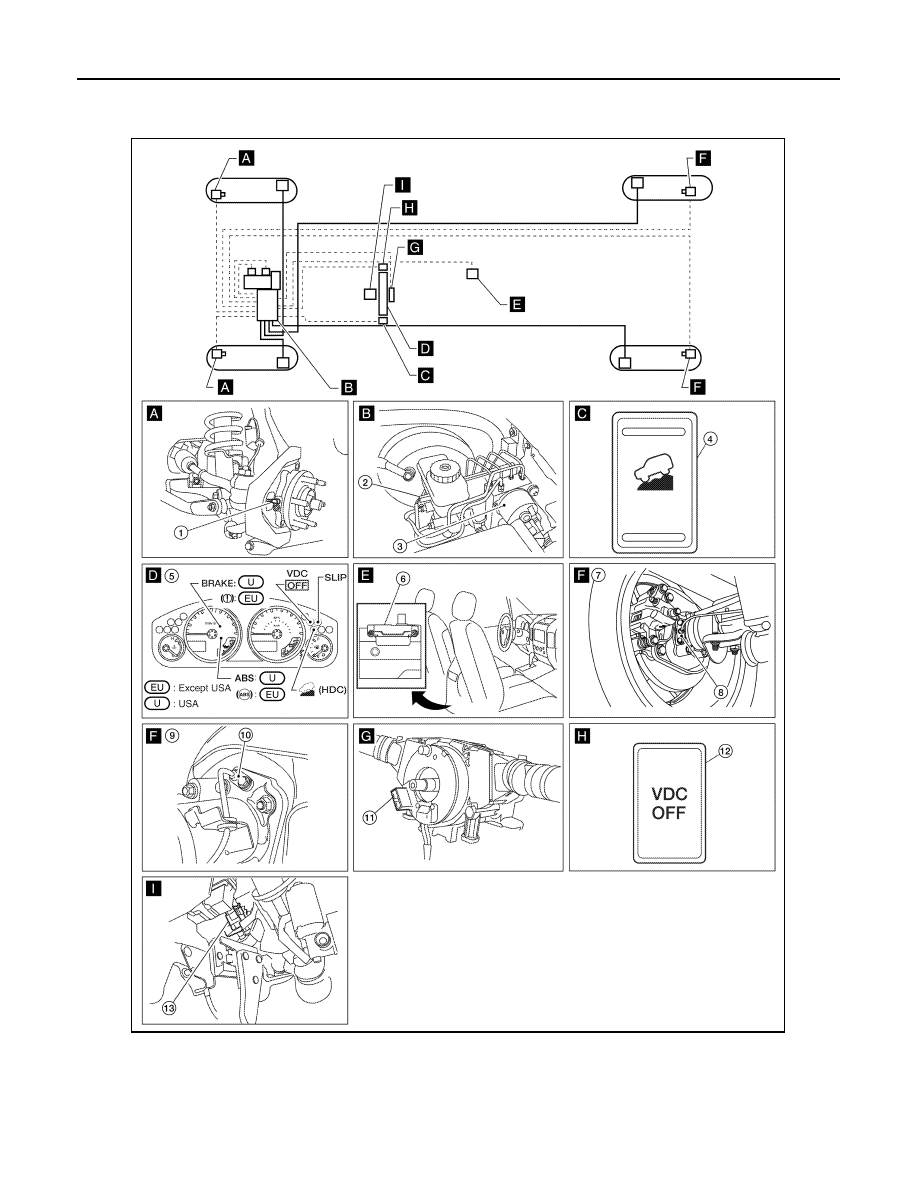

AWFIA0588GB

1.

Front wheel sensor LH E18
Front wheel sensor RH E117

2.

Brake  fluid level switch  E21

3.

ABS actuator and electric unit (control unit)
E127

4.

Hill descent control switch M155 5.

Combination meter M24

6.

Yaw rate/side/decel G sensor B73

7.

C200 rear axle

8.

Rear wheel sensor LH C11
Rear wheel sensor RH C10

9.

M226 rear axle
