STEERING ANGLE SENSOR

STEERING ANGLE SENSOR

Removal and Installation

INFOID:0000000005548383

REMOVAL

1.

Remove the spiral cable. Refer to

SR-6, "Removal and Installation"

.

2.

Remove the screws and remove the steering angle sensor from the spiral cable.

INSTALLATION

Installation is in the reverse order of removal.
• Reset the neutral position of the steering angle sensor. Refer to

BRC-78, "ADJUSTMENT OF STEERING

ANGLE SENSOR NEUTRAL POSITION : Special Repair Requirement"

.

CAUTION:

Any time the steering angle sensor is removed and installed or replaced, you must reset the neutral
position of the steering angle sensor. Refer to

BRC-78, "ADJUSTMENT OF STEERING ANGLE SEN-

SOR NEUTRAL POSITION : Special Repair Requirement"

.

G SENSOR

BRC-183

< REMOVAL AND INSTALLATION >

[TYPE 2]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

G SENSOR

Removal and Installation

INFOID:0000000005548384

REMOVAL

1.

Remove center console rear base. Refer to

IP-10, "Exploded View"

.

2.

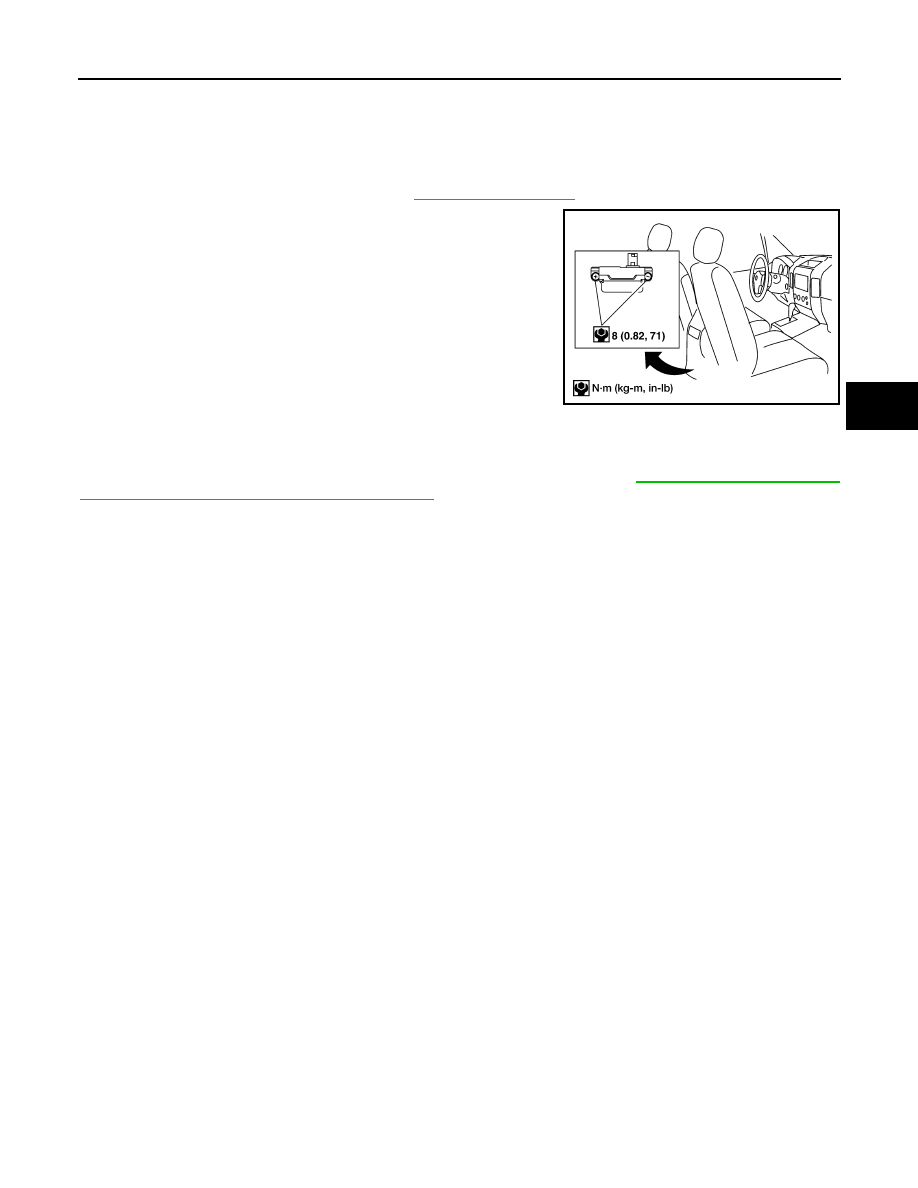

Remove yaw rate/side/decel G sensor attaching nuts as shown.
• The location of the sensor is the same for all models.

CAUTION:

• Do not use power tools to remove or install yaw rate/side/

decel G sensor.

• Do not drop or strike the yaw rate/side/decel G sensor.

3.

Disconnect harness connector and remove the yaw rate/side/
decel G sensor.

INSTALLATION

Installation is in the reverse order of removal.
NOTE:
After performing the above work, calibrate the yaw decel G sensor. Refer to

BRC-79, "CALIBRATION OF

DECEL G SENSOR : Special Repair Requirement"

.

WFIA0230E
