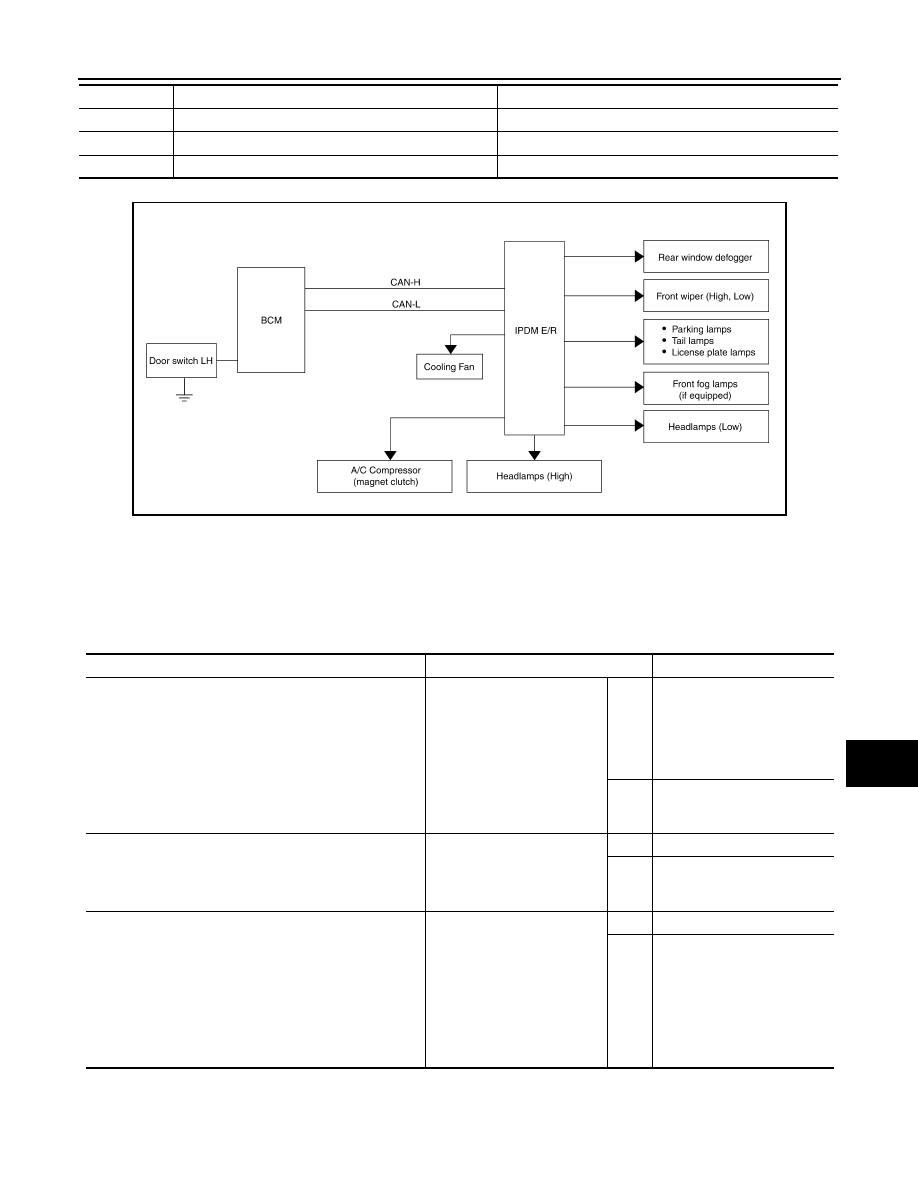

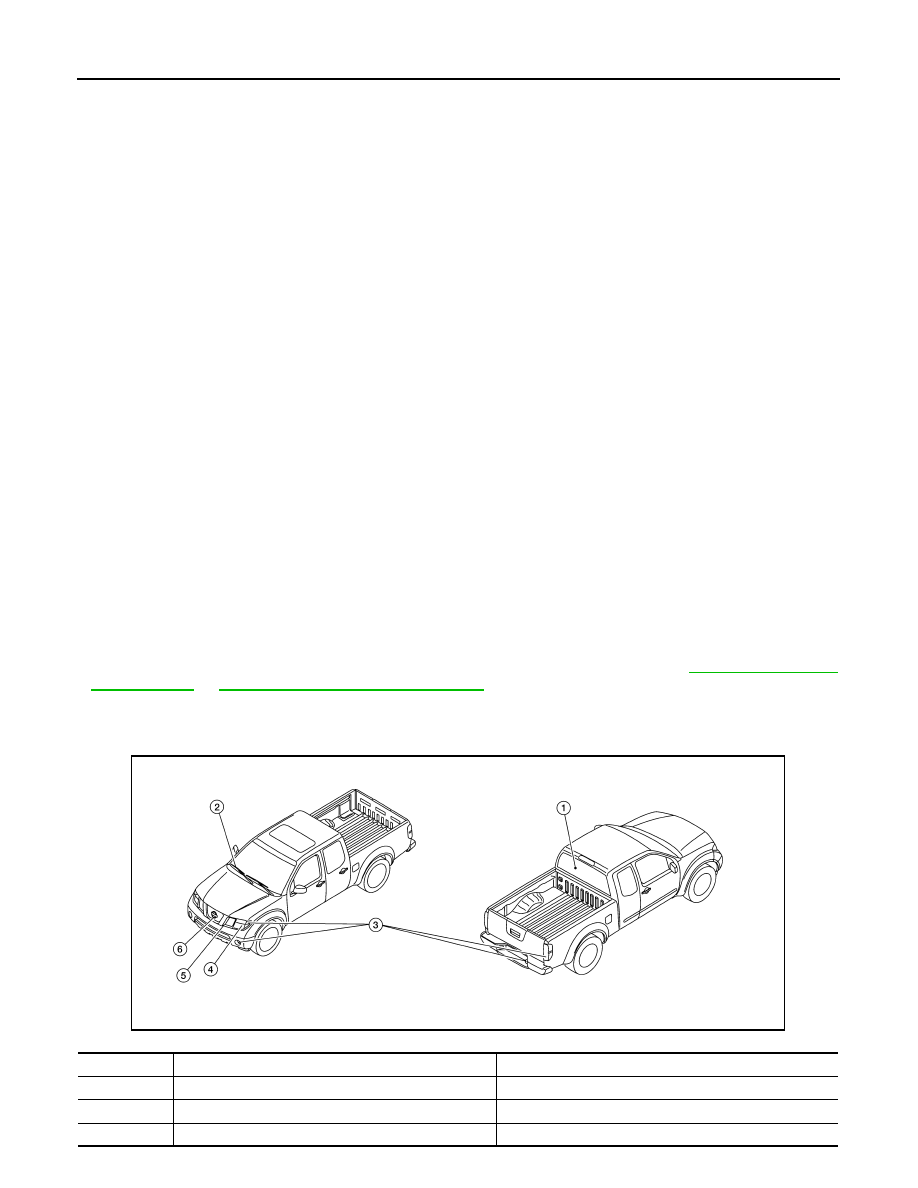

DIAGNOSIS SYSTEM (BCM) WW-9 < FUNCTION DIAGNOSIS > C D E F G H I J K M A B WW N O P *: Factory setting DATA MONITOR ACTIVE TEST Work Item Setting Item Description WIPER SPEED ON With vehicle speed OFF* Without vehicle speed Monitor Item [Unit] Description IGN ON SW [ON/OFF] Ignition switch ON status judged from ignition power supply IGN SW CAN [ON/OFF] Ignition switch ON status received from IPDM E/R with CAN communication FR WIPER HI [ON/OFF] Each switch status that BCM judges from the combination switch reading function FR WIPER LOW [ON/OFF] FR WIPER INT [ON/OFF] FR WASHER SW [ON/OFF] INT VOLUME [1 - 7] Each switch status that BCM judges from the combination switch reading function FR WIPER STOP [ON/OFF] Front wiper motor (stop position) status received from IPDM E/R with CAN communica- VEHICLE SPEED [km/h] The value of the vehicle speed signal received from combination meter with CAN com- Test Item Operation Description FR WIPER HI Transmits the front wiper request signal (HI) to IPDM E/R with CAN communication to op- LO Transmits the front wiper request signal (LO) to IPDM E/R with CAN communication to INT Transmits the front wiper request signal (INT) to IPDM E/R with CAN communication to OFF Stops transmitting the front wiper request signal to stop the front wiper operation. |
